50 liter i Syrafast 316
97,000.00 SEK/st exkl moms
Mer information
Volym i liter | 50 |
---|---|
Nytillverkad/Begagnad | Nytillverkad |
Livsmedelsklassad | Ja |
Modell | Vertikal |
Material | Syrafast 316 |
Omrörare | Nej |
Uppvärmning/kylning | Ja |
Isolerad | Ja |

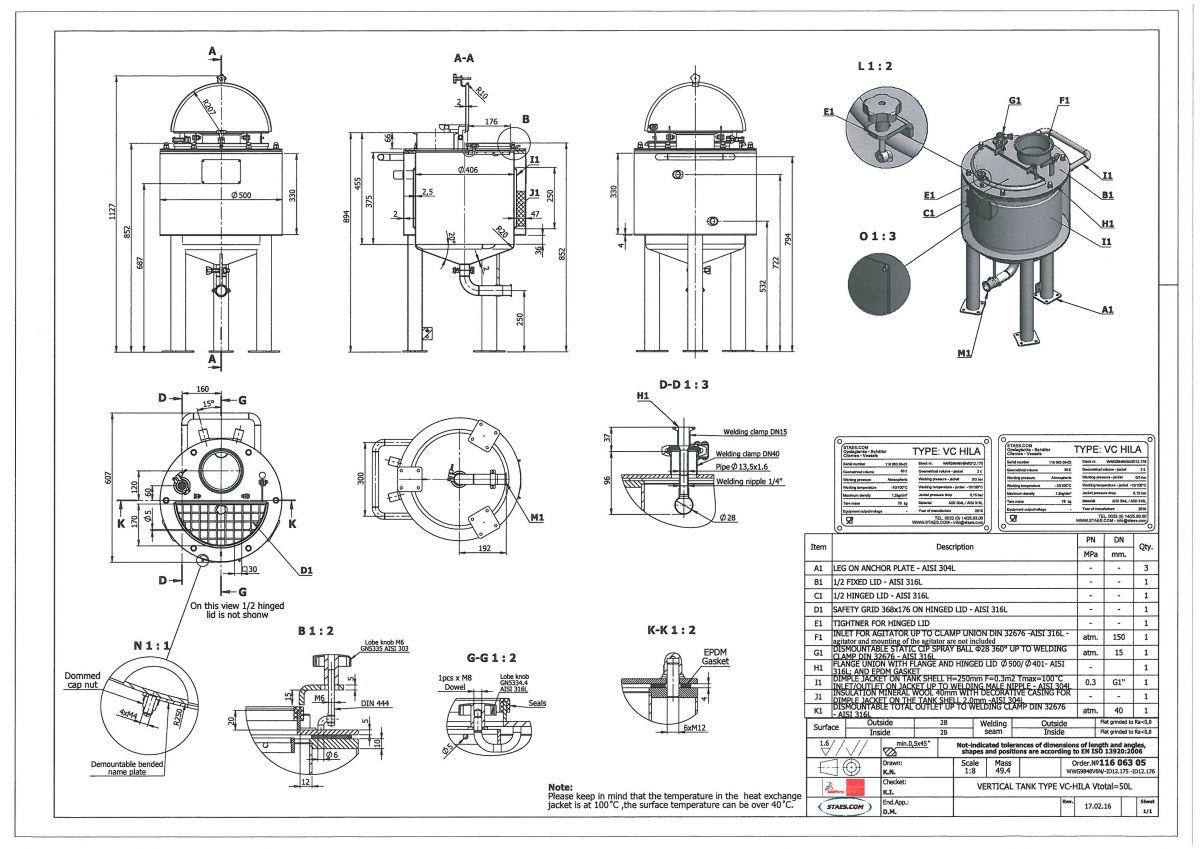

Ritning
Öppnaitem available on order

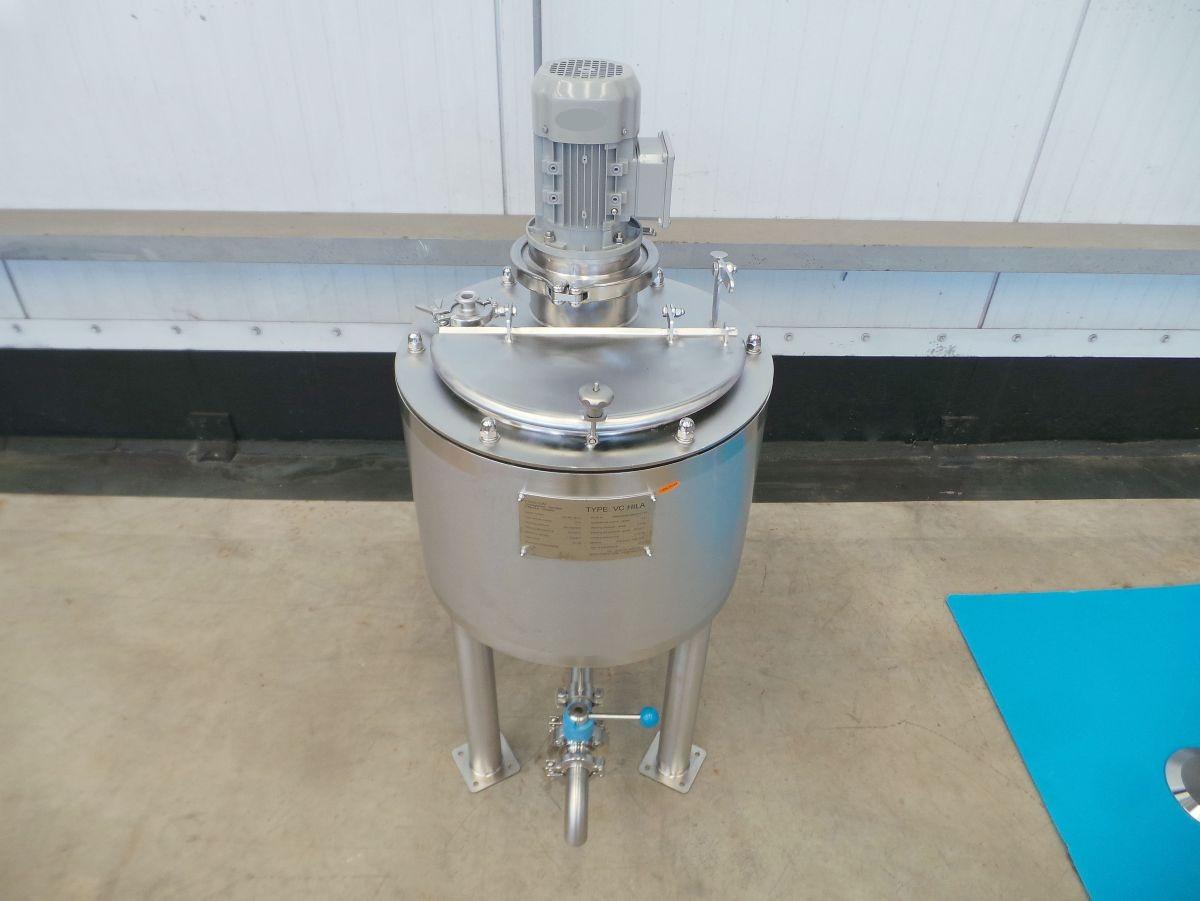

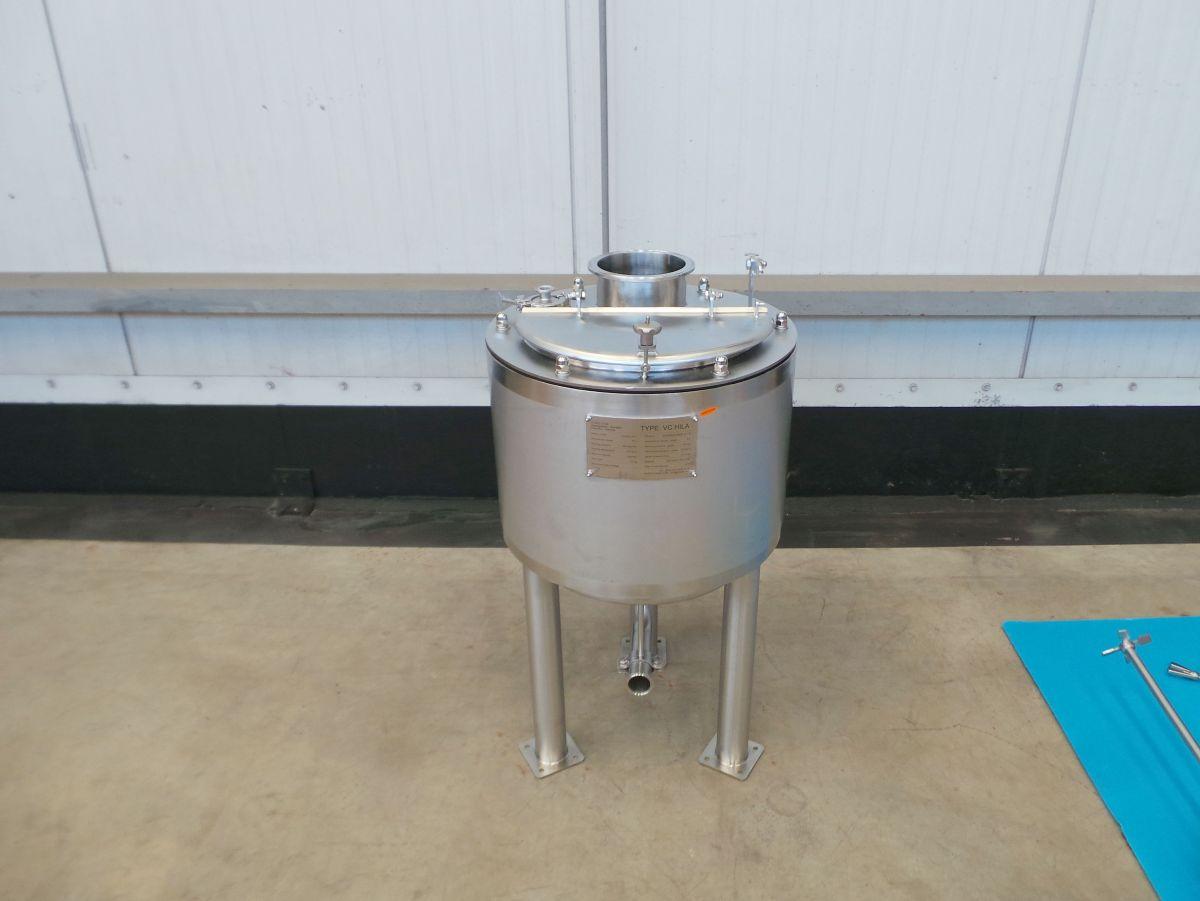

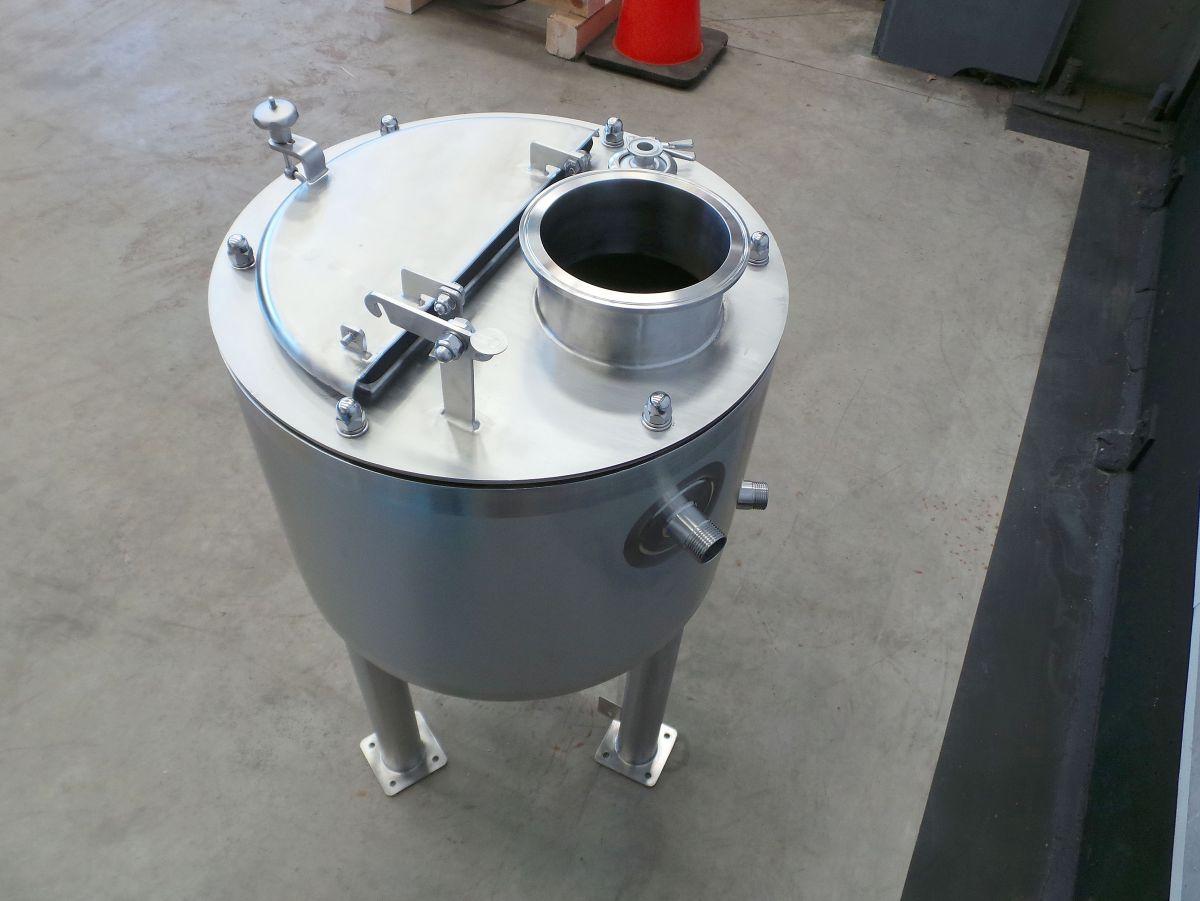

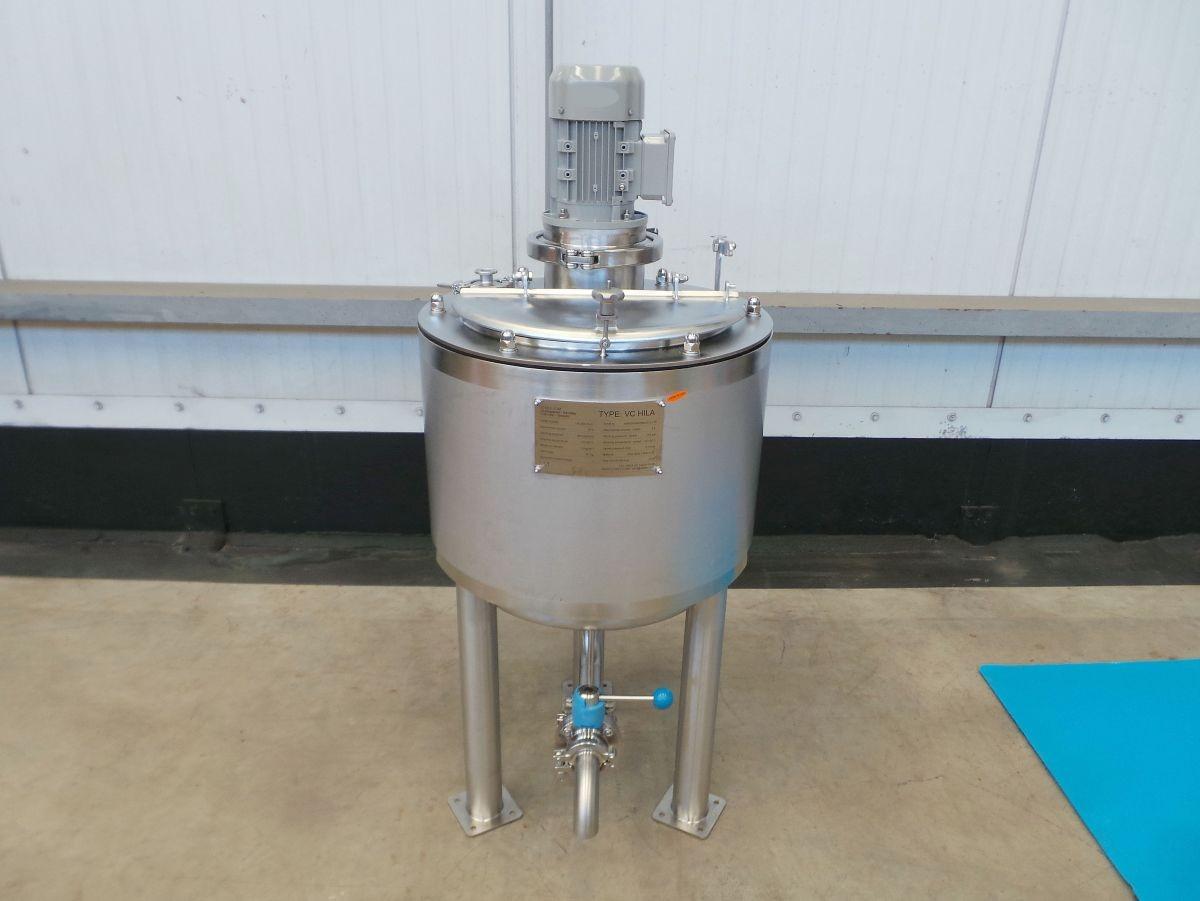

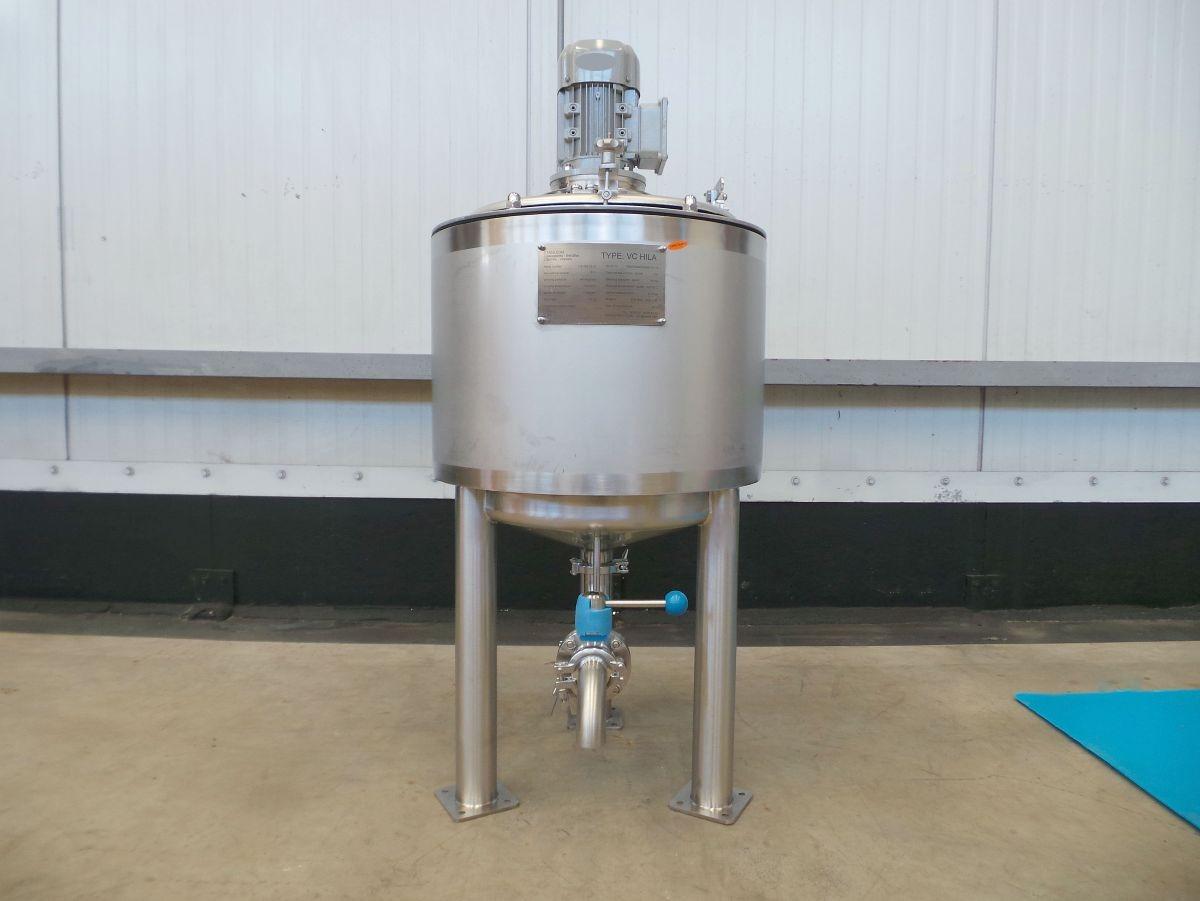

Article type: brand new mixing tank – type VC-HILA

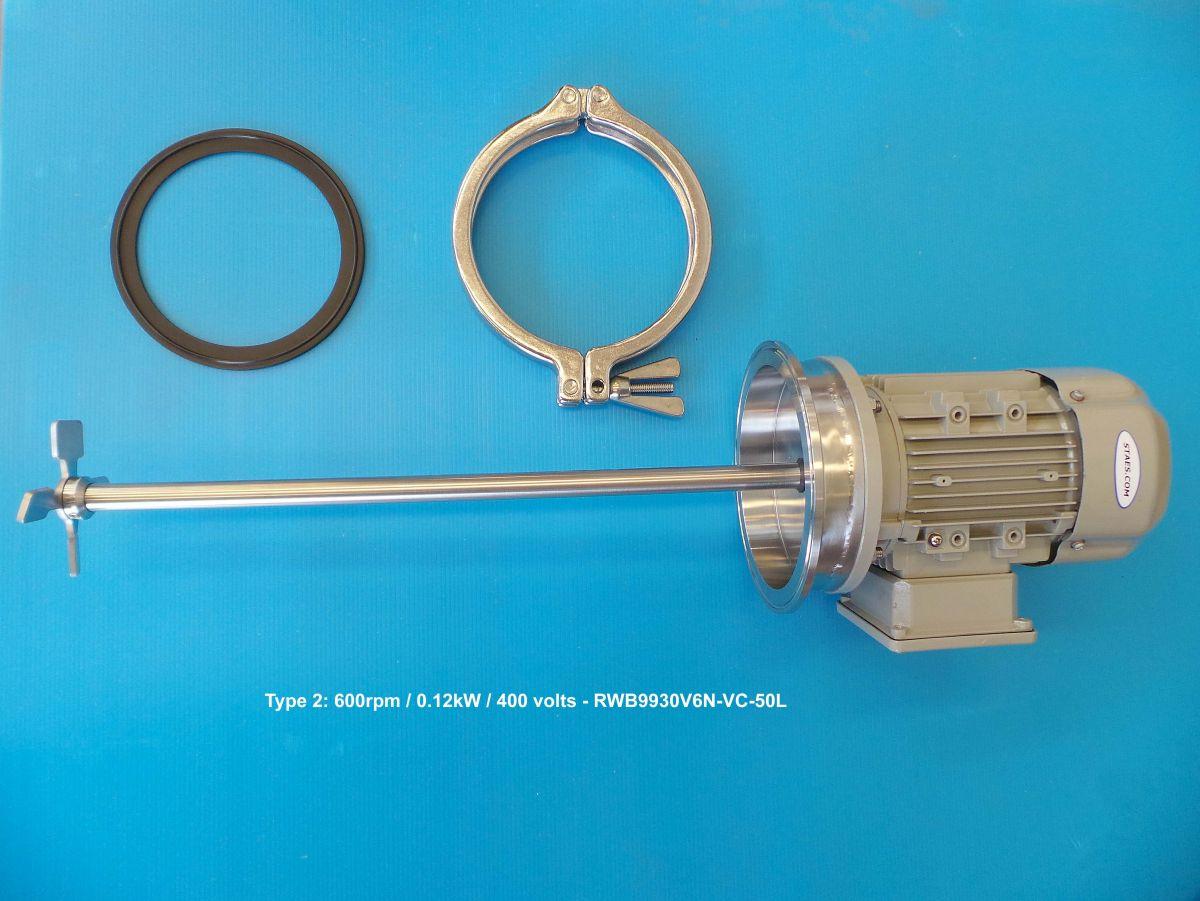

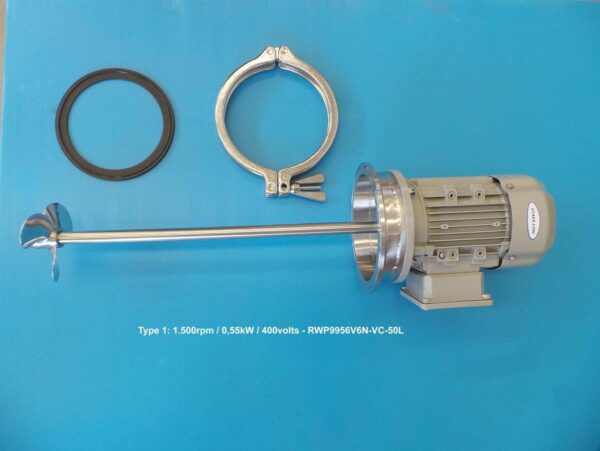

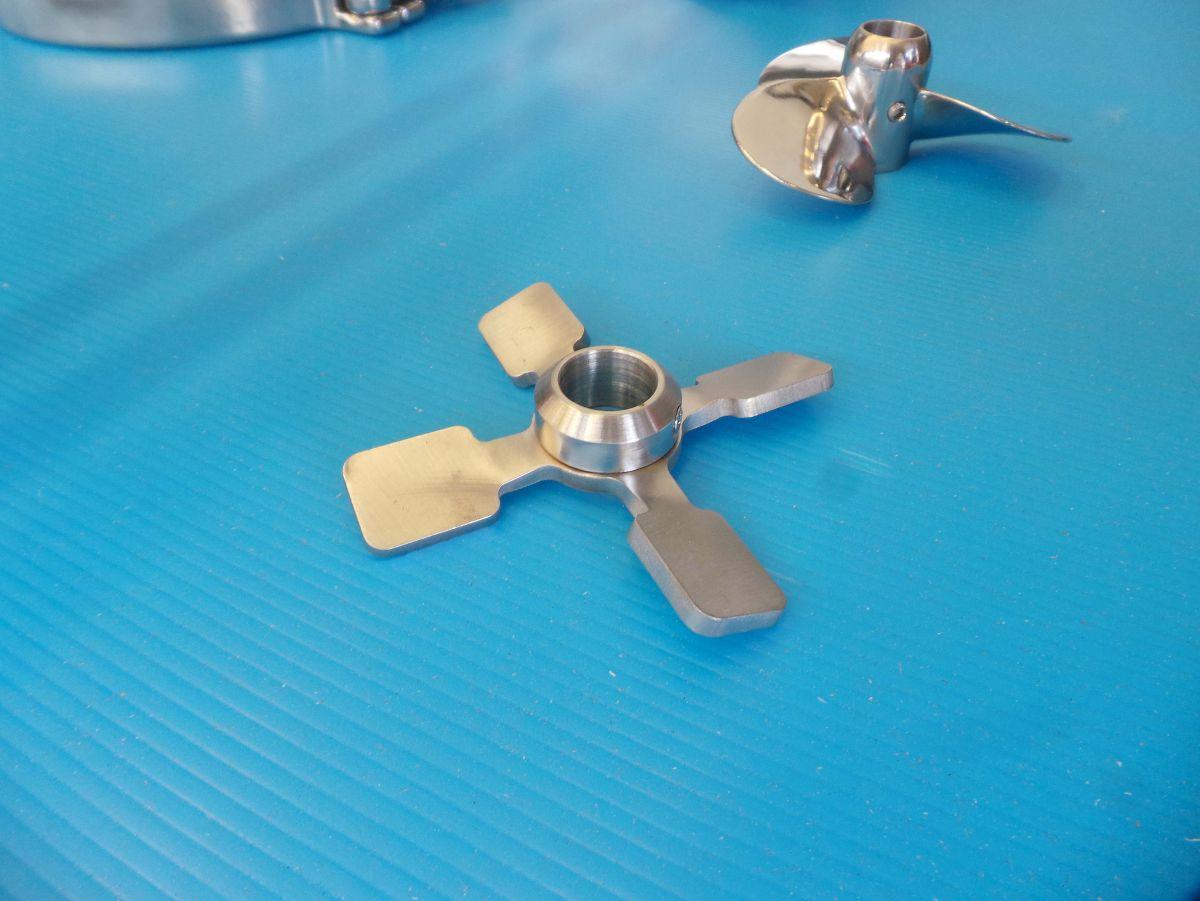

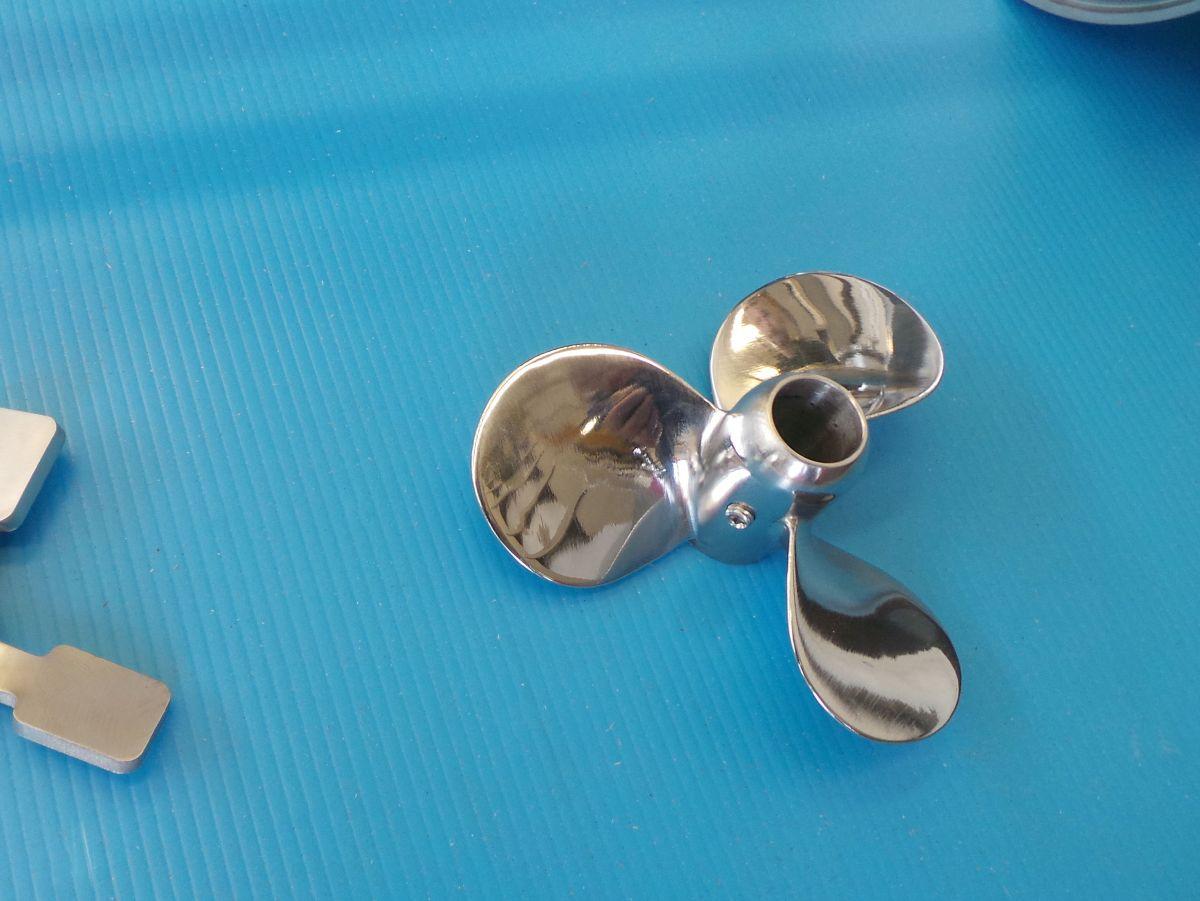

Additional information: delivered with food certificate; article price without agitator; choice of 3 different types of agitators; see options; (The article can also be purchased without options); Ra=<0.8µm
Capacity: 50 L
Maximal density of the product: 1.200
Ra inner weld: 0,80
Finish stainless steel: 2b
Working pressure in tank: ATM – atmosferic
Max. working temperature: 100 °C
Min. working temperature: -10 °C
Material wet parts: SS AISI 316L (V4A)
Model: vertical
Configuration: insulated with heat-exchanger
Heat exchanger: yes
Insulation: yes

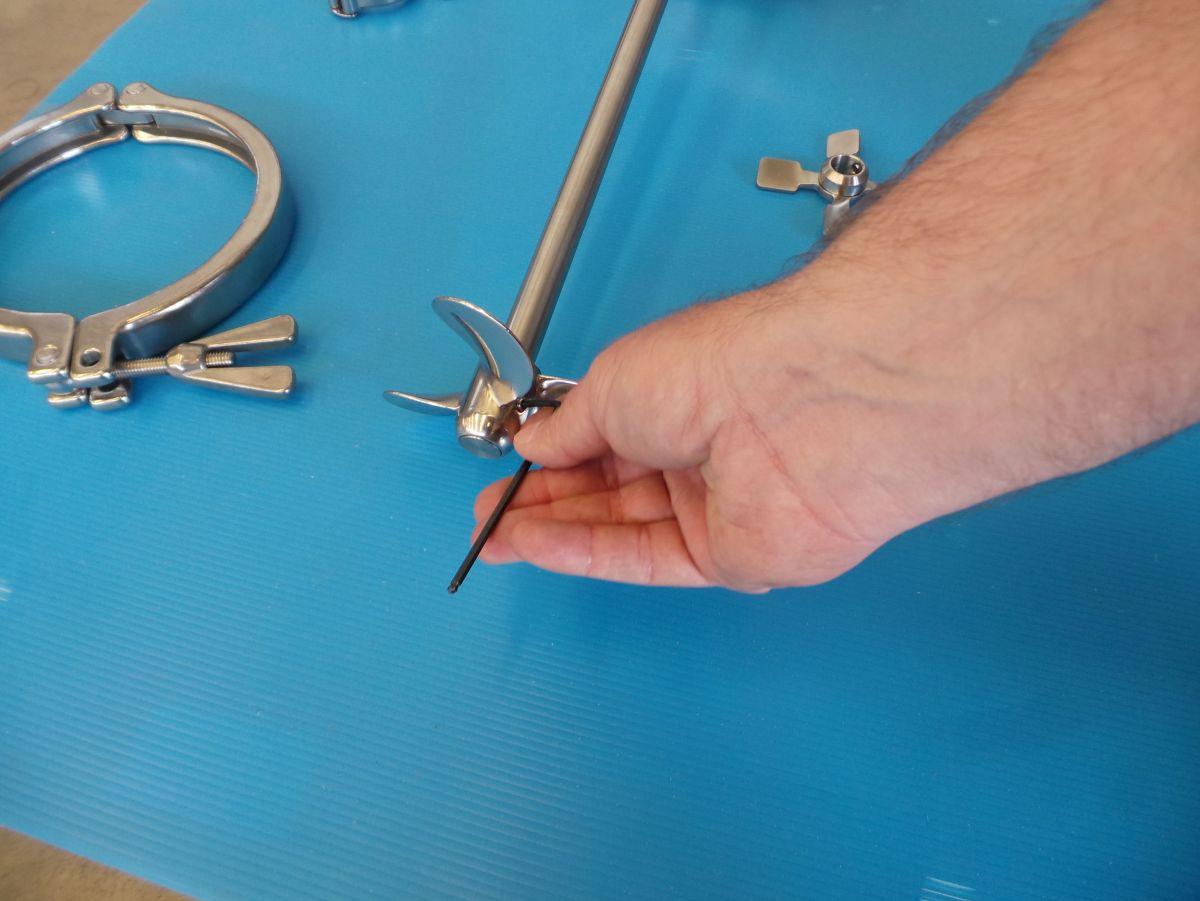

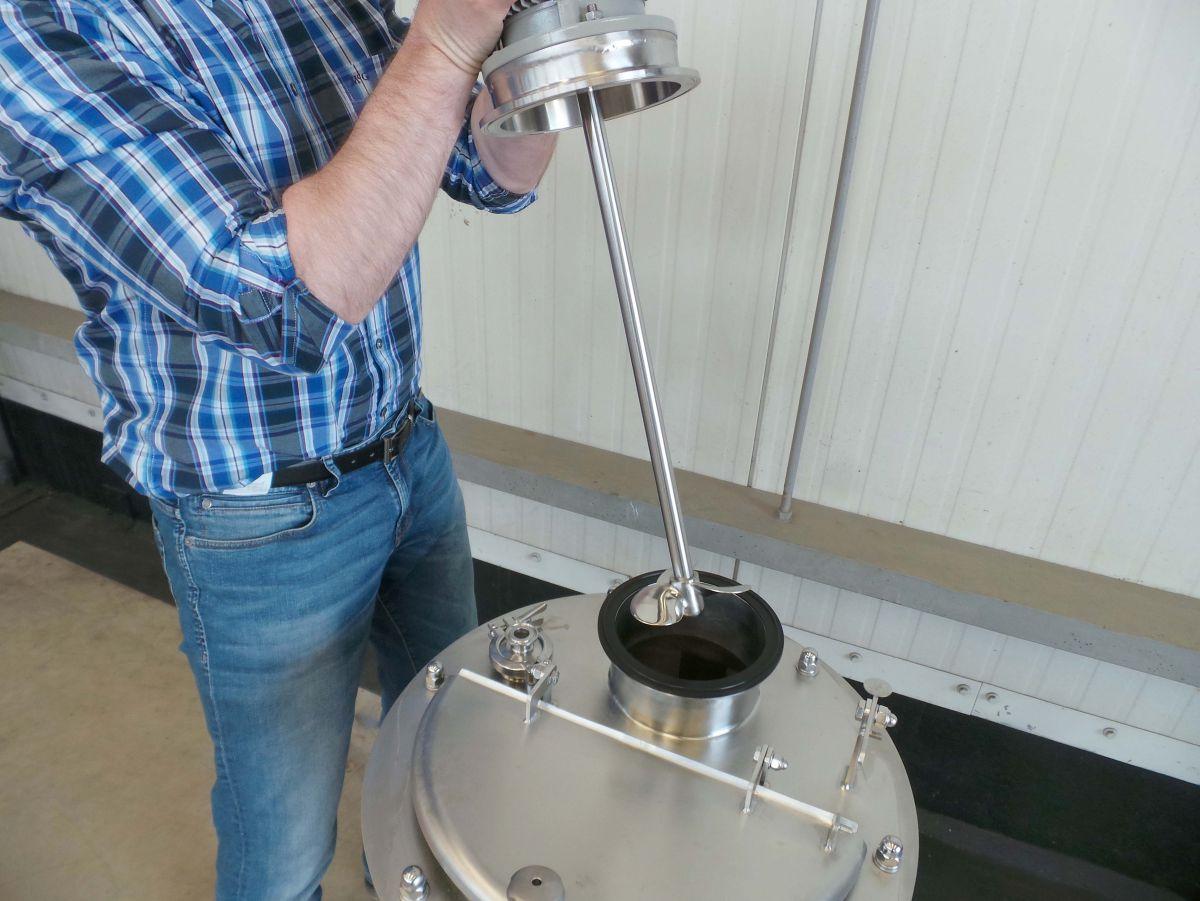

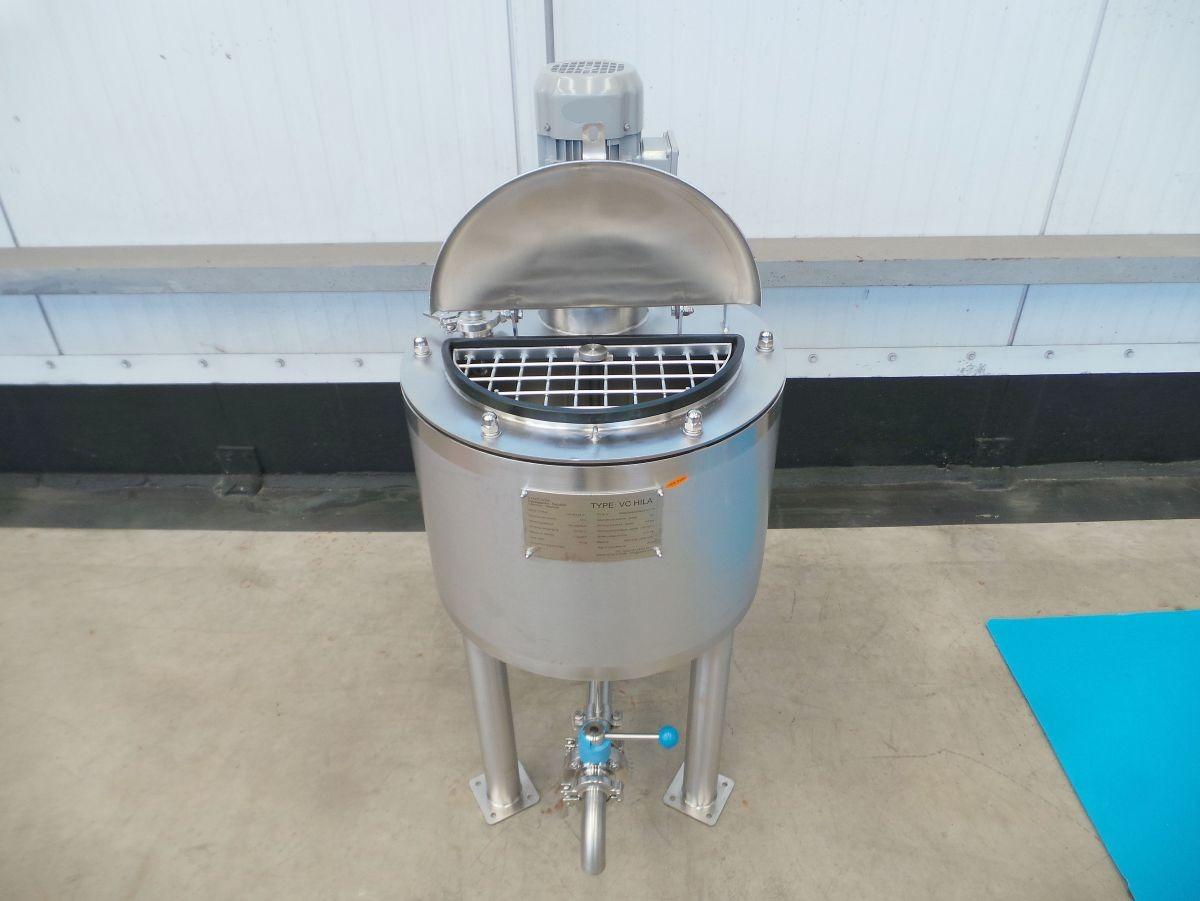

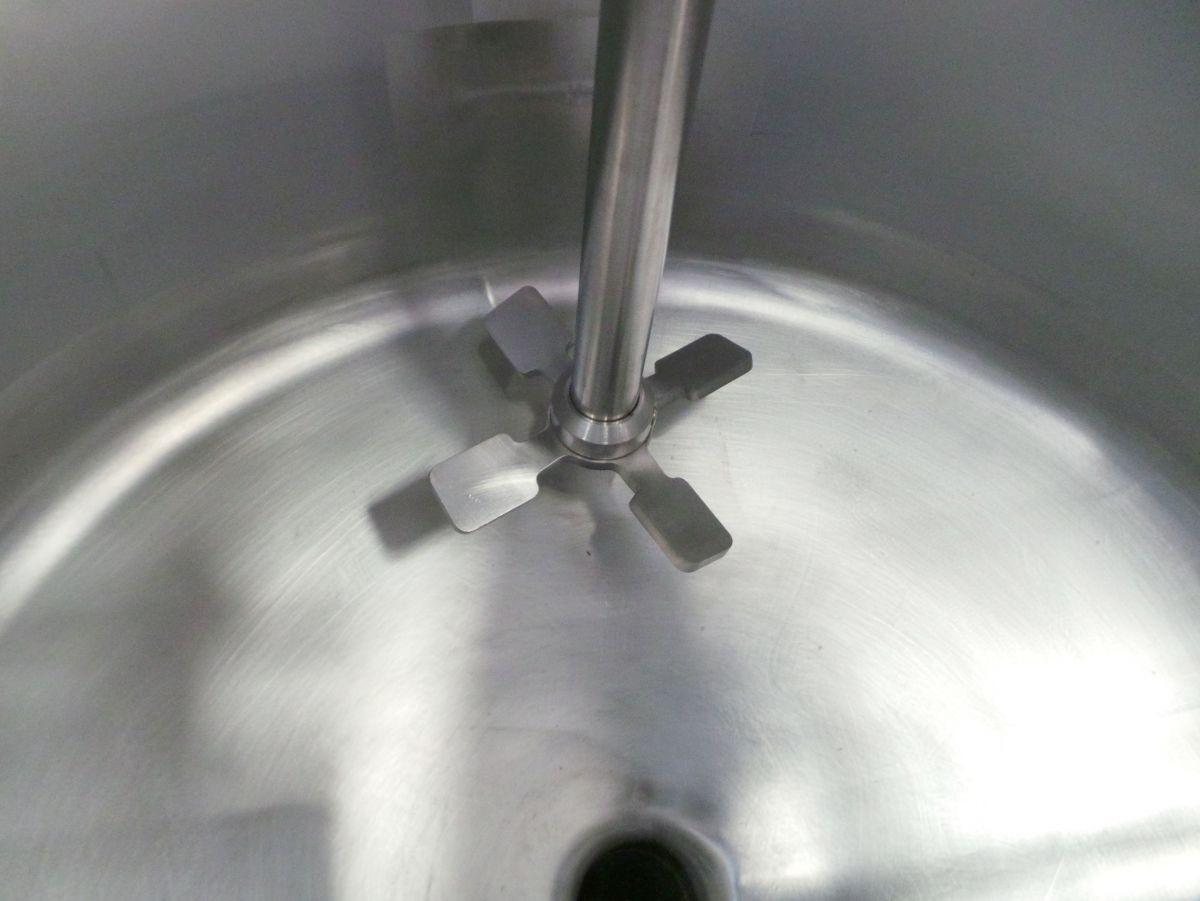

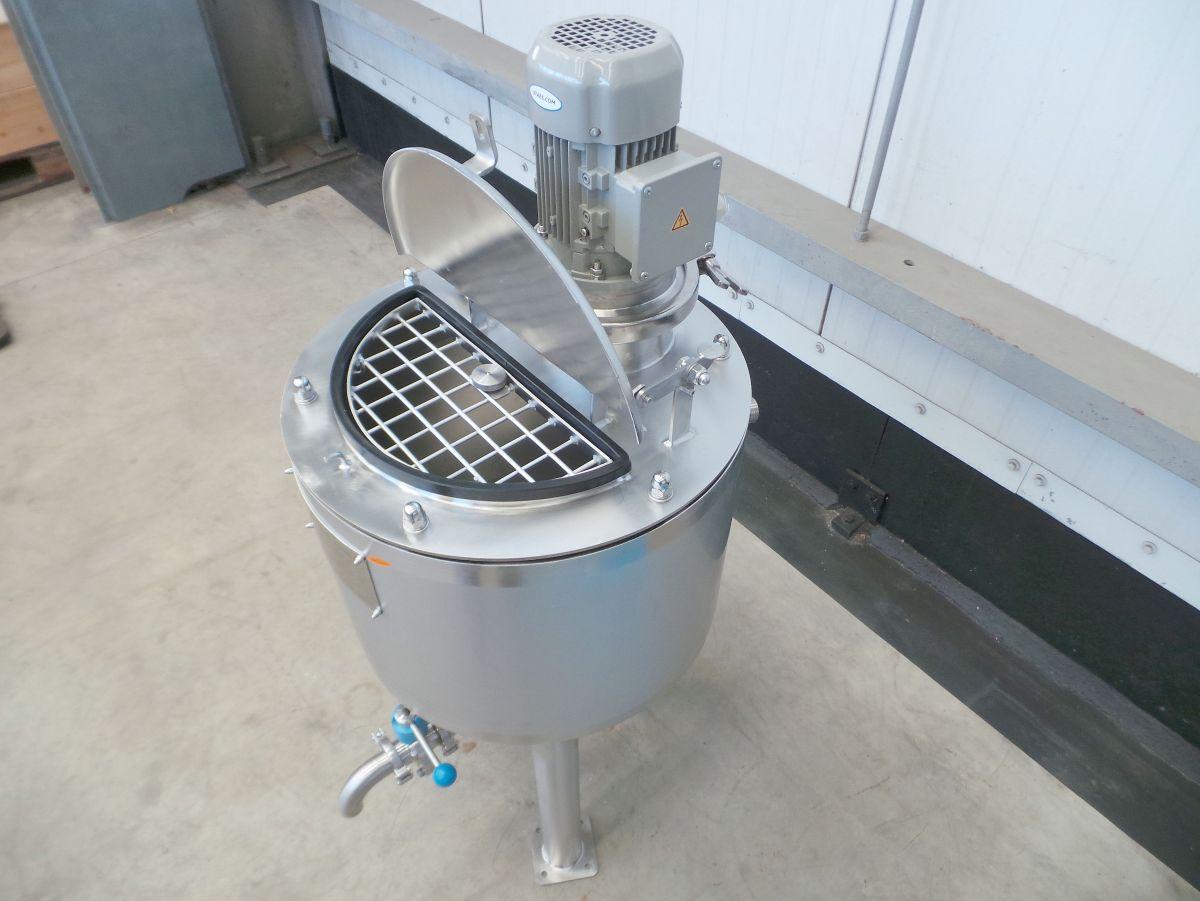

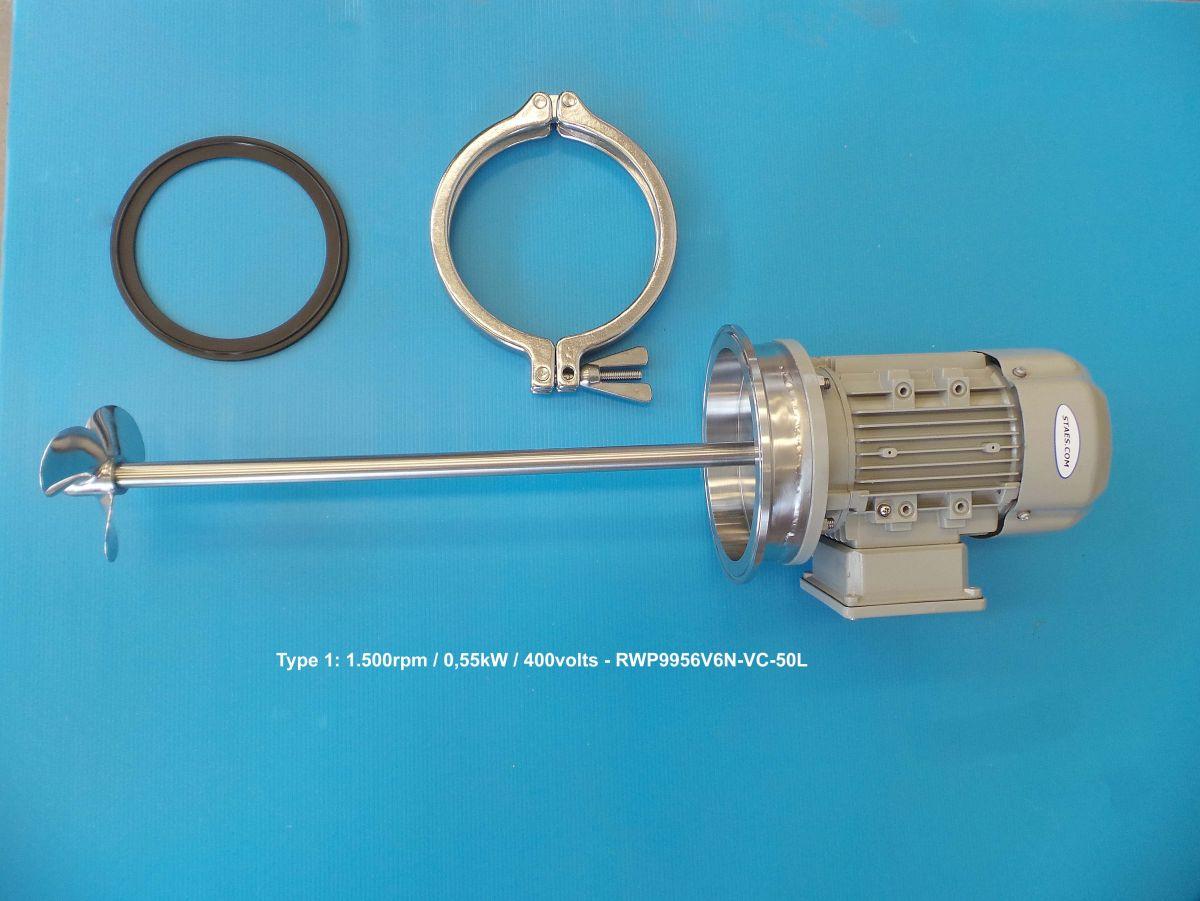

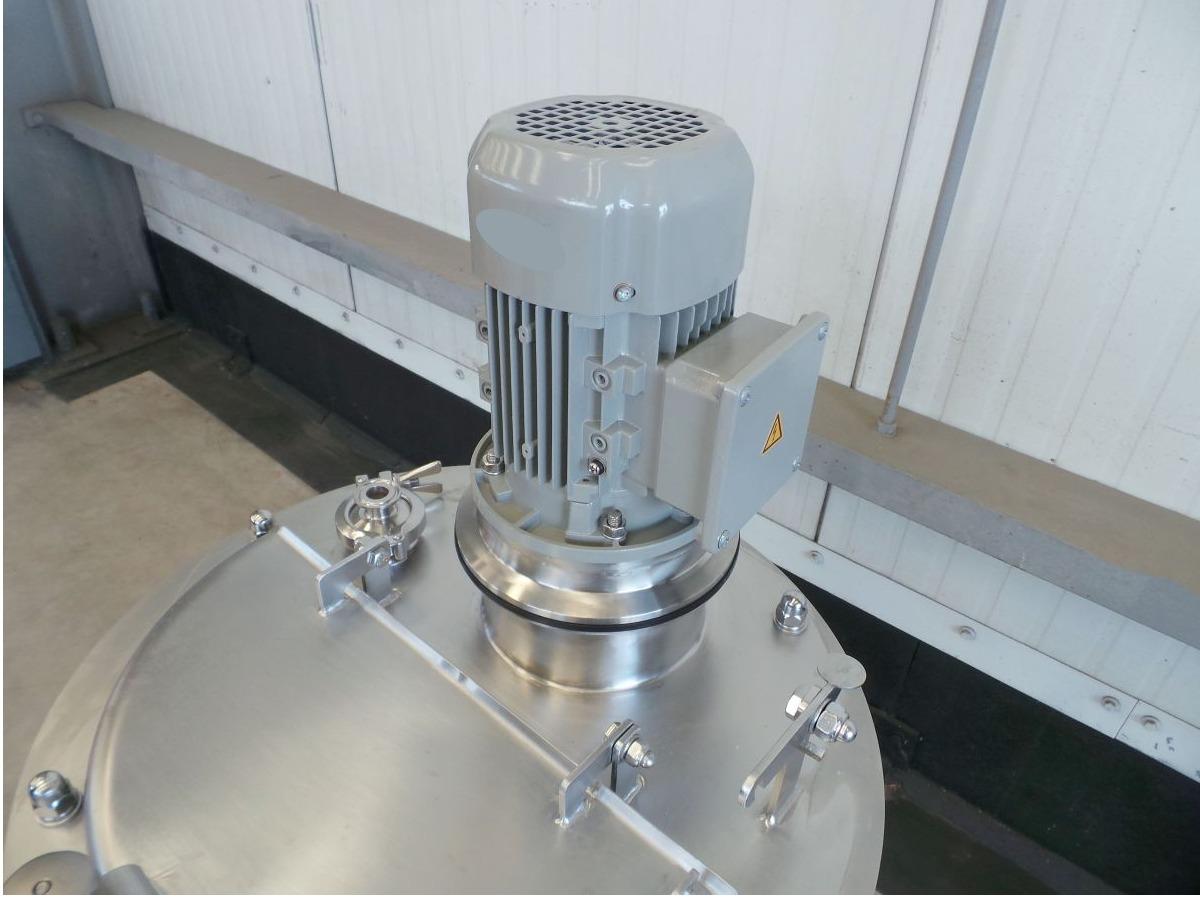

Agitator: yes, optional
Mobile tank: no

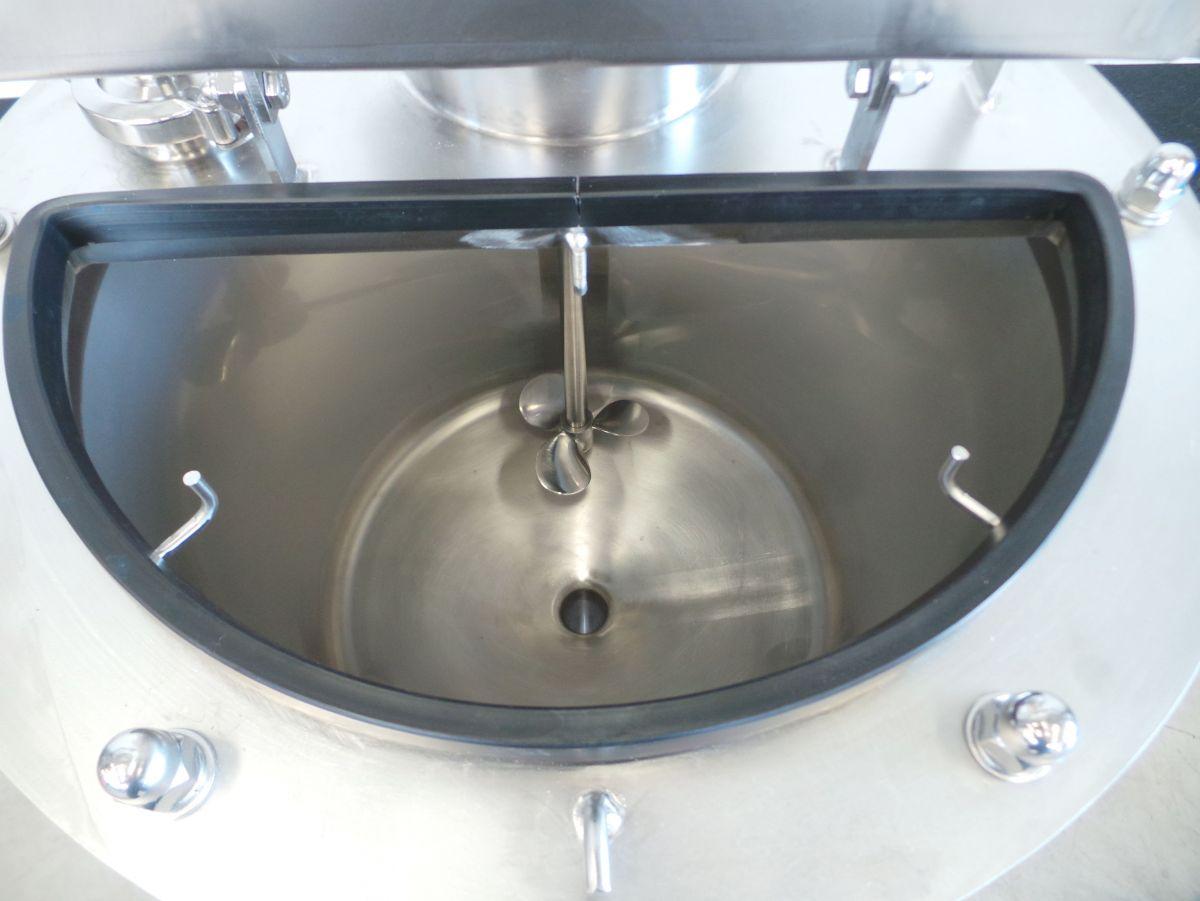

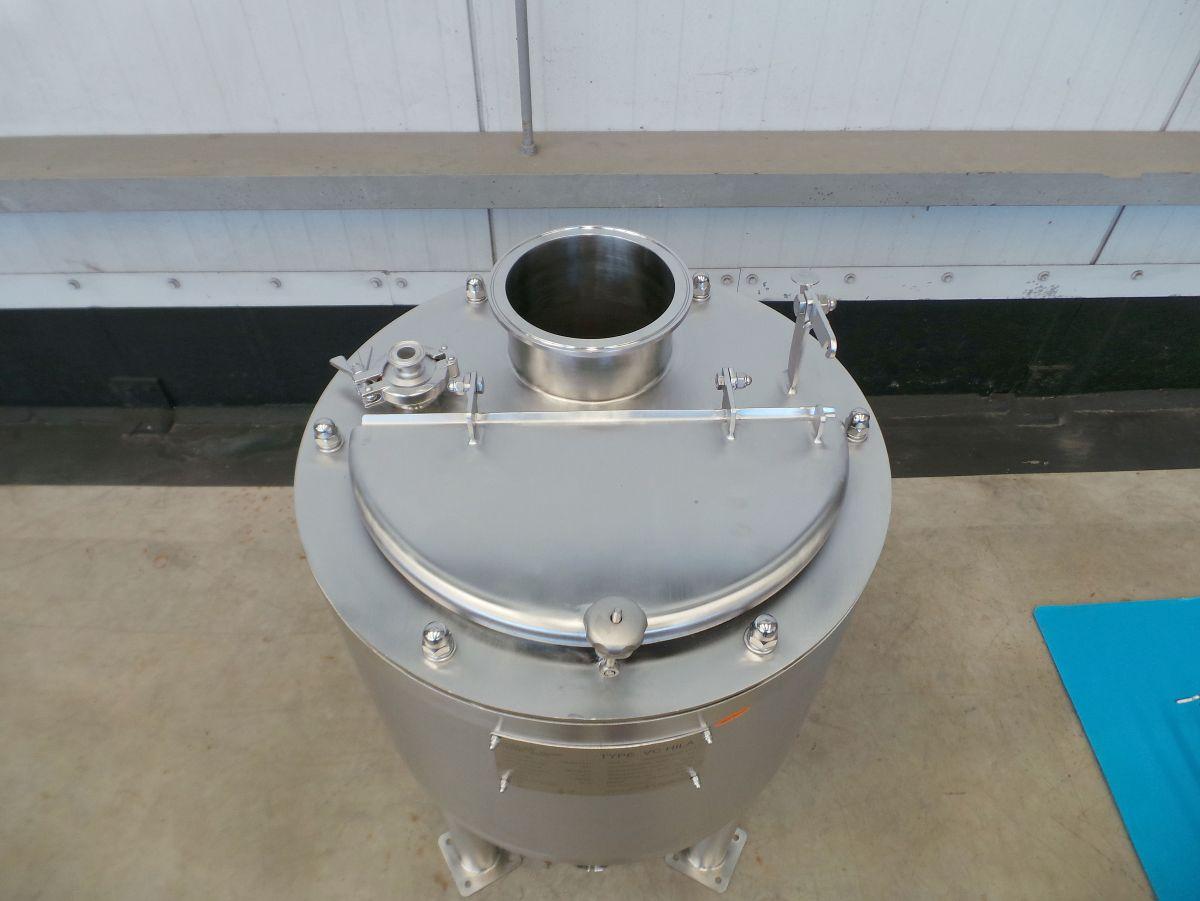

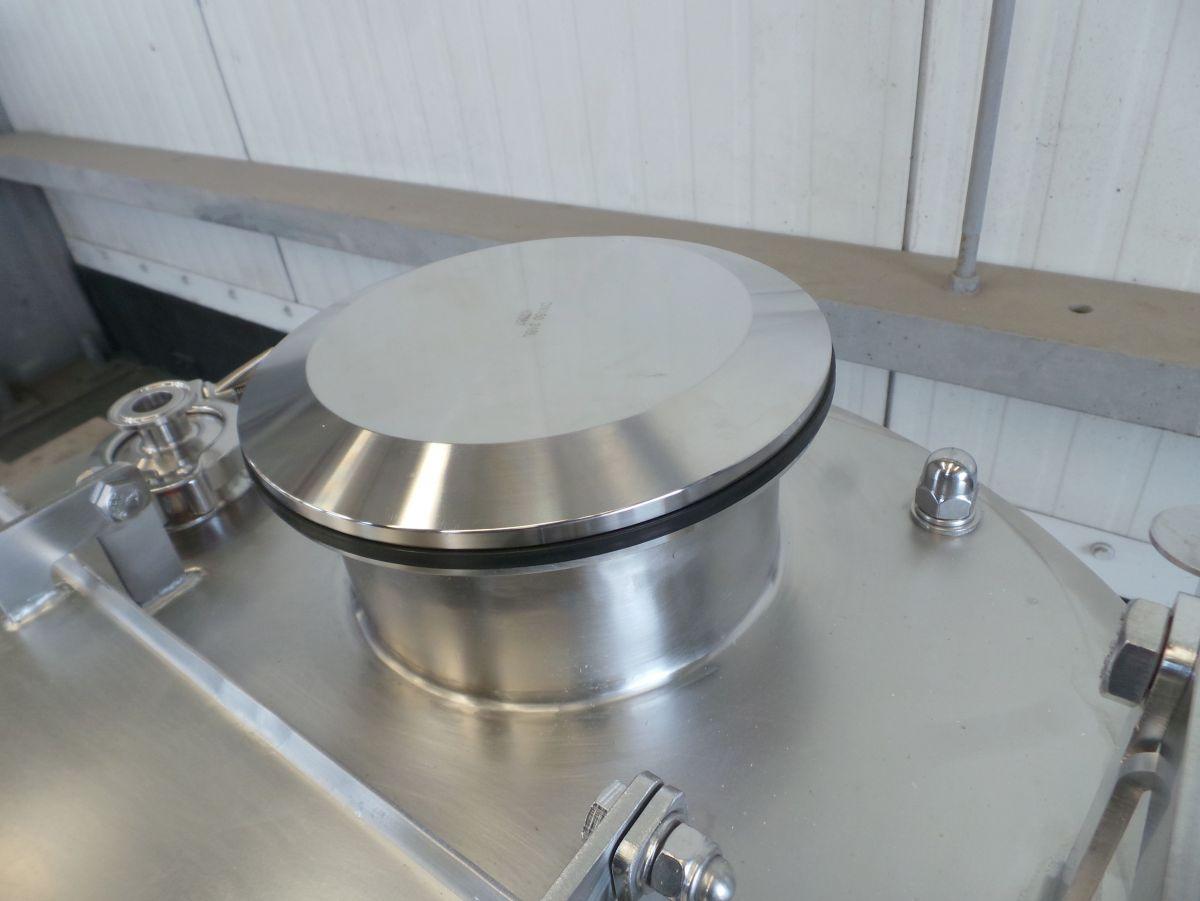

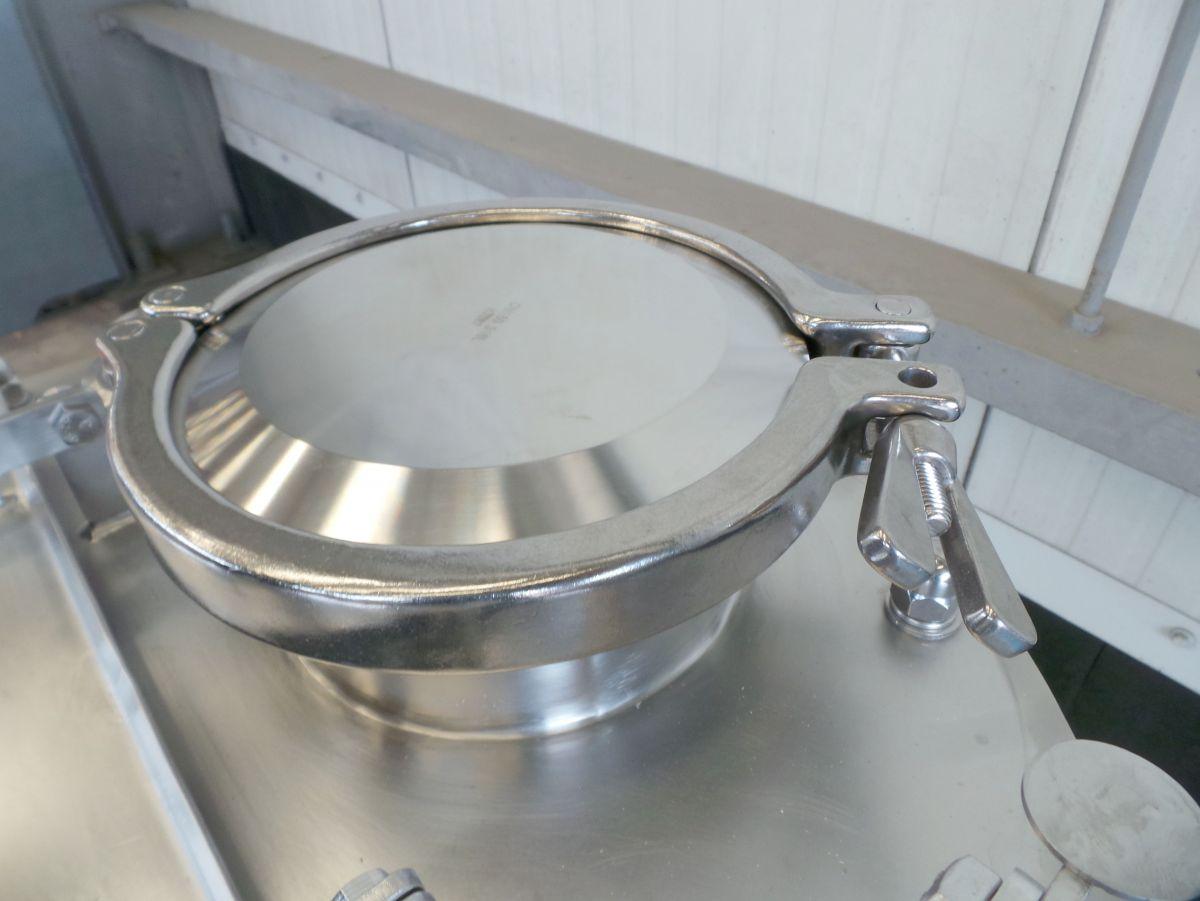

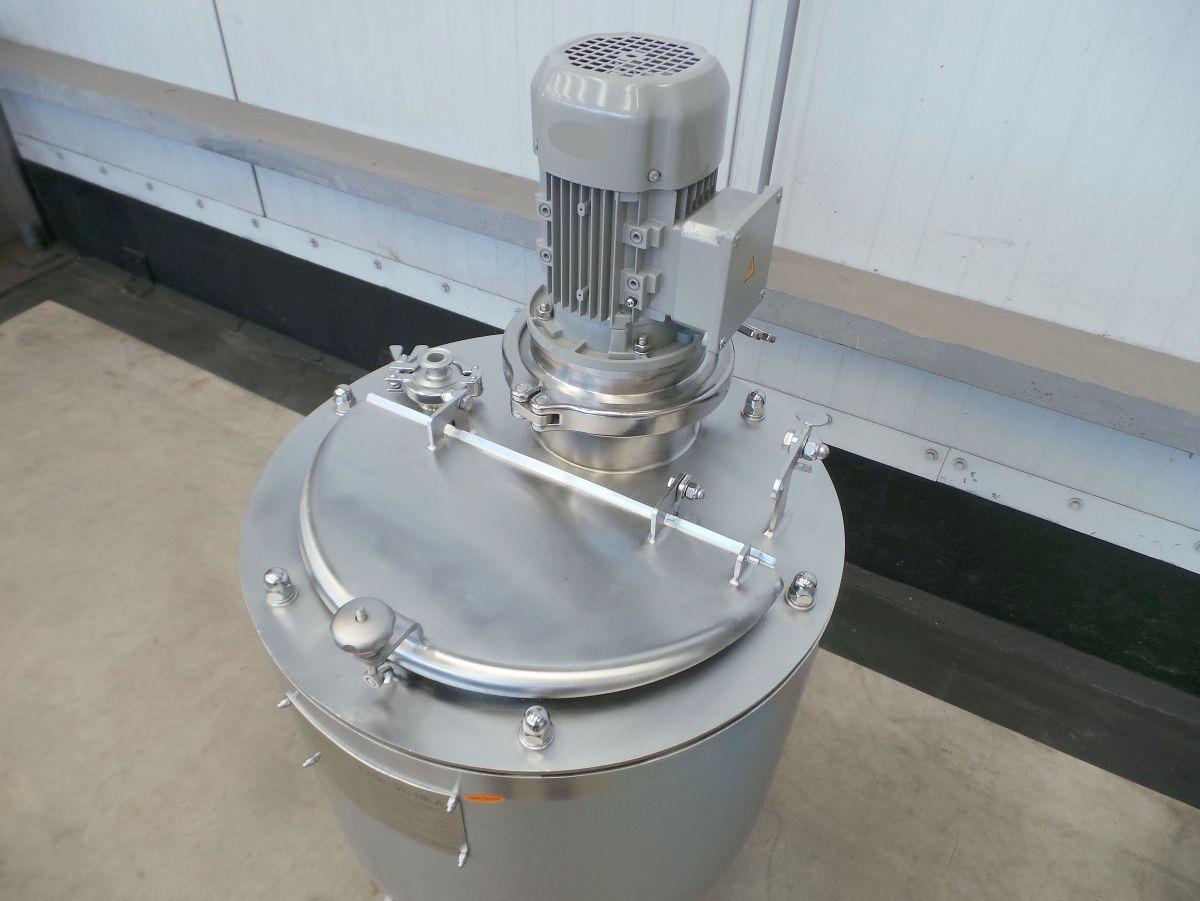

Top type: half hinging lid
With blocking system: yes
Shape of tank: cylindrical

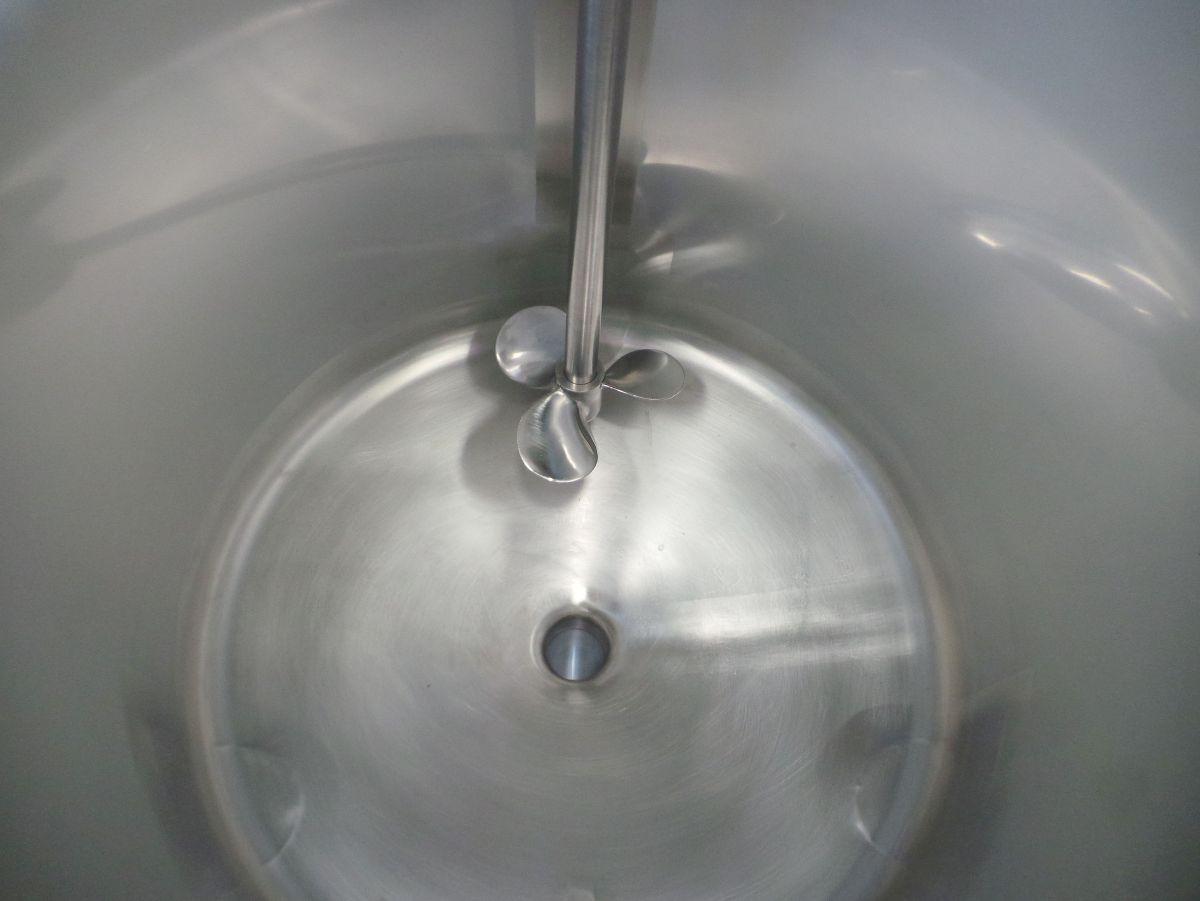

Bottom type: conical 20 °
Total discharge: yes

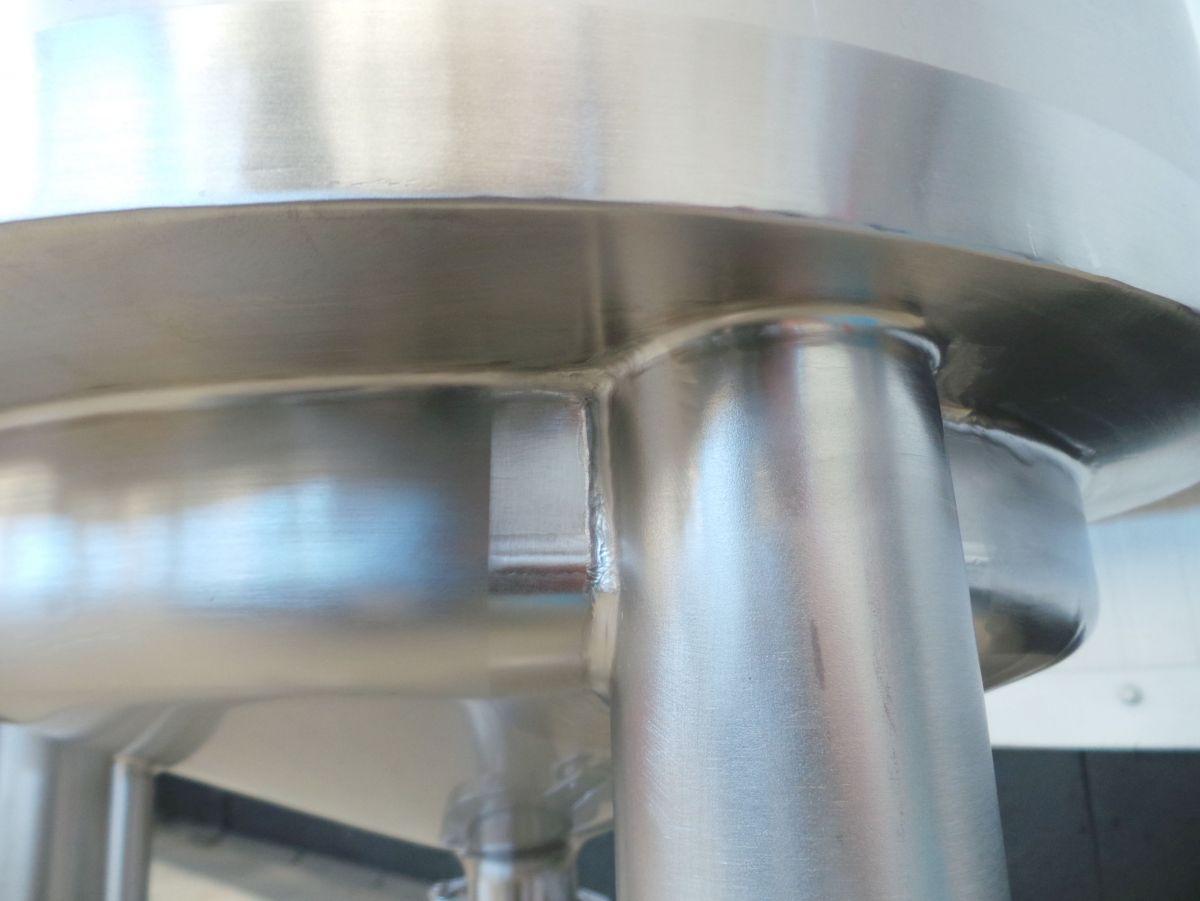

Fixation points: 3 non adjustable feet

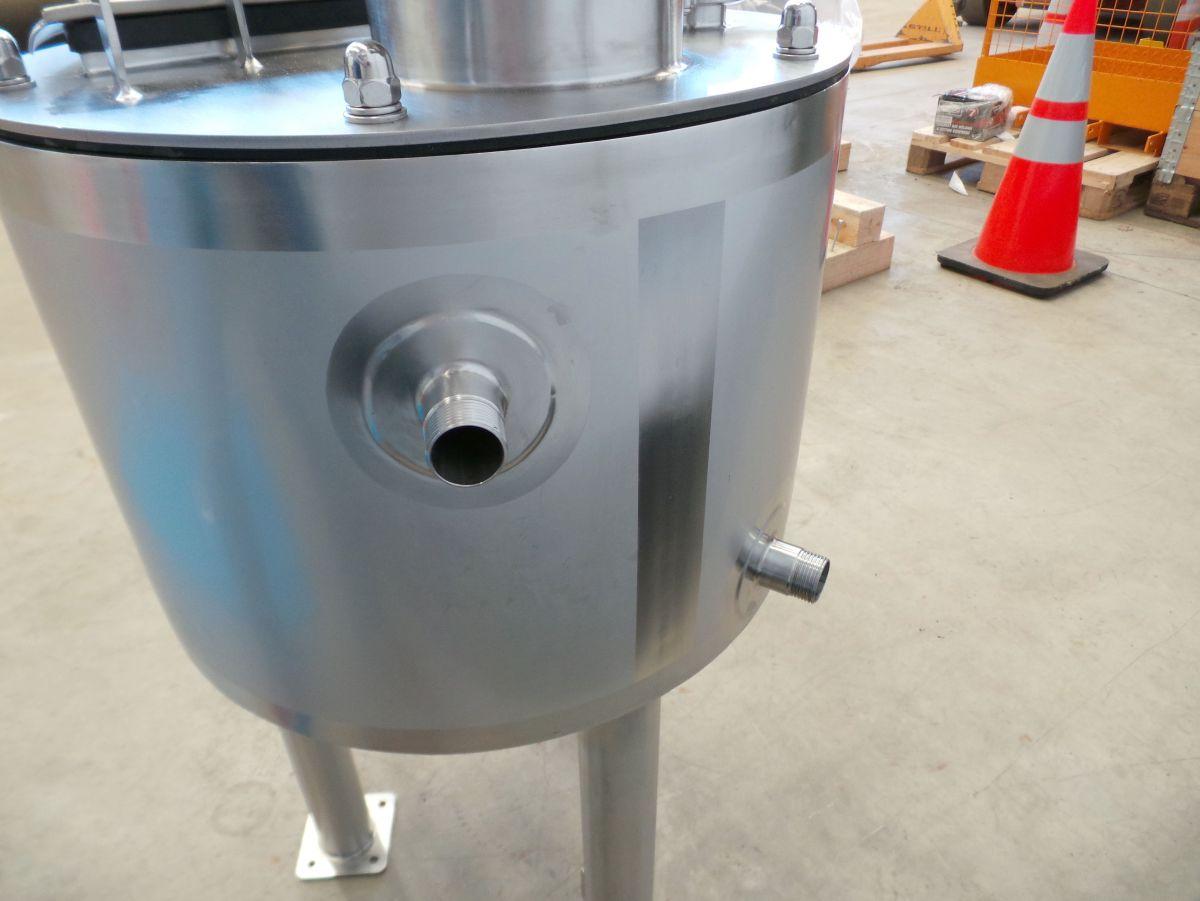

Type of HE on the cylinder: dimple-jacket
Position HE: the complet cilinder
Height HE: 250 mm
Number of sections: 1
Water pressure HE: 3 Bar
Contact surface cylinder: 0,30 m²
Connection HE: 1″ BSP
Working temperature HE cylinder: 100 °C
Heat exchanger: RVS 304
Insulation material: Rockwool
Outer jacket (ornamental wall): RVS 304
Gasket manway(s): EPDM
Fixation point(s): RVS 304
Suitable for food industry: yes
Documents included: yes
Technical drawing included: yes

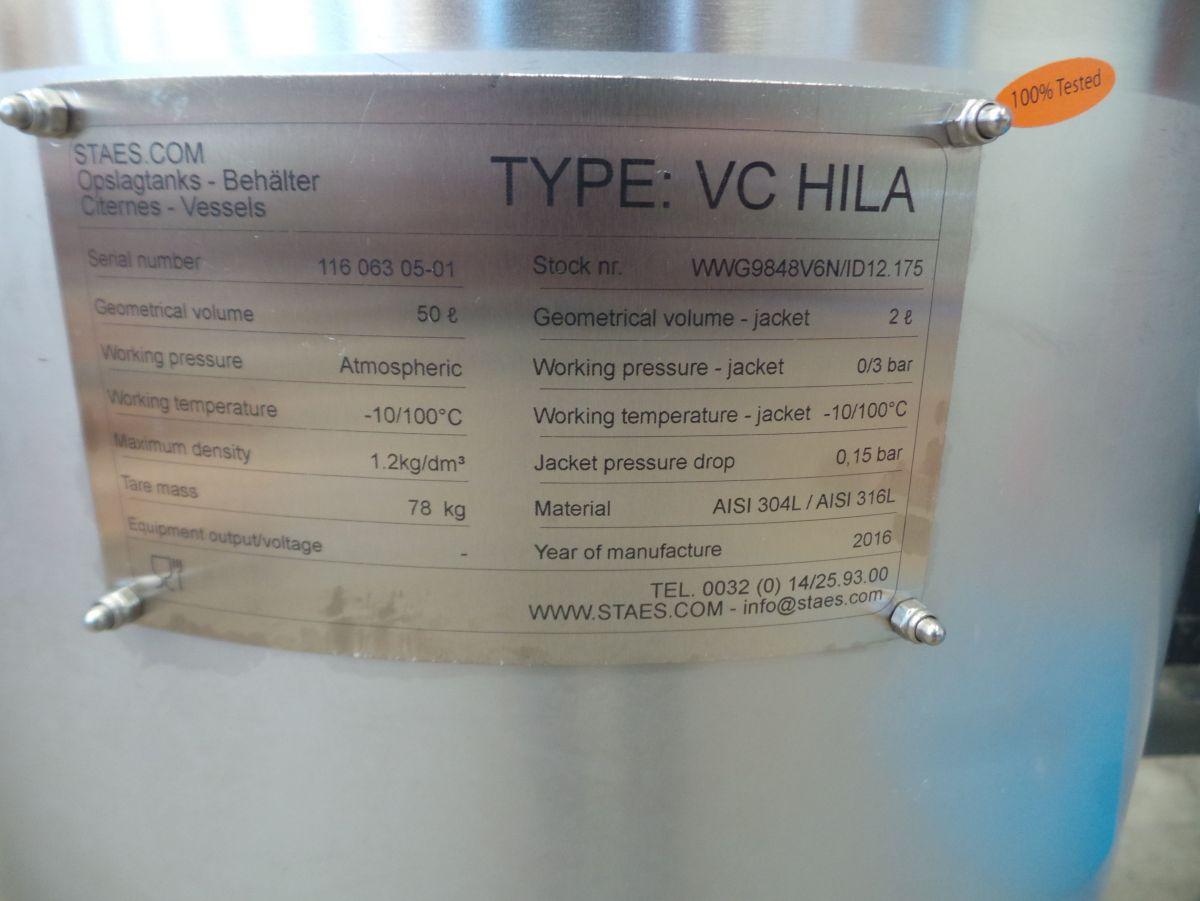

Registration plate on the tank: yes

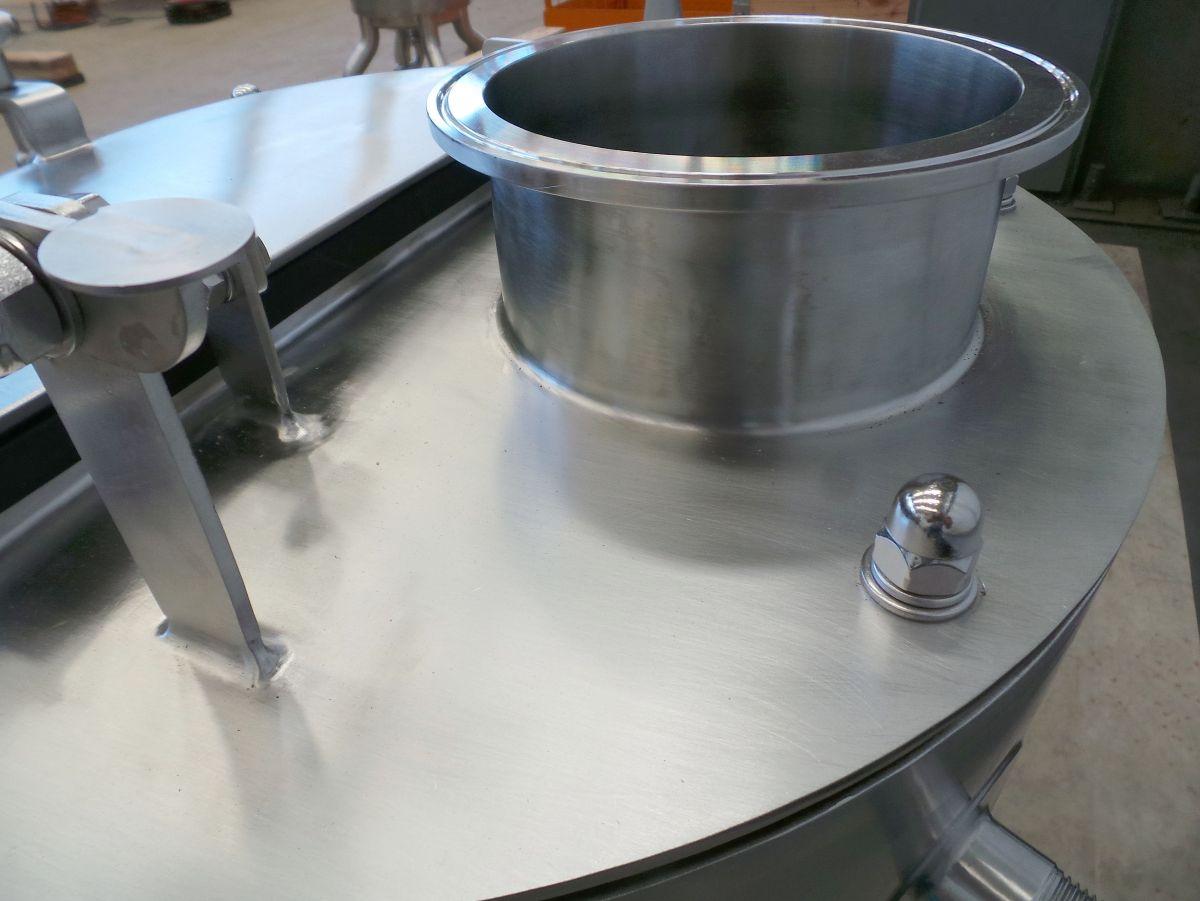

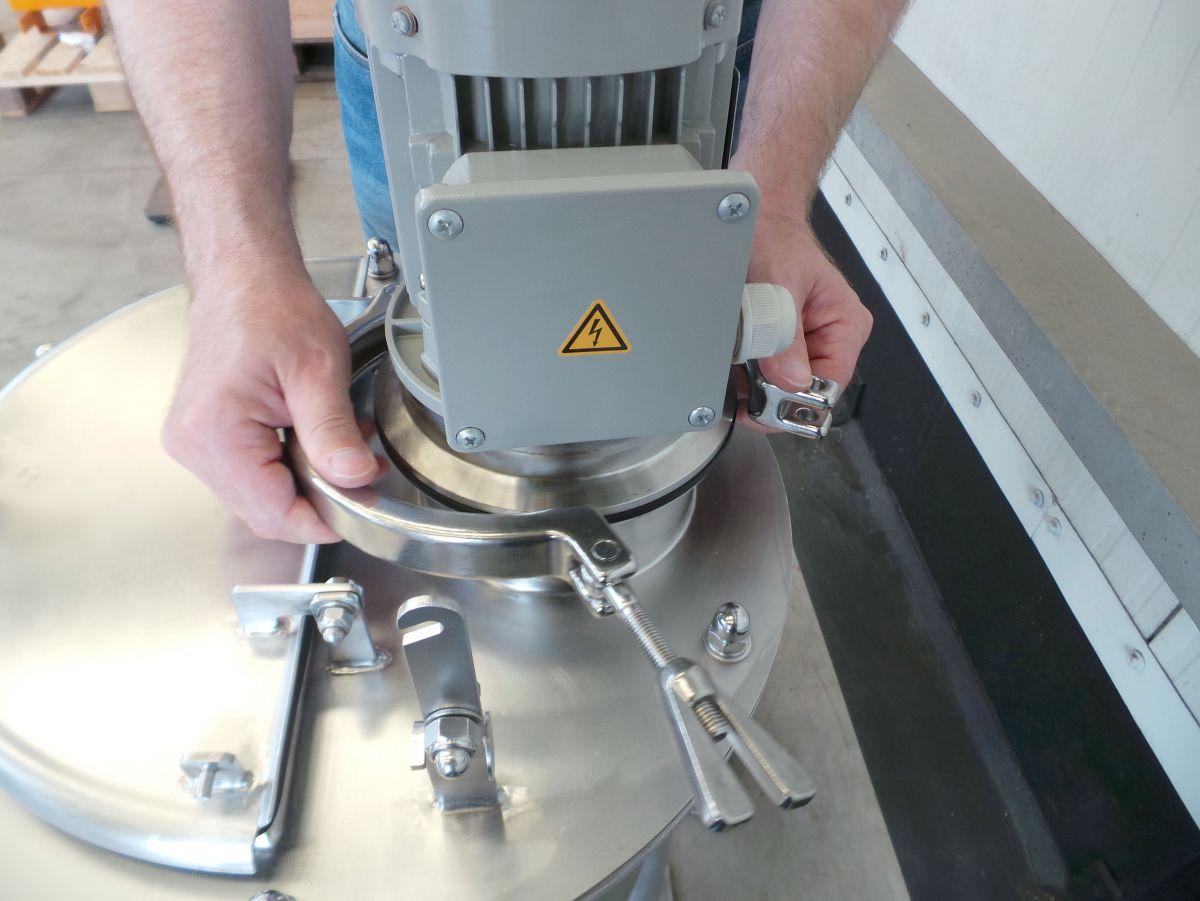

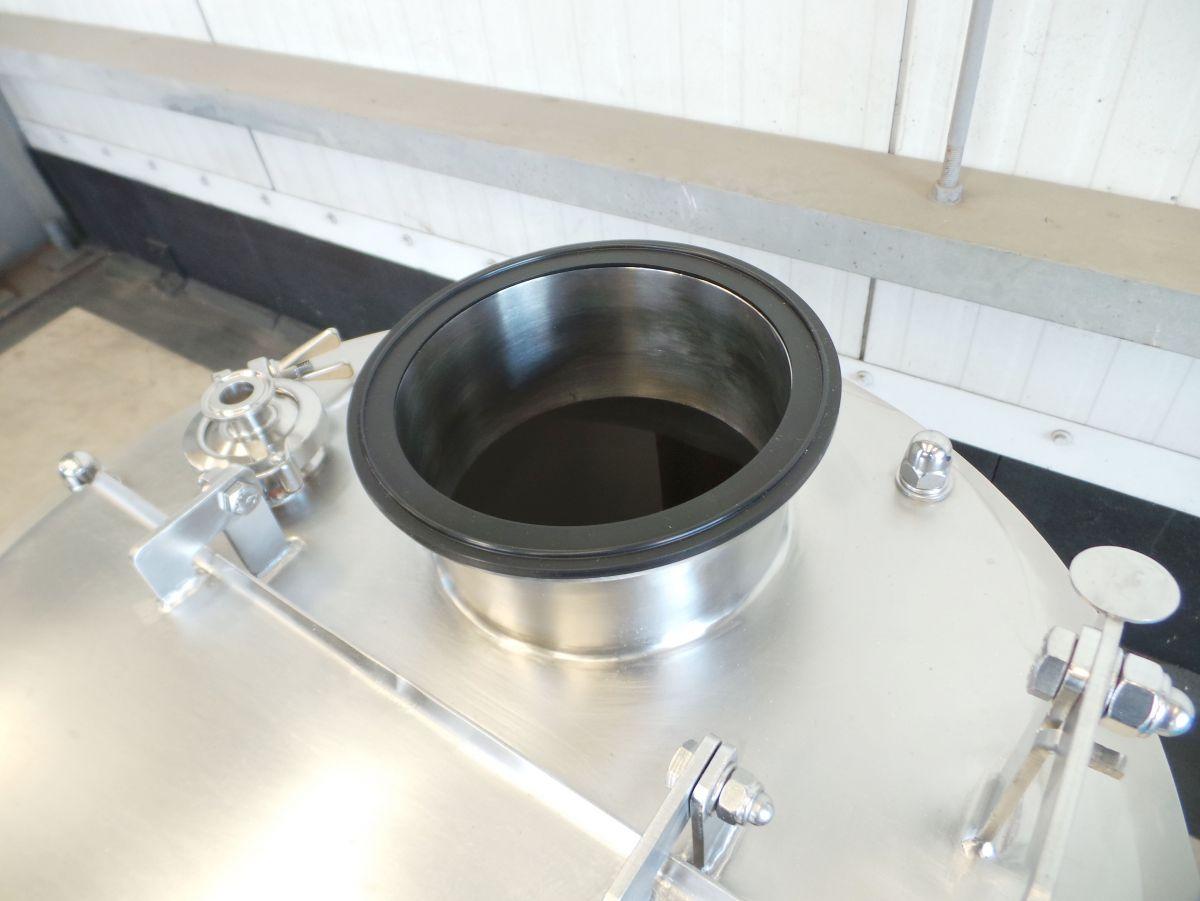

Flange for agitator: yes

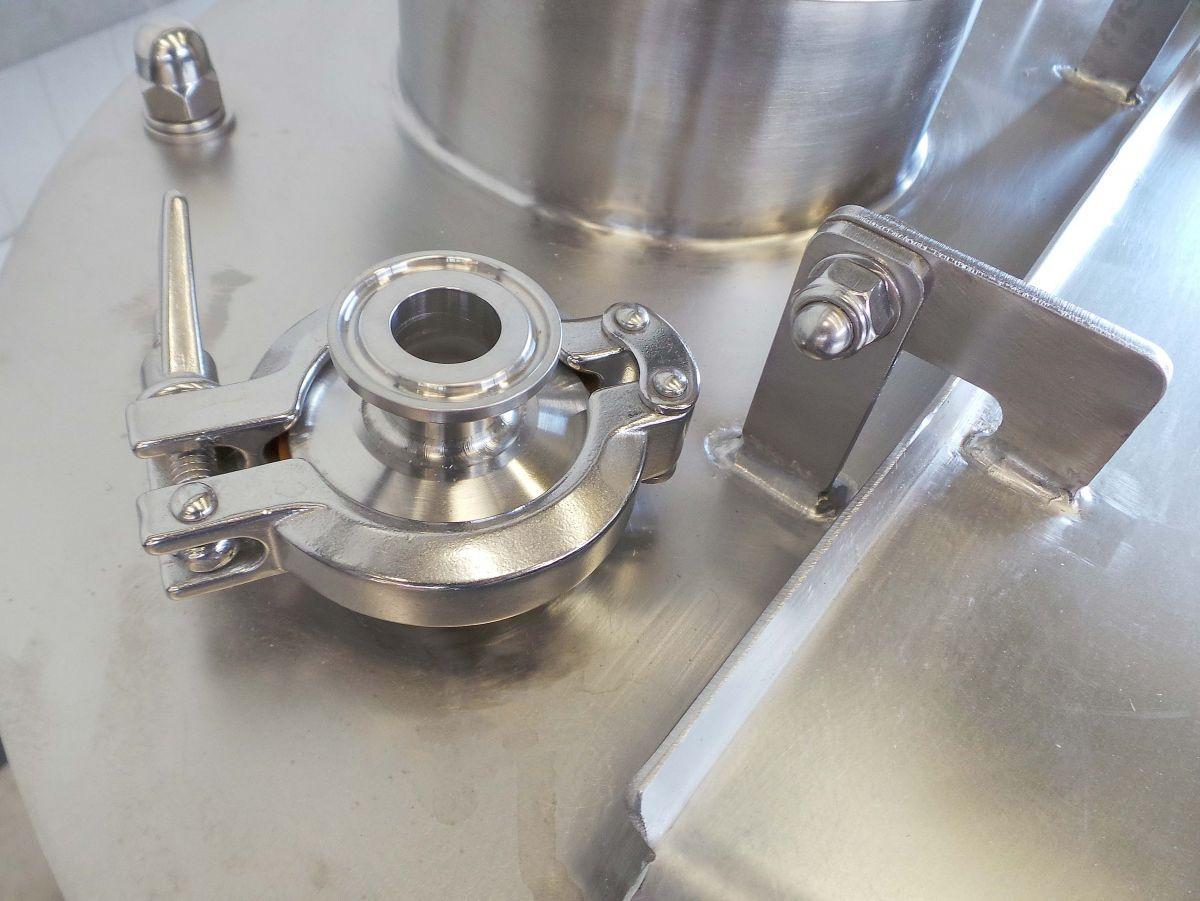

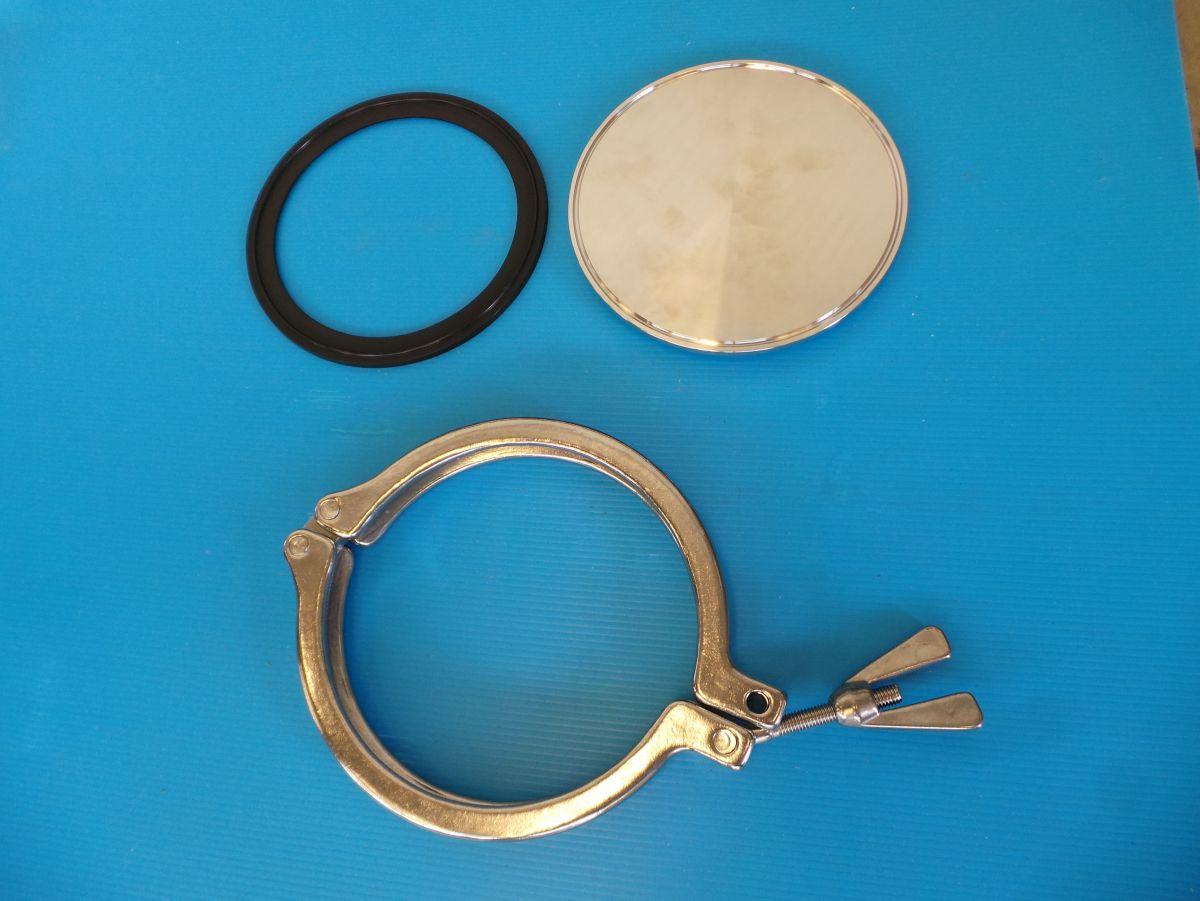

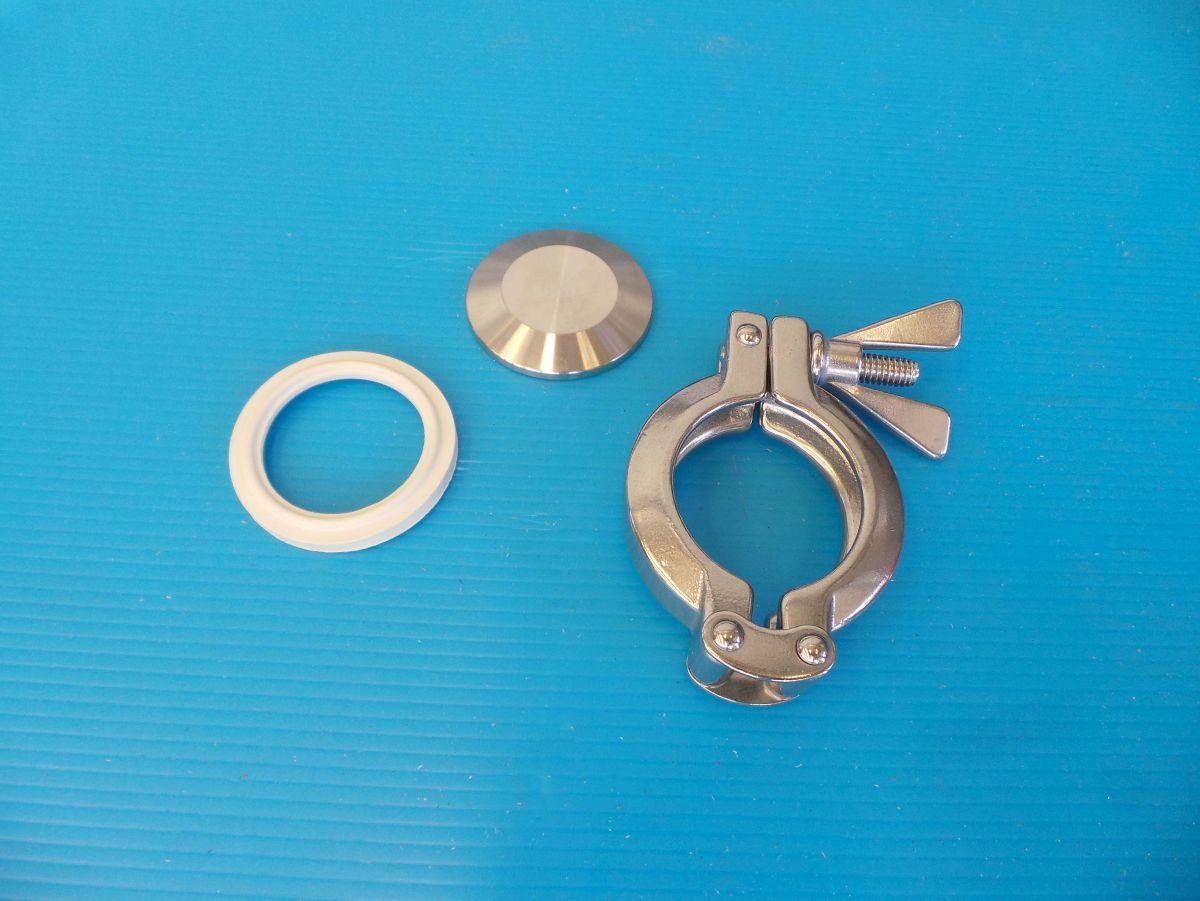

Flange type: Tri-Clamp DN150

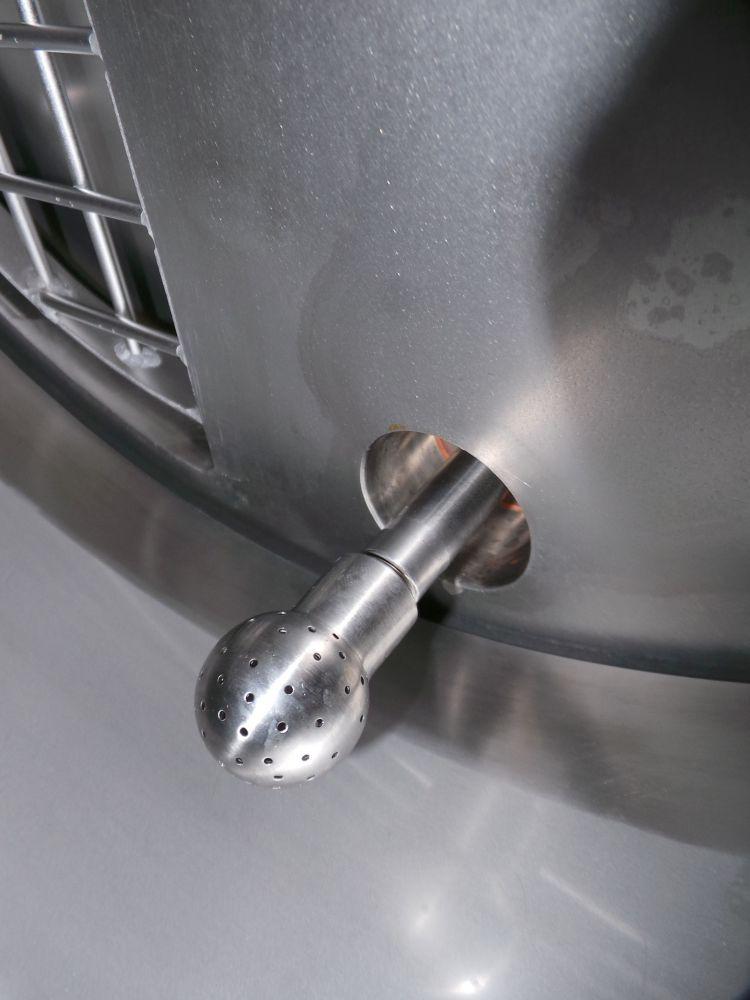

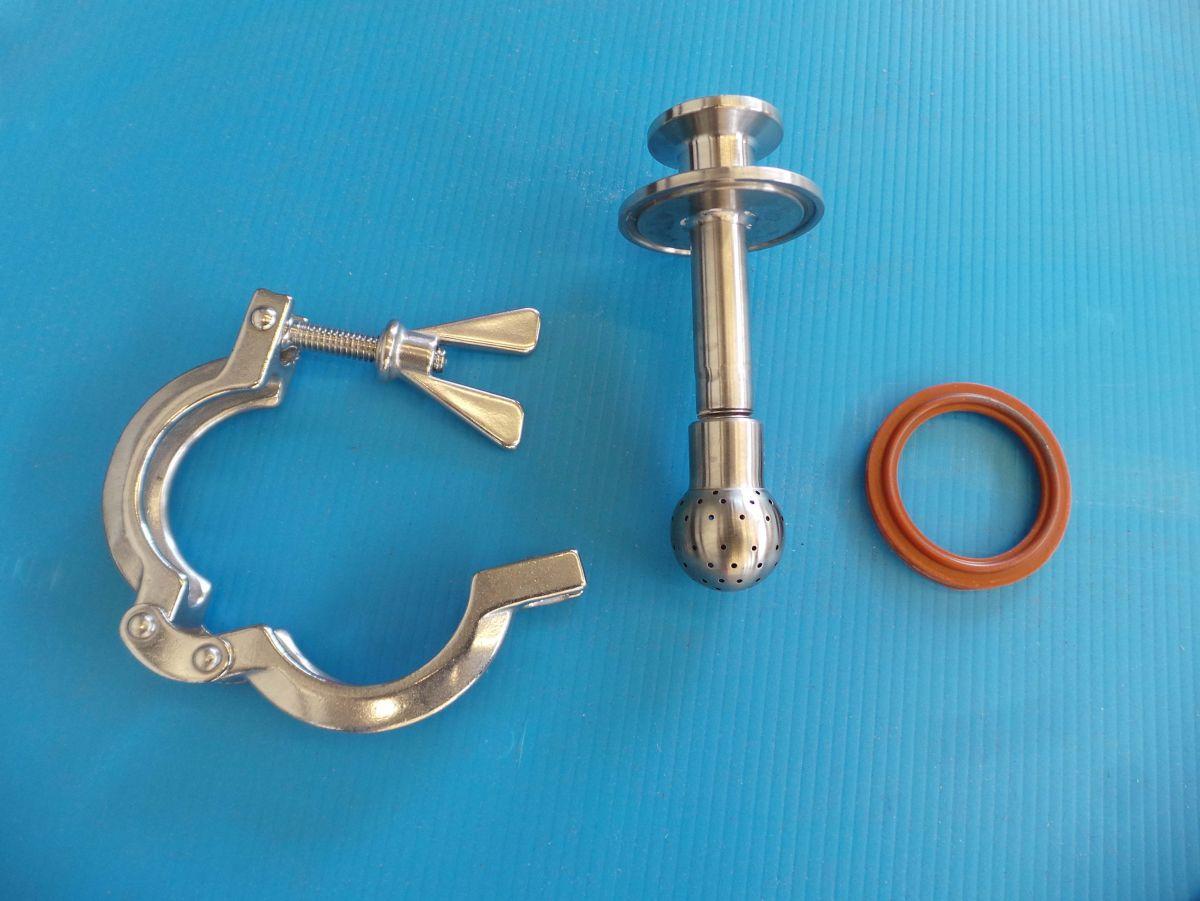

Spray ball: yes, optional
Number: 1

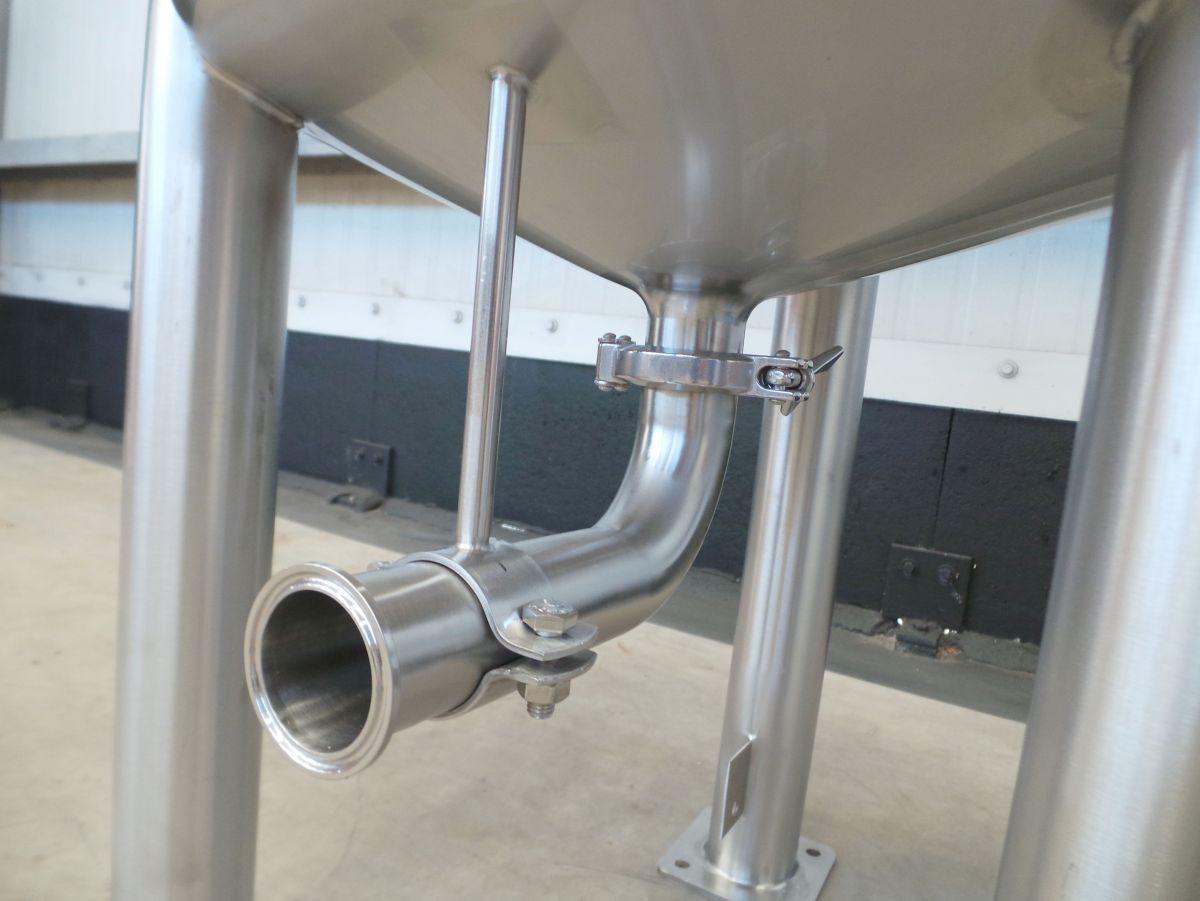

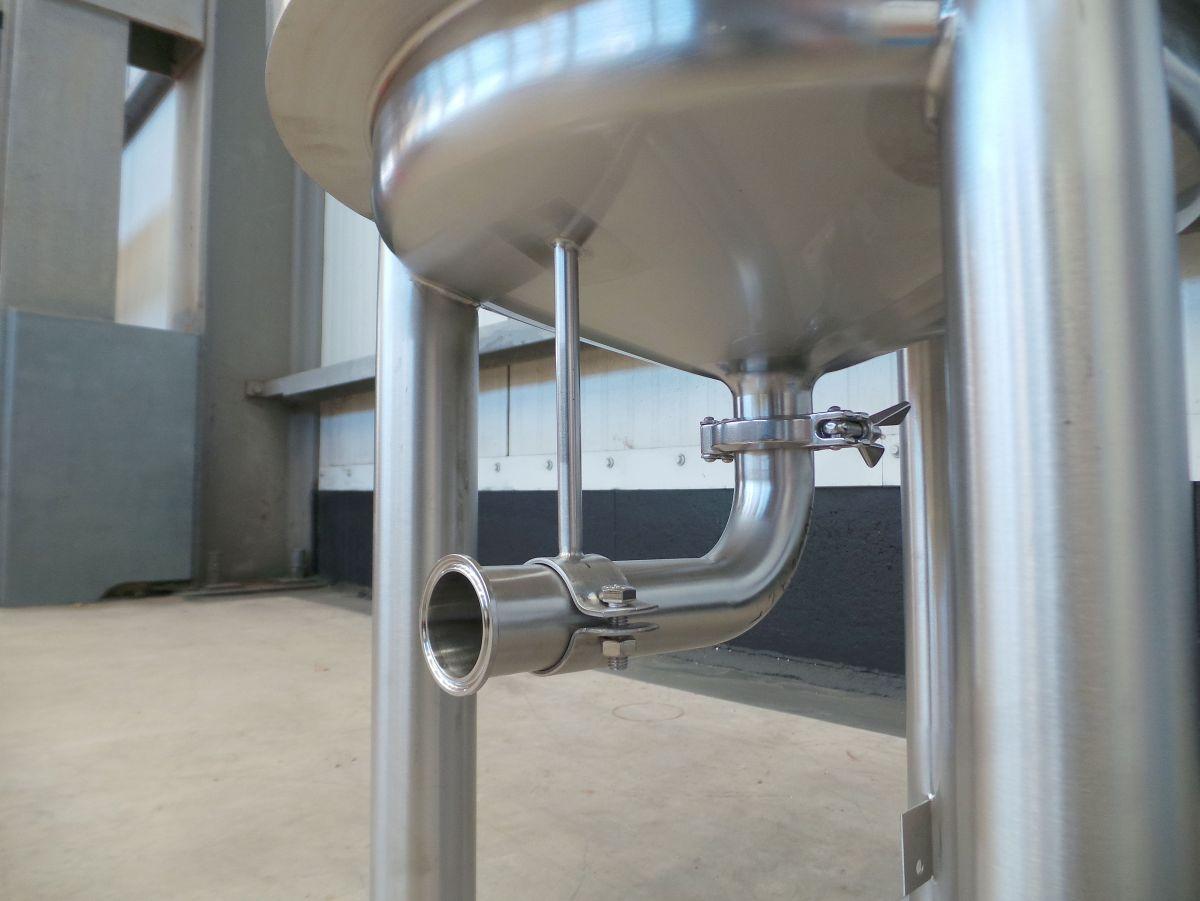

Tank outlet: inside Ø 40 mm

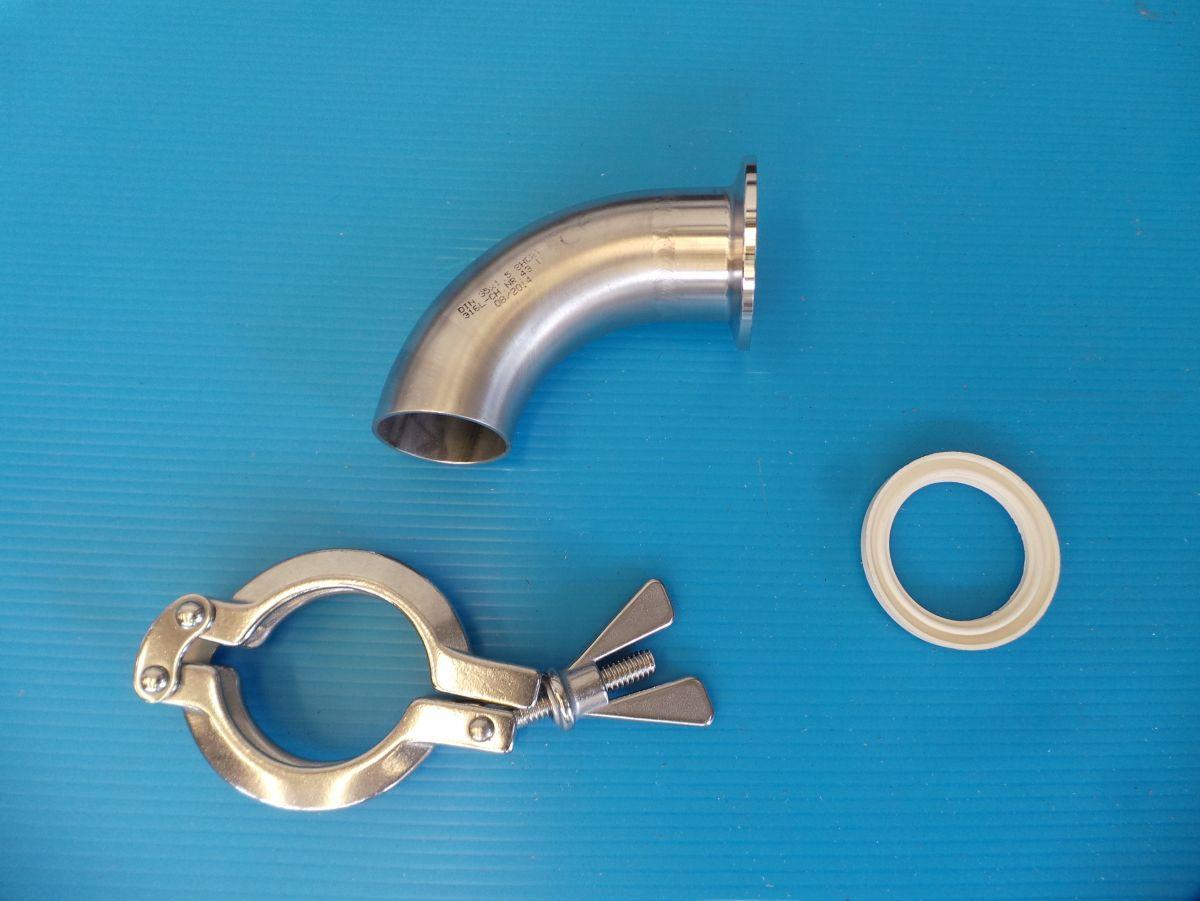

Outlet type: DIN32676 clamp

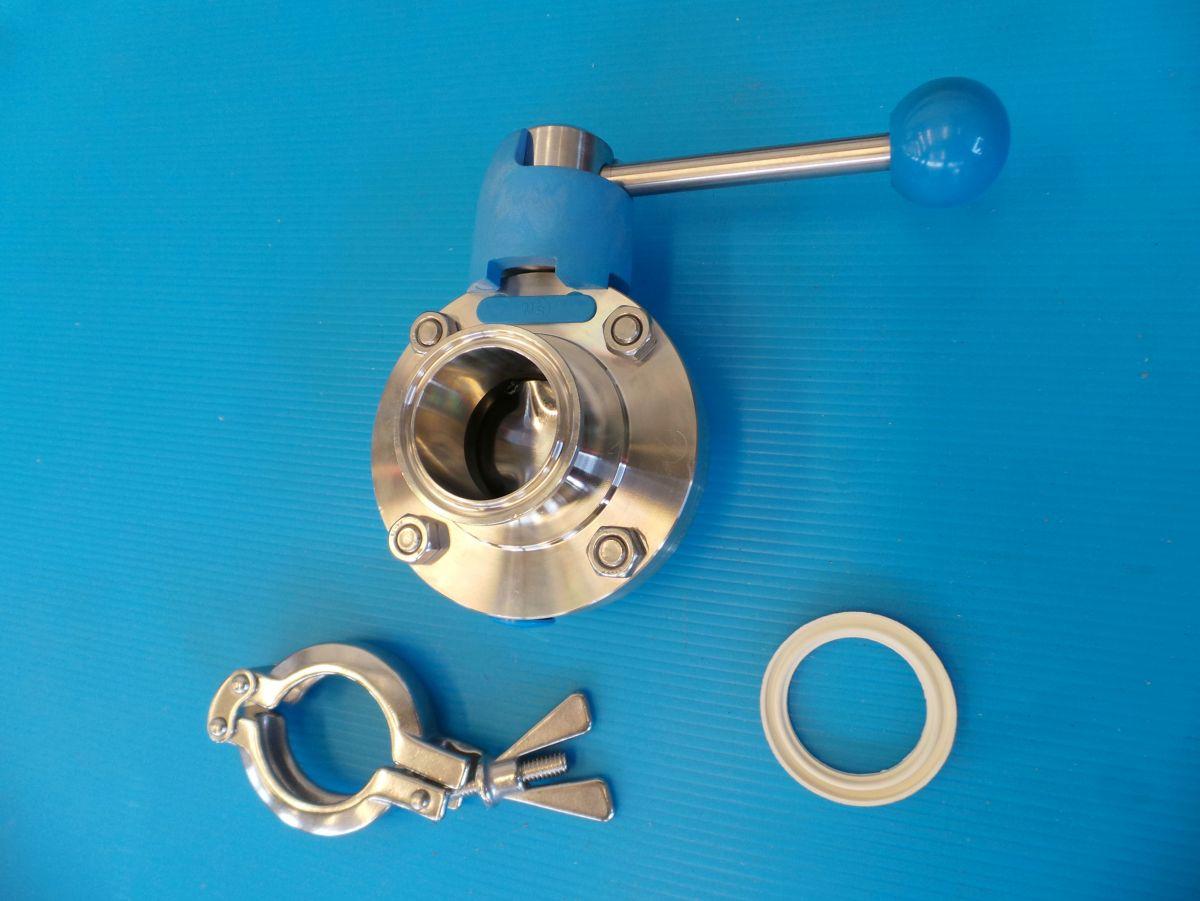

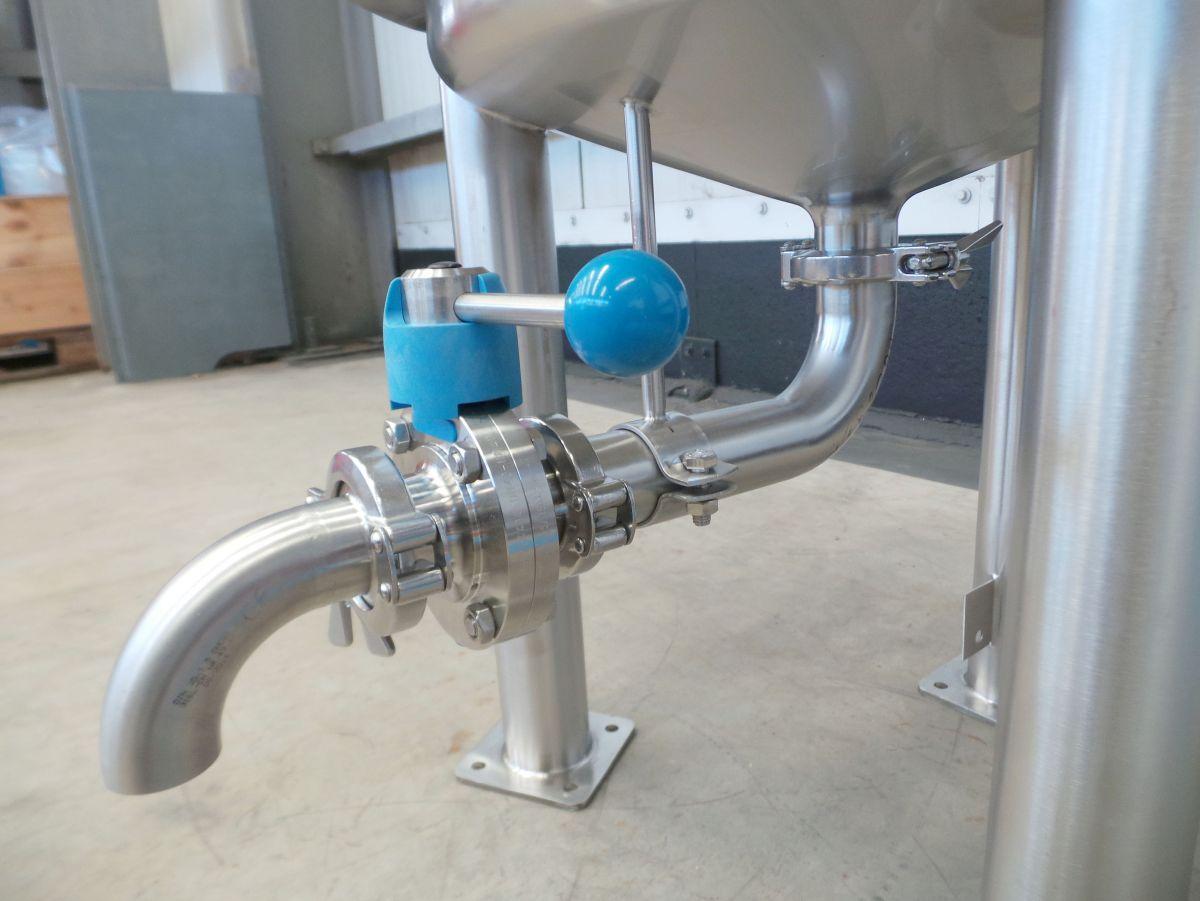

Total outlet valve: yes, optional
Type shut-off valve: butterfly valve
Top: 5 mm
Cylinder: 2,50 mm
Bottom: 2 mm
Cylinder: 2
Insulation body: yes
finish of the outer jacket: welded
Insulation thickness: 47
Internal diameter tank: 406 mm
Distance from outlet to ground: 250 mm
Outer diameter tank: 500 mm
Cylinder height: 375 mm
Total height of tank: 852 mm
Empty weight tank: 50
