50 liter i Syrafast 316

item available on order

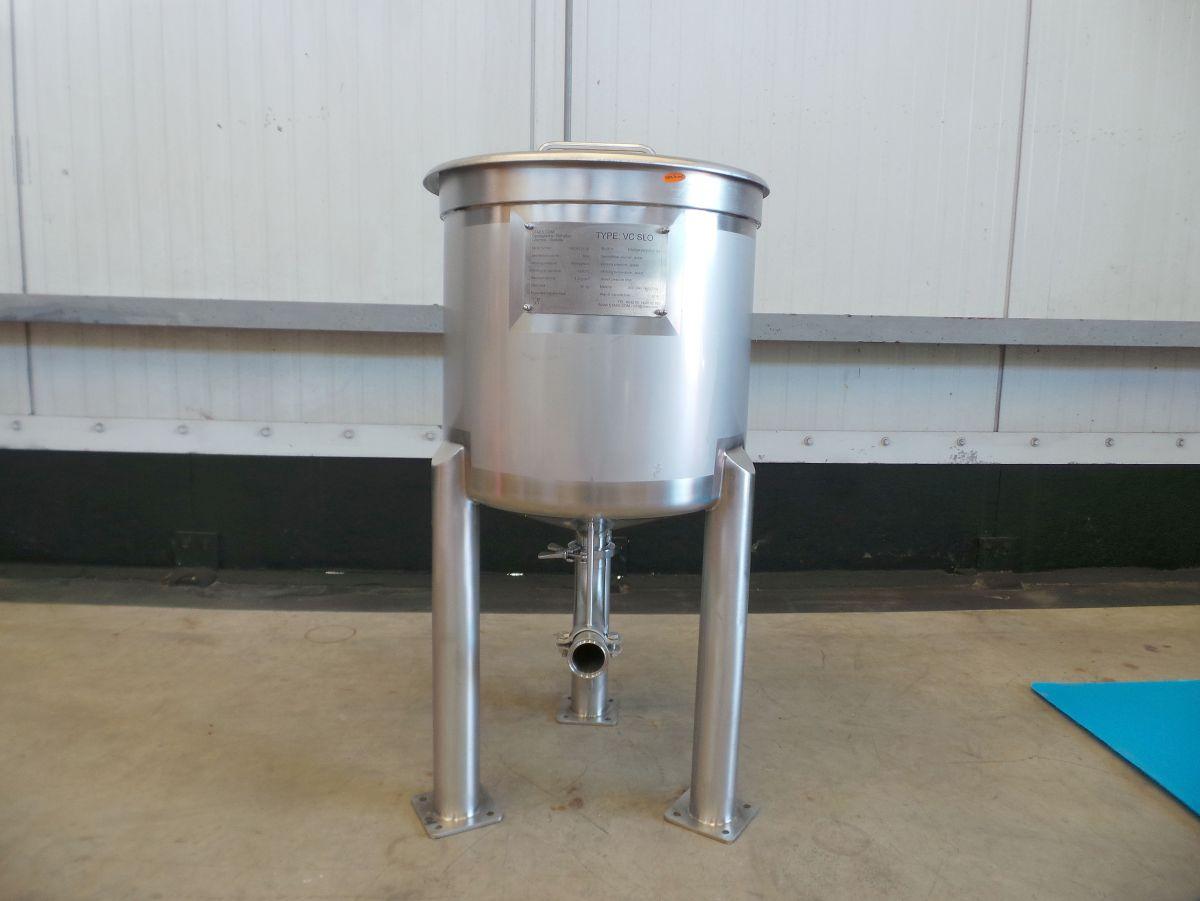

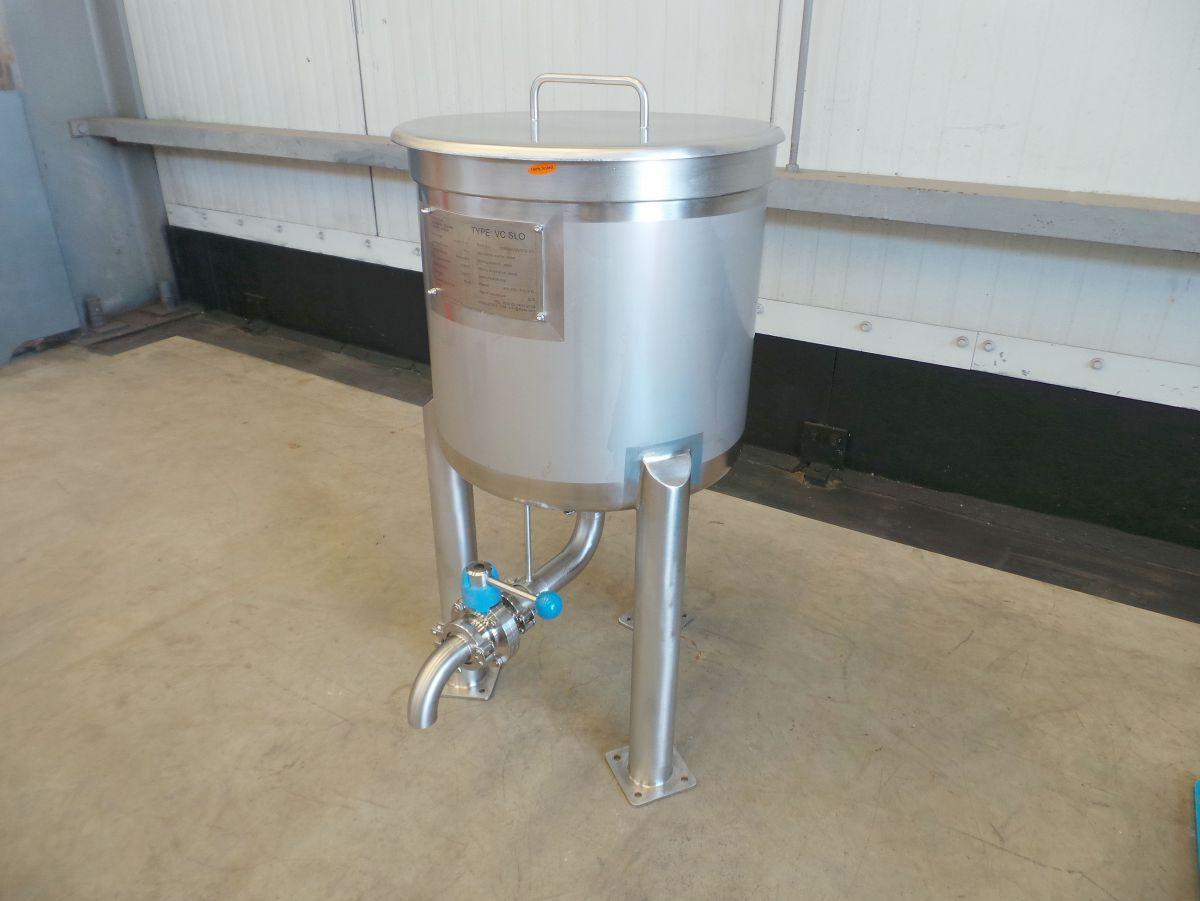

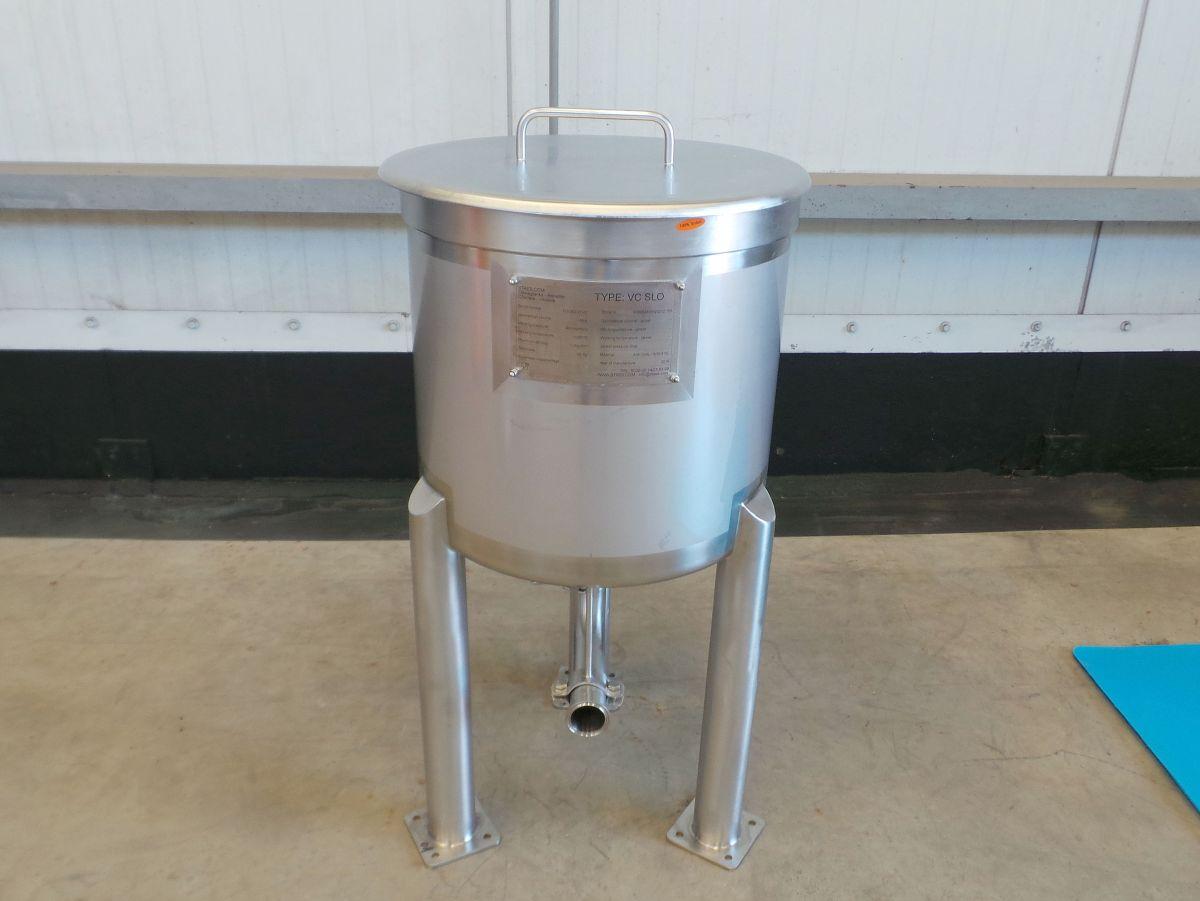

Article type: brand new storage tank – type VC-SLO
Capacity: 50 L
Maximal density of the product: 1.200
Ra inner weld: 0,80
Finish stainless steel: 2b

Working pressure in tank: ATM – atmosferic
Max. working temperature: 80 °C
Min. working temperature: -10 °C
Material wet parts: SS AISI 316L (V4A)
Model: vertical

Configuration: single-skin
Heat exchanger: no
Insulation: no
Agitator: no
Mobile tank: no

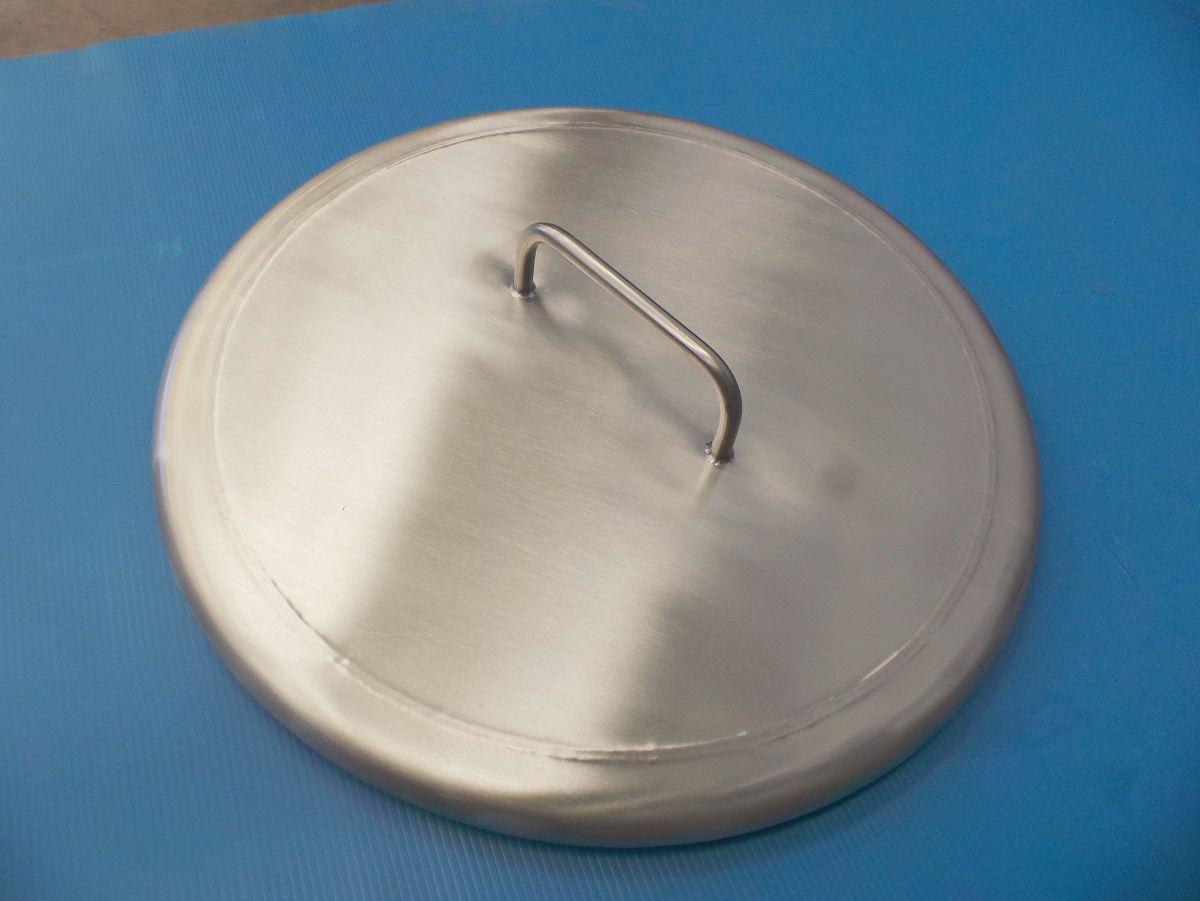

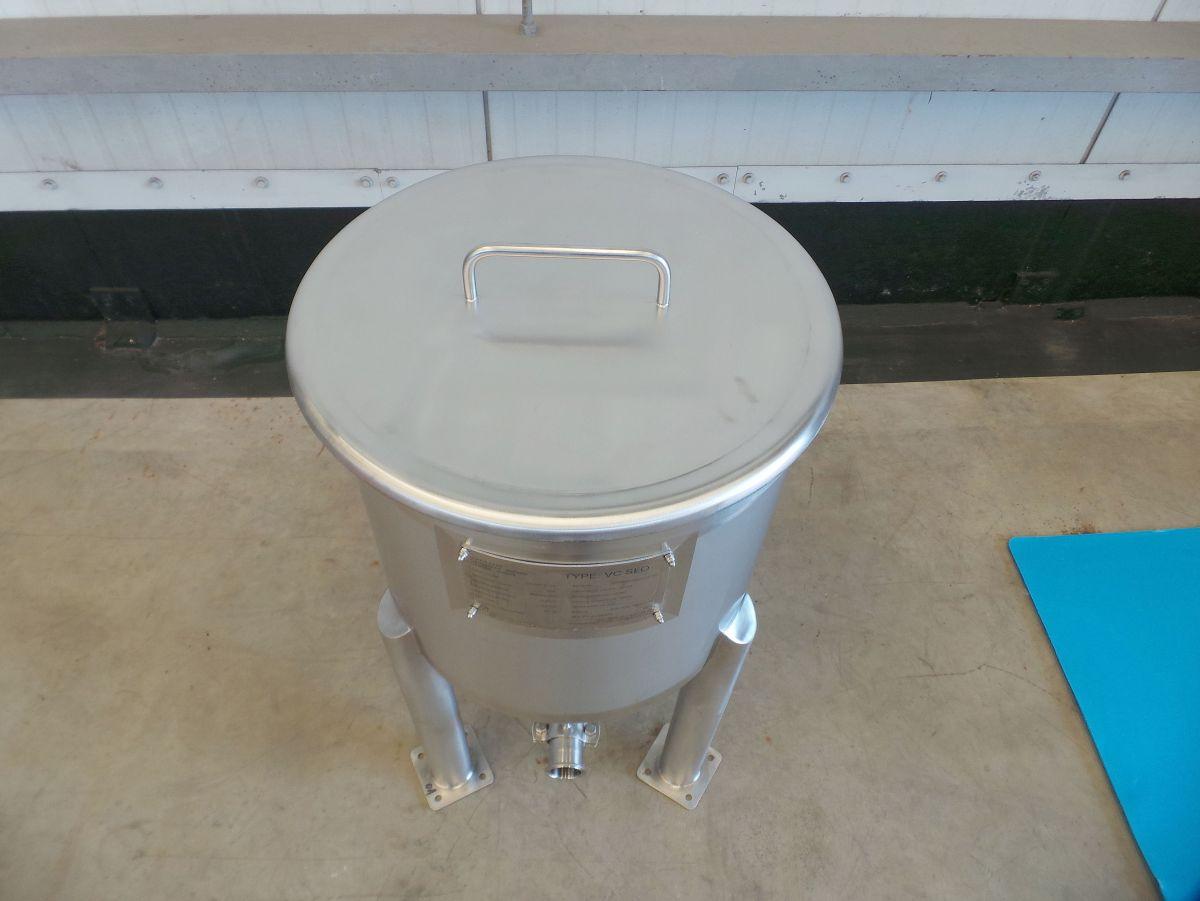

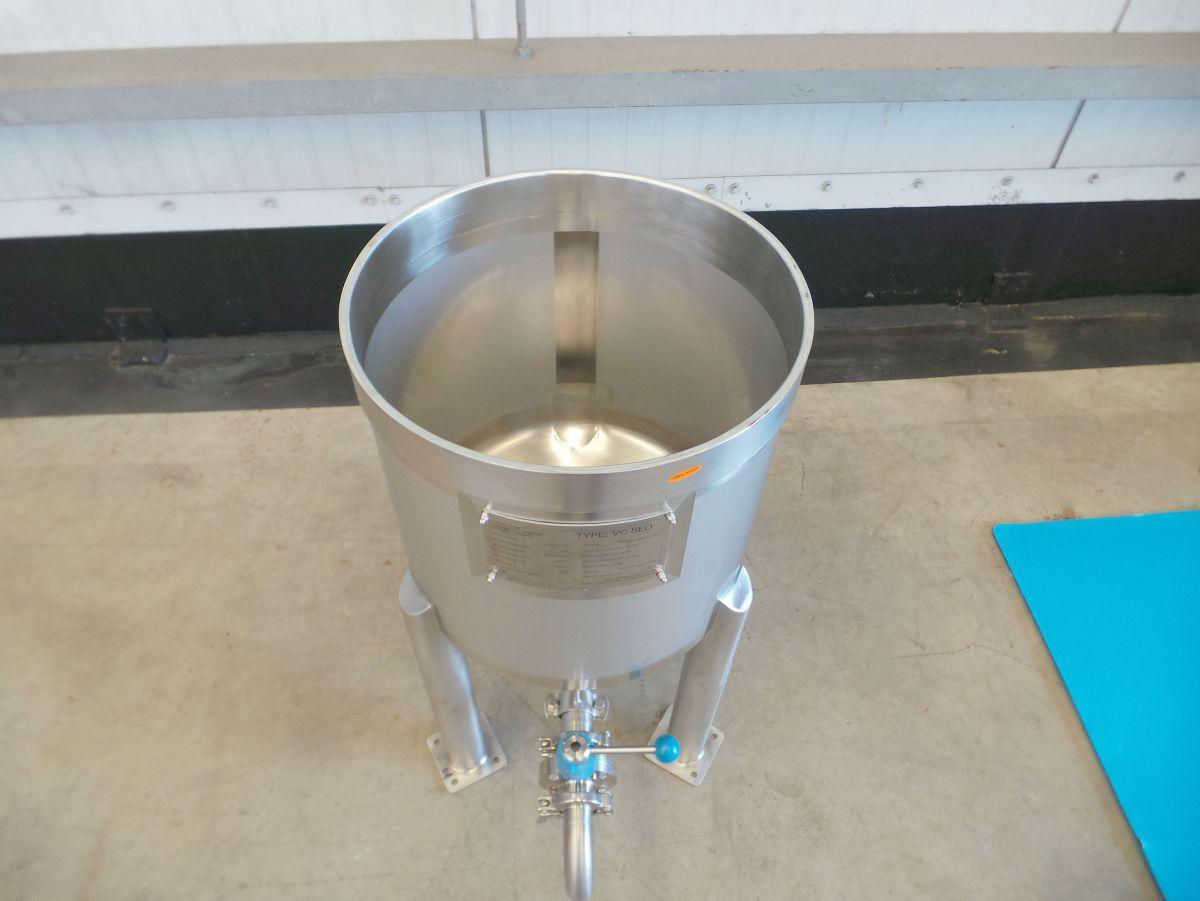

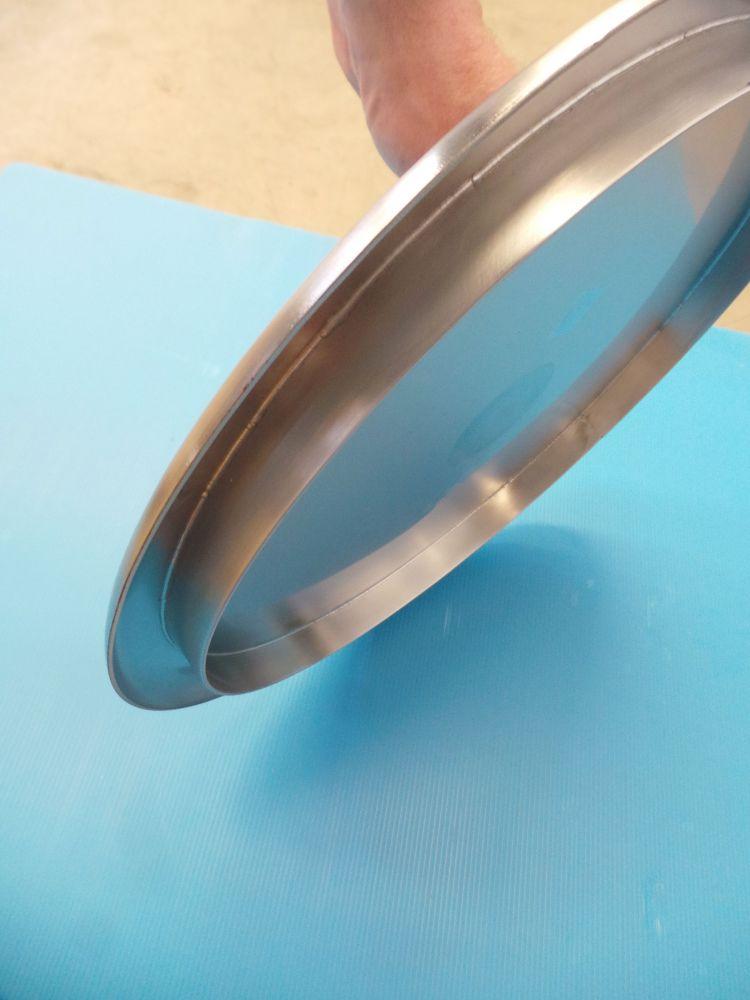

Top type: large seperat lid
Shape of tank: cylindrical
Bottom type: conical 20 °
Total discharge: yes

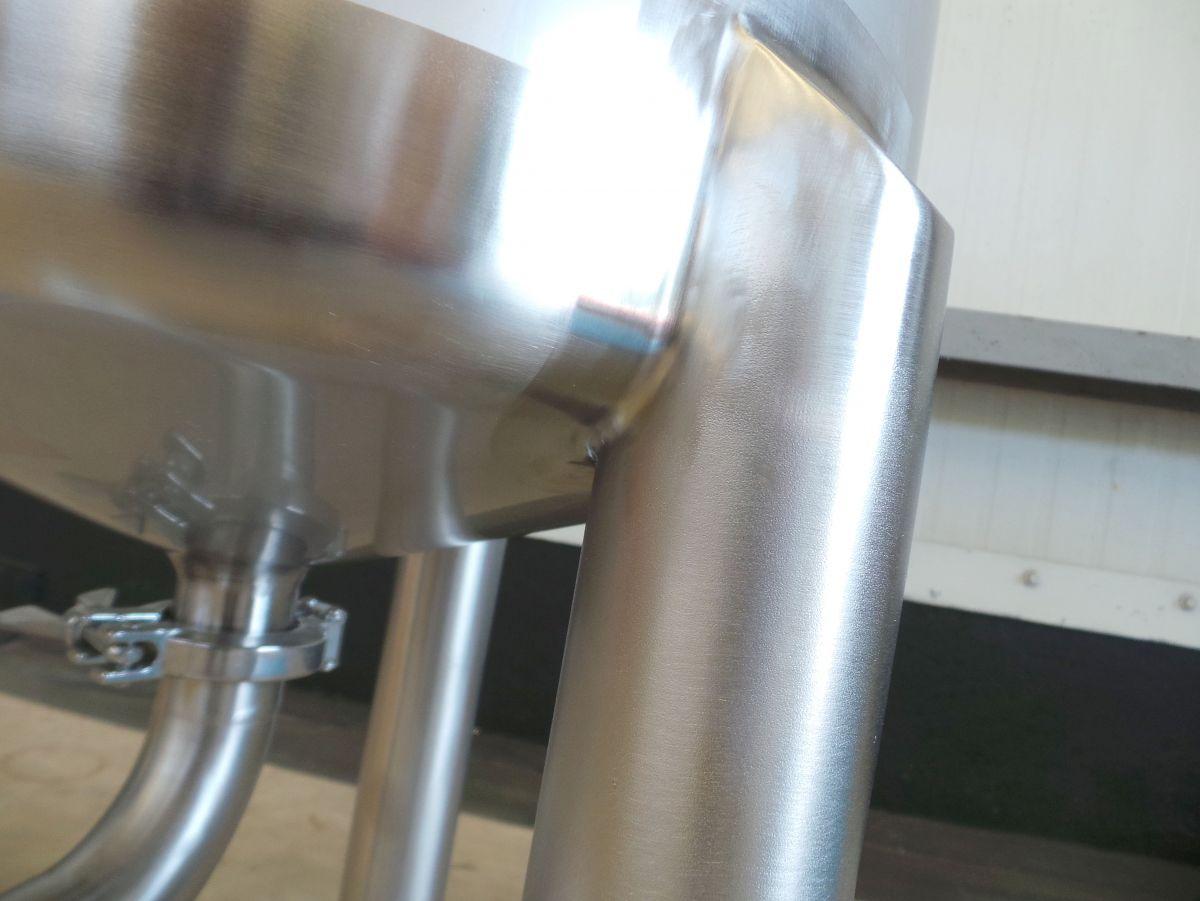

Fixation points: 3 non adjustable feet

Fixation point(s): RVS 304L
Suitable for food industry: yes
Documents included: yes, optional

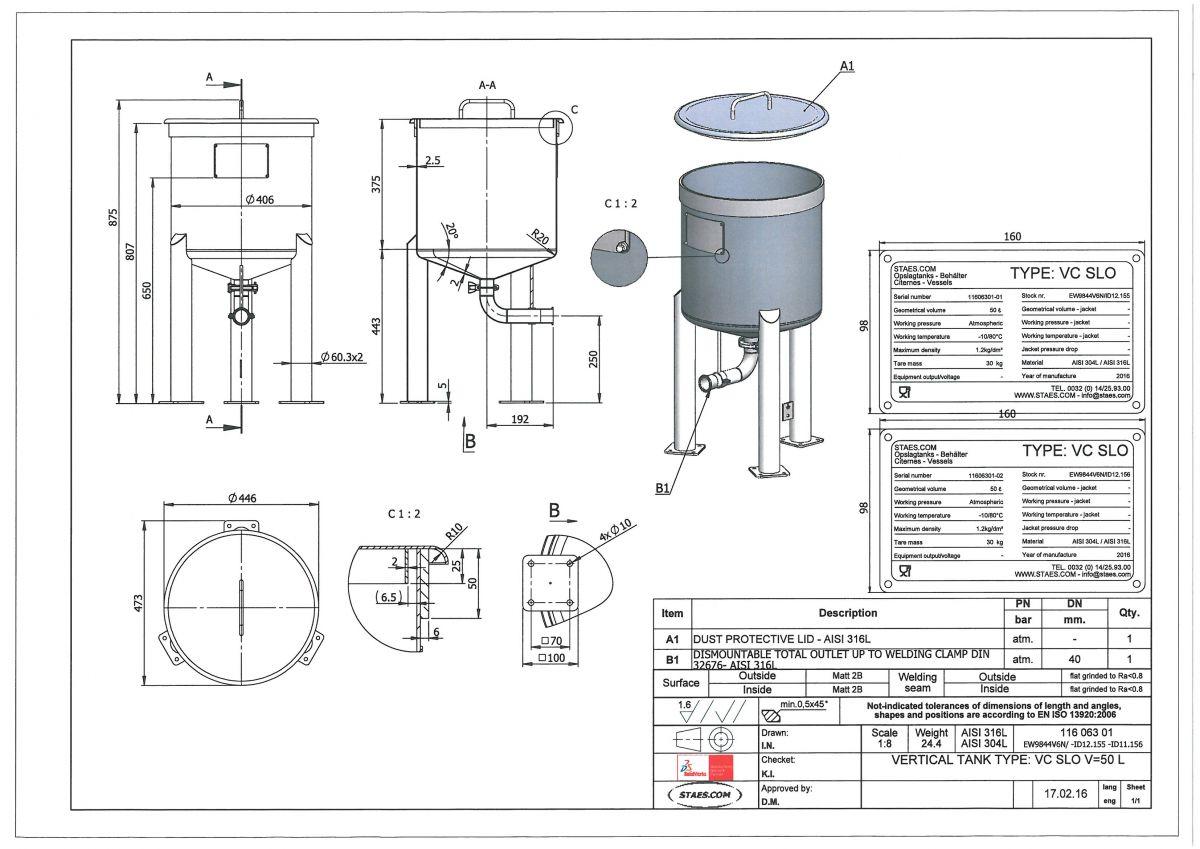

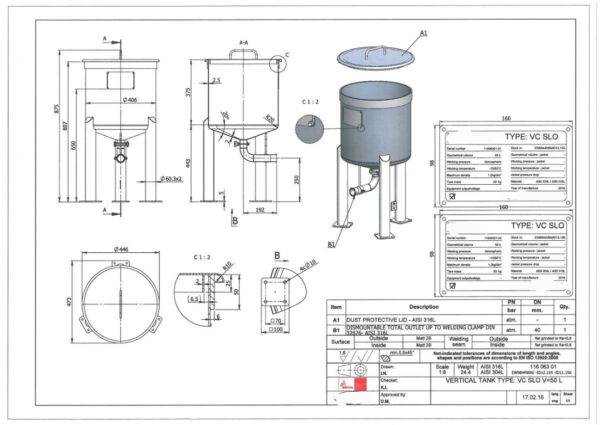

Technical drawing included: yes

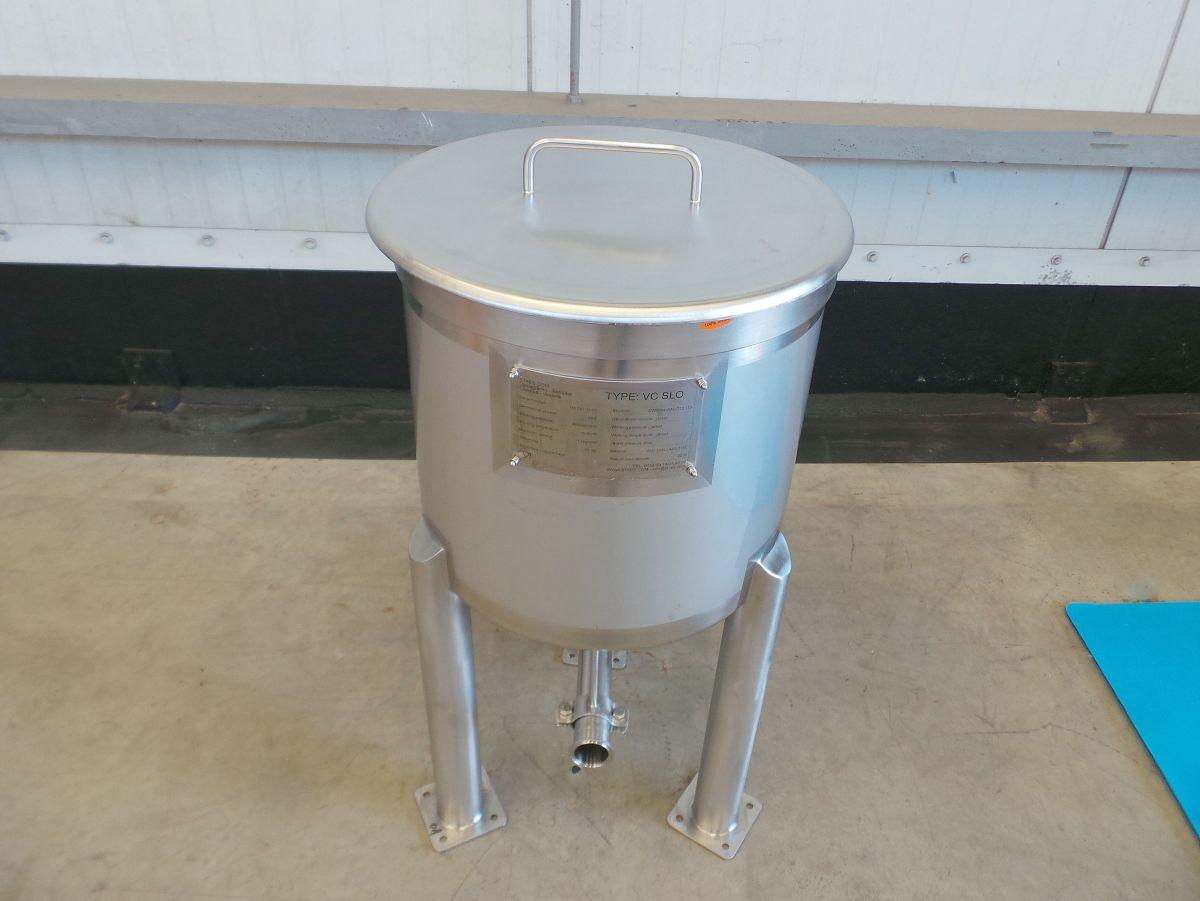

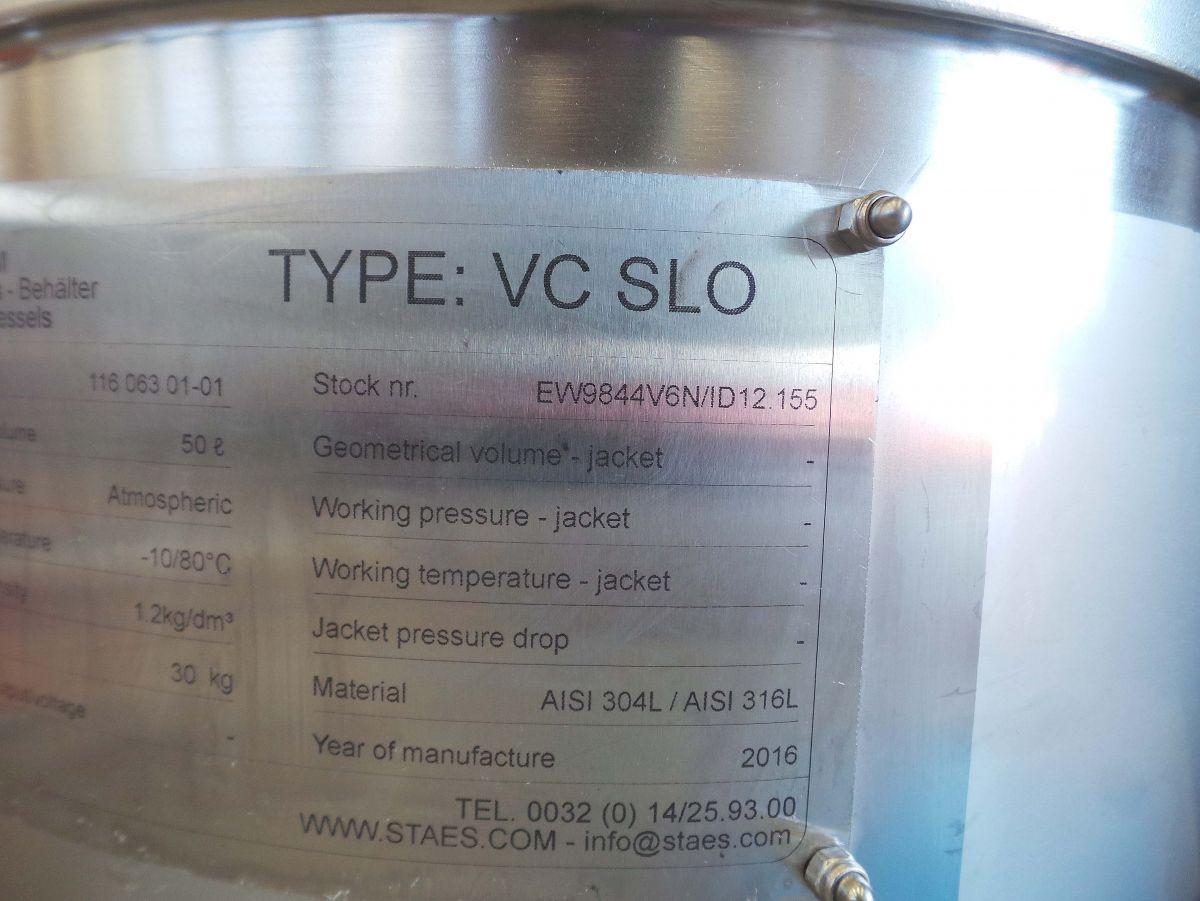

Registration plate on the tank: yes

Flange for agitator: no
Spray ball: no

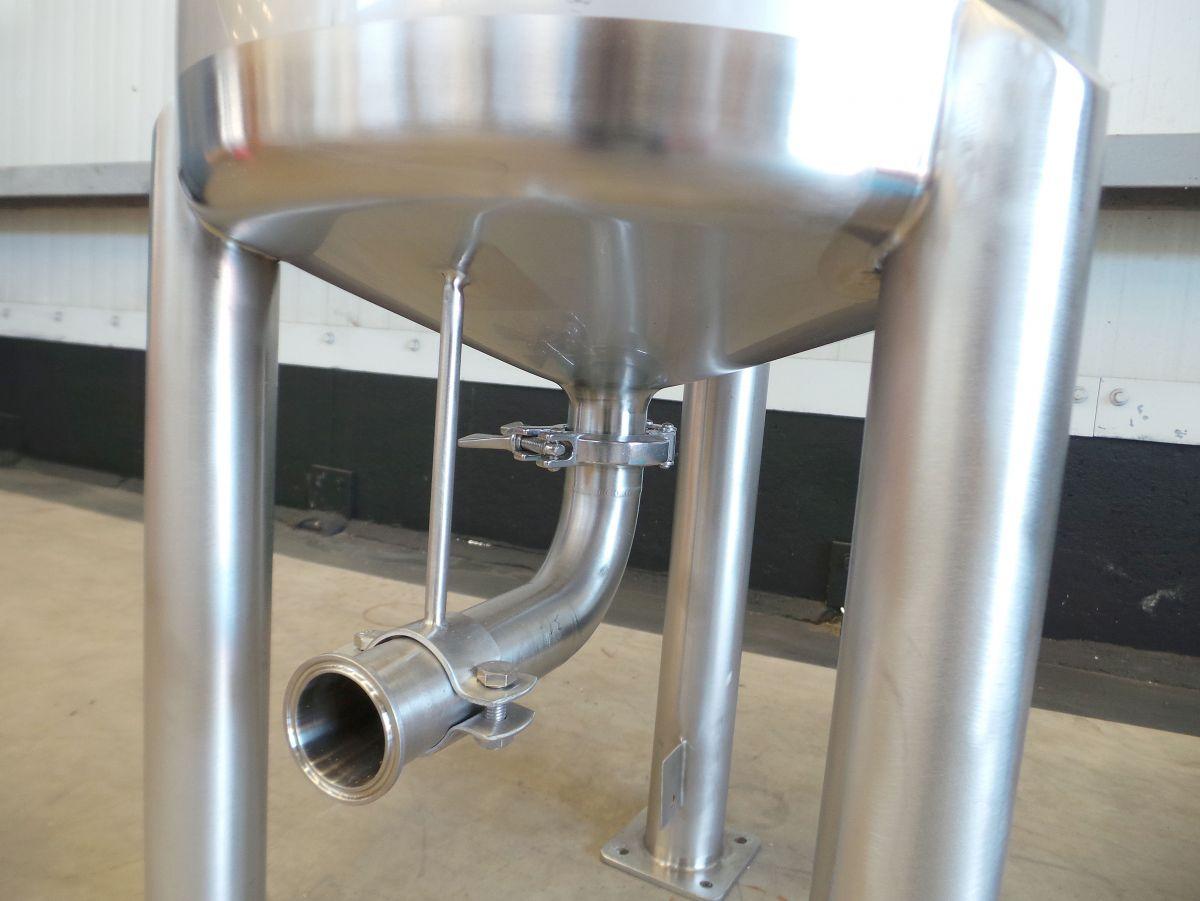

Tank outlet: inside Ø 40 mm
Outlet type: DIN32676 clamp

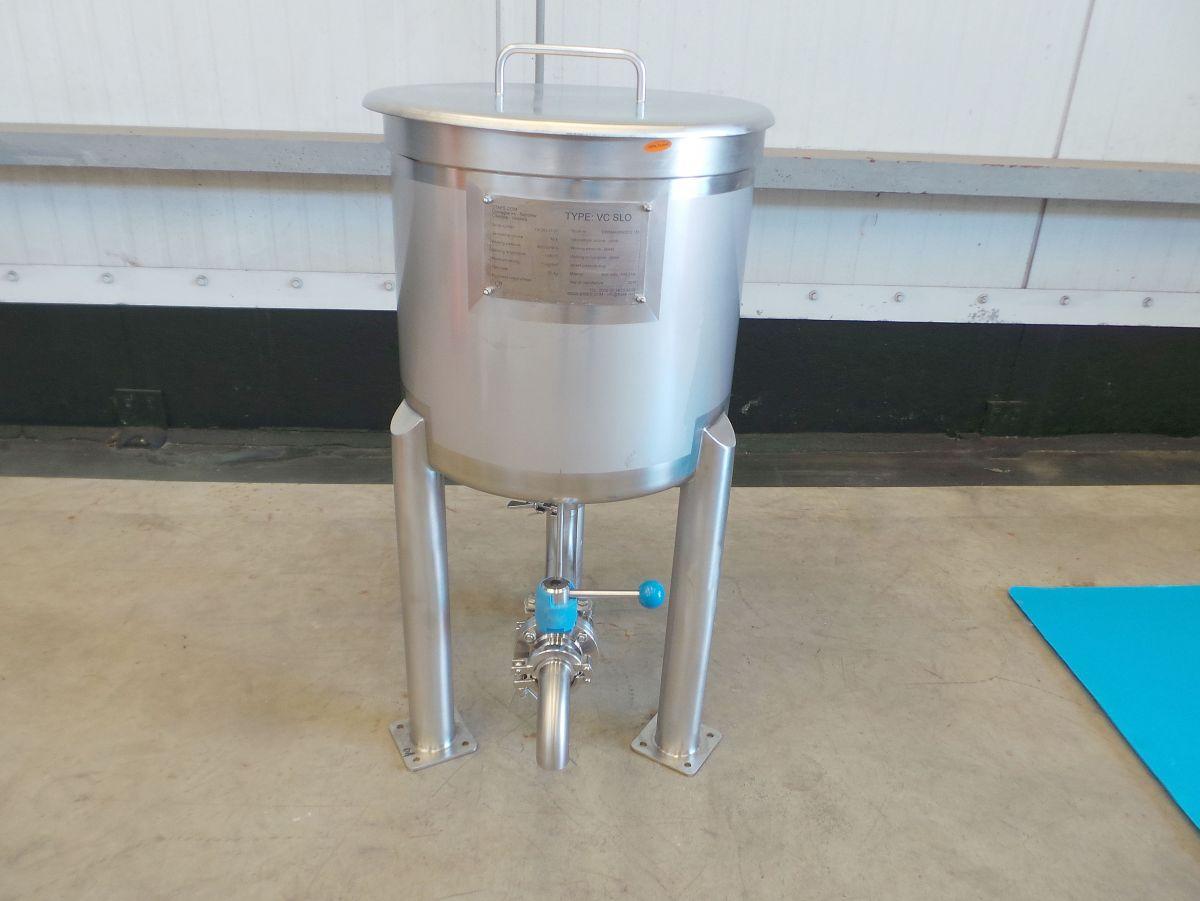

Total outlet valve: yes, optional

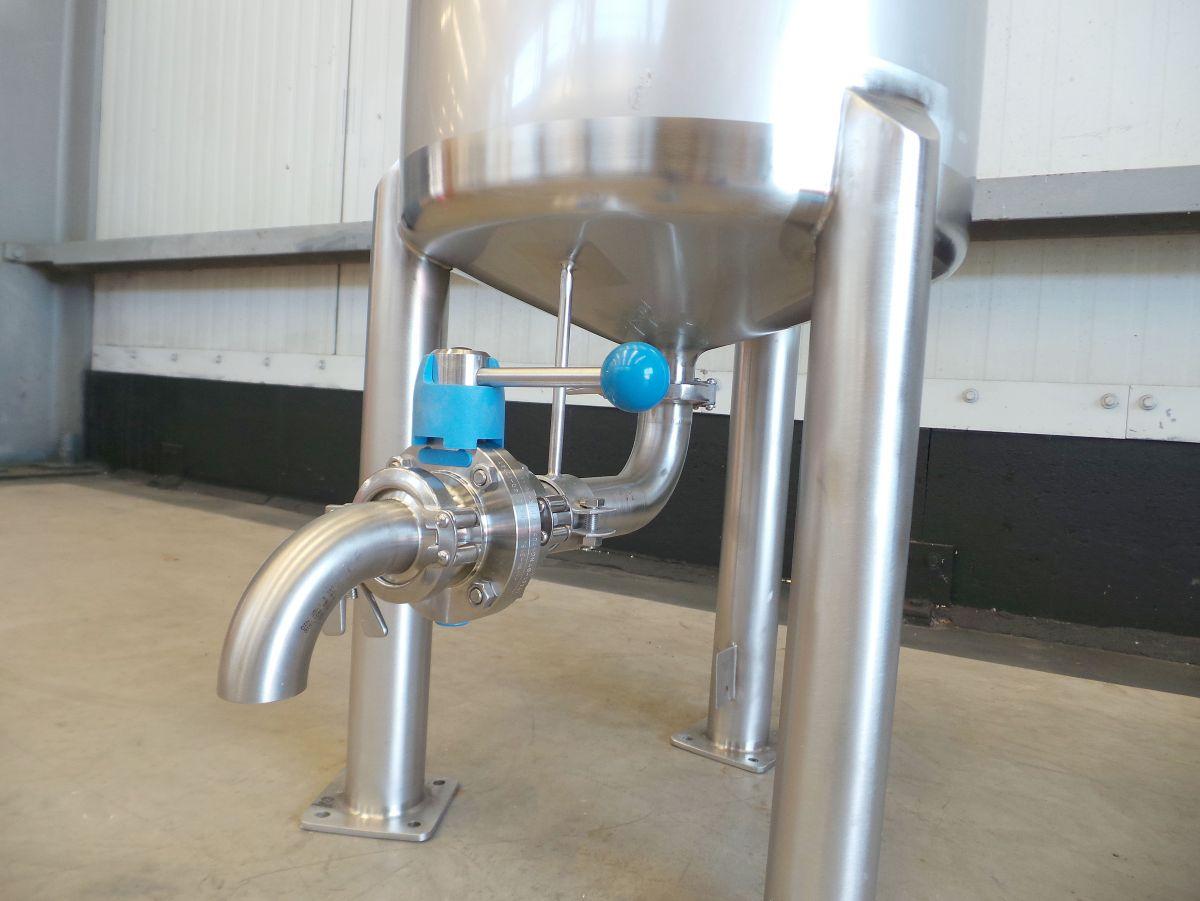

Type shut-off valve: butterfly valve
Top: 2 mm
Cylinder: 2,50 mm
Bottom: 2 mm
Distance from outlet to ground: 250 mm

Outer diameter tank: 406 mm
Cylinder height: 375 mm
Total height of tank: 875 mm
Empty weight tank: 30
