400 liter tank i Rostfritt 304

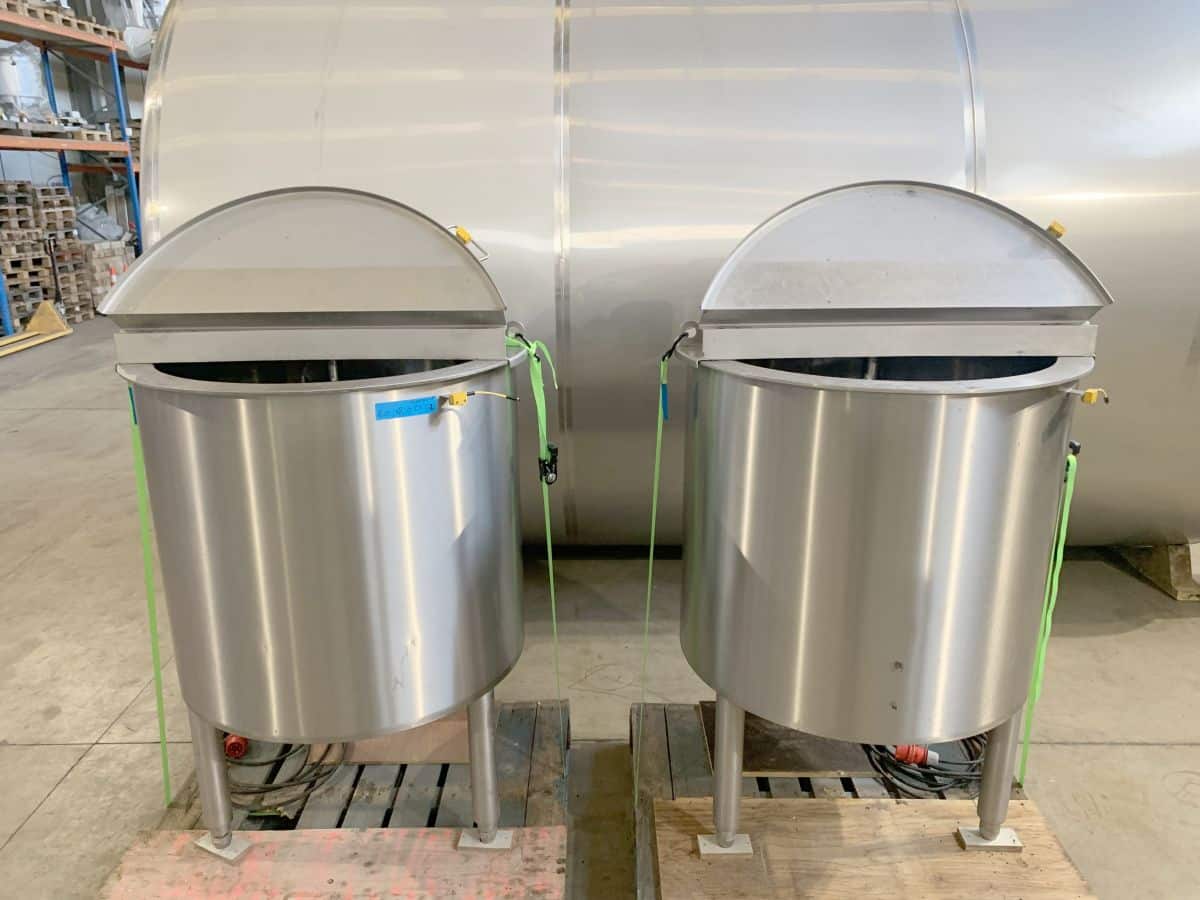

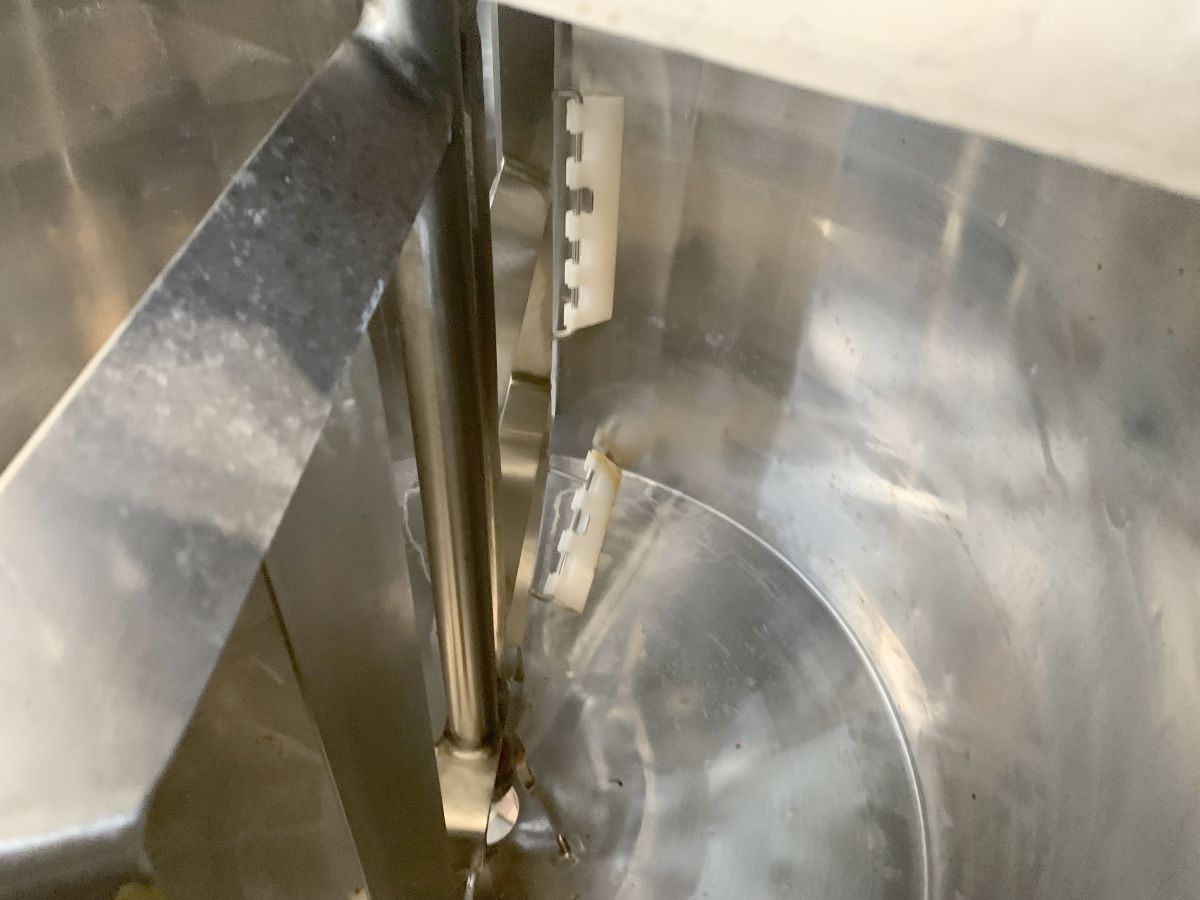

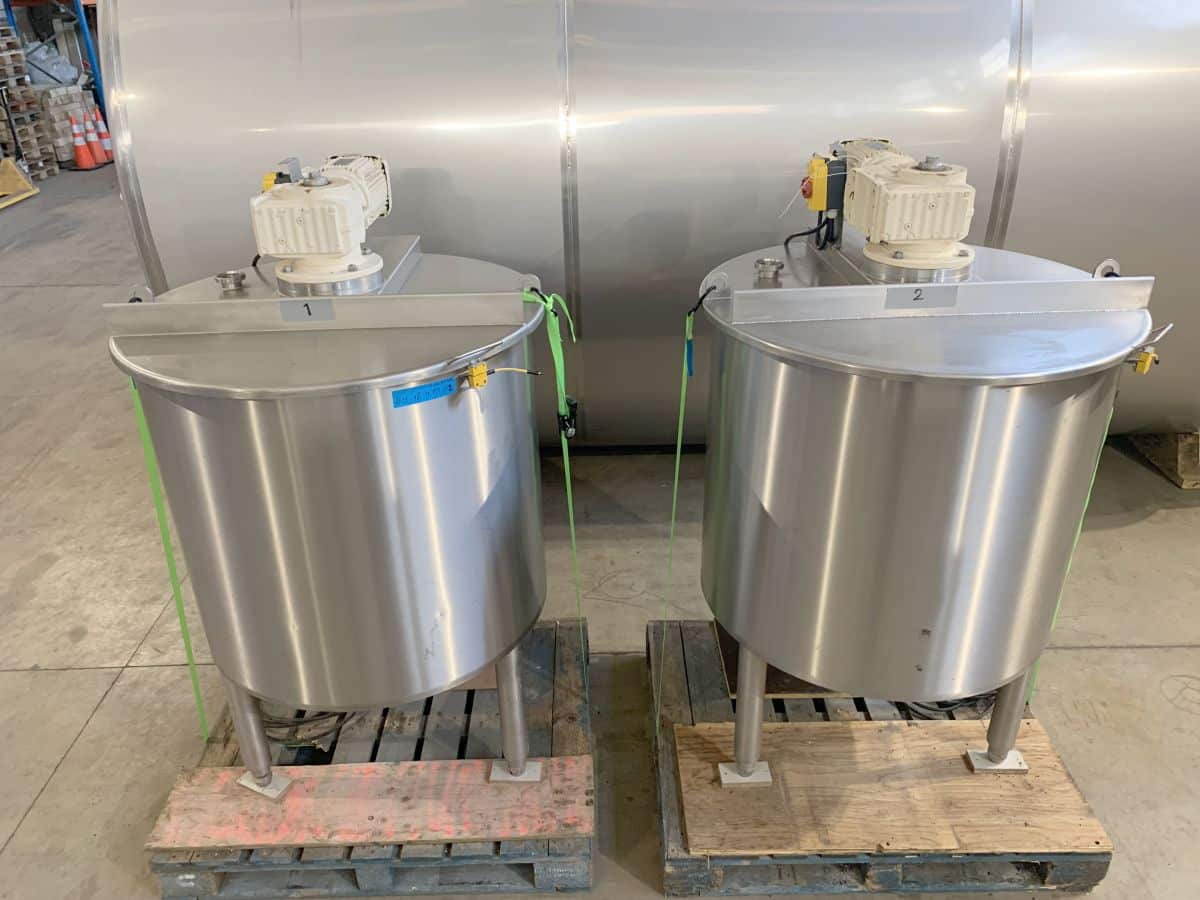

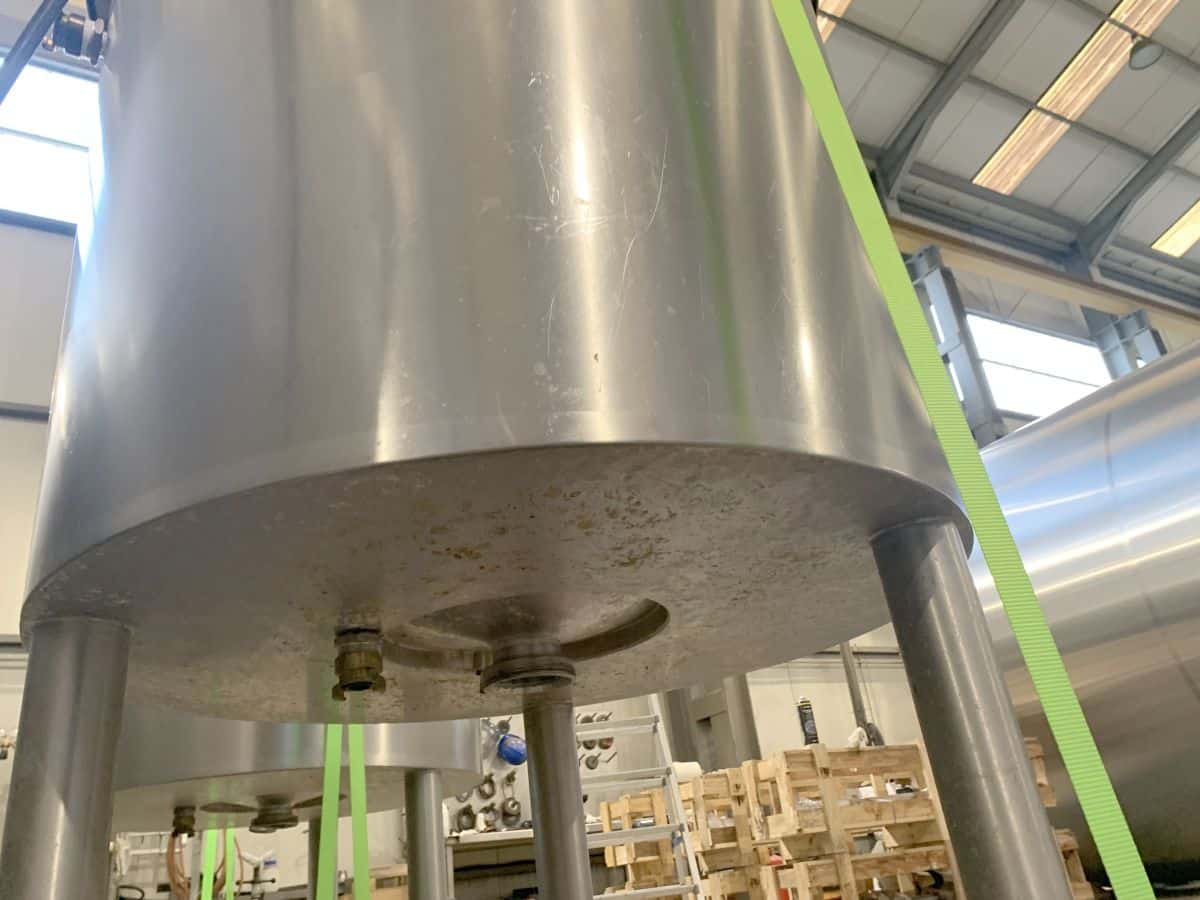

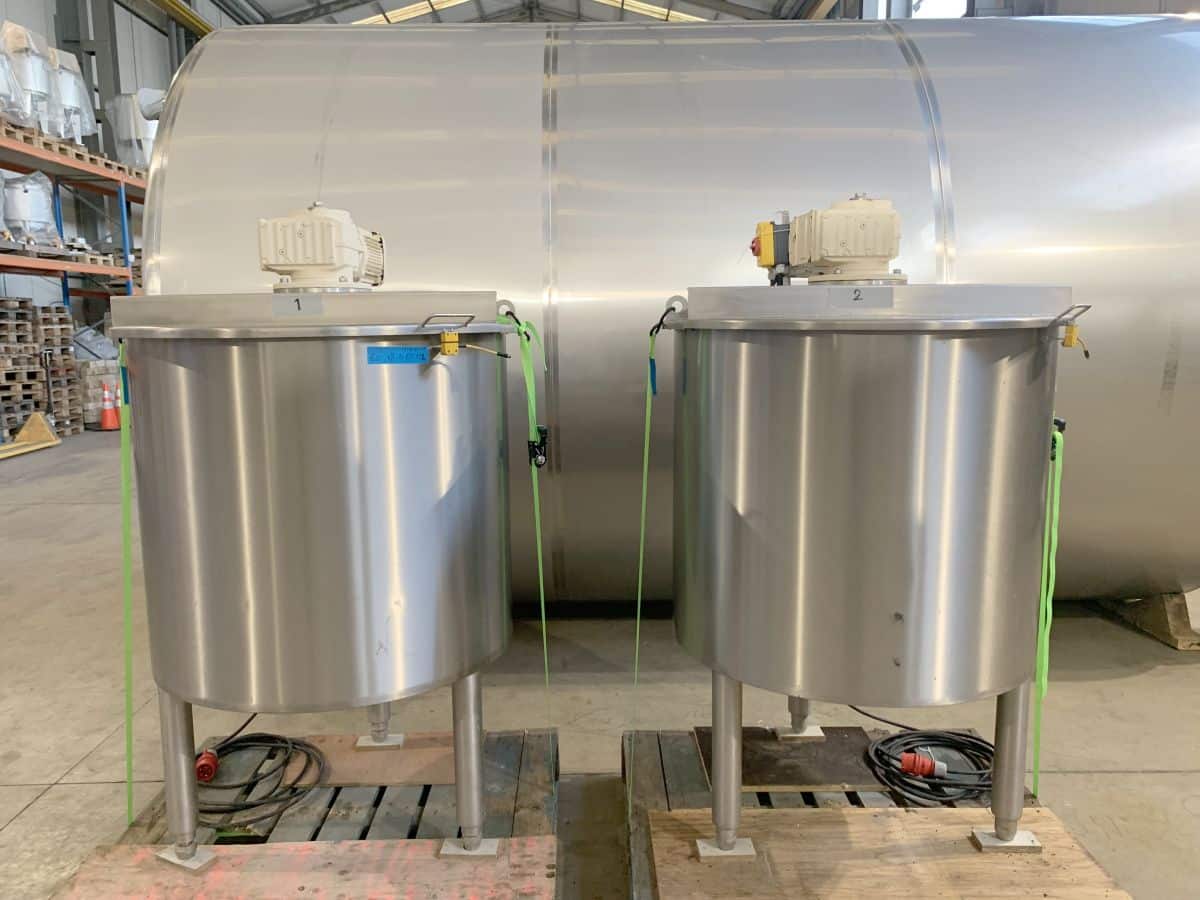

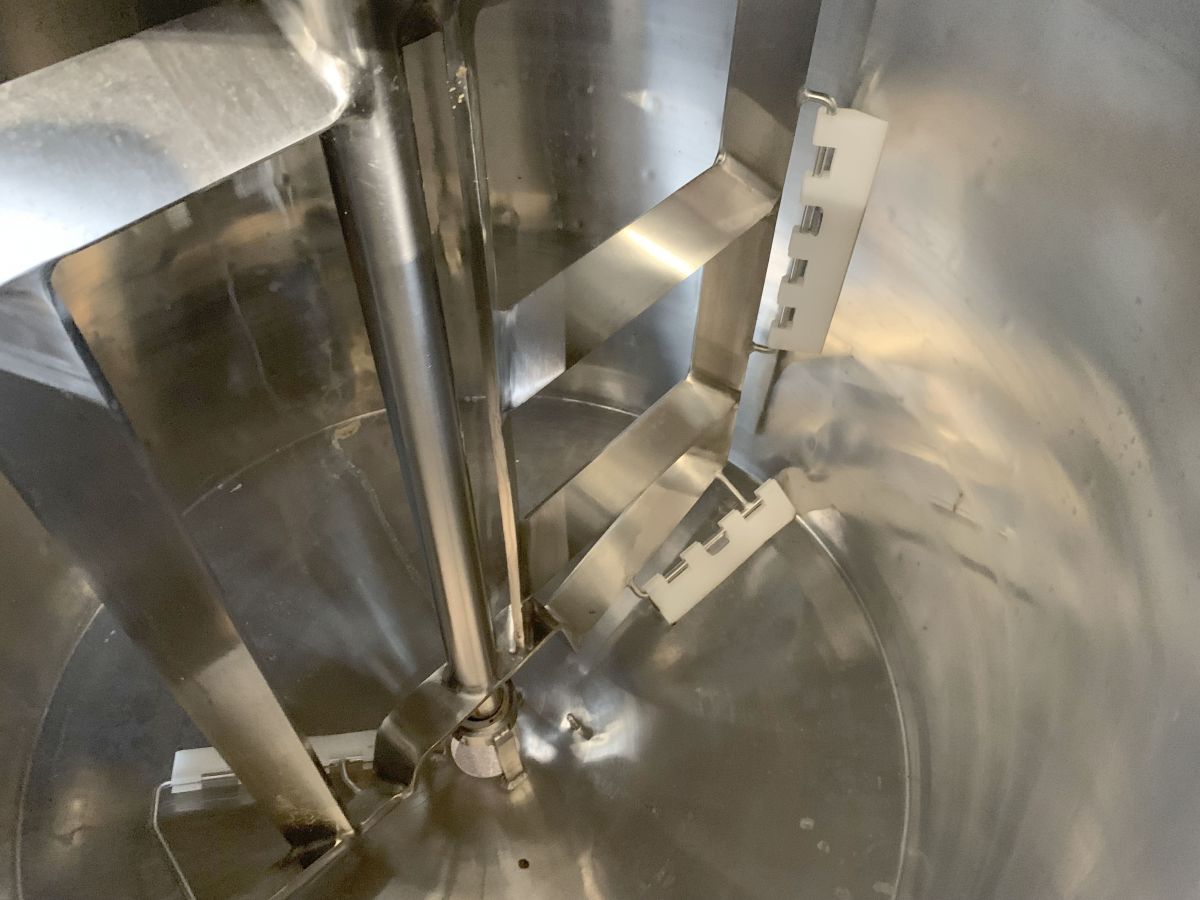

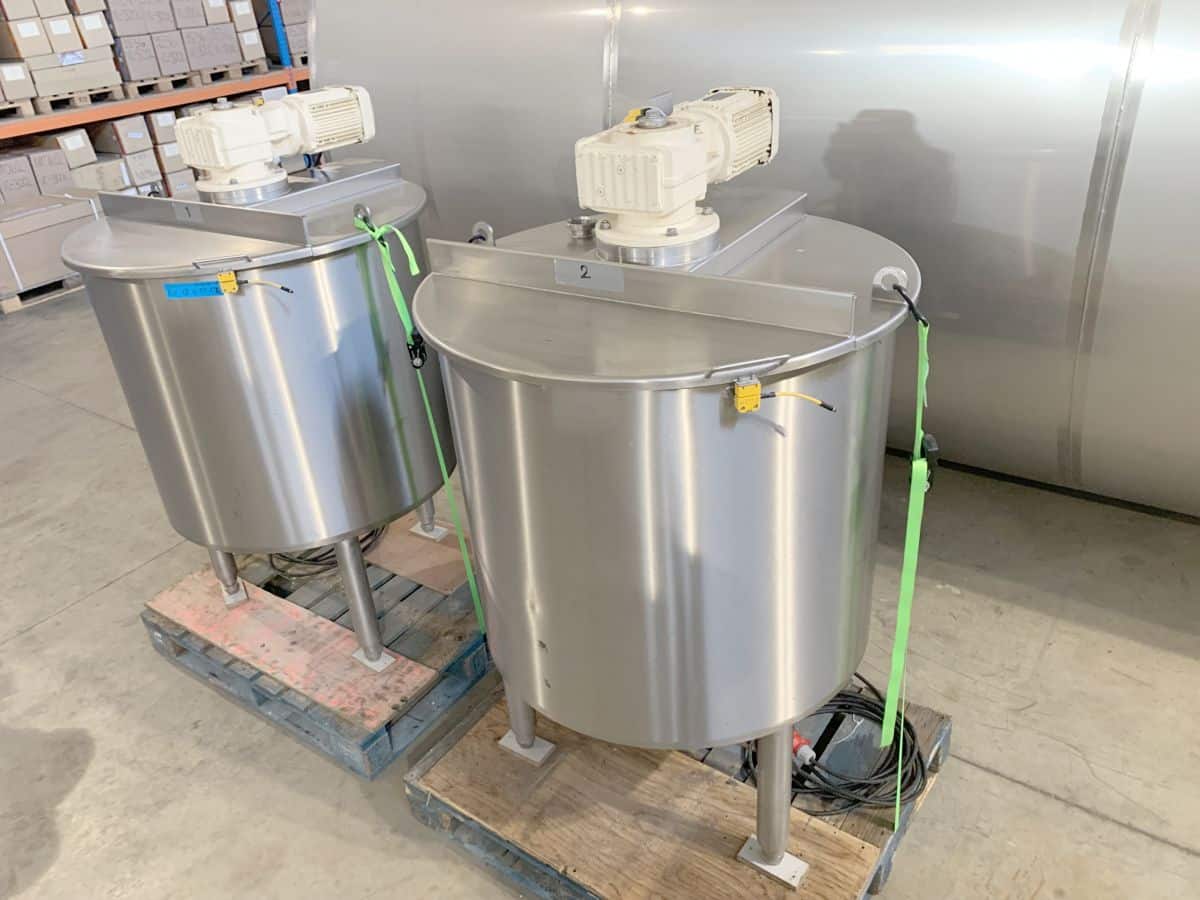

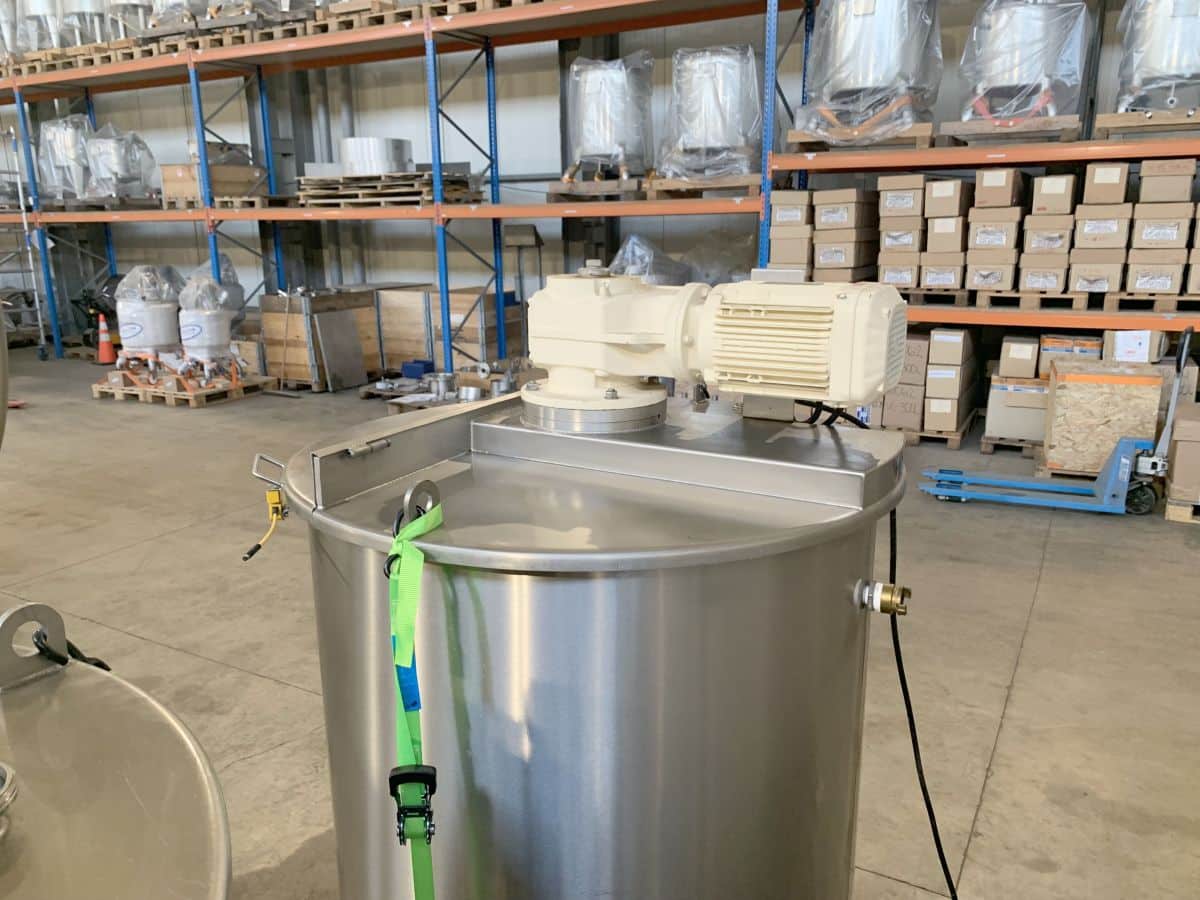

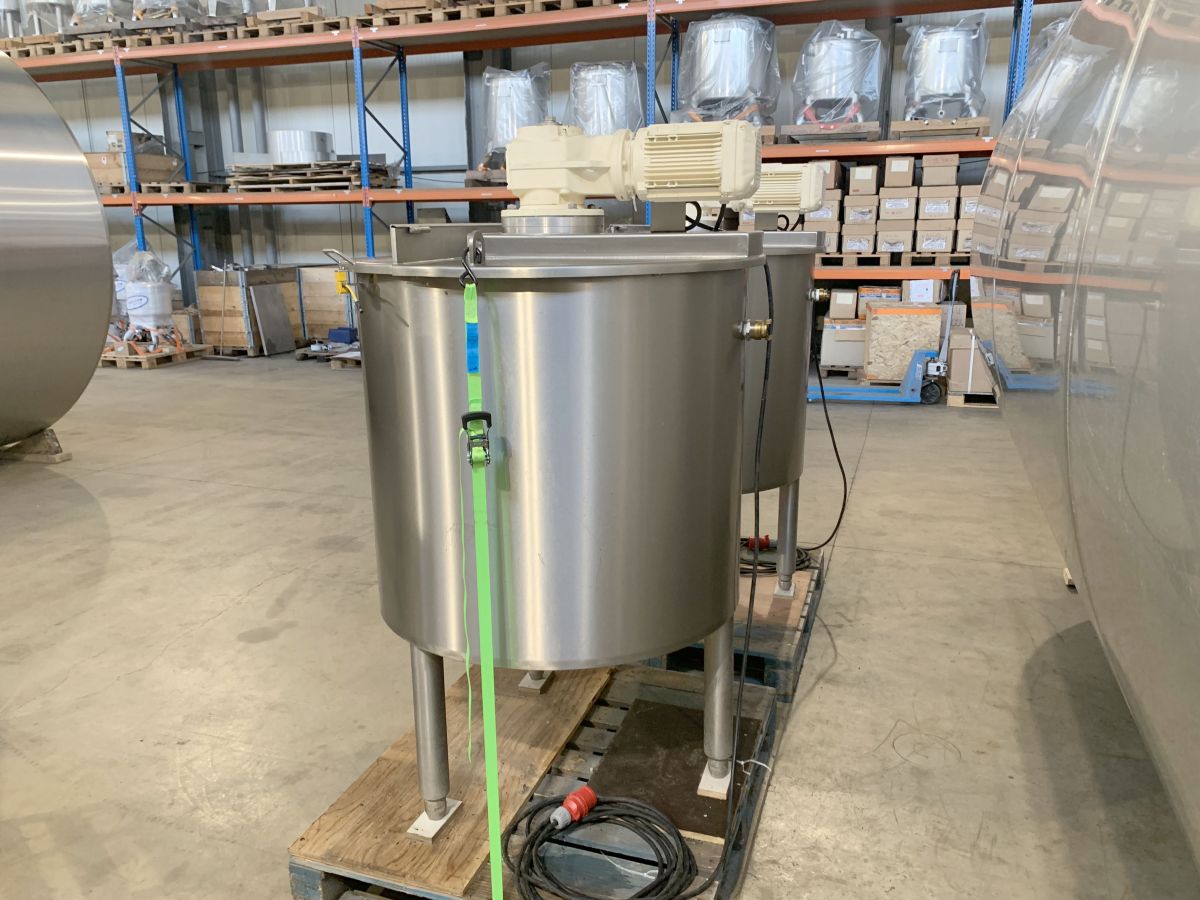

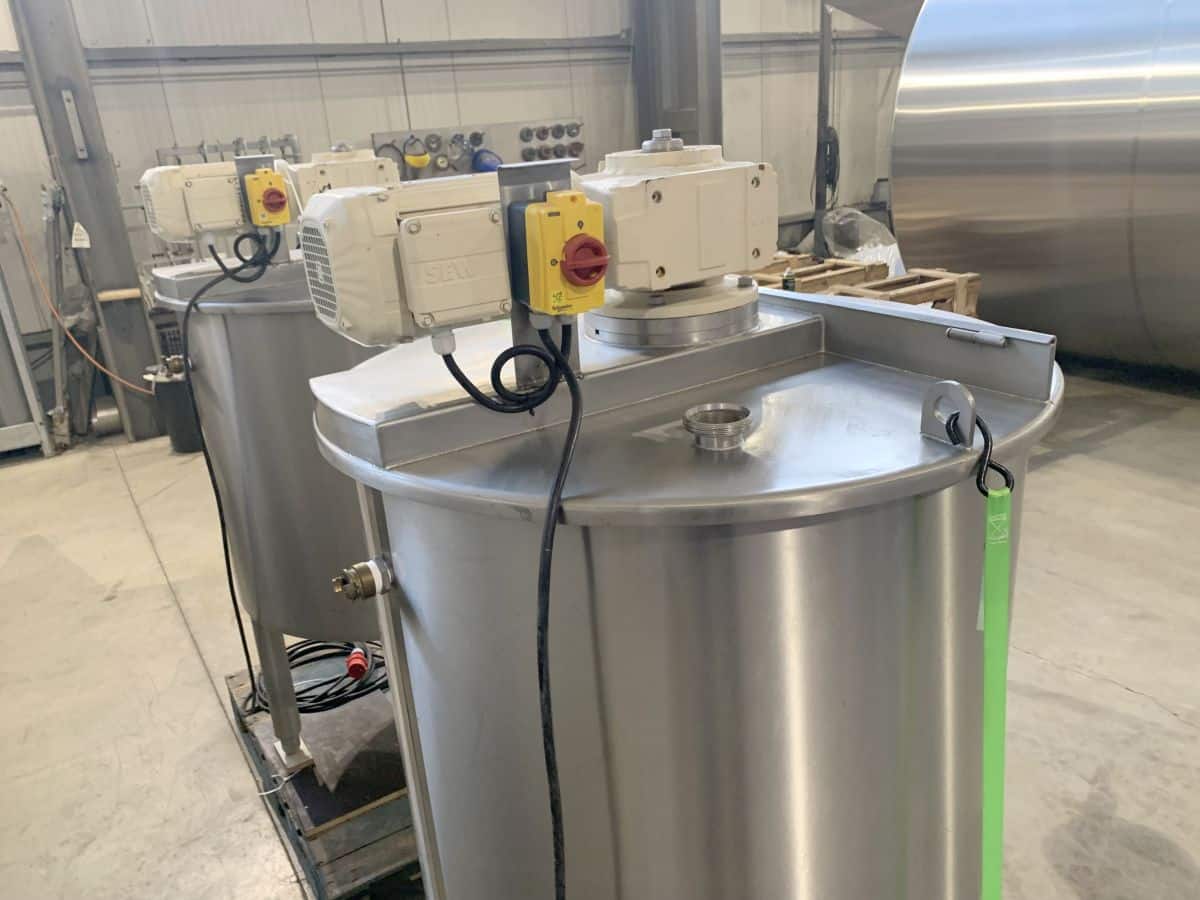

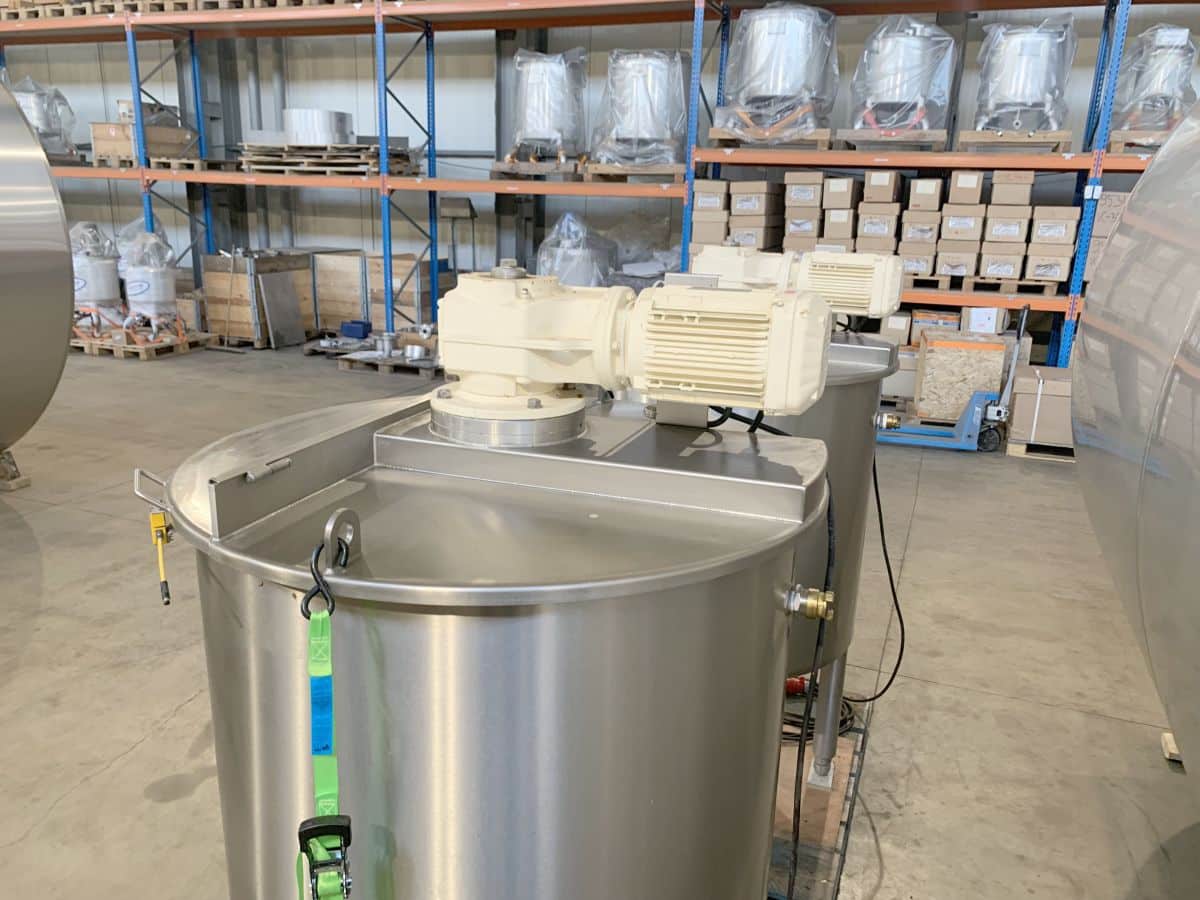

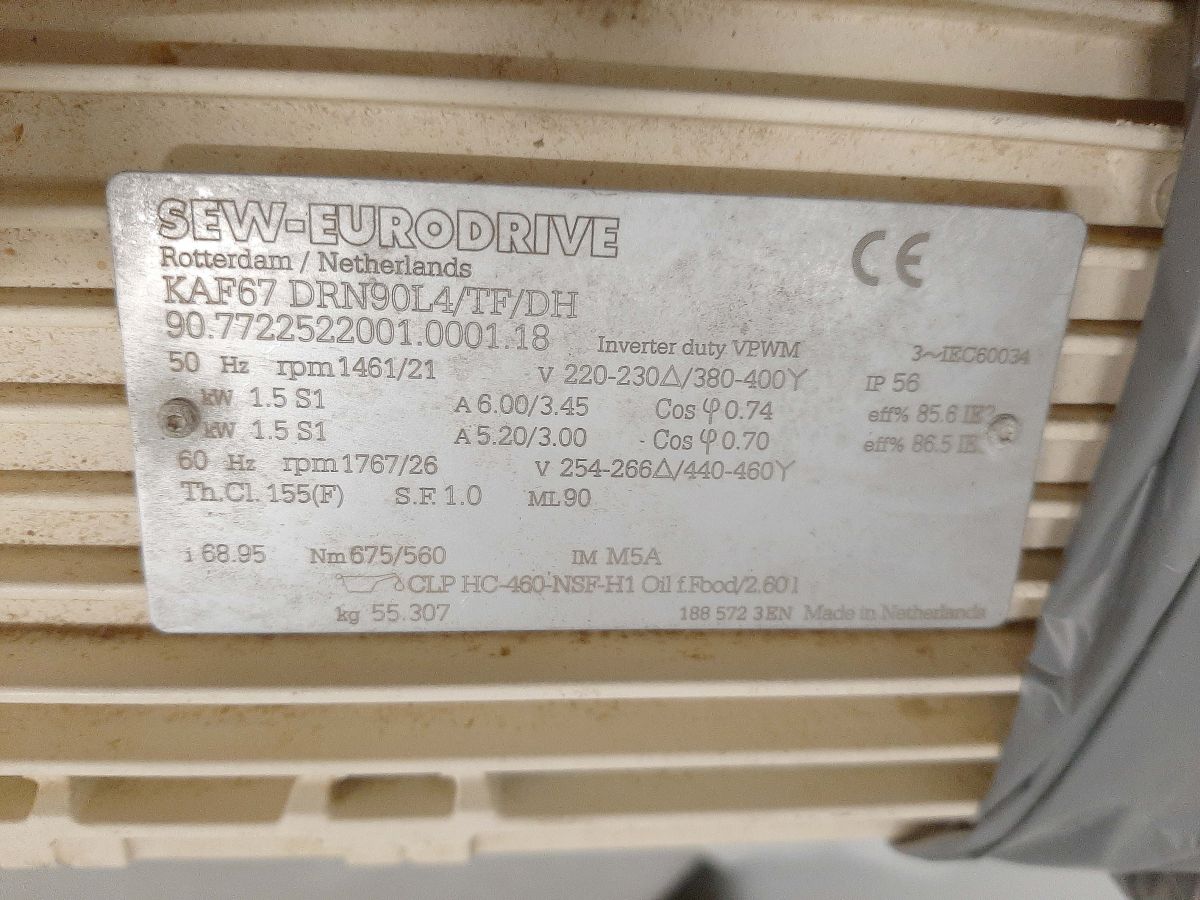

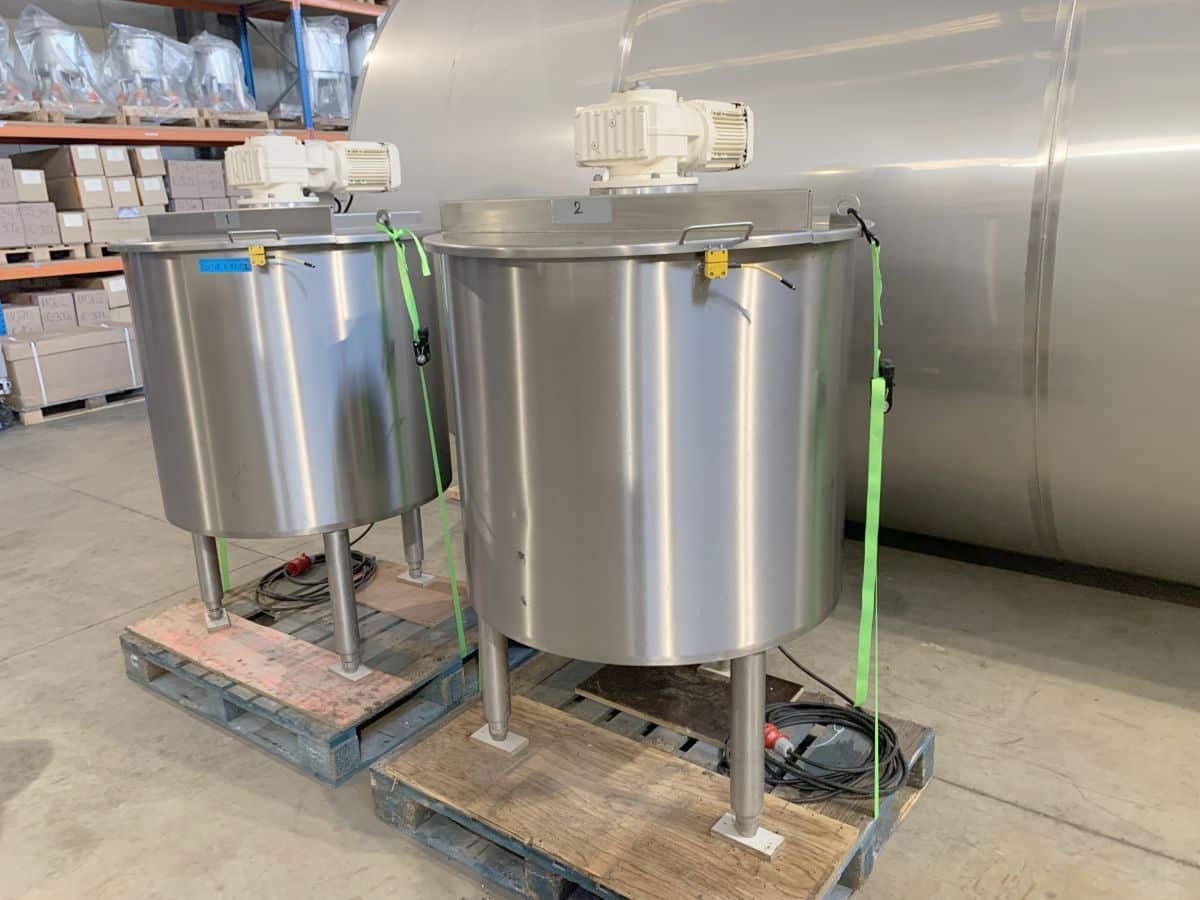

Article type: second-hand mixing tank Additional information: we can’t give any guarantees about the heating/cooling jacket; we can’t give any guarantees about the agitator Volumetric volume (L): 400 L Pressure in tank: ATM - atmosferic Material wet parts: SS AISI 304 (V2A) Model: vertical Configuration: insulated with heat-exchanger Heat exchanger: yes Insulation: yes Mobile tank: no Top type: half hinging lid Shape of tank: cylindrical Bottom type: conical 15 ° Total discharge: yes Fixation points: 3 adjustable feet Type of HE on the cylinder: dimple-jacket Position HE: the middle part of the cilinder Height HE: 550 mm Water pressure HE: 2 Bar Type of HE on the bottom: dimple-jacket Water pressure HE: 2 Bar Heat exchanger: RVS 316 Insulation material: Rockwool Outer jacket (ornamental wall): RVS 304 Fixation point(s): RVS 304 Wet parts agitator(s): SS AISI 304 (V2A) Suitable for food industry: yes Documents included: no Technical drawing included: yes Registration plate on the tank: no Flange for agitator: no Tank outlet: inside Ø 72 mm Outlet type: DIN11851 Agitator: yes Agitator type: gate Position engine: at the top Number of revolutions: 21 Power: 1,50 Voltage: 400 V - three-phase Top: 3 mm Cylinder: 3 mm Bottom: 3 mm Cylinder: 2 Insulation bottom/sides: yes finish of the outer jacket: welded Insulation thickness: 40 Internal diameter tank: 850 mm Distance from outlet to ground: 500 mm Outer diameter tank: 1.020 mm Cylinder height: 750 mm Total height of tank: 2.100 mm Empty weight tank: 650
