35 liter tank i Syrafast 316

Art.nr: 292735

75,000,00 kr /st exkl moms

Isolerad:
Material:
Modell:
Nytillverkad eller begagnad:
Trycktank:
Uppvärmning/kylning:
Omrörare:

Lagersaldo:

Slut i lager

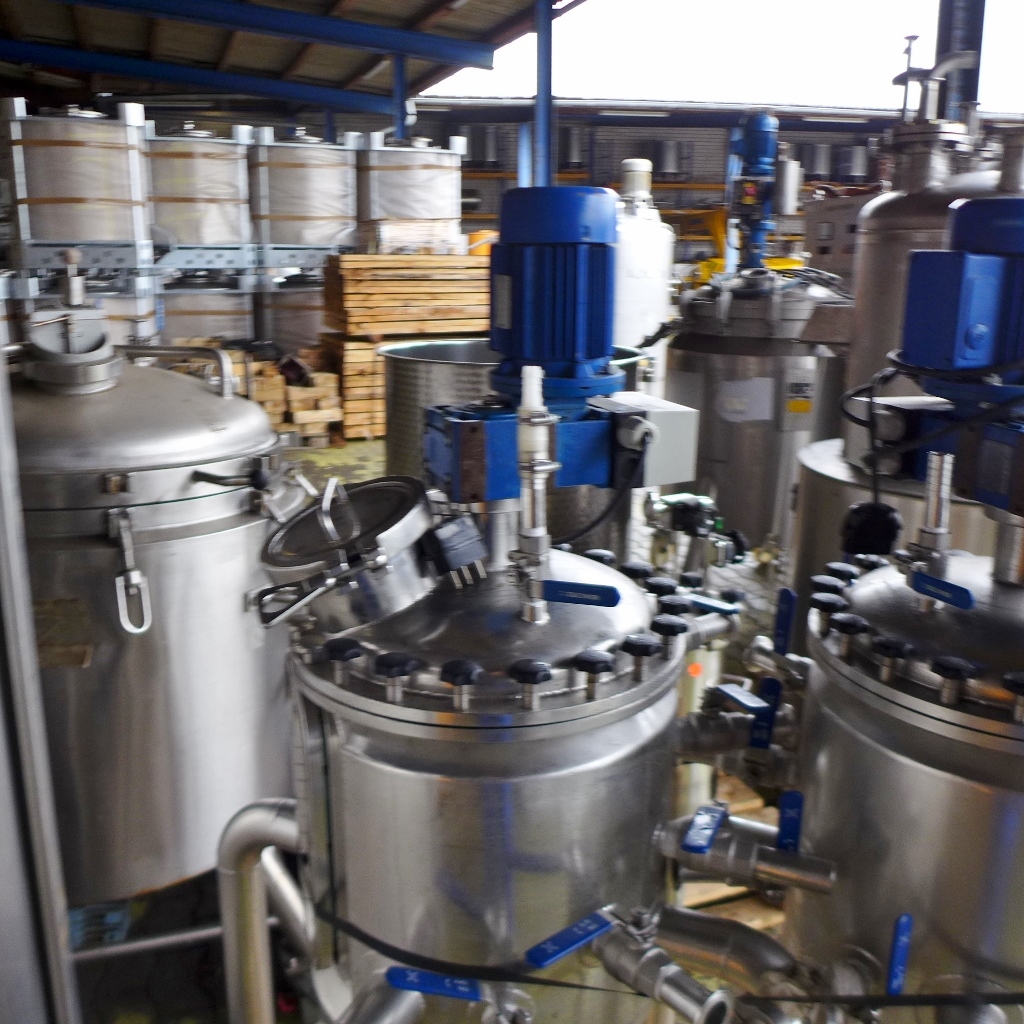

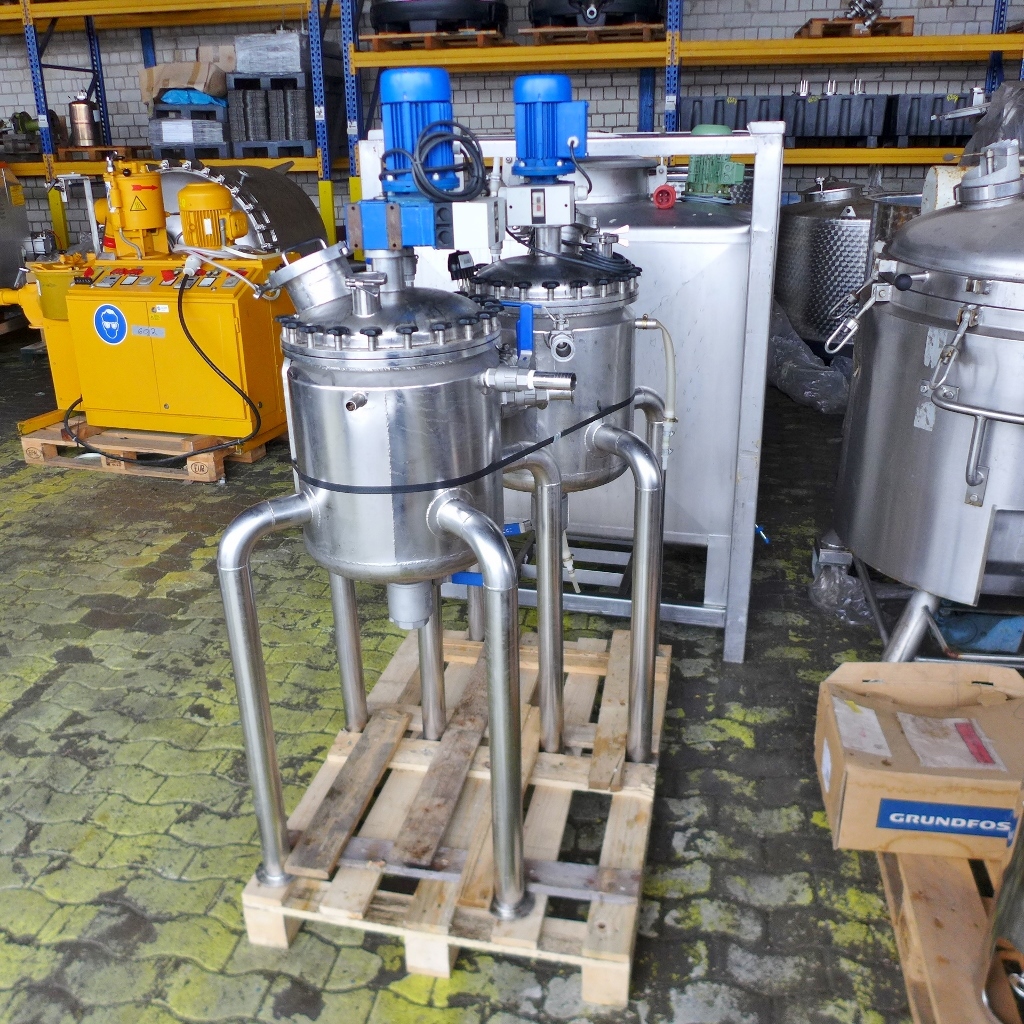

35 liter tank i Syrafast 316

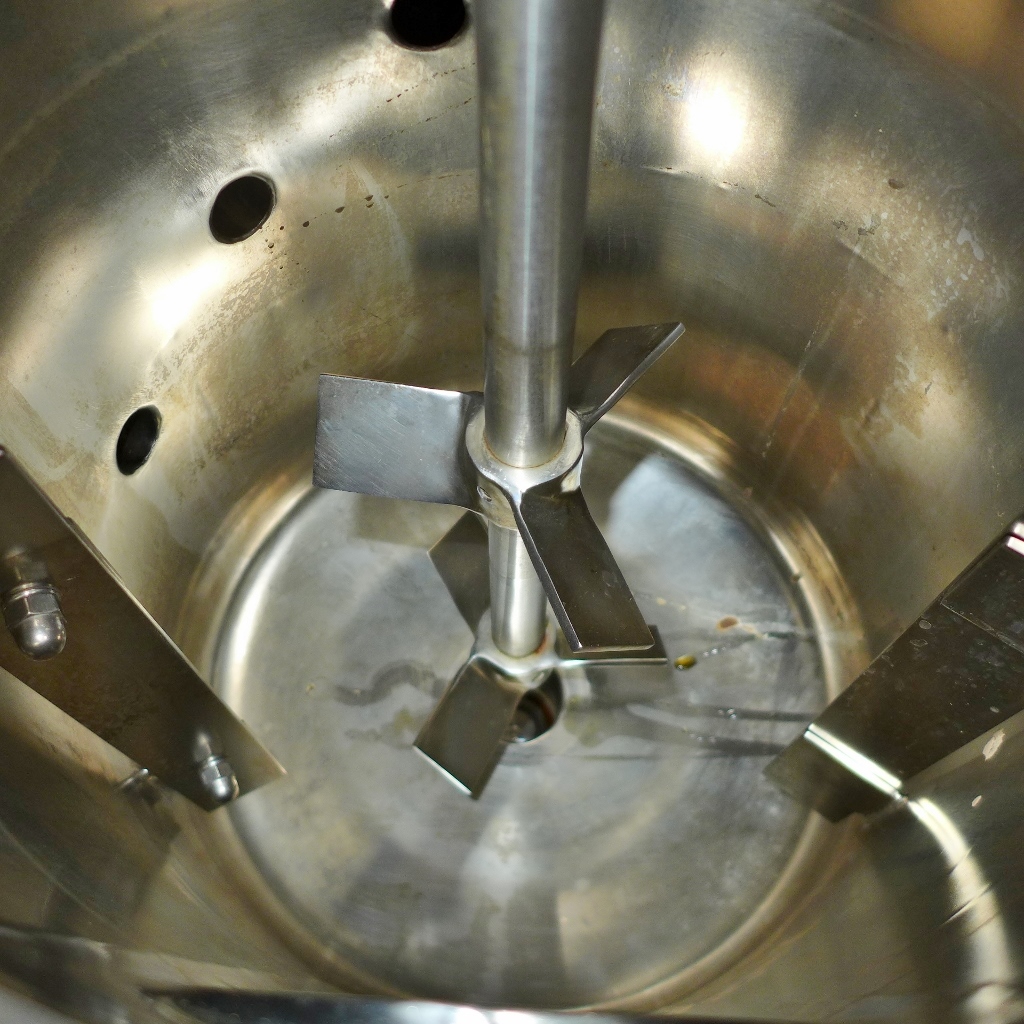

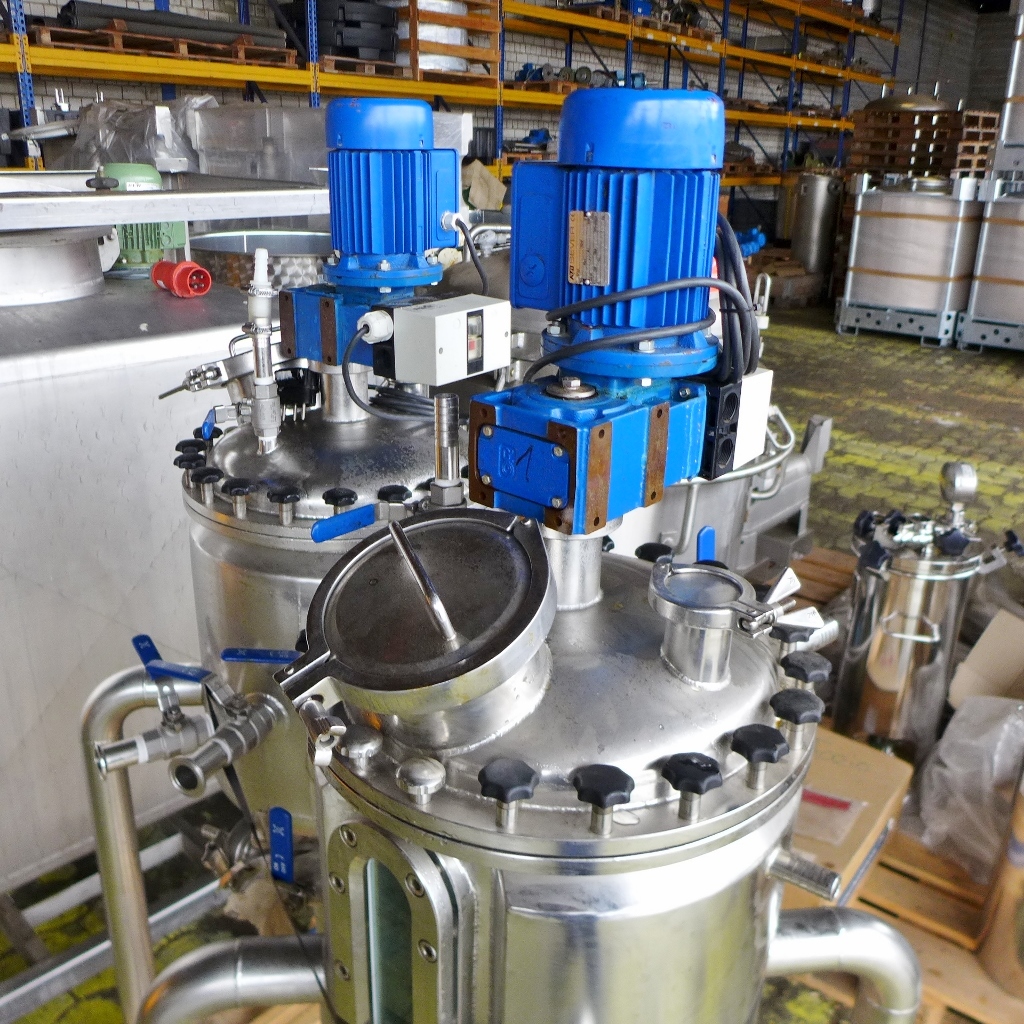

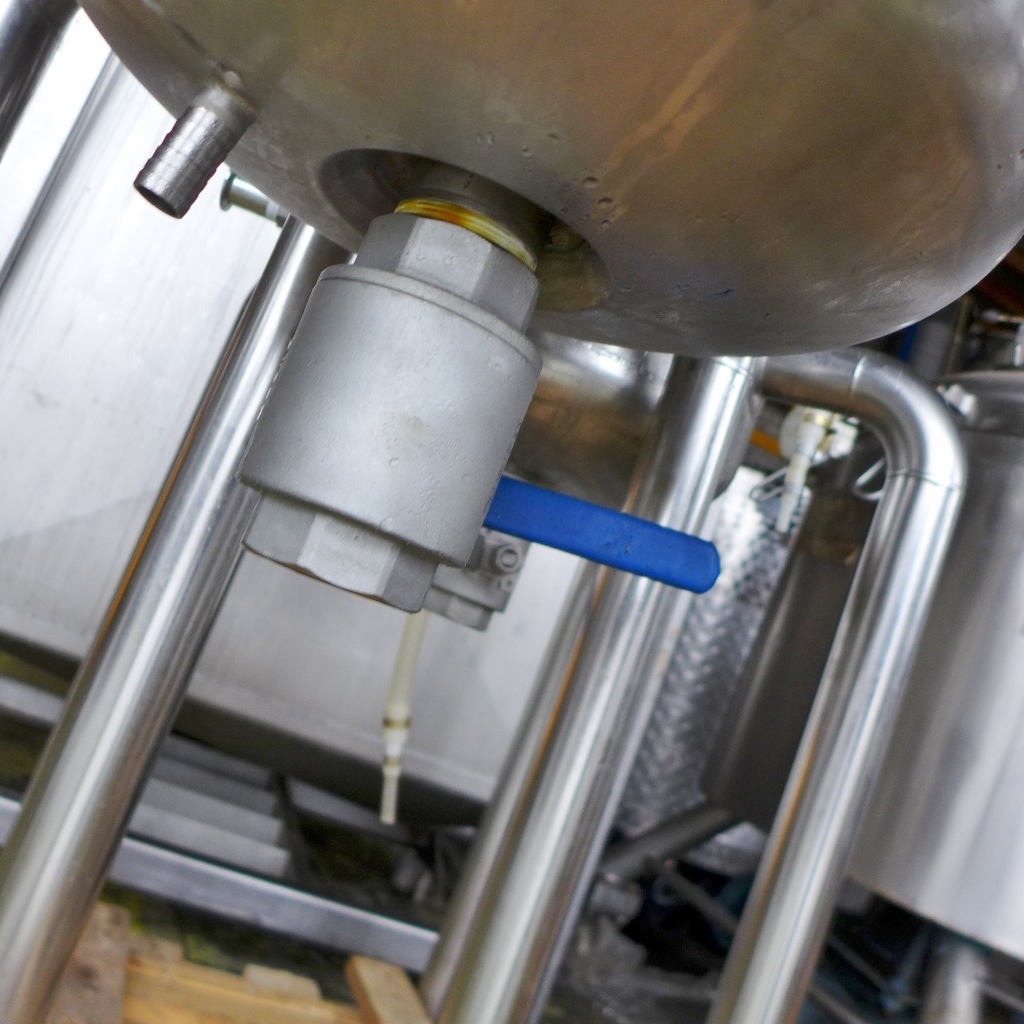

Additional information: 1 hand hole diameter approx. 125 mm in the upper bottom; 1 longitudinal sight glass in the cylinder; some residues of previous content Volumetric volume (L): 35 L Pressure in tank: ATM - atmosferic Material wet parts: SS AISI 316 (V4A) Model: vertical Configuration: single jacketed with heat-exchanger Heat exchanger: yes Insulation: no Mobile tank: no Total discharge: yes Type HE on the bottom: heating/cooling jacket Type HE on the cylinder: heating/cooling jacket Documents included: no Technical drawing included: no Registration plate on the tank: no Flange for agitator: no Outlet of tank: 55 Agitator: yes Number of revolutions: 58 Power: 0,25 Internal diameter tank: 350 mm Outer diameter tank: 410 mm Cylinder height: 370 mm Total height of tank: 1.580 mm
