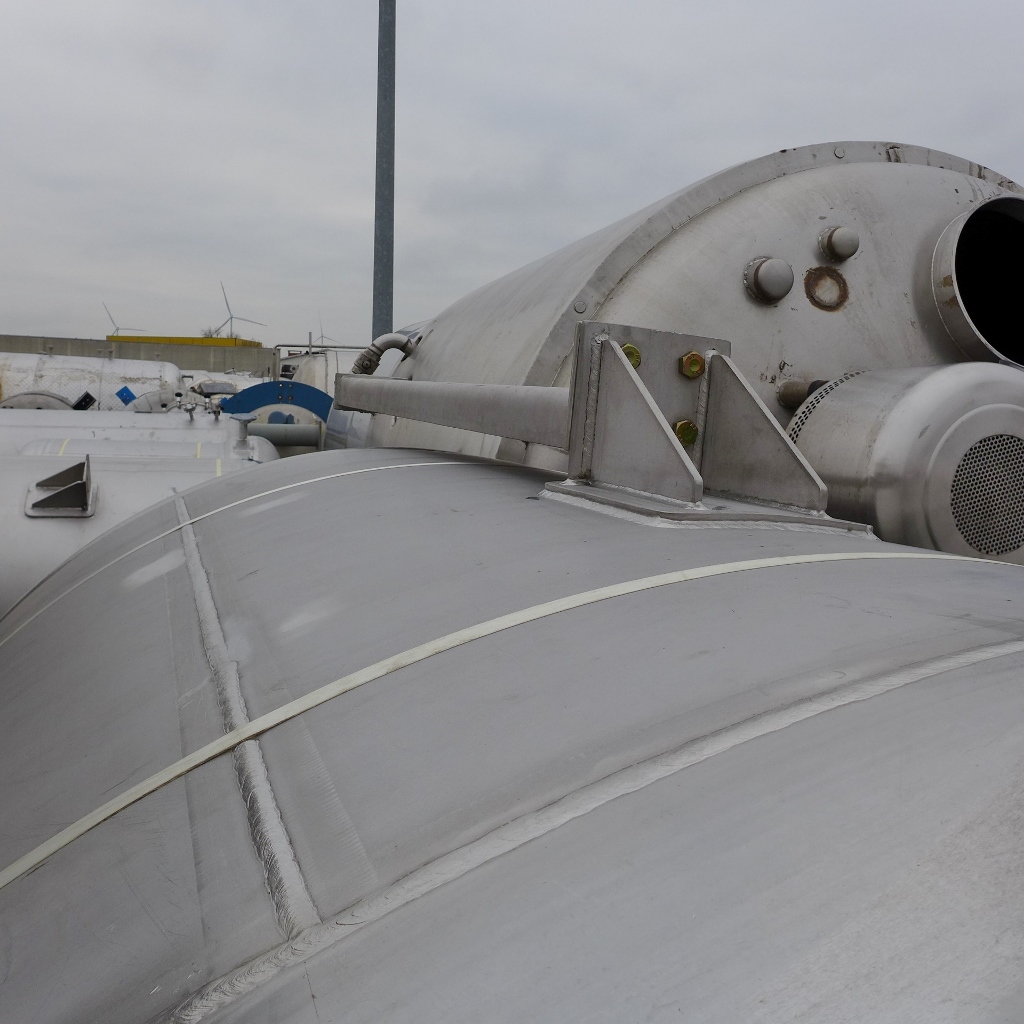

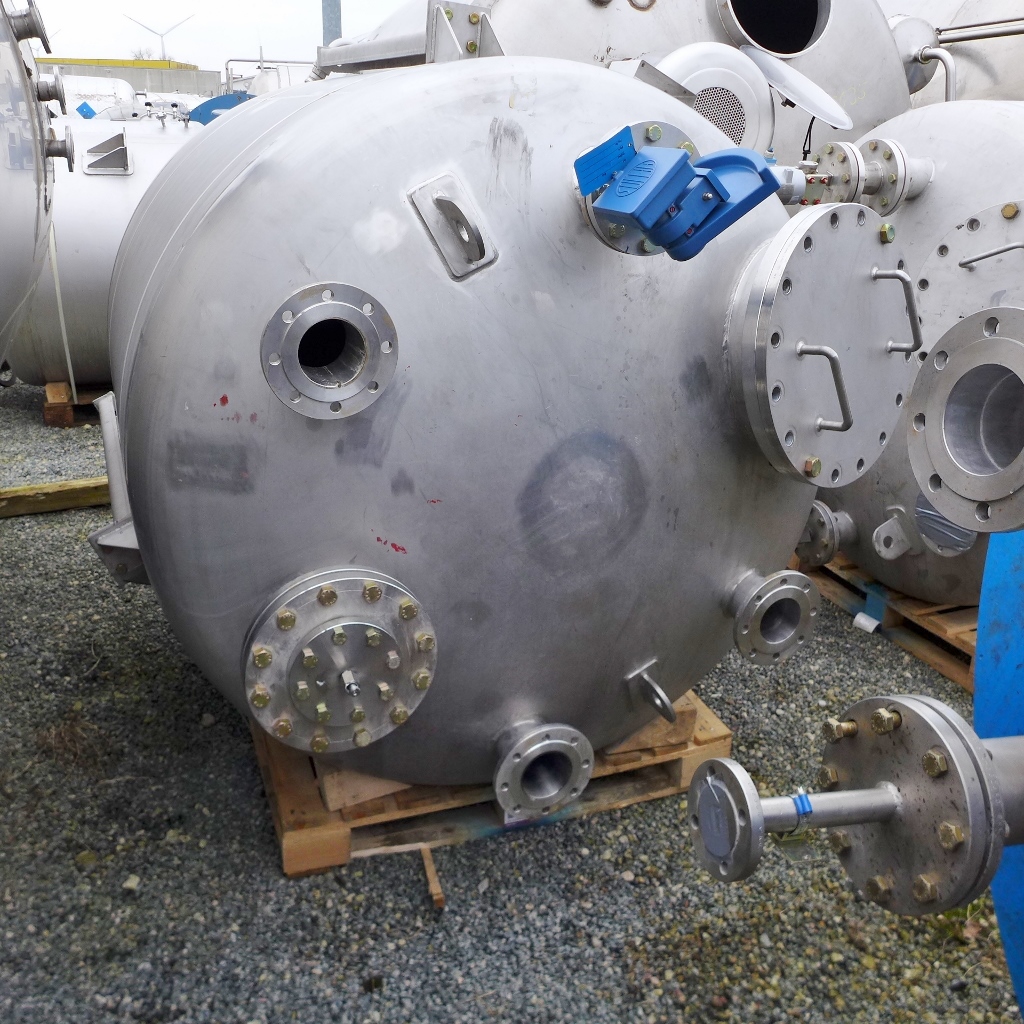

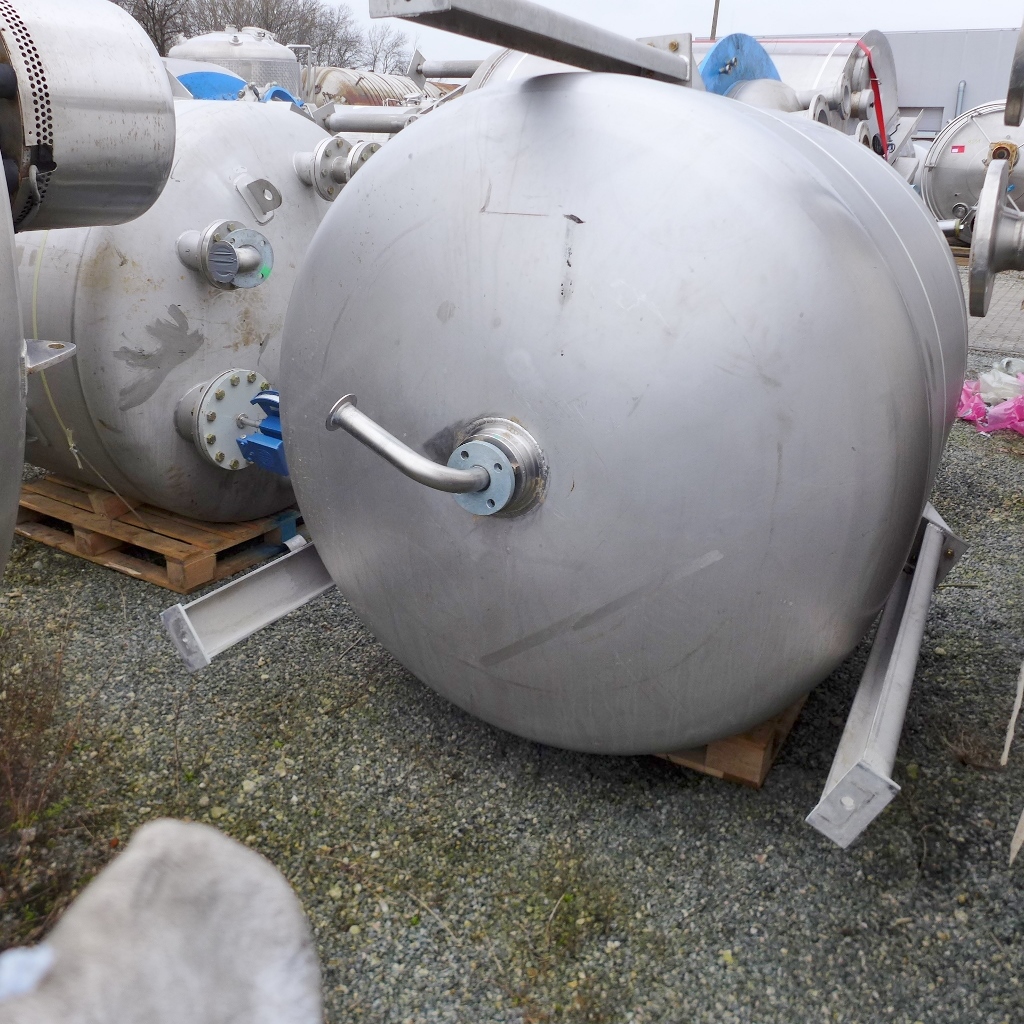

3472 liter tank i Syrafast 316

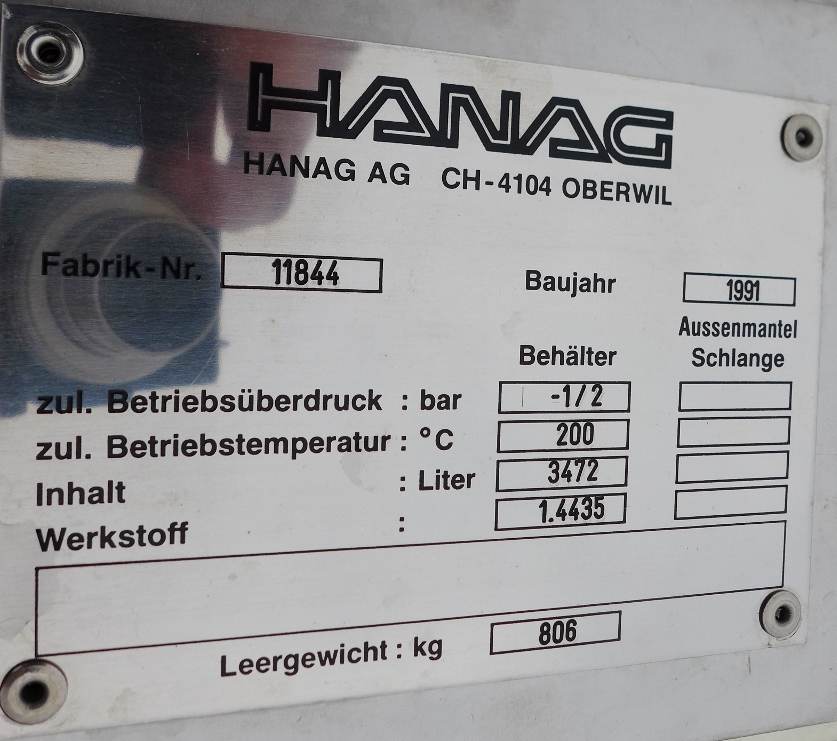

Additional information: Pharmaceutical Chemistry; 3 feet, Aisi 304 screwed to 3 support brackets, Aisi 304; Outlet loose flange, Fe Volumetric volume (L): 3.472 L Pressure in tank: pressure and vacuum Max. pressure (Bar): 2 Bar Min. pressure (Bar): 1 Bar Max. temperature (°C): 200 °C Material wet parts: SS AISI 316 (V4A) Model: vertical Configuration: single-skin Heat exchanger: no Insulation: no Mobile tank: no Total discharge: yes Documents included: no Technical drawing included: no Registration plate on the tank: yes Flange for agitator: no Position of manway: headside Outlet of tank: 44 Top: 7,90 mm Cylinder: 6,30 mm Bottom: 6 mm Internal diameter tank: 1.580 mm Cylinder height: 1.240 mm Total height of tank: 2.500 mm
