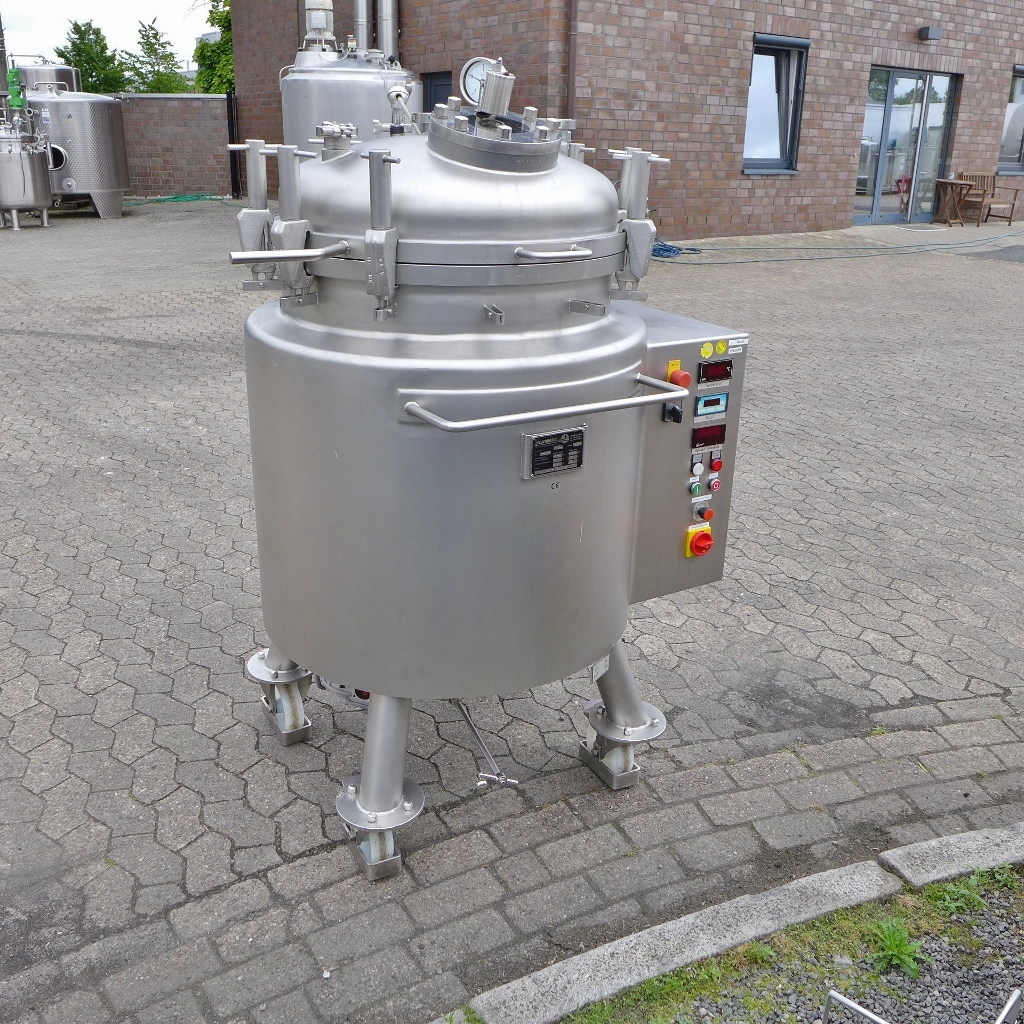

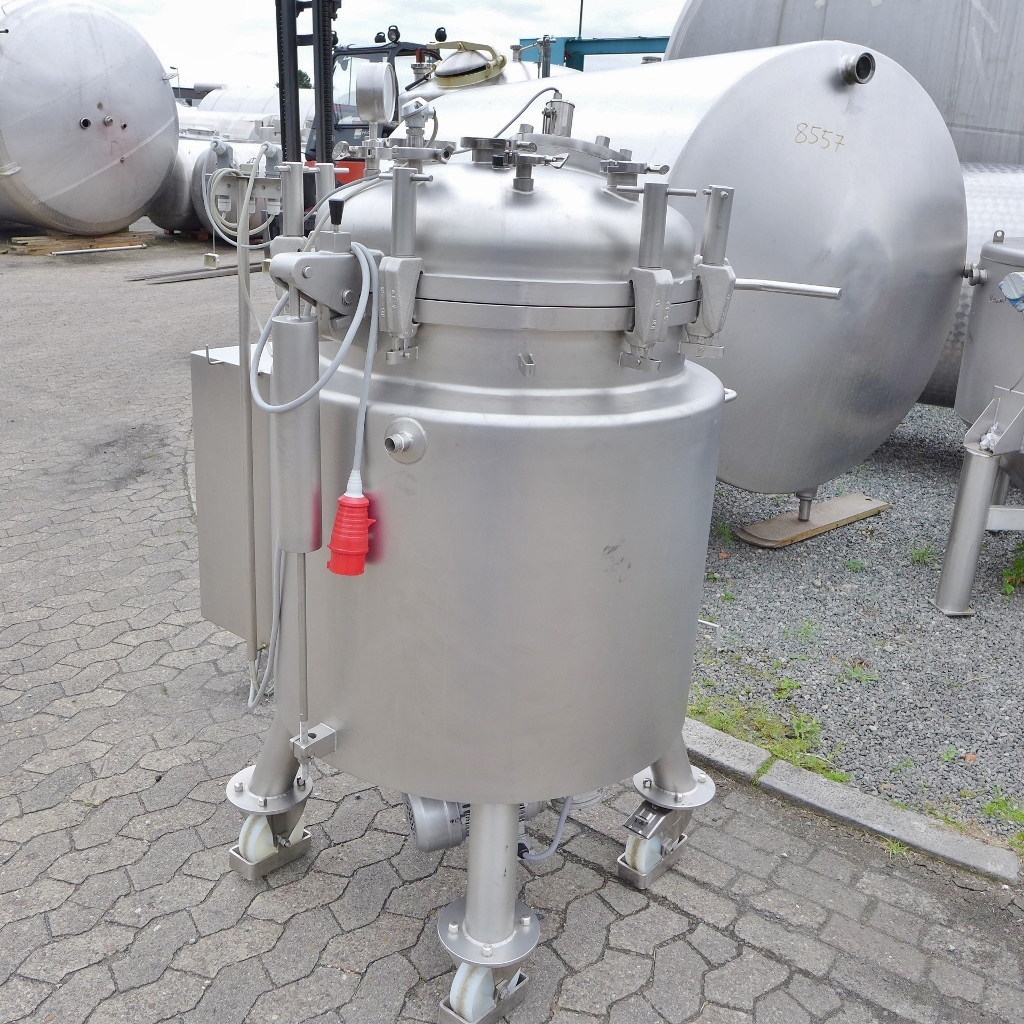

340 liter tank i Syrafast 316

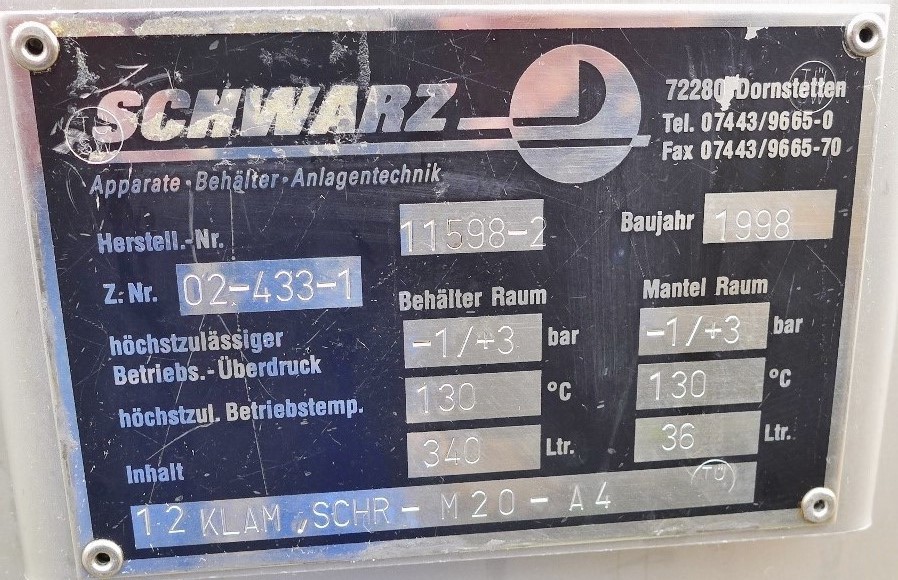

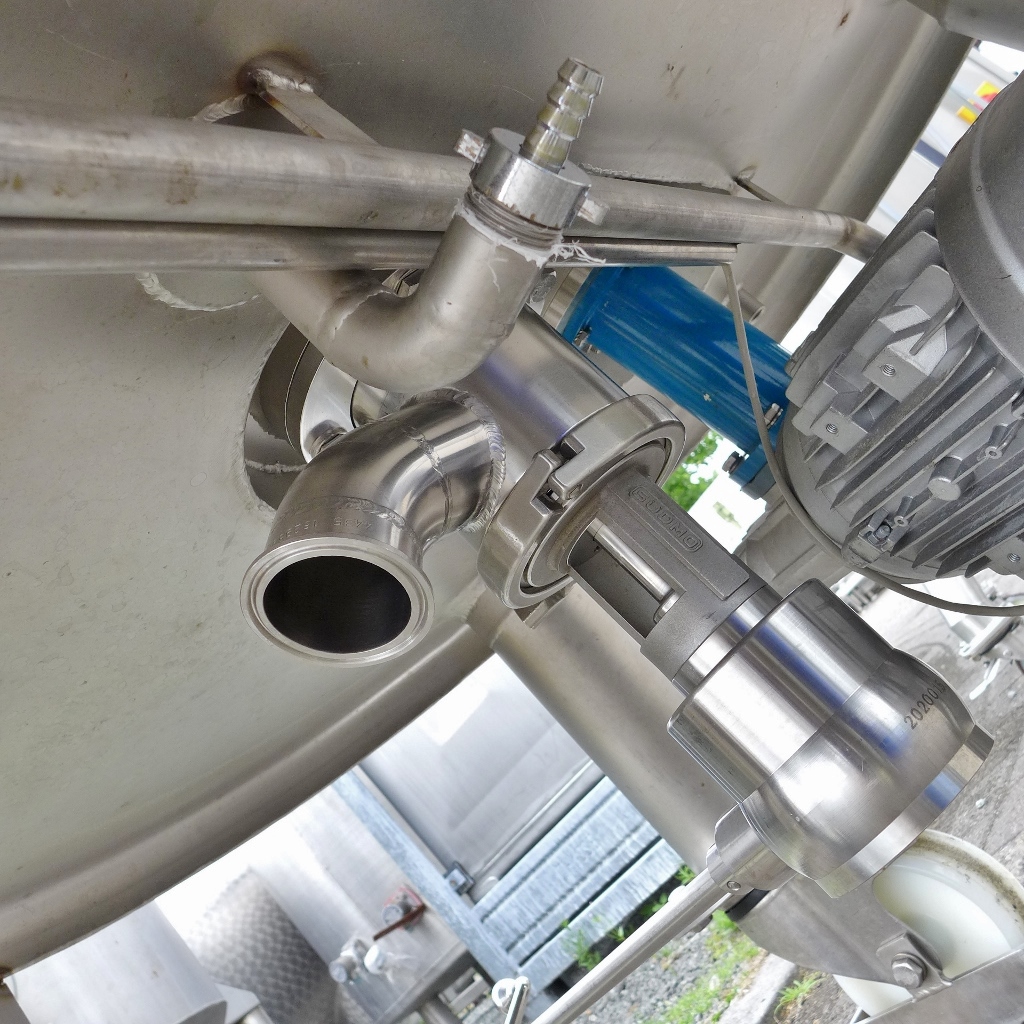

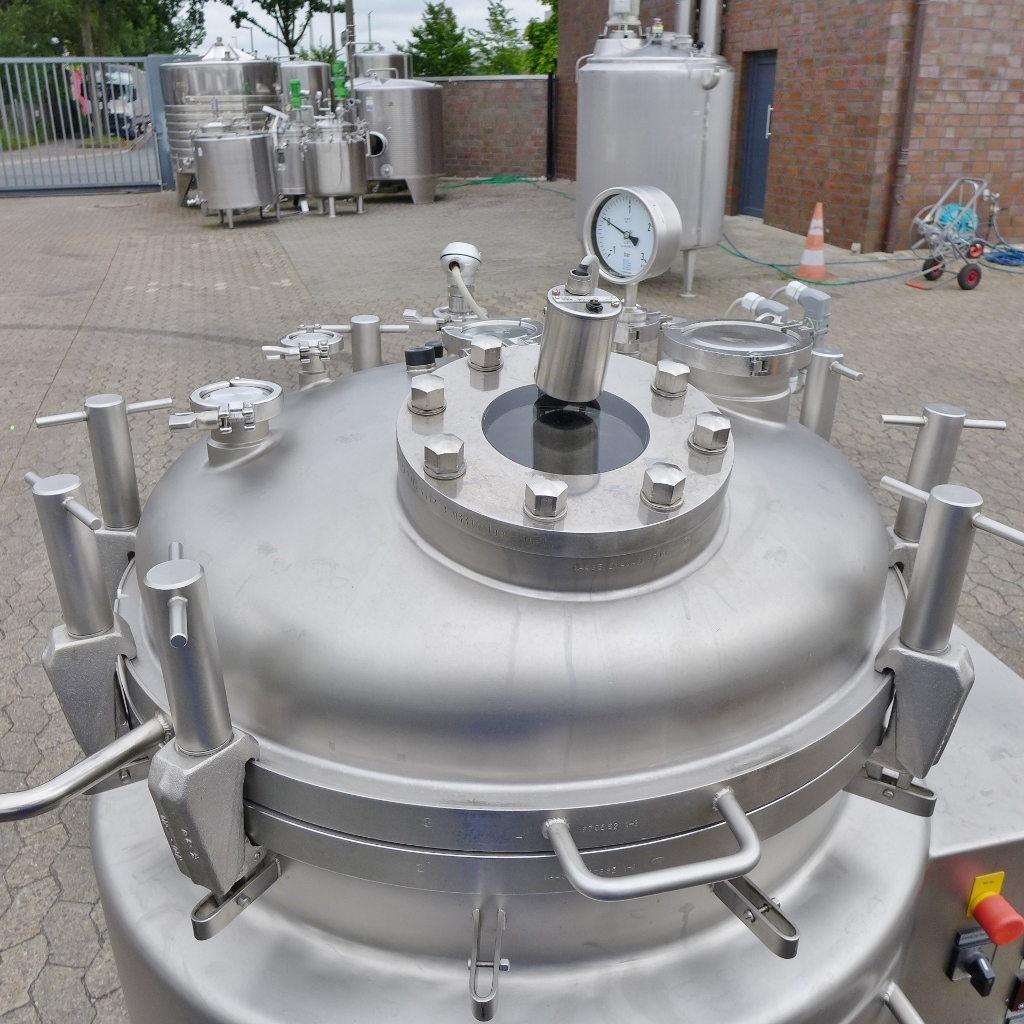

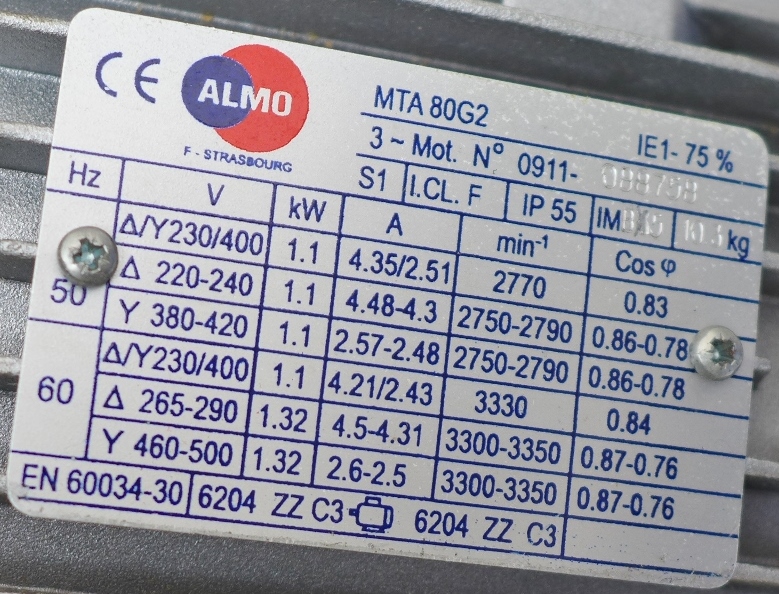

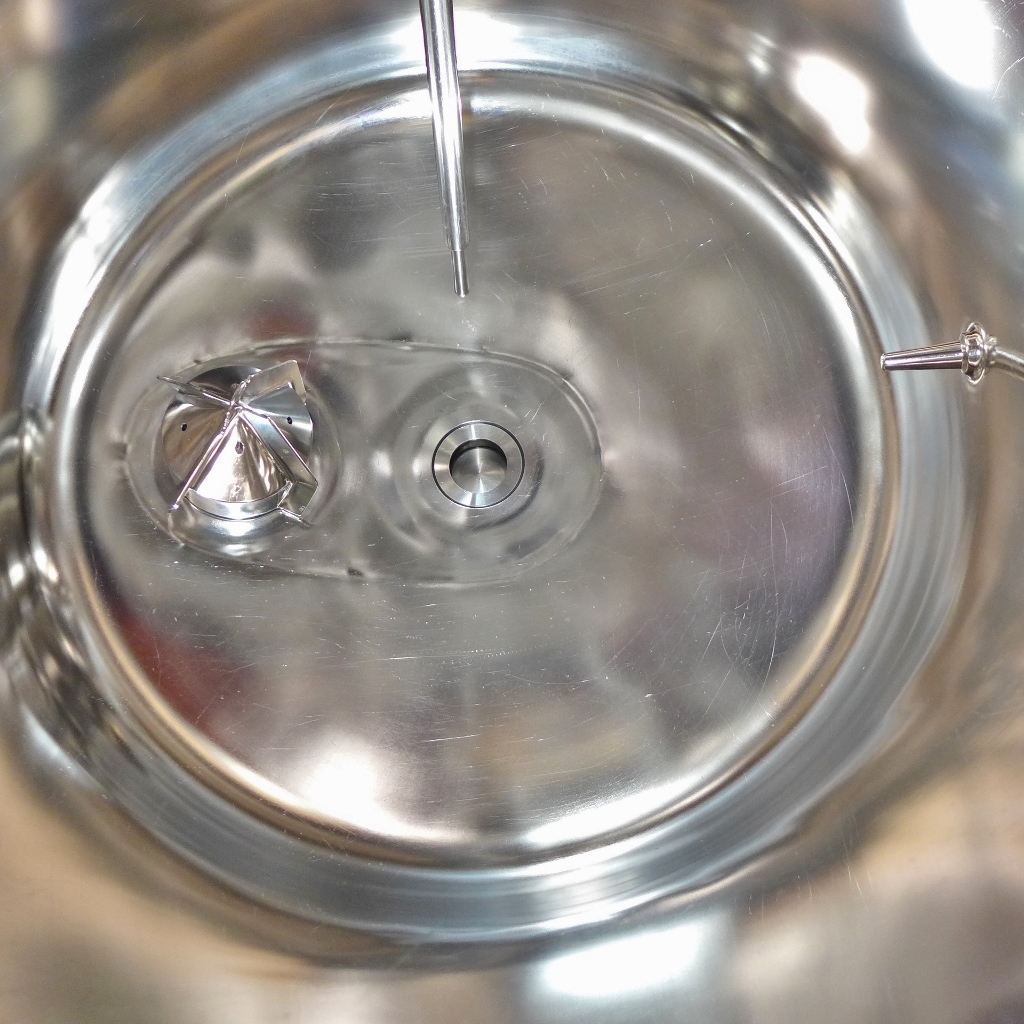

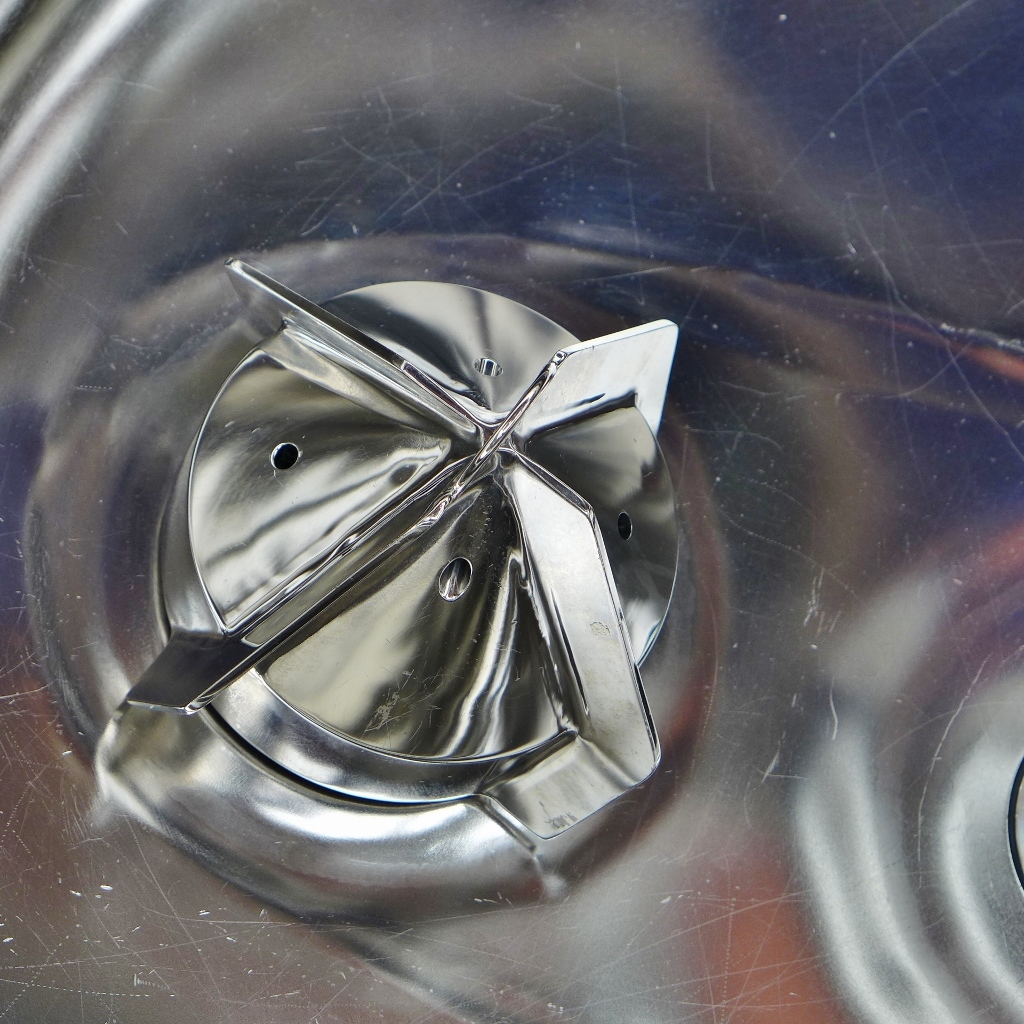

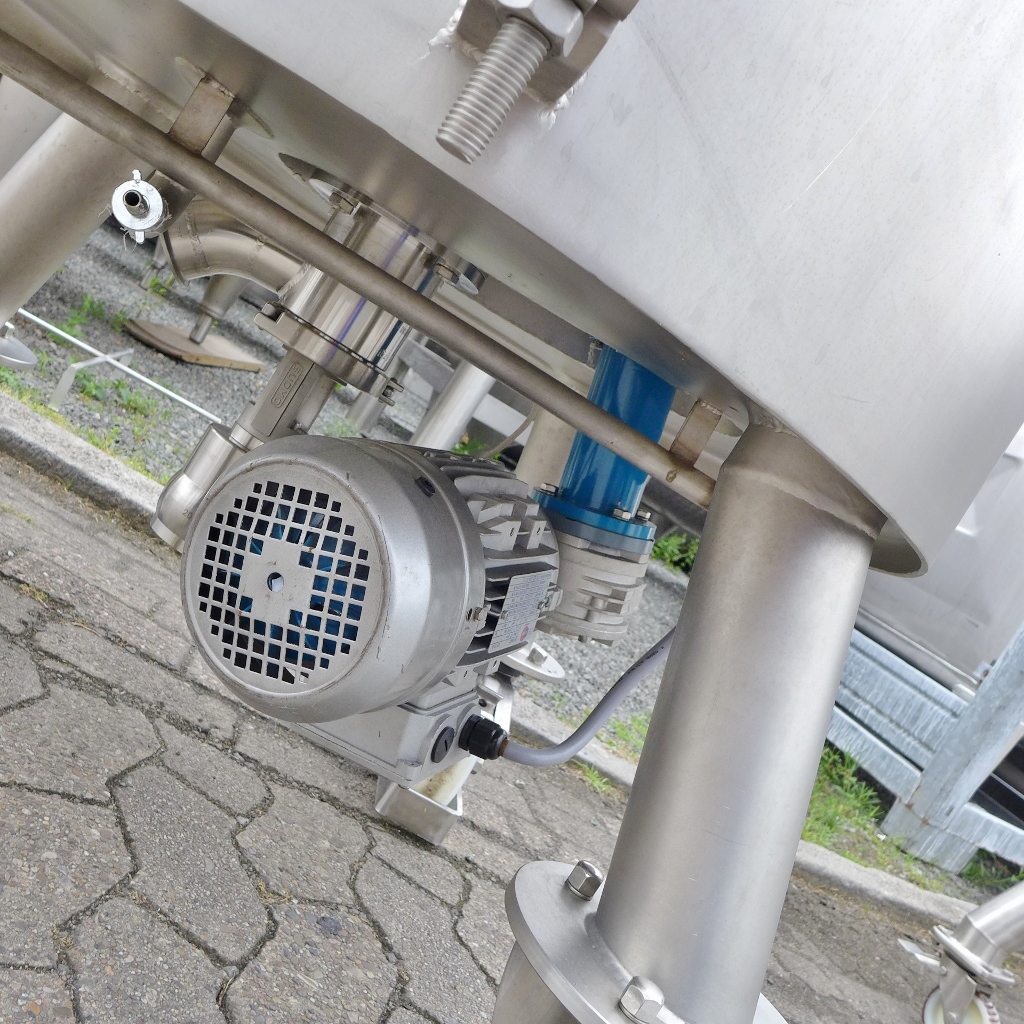

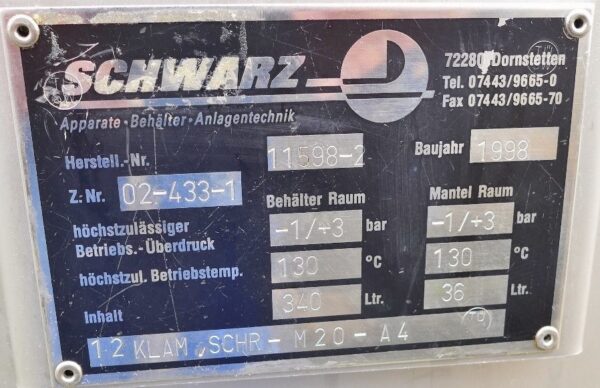

Additional information: Pharmacy; Clamping screws for attaching the upper bottom not complete Volumetric volume (L): 340 L Pressure in tank: pressure and vacuum Max. pressure (Bar): 3 Bar Min. pressure (Bar): 1 Bar Max. temperature (°C): 130 °C Material wet parts: SS AISI 316 (V4A) Model: vertical Configuration: insulated with heat-exchanger Heat exchanger: yes Insulation: yes Mobile tank: no Total discharge: yes Volume: 36 L Max Overpressure: 3 Bar Max onderdruk: 1 Bar Max. working temperature: 130 °C Type HE on the bottom: heating/cooling jacket Type HE on the cylinder: heating/cooling jacket Documents included: no Technical drawing included: no Registration plate on the tank: yes Flange for agitator: no Outlet of tank: 46 Agitator: yes Number of revolutions: 395 Power: 1,10 Internal diameter tank: 700 mm Outer diameter tank: 860 mm Cylinder height: 650 mm Total height of tank: 1.700 mm
