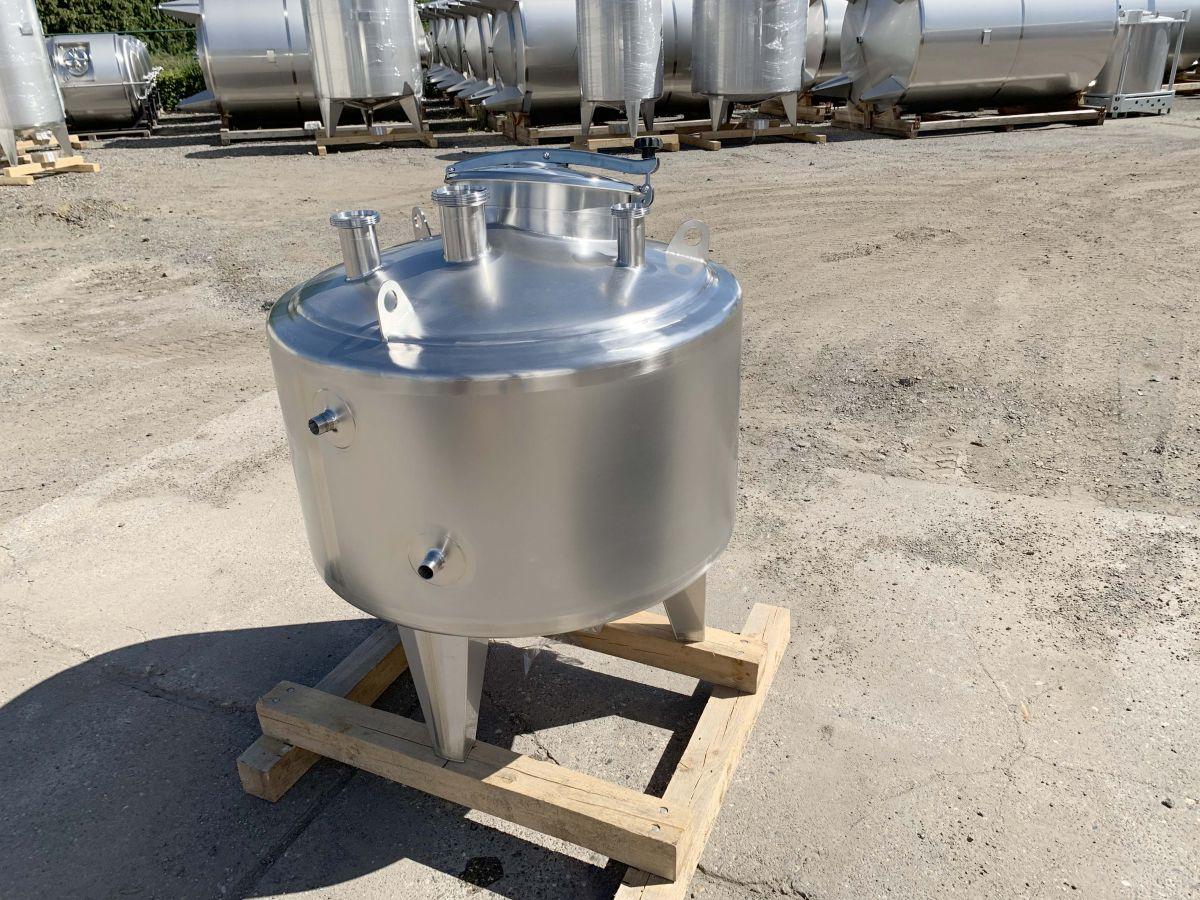

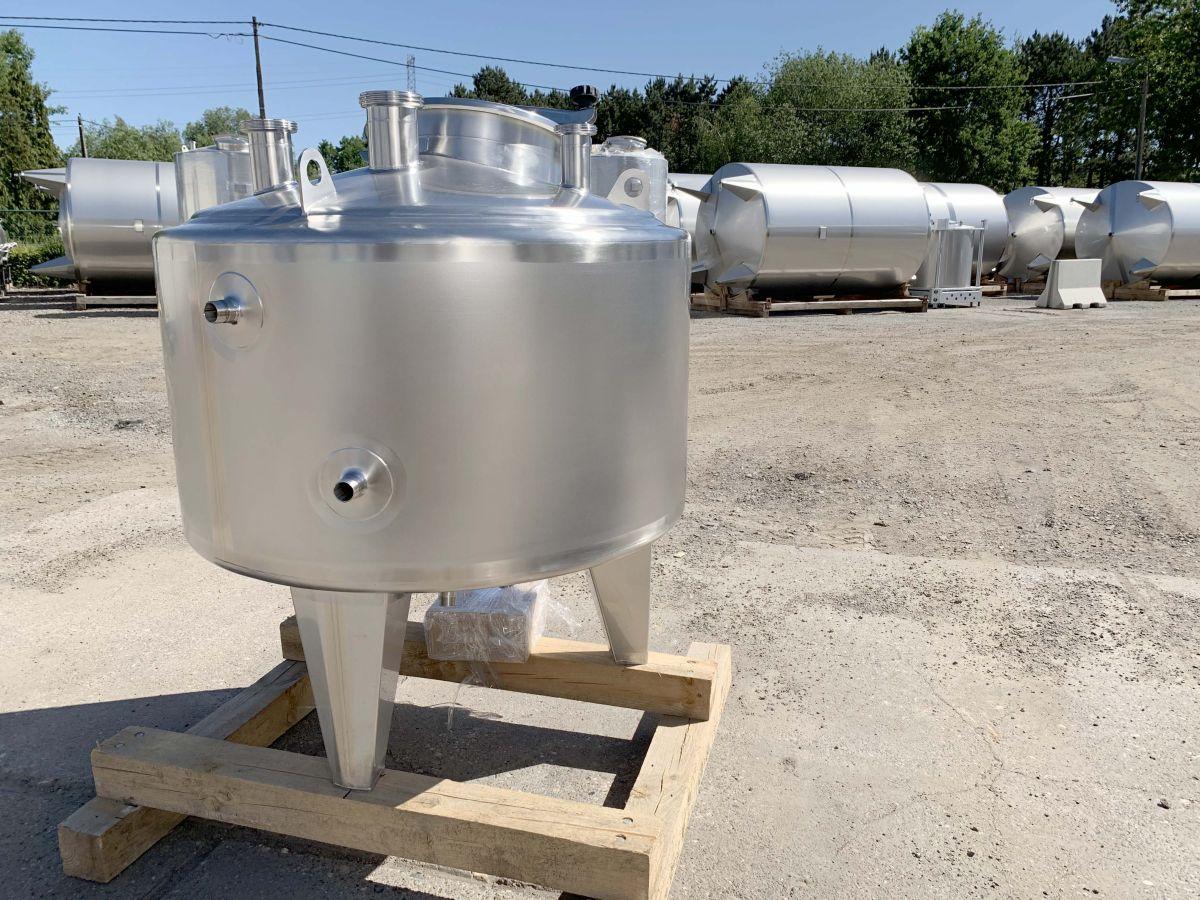

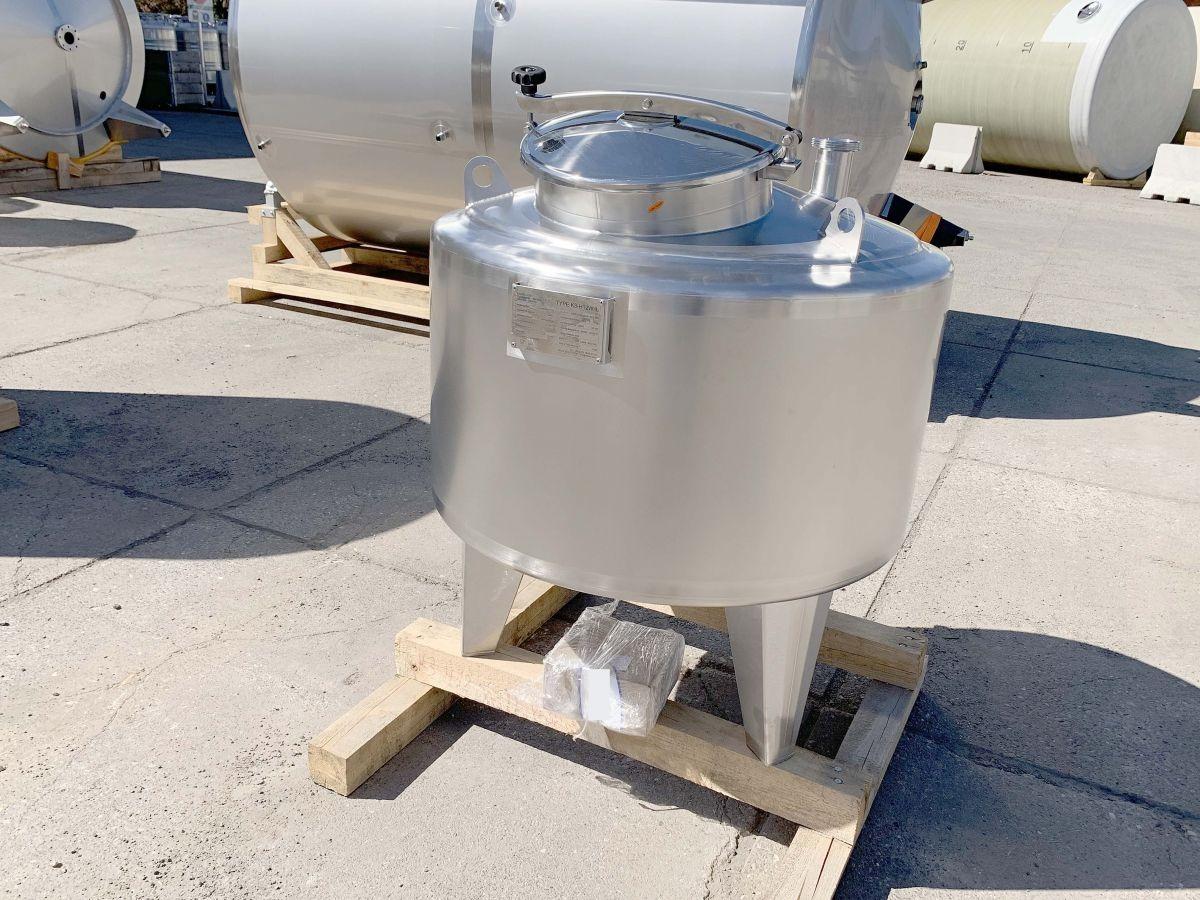

340 liter i syrafast 316

Art.nr: 2291

Tipsa en kollega

Email

Beskrivning

https://www.staes.com/en/available-from-stock/WW10672V6LN

Mer information

Antal

Isolerad

Livsmedelsklassad

Material

Modell

Omrörare

Uppvärmning/kylning

Volym i liter

Description of the article

  • Article type: brand new storage tank
  • Additional information: Ra=<0.8µm
  • Capacity: 340 L
  • Maximal density of the product: 1.200 kg/m³
  • Ra inner weld: 0,80 µ
  • Finish stainless steel: 2b
  • Working pressure in tank: ATM – atmosferic
  • Max. working temperature: 100 °C
  • Min. working temperature: -10 °C
  • In contact with the product: SS AISI 316L (V4A)
  • Model: vertical
  • Configuration: single jacketed with heat-exchanger
  • Heat exchanger: no
  • Insulation: no
  • Agitator: yes, optional
  • Mobile tank: no
  • Top type. conical 15 °
  • Shape of tank: cylindrical

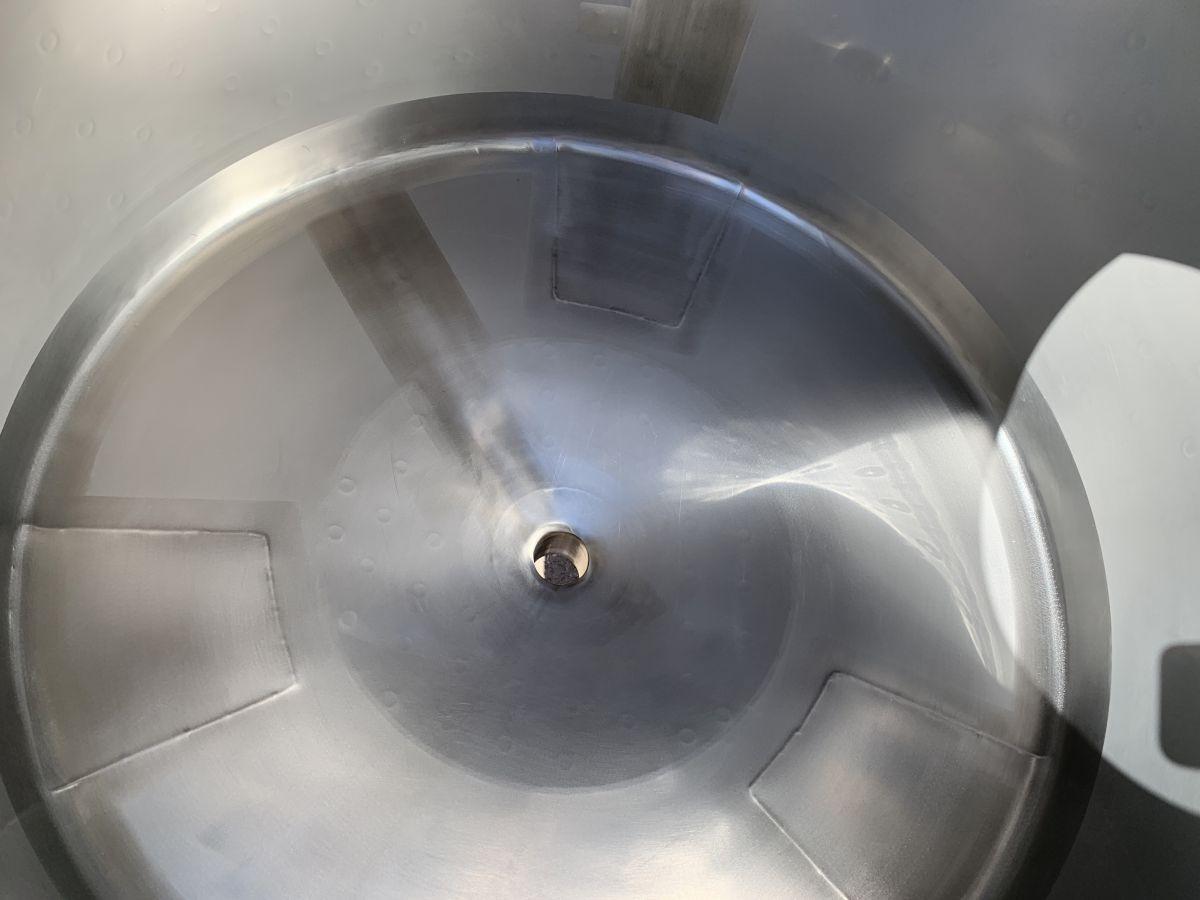

  • Bottom type: conical 15 °
  • Total discharge: yes

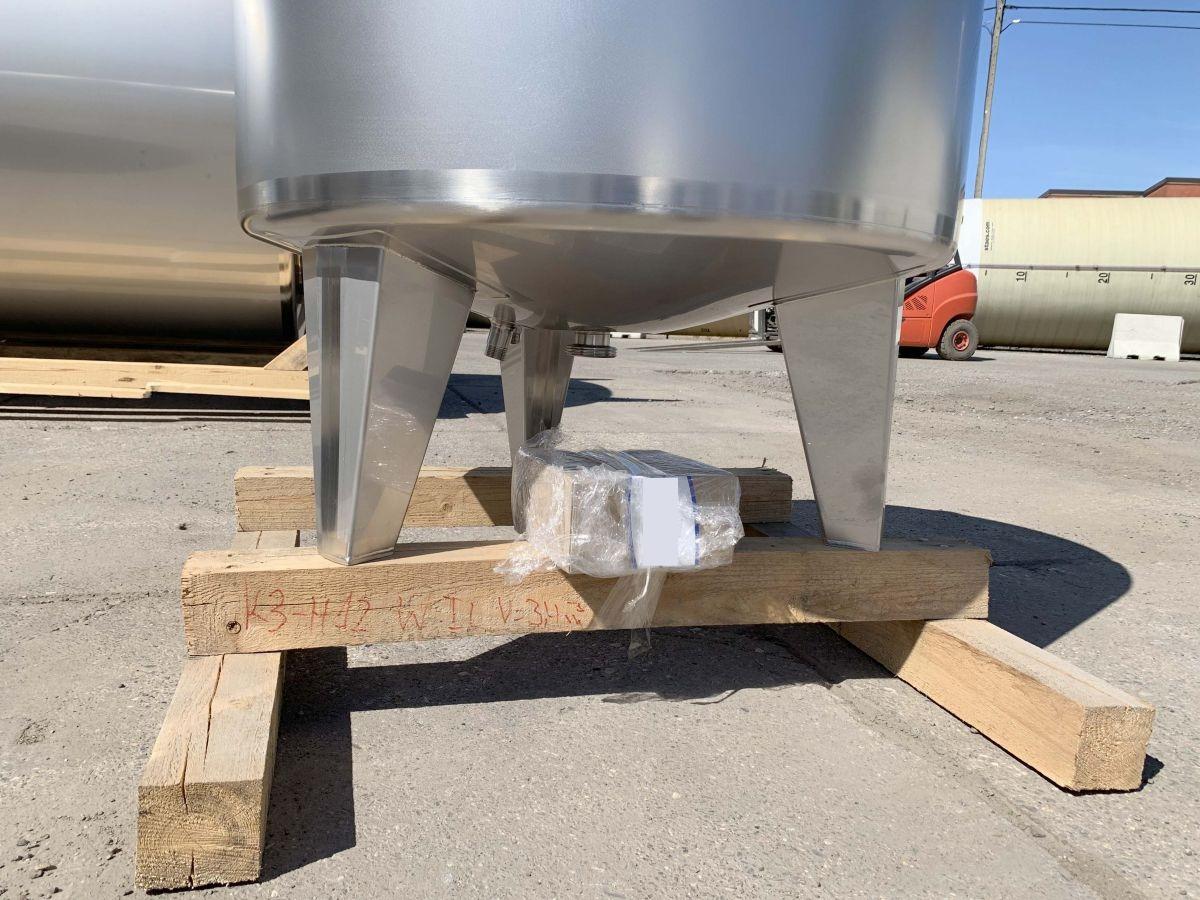

  • Fixation points: 3 adjustable feet
  • Legs: Set of baseplates and adjusting pieces included

Heat Exchanger (HE): on the cylinder and on the bottom

  • Type of HE on the cylinder: half pipe welded onto the outside of the innertank
  • Position HE: the complet cilinder
  • Number of sections: 1
  • with windings: 2
  • Water pressure HE: 3 Bar
  • Steam pressure HE: 0,49 Bar
  • Hydraulic test pressure: 4,50 Bar
  • Contact surface cylinder. 0,64 m²
  • Connection HE: 1″BSP male
  • Working temperature HE cylinder: 111 °C
  • Type of HE on the bottom: dimple-jacket
  • Water pressure HE: 3 Bar
  • Steam pressure HE: 0,49 Bar
  • Hydraulic test pressure: 4,50 Bar
  • Contact surface bottom: 0,12 m²
  • Connection HE: 1″BSP male
  • Working temperature HE bottom: 111 °C

Overview materials

  • Mat. wet parts: SS AISI 316L (V4A)
  • Heat exchanger: RVS 304
  • Manway(s): RVS 316
  • Gasket manway(s): EPDM
  • Fixation point(s): RVS 304

Equipment

  • Suitable for food industry: yes
  • Documents included: yes, optional

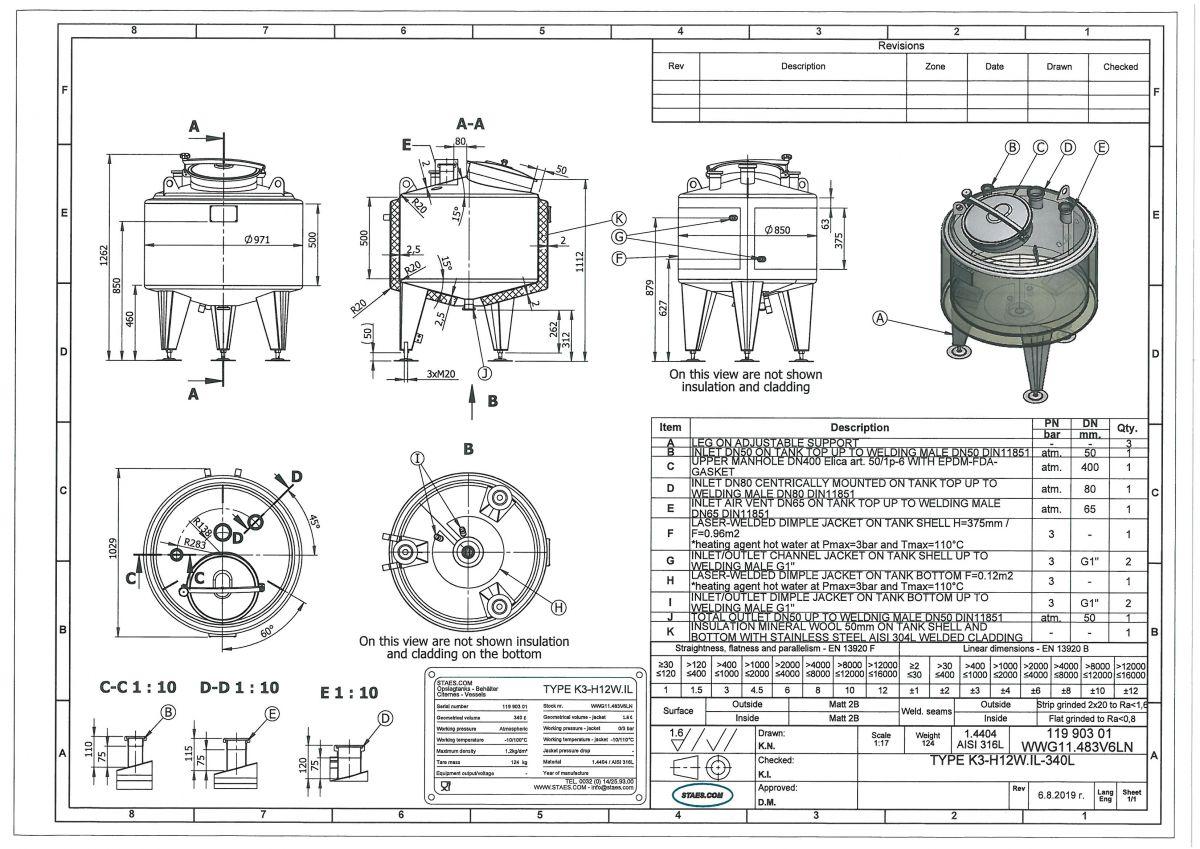

  • Technical drawing included: yes
  • Registration plate on the tank: yes
  • with inspection of: TUV
  • Flange for agitator: no

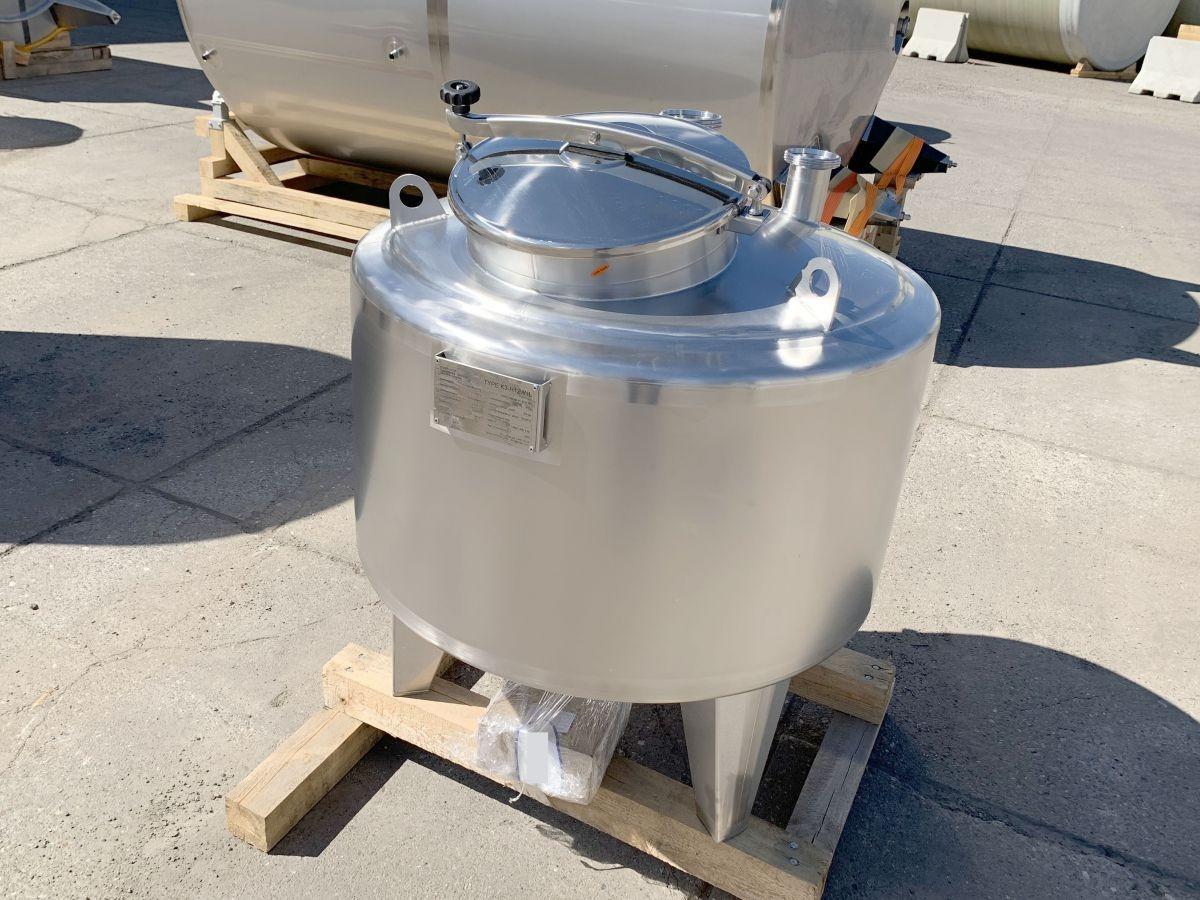

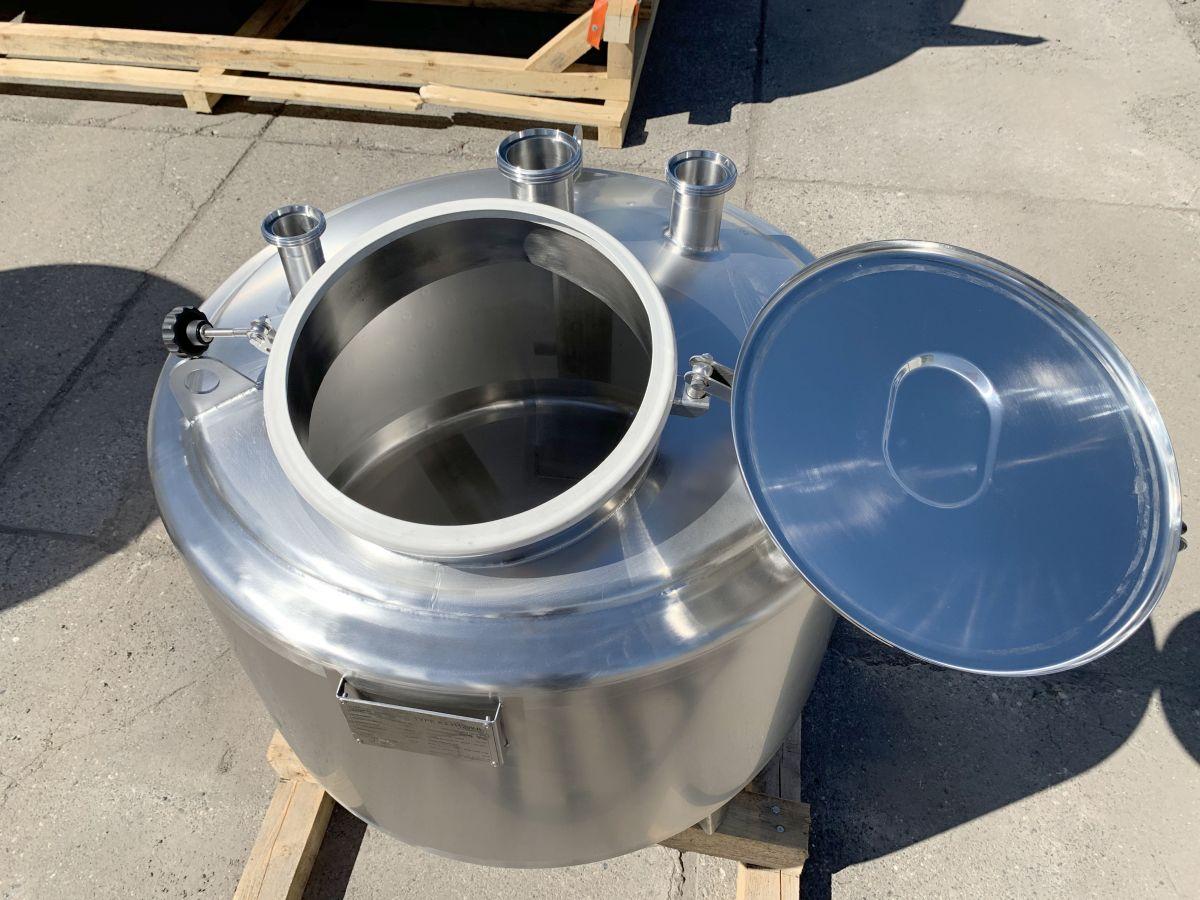

  • Number of manways: 1
  • Position manway: at the top

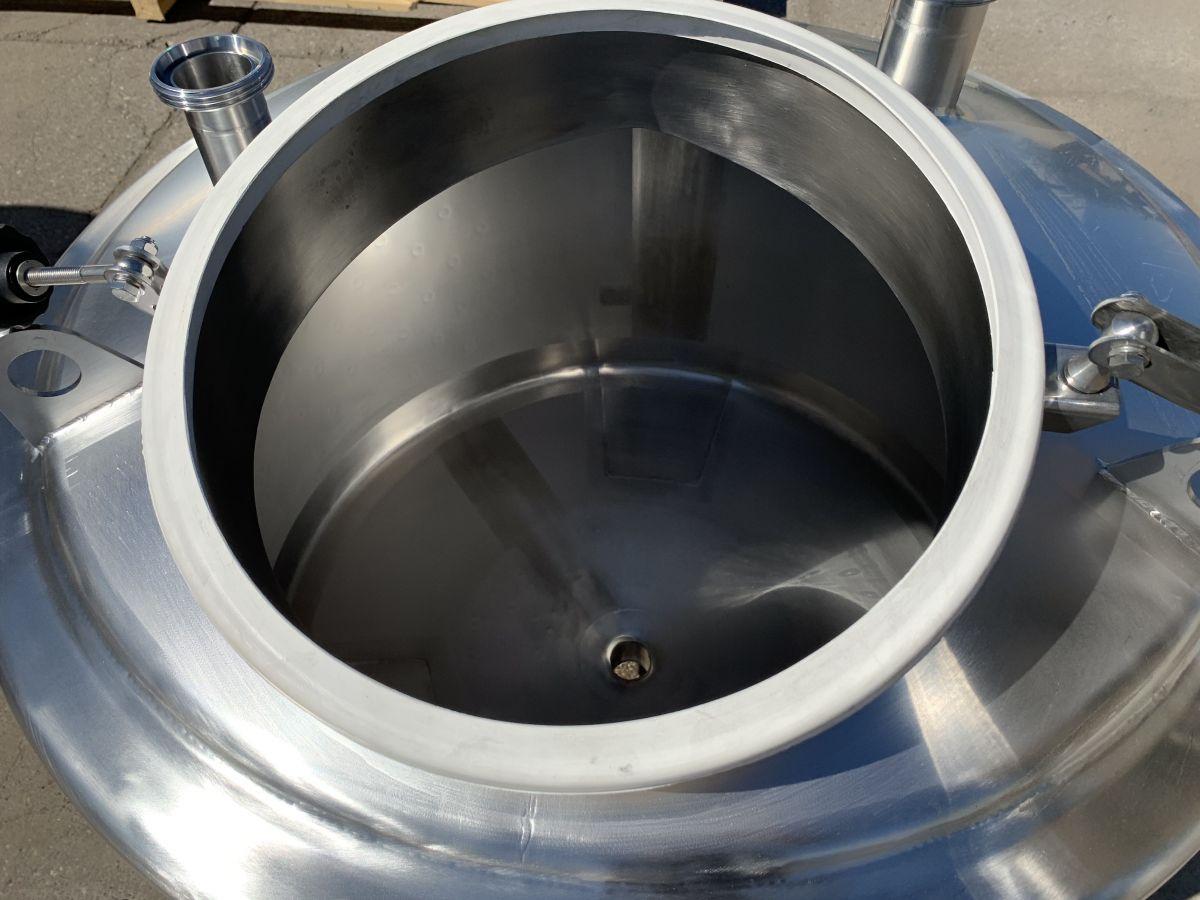

  • Manway 1: Ø 400 mm

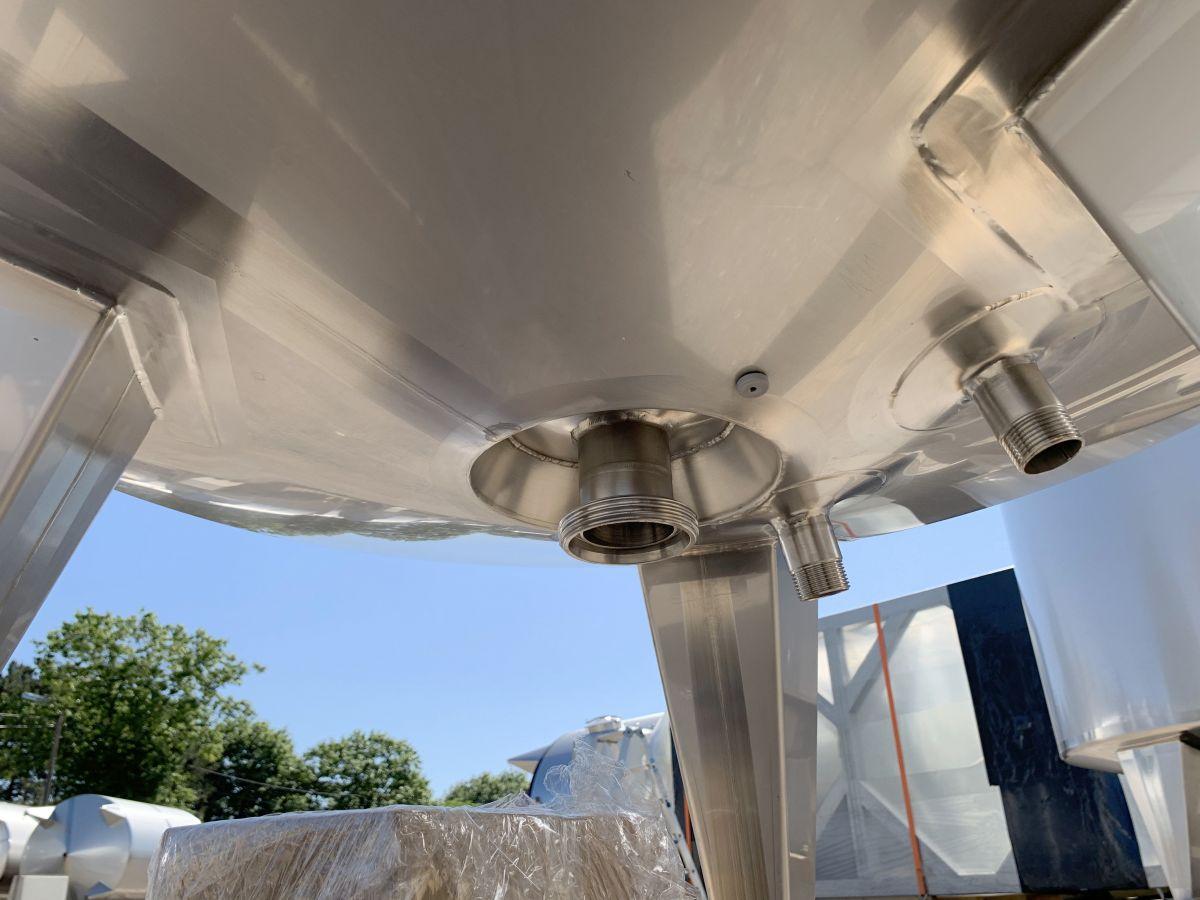

  • Tank outlet: inside Ø 50 mm
  • Outlet type: DIN11851 male
  • Total outlet valve: yes, optional

Wall thicknesses of the inner tank

  • Top: 2 mm
  • Cylinder: 2,50 mm
  • Bottom: 2,50 mm

Dimensions of the tank

  • Distance from outlet to ground: 342 mm
  • Outer diameter tank: 850 mm
  • Cylinder height: 500 mm
  • Feet height: 503 mm
  • Total height of tank: 1.260 mm
  • Empty weight tank: 77 Kg
