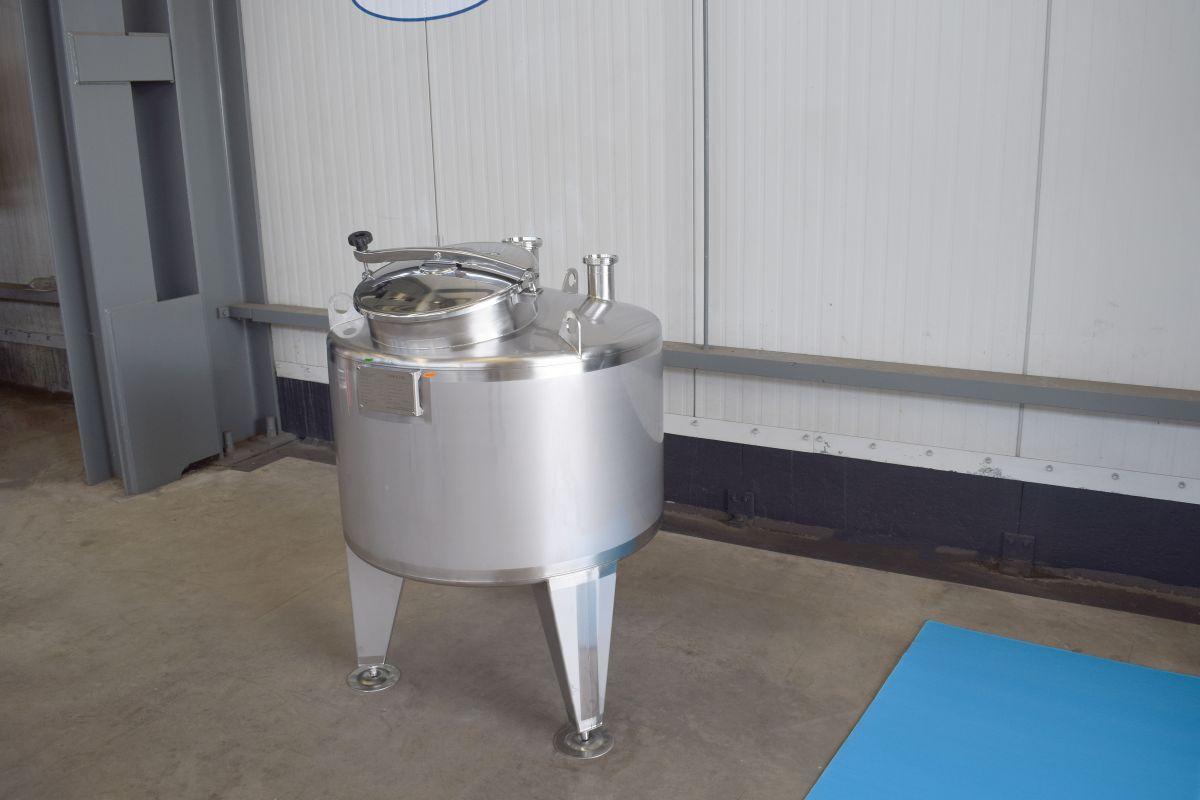

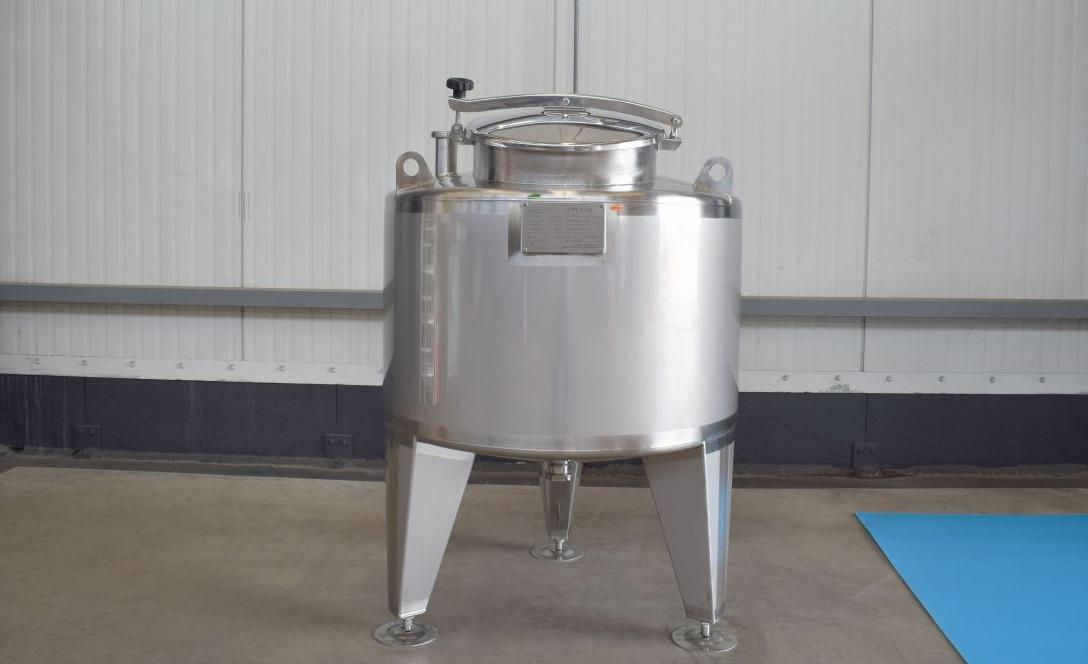

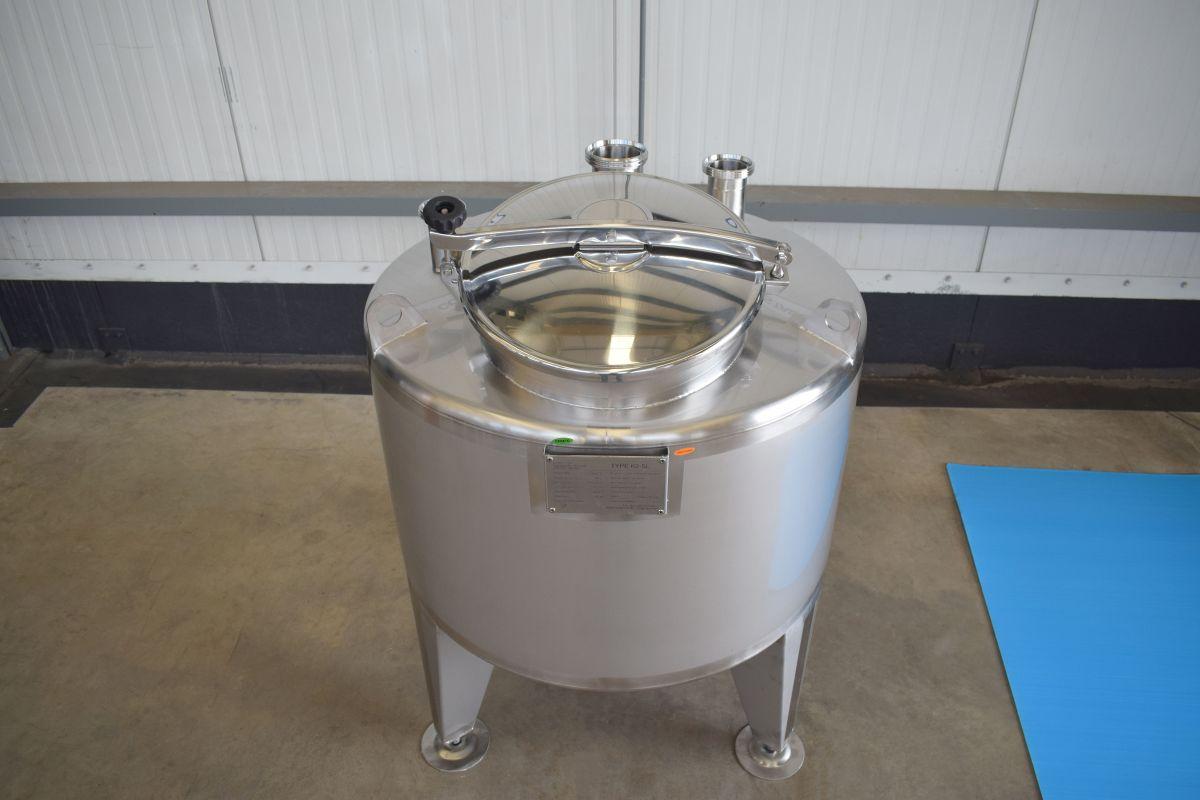

340 liter i syrafast 316

Art.nr: 2420

Tipsa en kollega

Email

Beskrivning

https://www.staes.com/en/available-from-stock/WWG11483V6LN

Mer information

Antal

Isolerad

Livsmedelsklassad

Material

Modell

Omrörare

Uppvärmning/kylning

Volym i liter

Referens för denna typ av tank:

Description of the article

  • Article type: brand new storage tank
  • Additional information: Ra=<0.8µm
  • Capacity: 340 L
  • Maximal density of the product: 1.200 kg/m³
  • Ra inner weld: 0,80 µ
  • Finish stainless steel: 2b
  • Working pressure in tank: ATM – atmosferic
  • Max. working temperature: 130 °C
  • Min. working temperature: -10 °C
  • In contact with the product: SS AISI 316L (V4A)
  • Model: vertical
  • Configuration: insulated with heat-exchanger
  • Heat exchanger: yes
  • Insulation: yes
  • Agitator: yes, optional
  • Mobile tank: no
  • Top type: conical °
  • Shape of tank: cylindrical

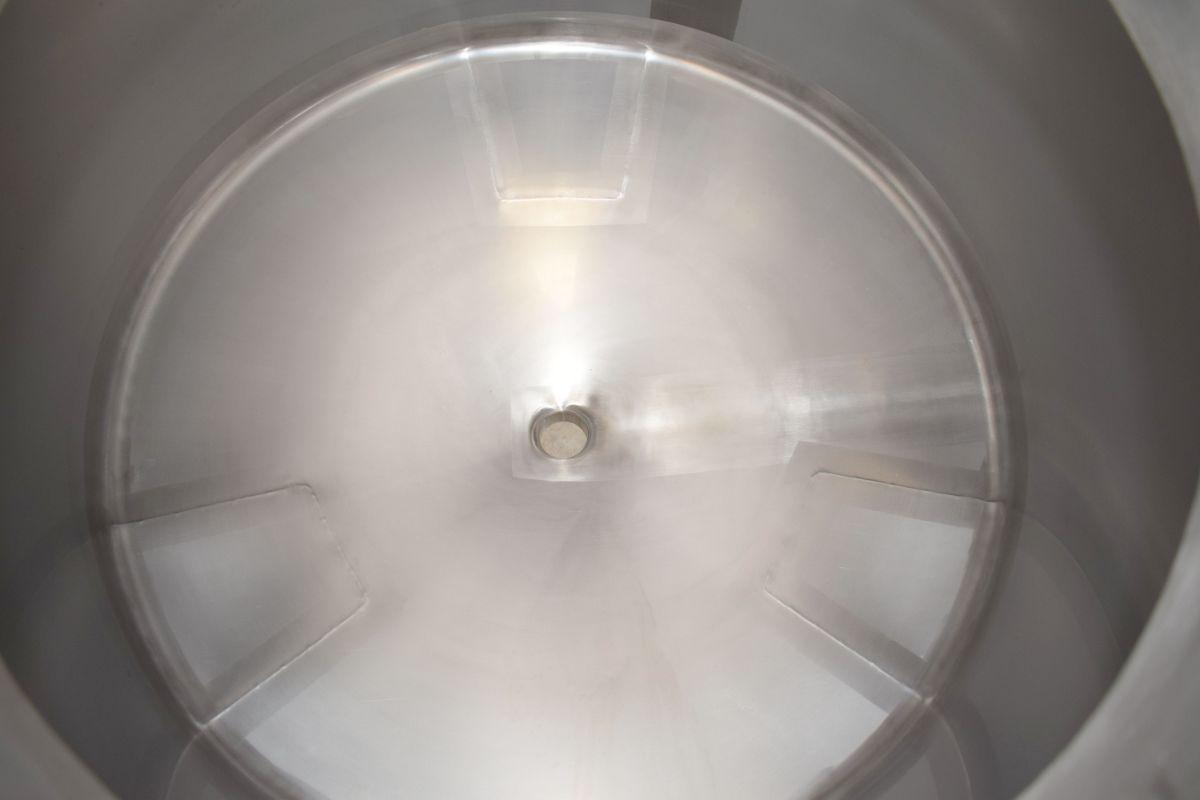

  • Bottom type: conical 15 °
  • Total discharge: yes

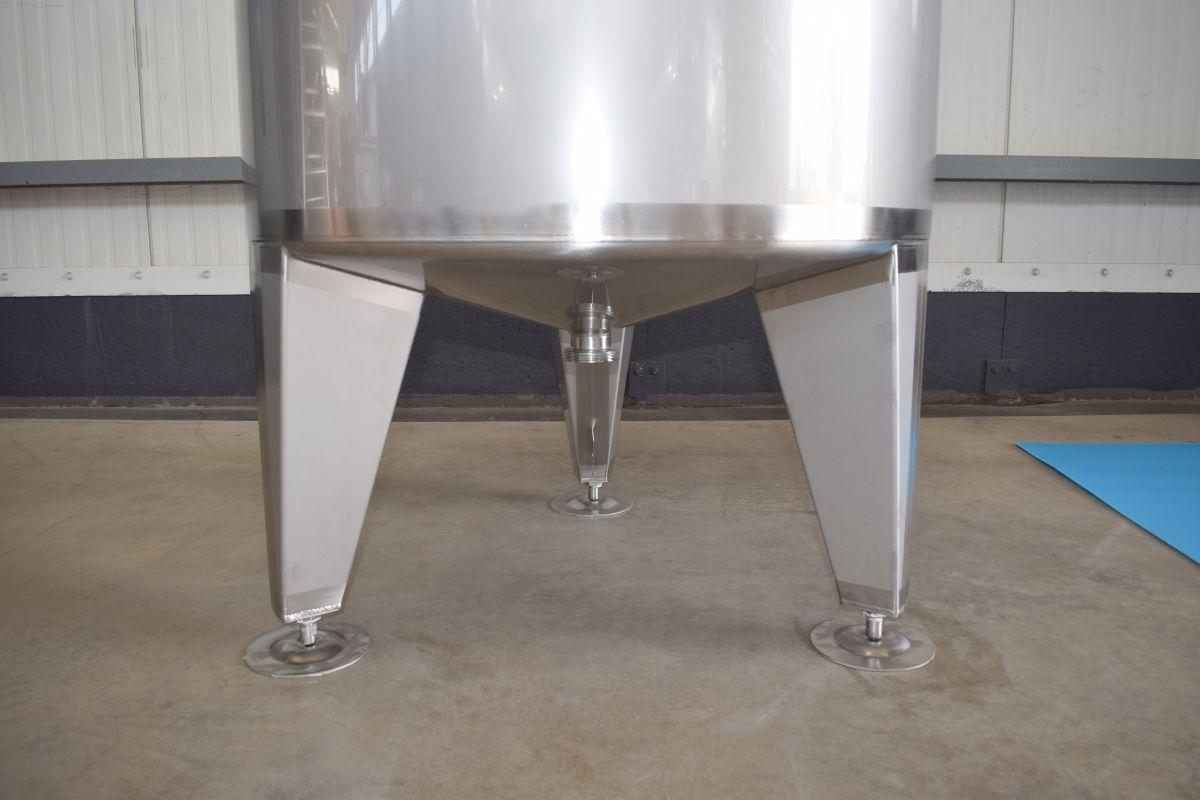

  • Fixation points: 3 adjustable feet
  • Legs: Set of baseplates and adjusting pieces included

Heat Exchanger (HE)

  • Type of HE on the cylinder: dimple-jacket
  • Position HE: the complet cilinder
  • Water pressure HE: 3 Bar
  • Steam pressure HE: 0,49 Bar
  • Contact surface cylinder: 0,96 m²
  • Connection HE: 1″ BSP
  • Working temperature HE cylinder: 110 °C
  • Type of HE on the bottom: dimple-jacket
  • Water pressure HE: 3 Bar
  • Steam pressure HE: 0,49 Bar
  • Contact surface bottom: 0,12 m²
  • Connection HE: 1″ BSP
  • Working temperature HE bottom: 110 °C

Overview materials

  • Mat. wet parts: SS AISI 316L (V4A)
  • Heat exchanger: RVS – 304 with rockwool insulation
  • Insulation material: Rockwool
  • Outer jacket (ornamental wall): RVS 304L
  • Manway(s): RVS 316
  • Gasket manway(s): EPDM
  • Fixation point(s): RVS 304L

Equipment

  • Suitable for food industry: yes
  • Documents included: yes, optional

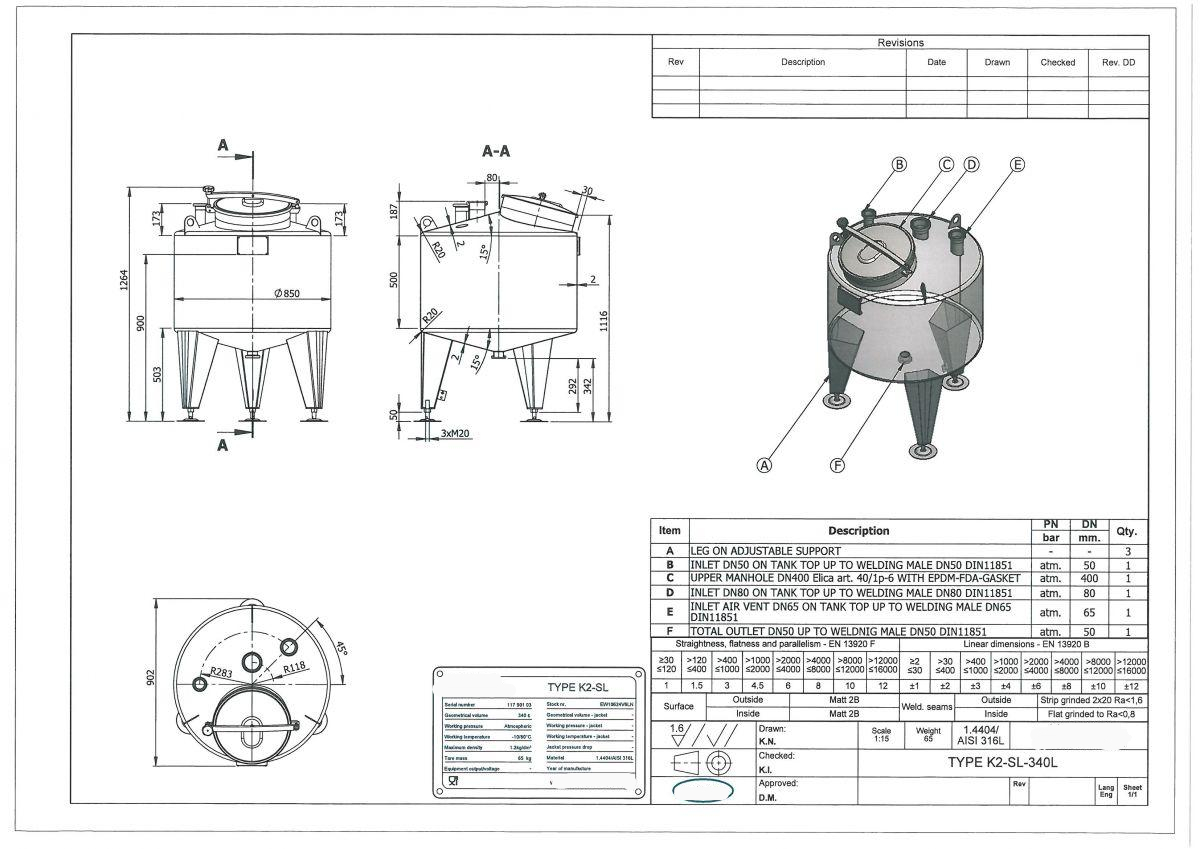

  • Technical drawing included: yes
  • Registration plate on the tank: yes
  • with inspection of: TUV
  • Flange for agitator: no

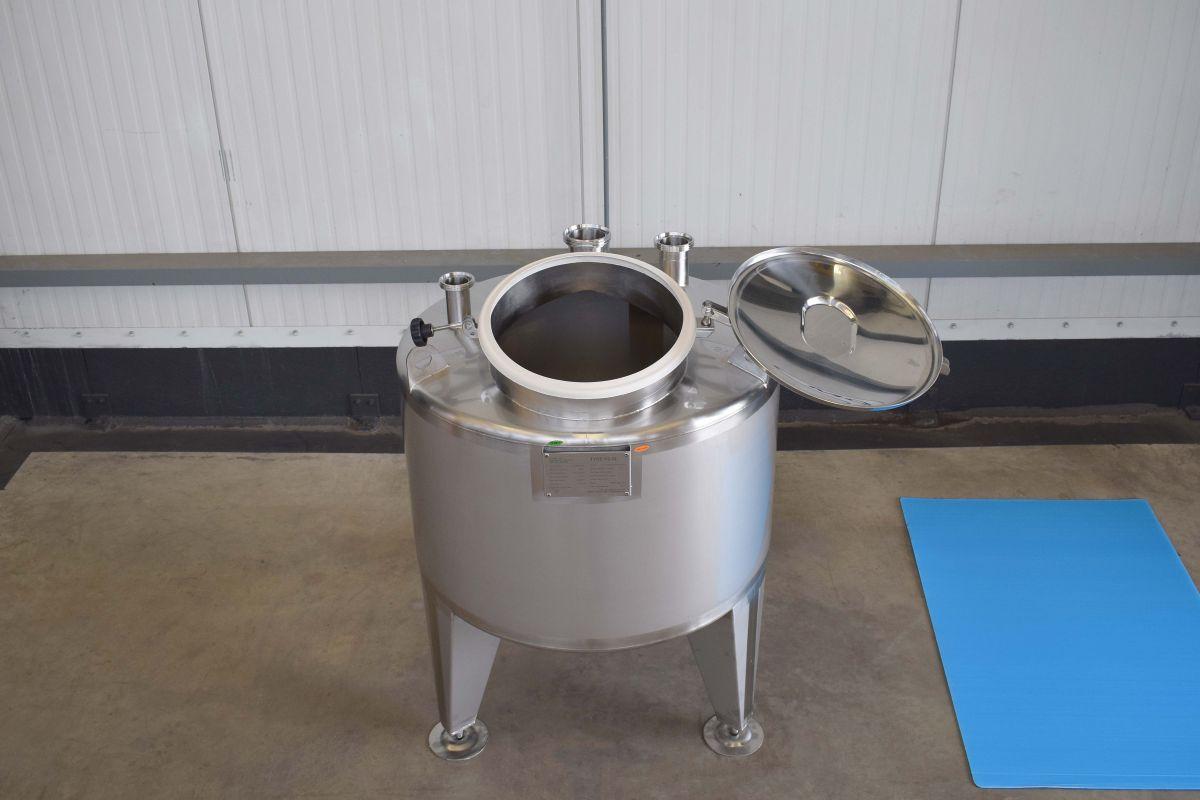

  • Number of manways: 1

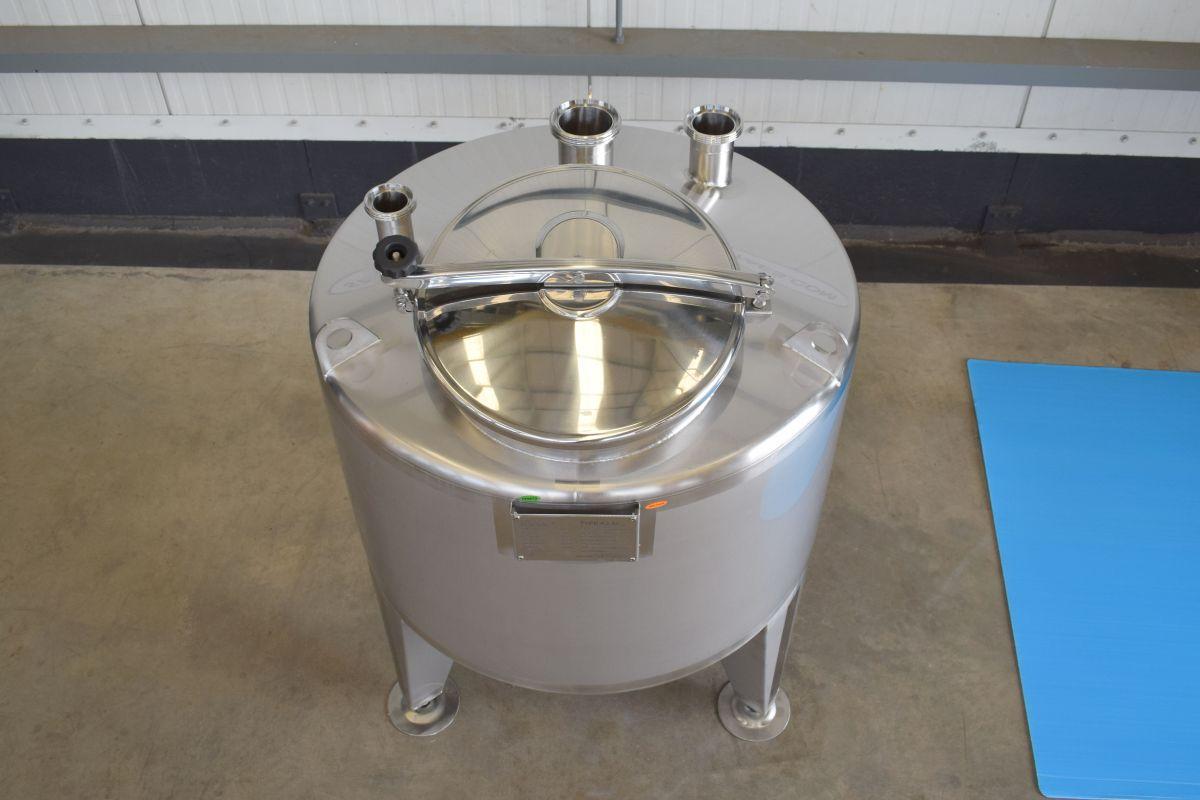

  • Position manway: at the top

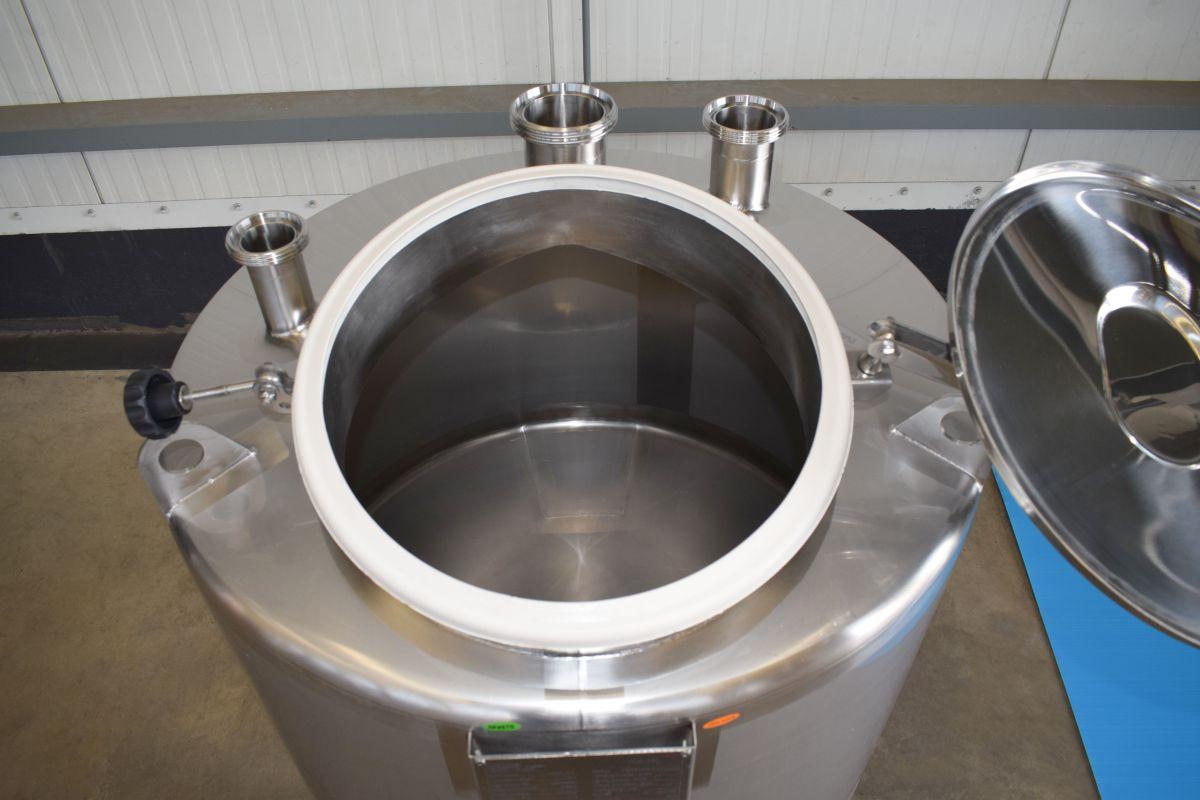

  • Manway 1: Ø 400 mm
  • Spray ball: yes, optional
  • Tank outlet: inside Ø
  • Outlet type: DIN11851 male
  • Total outlet valve: yes, optional

Wall thicknesses of the inner tank

  • Top: 2 mm
  • Cylinder: 2,50 mm
  • Bottom: 2,50 mm

Wall thicknesses of the ornamental wall and insulation

  • Cylinder: 2
  • Insulation body: yes
  • Bottom: 2
  • Insulation bottom/sides: yes
  • finish of the outer jacket: welded
  • Insulation material: Rockwool
  • Insulation thickness: 50

Dimensions of the tank

  • Internal diameter tank: 850 mm
  • Distance from outlet to ground: 312 mm
  • Outer diameter tank: 971 mm
  • Cylinder height: 500 mm
  • Feet height: 460 mm
  • Total height of tank: 1.262 mm
  • Empty weight tank: 124 Kg
