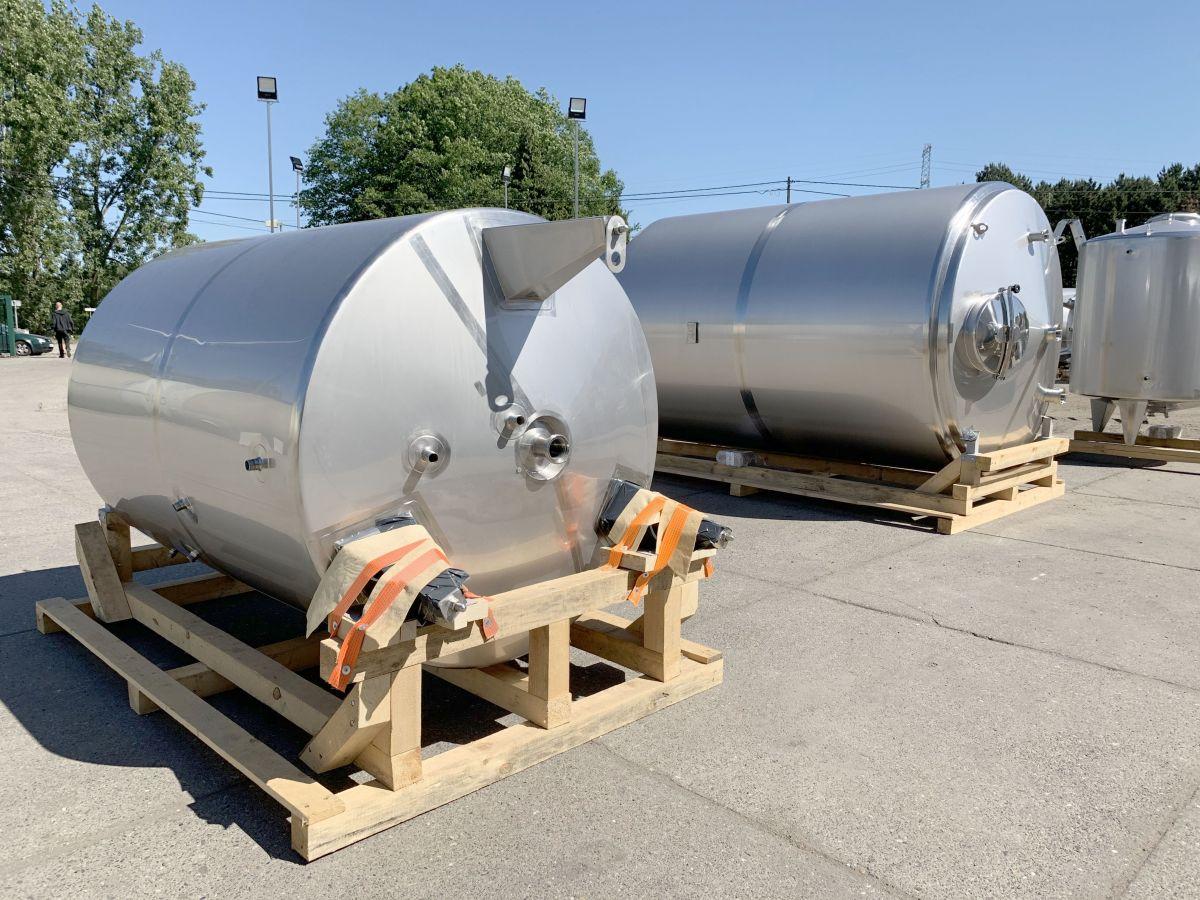

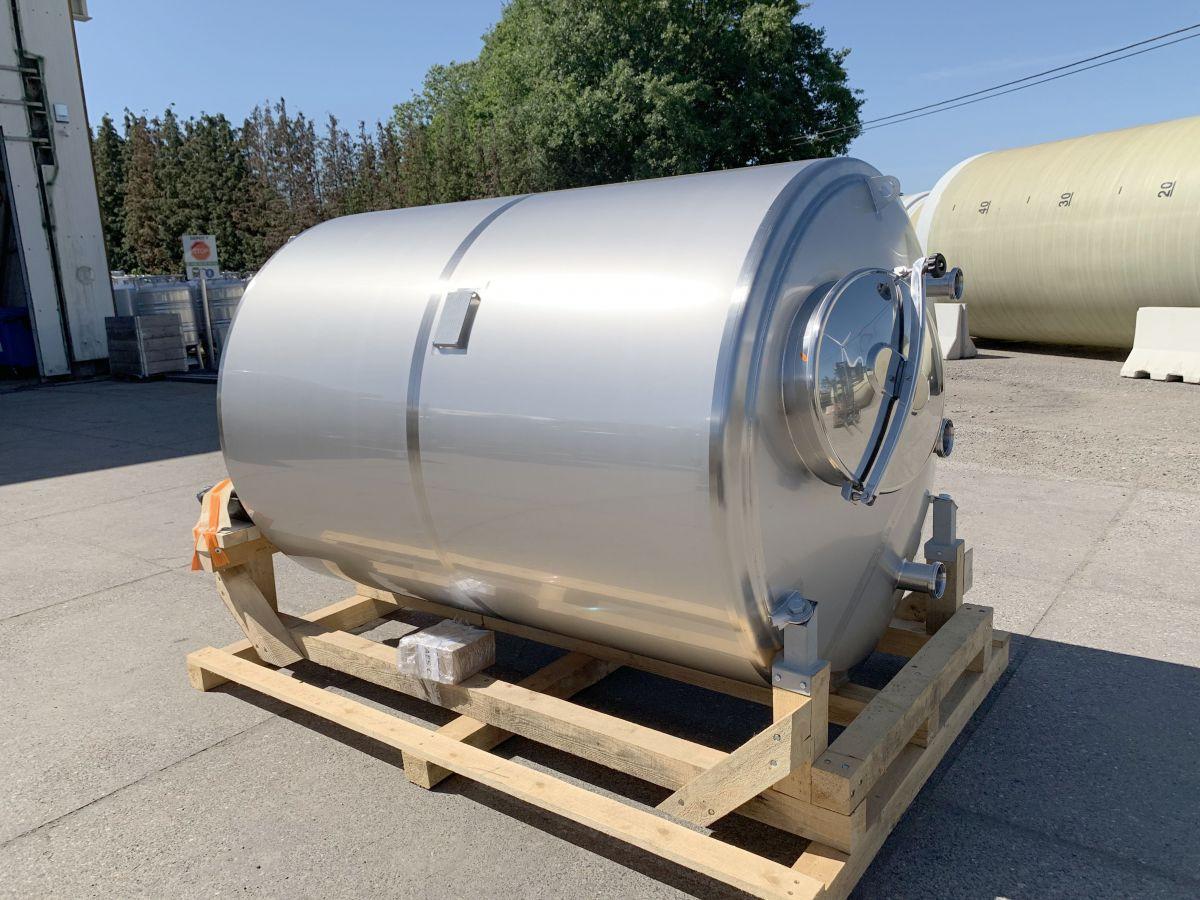

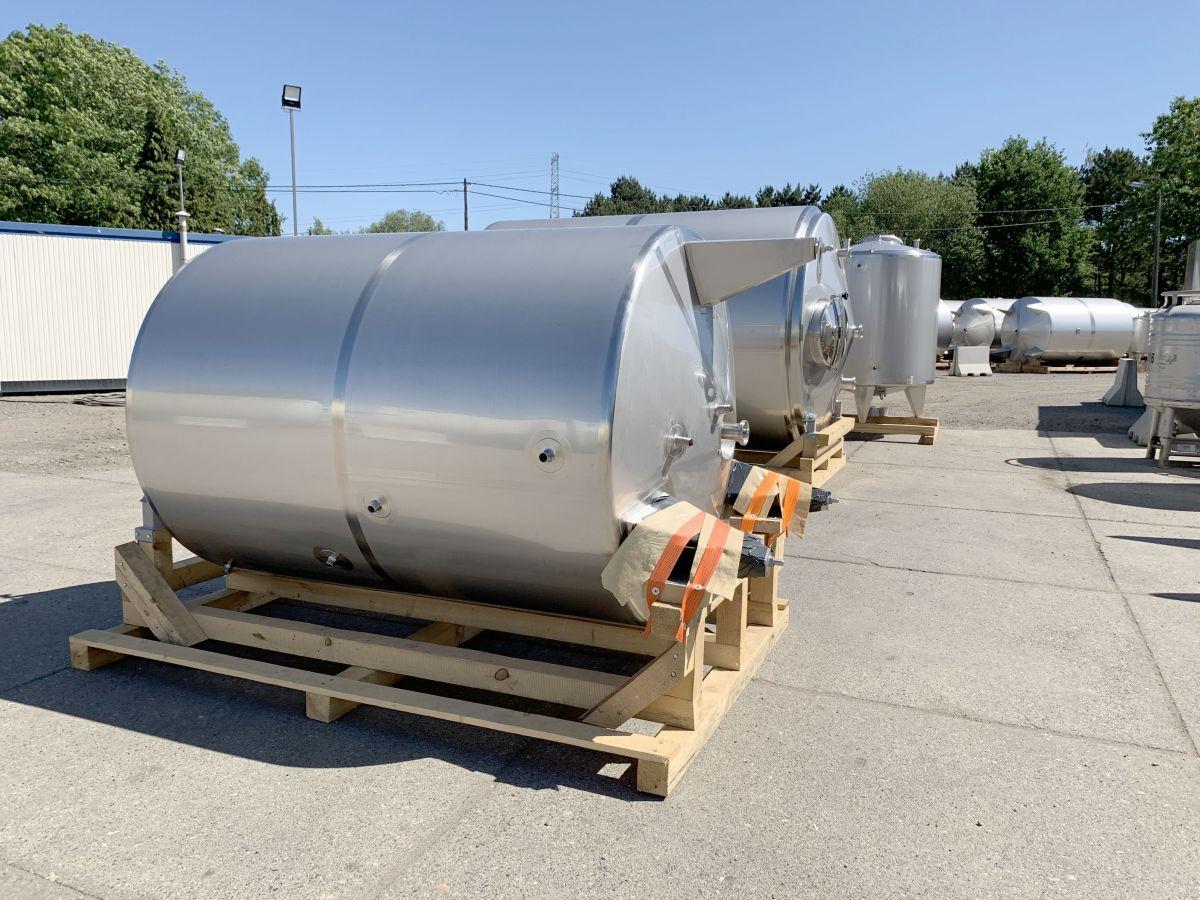

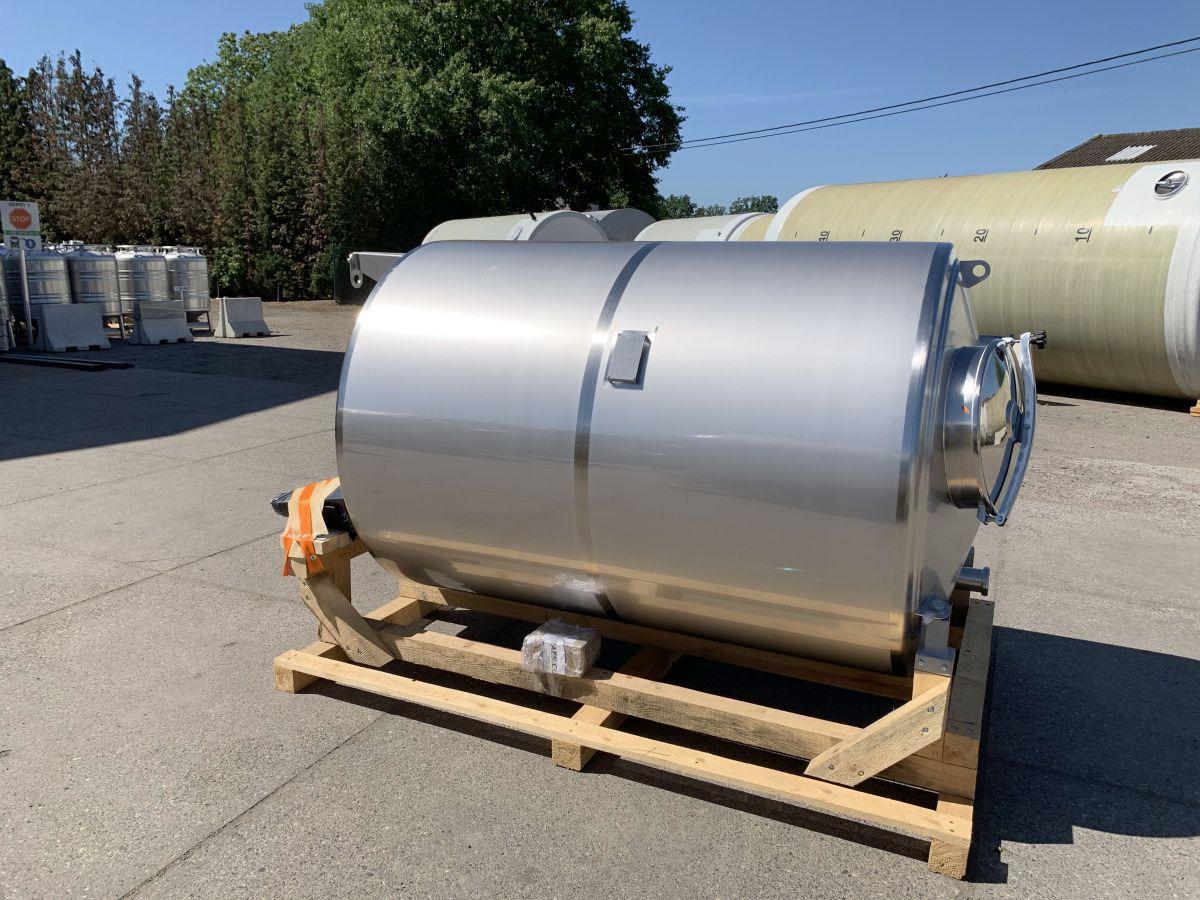

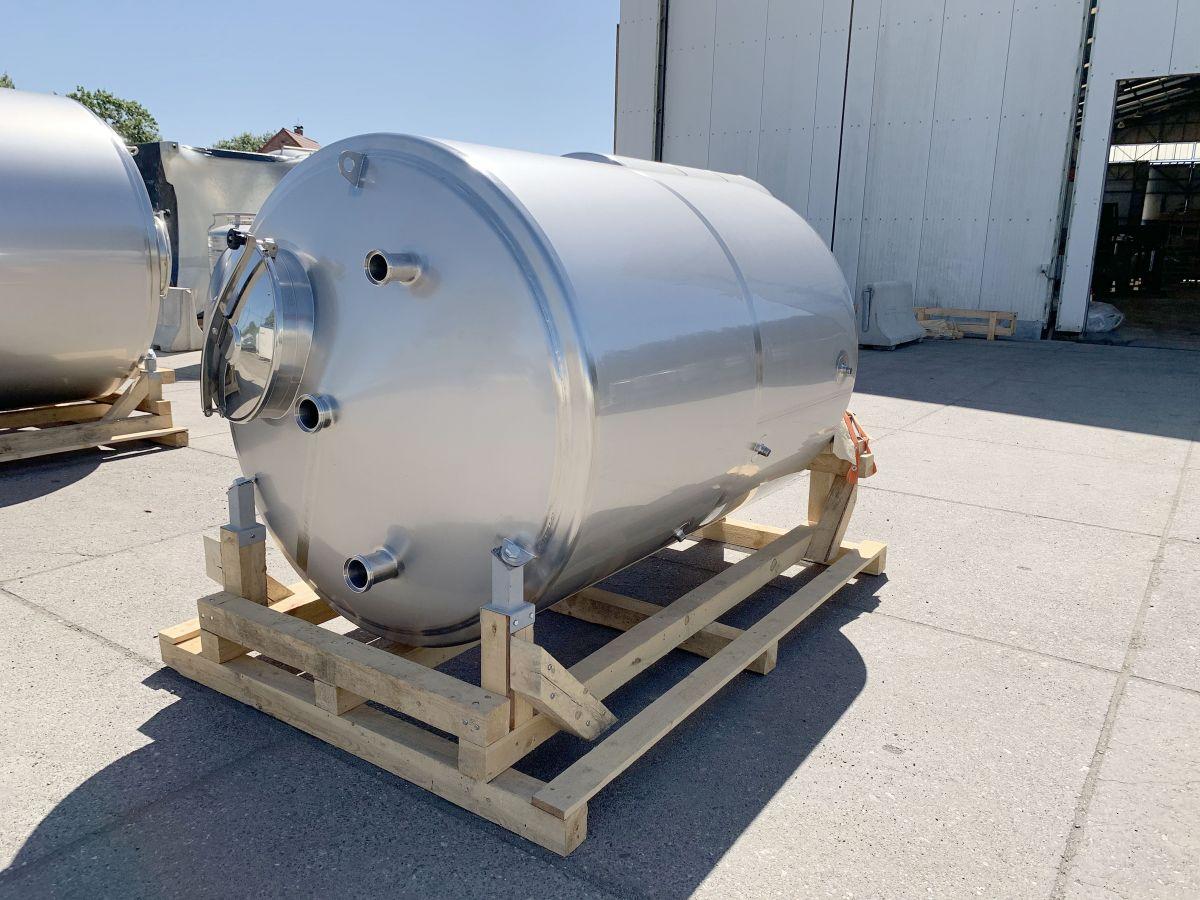

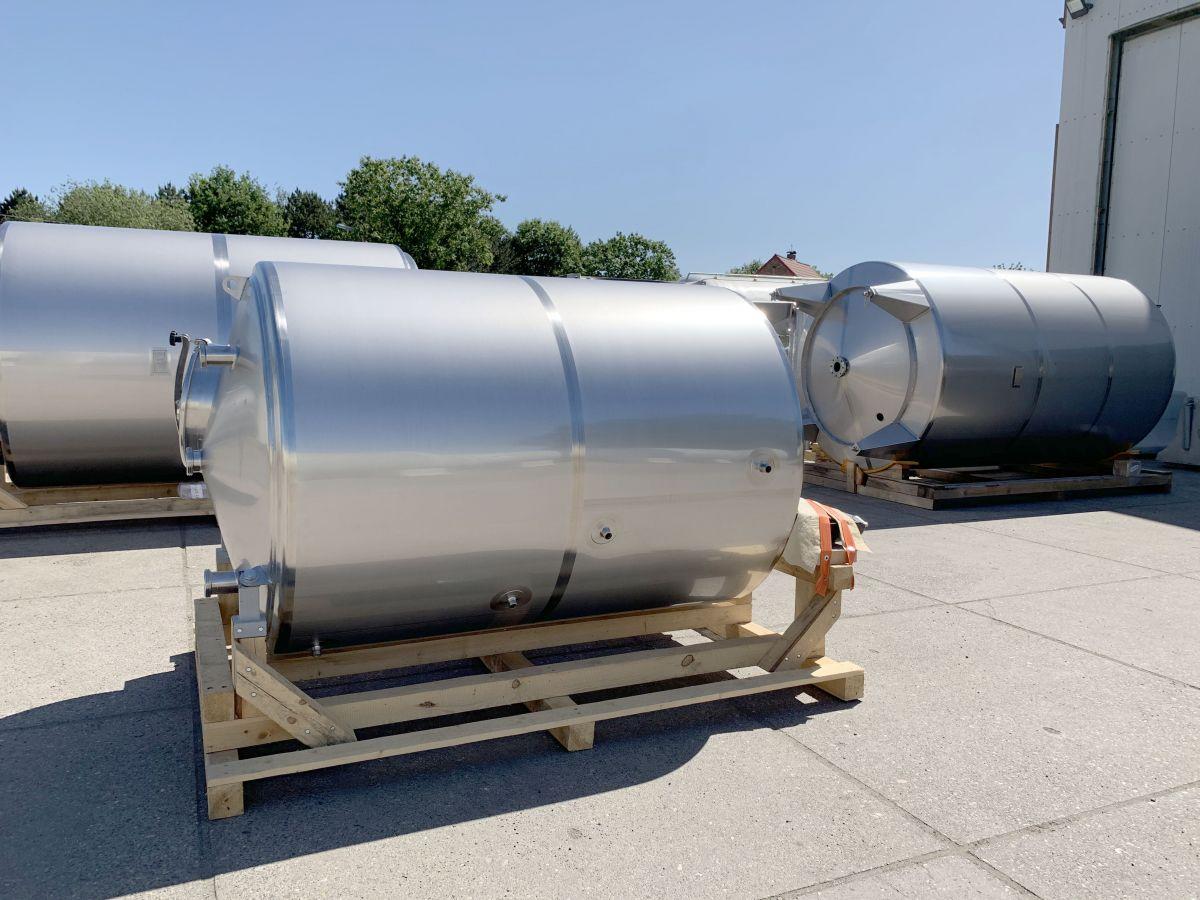

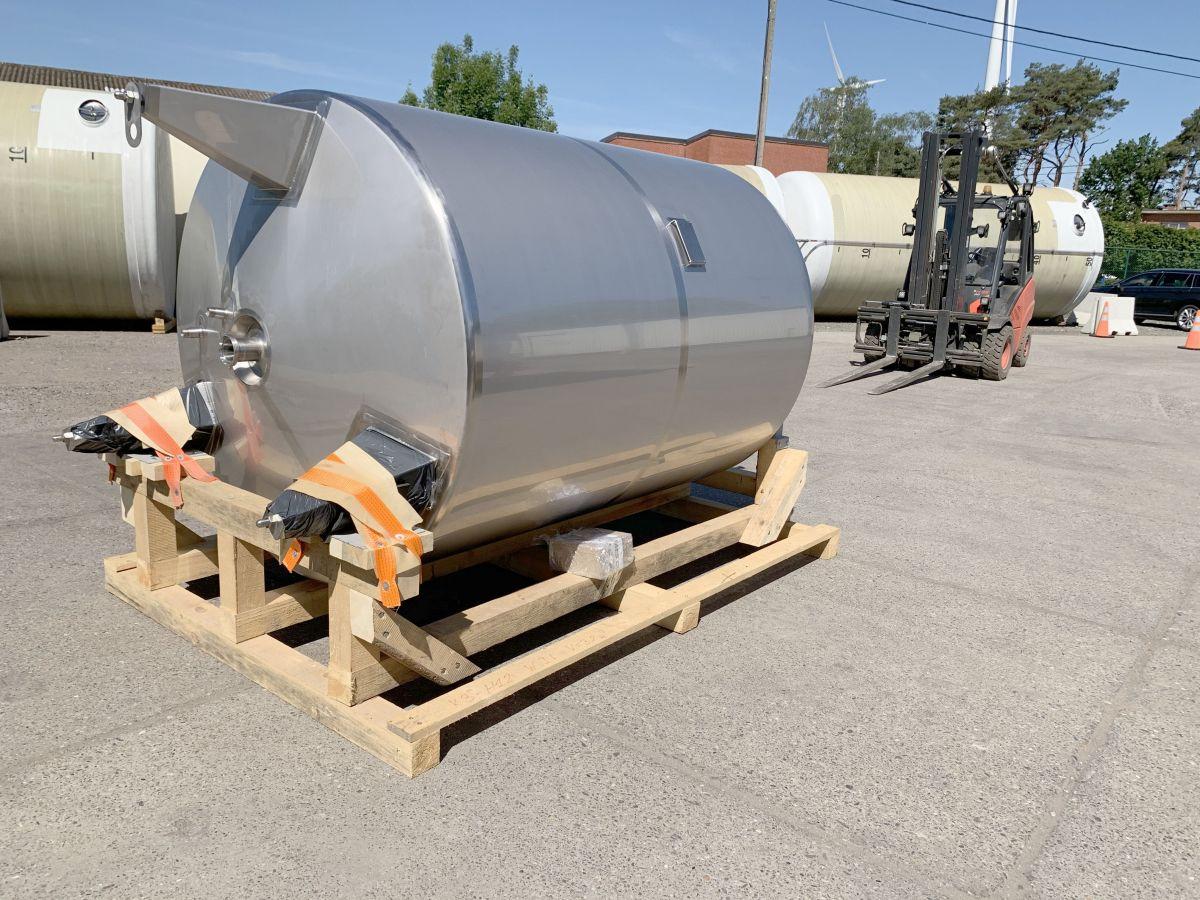

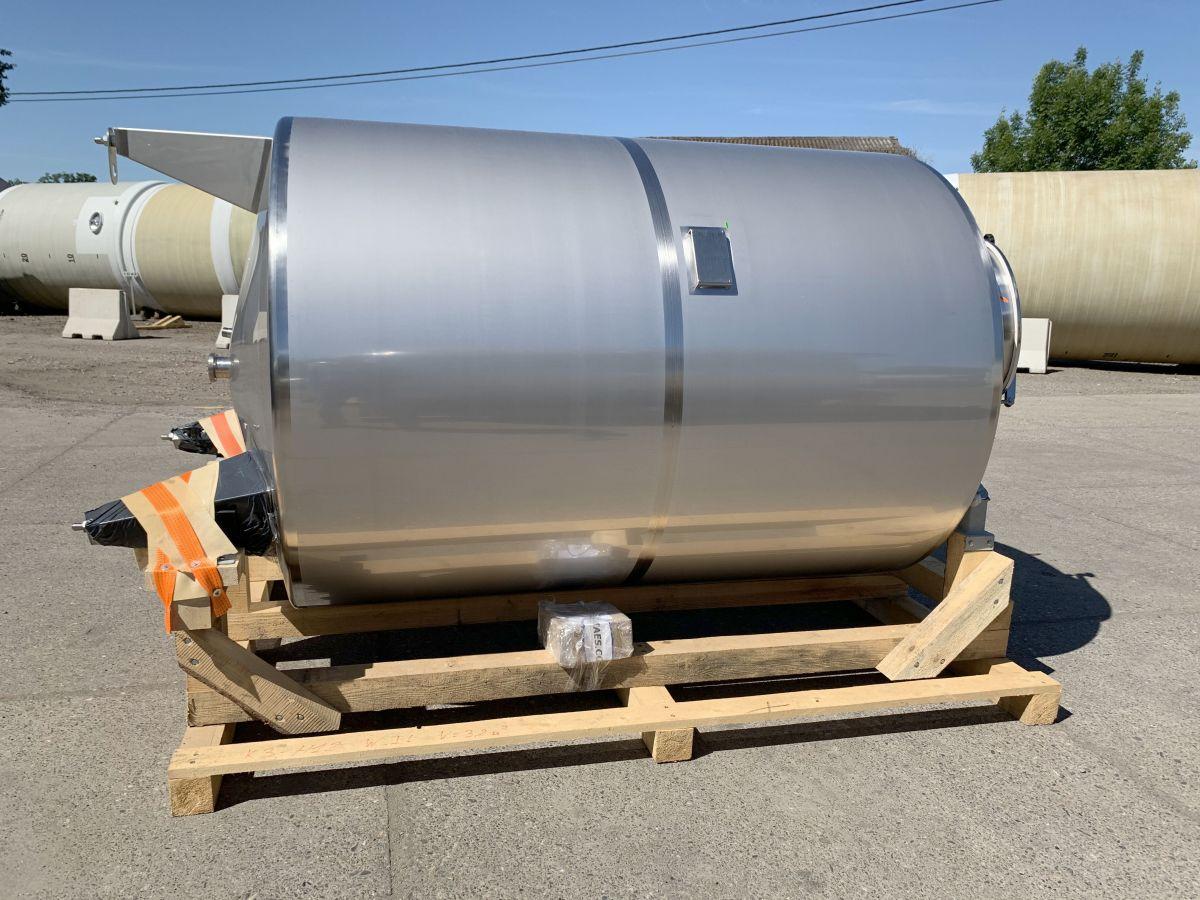

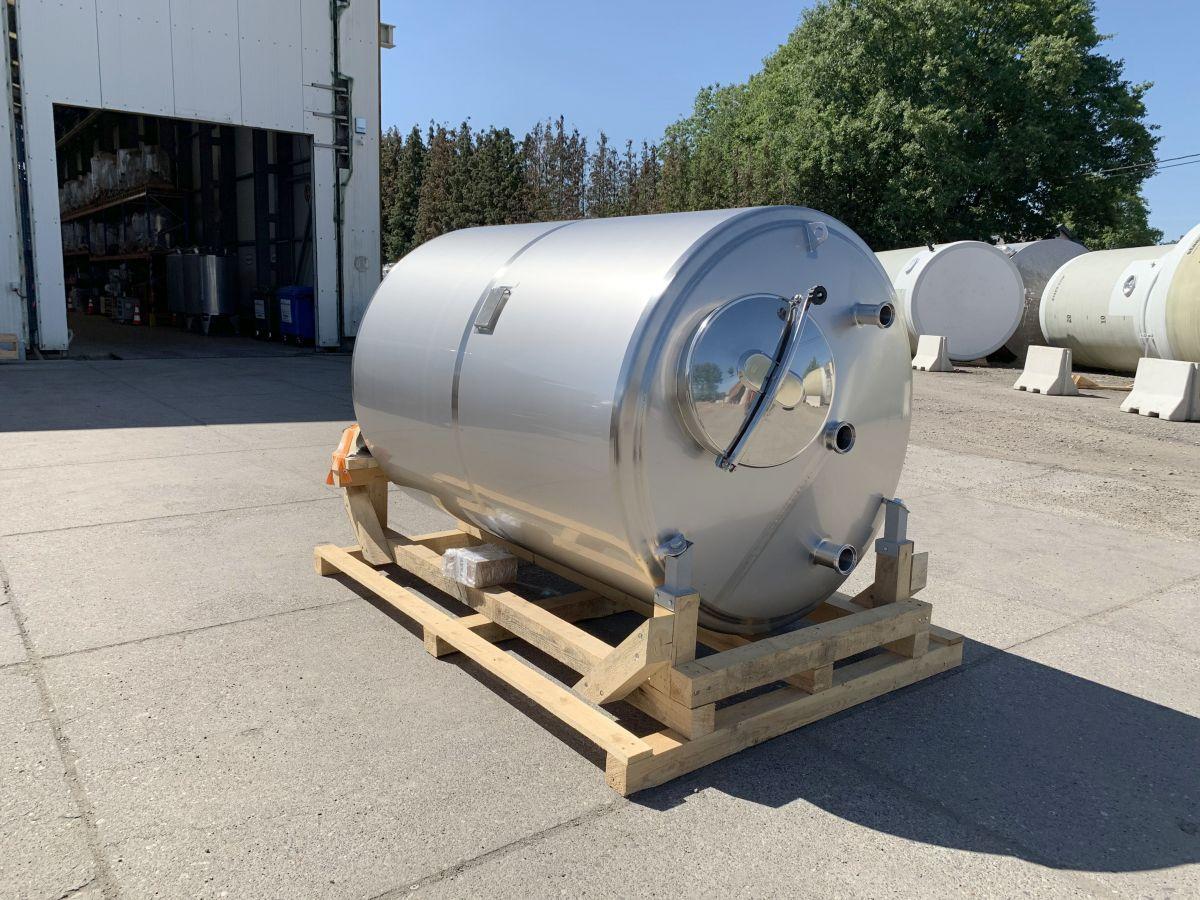

3200 liter i syrafast 316

Description of the article

• Article type: brand new storage tank
• Capacity: 3.200 L
• Maximal density of the product: 1.200 kg/m³
• Ra inner weld: 1,60 µ
• Finish stainless steel: 2b
• Working pressure in tank: ATM – atmosferic
• Max. working temperature: 100 °C
• Min. working temperature: -10 °C
• In contact with the product: SS AISI 316L (V4A)
• Model: vertical
• Configuration: single jacketed with heat-exchanger
• Heat exchanger: yes
• Insulation: no
• Agitator: yes, optional
• Mobile tank: no

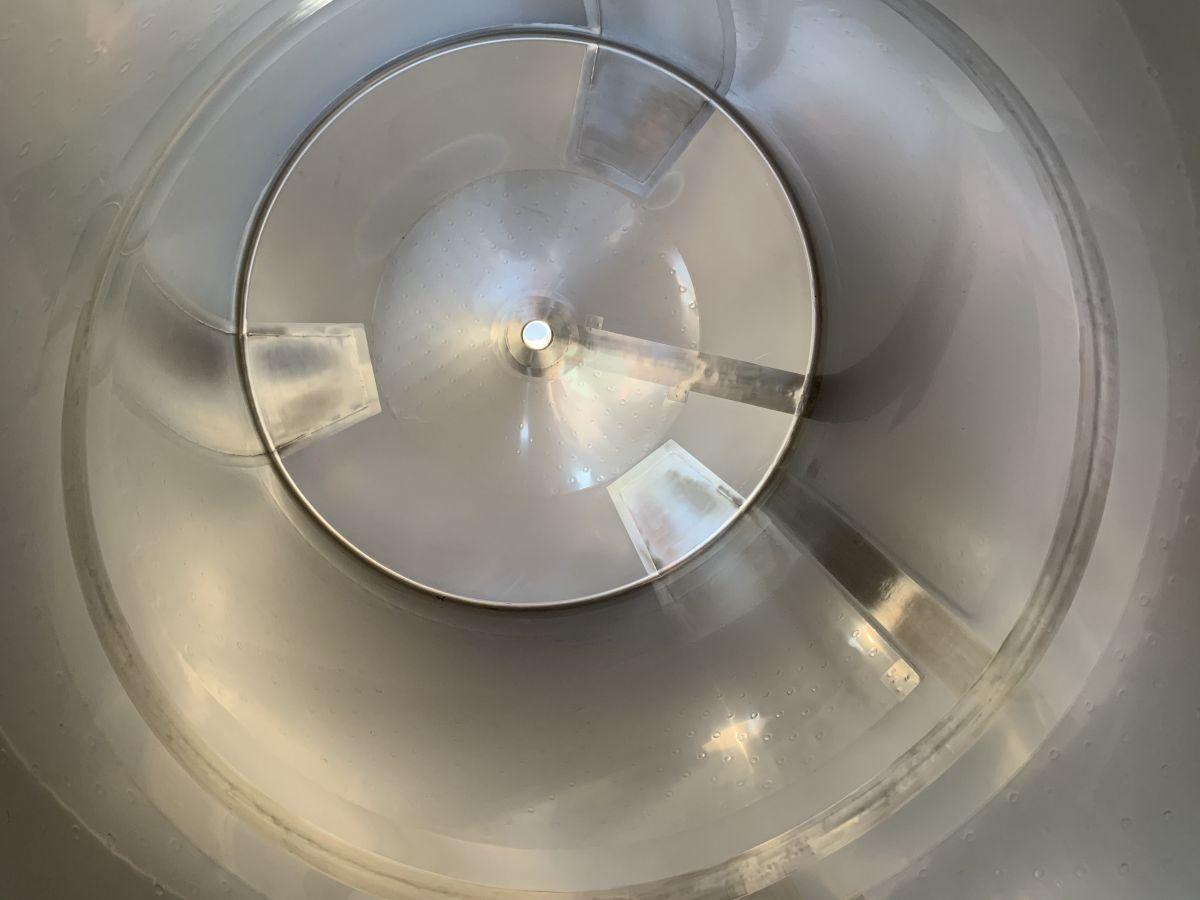

• Top type: conical 15 °
• Shape of tank: cylindrical
• Bottom type: conical 15 °
• Total discharge: yes
• Fixation points: 3 adjustable feet
• Legs: Set of baseplates and adjusting pieces included

Heat Exchanger (HE): on the cylinder and on the bottom

• Type of HE on the cylinder: half pipe welded onto the outside of the innertank
• Position HE: the complet cilinder
• Number of windings: 8
• Number of sections: 1
• Water pressure HE: 3 Bar
• Steam pressure HE: 0,49 Bar
• Hydraulic test pressure: 4,50 Bar
• Contact surface cylinder: 3,92 m²
• Connection HE: 1″BSP male
• Working temperature HE cylinder: 111 °C
• Type of HE on the bottom: dimple-jacket
• Water pressure HE: 3 Bar
• Steam pressure HE: 0,49 Bar
• Hydraulic test pressure: 4,50 Bar
• Contact surface bottom: 0,43 m²
• Connection HE: 1″BSP male
• Working temperature HE bottom: 111 °C

Overview materials

• Mat. wet parts: SS AISI 316L (V4A)
• Heat exchanger: RVS 304
• Manway(s): RVS 316
• Gasket manway(s): EPDM
• Fixation point(s): RVS 304L

Equipment

• Suitable for food industry: yes
• Documents included: yes, optional

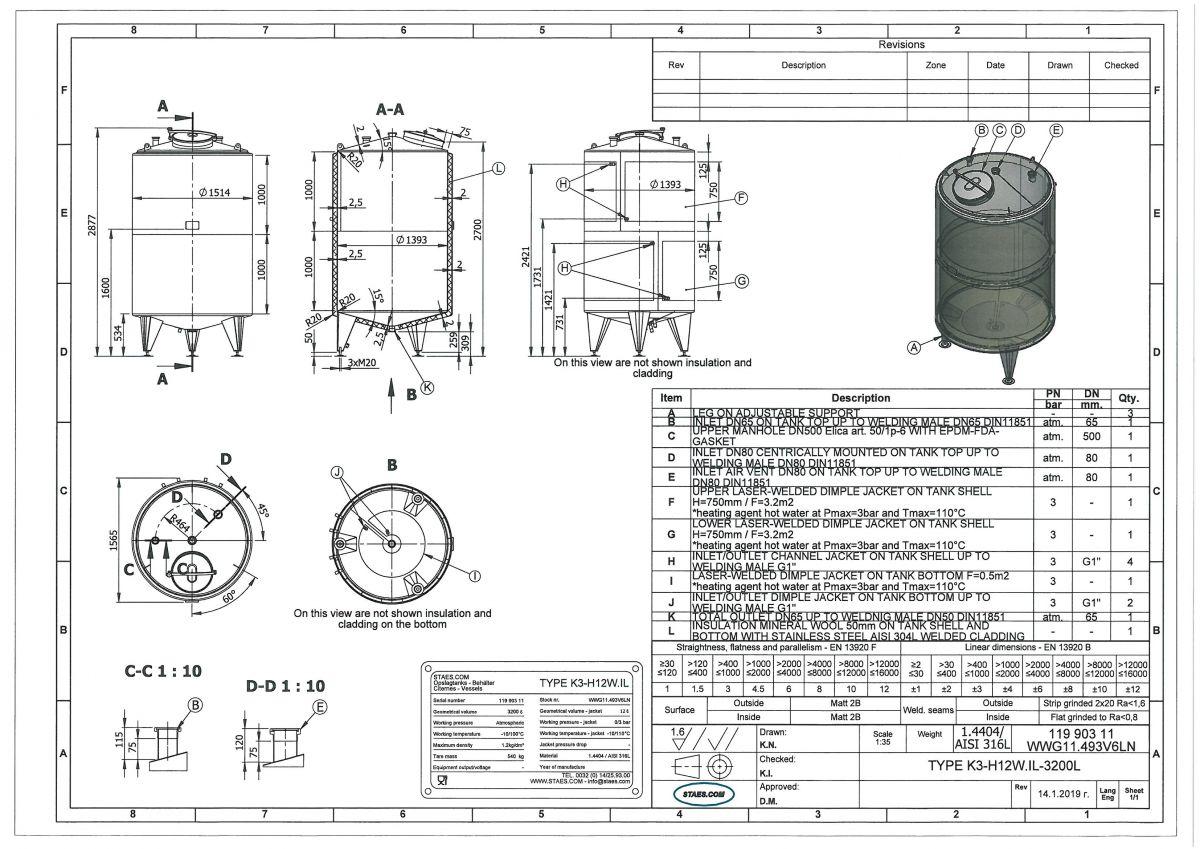

• Technical drawing included: yes
• Registration plate on the tank: yes
• with inspection of: TUV
• Flange for agitator: no

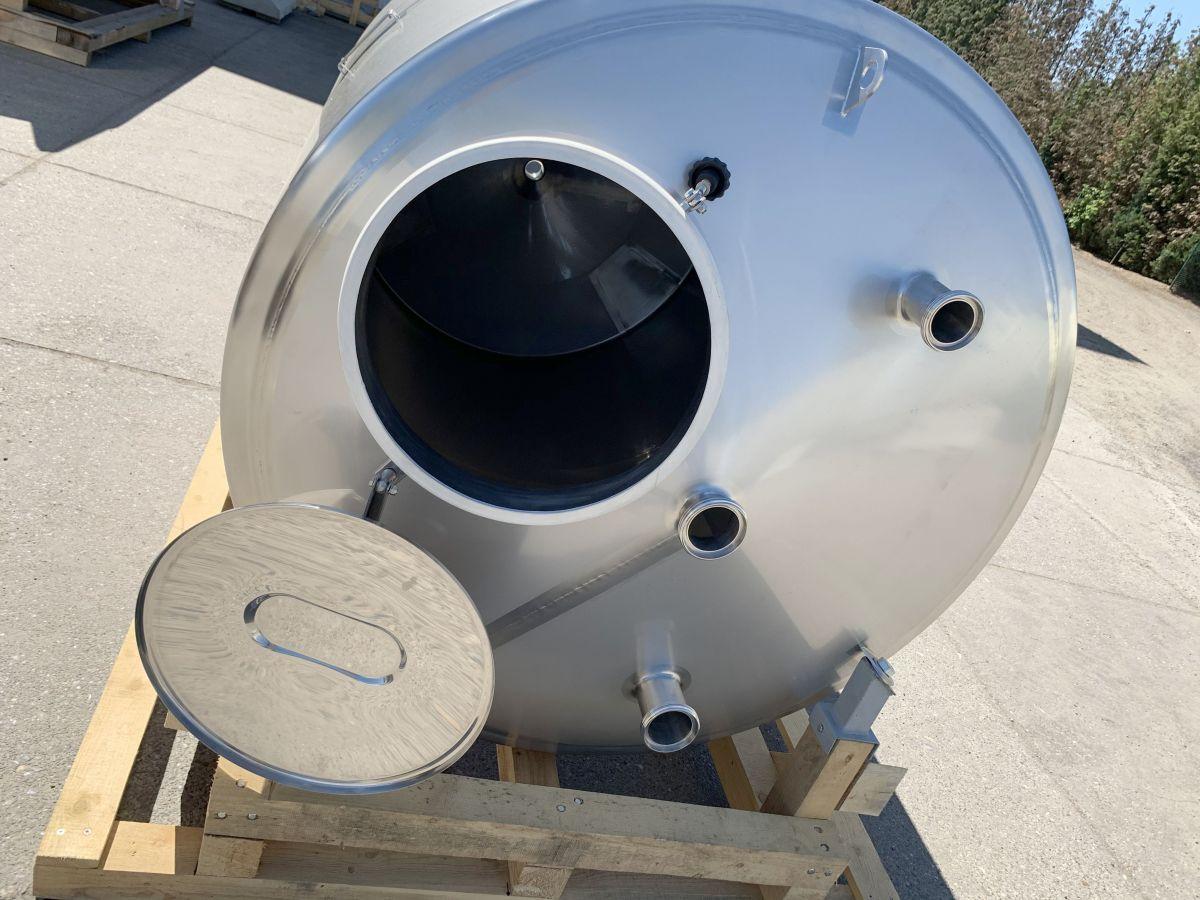

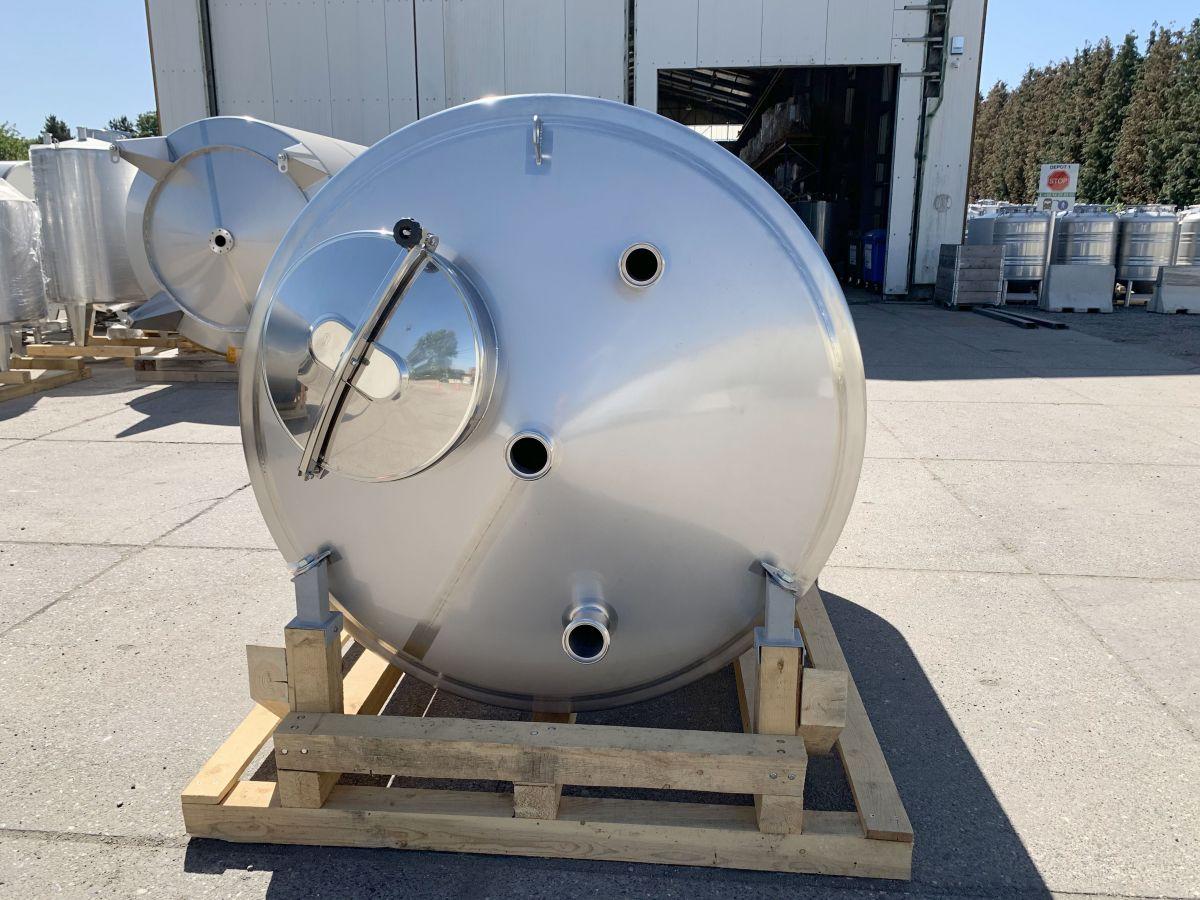

• Number of manways: 1
• Position manway: at the top
• Manway 1: Ø 500 mm
• Spray ball: yes, optional
• Tank outlet: inside Ø 65 mm
• Outlet type: DIN11851 male
• Total outlet valve: yes, optional

Wall thicknesses of the inner tank

• Top: 2 mm
• Cylinder: 2,50 mm
• Bottom: 2,50 mm

Dimensions of the tank

• Internal diameter tank: 1.393 mm
• Distance from outlet to ground: 356 mm
• Outer diameter tank: 1.393 mm
• Cylinder height: 2.000 mm
• Height of bottom: 593 mm
• Total height of tank: 2.884 mm
• Empty weight tank: 346 Kg
