3200 liter i Rostfritt 304

item available on order

Article type: brand new storage tank – type K5-SL
Additional information: Ra=<0.8µm
Capacity: 3.200 L
Maximal density of the product: 1.200
Ra inner weld: 0,80

Finish stainless steel: 2B
Working pressure in tank: ATM – atmosferic
Max. working temperature: 100 °C
Min. working temperature: -10 °C
Material wet parts: SS AISI 304L (V2A)

Model: vertical
Configuration: single-skin
Heat exchanger: no
Insulation: no
Mobile tank: no

Top type: conical 15 °
Shape of tank: cylindrical
Bottom type: conical
Total discharge: yes
Fixation points: 3 adjustable feet

Manway(s): RVS 304L
Gasket manway(s): EPDM
Fixation point(s): RVS 304L
Suitable for food industry: yes
Documents included: yes, optional

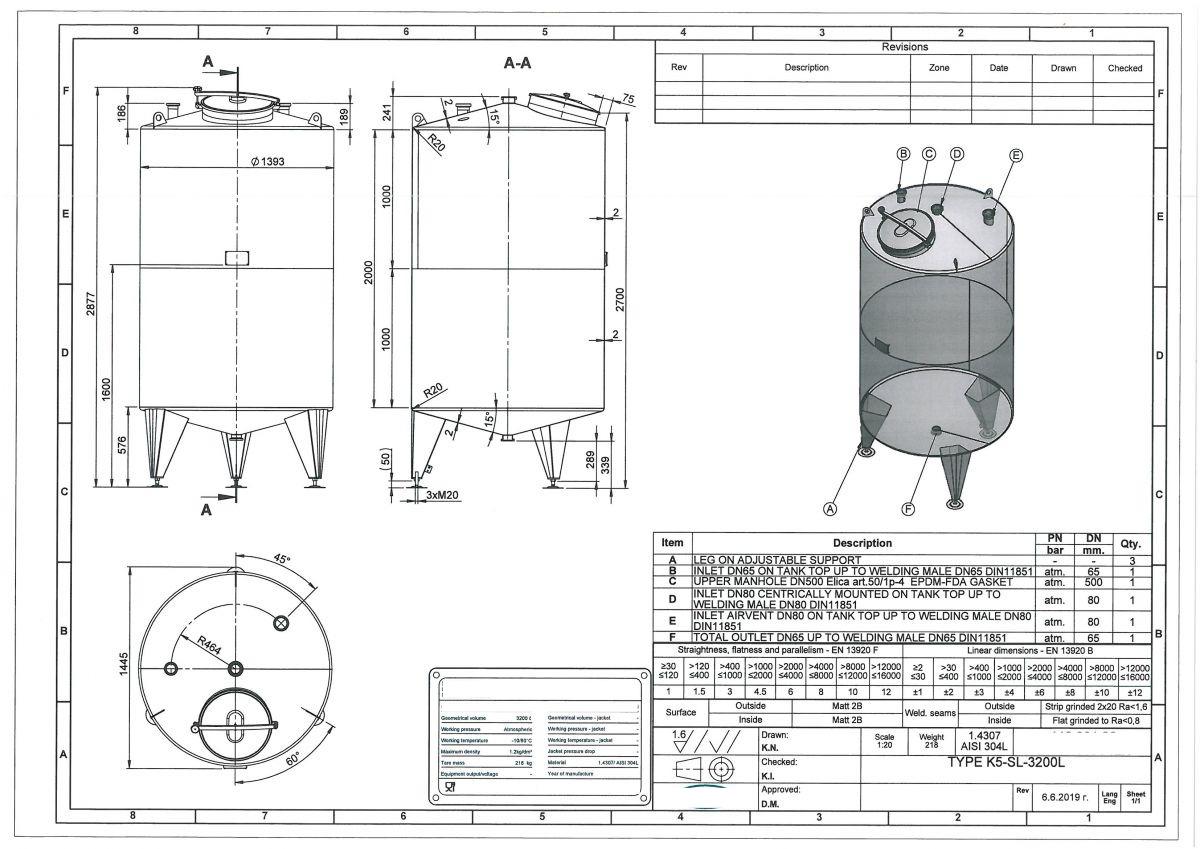

Technical drawing included: yes
Registration plate on the tank: yes
with inspection of: TUV
Flange for agitator: no
Number of manways: 1

Position manway: at the top
Manway 1: 500 mm
Tank outlet: inside Ø 65 mm
Outlet type: DIN11851 male
Top: 2 mm

Cylinder: 2 mm
Bottom: 2 mm
Distance from outlet to ground: 289 mm
Outer diameter tank: 1.393 mm
Cylinder height: 2.000 mm

Height of top: 241 mm
Feet height: 576 mm
Total height of tank: 2.900 mm
Empty weight tank: 220
