300 liter i Syrafast 316
95,000.00 SEK/st exkl moms
Mer information
Volym i liter | 300 |
---|---|
Nytillverkad/Begagnad | Nytillverkad |
Livsmedelsklassad | Ja |
Modell | Vertikal |
Material | Syrafast 316 |
Omrörare | Nej |
Uppvärmning/kylning | Ja |
Isolerad | Ja |
Ritning
Öppnaitem available on order

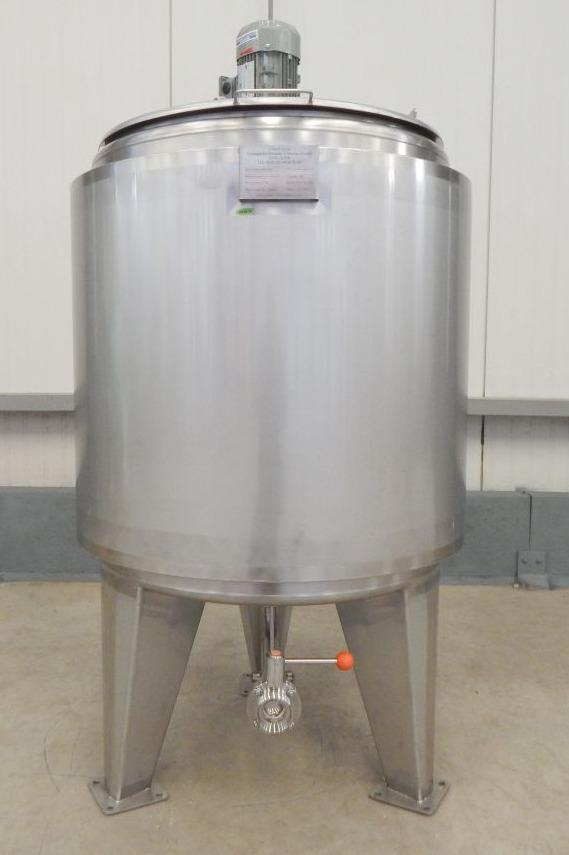

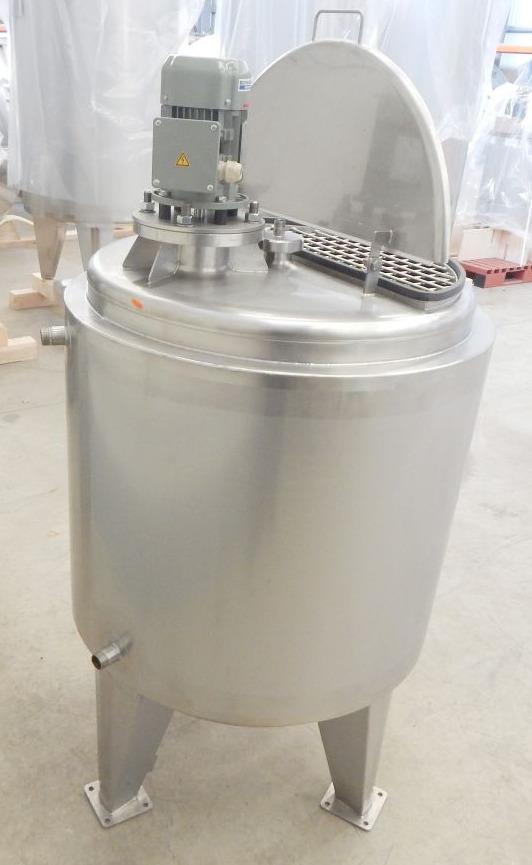

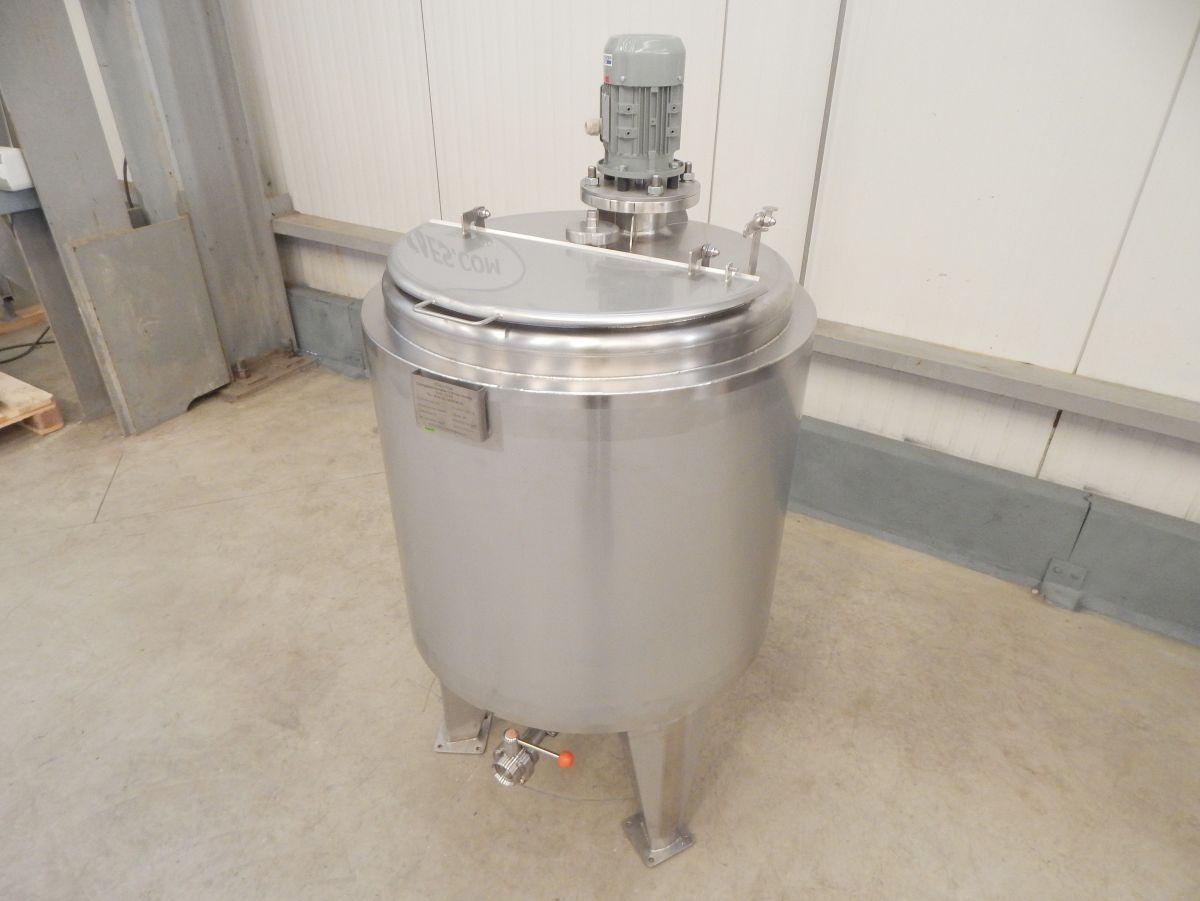

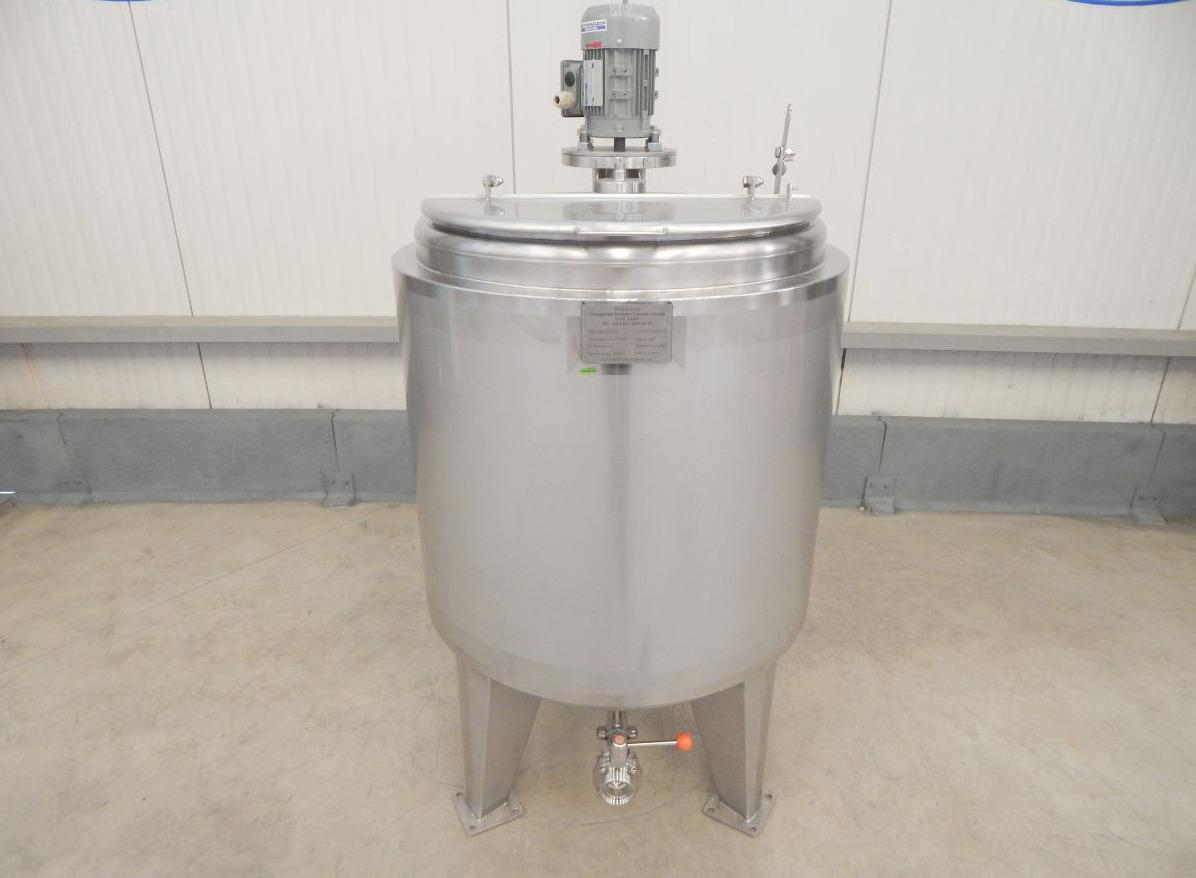

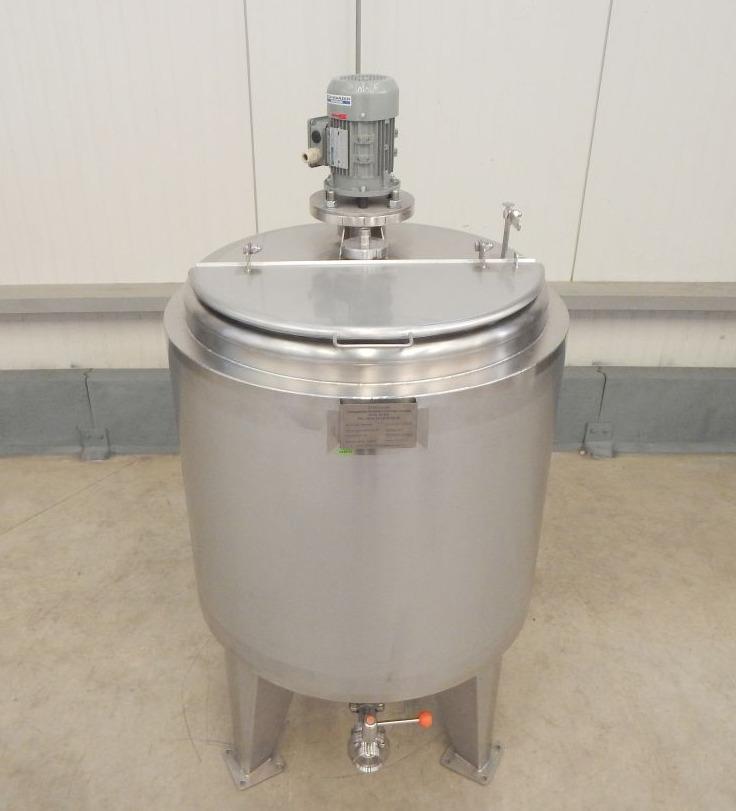

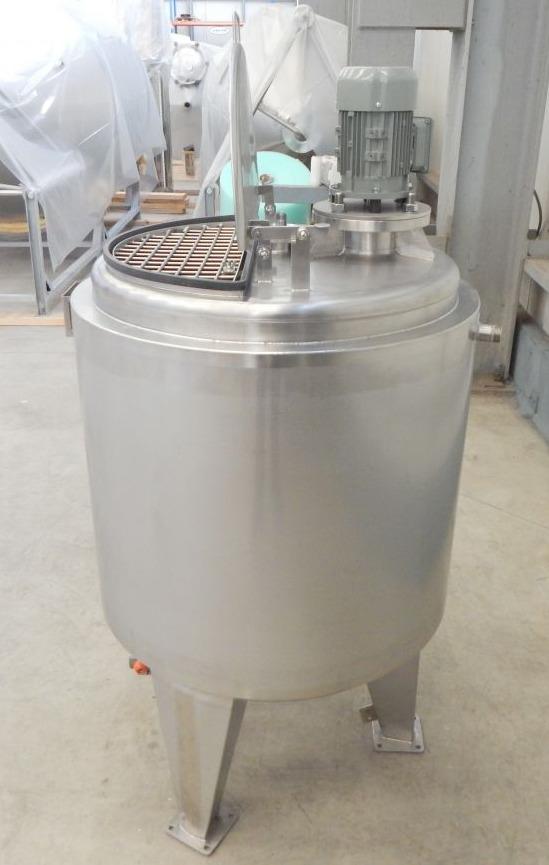

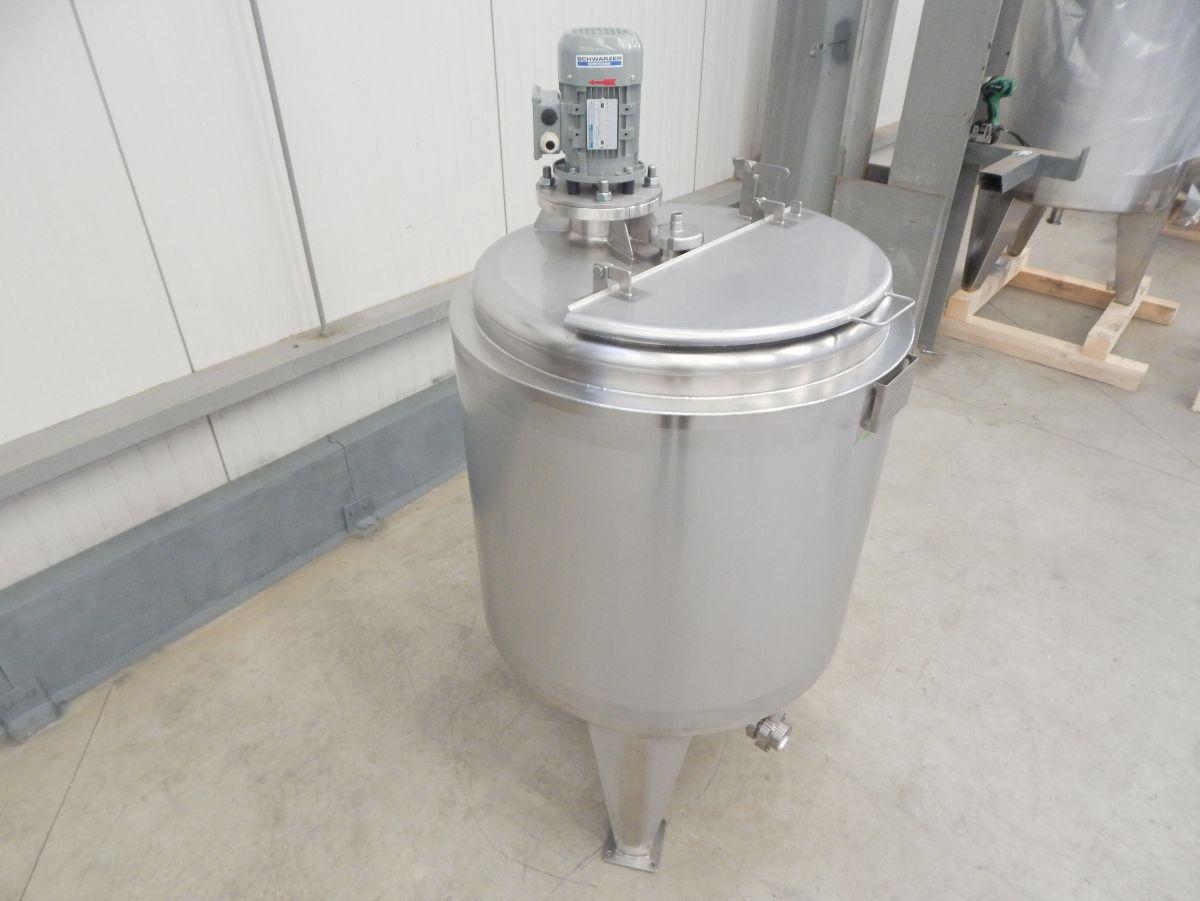

Article type: brand new mixing tank – type VC-HILA
Additional information: delivered with food certificate; article price without agitator; choice of 2 different types of agitators; see options; (The article can also be purchased without options); Ra=<0.8µm
Capacity: 300 L
Maximal density of the product: 1.200
Ra inner weld: 0,80
Finish stainless steel: 2b
Working pressure in tank: ATM – atmosferic
Max. working temperature: 100 °C
Min. working temperature: -10 °C
Material wet parts: SS AISI 316 (V4A)
Model: vertical
Configuration: insulated with heat-exchanger
Heat exchanger: yes
Insulation: yes
Agitator: yes, optional
Mobile tank: no

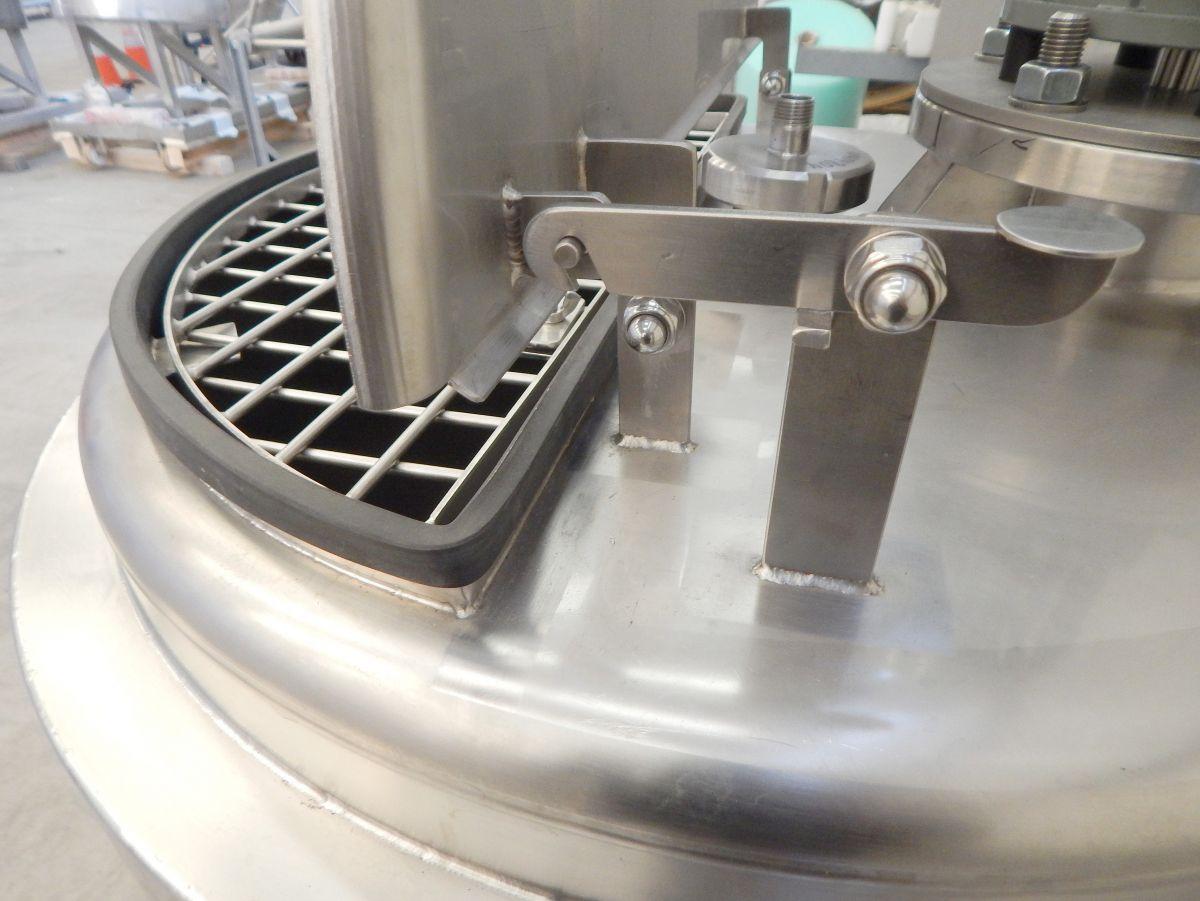

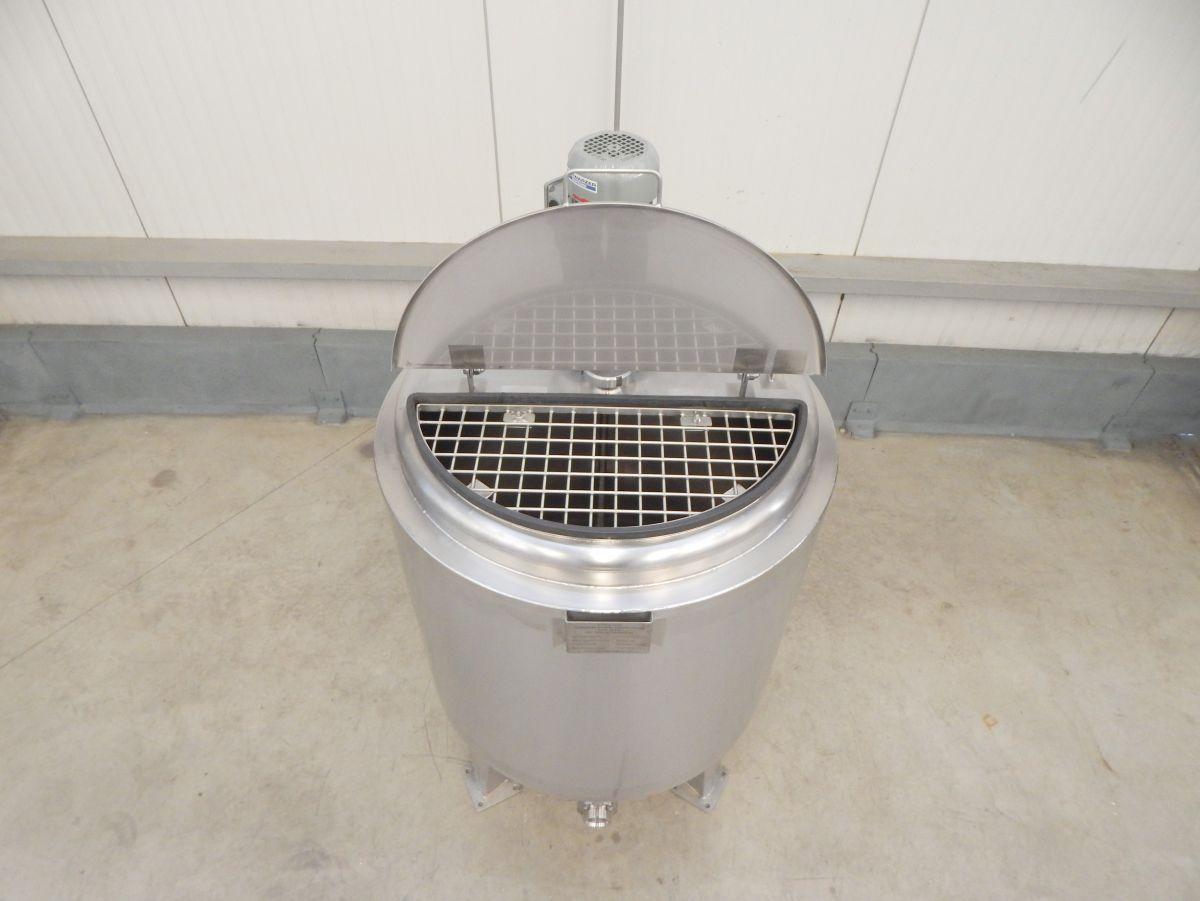

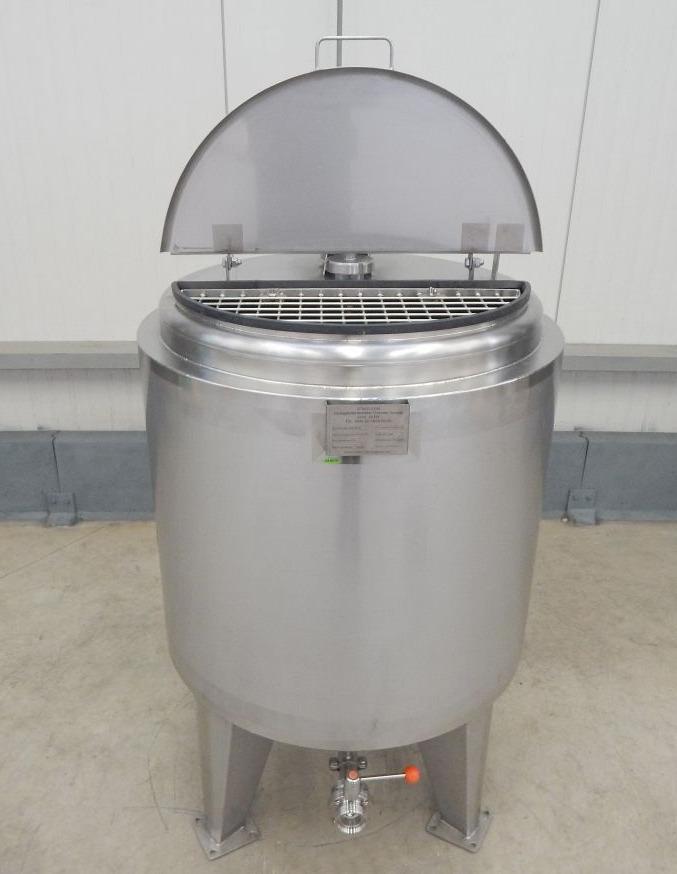

Top type: half hinging lid °
Shape of tank: cylindrical

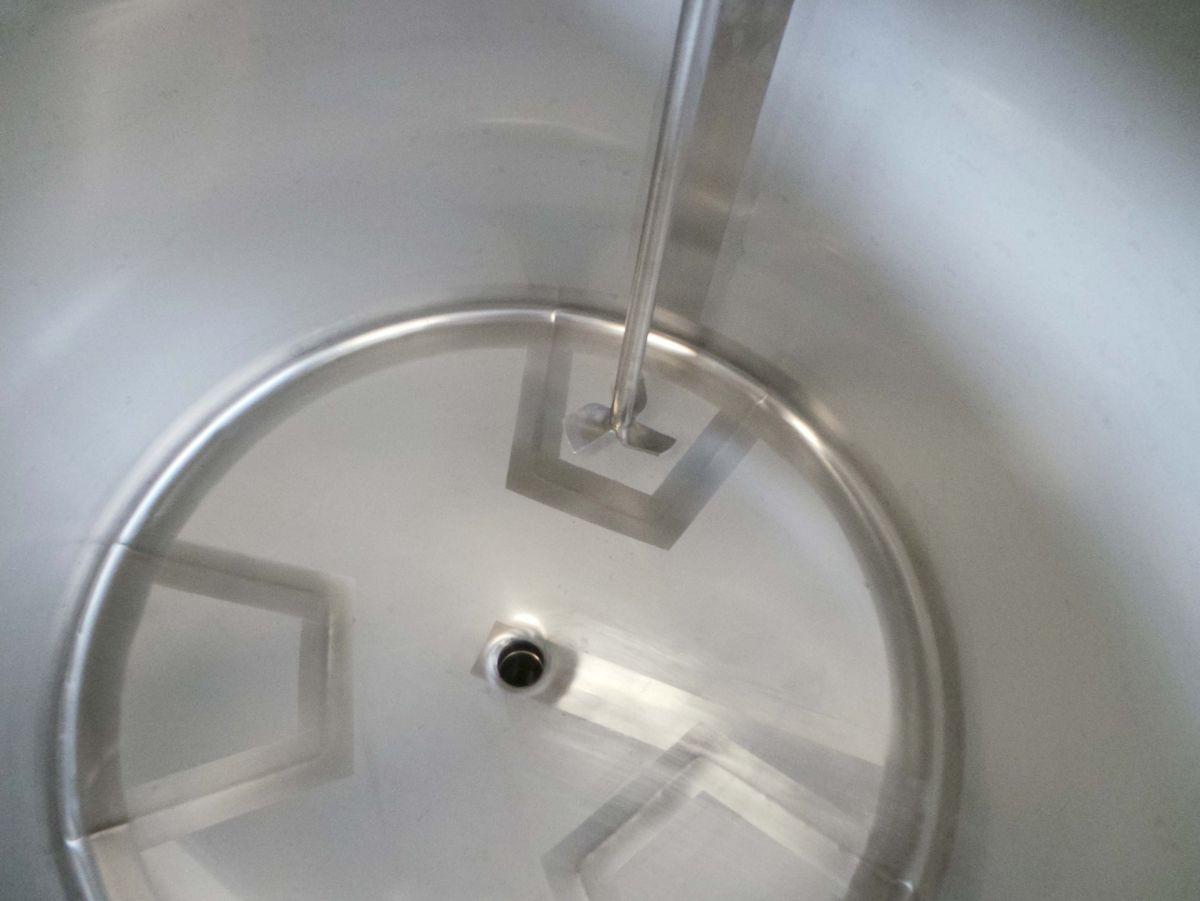

Bottom type: conical 10 °
Total discharge: yes
Fixation points: 3 non adjustable feet
Type of HE on the cylinder: dimple-jacket
Position HE: the complet cilinder
Height HE: 625 mm
Number of sections: 1
Water pressure HE: 3 Bar
Hydraulic test pressure: 4,50 Bar
Contact surface cylinder: 1,30 m²
Working temperature HE cylinder: 100 °C
Heat exchanger: RVS 304
Outer jacket (ornamental wall): RVS 304
Valve: RVS 316L
Fixation point(s): RVS 304
Suitable for food industry: yes
Documents included: yes, optional
Technical drawing included: yes
Registration plate on the tank: yes
Flange for agitator: yes

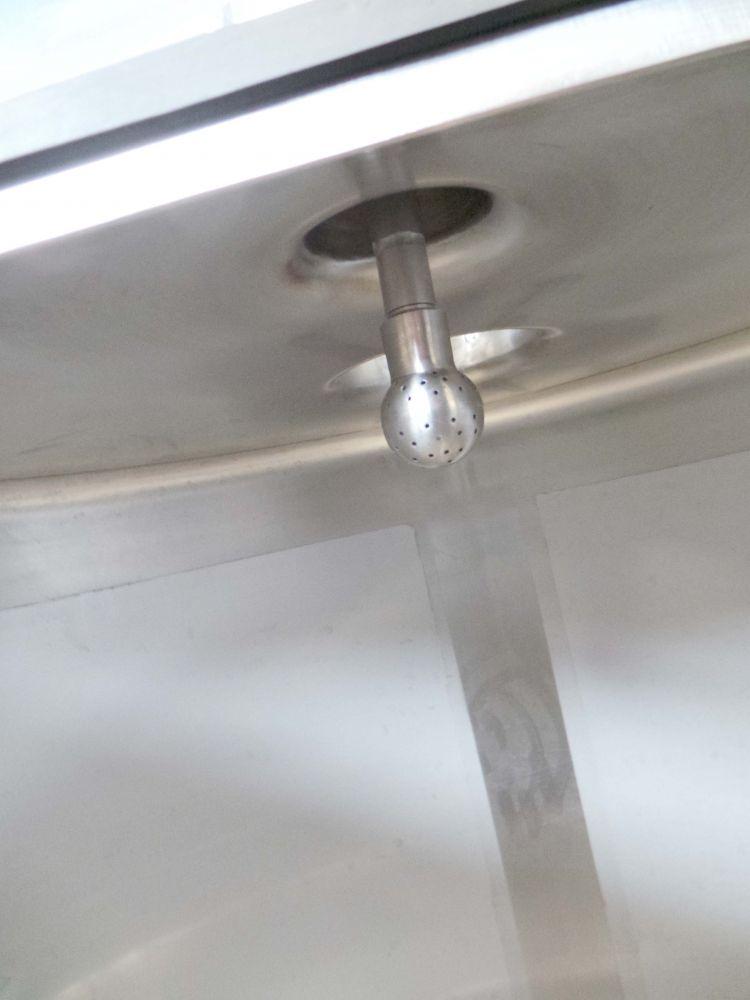

Spray ball: yes, optional
Number: 1
Tank outlet: inside Ø 40 mm
Outlet type: DIN11851

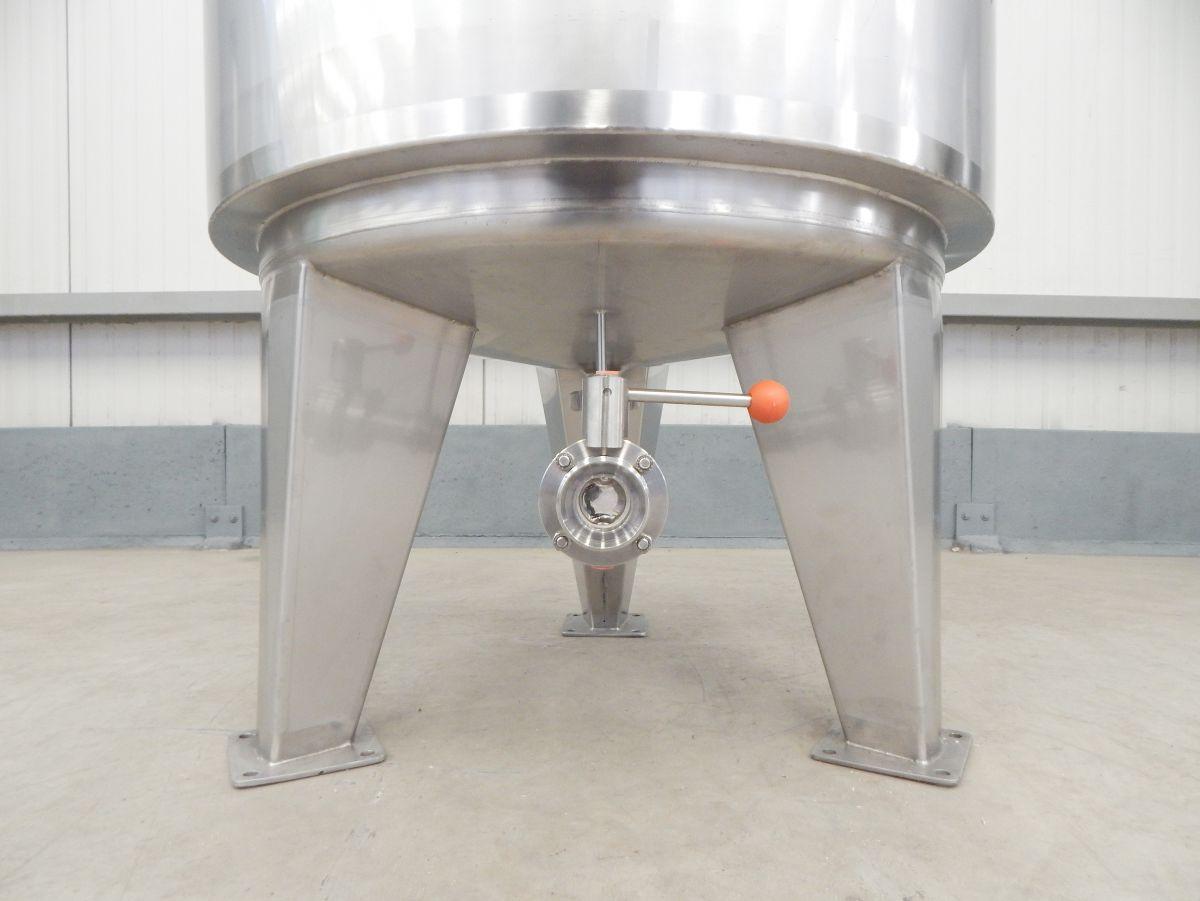

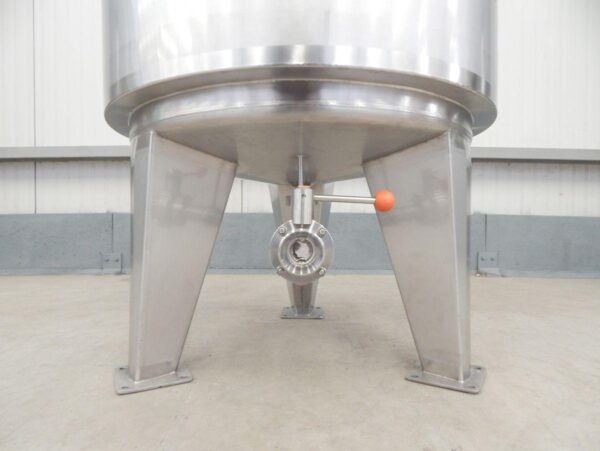

Total outlet valve: yes, optional
Type shut-off valve: butterfly valve

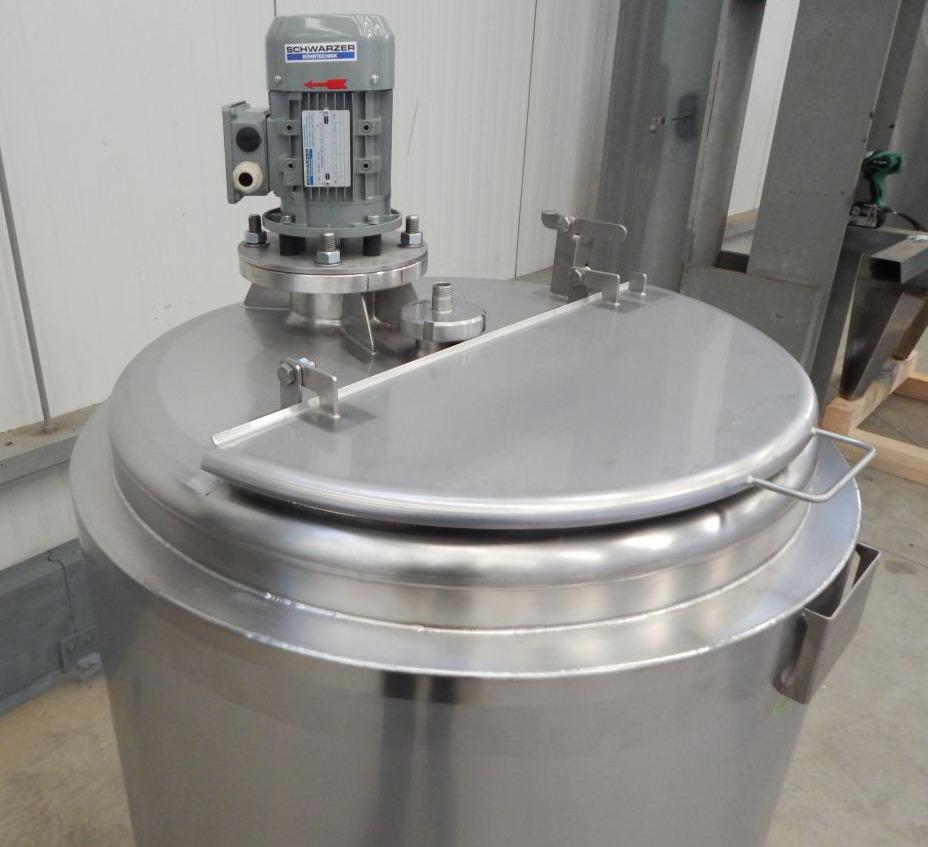

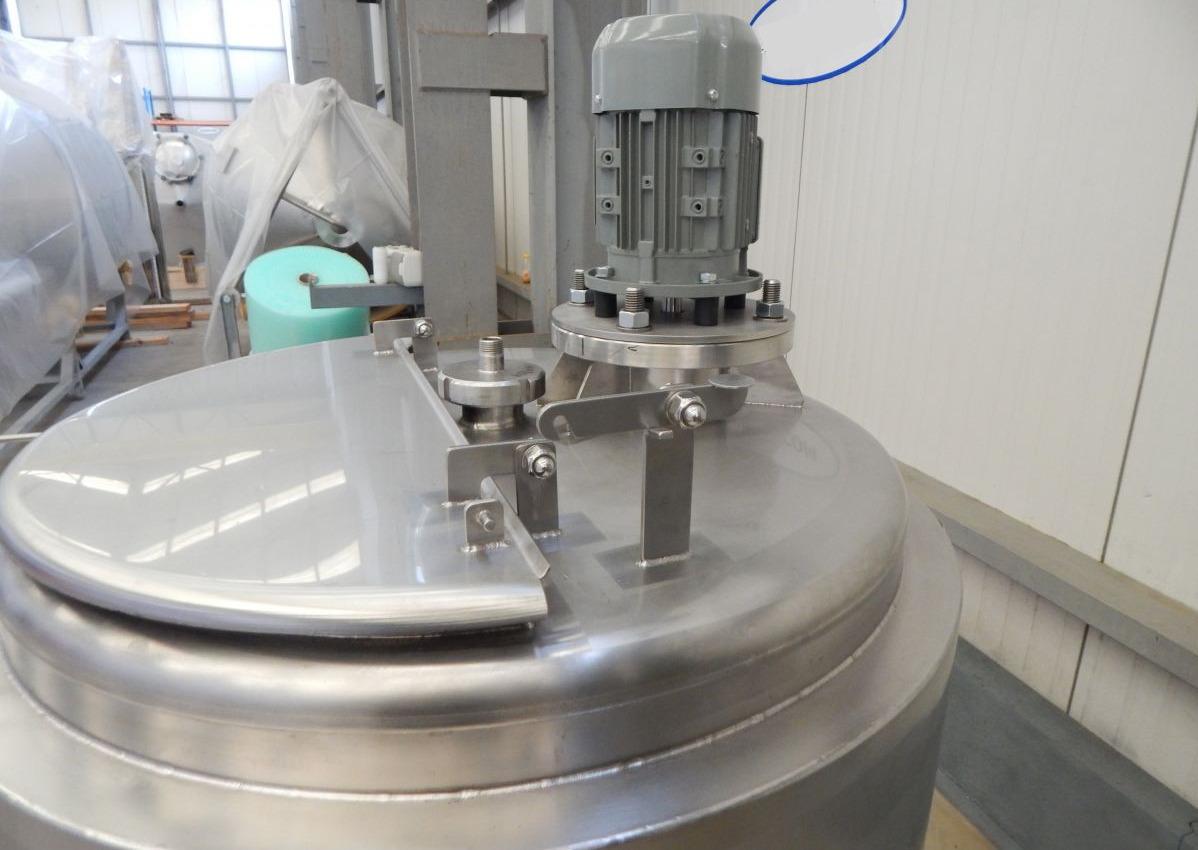

Agitator type: propeller agitator
Position engine: at the top
Number of revolutions: 1.410
Power: 0,37
Voltage: three-phase
Agitator type 2: propeller agitator
Position engine: at the top
Number of revolutions: 750
Power: 0,25
Voltage: three-phase
Top: 3 mm
Cylinder: 3 mm
Bottom: 3 mm
Cylinder: 40
Insulation body: yes
finish of the outer jacket: welded
Internal diameter tank: 703 mm
Outer diameter tank: 783 mm
Total height of tank: 1.760 mm
Empty weight tank: 150
