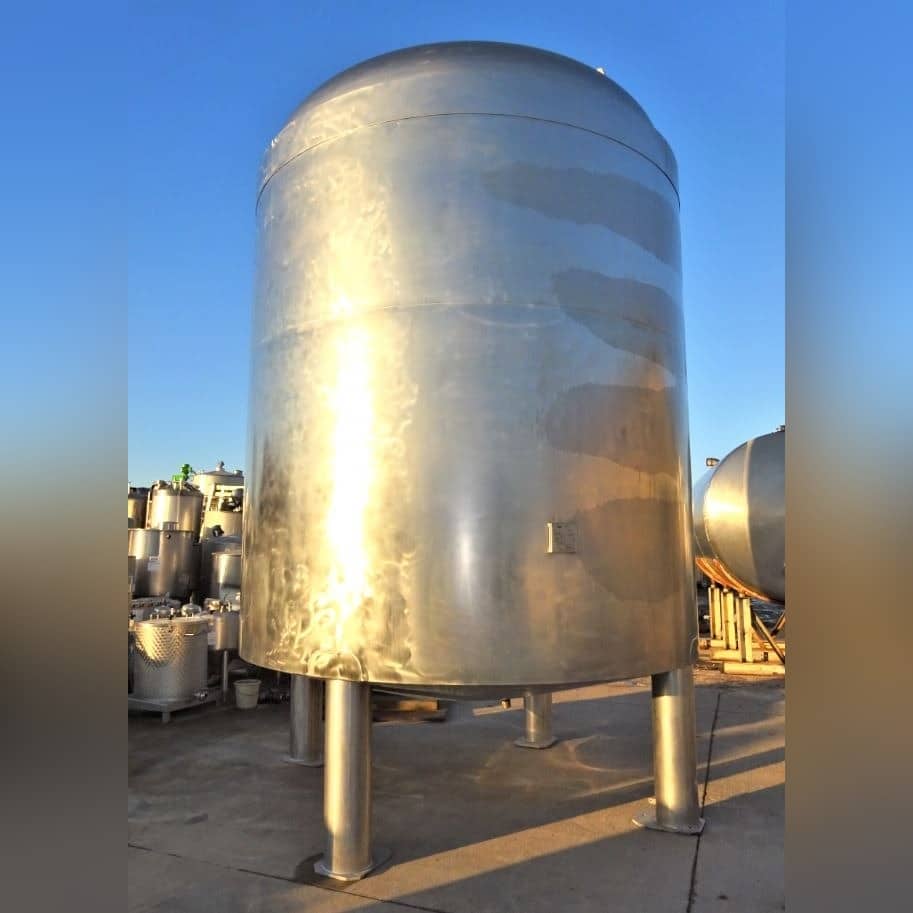

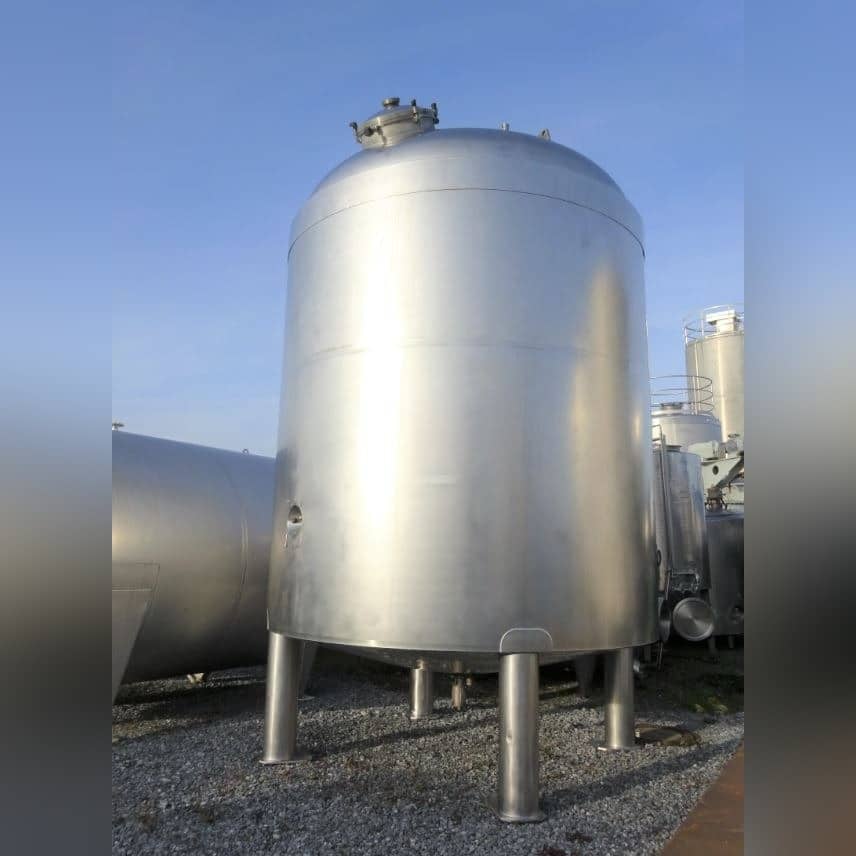

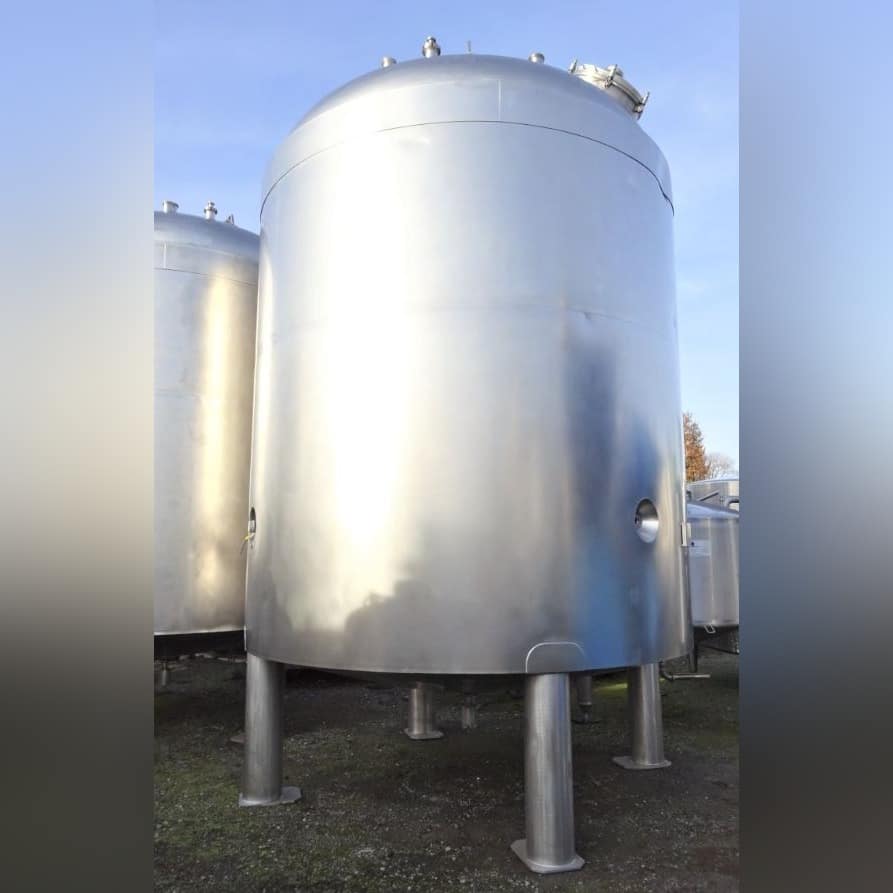

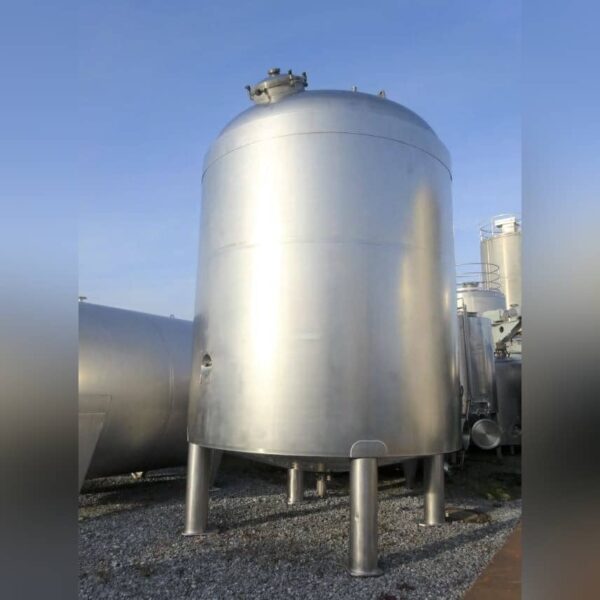

27600 liter tank i Syrafast 316

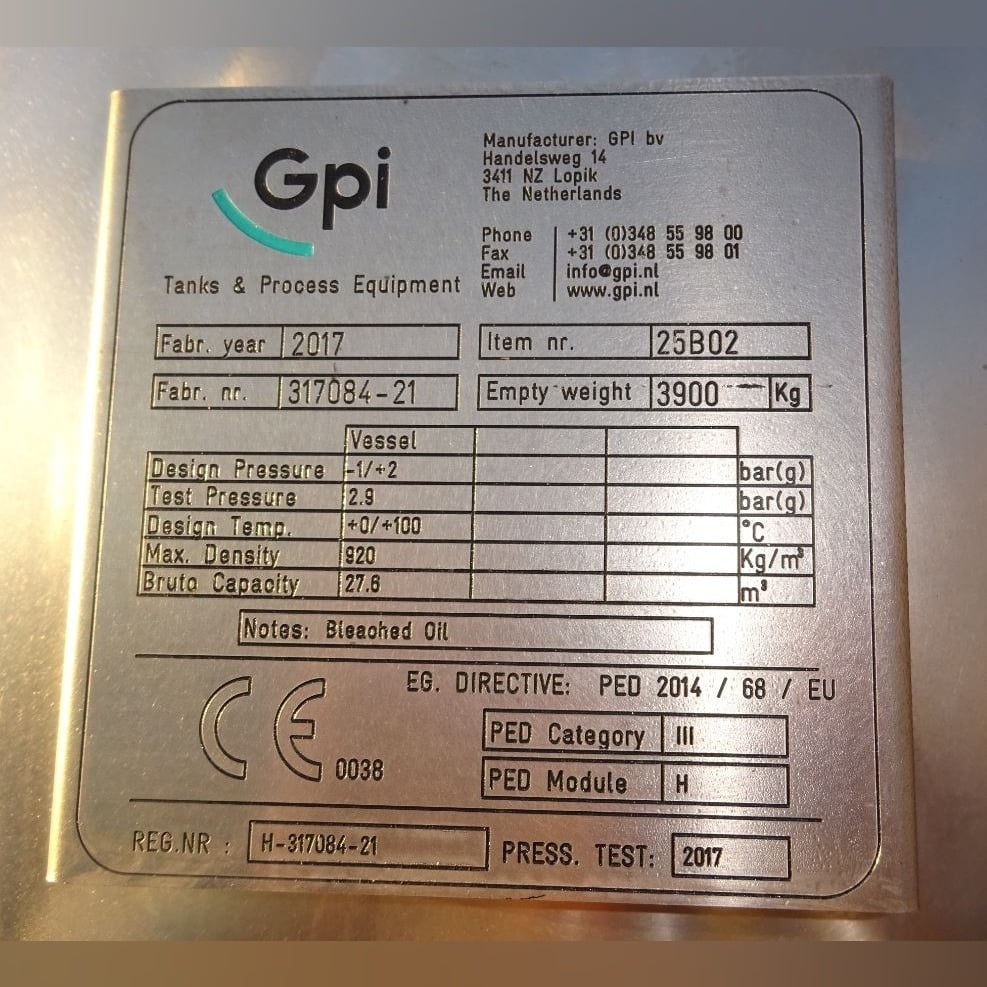

Additional information: food industry Volumetric volume (L): 27.600 L Pressure in tank: pressure and vacuum Max. pressure (Bar): 2 Bar Min. pressure (Bar): 1 Bar Material wet parts: SS AISI 316 (V4A) Model: vertical Configuration: insulated Heat exchanger: no Insulation: yes Mobile tank: no Total discharge: yes Documents included: no Technical drawing included: no Registration plate on the tank: yes Flange for agitator: no Position of manway: headside Outlet of tank: available Internal diameter tank: 3.040 mm Cylinder height: 3.350 mm Total height of tank: 5.200 mm Empty weight tank: 3.900
