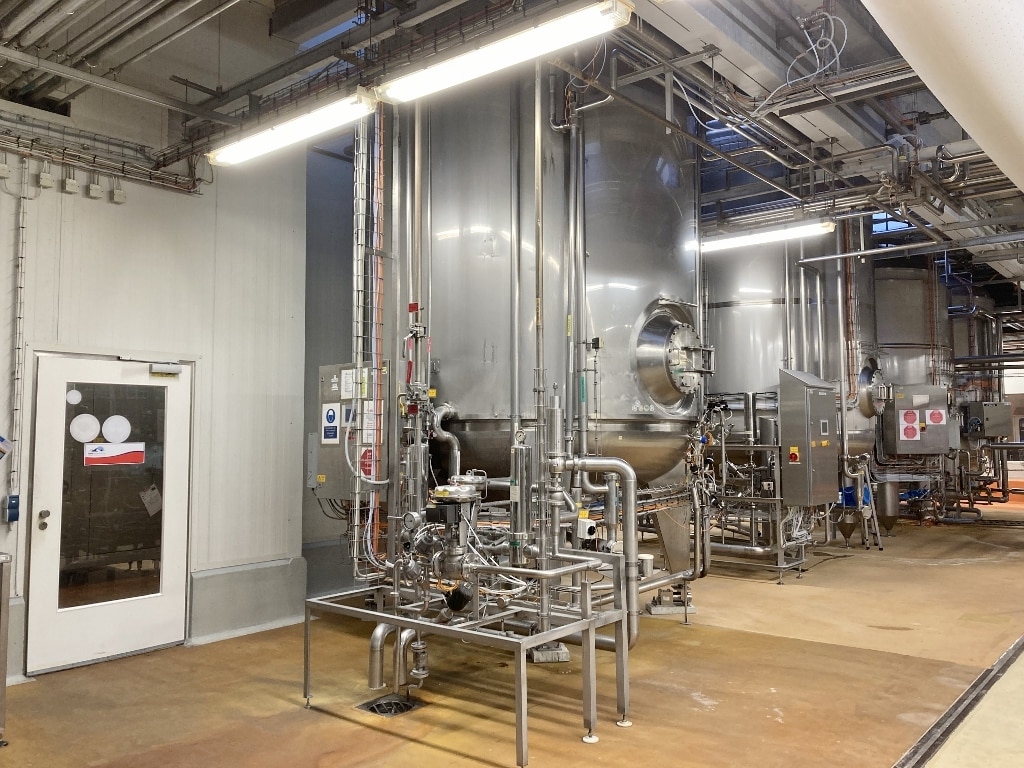

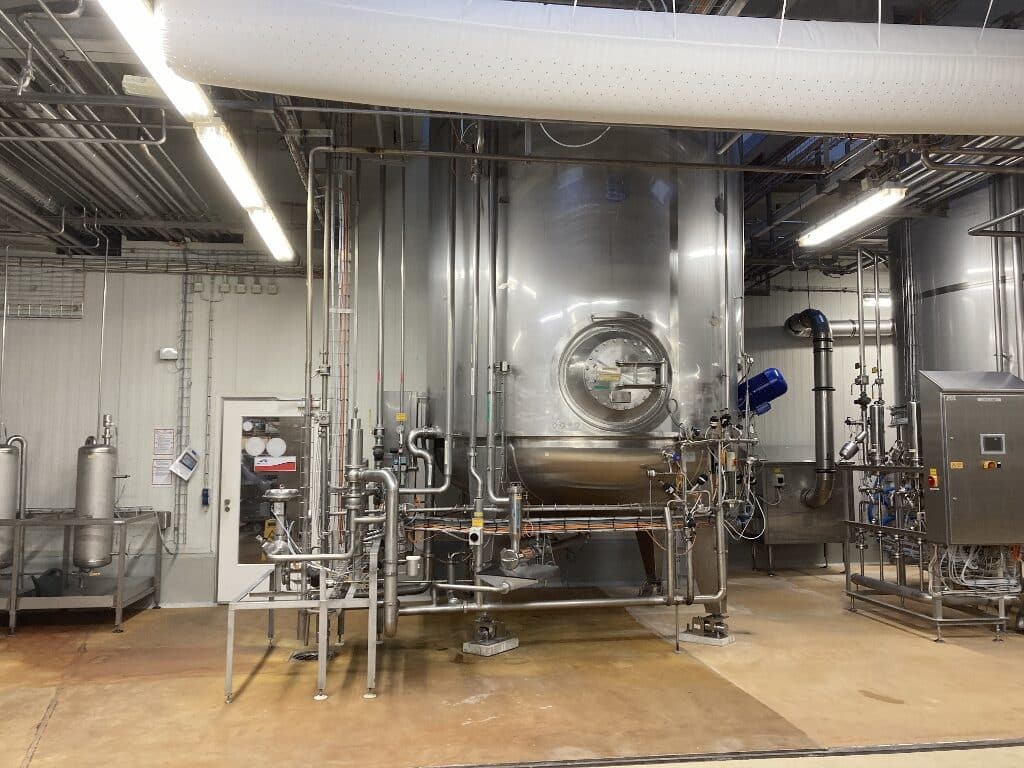

27335 liter tank i Rostfritt 304

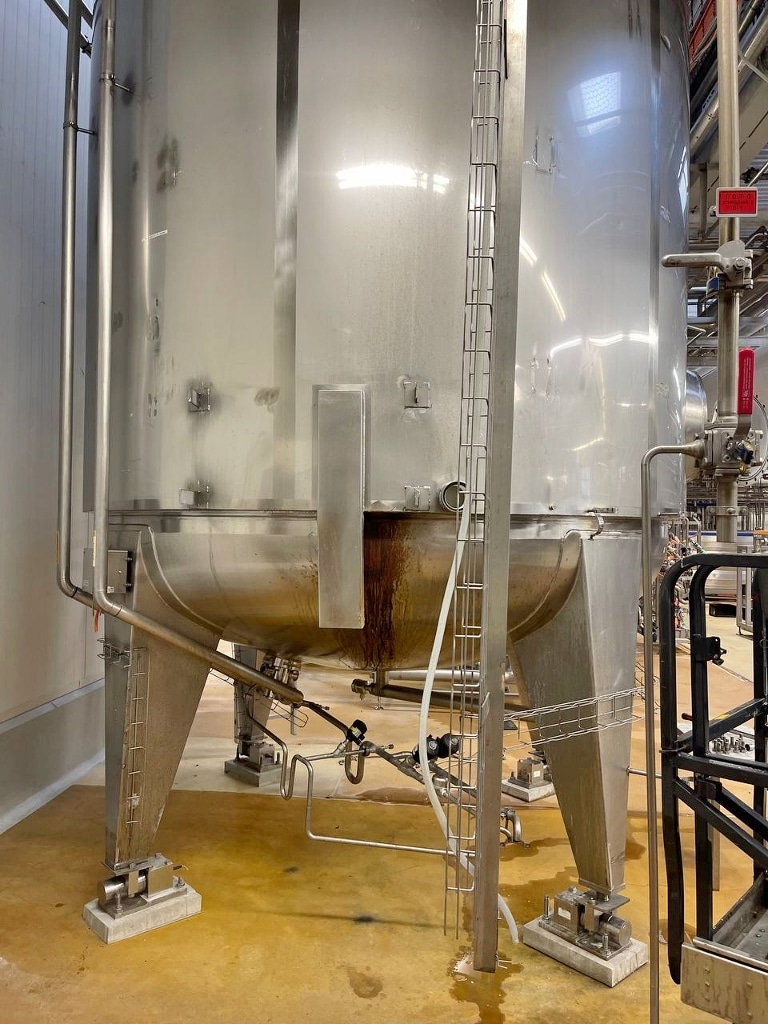

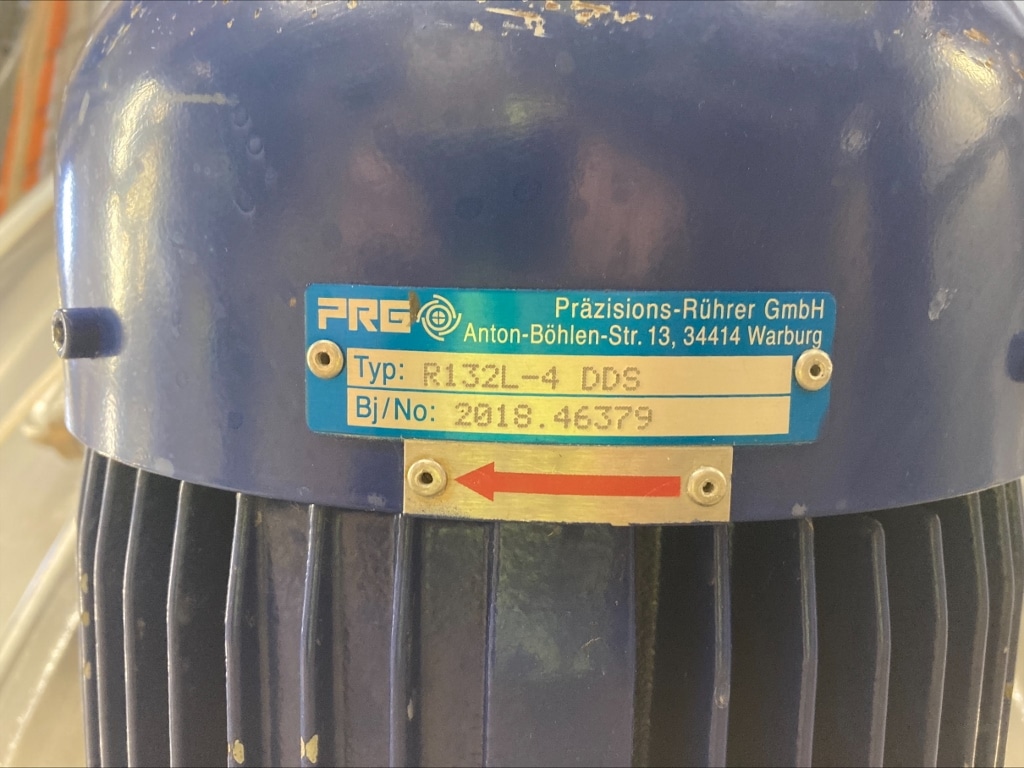

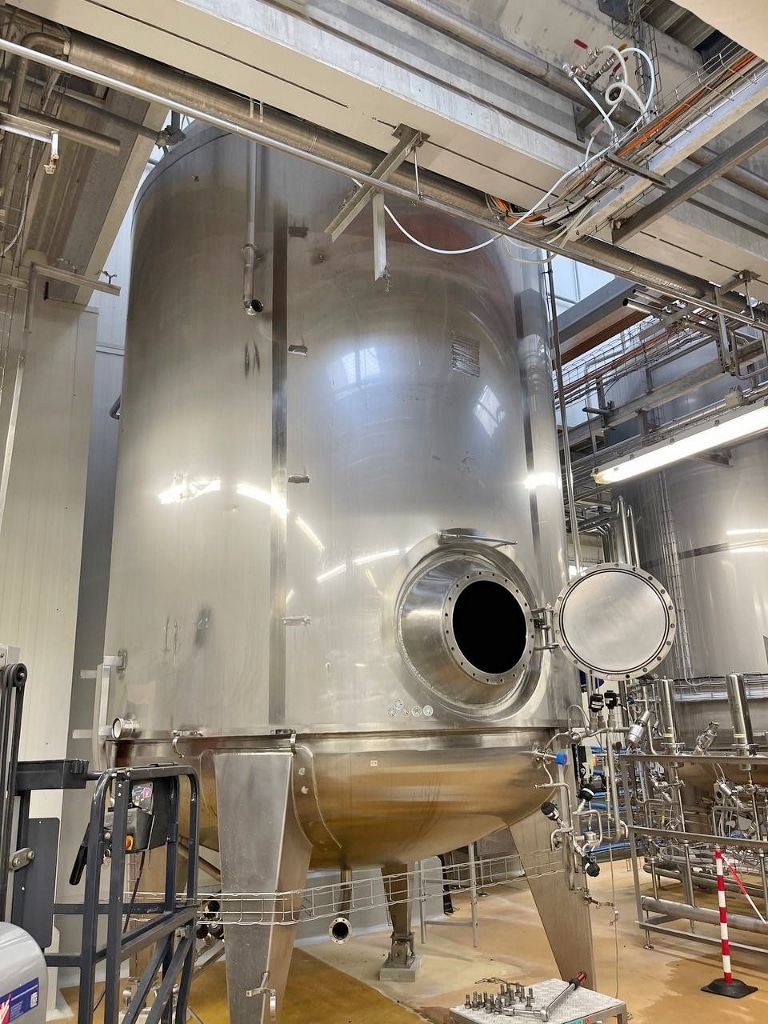

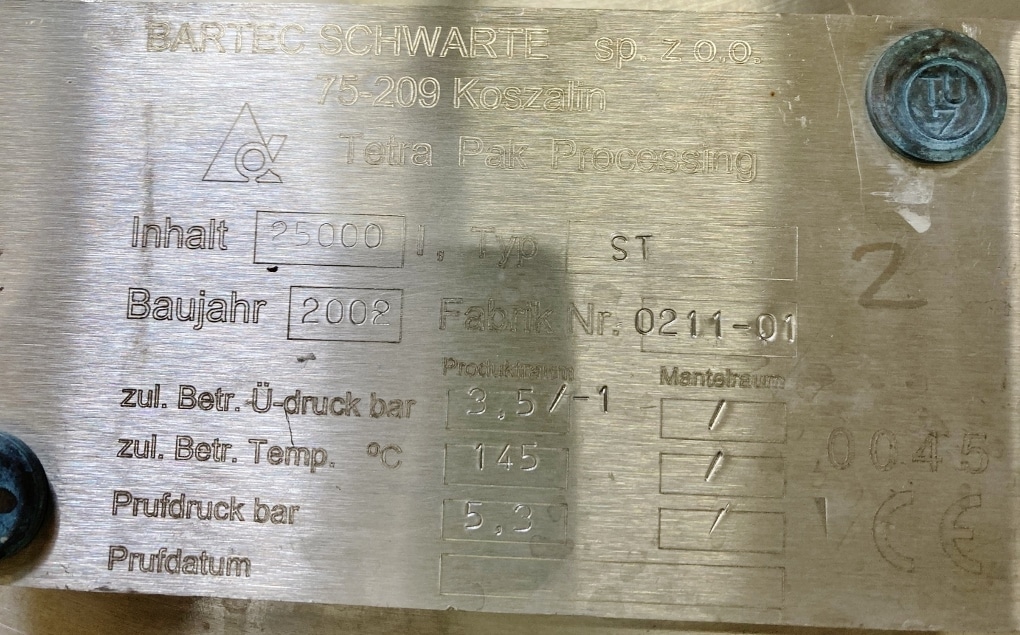

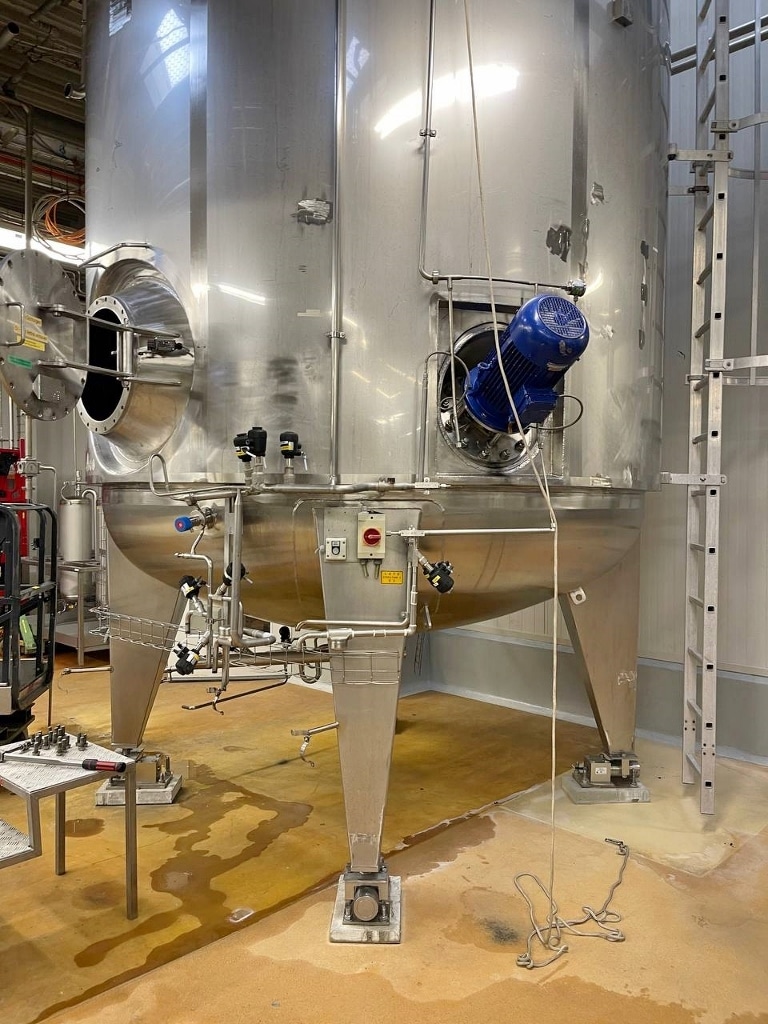

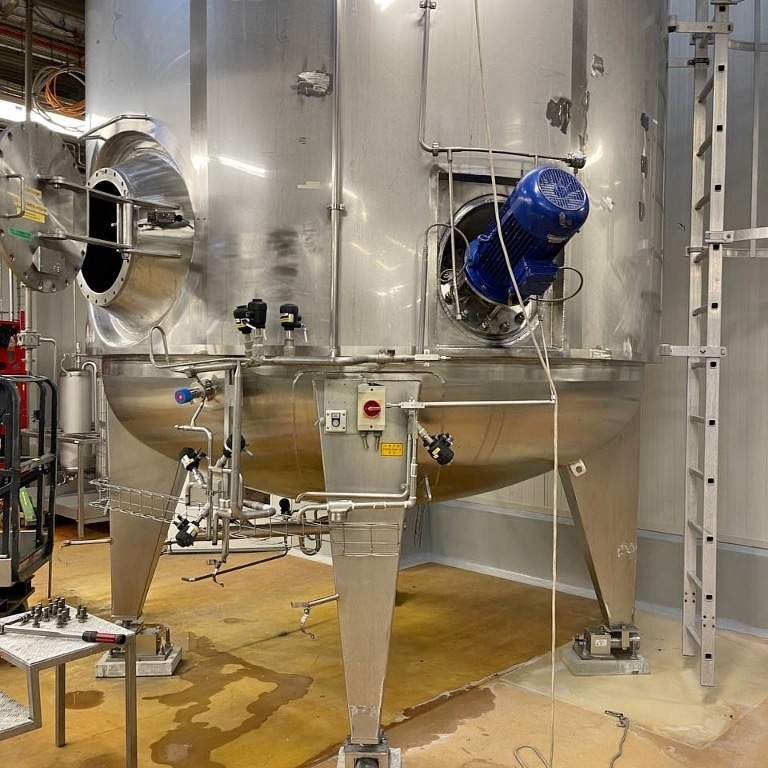

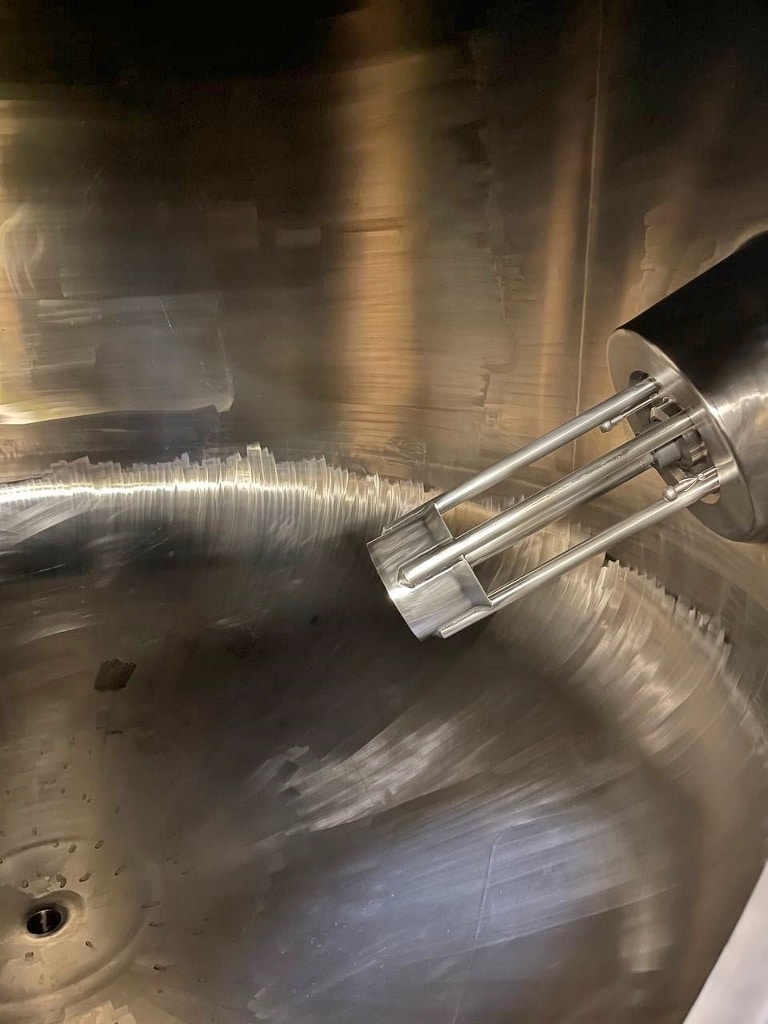

Additional information: baby food; Double jacket with trickle ring - only suitable for pressureless tempering; dents in the double jacket; the upper weld seam of the double jacket may have come loose in places; total height specified as per drawing (smaller deviations possible); 1 ladder is included in delivery (see photos) Volumetric volume (L): 27.335 L Pressure in tank: pressure and vacuum Max. pressure (Bar): 3,50 Bar Min. pressure (Bar): 1 Bar Material wet parts: SS AISI 304 (V2A) Model: vertical Configuration: single jacketed with heat-exchanger Heat exchanger: yes Insulation: no Mobile tank: no Total discharge: yes Max Overpressure: 3,50 Bar Max onderdruk: 1 Bar Type HE on the cylinder: heating/cooling jacket Documents included: no Technical drawing included: no Registration plate on the tank: yes Flange for agitator: no Position of manway: cylinder Outlet of tank: 65 Agitator: yes Cylinder: 8 mm Bottom: 8 mm Internal diameter tank: 2.800 mm Cylinder height: 3.500 mm Total height of tank: 5.750 mm
