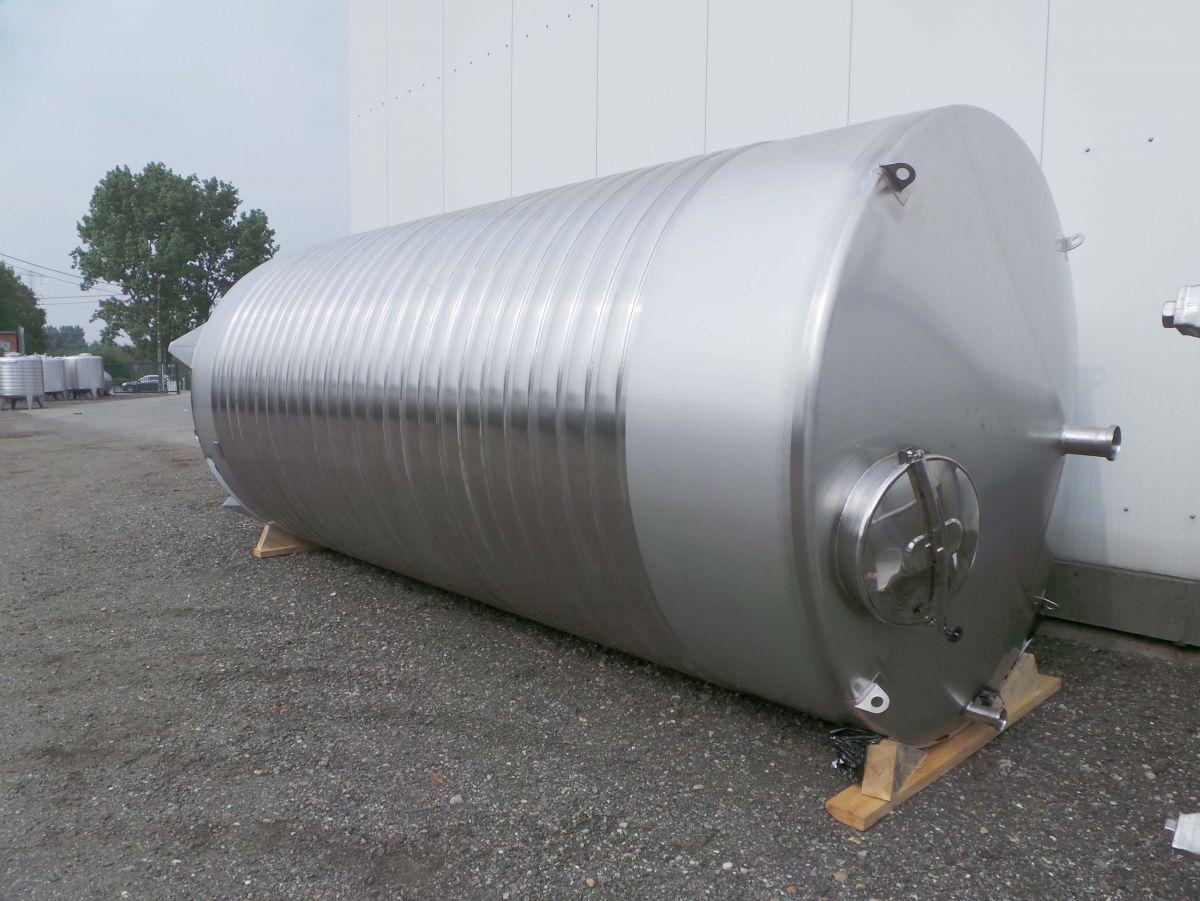

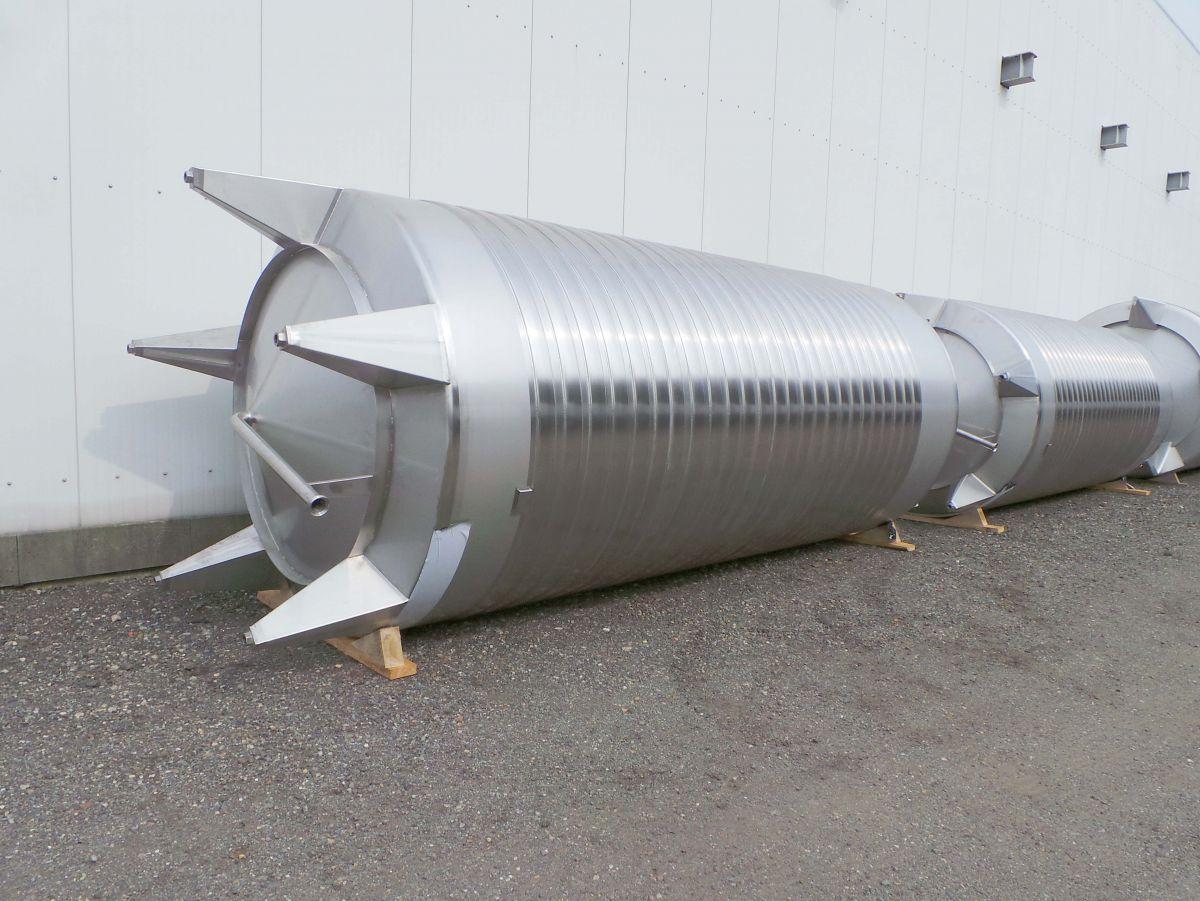

26000 liter tank i Rostfritt 304

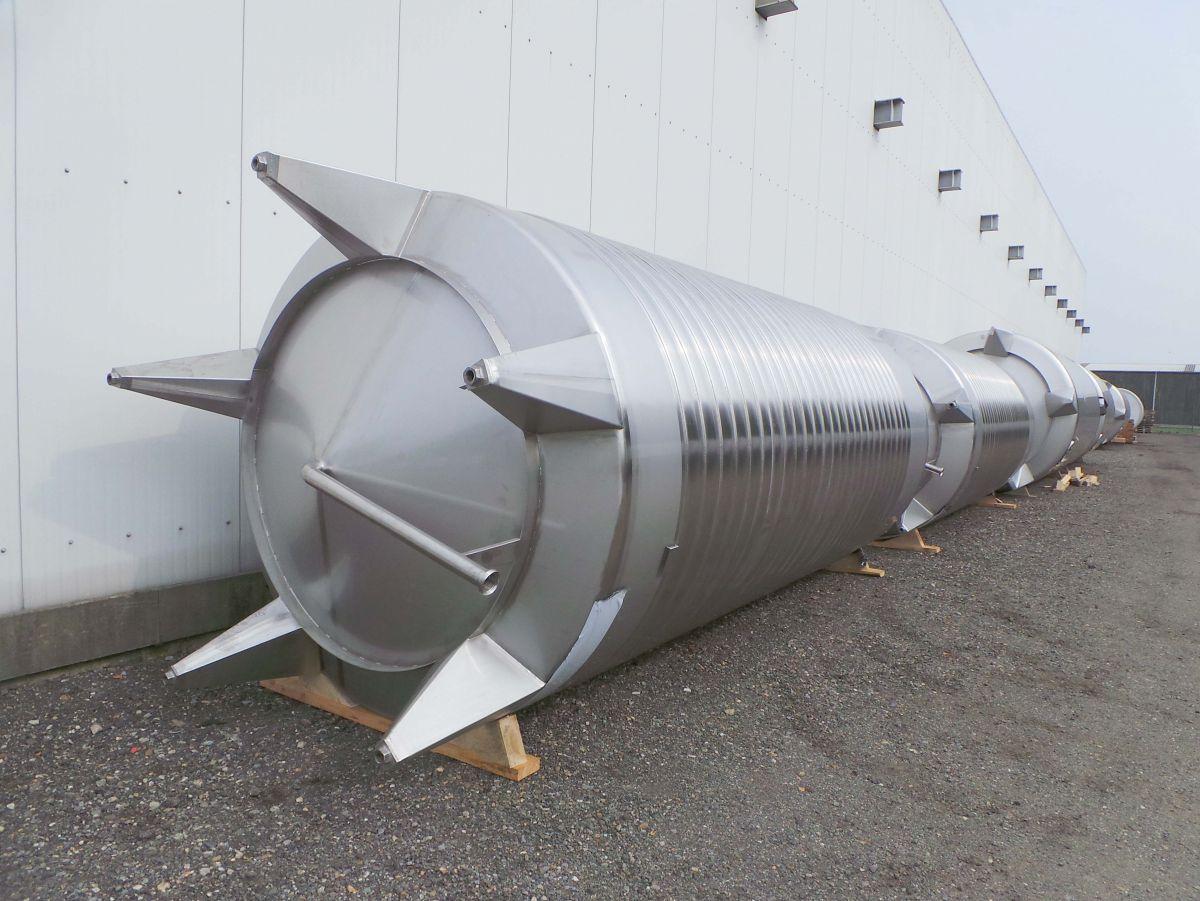

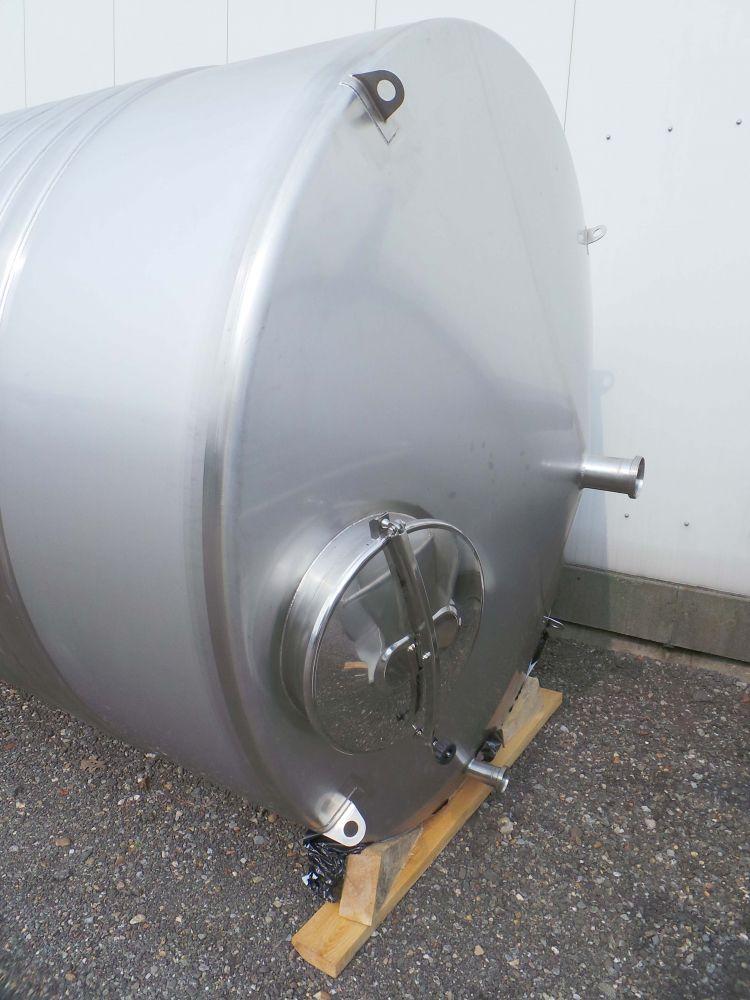

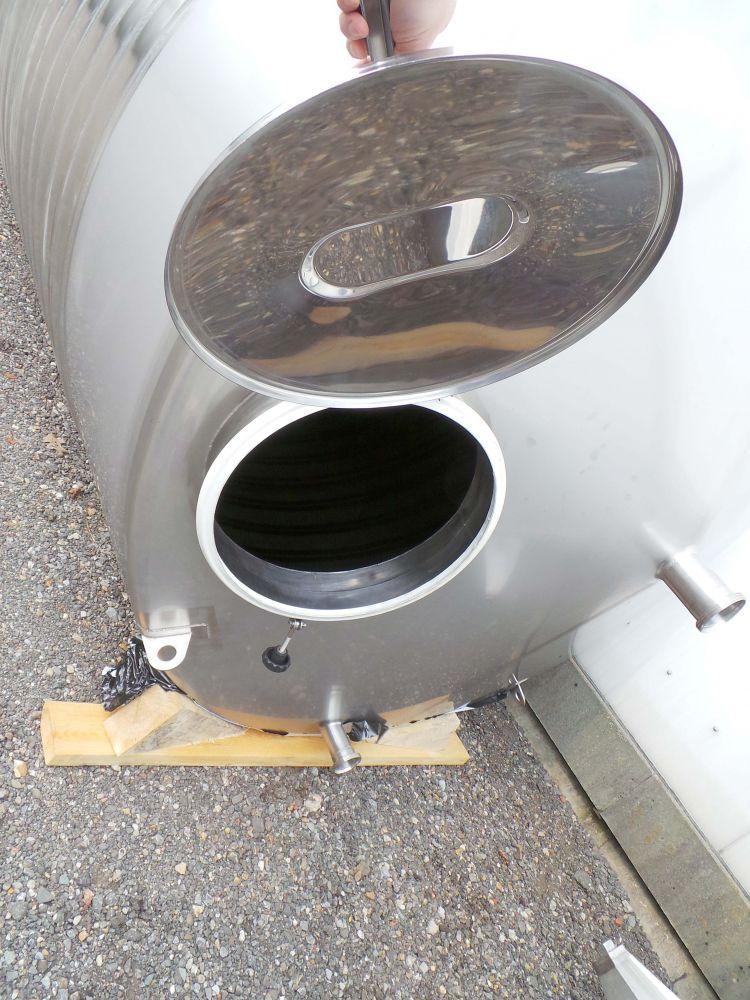

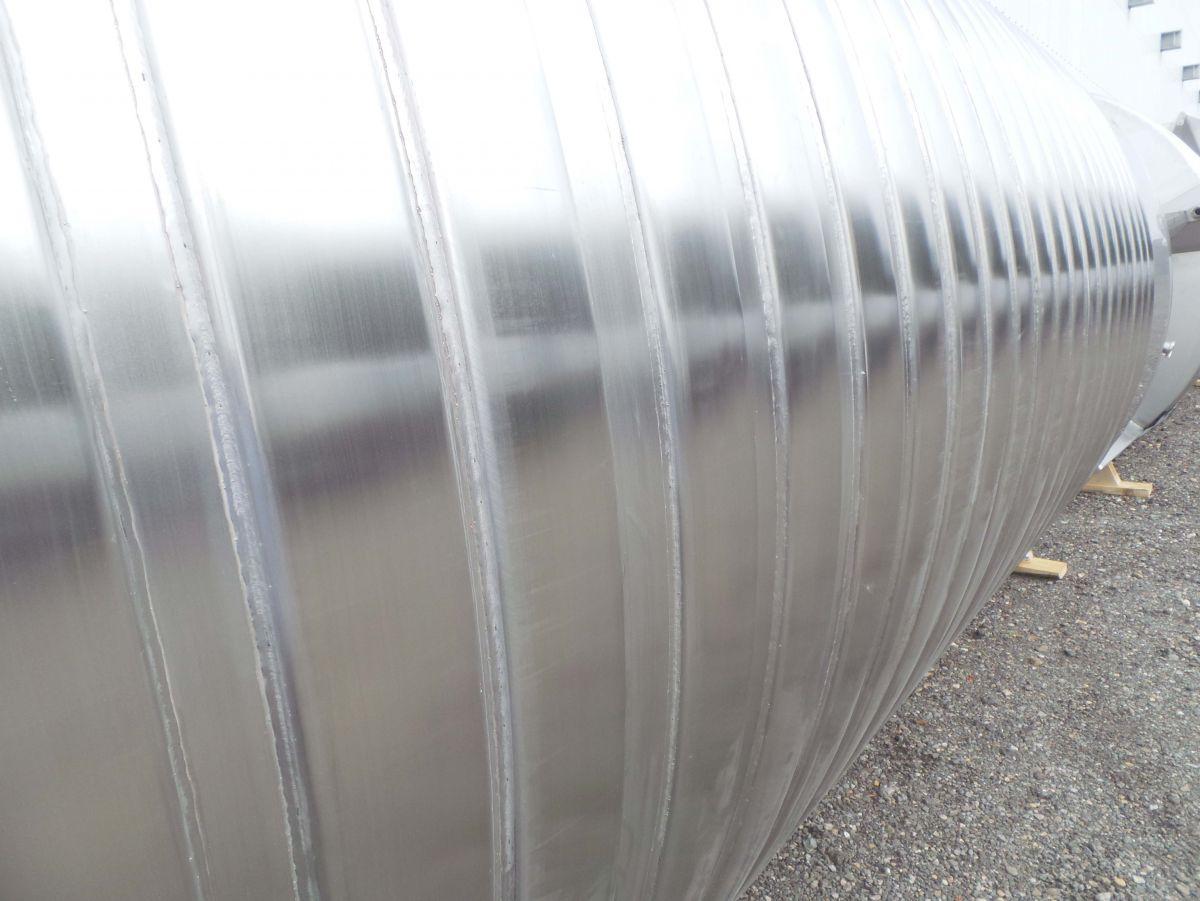

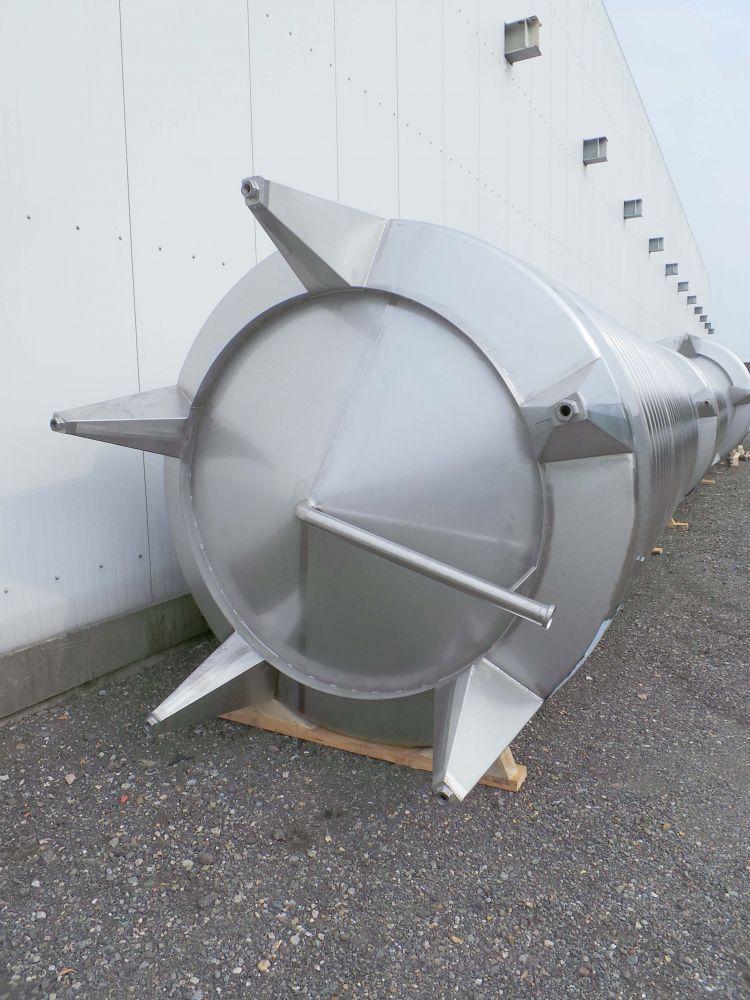

item available on order Article type: brand new storage tank - type K-HL Volumetric volume (L): 26.000 L Max. density P (kg/m³): 1.200 Pressure in tank: ATM - atmosferic Max. temperature (°C): 100 °C Material wet parts: SS AISI 304 (V2A) Model: vertical Configuration: single jacketed with heat-exchanger Heat exchanger: yes Insulation: no Mobile tank: no Top type: conical 15 ° Shape of tank: cylindrical Bottom type: conical 20 ° Total discharge: yes Fixation points: 5 adjustable feet Legs: Set of baseplates and adjusting pieces included Type of HE on the cylinder: half pipe welded onto the outside of the innertank Position HE: the complet cilinder Number of windings: 25 Height HE: 4.150 mm Number of sections: 1 Water pressure HE: 2 Bar Contact surface cylinder: 21,50 m² Type HE: half pipe welded onto the outside of the innertank Heat exchanger: RVS 304 Manway(s): RVS 304 Gasket manway(s): EPDM Valve: RVS 316L Fixation point(s): RVS 304 Suitable for food industry: yes Documents included: yes, optional Technical drawing included: yes Registration plate on the tank: yes Flange for agitator: no Number of manways: 1 Position of manway: headside Height manhole 1 (mm): 500 mm CIP spray ball: no Tank outlet: inside Ø 65 mm Outlet type: DIN11851 Total outlet valve: no, optional Adjustable legs: yes Agitator: no Top: 2,50 mm Cylinder: 2 mm Bottom: 3 mm Internal diameter tank: 2.450 mm Distance from outlet to ground: 250 mm Outer diameter tank: 2.500 mm Cylinder height: 5.250 mm Feet height: 815 mm Total height of tank: 6.575 mm Empty weight tank: 1.370
