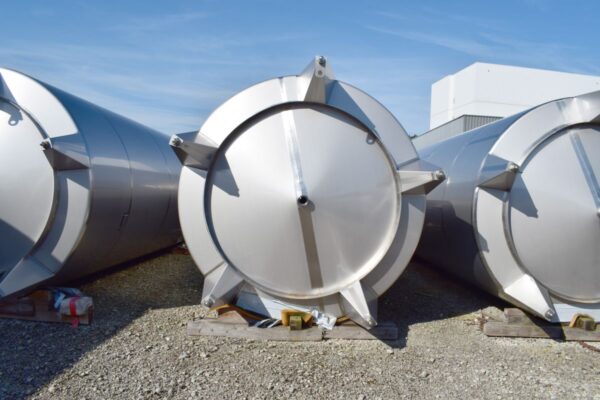

26000 liter i Syrafast 316
158,000.00 SEK/st exkl moms
Mer information
Volym i liter | 26000 |
---|---|
Nytillverkad/Begagnad | Nytillverkad |
Livsmedelsklassad | Ja |
Modell | Vertikal |
Material | Syrafast 316 |
Omrörare | Nej |
Uppvärmning/kylning | Nej |
Isolerad | Nej |

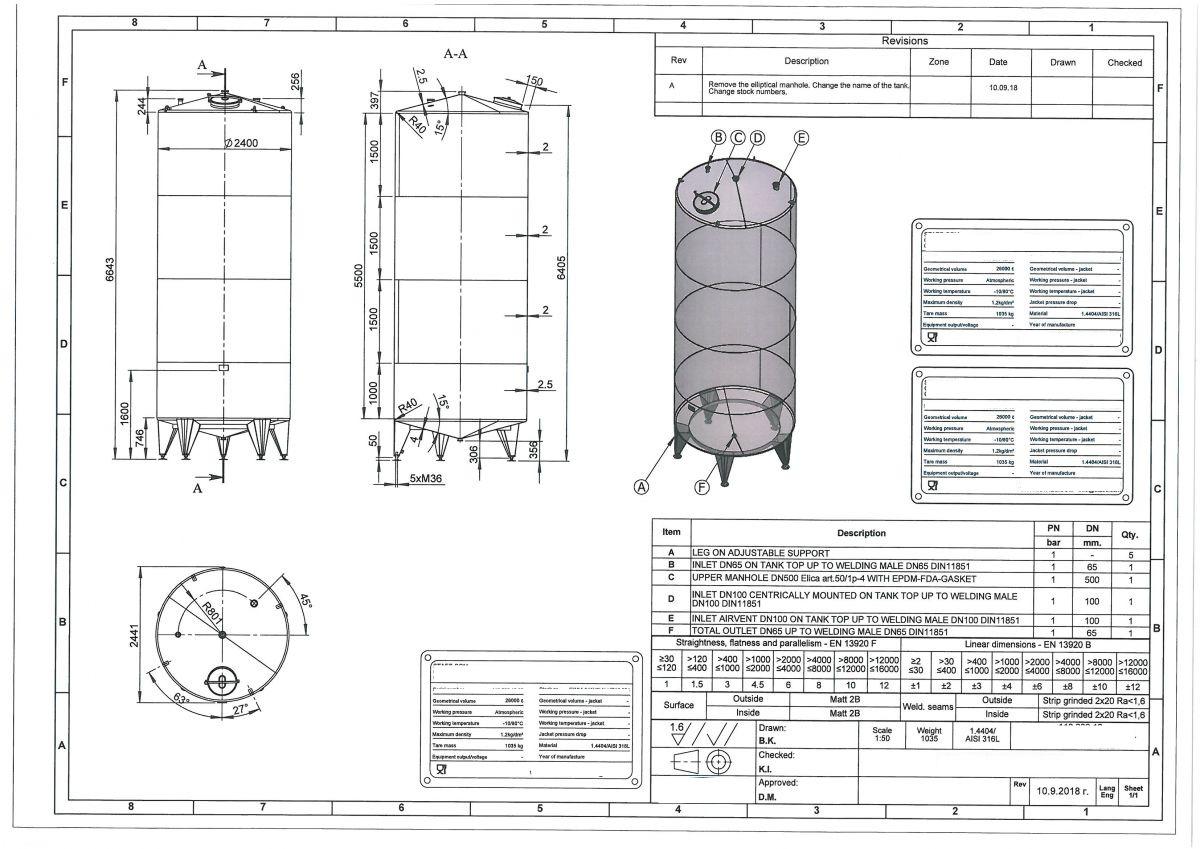

Ritning
Öppnaitem available on order
Article type: brand new storage tank – type K3-SL
Capacity: 26.000 L
Maximal density of the product: 1.200

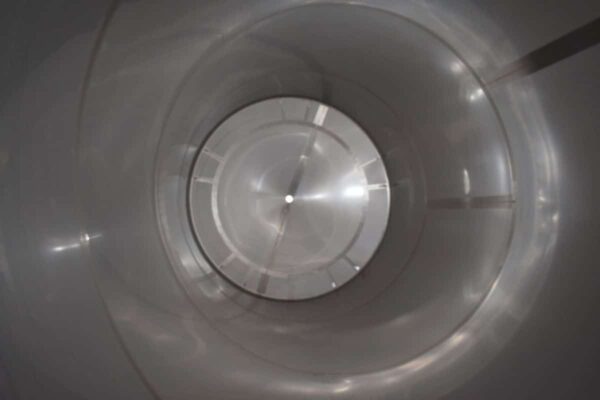

Ra inner weld: 1,60
Finish stainless steel: 2b
Working pressure in tank: ATM – atmosferic
Max. working temperature: 80 °C
Min. working temperature: -10 °C
Material wet parts: SS AISI 316L (V4A)
Model: vertical
Configuration: single-skin
Heat exchanger: no
Insulation: no
Agitator: yes, optional
Mobile tank: no

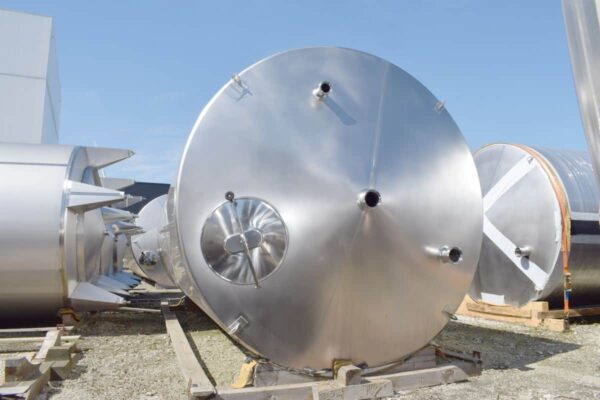

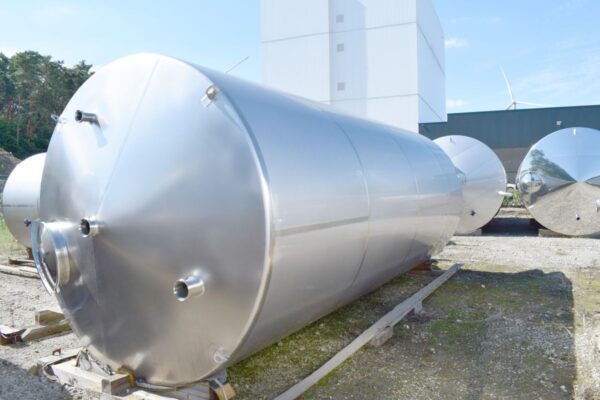

Top type: conical 15 °

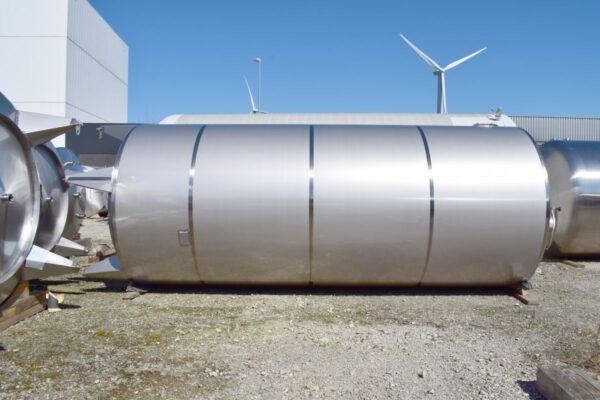

Shape of tank: cylindrical

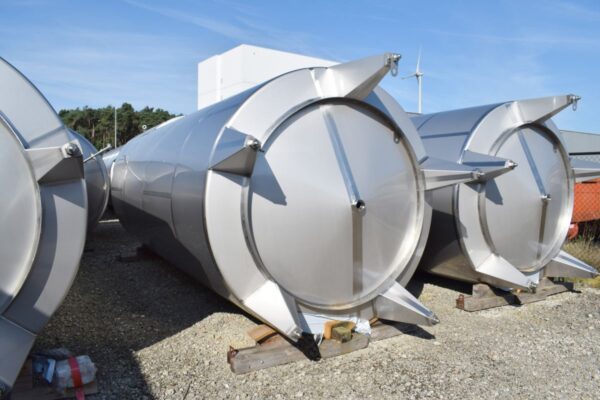

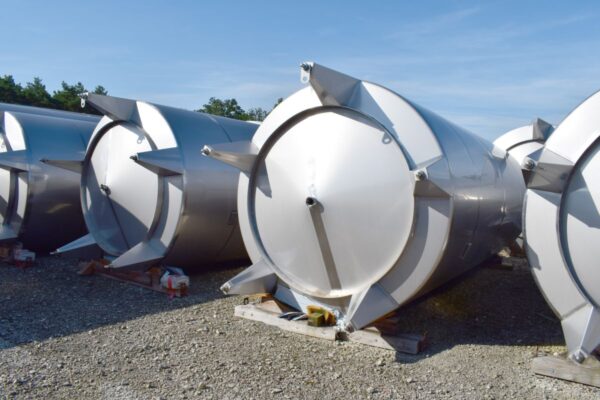

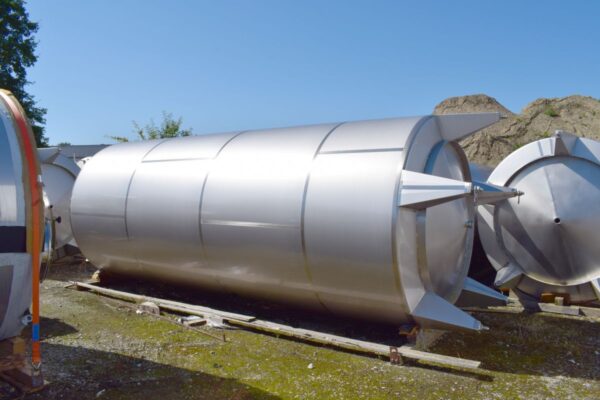

Bottom type: conical 15 °
Total discharge: yes
Fixation points: 5 adjustable feet
Legs: Set of baseplates and adjusting pieces included
Manway(s): RVS 316
Gasket manway(s): EPDM
Fixation point(s): RVS 304L
Suitable for food industry: yes
Documents included: yes, optional
Technical drawing included: yes
Registration plate on the tank: yes
with inspection of: TUV
Flange for agitator: no
Number of manways: 1
Position manway: at the top
Manway 1: 500 mm
Spray ball: yes, optional
Tank outlet: inside Ø 65 mm
Outlet type: DIN11851 male
Total outlet valve: yes, optional
Top: 2,50 mm
Cylinder: 2 mm
Bottom: 4 mm
Distance from outlet to ground: 306 mm
Outer diameter tank: 2.400 mm
Cylinder height: 5.500 mm
Feet height: 746 mm
Total height of tank: 6.650 mm
Empty weight tank: 1.100
