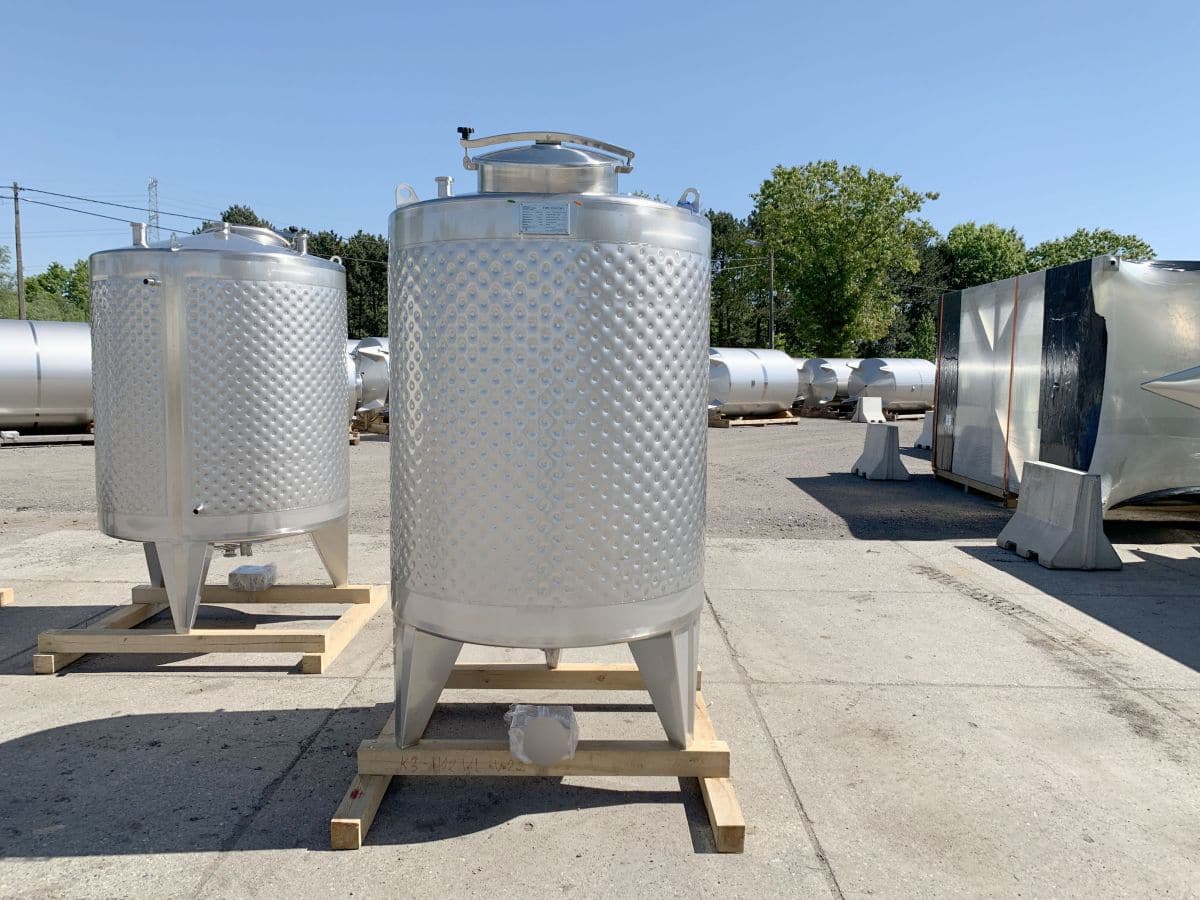

2000 liter tank i Syrafast 316

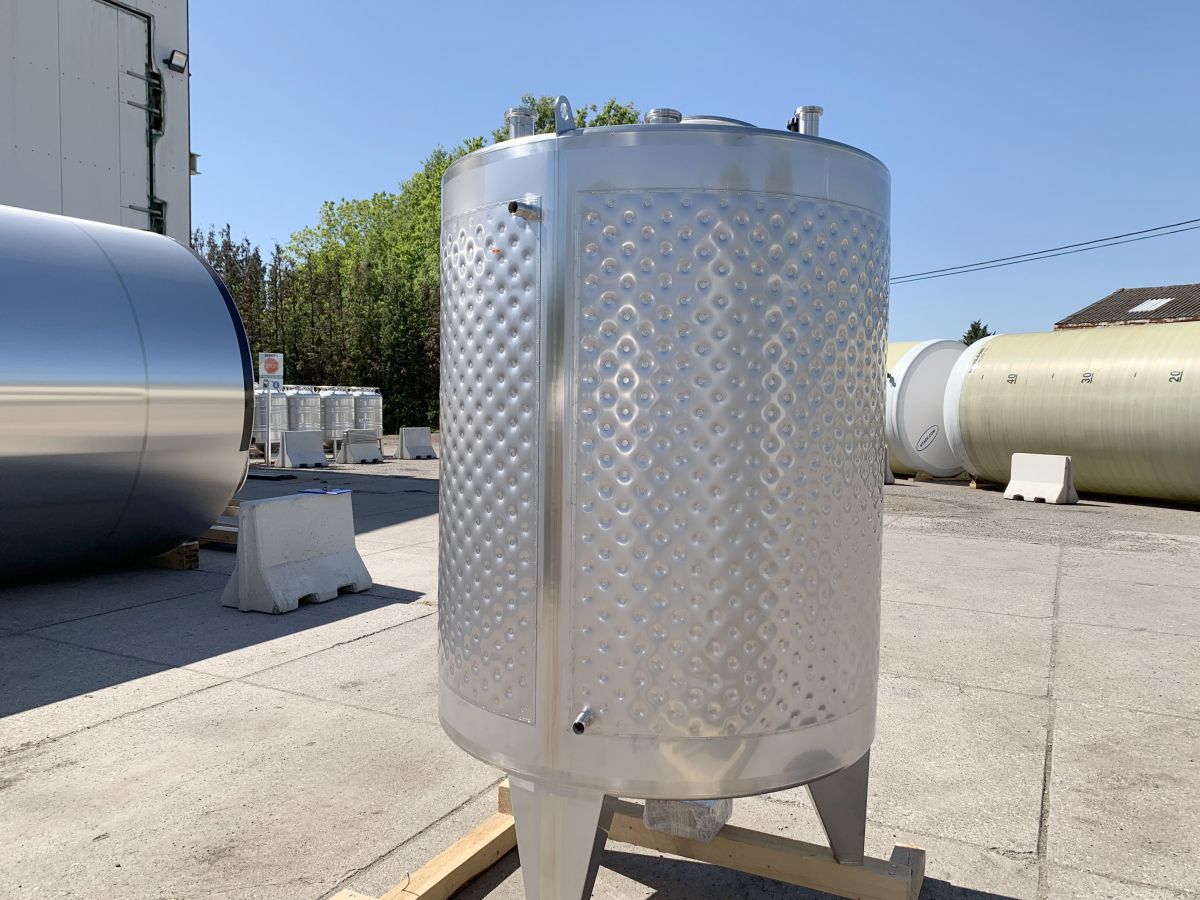

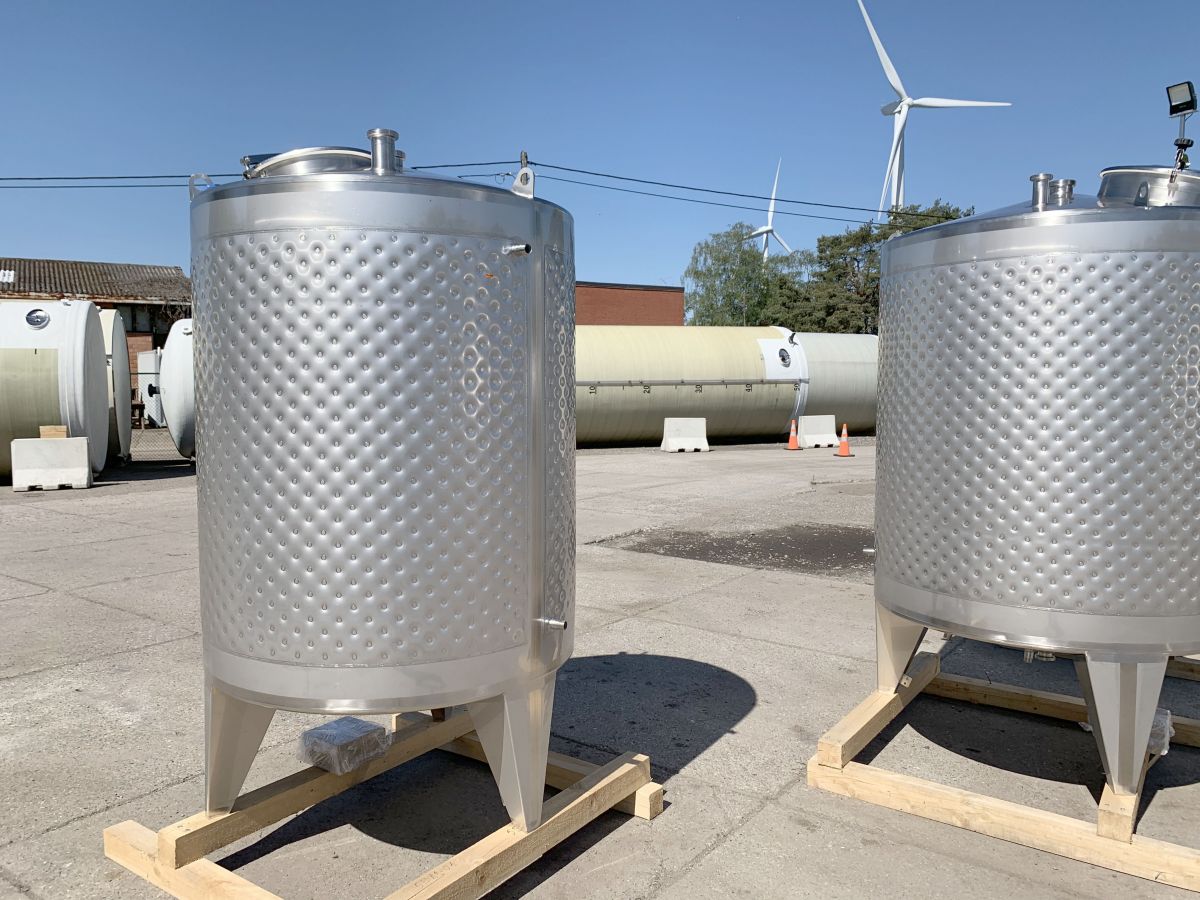

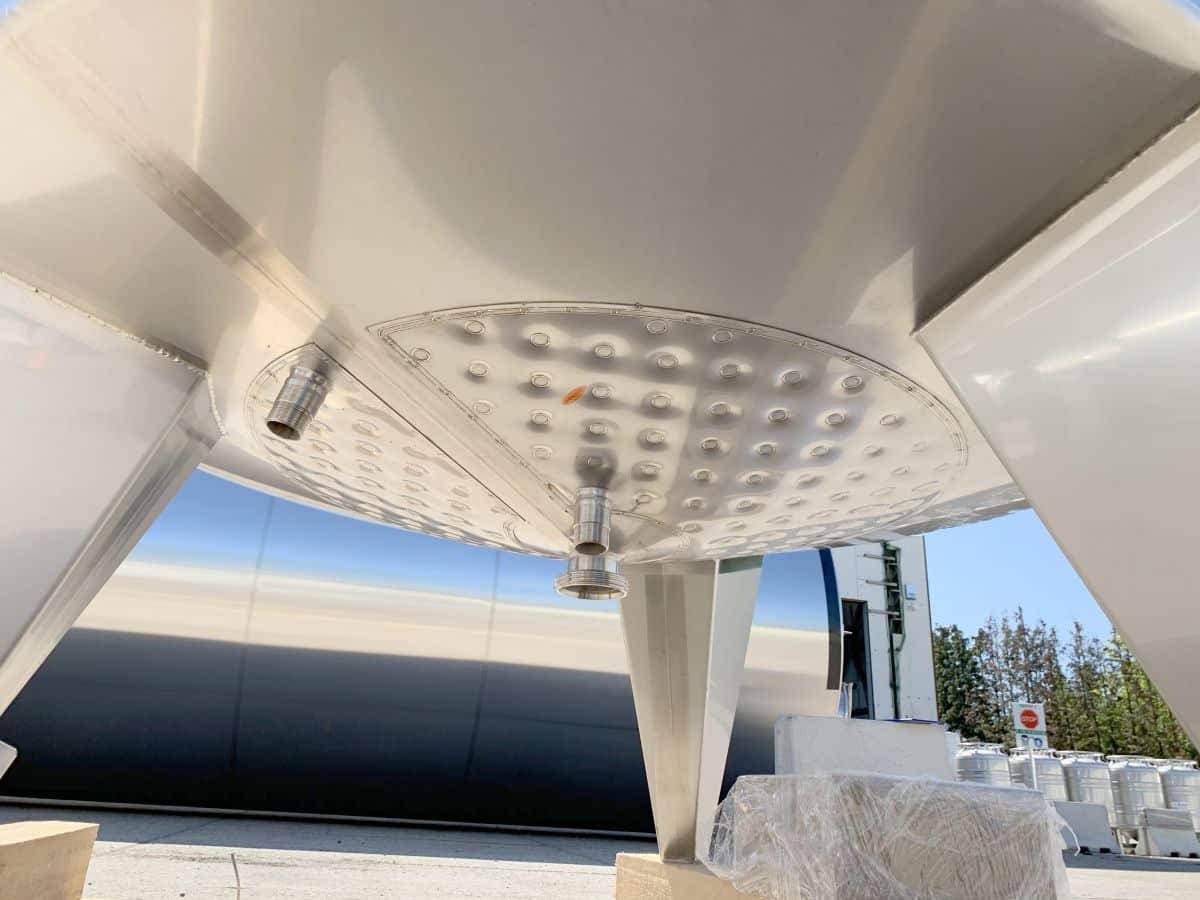

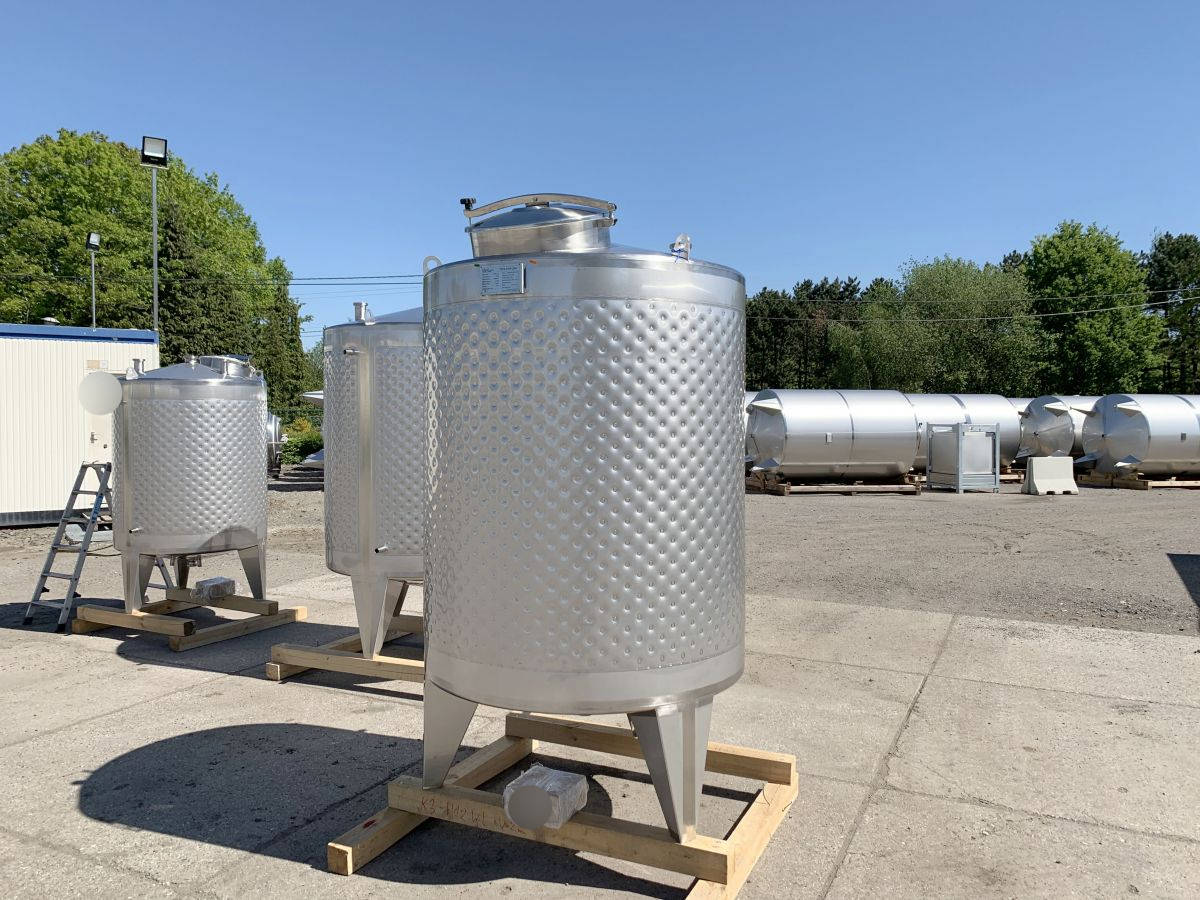

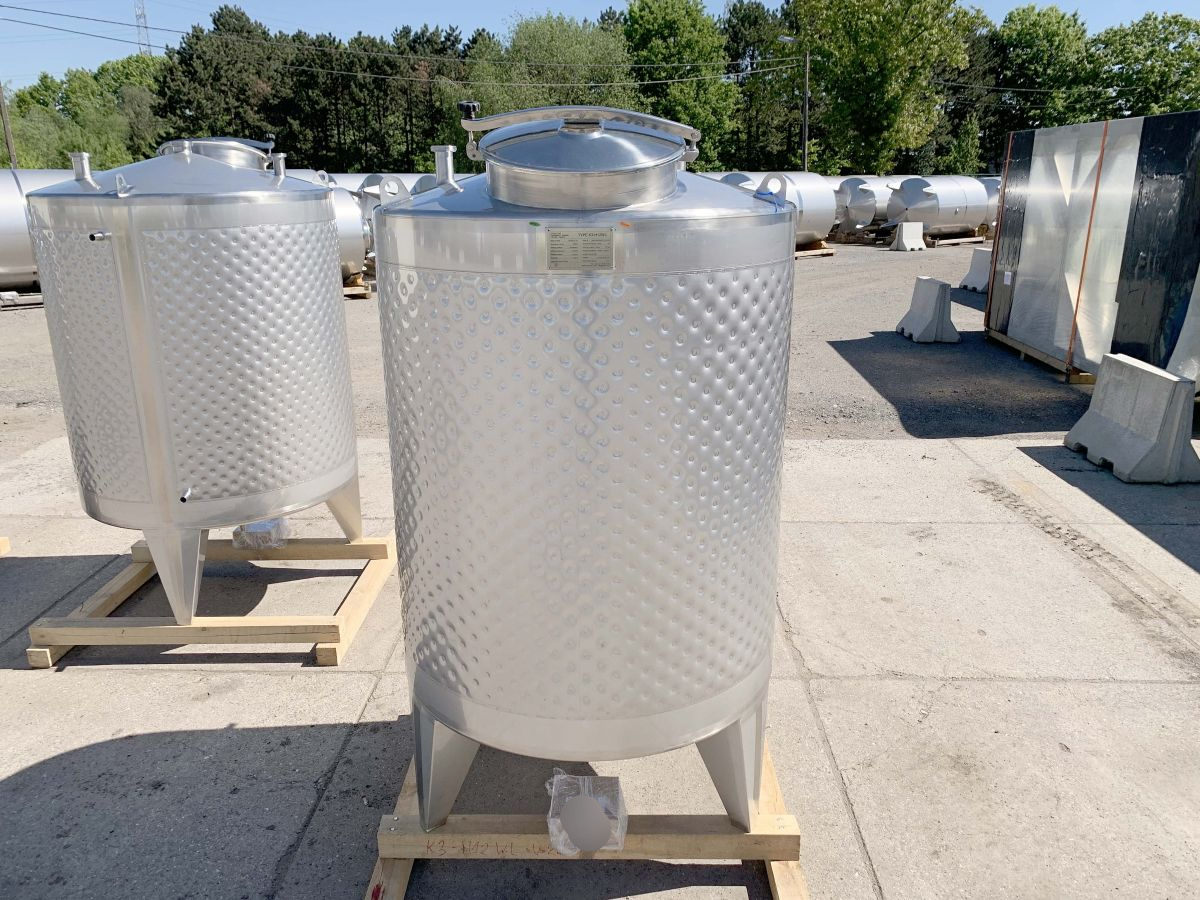

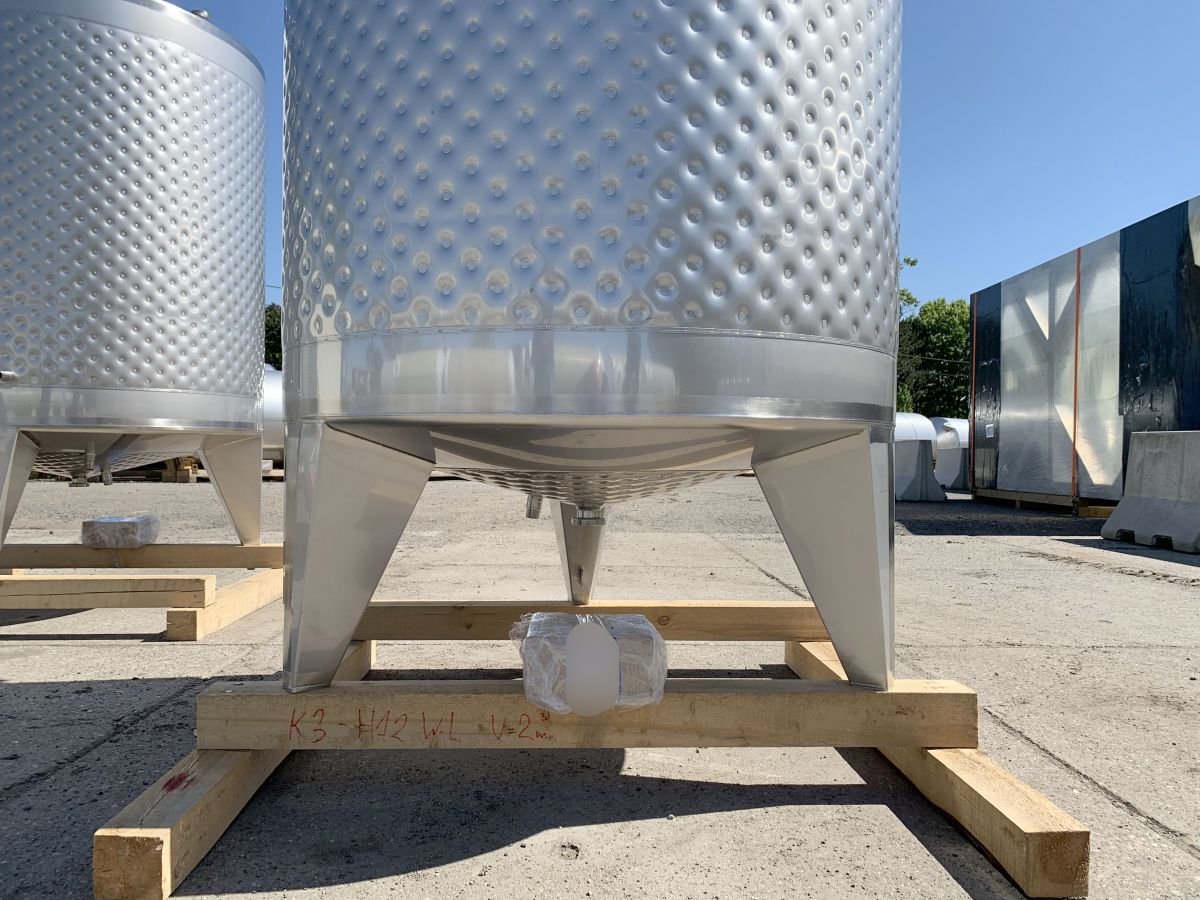

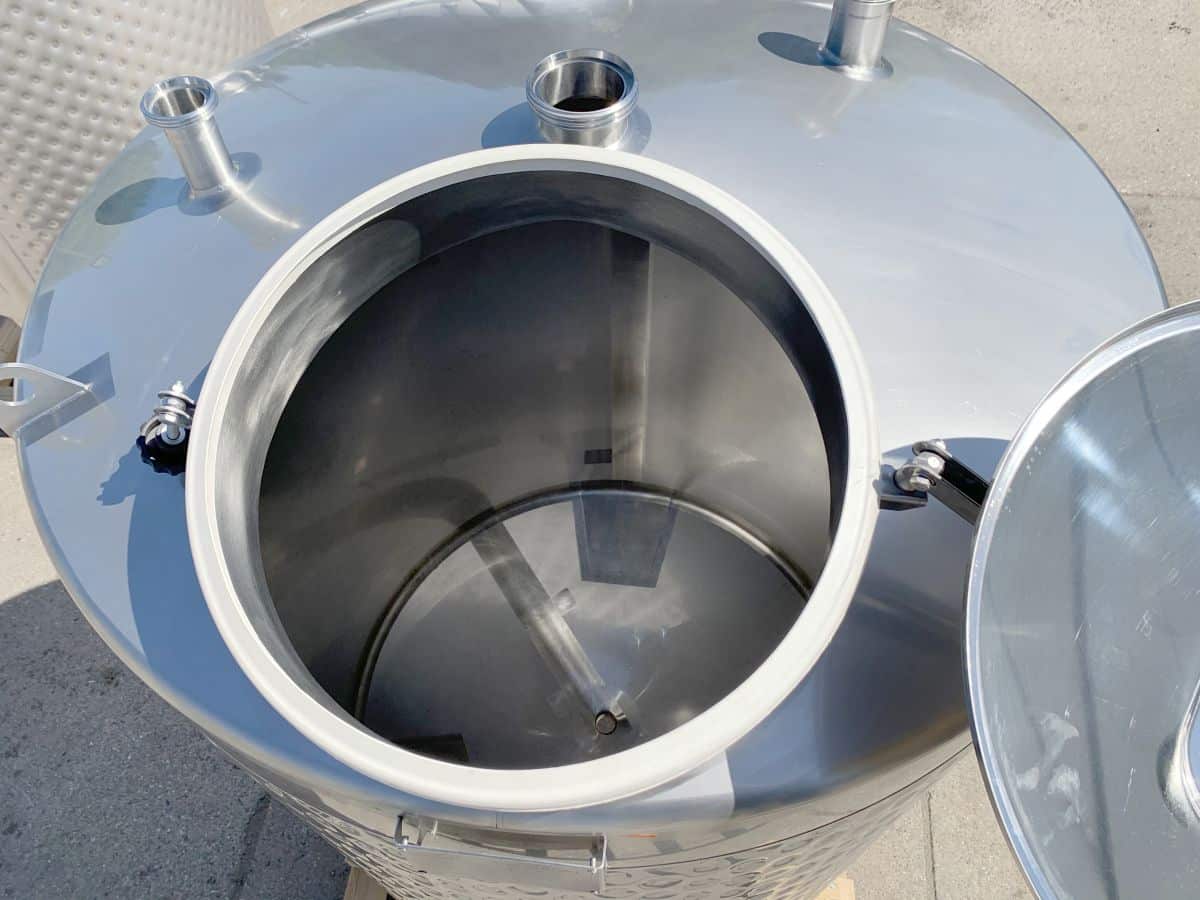

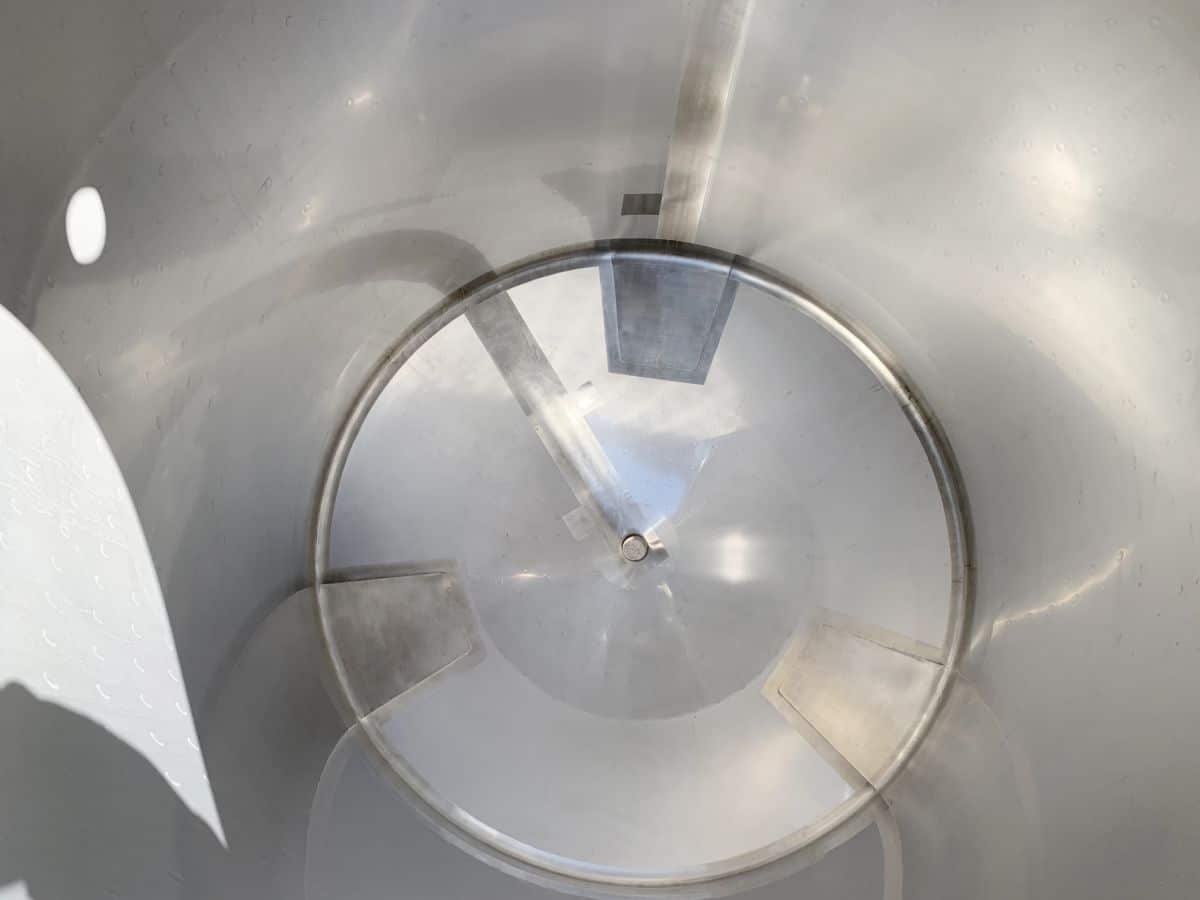

item available on order Article type: brand new storage tank - type K3-H12W.L Volumetric volume (L): 2.000 L Max. density P (kg/m³): 1.200 Ra inner weld: 0,80 Finish stainless steel: 2b Pressure in tank: ATM - atmosferic Max. temperature (°C): 100 °C Min. temperature (°C): -10 °C Material wet parts: SS AISI 316L (V4A) Model: vertical Configuration: single jacketed with heat-exchanger Heat exchanger: yes Insulation: no Mobile tank: no Top type: conical 15 ° Shape of tank: cylindrical Bottom type: conical 15 ° Total discharge: yes Fixation points: 3 adjustable feet Type of HE on the cylinder: dimple-jacket Position HE: the complet cilinder Water pressure HE: 3 Bar Steam pressure HE: 0,49 Bar Contact surface cylinder: 4,80 m² Connection HE: 1" Working temperature HE cylinder: 110 °C Type of HE on the bottom: dimple-jacket Water pressure HE: 3 Bar Steam pressure HE: 0,49 Bar Contact surface bottom: 0,30 Connection HE: 1" Heat exchanger: RVS 304 Manway(s): RVS 316 Gasket manway(s): EPDM Fixation point(s): RVS 304 Suitable for food industry: yes Documents included: yes, optional Technical drawing included: yes Registration plate on the tank: yes Inspection of: tuv Flange for agitator: no Number of manways: 1 Position of manway: at the top Height manhole 1 (mm): 500 mm CIP spray ball: no, optional Tank outlet: inside Ø 50 mm Outlet type: DIN11851 male Total outlet valve: no, optional Agitator: no, optional Top: 2 mm Cylinder: 2,50 mm Bottom: 2,50 mm Distance from outlet to ground: 342 mm Outer diameter tank: 1.273 mm Cylinder height: 1.500 mm Feet height: 560 mm Total height of tank: 2.350 mm Empty weight tank: 228
