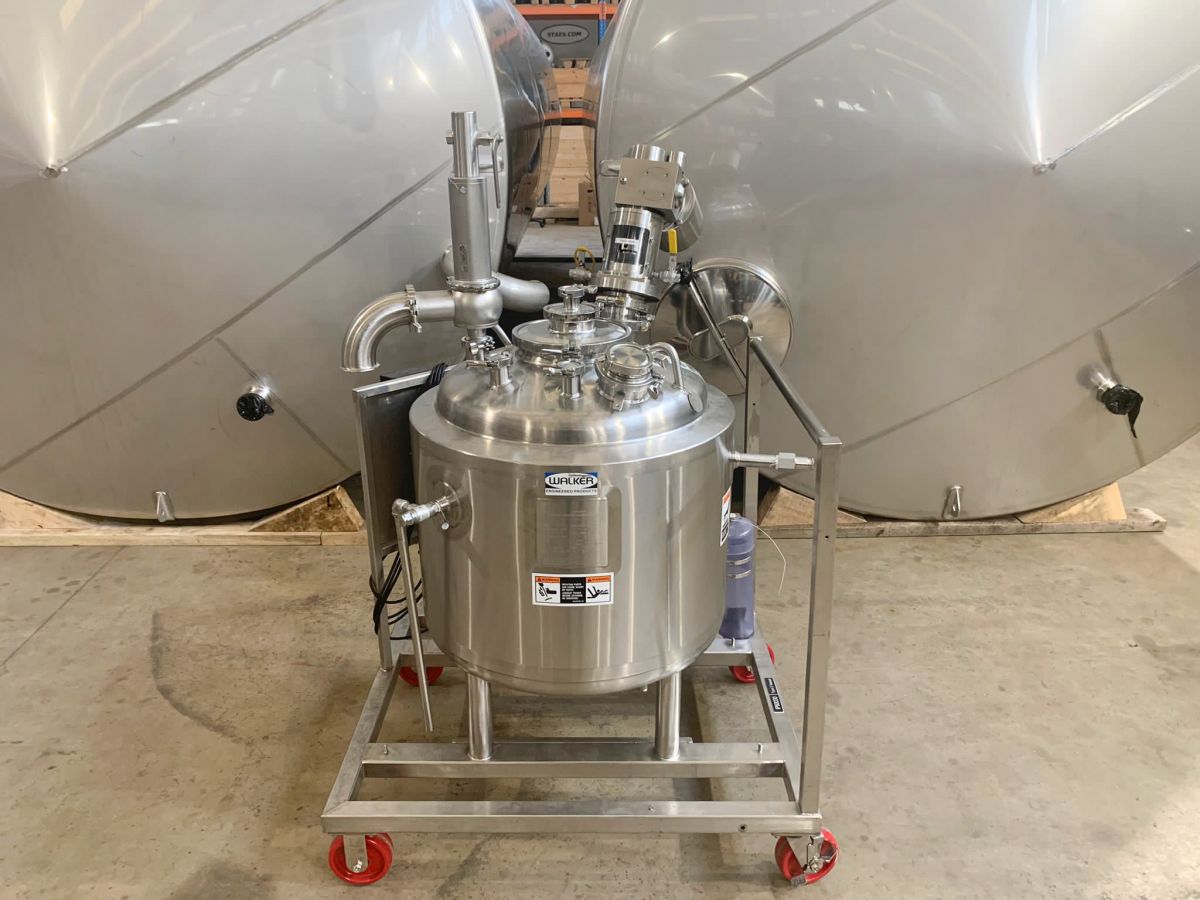

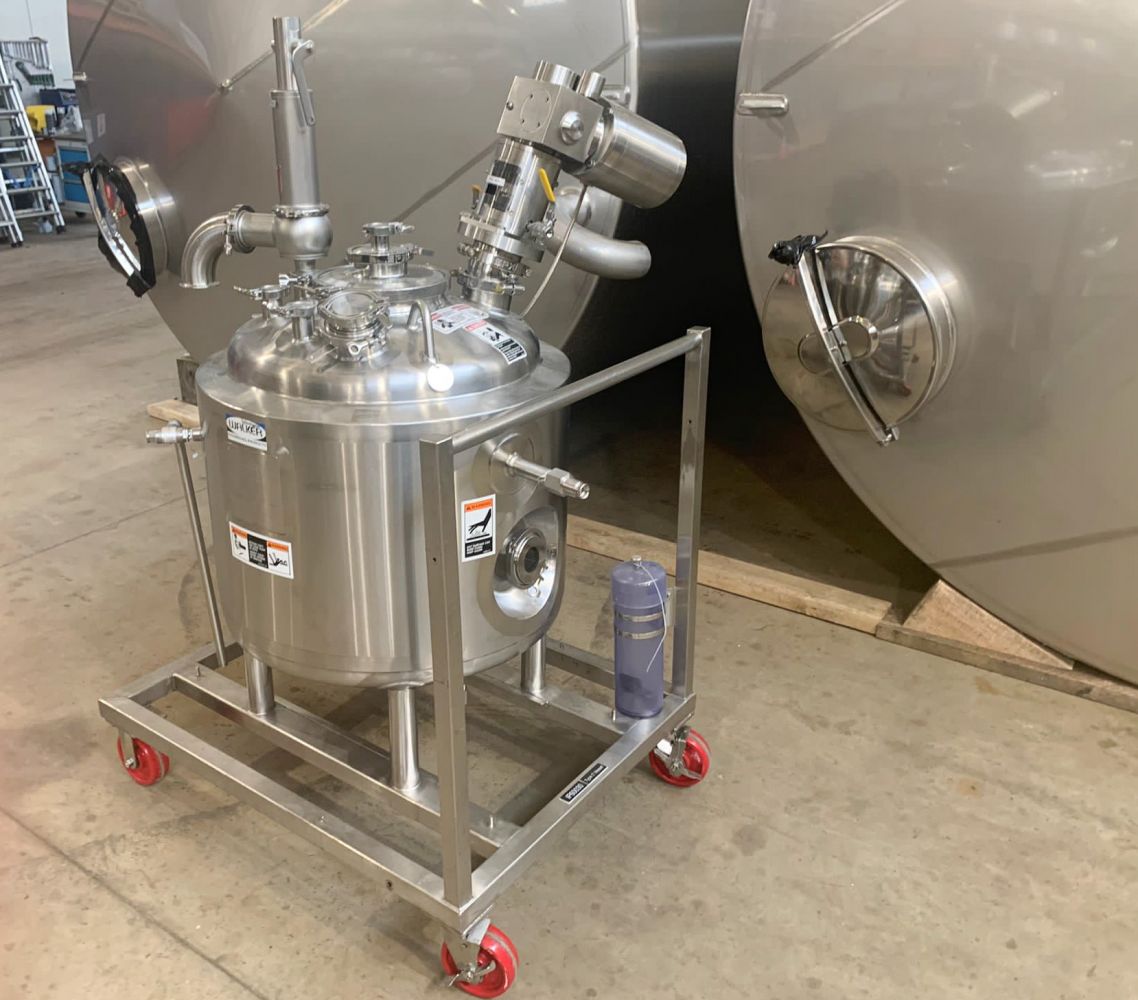

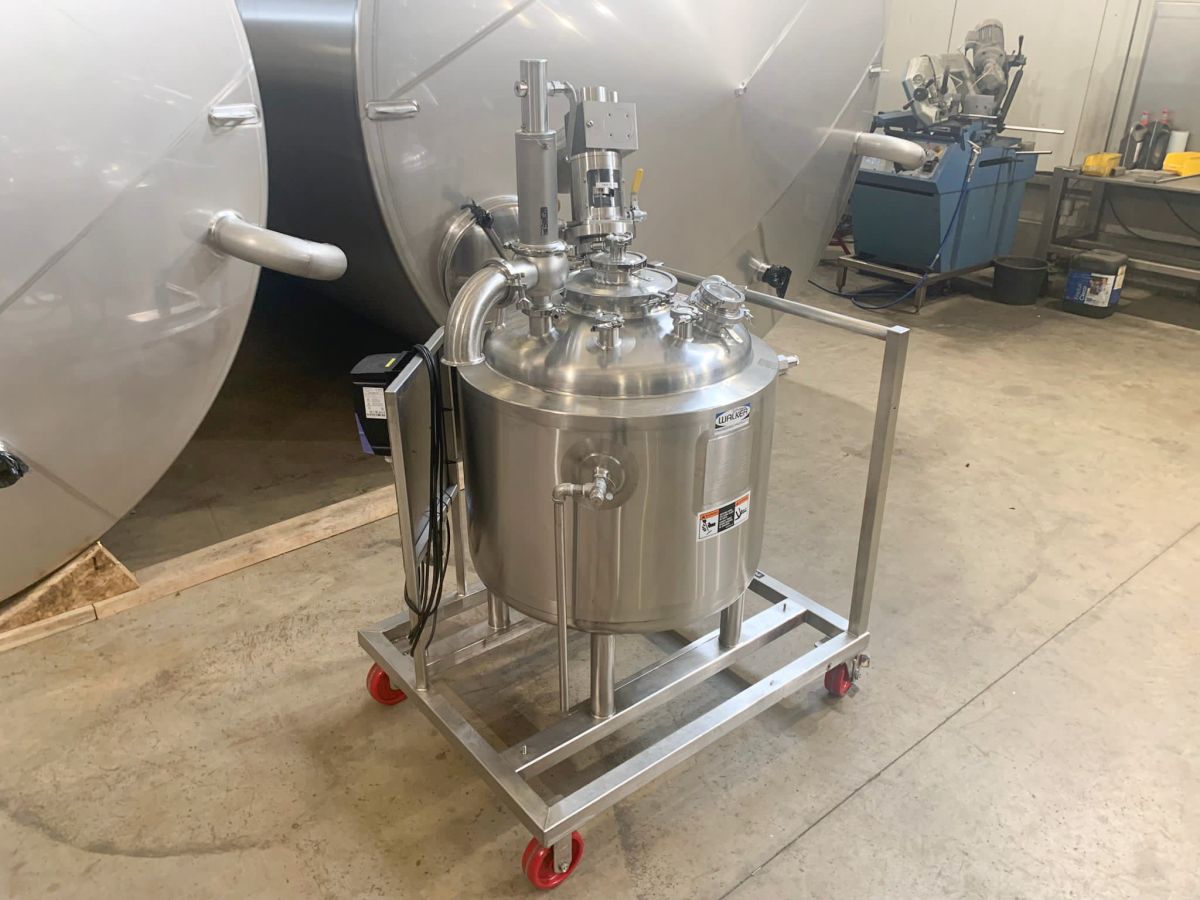

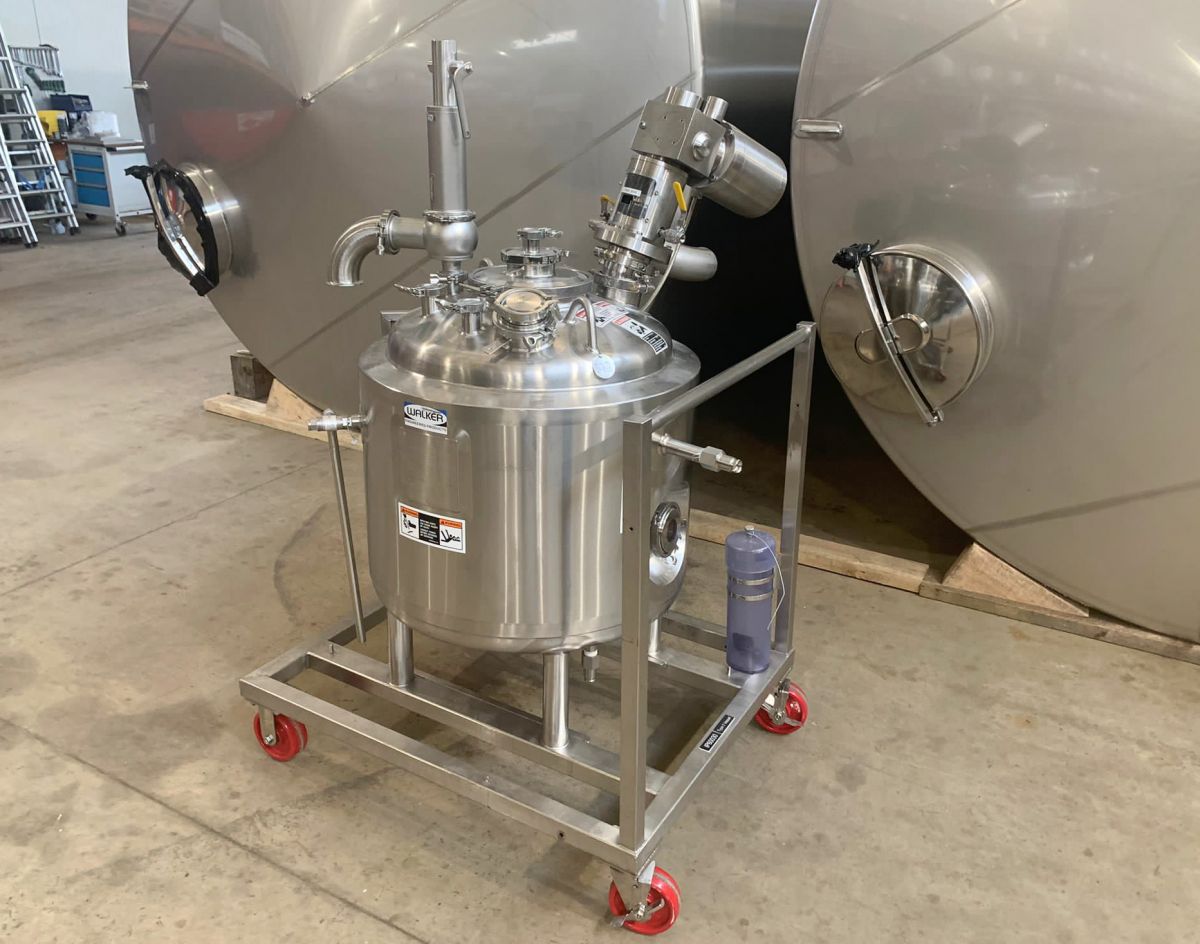

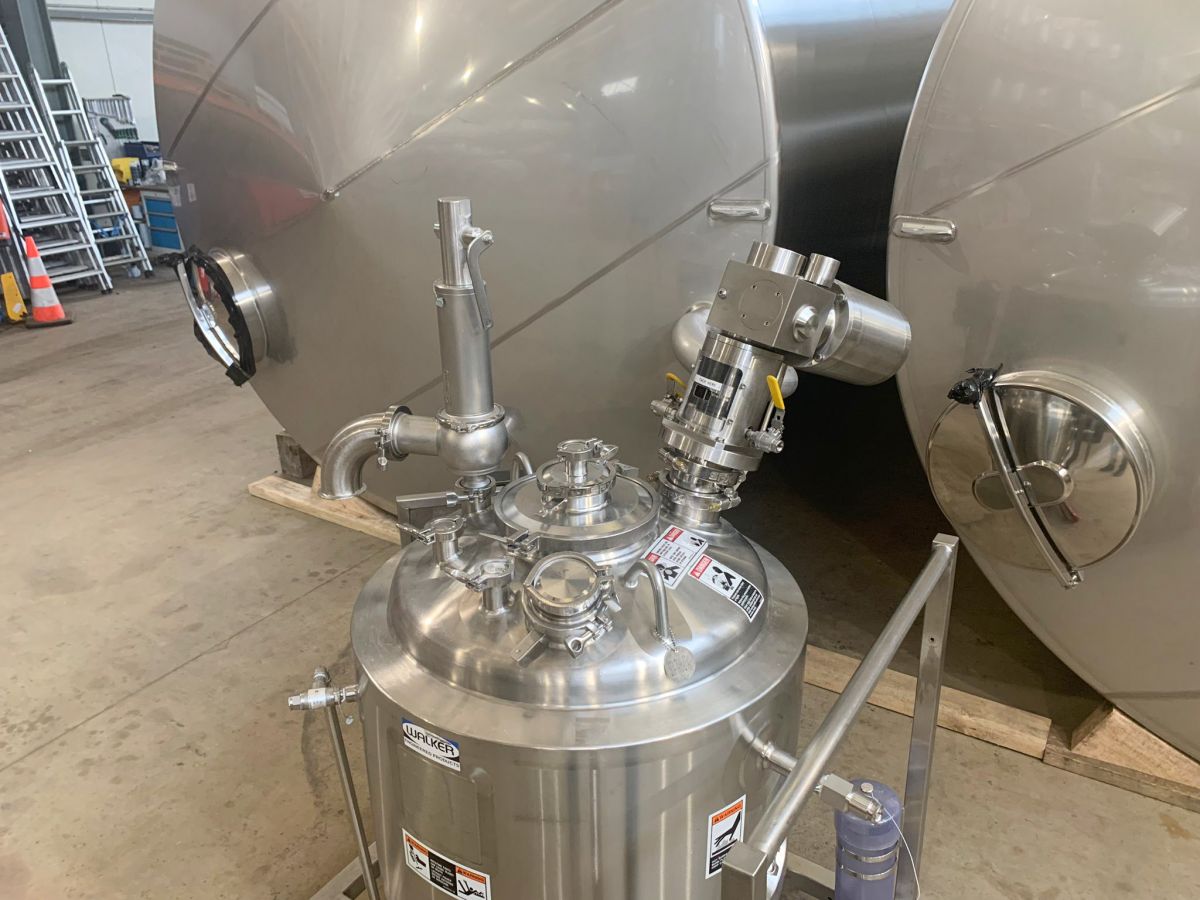

180 liter tank i Syrafast 316

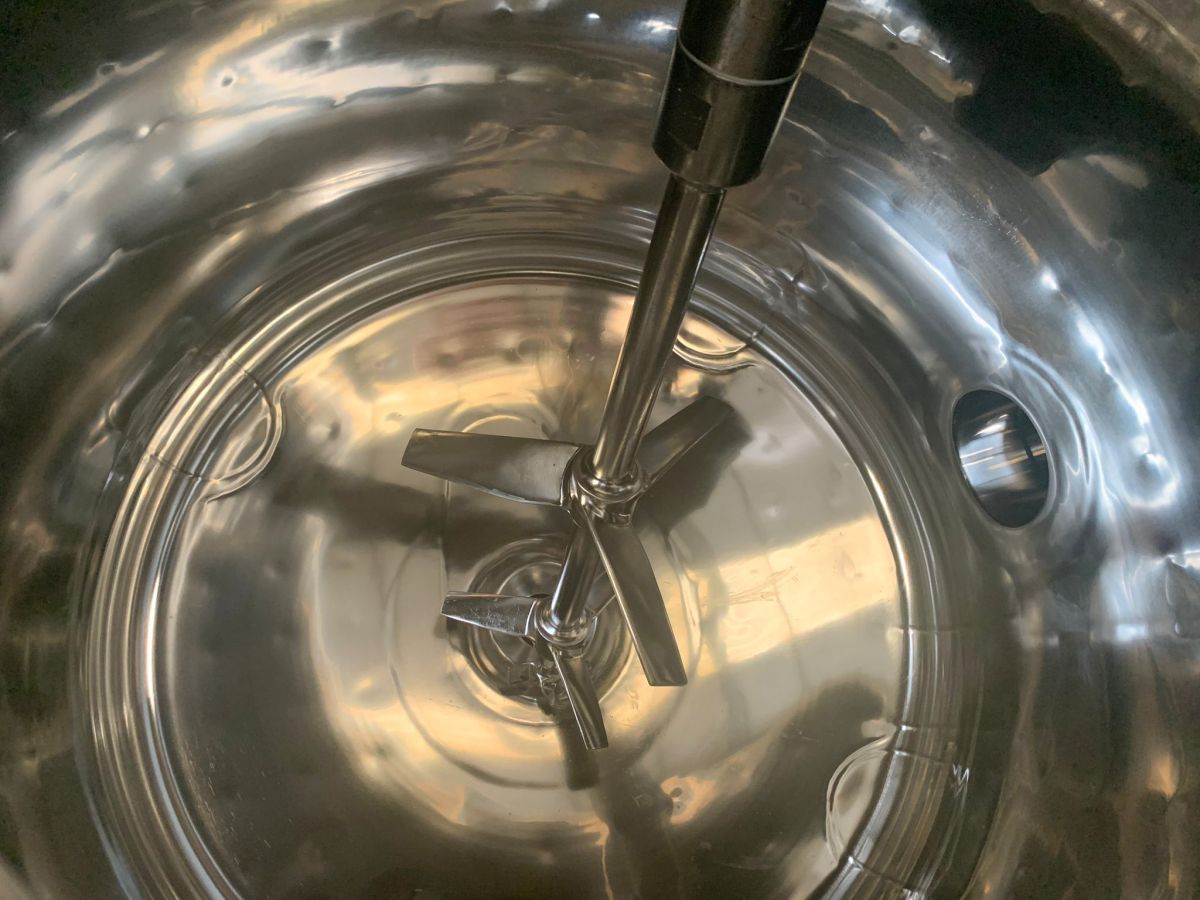

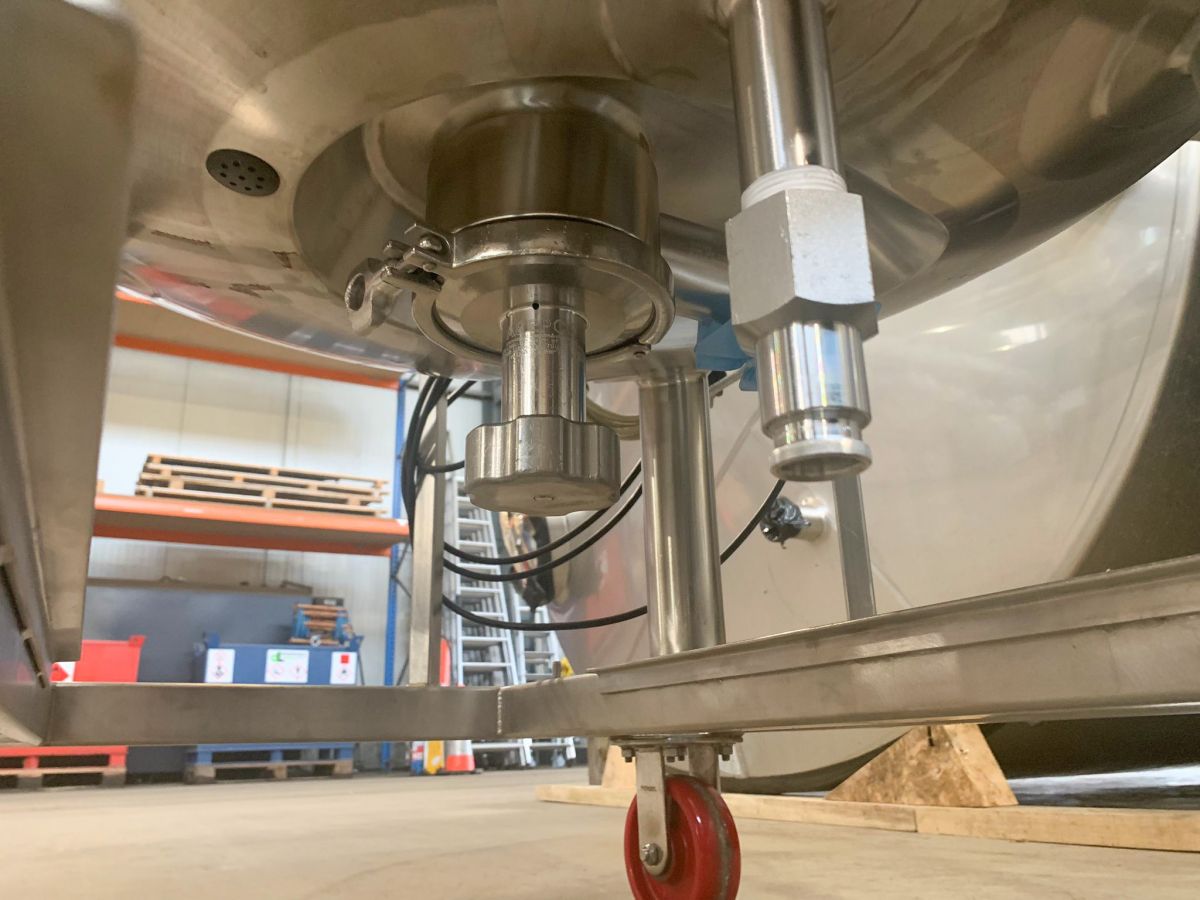

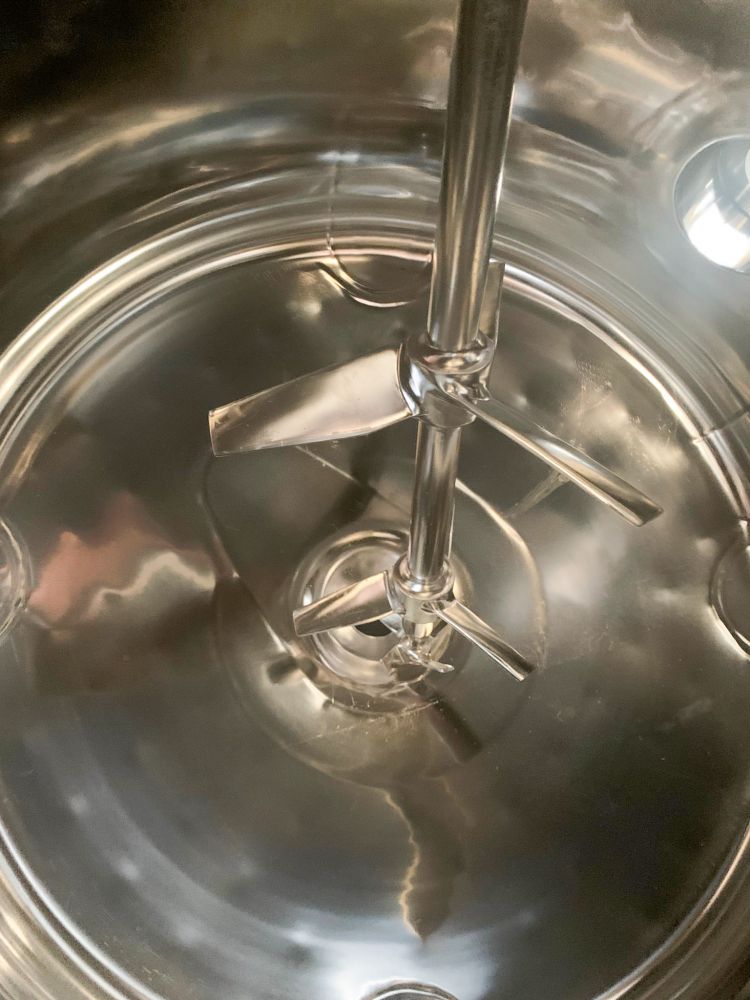

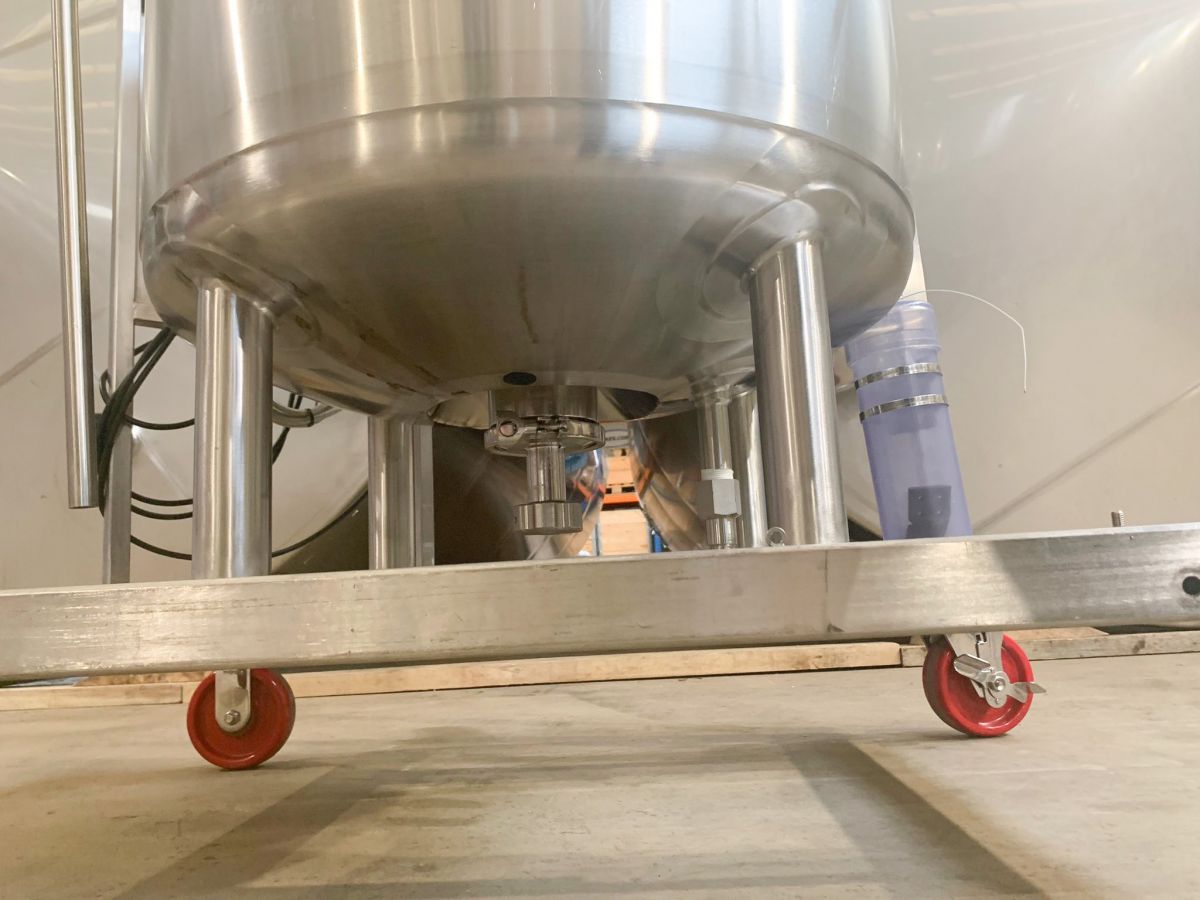

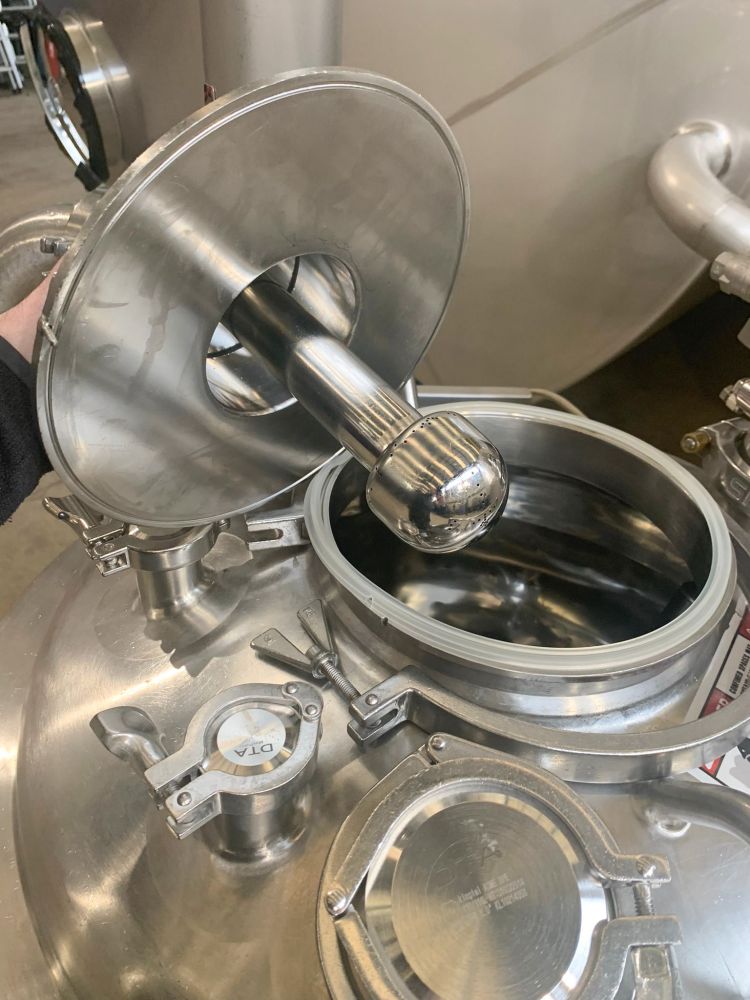

Article type: second-hand Additional information: we can’t give any guarantees about the heating/cooling jacket; we can’t give any guarantees about the agitator Volumetric volume (L): 180 L Ra inner weld: 0,80 Pressure in tank: pressure and vacuum Design pressure (Bar): -1 Bar Max. pressure (Bar): 2 Bar Min. pressure (Bar): -1 Bar Max. temperature (°C): 120 °C Min. temperature (°C): -28 °C Material wet parts: SS AISI 316L (V4A) Model: vertical Configuration: insulated with heat-exchanger Heat exchanger: yes Insulation: yes Mobile tank: yes Top type: dished Shape of tank: cylindrical Bottom type: dished Wall type: flat Bottom outlet: yes Total discharge: yes Fixation points: 4 casters Type of HE on the cylinder: dimple-jacket Position HE: the complet cilinder Water pressure HE: 6,80 Bar Working temperature HE cylinder: 120 °C Type of HE on the bottom: dimple-jacket Water pressure HE: 6,80 Bar Working temperature HE bottom: 120 °C Heat exchanger: RVS 304 Insulation material: Mineral wool Outer jacket (ornamental wall): RVS 304 Spray ball: RVS 316L Valve: RVS 316L Fixation point(s): RVS 304 Wet parts agitator(s): SS AISI 316L (V4A) Suitable for food industry: yes Documents included: no Technical drawing included: yes Registration plate on the tank: yes Flange for agitator: no CIP spray ball: yes Max.CIP pressure (Bar): 1 Bar Max.CIP flow (m³/h): 9 Outlet type: DIN32676 Agitator: yes Agitator type: propeller agitator Position engine: at the top Number of revolutions: 1750rpm Power: 0,37 Voltage: 208-230/460 V - three-phase Current: 1.9-1.6/0.8 Tank capacity top cylinder: 190 L Internal diameter tank: 660 mm Distance from outlet to ground: 400 mm Outer diameter tank: 792 mm Cylinder height: 457 mm Total height of tank: 1.740 mm Total outer width: 1.140 mm Total outer length: 1.075 mm Empty weight tank: 450
