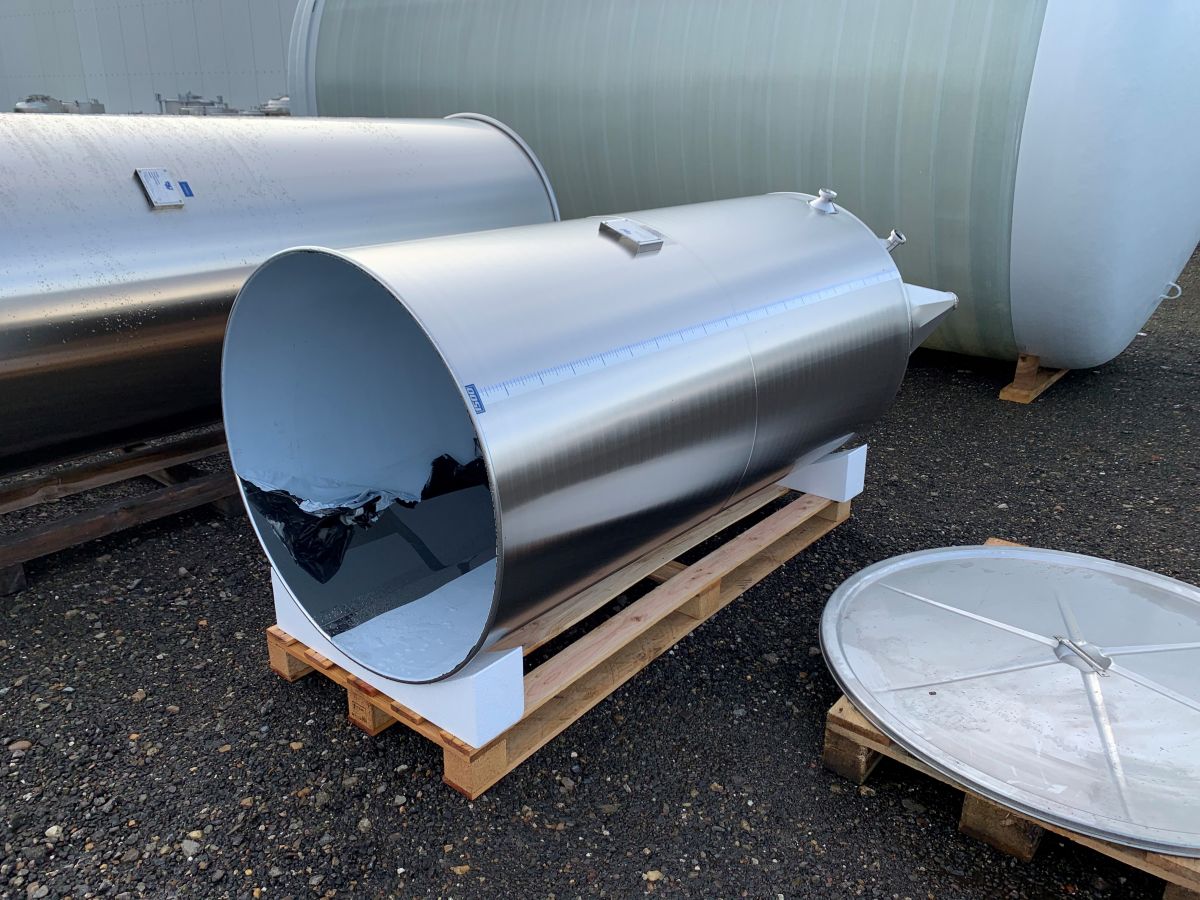

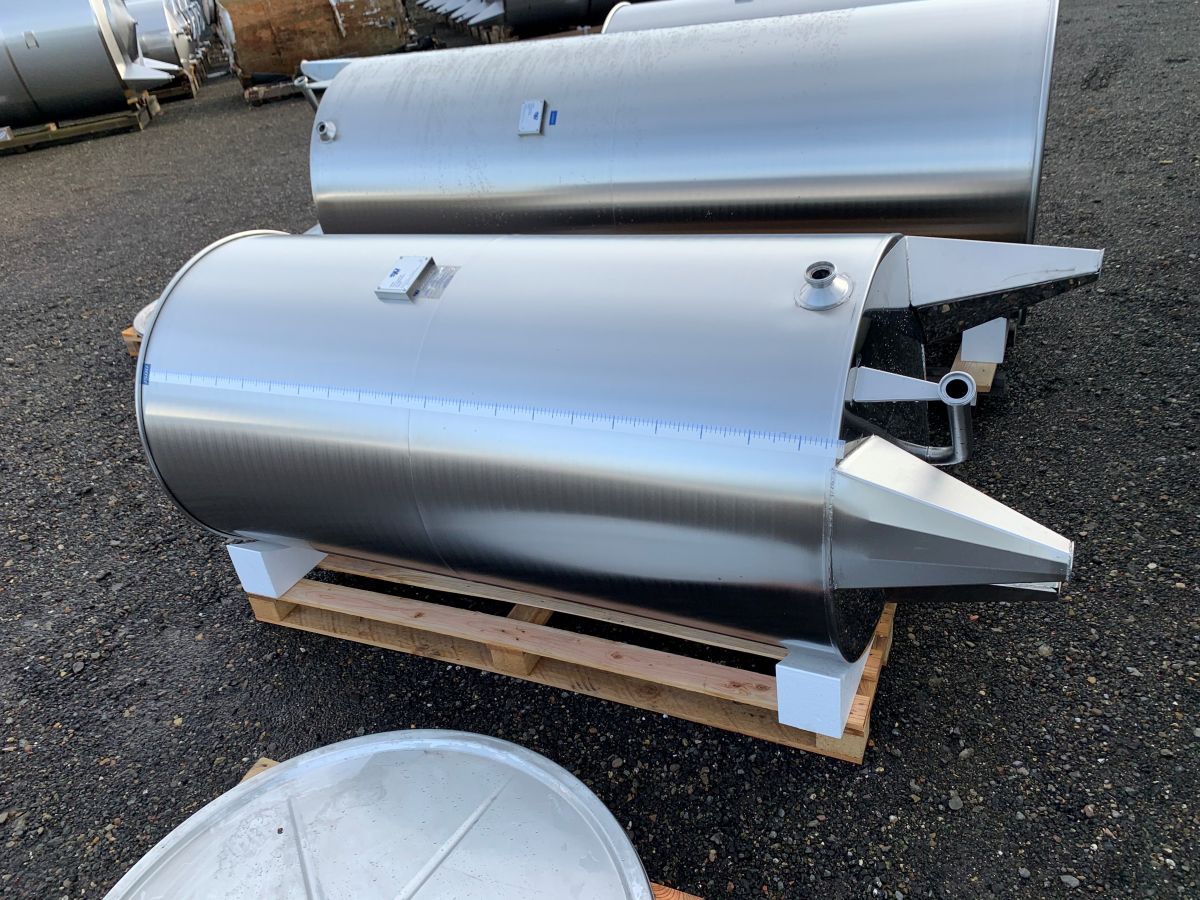

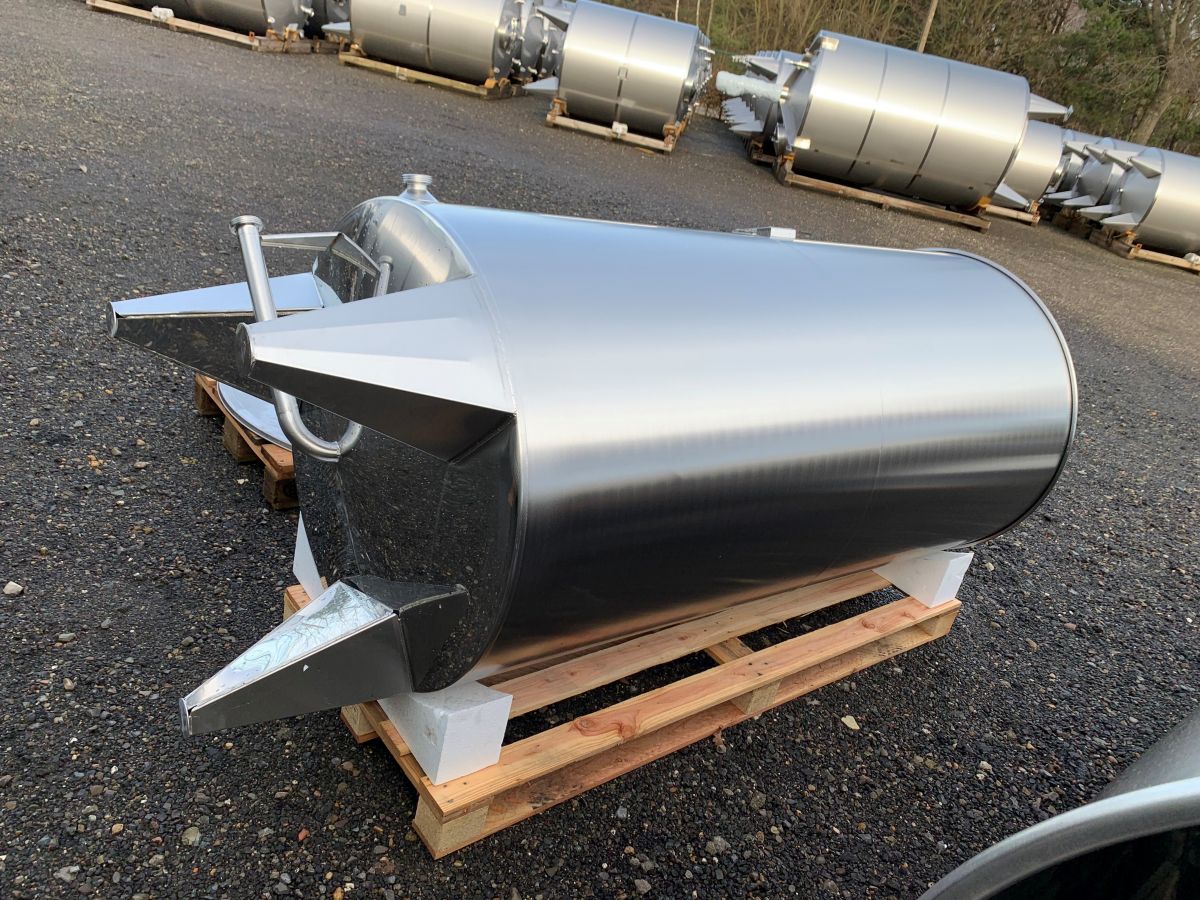

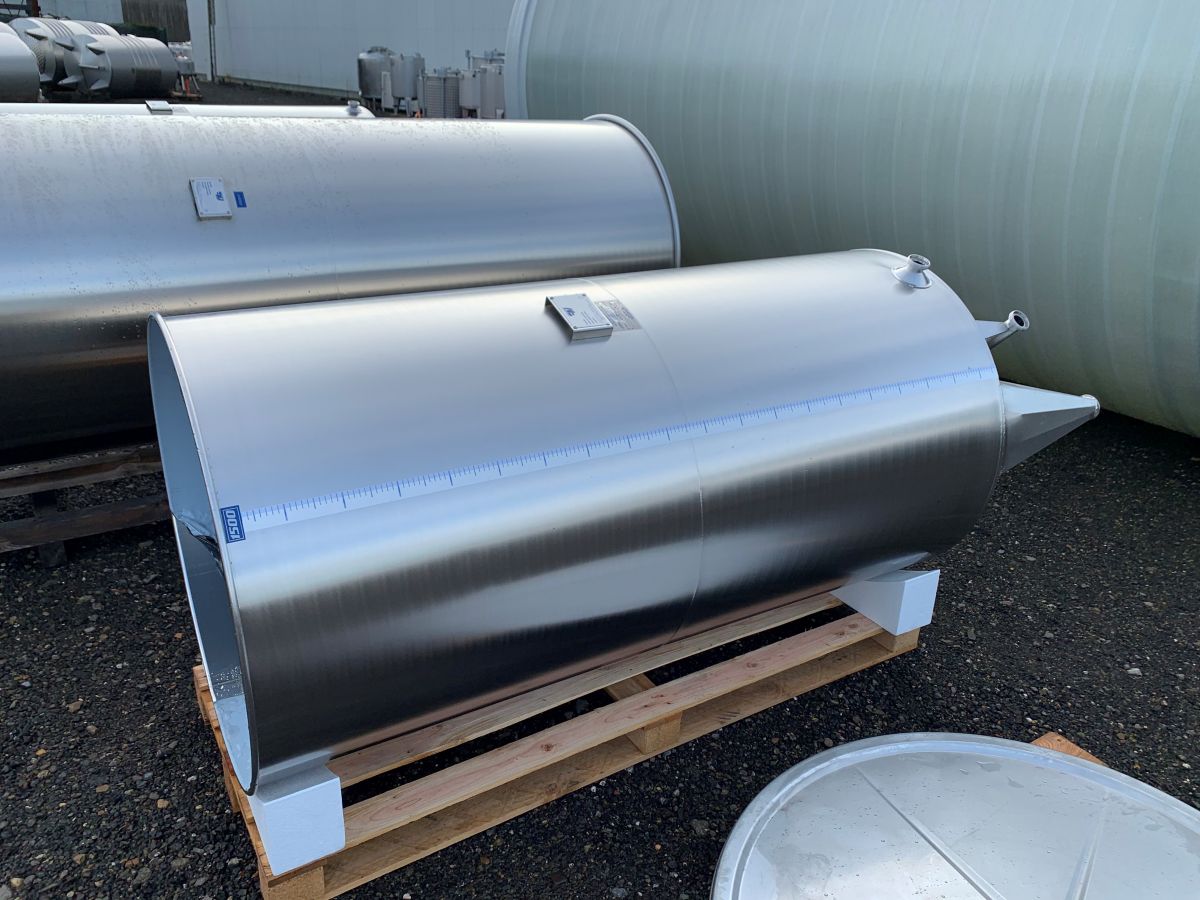

1533 liter i Rostfritt 304
25,000.00 SEK/st exkl moms
Mer information
Volym i liter | 1533 |
---|---|
Nytillverkad/Begagnad | Begagnad |
Livsmedelsklassad | Ja |
Modell | Vertikal |
Material | Rostfritt 304 |
Omrörare | Nej |
Uppvärmning/kylning | Nej |
Isolerad | Nej |
Article type: second-hand storage tank
Additional information: the tank has never been used
Capacity: 1.533 L
Working pressure in tank: ATM – atmosferic
Material wet parts: SS AISI 304 (V2A)
Model: vertical
Configuration: single-skin
Heat exchanger: no
Insulation: no
Mobile tank: no

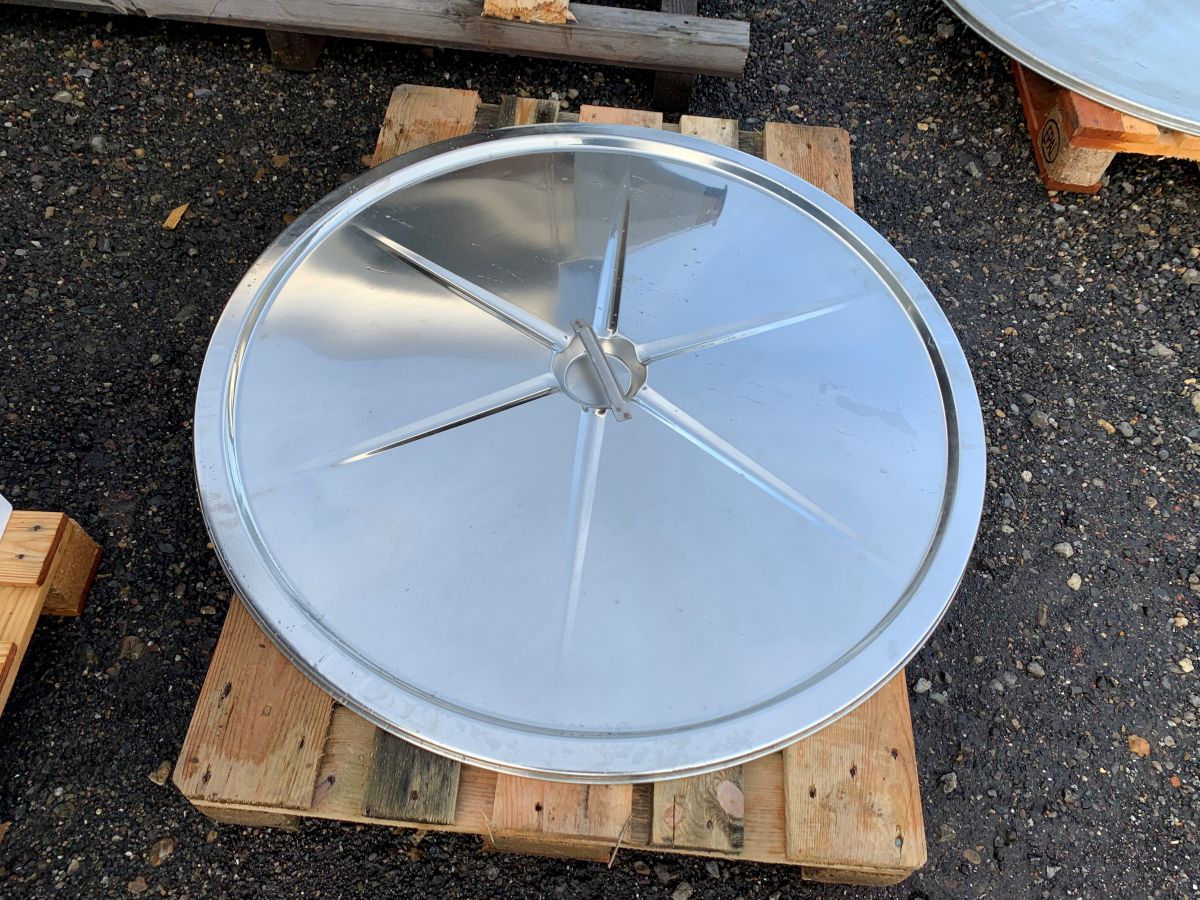

Top type: large seperat lid
Shape of tank: cylindrical

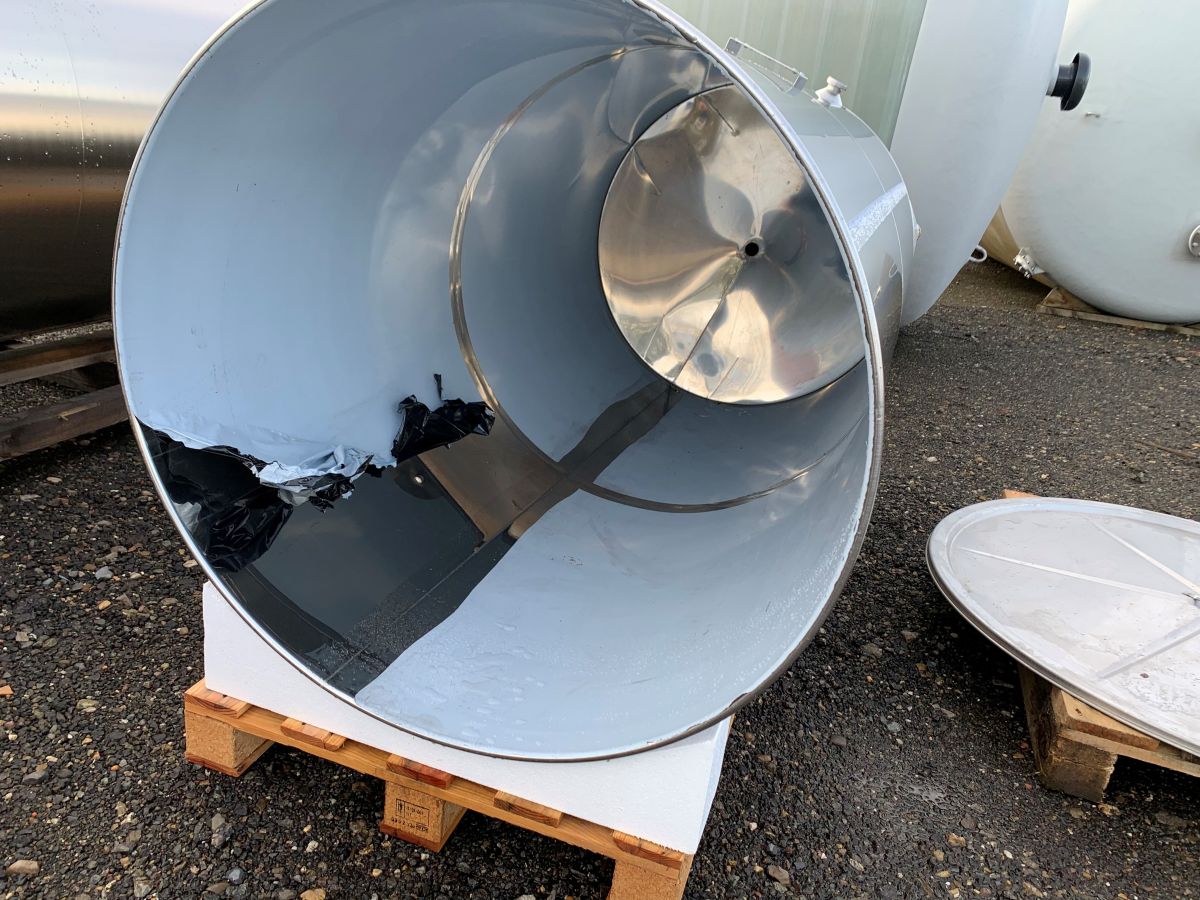

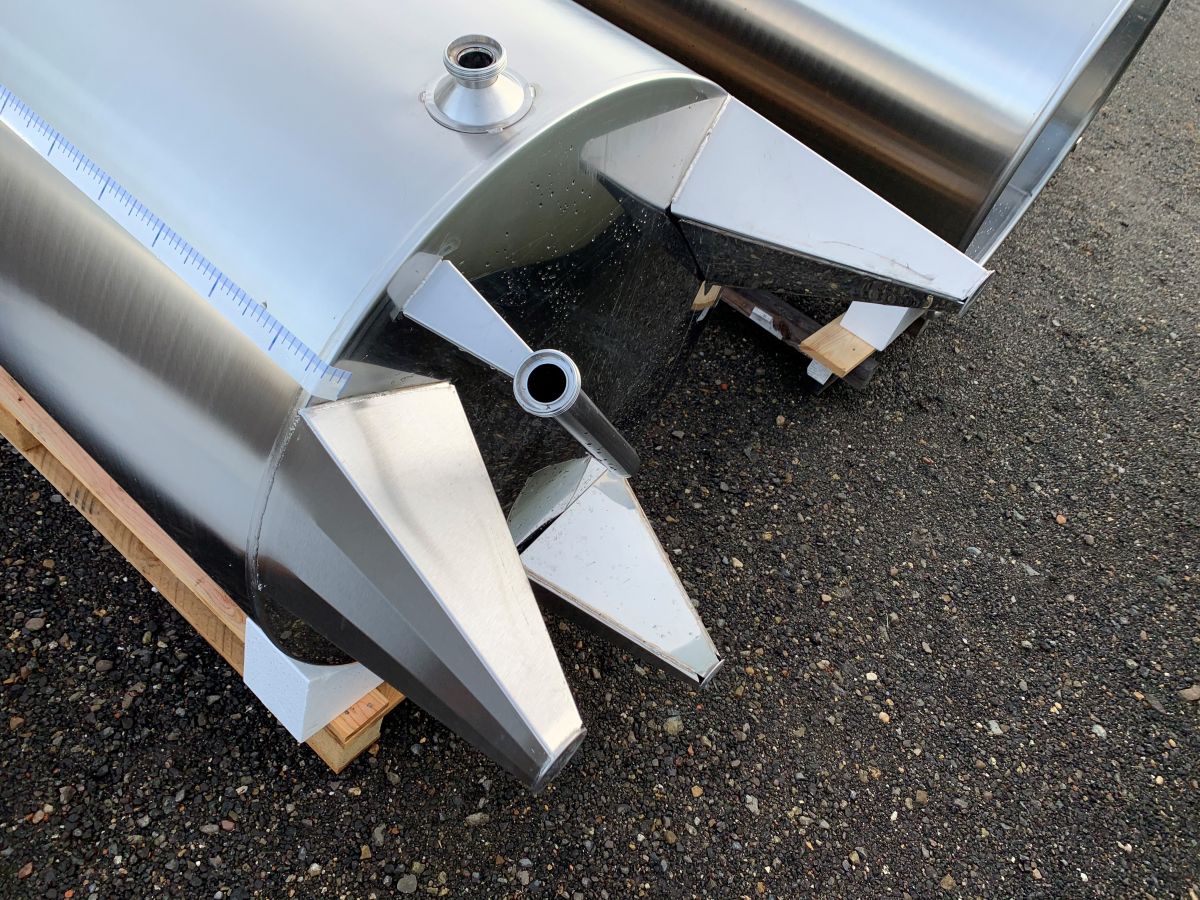

Bottom type: conical
Total discharge: yes

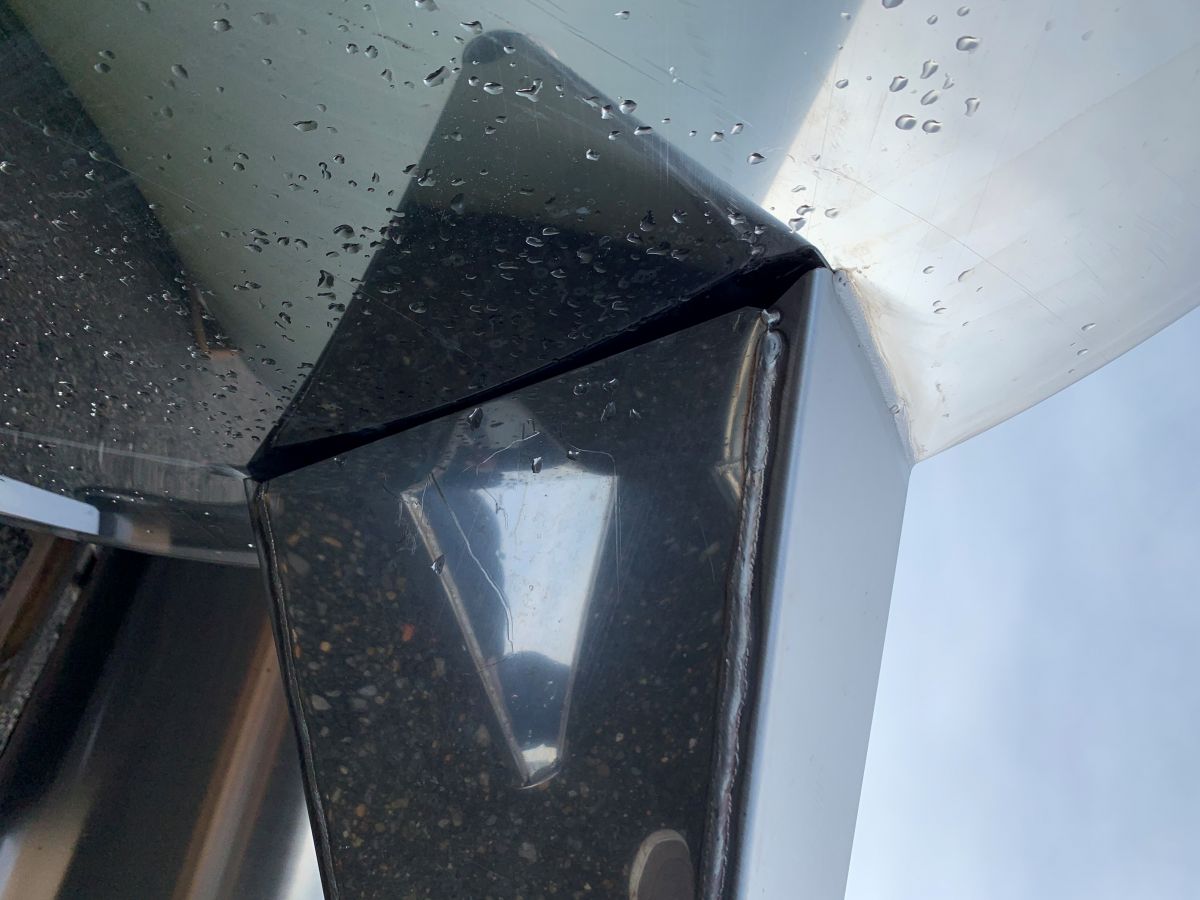

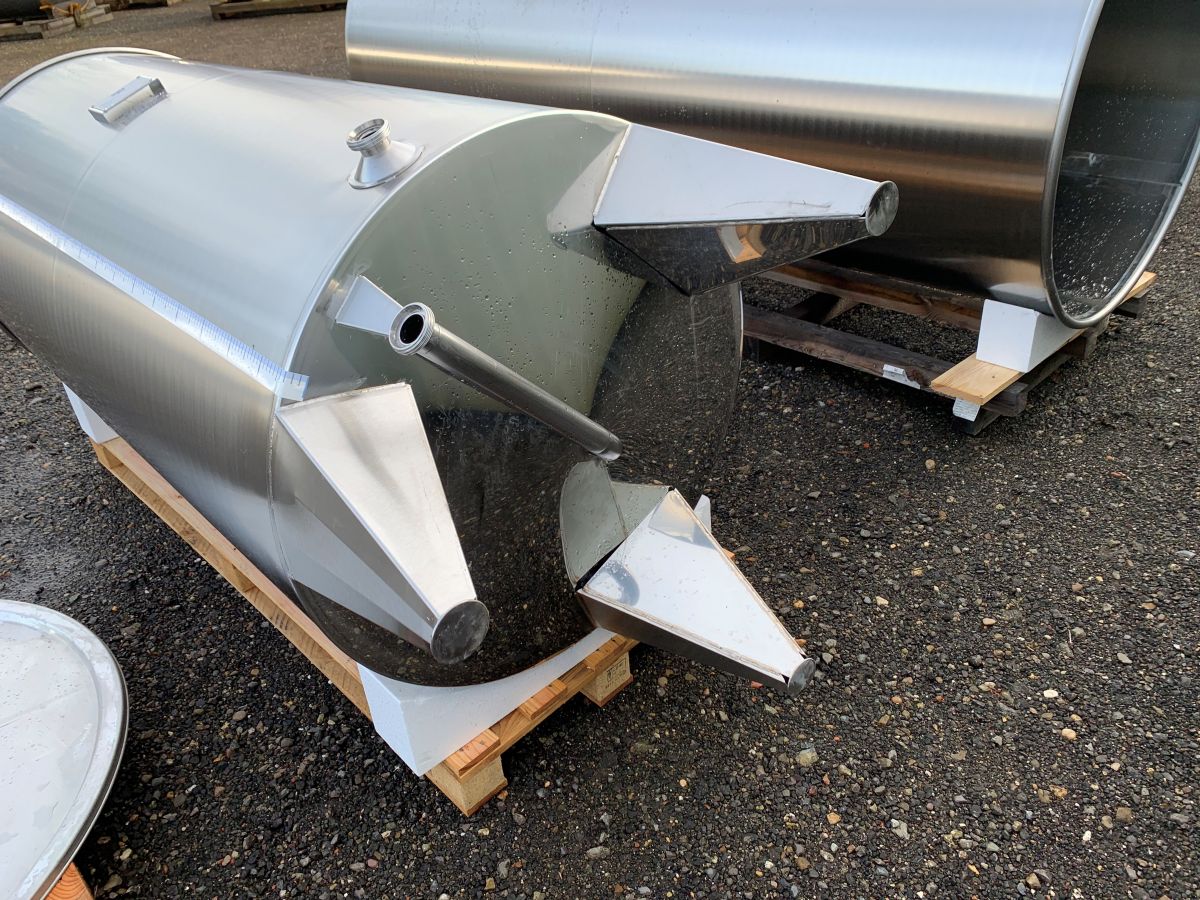

Fixation points: 3 non adjustable feet
Fixation point(s): RVS 304
Suitable for food industry: yes
Documents included: no
Technical drawing included: no
Registration plate on the tank: no
Flange for agitator: no

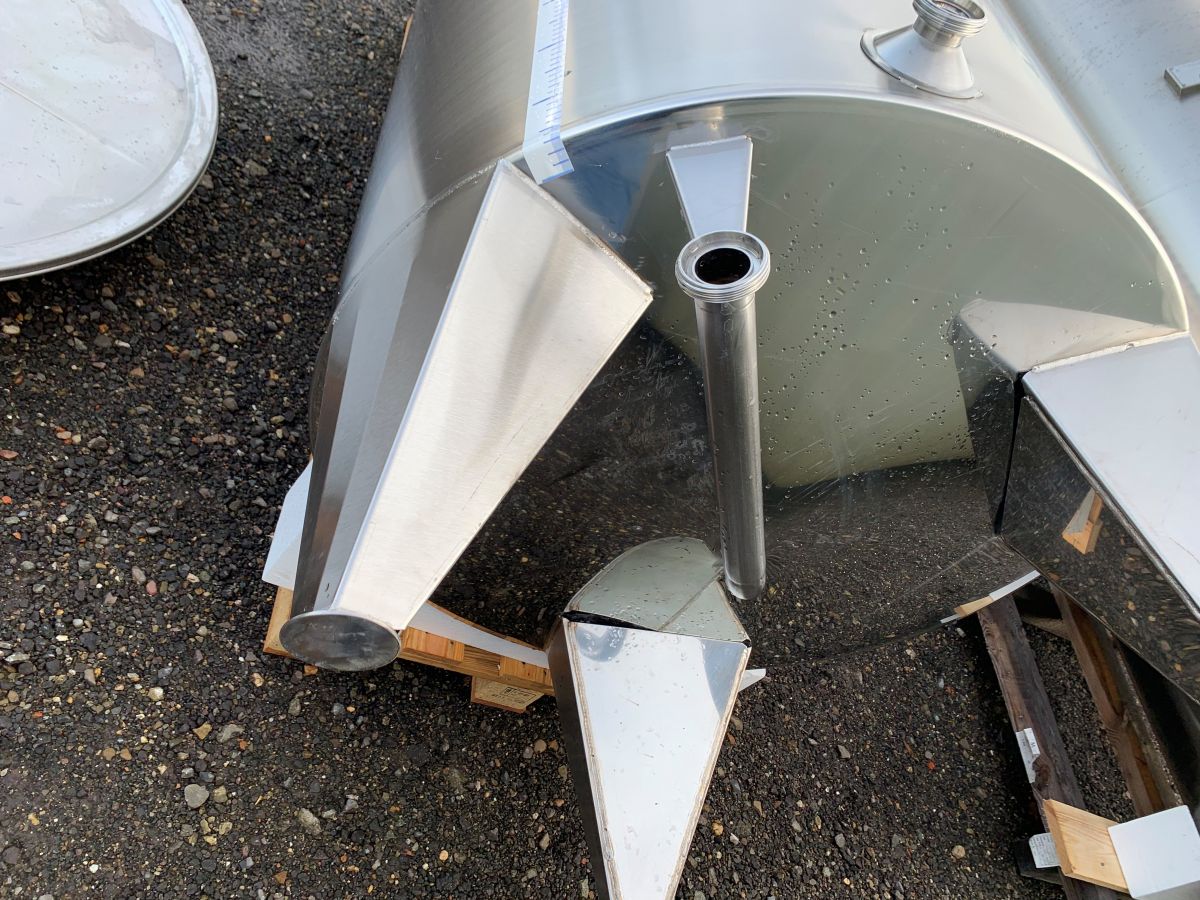

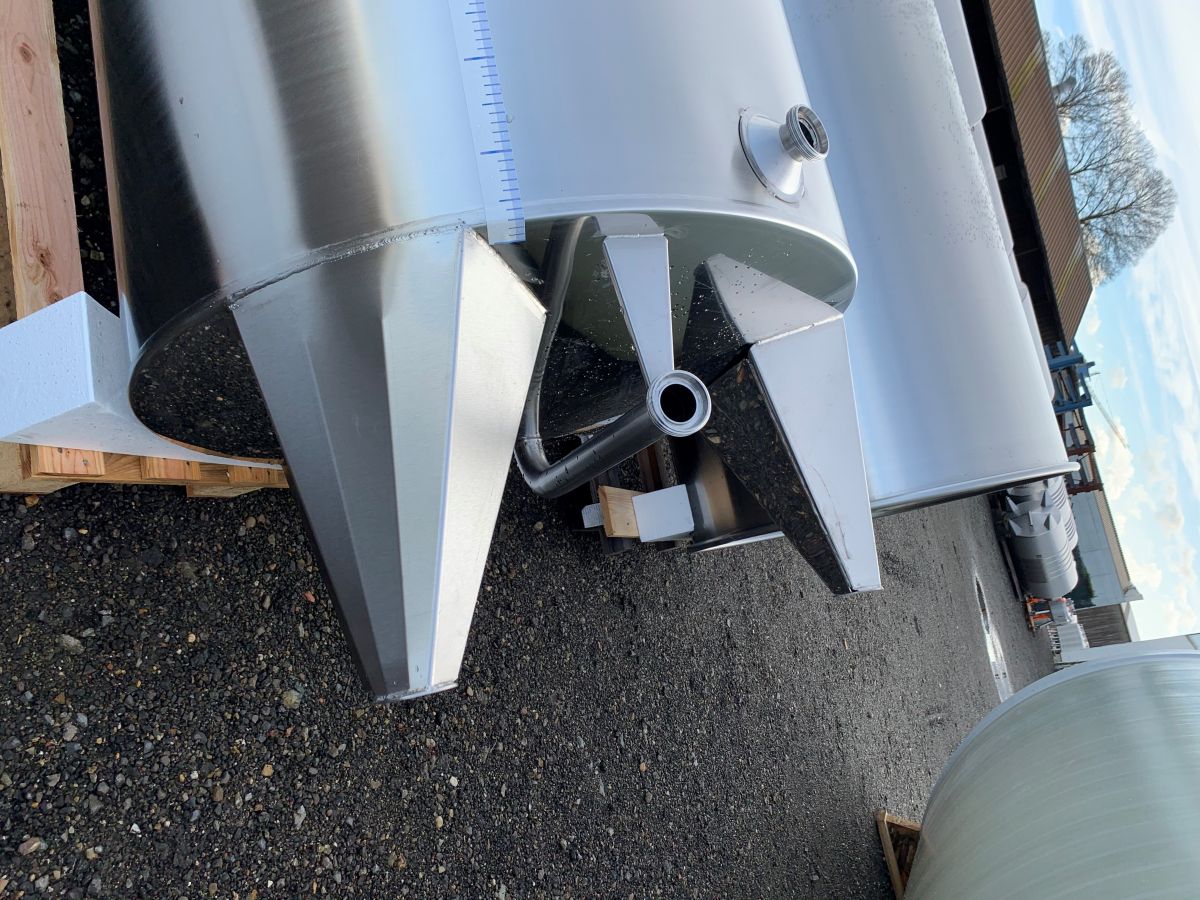

Tank outlet: inside Ø 40 mm
Tank outlet: DIN 11851
Top: 1 mm
Cylinder: 1 mm
Bottom: 1,50 mm
Internal diameter tank: 1.000 mm
Outer diameter tank: 1.030 mm
Cylinder height: 2.000 mm
Feet height: 400 mm
Total height of tank: 2.430 mm
Empty weight tank: 150
