15000 liter tank i Rostfritt 304
Art.nr: 20835
212,000,00 kr /st exkl moms
Isolerad:
Material:
Modell:
Nytillverkad eller begagnad:
Trycktank:
Uppvärmning/kylning:
Omrörare:
Lagersaldo:
Slut i lager

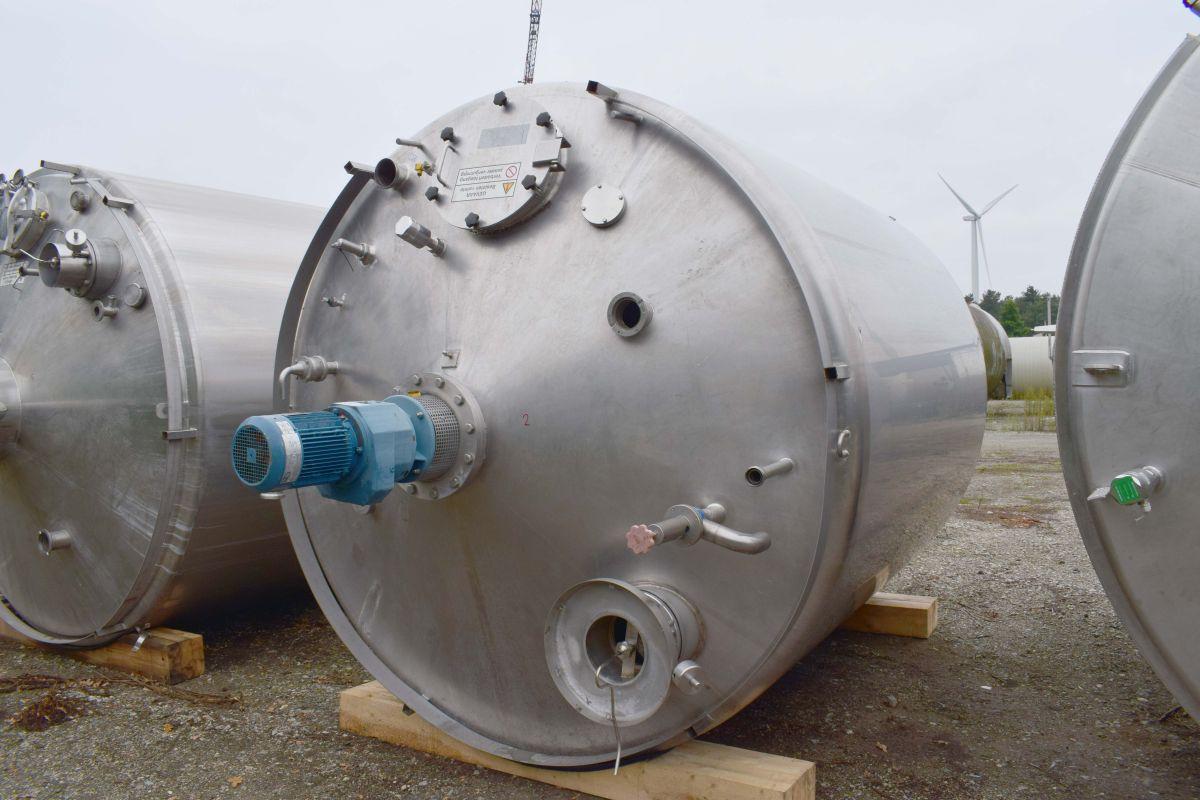

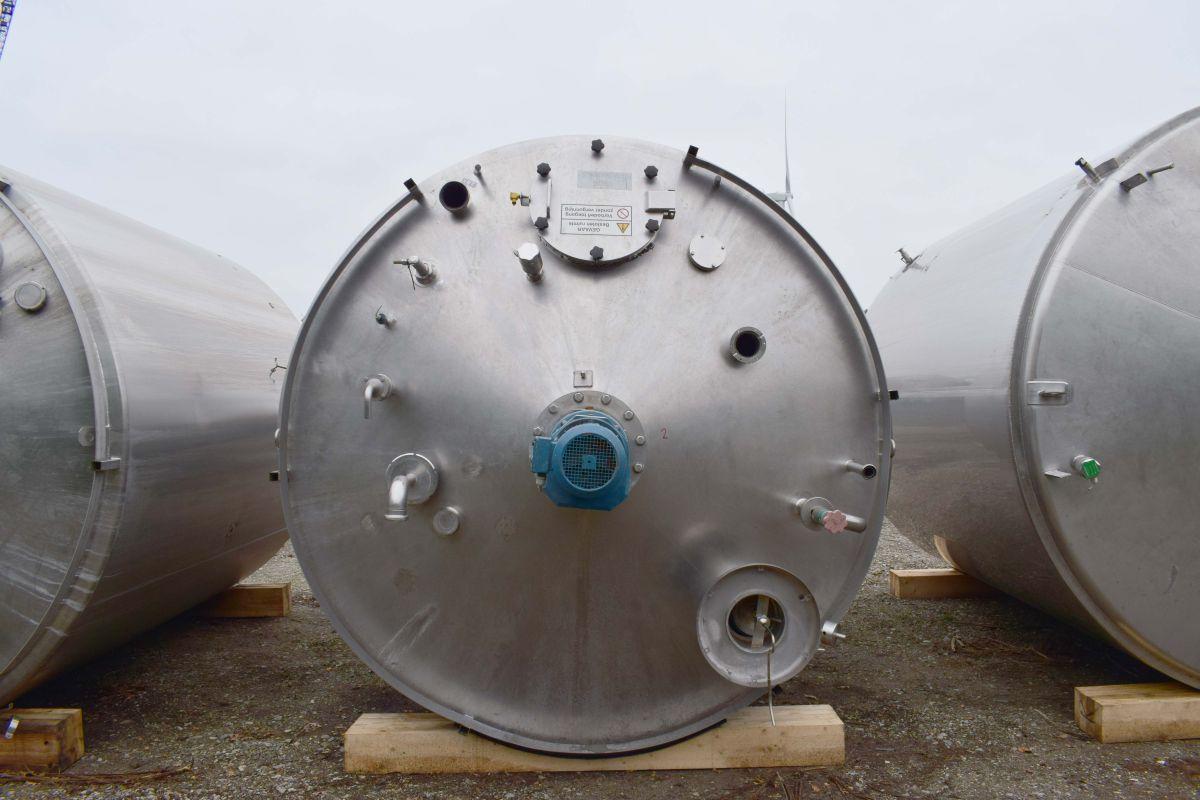

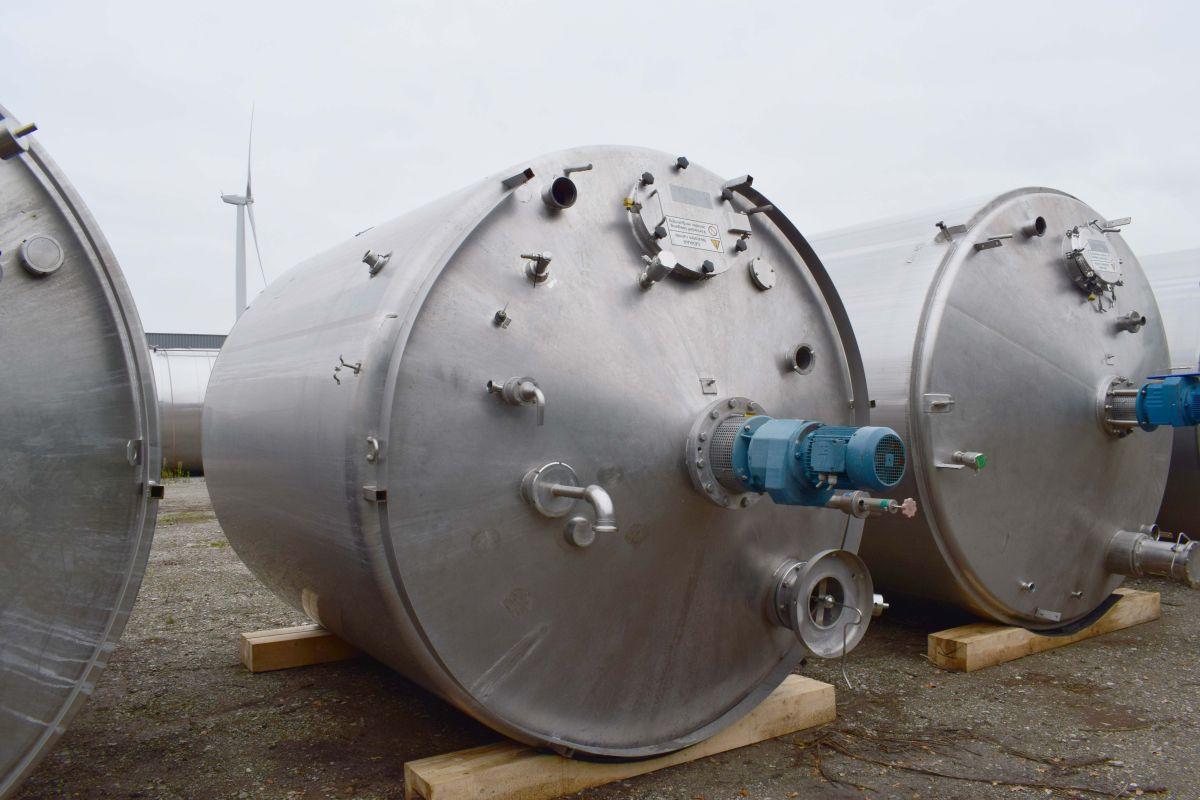

15000 liter tank i Rostfritt 304
Article type: second-hand mixing tank
Additional information: we can’t give any guarantees about the heating/cooling jacket; we can’t give any guarantees about the agitator
Volumetric volume (L): 15.000 L
Pressure in tank: ATM - atmosferic
Material wet parts: SS AISI 304 (V2A)
Model: vertical
Configuration: insulated with heat-exchanger
Heat exchanger: yes
Insulation: yes
Mobile tank: no
Top type: conical
Shape of tank: cylindrical
Bottom type: conical
Total discharge: yes

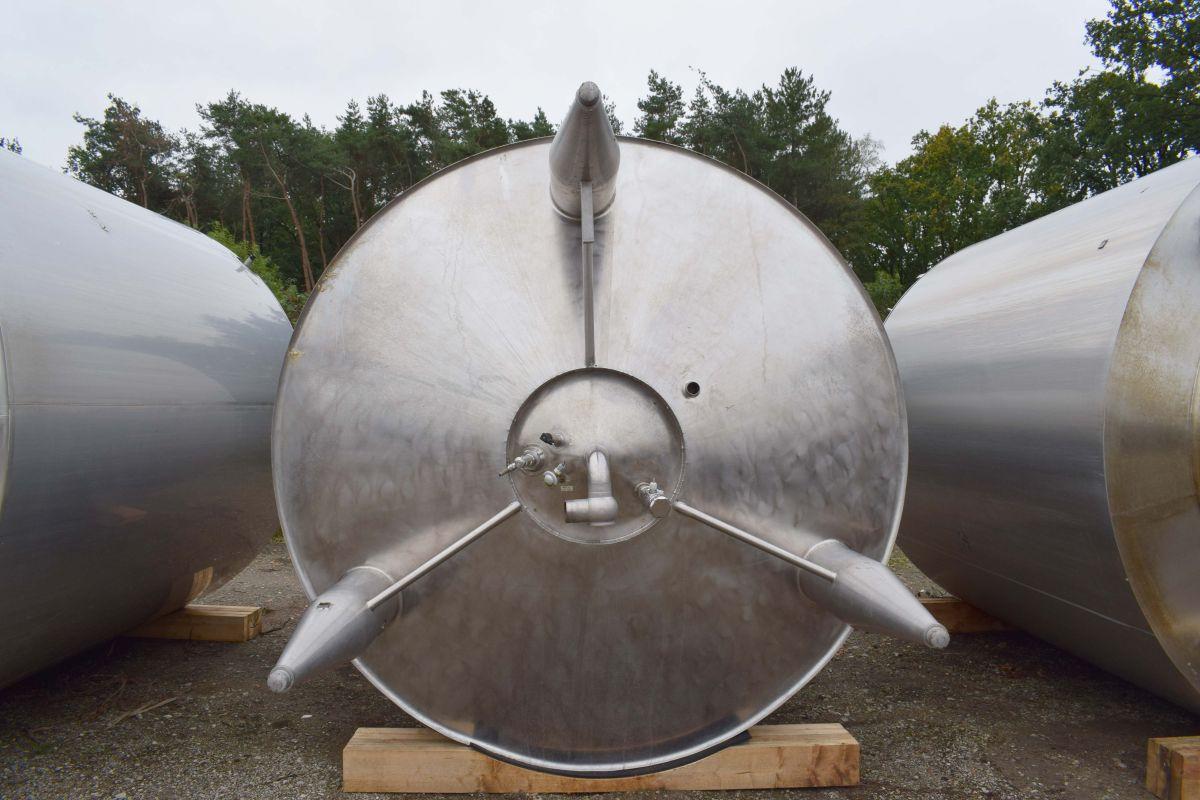

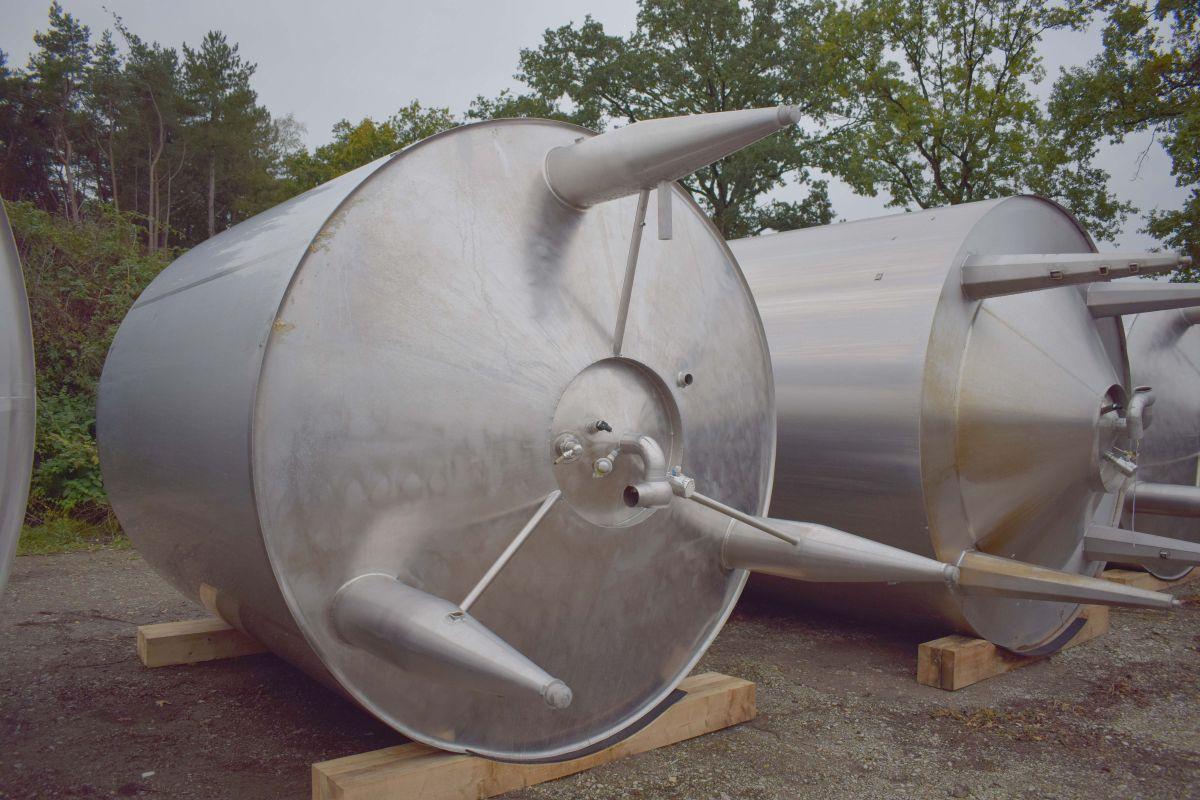

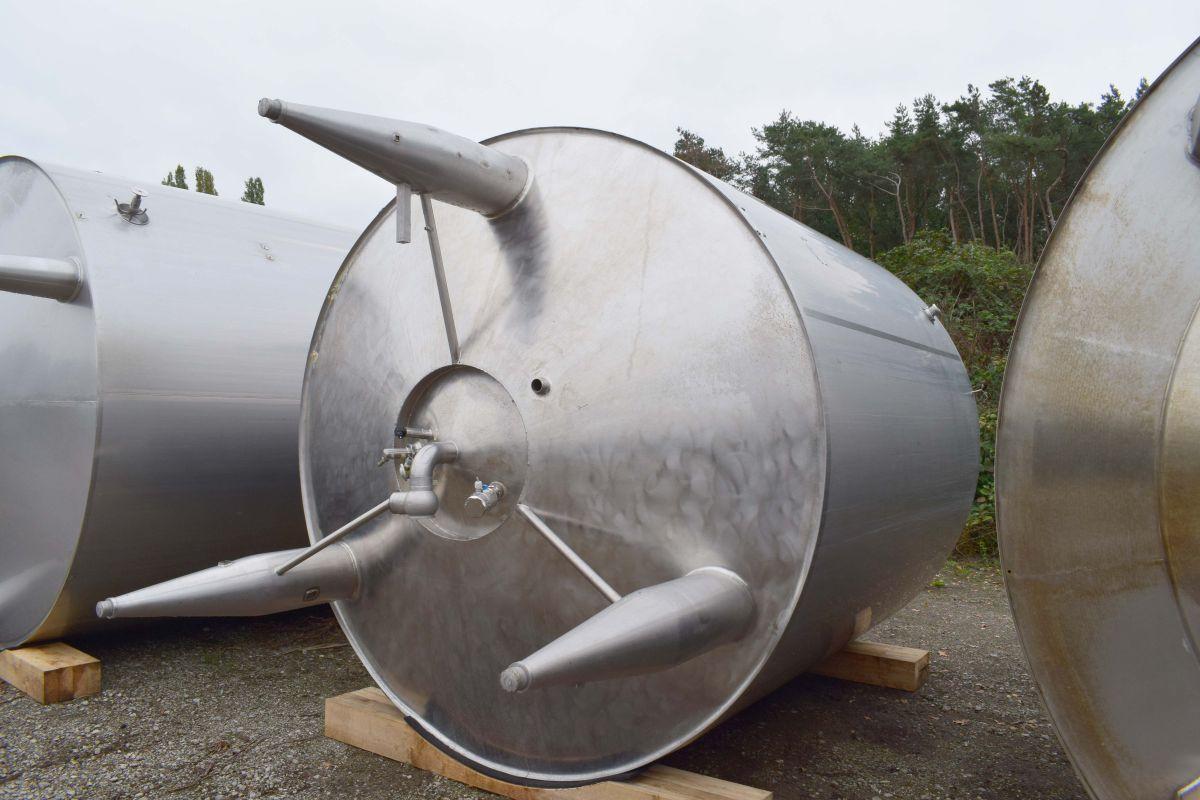

Fixation points: 3 adjustable feet
Insulation material: rockwool
Outer jacket (ornamental wall): RVS 304
Manway(s): RVS 304
Gasket manway(s): unknown
Fixation point(s): RVS 304
Suitable for food industry: yes
Documents included: no
Technical drawing included: no
Registration plate on the tank: no
Flange for agitator: no

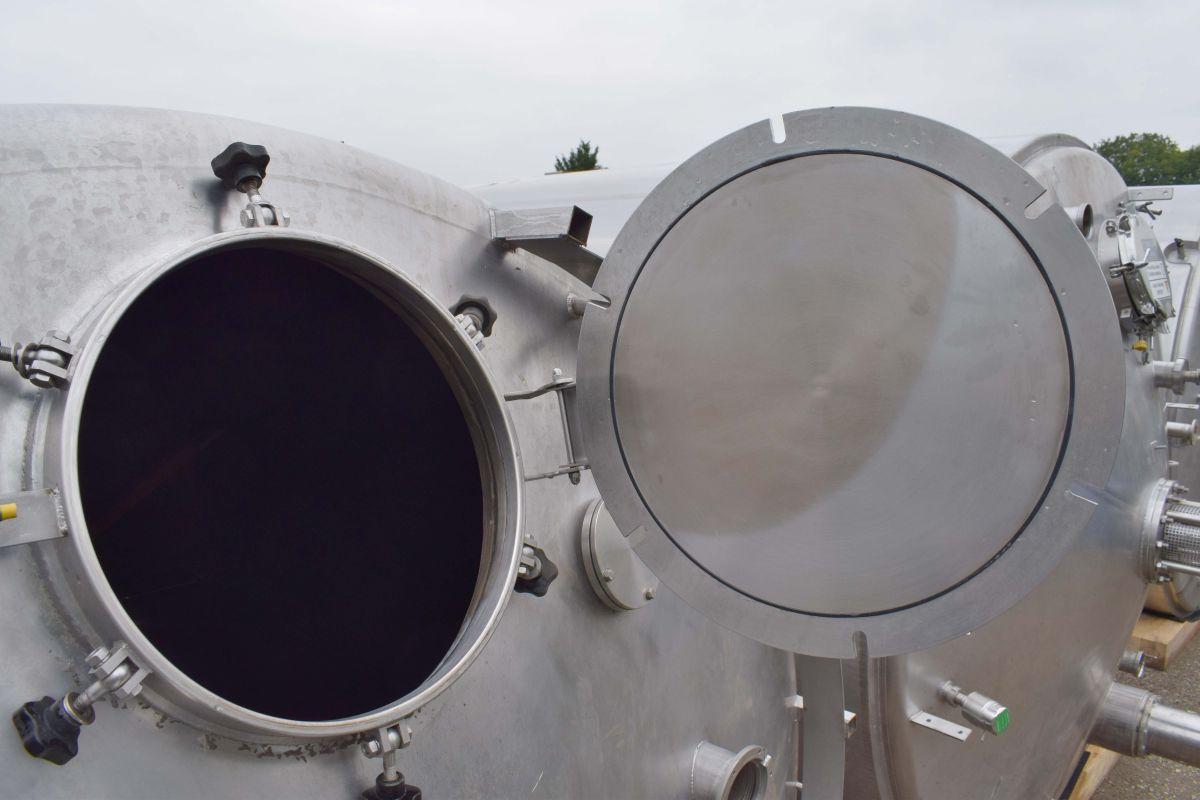

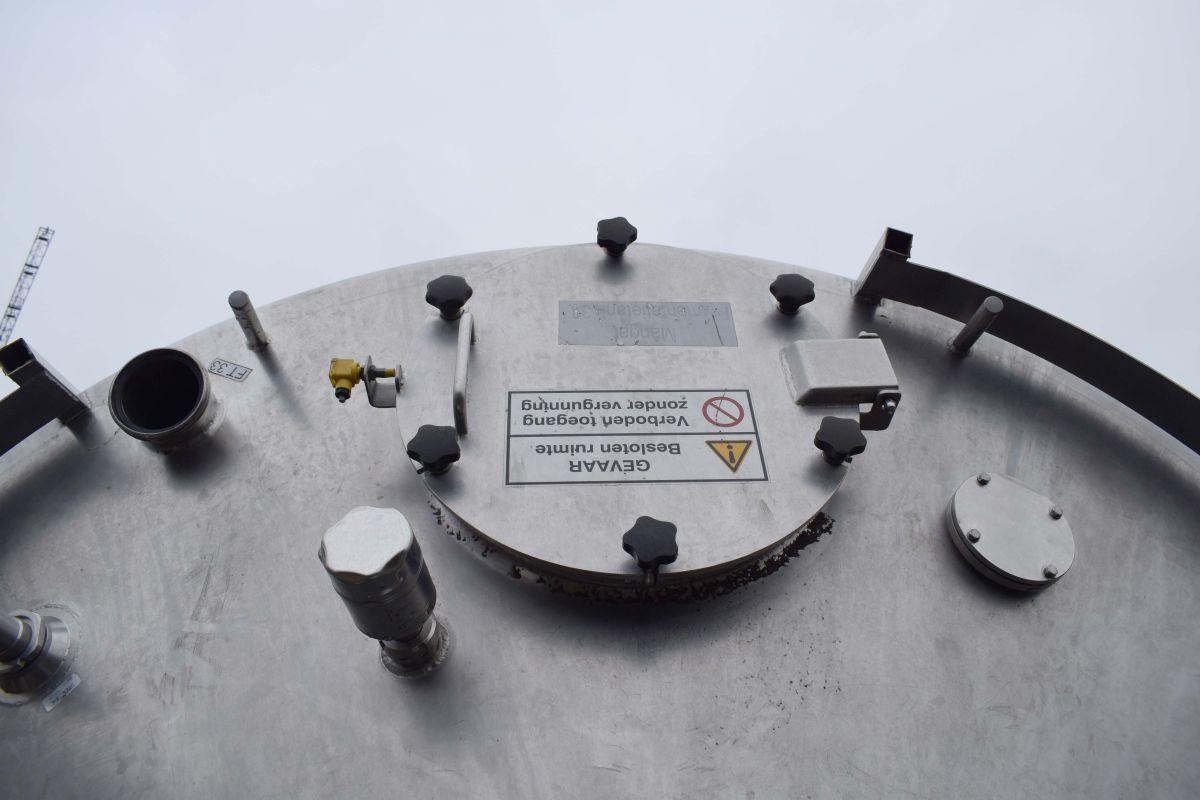

Number of manways: 1
Position of manway: at the top
Height manhole 1 (mm): 500 mm

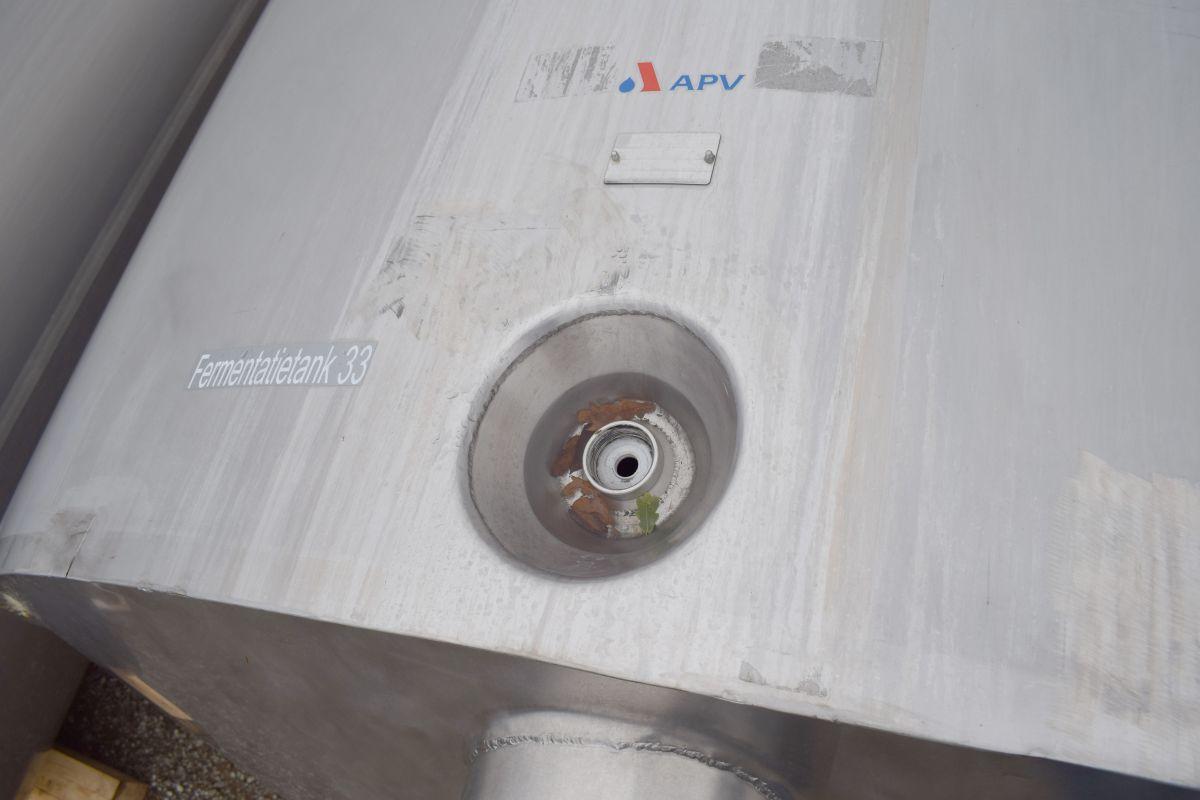

Tank outlet: inside Ø 80 mm
Total outlet valve: no

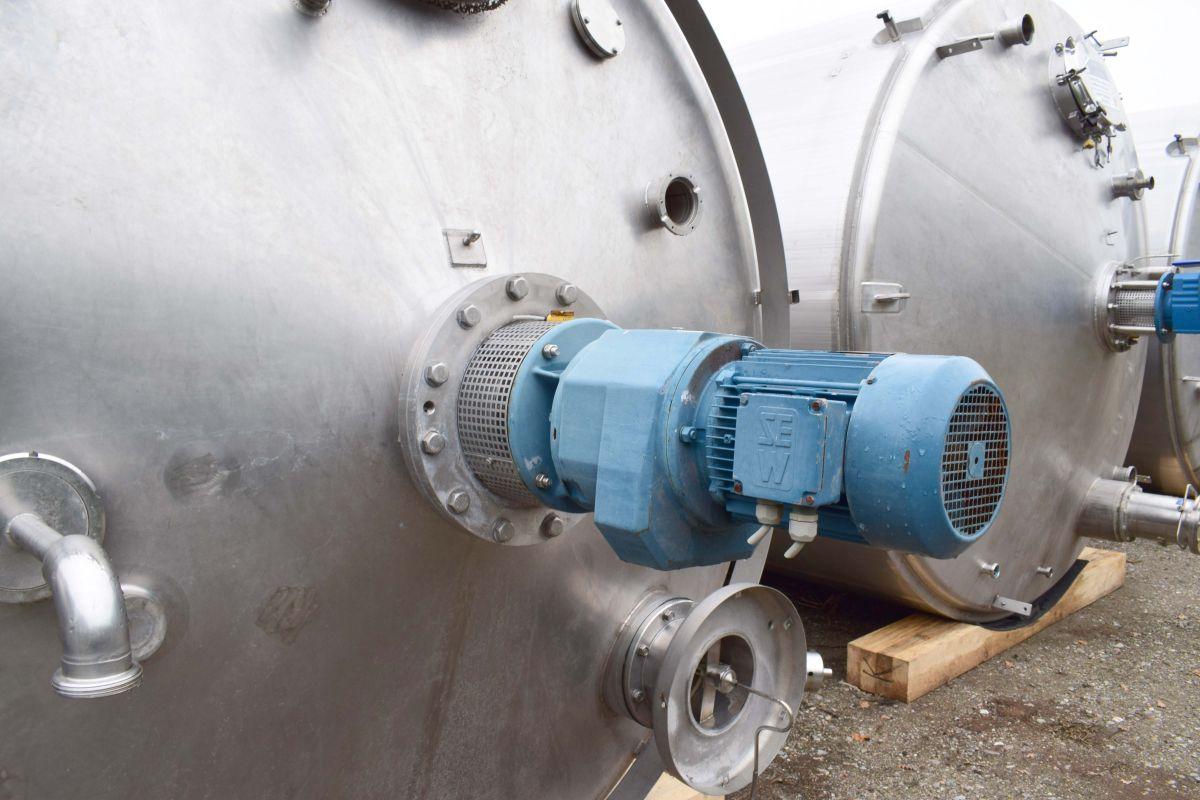

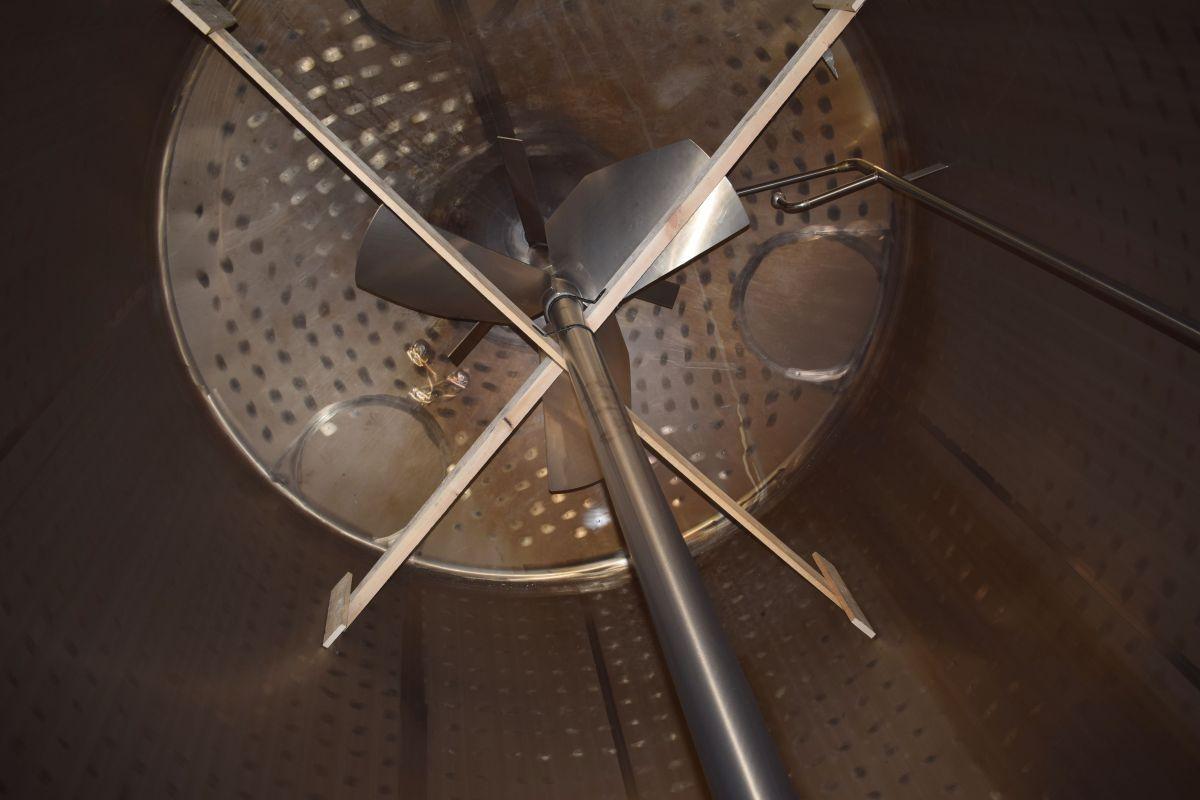

Agitator: yes
Agitator type: tripad
Position engine: at the top
Number of revolutions: 18 / 36

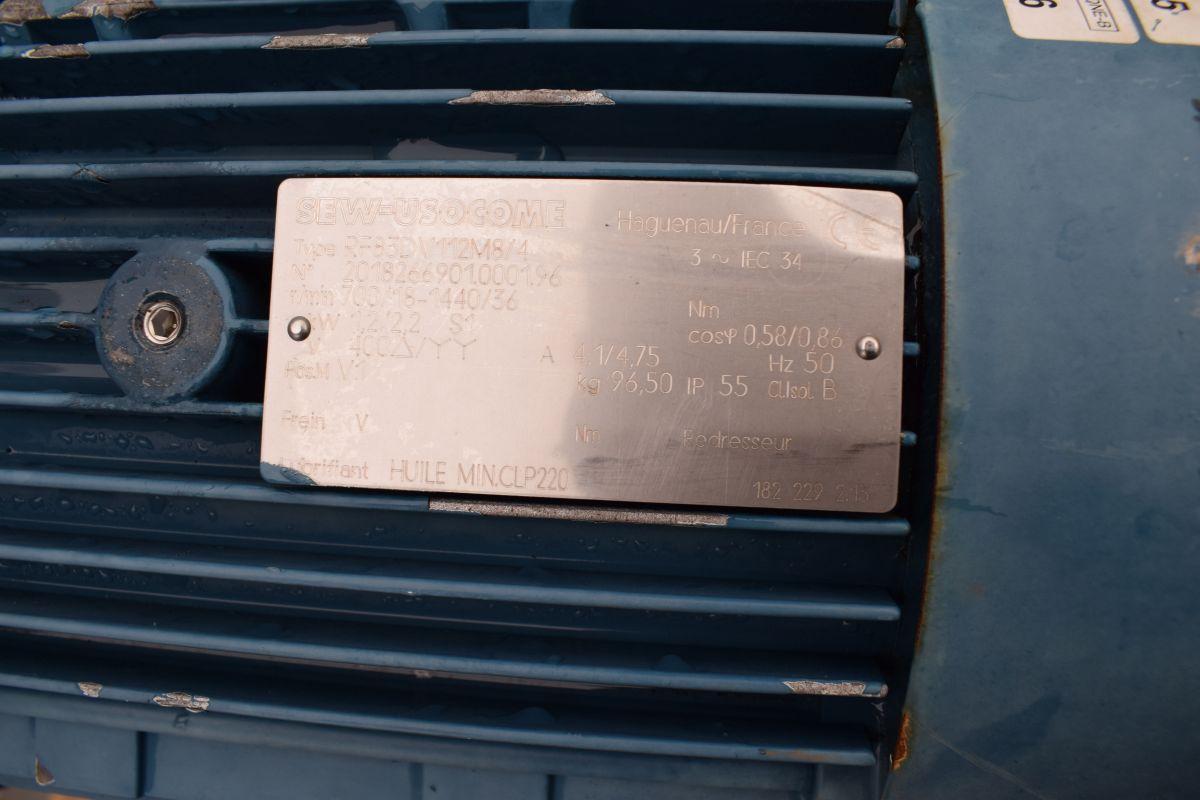

Power: 2,20
Voltage: three-phase
Insulation body: yes
Insulation bottom/sides: yes
finish of the outer jacket: welded
Insulation thickness: 60
Internal diameter tank: 2.650 mm
Distance from outlet to ground: 600 mm
Outer diameter tank: 2.800 mm
Cylinder height: 2.750 mm
Total height of tank: 5.400 mm
Empty weight tank: 1.300
