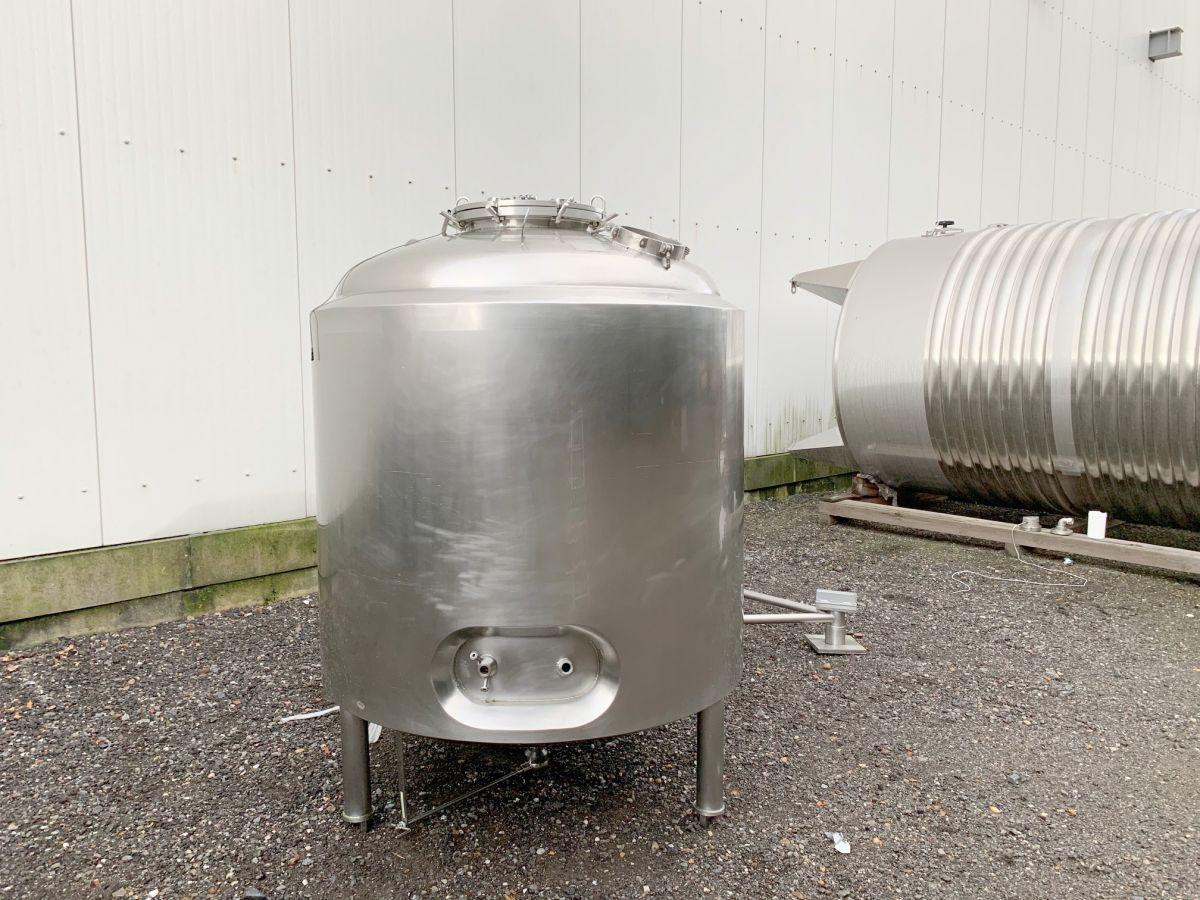

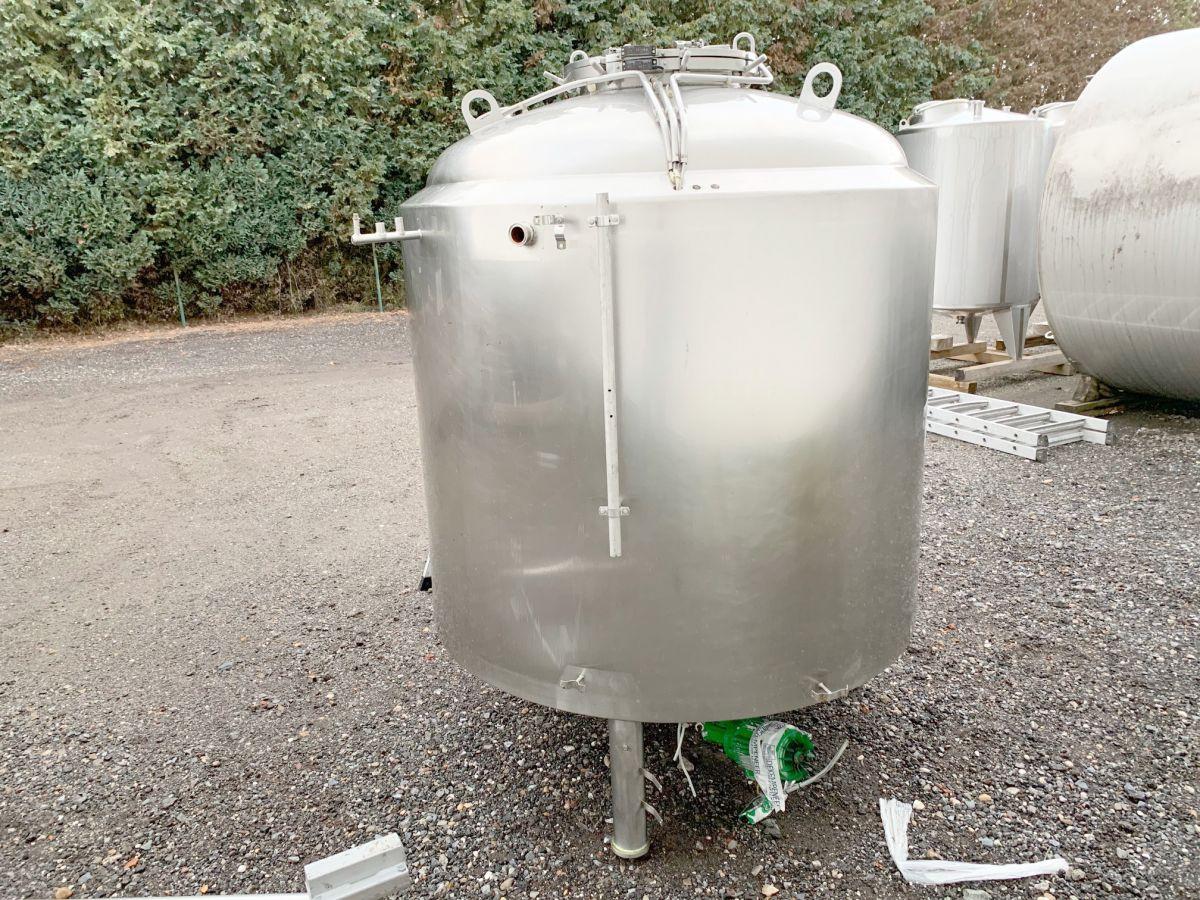

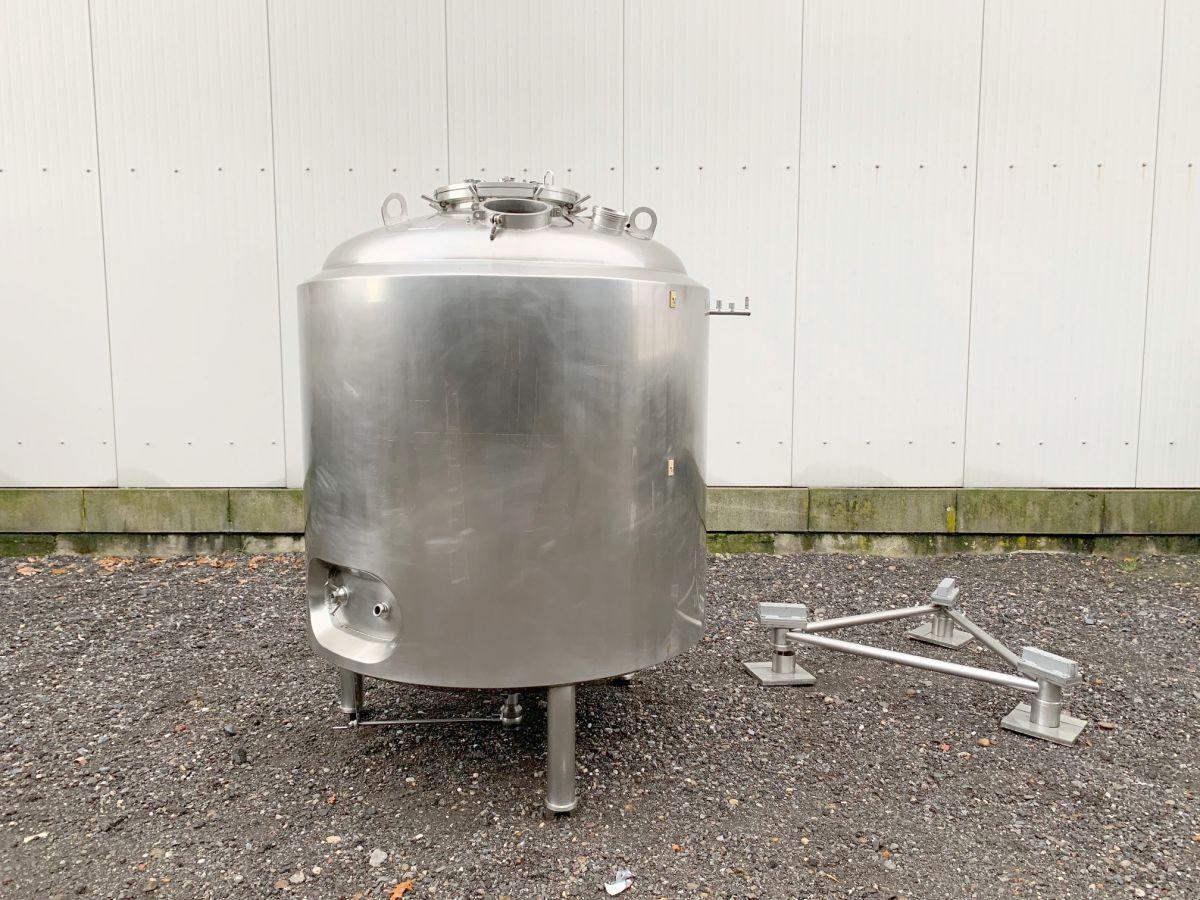

1500 liter i Rostfritt 304

Article type: second-hand pressure tank

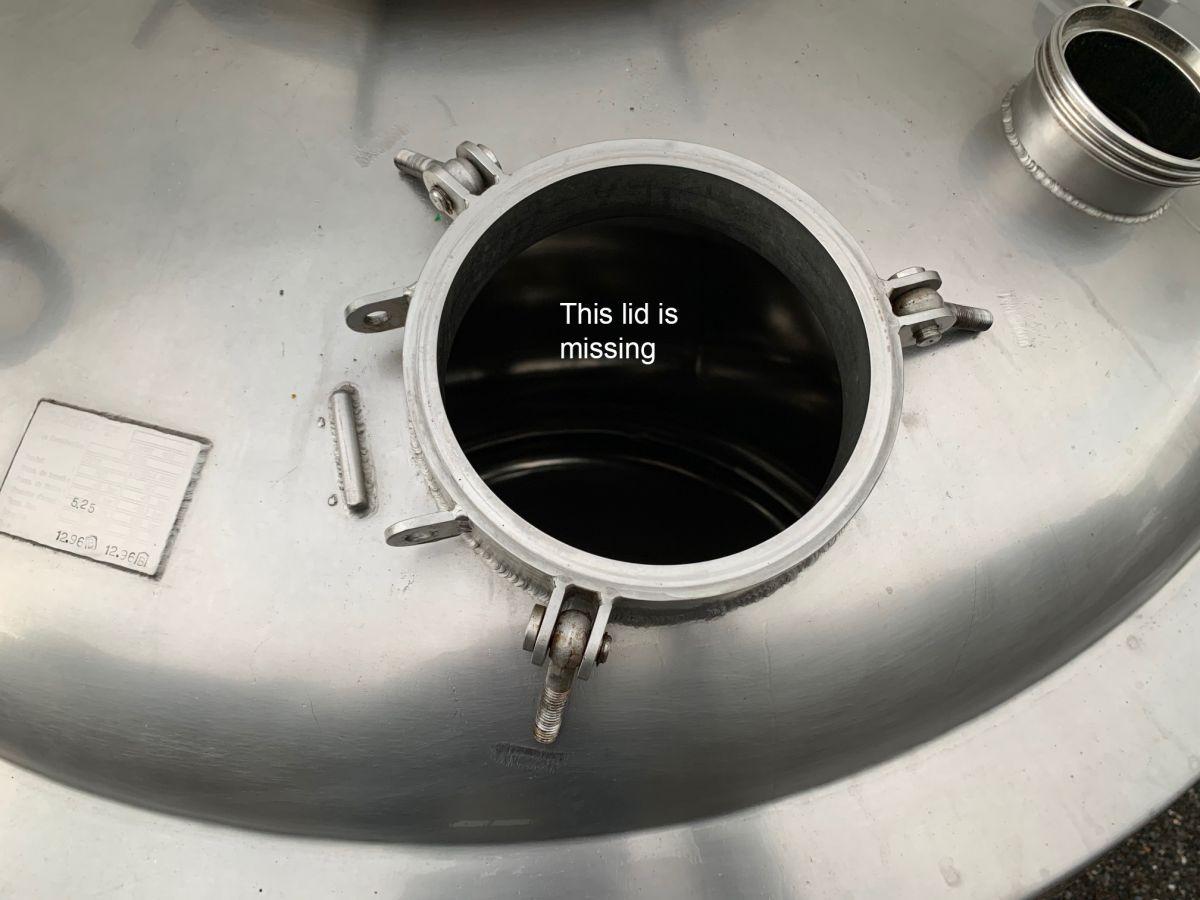

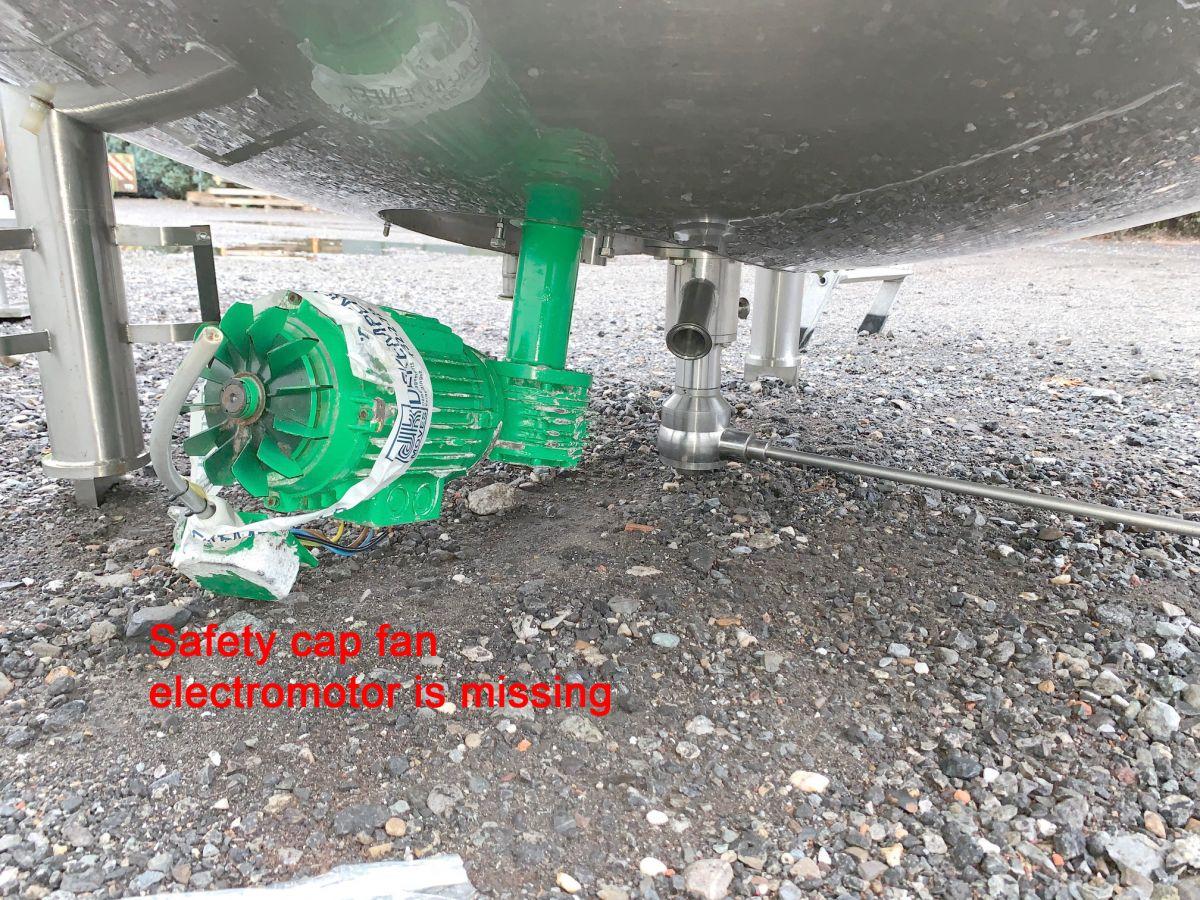

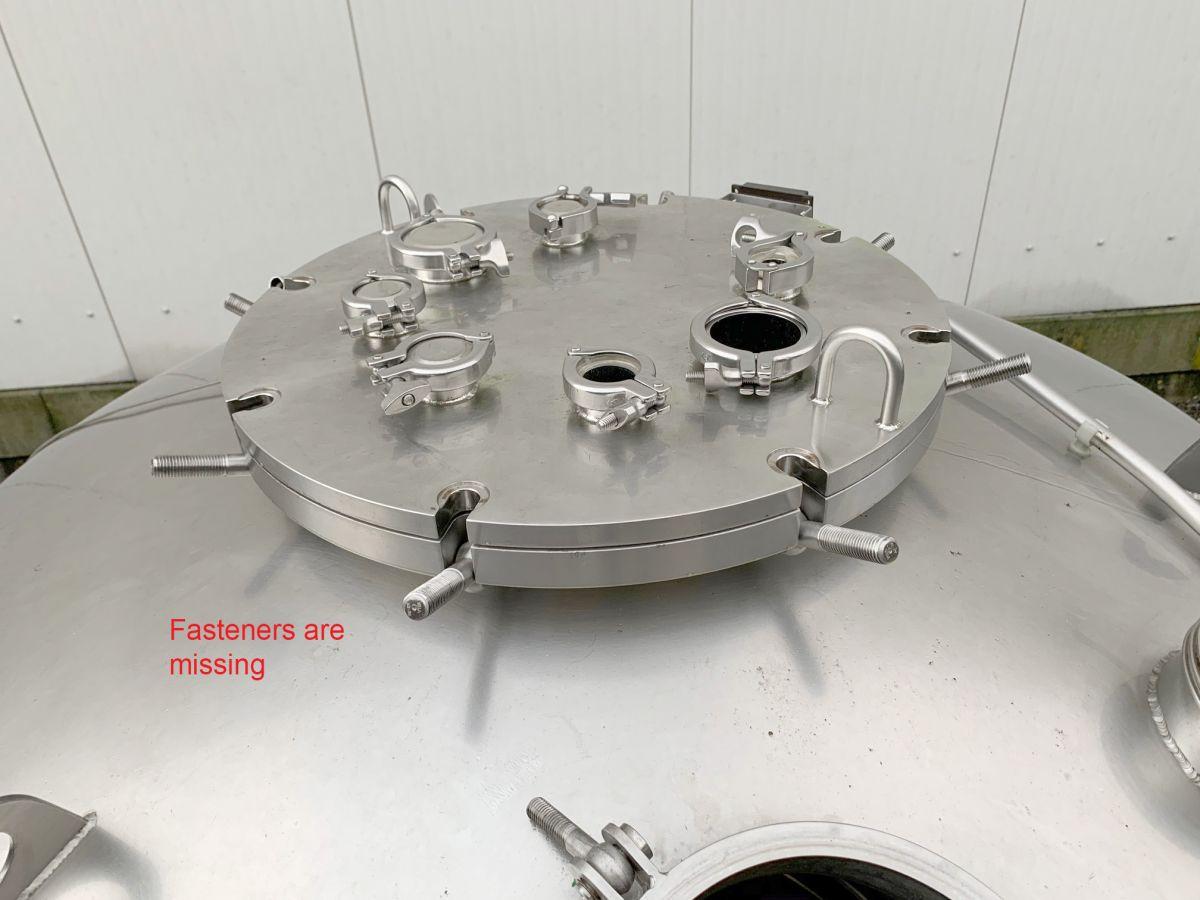

Additional information: The lid for the smaller connection on the top is missing, the cap for the electromotor is missing, the nuts for the manway are missing; we can’t give any guarantees about the heating/cooling jacket; we can’t give any guarantees about the agitator
Capacity: 1.500 L
Ra inner weld: 0,80
Working pressure in tank: pressure

Design pressure of the tank: 5,25 Bar
Overpressure: 3 Bar
Underpressure: -1 Bar
Max. working temperature: 135 °C
Material wet parts: SS AISI 304 (V2A)

Model: vertical
Configuration: insulated with heat-exchanger
Heat exchanger: yes
Insulation: yes
Agitator: yes

Mobile tank: no
Top type: dished
Shape of tank: cylindrical
Bottom type: dished
Total discharge: yes

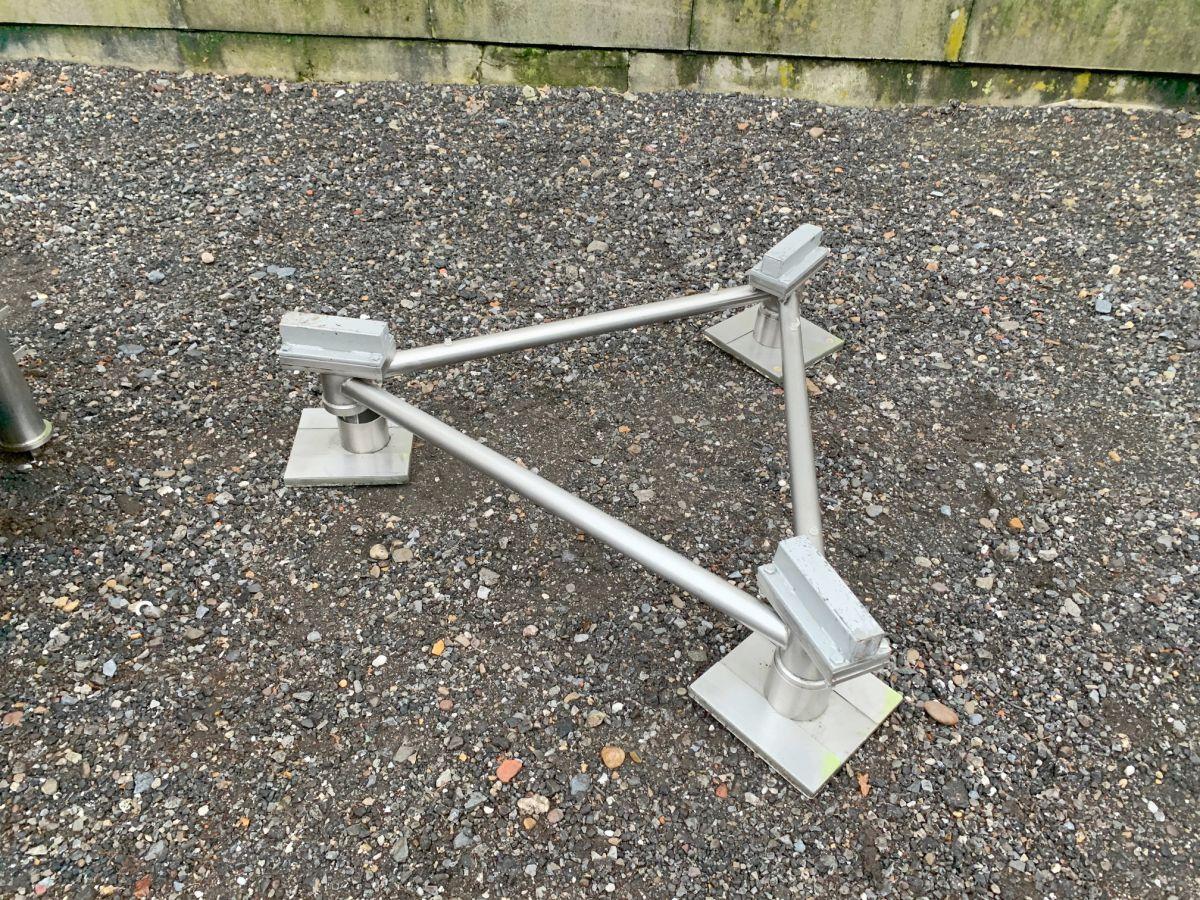

Fixation points: 3 non adjustable feet
Water pressure HE: 5 Bar
Hydraulic test pressure: 6,89 Bar
Working temperature HE cylinder: 135 °C
Manway(s): RVS 304

Gasket manway(s): unknown
Valve: RVS 304
Gasket shut-off valve (mat): unknown
Fixation point(s): RVS 304
Wet parts agitator(s): SS AISI 304 (V2A)

Suitable for food industry: yes
Documents included: no
Technical drawing included: no

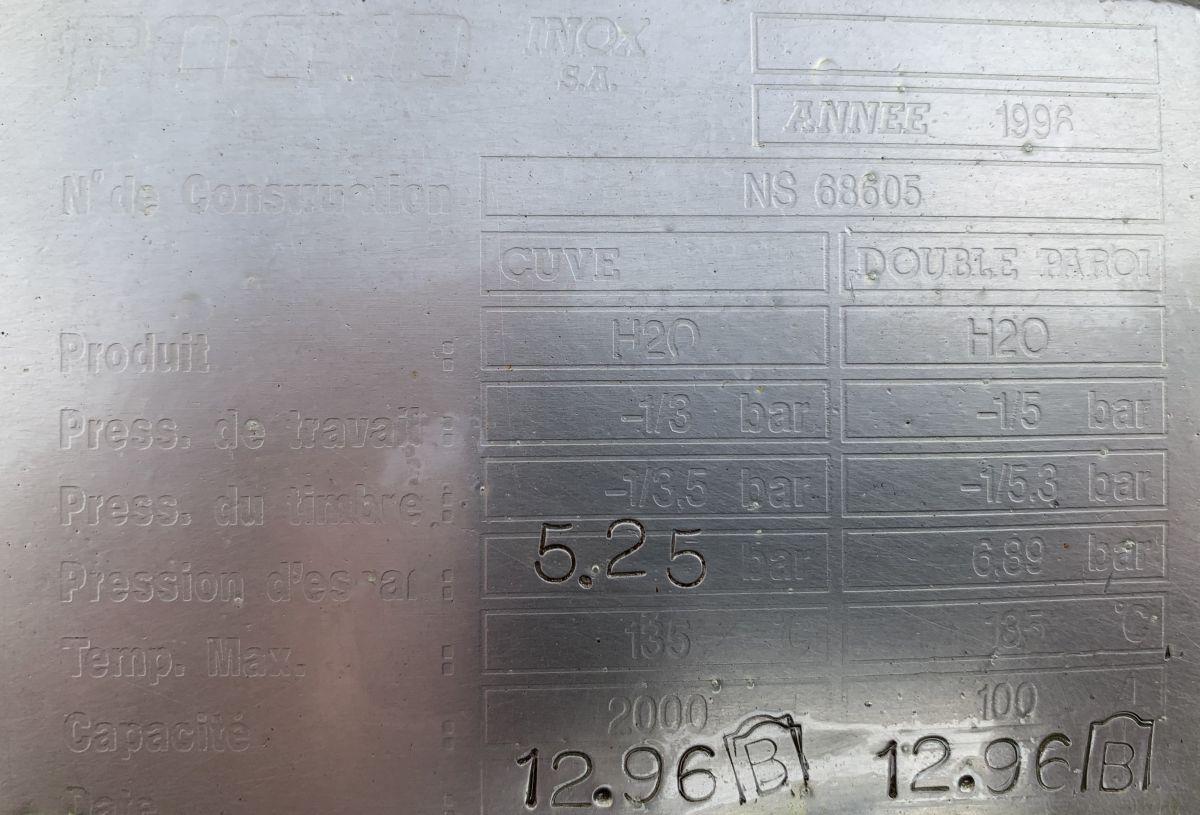

Registration plate on the tank: no
Flange for agitator: no

Number of manways: 1

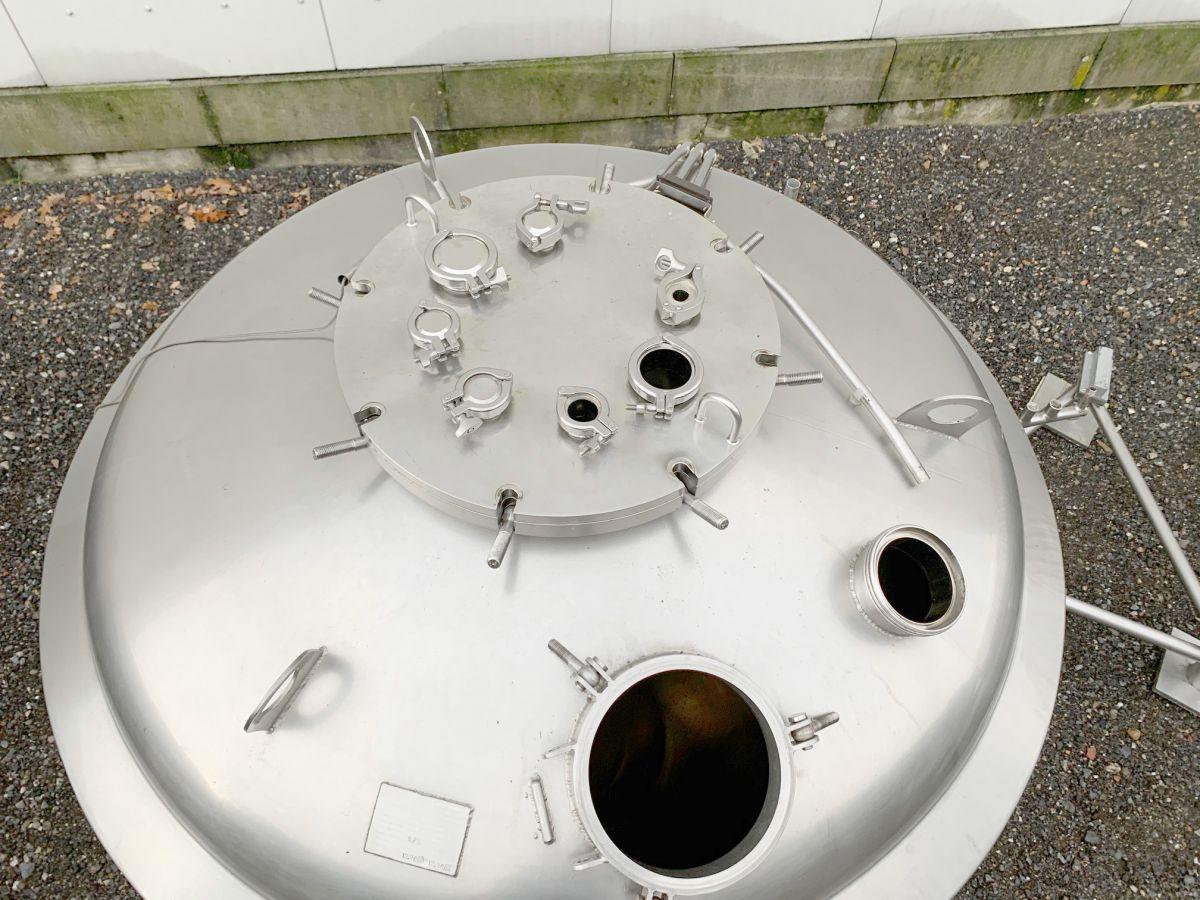

Position manway: at the top
Total outlet valve: yes

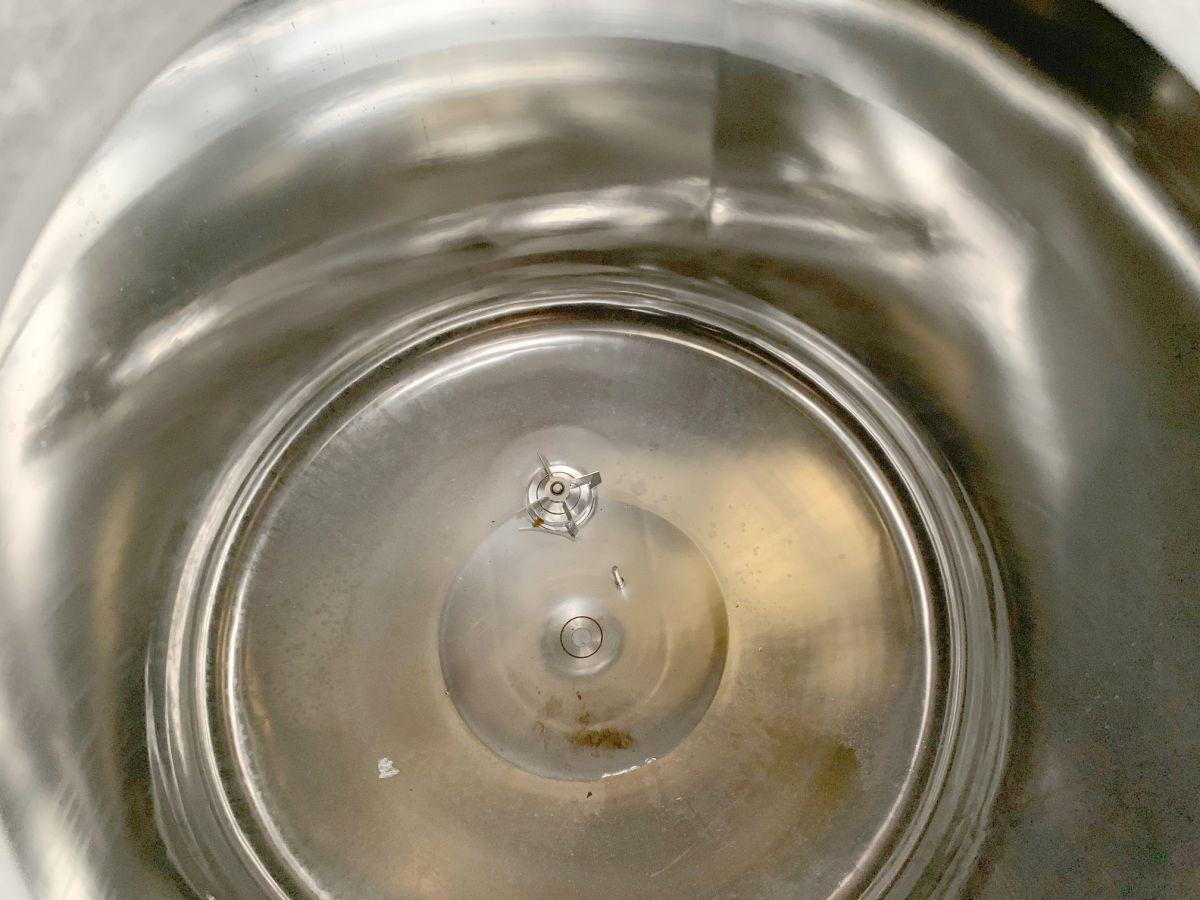

Agitator type: tripad
Position engine: in the bottom
