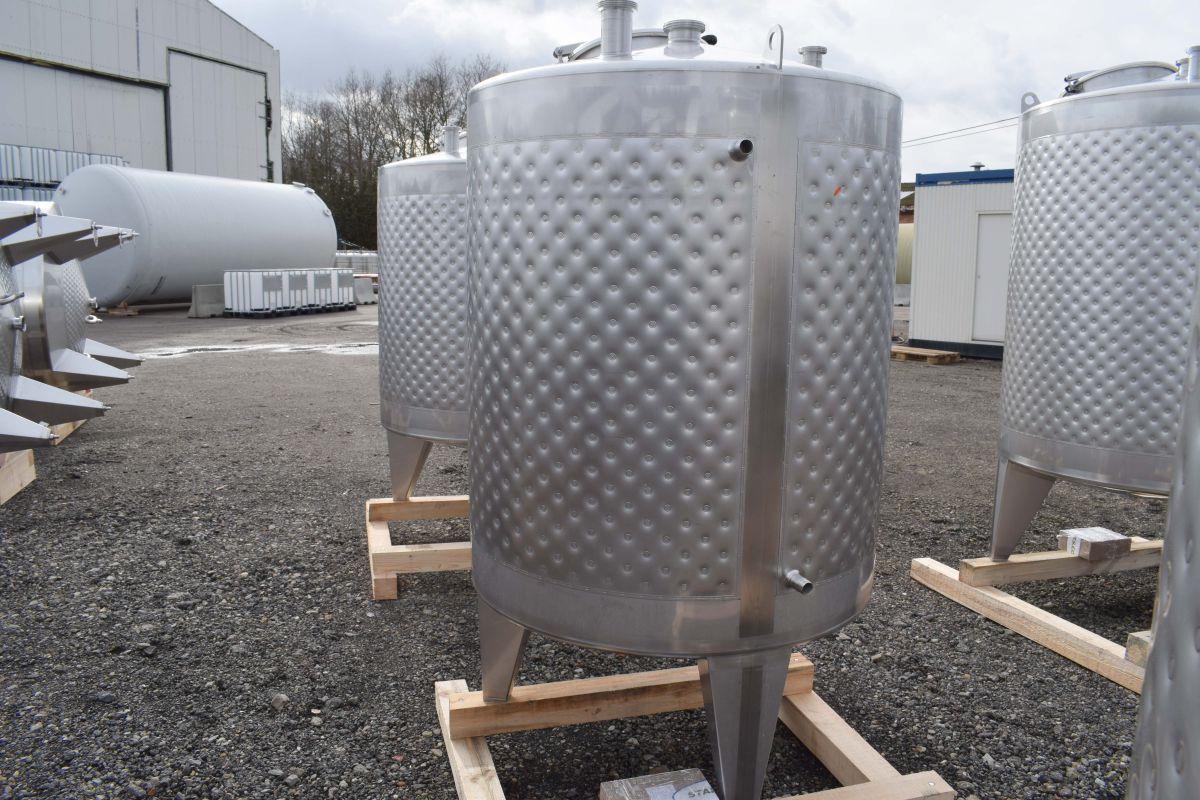

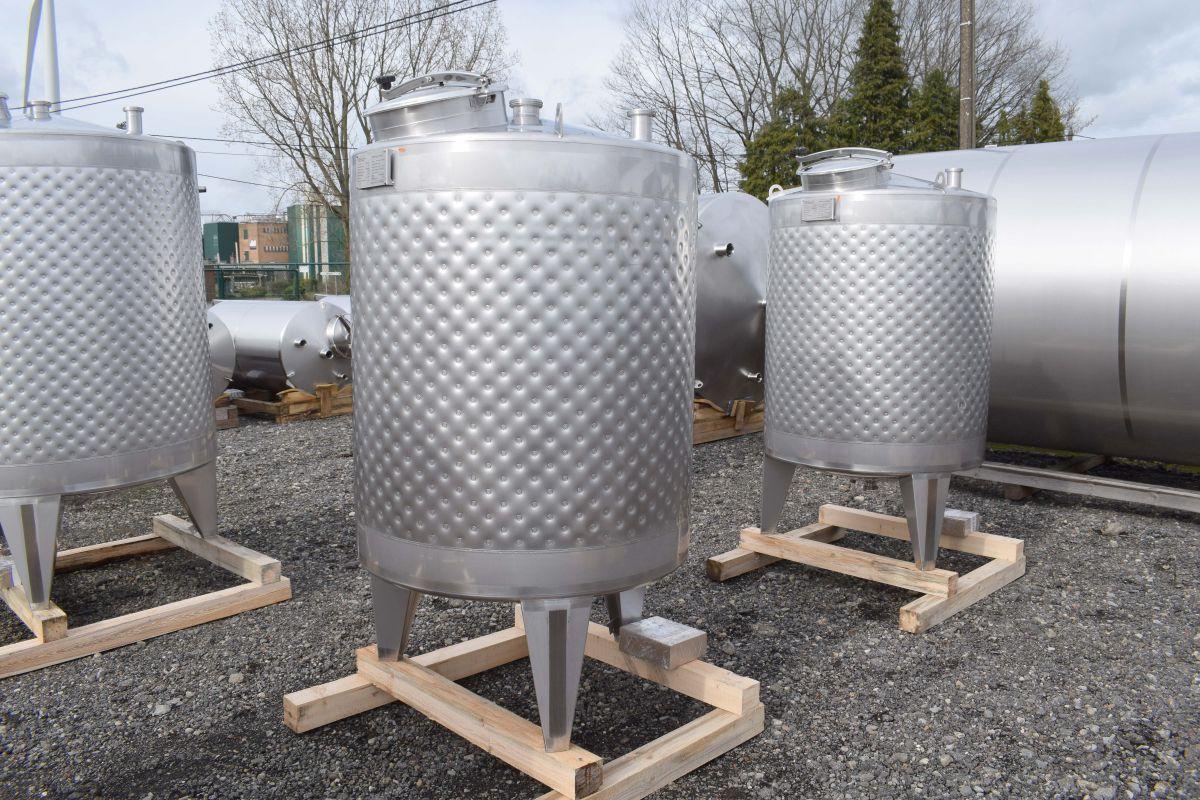

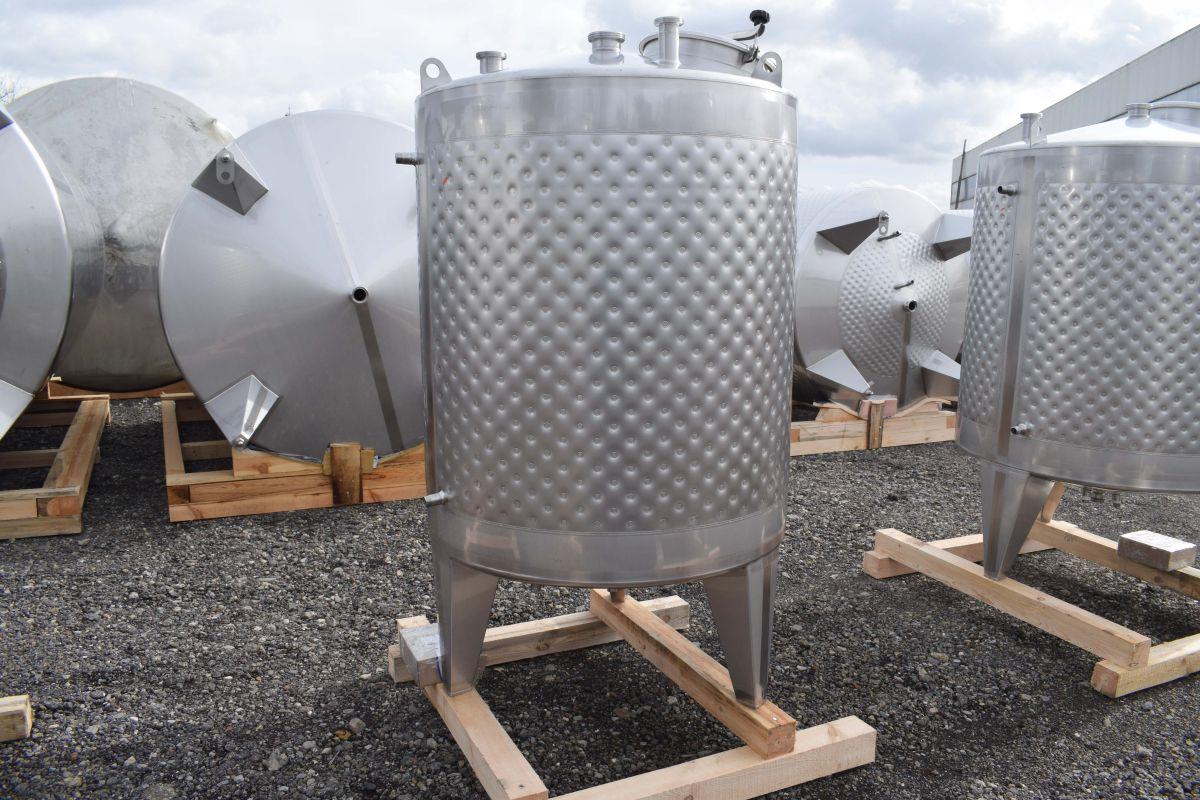

1330 liter i Syrafast 316
65,000.00 SEK/st exkl moms
Mer information
Volym i liter | 1330 |
---|---|
Nytillverkad/Begagnad | Nytillverkad |
Livsmedelsklassad | Ja |
Modell | Vertikal |
Material | Syrafast 316 |
Omrörare | Nej |
Uppvärmning/kylning | Ja |
Isolerad | Nej |

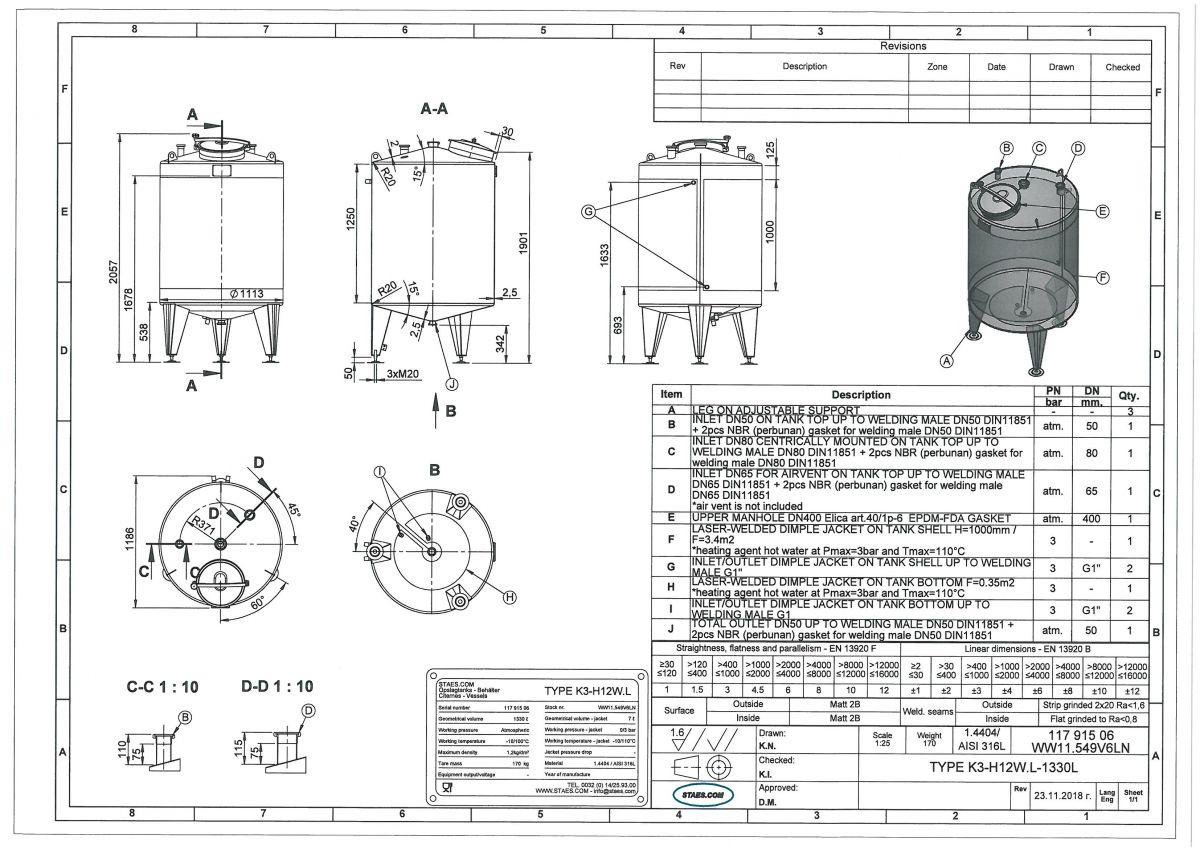

Ritning
Öppnaitem available on order
Article type: brand new storage tank – type K3-H12W.L
Capacity: 1.330 L
Maximal density of the product: 1.200
Ra inner weld: 0,80
Working pressure in tank: ATM – atmosferic
Max. working temperature: 100 °C
Min. working temperature: -10 °C
Material wet parts: SS AISI 316L (V4A)
Model: vertical
Configuration: single jacketed with heat-exchanger
Heat exchanger: yes
Insulation: no
Agitator: yes, optional
Mobile tank: no
Top type: conical 15 °
Shape of tank: cylindrical
Bottom type: conical 15 °
Total discharge: yes
Fixation points: 3 adjustable feet

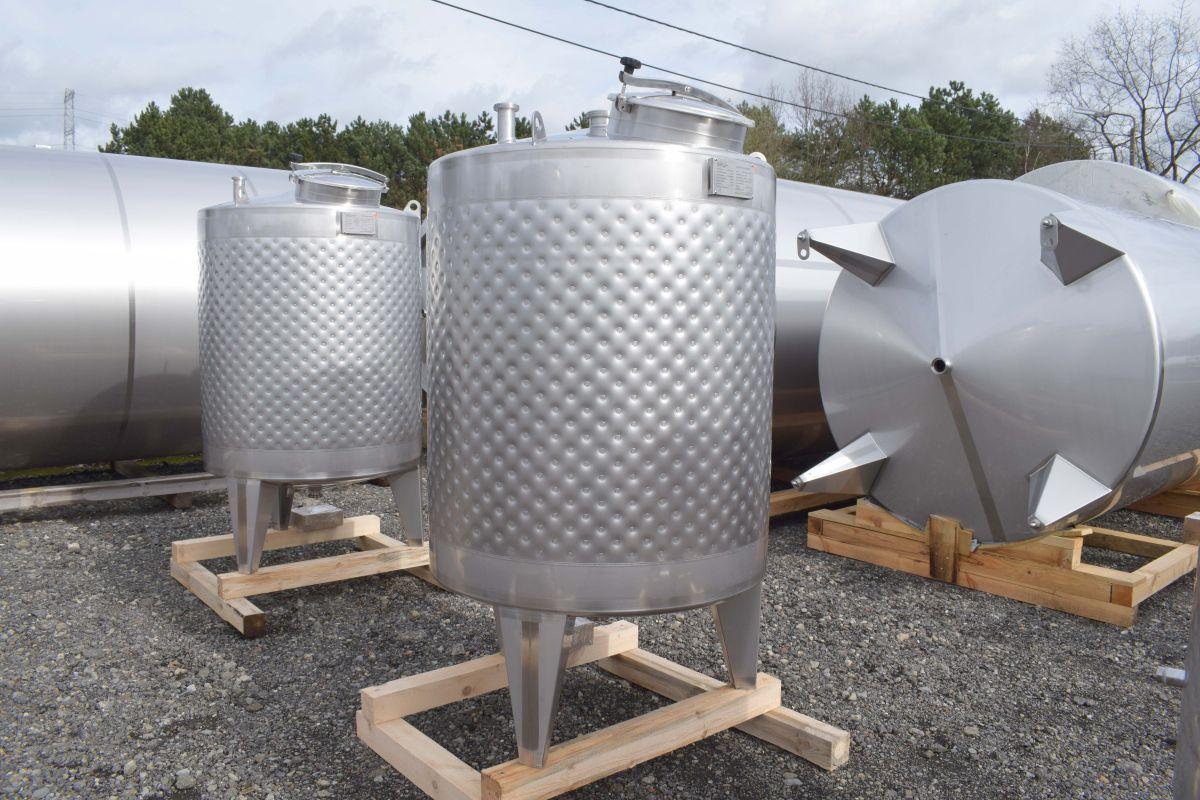

Type of HE on the cylinder: dimple-jacket
Position HE: the complet cilinder
Height HE: 1.000 mm
Number of sections: 1
Water pressure HE: 3 Bar
Steam pressure HE: 0,50 Bar
Contact surface cylinder: 3,40 m²
Connection HE: 1″ BSP
Working temperature HE cylinder: 110 °C

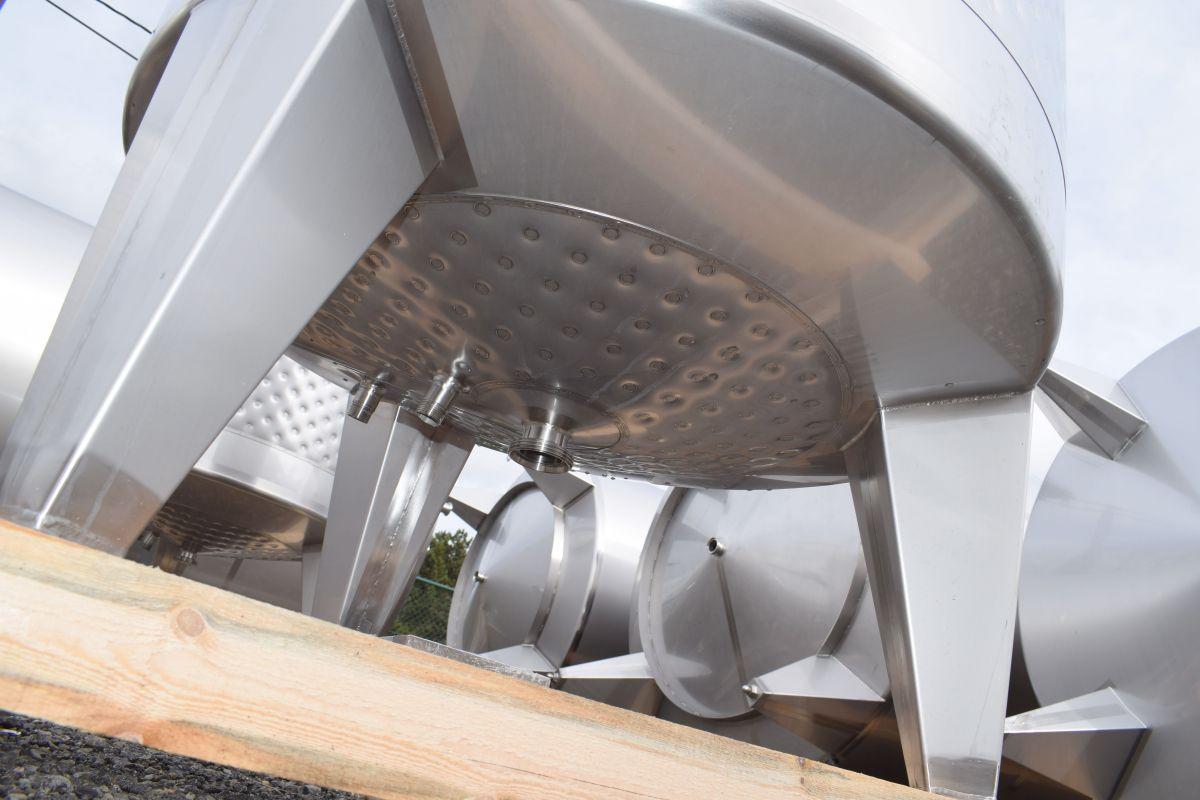

Type of HE on the bottom: dimple-jacket
Water pressure HE: 3 Bar
Steam pressure HE: 0,50 Bar
Contact surface bottom: 0,35
Connection HE: 1″ BSP
Working temperature HE bottom: 110 °C
Heat exchanger: RVS 304
Manway(s): RVS 316
Gasket manway(s): EPDM
Fixation point(s): RVS 304
Suitable for food industry: yes
Documents included: yes, optional
Technical drawing included: yes
Registration plate on the tank: yes
with inspection of: TUV
Flange for agitator: no

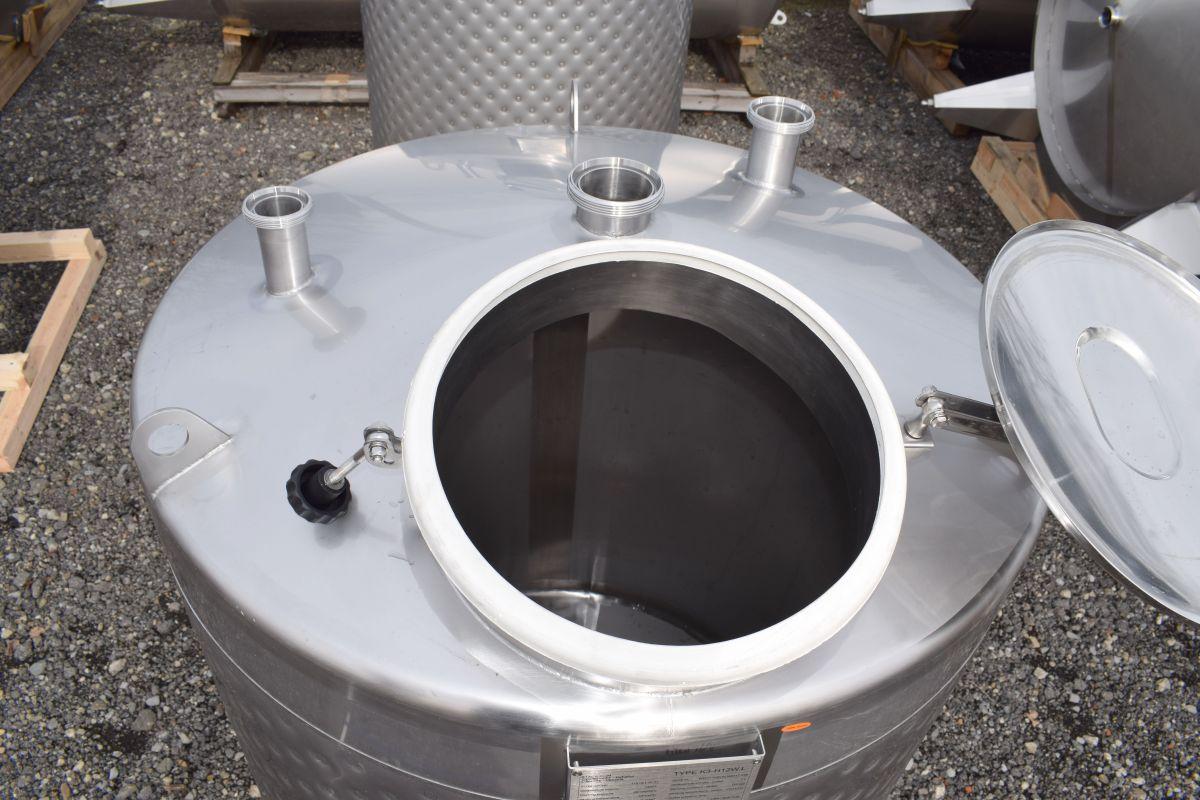

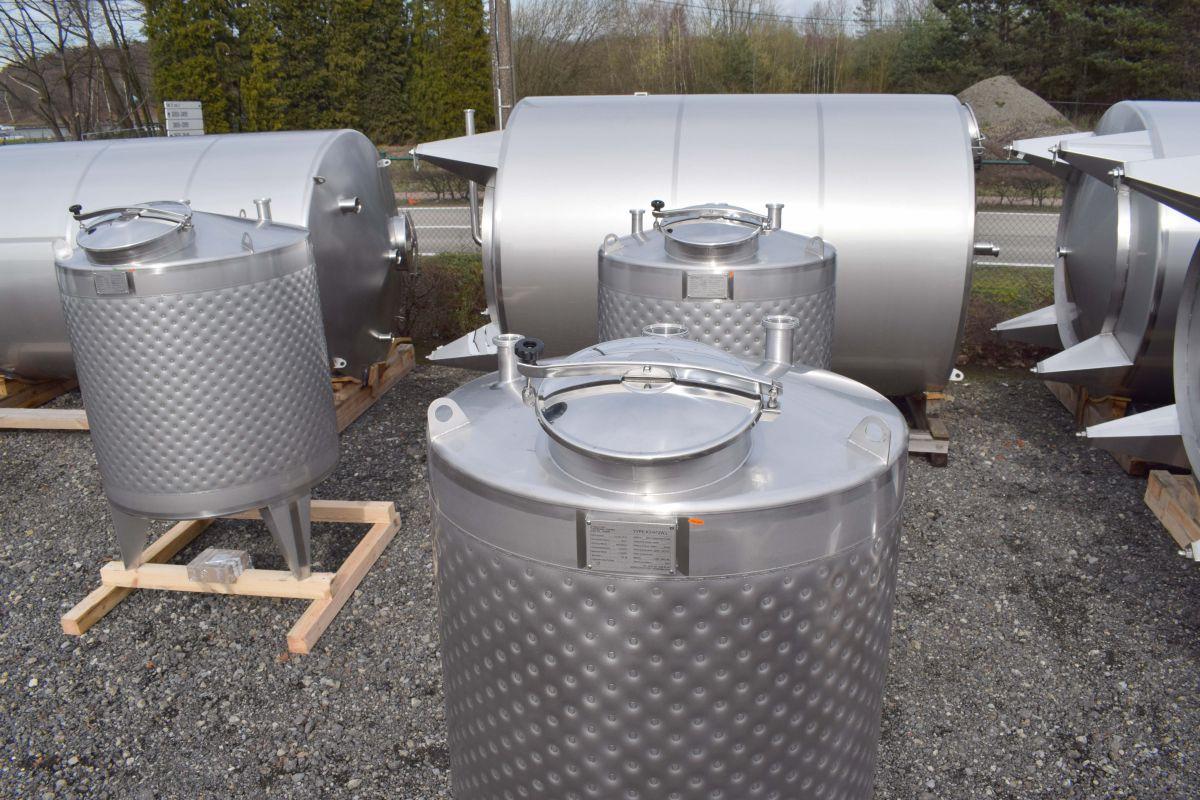

Number of manways: 1

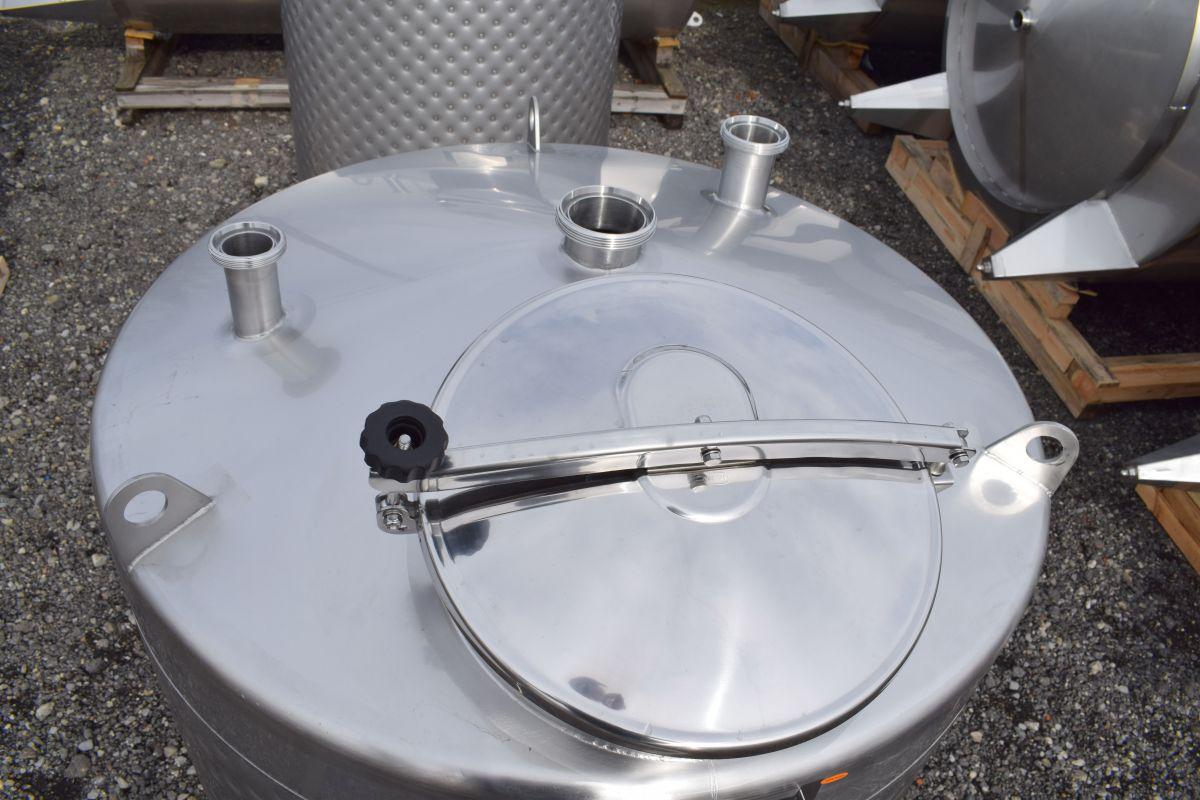

Position manway: at the top
Manway 1: 400 mm
Spray ball: yes, optional
Tank outlet: inside Ø 50 mm
Outlet type: DIN11851 male
Total outlet valve: yes, optional
Top: 2 mm
Cylinder: 2,50 mm
Bottom: 2,50 mm
Distance from outlet to ground: 342 mm
Outer diameter tank: 1.113 mm
Cylinder height: 1.250 mm
Feet height: 538 mm
Total height of tank: 2.060 mm
Empty weight tank: 180
