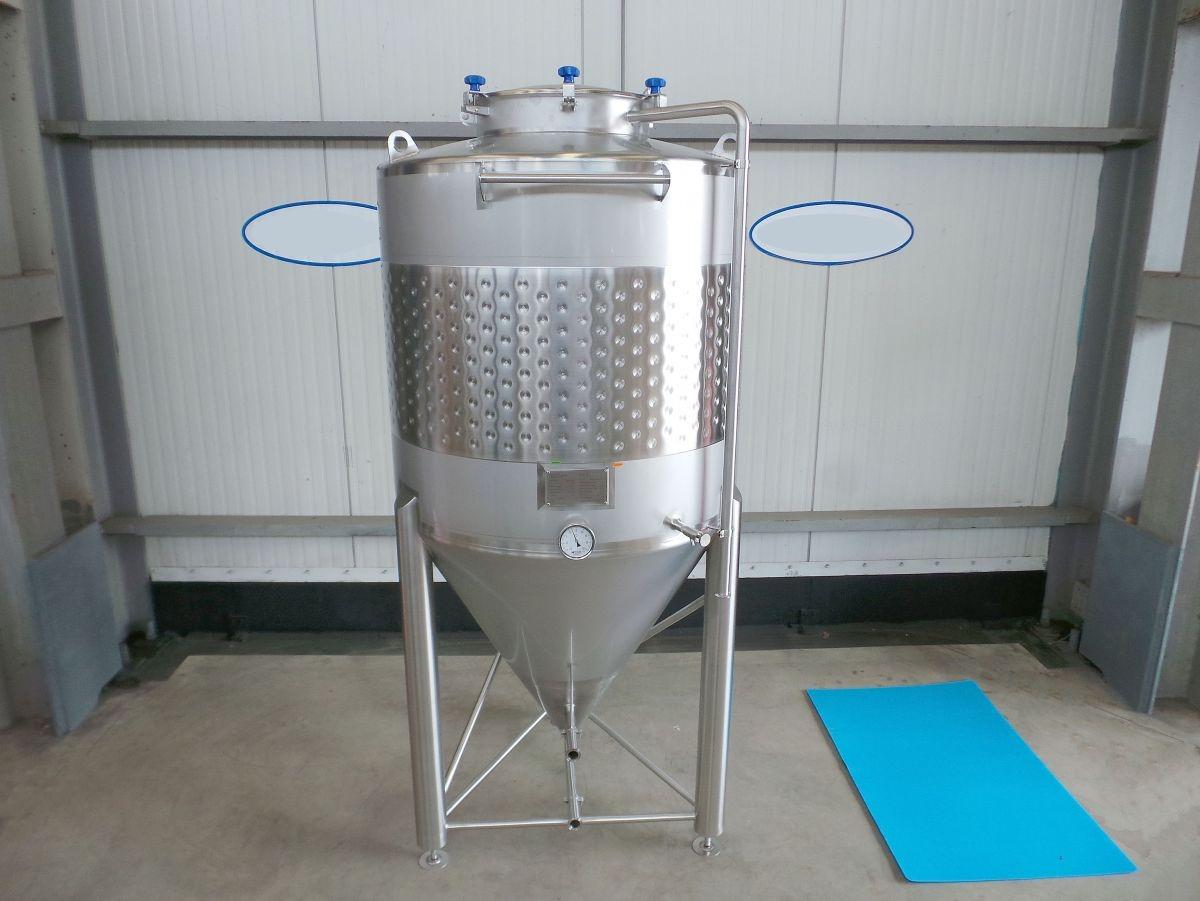

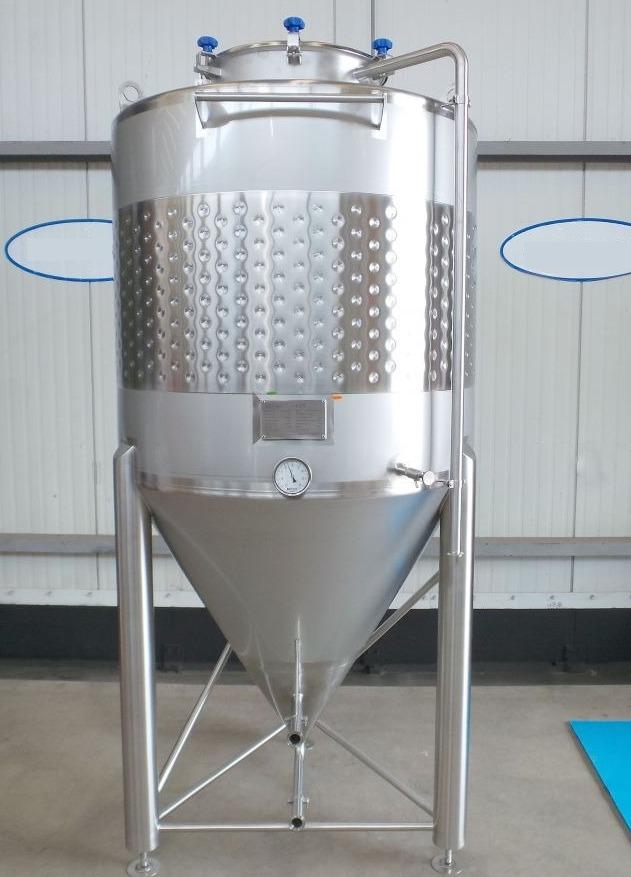

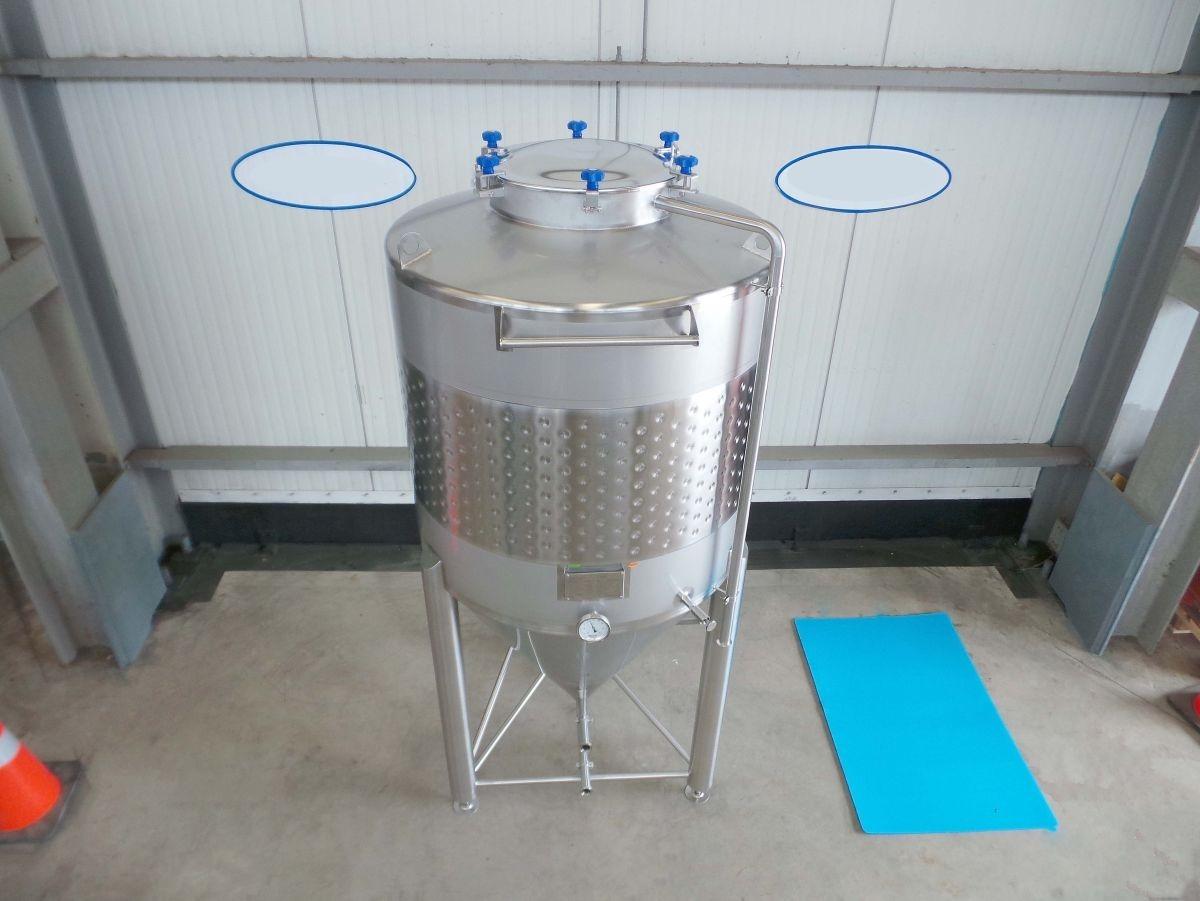

1300 liter tank i Rostfritt 304

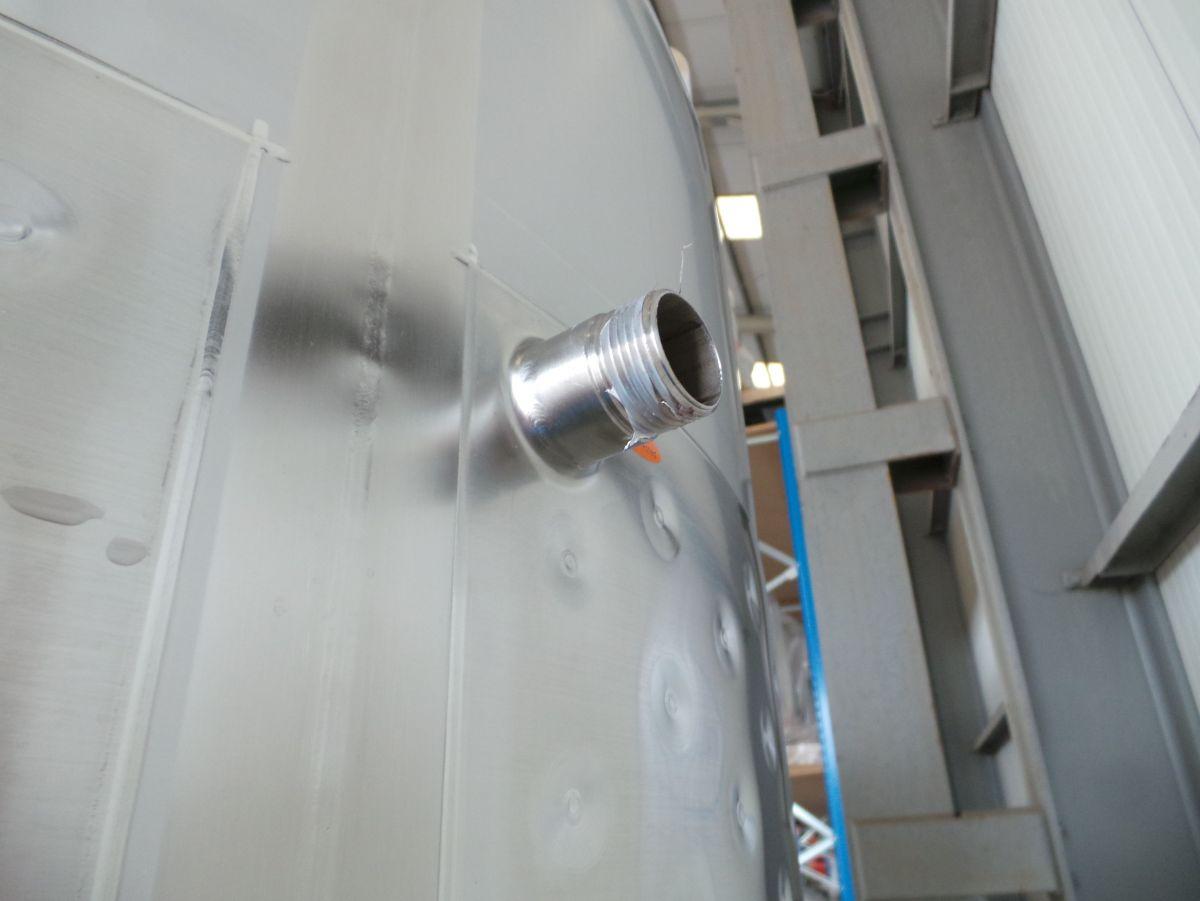

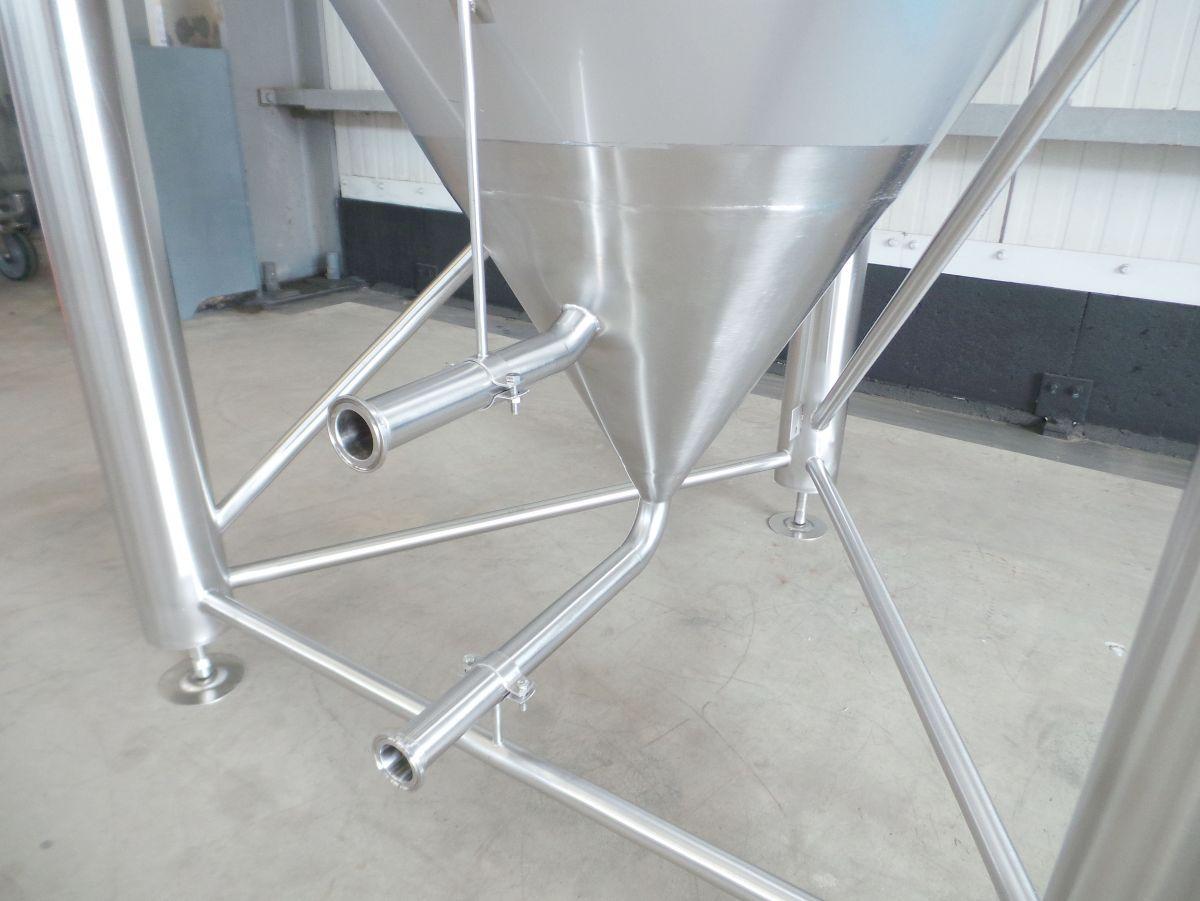

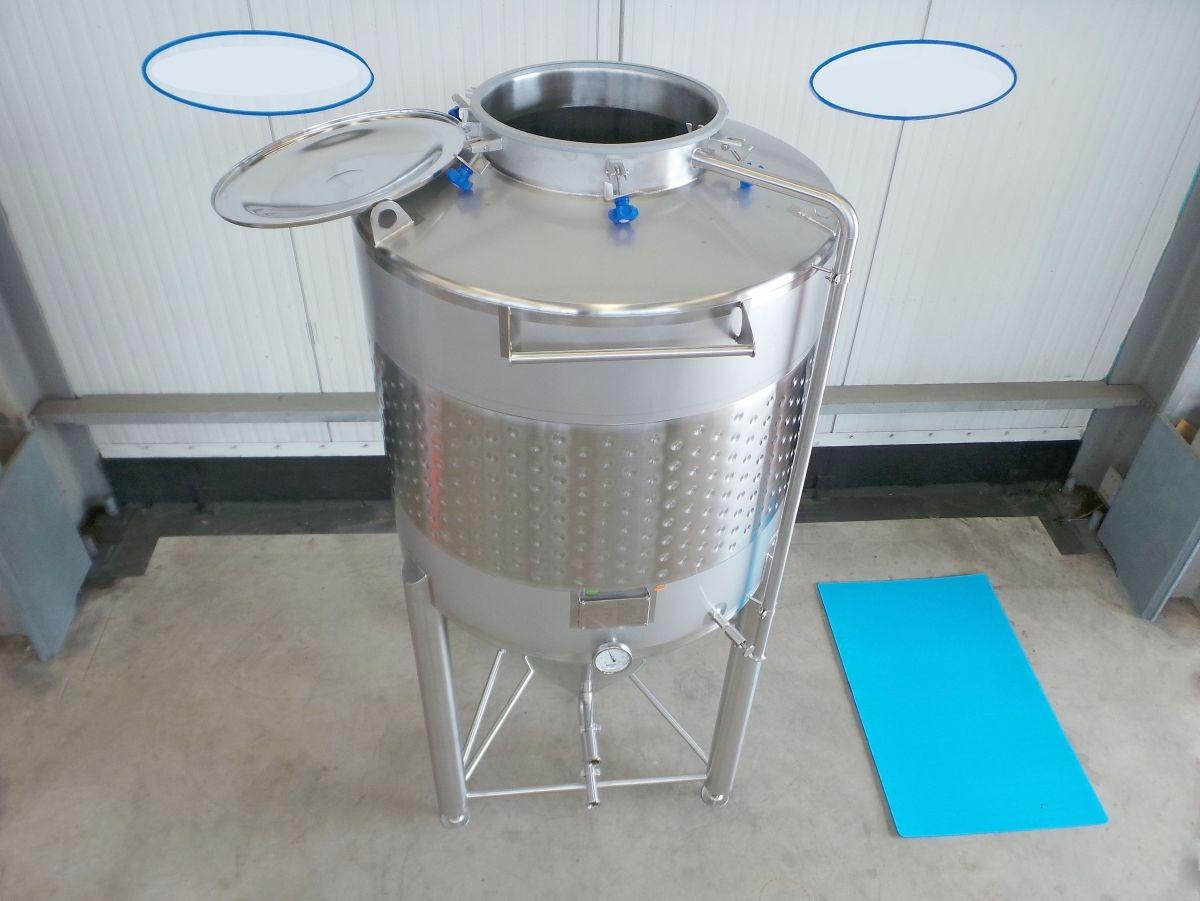

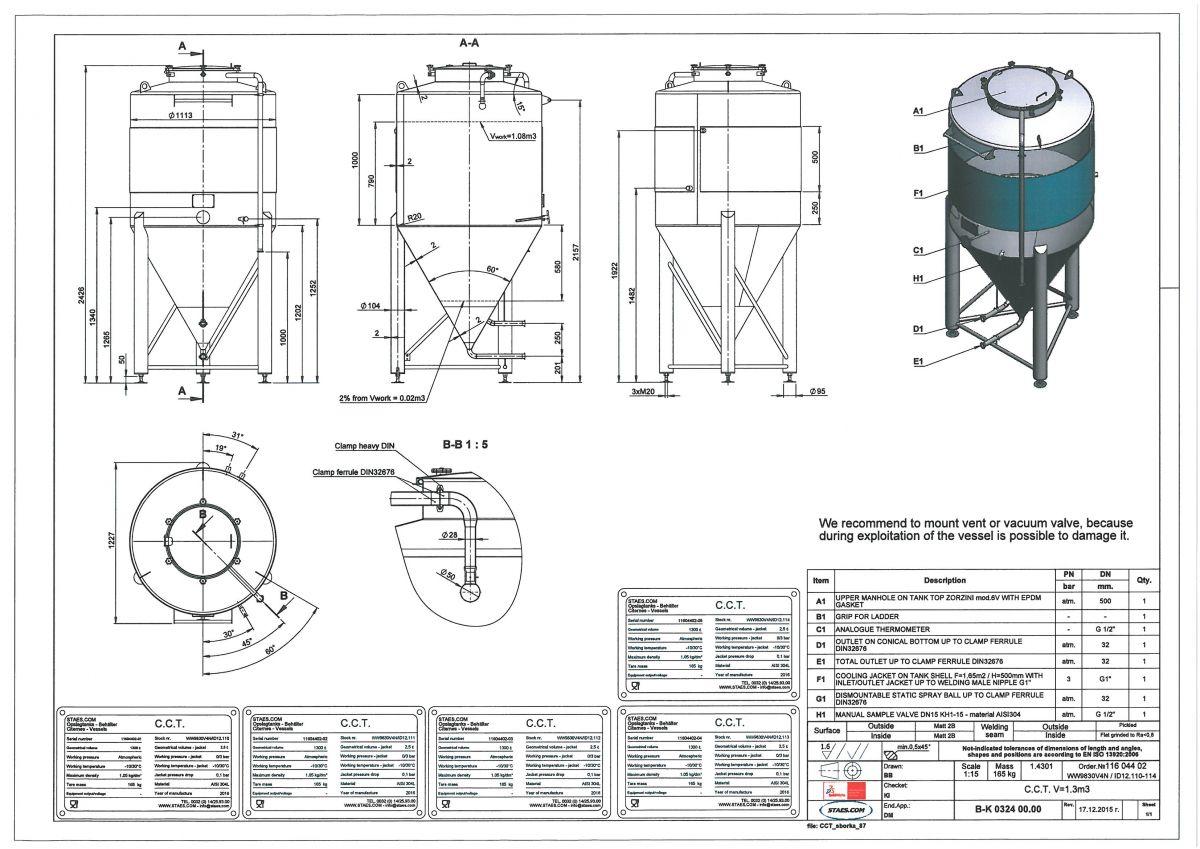

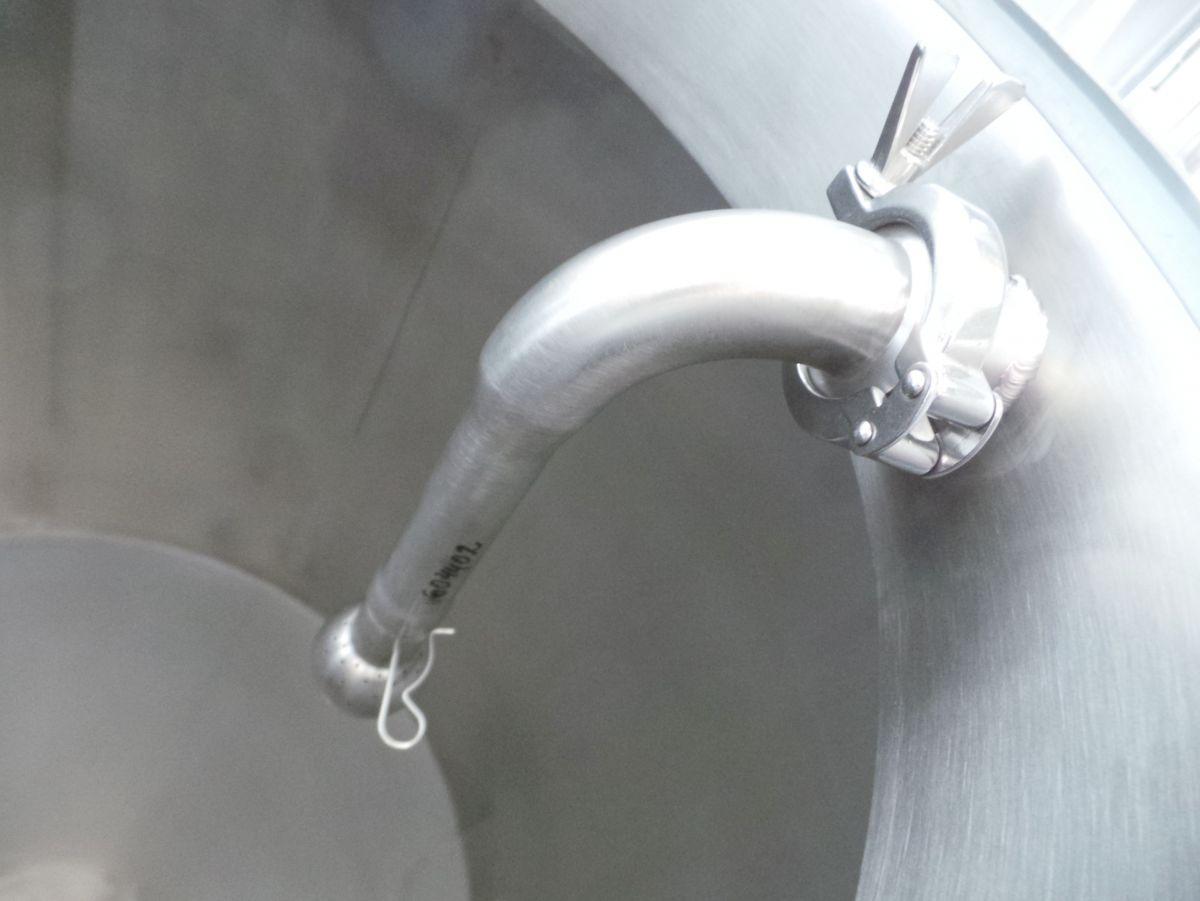

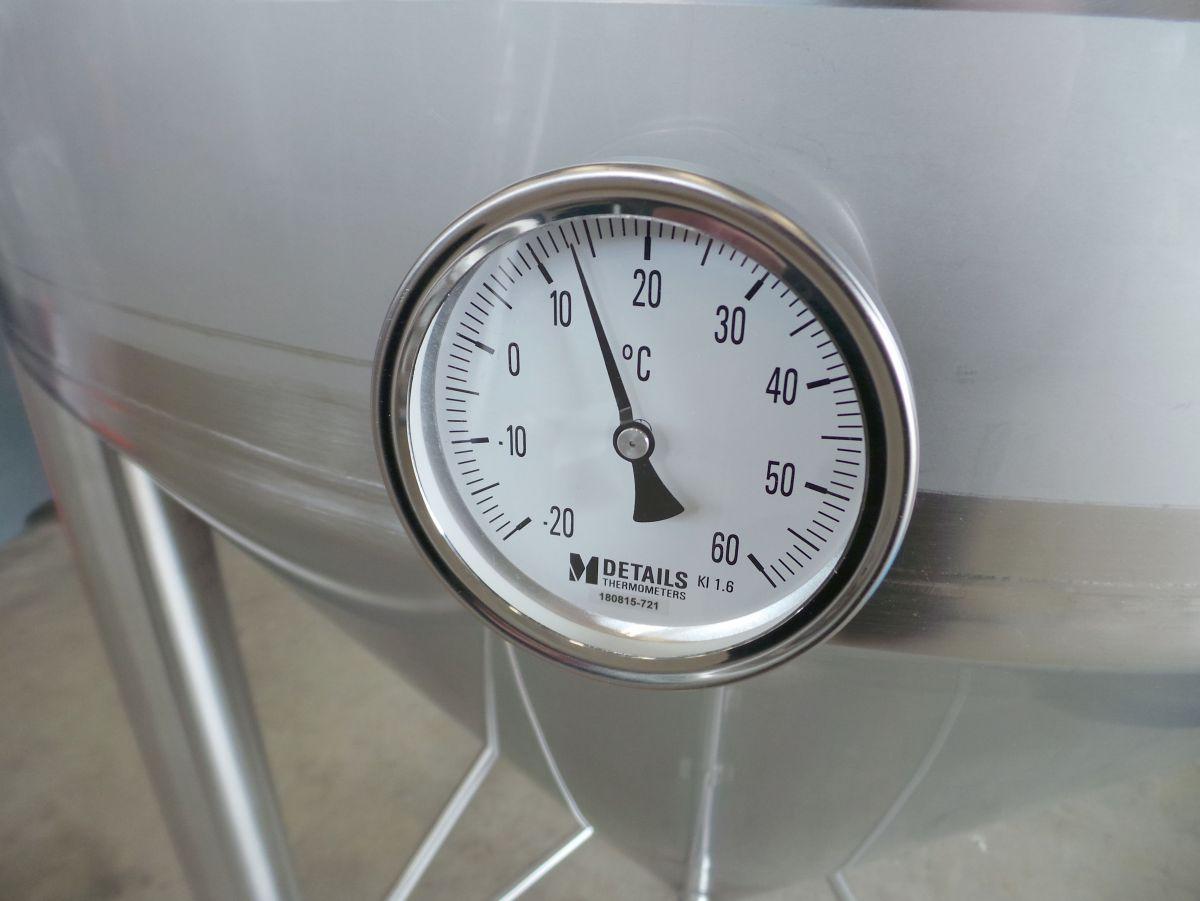

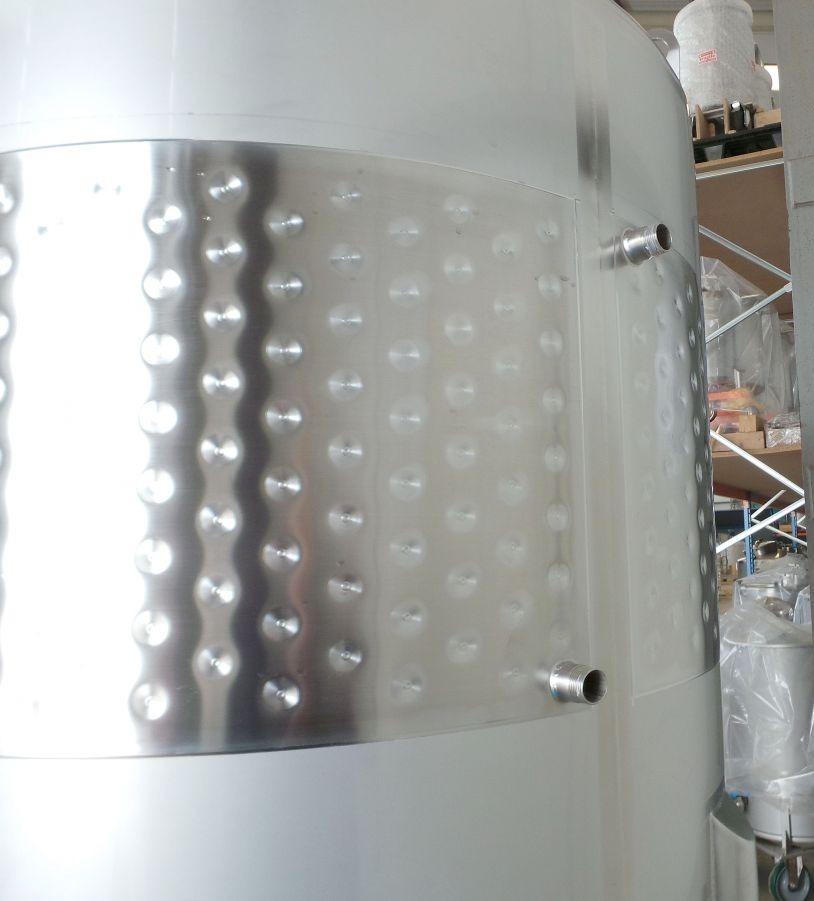

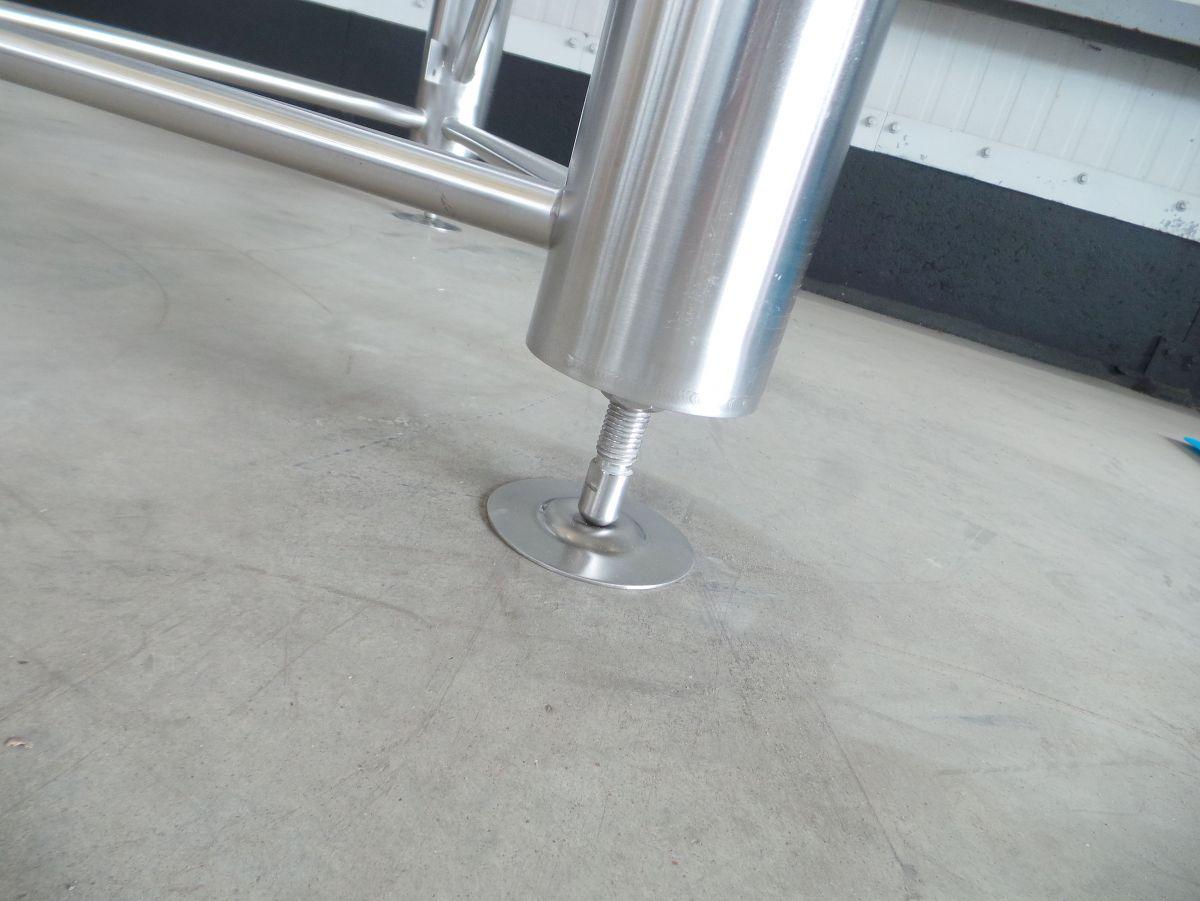

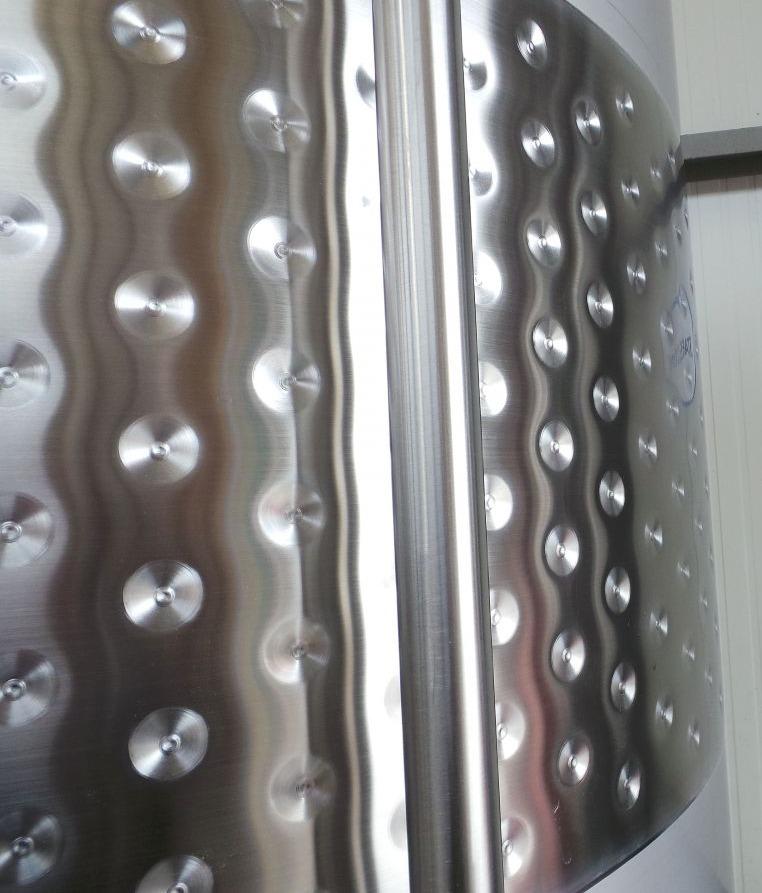

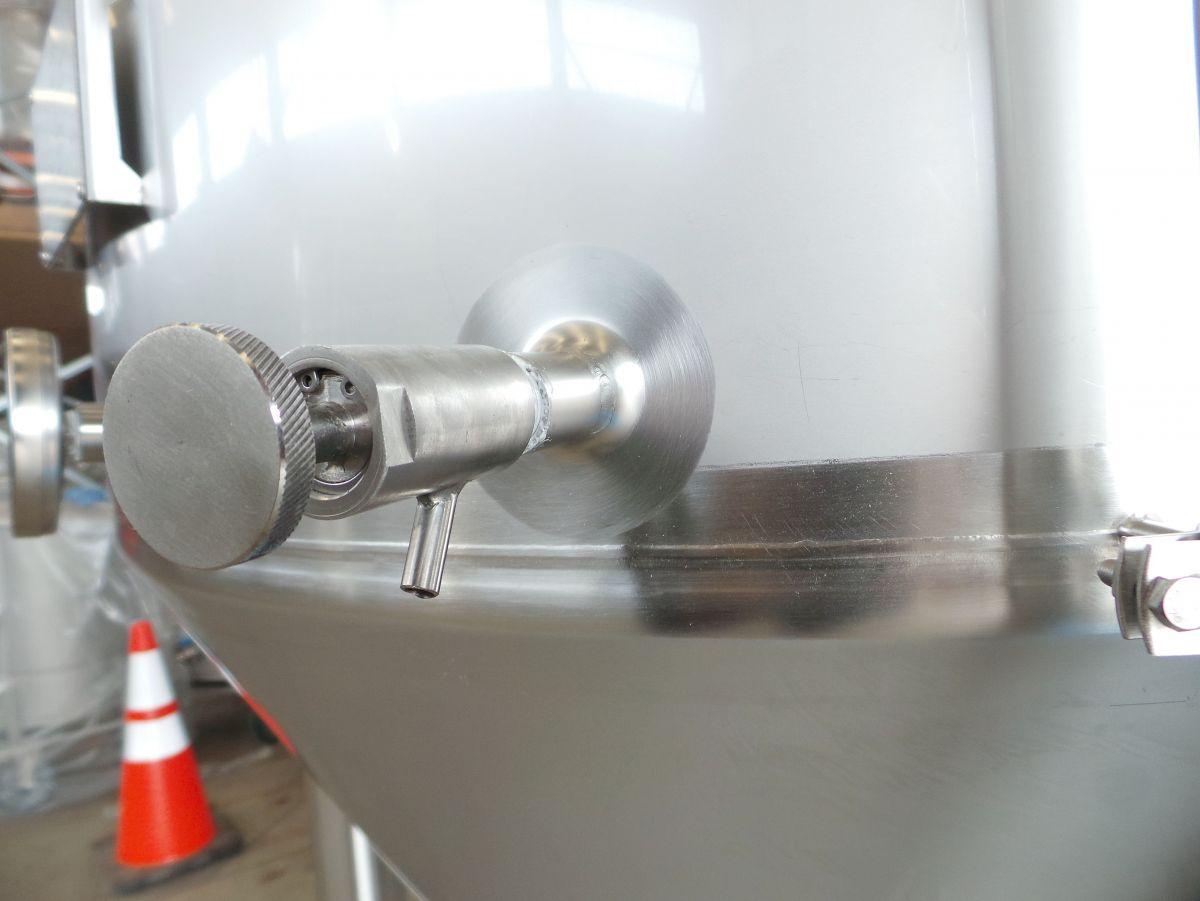

item available on order Article type: brand new fermentation tank - type CCT-HL Additional information: Included in the price: cip spraybol, thermometer, sample valve. In option: butterfly valve, airlock (see options). Volumetric volume (L): 1.300 L Max. density P (kg/m³): 1.050 Ra inner weld: 0,80 Finish stainless steel: 2b Pressure in tank: pressure Max. pressure (Bar): 0,50 Bar Max. temperature (°C): 30 °C Material wet parts: SS AISI 304 (V2A) Model: vertical Configuration: single jacketed with heat-exchanger Heat exchanger: yes Insulation: no Mobile tank: no Top type: conical Shape of tank: cylindrical Bottom type: strong conical Total discharge: yes Fixation points: 3 adjustable feet Legs: Set of baseplates and adjusting pieces included Type of HE on the cylinder: dimple-jacket Position HE: the middle part of the cilinder Height HE: 500 mm Number of sections: 1 Water pressure HE: 3 Bar Contact surface cylinder: 1,65 m² Connection HE: 1" BSP Working temperature HE cylinder: -10 °C Heat exchanger: RVS 304 Manway(s): RVS 304 Gasket manway(s): EPDM Valve: RVS 316L Fixation point(s): RVS 304 Suitable for food industry: yes Documents included: yes, optional Technical drawing included: yes Registration plate on the tank: yes Flange for agitator: no Number of manways: 1 Position of manway: at the top Height manhole 1 (mm): 500 mm CIP spray ball: no Tank outlet: inside Ø 32 mm Outlet type: DIN32676 CLAMP FERULLE Total outlet valve: no, optional Adjustable legs: yes Agitator: no Top: 3 mm Cylinder: 2 mm Bottom: 2 mm Internal diameter tank: 1.113 mm Distance from outlet to ground: 200 mm Outer diameter tank: 1.120 mm Cylinder height: 1.000 mm Height of bottom: 1.000 mm Feet height: 1.202 mm Total height of tank: 2.426 mm Empty weight tank: 165
