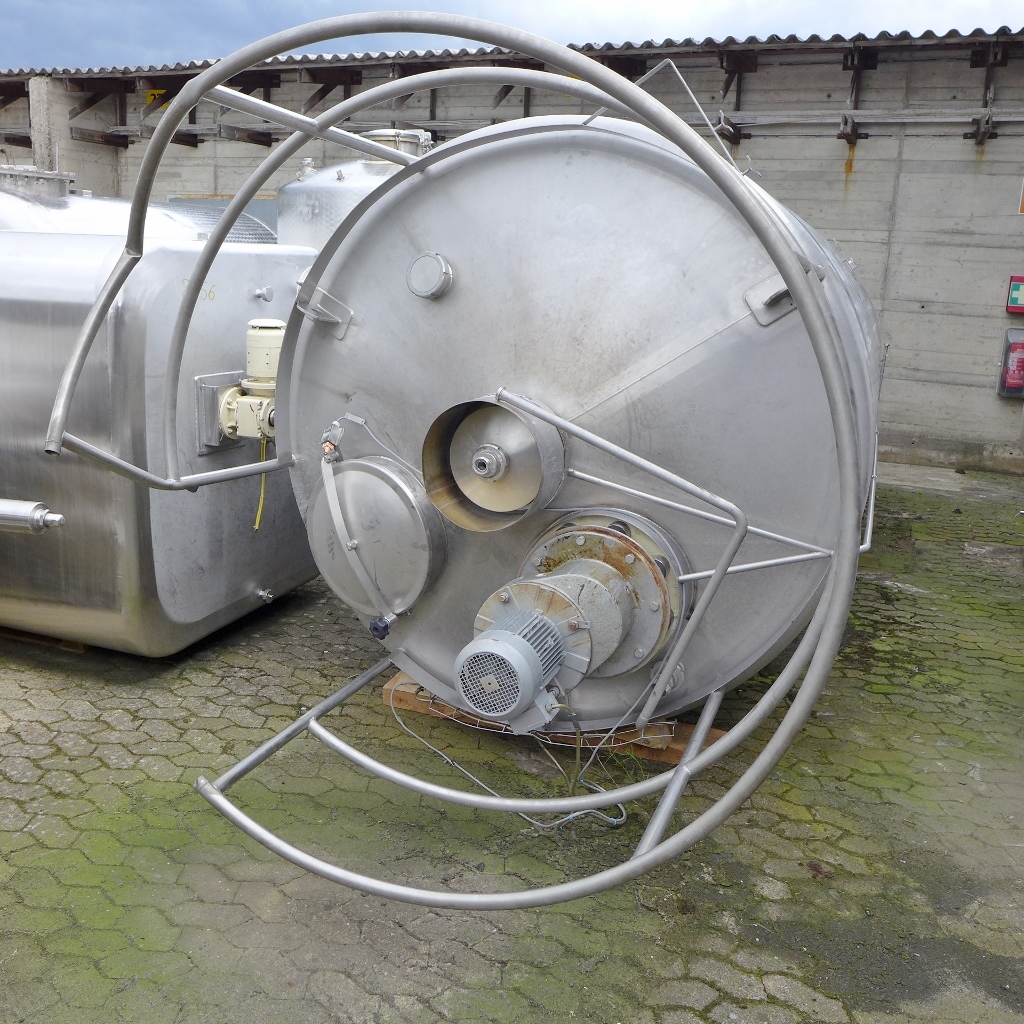

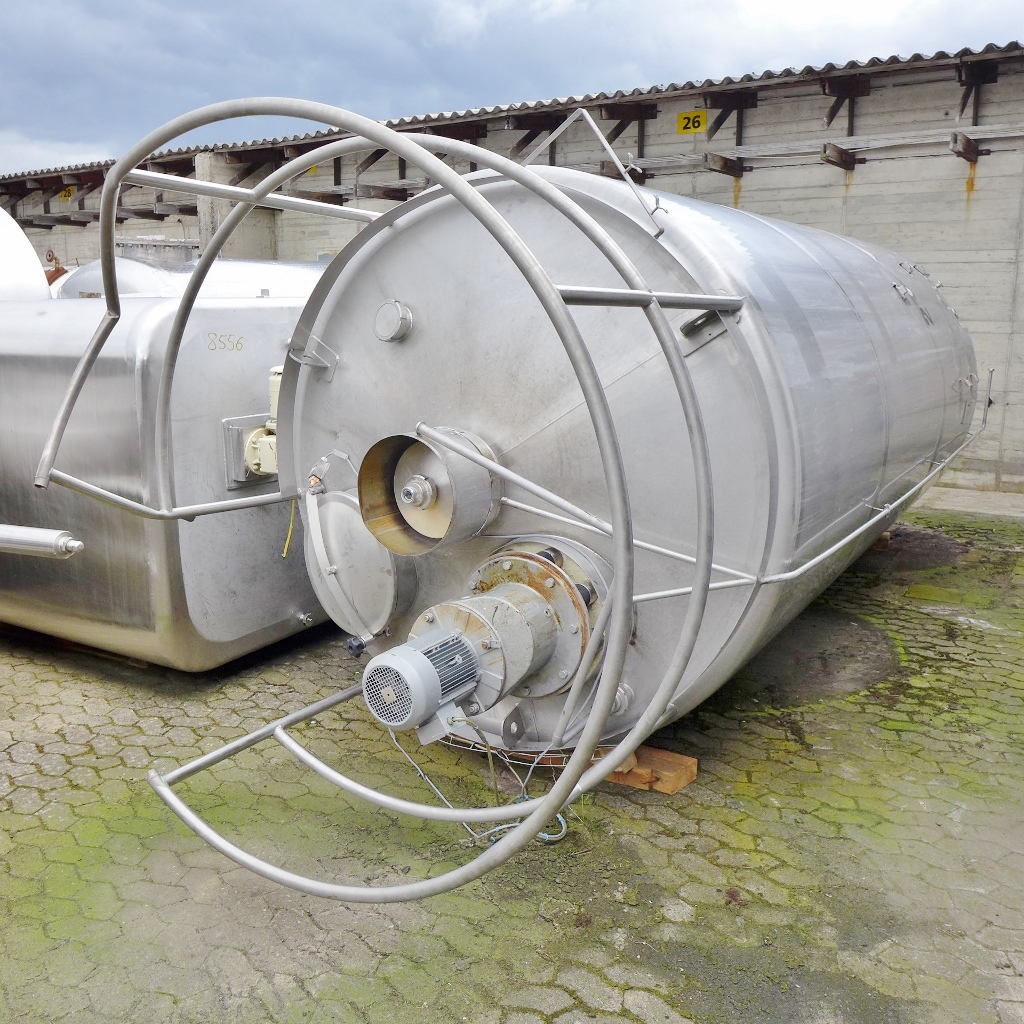

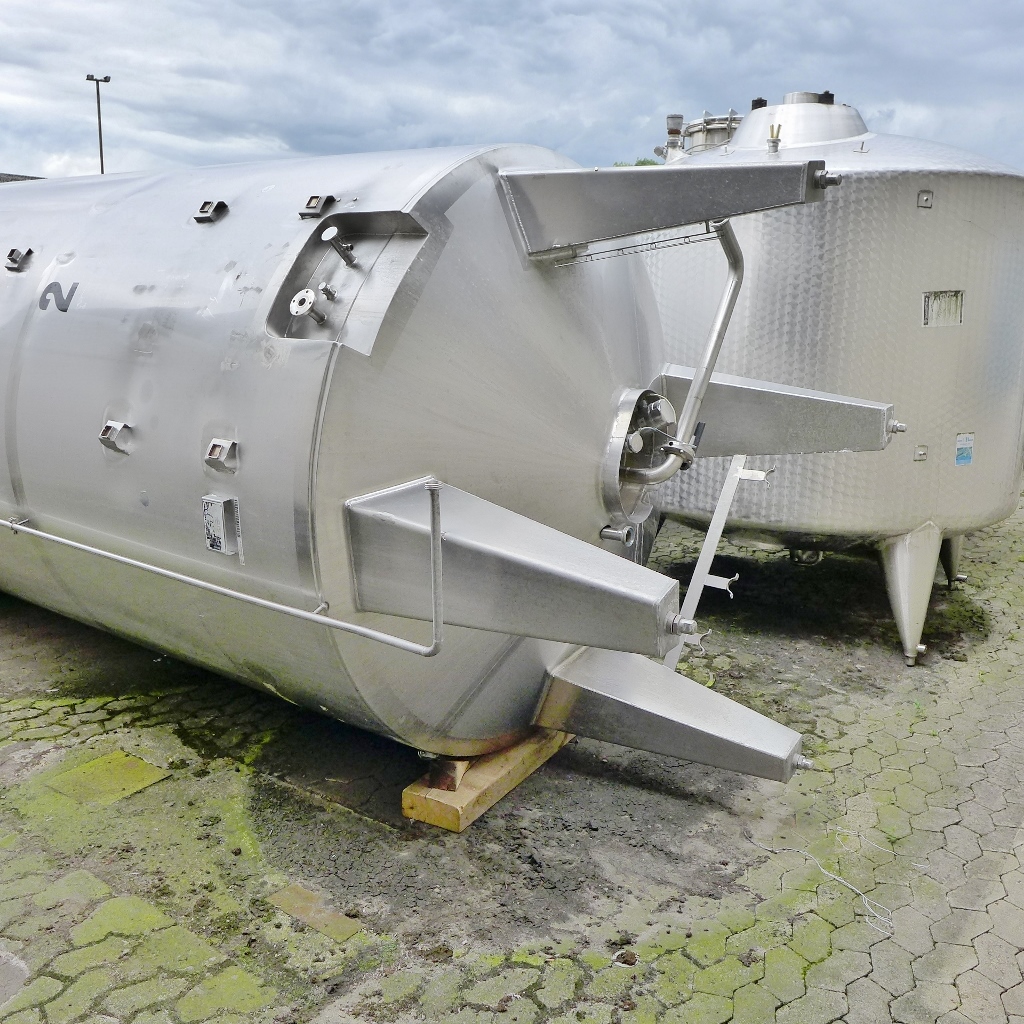

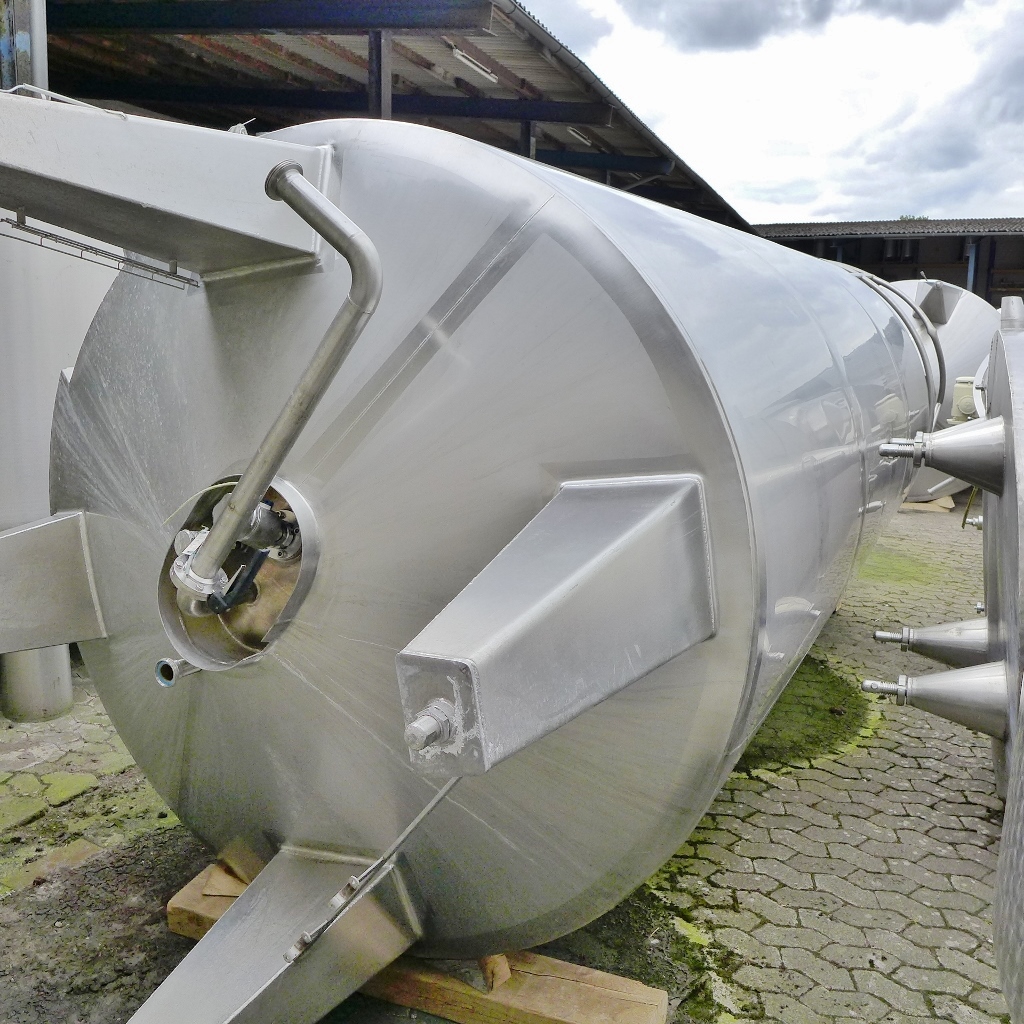

12400 liter tank i Rostfritt 304

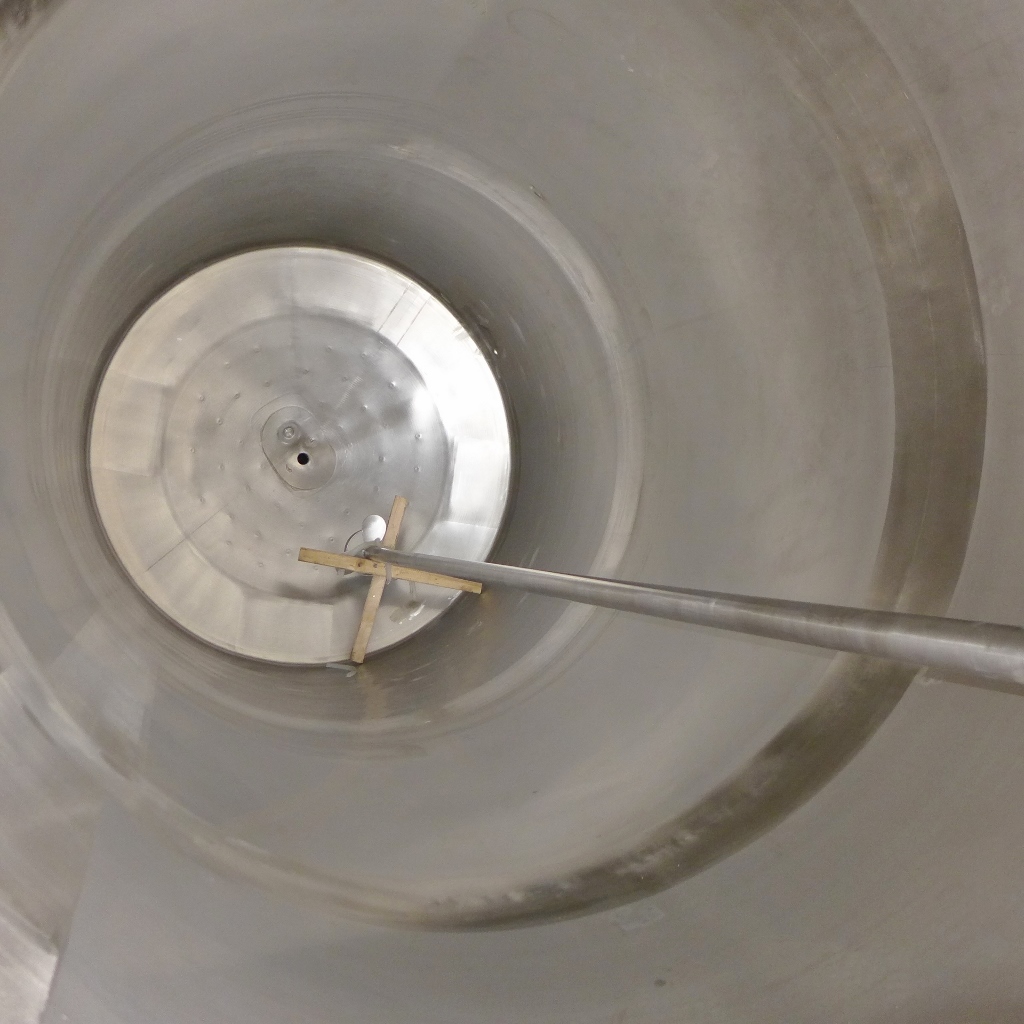

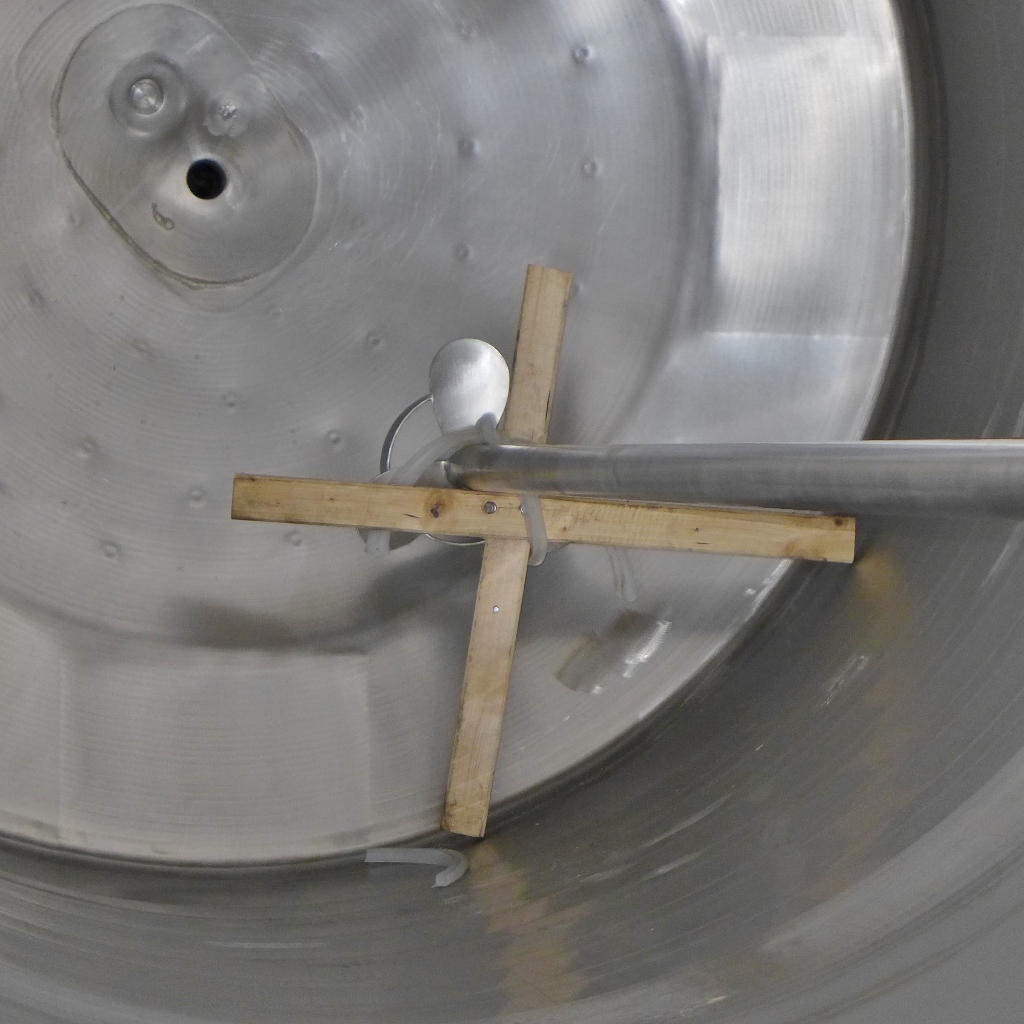

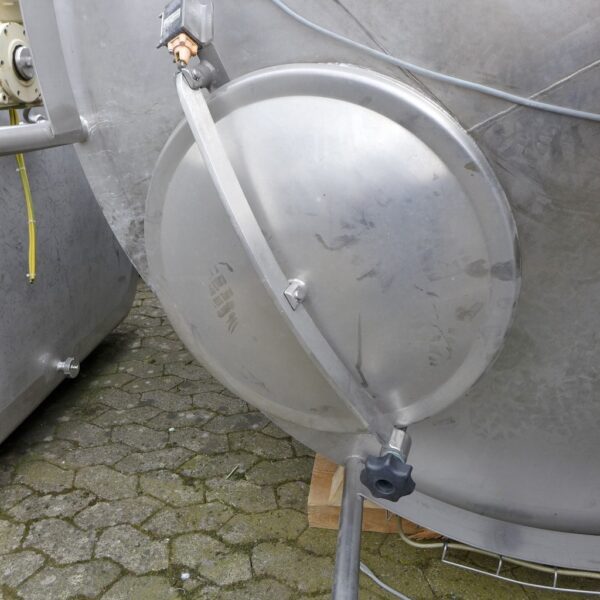

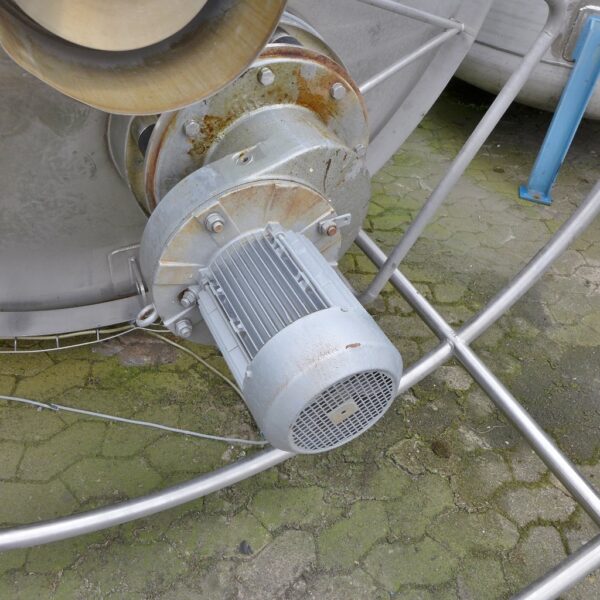

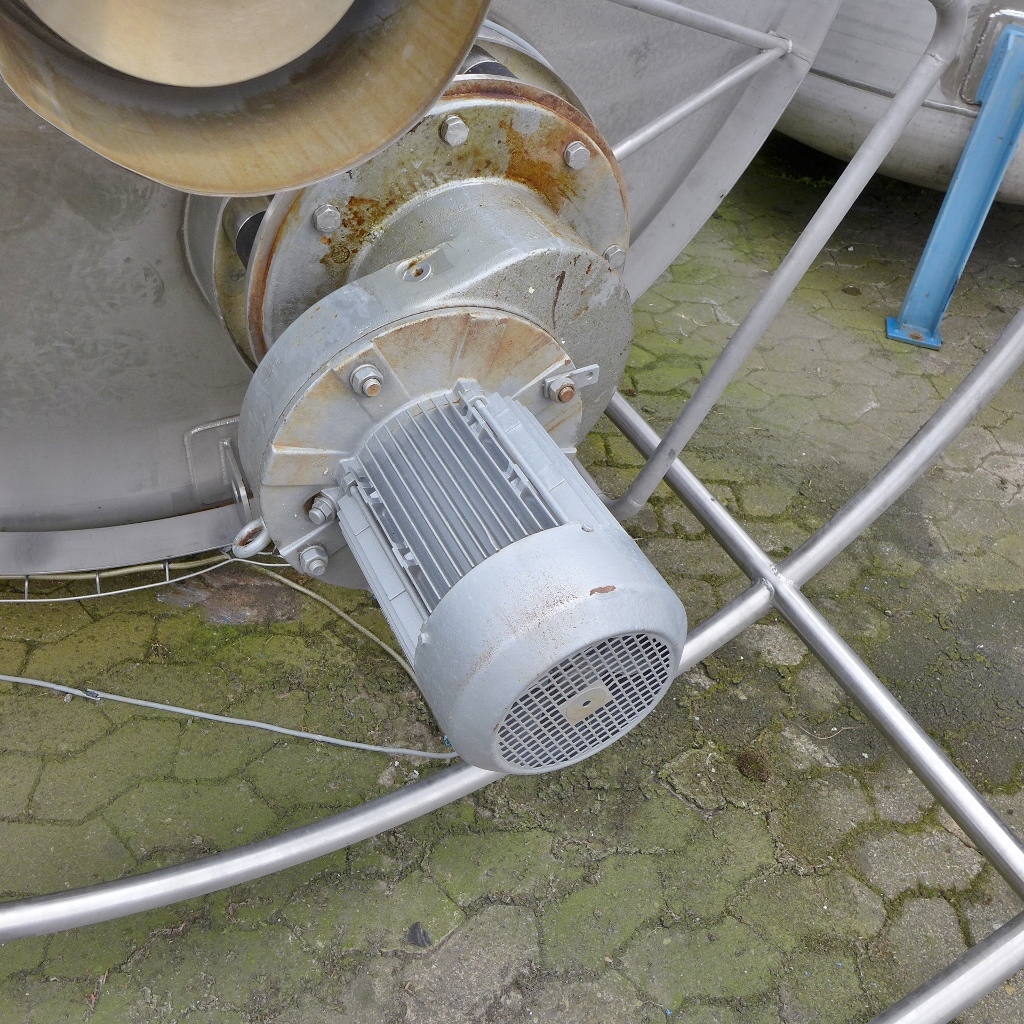

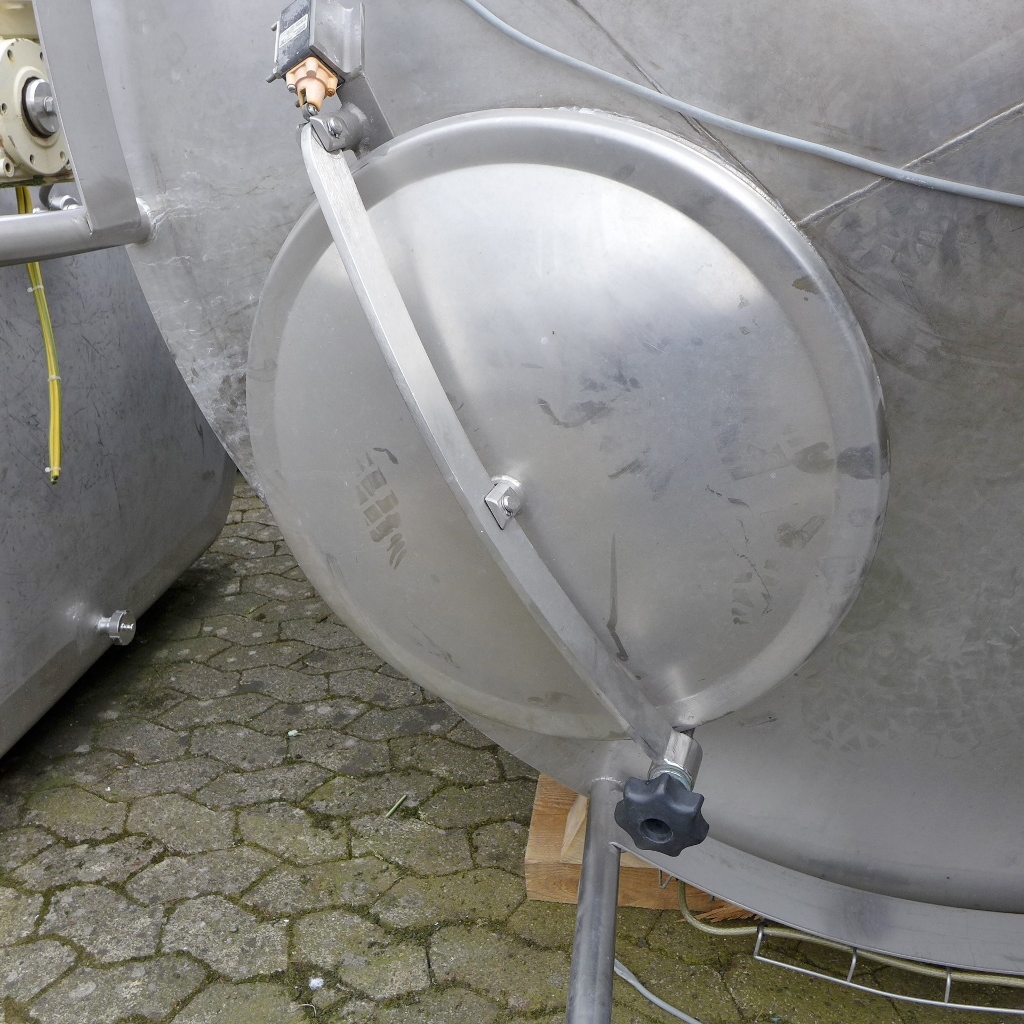

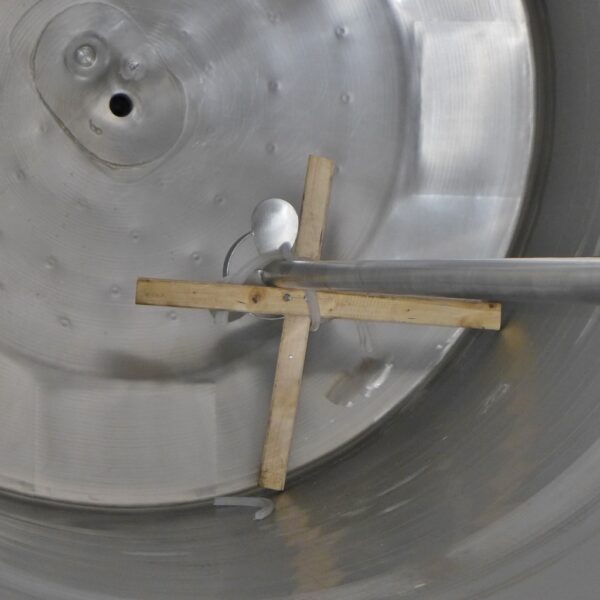

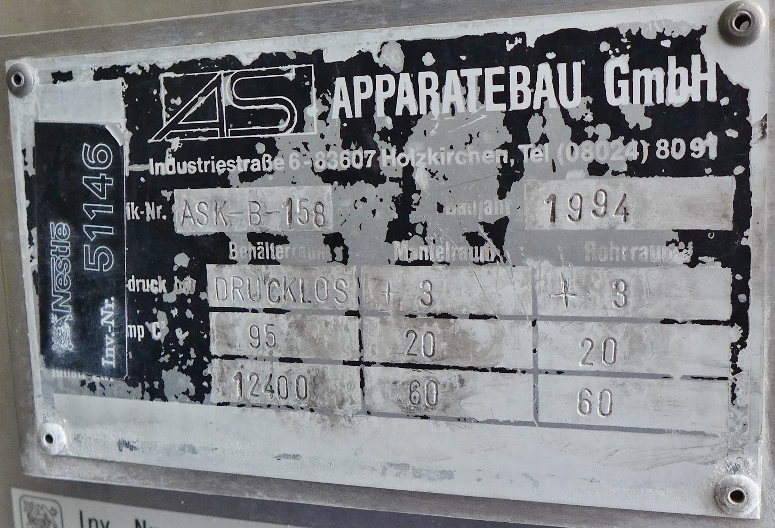

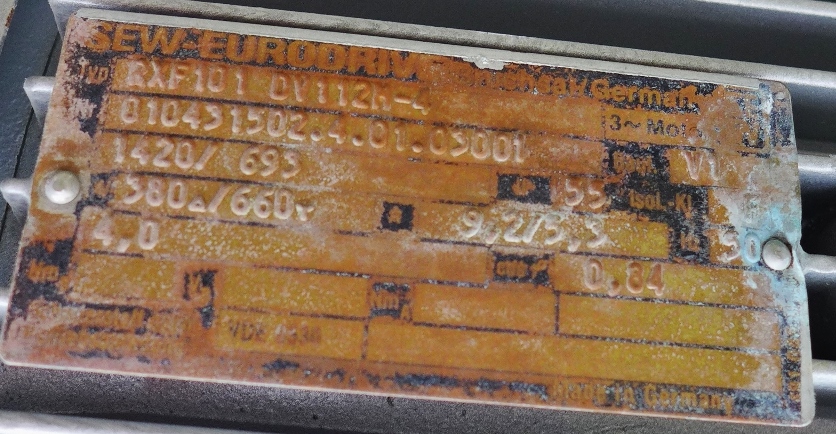

Additional information: Food industry; Half-coils around approx. 1.500 mm of the cylinder height; 1 strong dent in the insulating jacket; 1 railing around the upper bottom (slightly bent) Volumetric volume (L): 12.400 L Pressure in tank: ATM - atmosferic Max. temperature (°C): 95 °C Material wet parts: SS AISI 304 (V2A) Model: vertical Configuration: insulated with heat-exchanger Heat exchanger: yes Insulation: yes Mobile tank: no Total discharge: yes Max Overpressure: 3 Bar Max. working temperature: 20 °C Type HE on the bottom: heating/cooling jacket Type HE on the cylinder: half pipe welded onto the outside of the innertank Heat exchanger: RVS 304 Documents included: no Technical drawing included: no Registration plate on the tank: yes Flange for agitator: no Position of manway: in the bottom Outlet of tank: DN50 DIN 11851 Agitator: yes Number of revolutions: 693 Power: 4 Internal diameter tank: 1.890 mm Outer diameter tank: 2.050 mm Cylinder height: 4.150 mm Total height of tank: 6.450 mm
