Additional information: Pharmacy; More tech. documents available; 1 small dent in the insulation jacket
Volumetric volume (L): 122 L
Pressure in tank: pressure
Max. pressure (Bar): 3 Bar
Max. temperature (°C): 130 °C
Material wet parts: SS AISI 304 (V2A)
Model: vertical
Configuration: insulated with heat-exchanger
Heat exchanger: yes
Insulation: yes
Mobile tank: no
Total discharge: yes
Volume: 22 L
Max Overpressure: 6,50 Bar
Max. working temperature: 140 °C
Type HE on the bottom: heating/cooling jacket
Type HE on the cylinder: heating/cooling jacket
Documents included: no
Technical drawing included: no

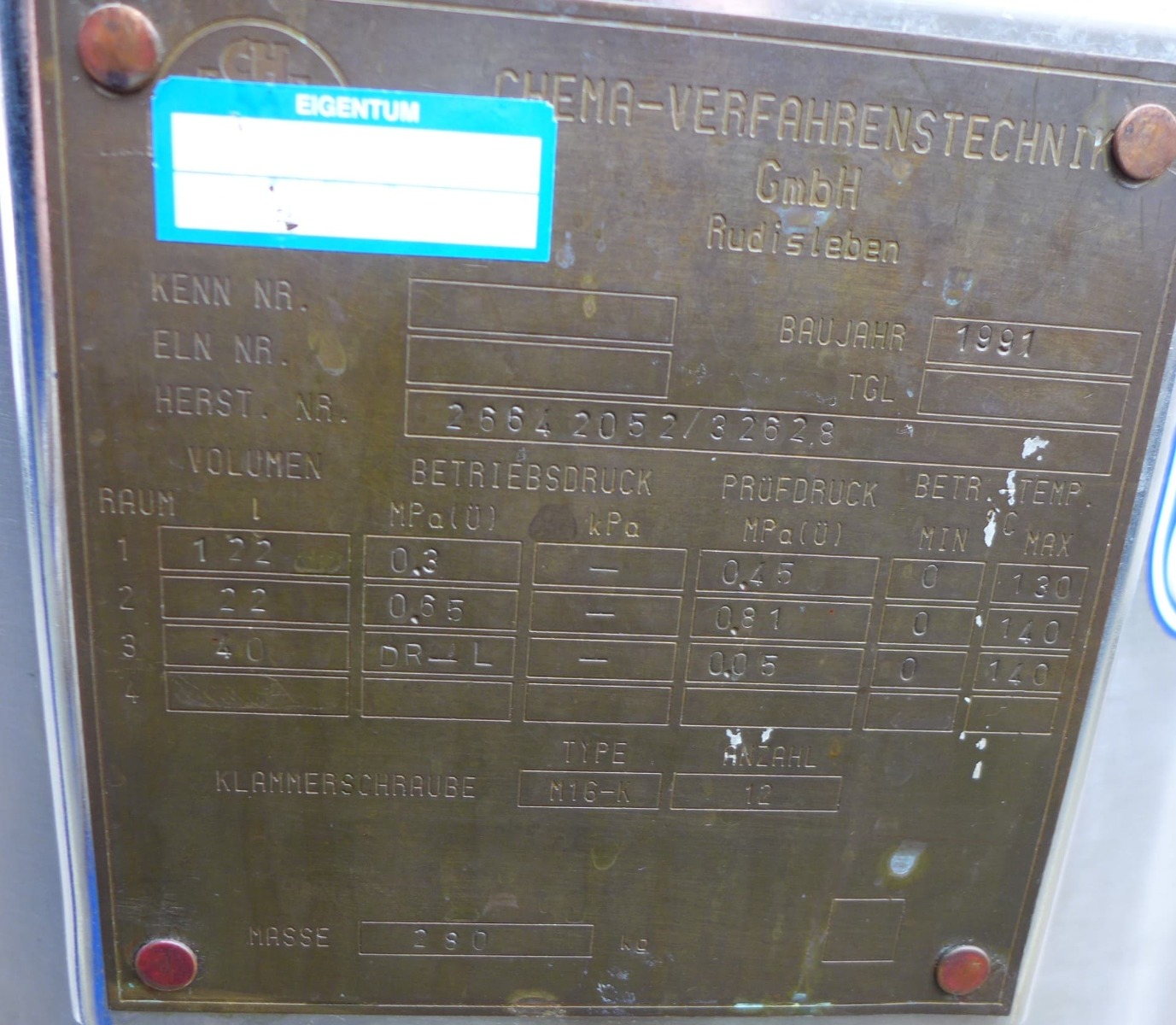

Registration plate on the tank: yes
Flange for agitator: no
Outlet of tank: 25
Number of revolutions: 315
Power: 0,25
Cylinder: 4 mm
Bottom: 6 mm
Internal diameter tank: 503 mm
Outer diameter tank: 654 mm
Cylinder height: 500 mm
Total height of tank: 1.750 mm
Empty weight tank: 300
