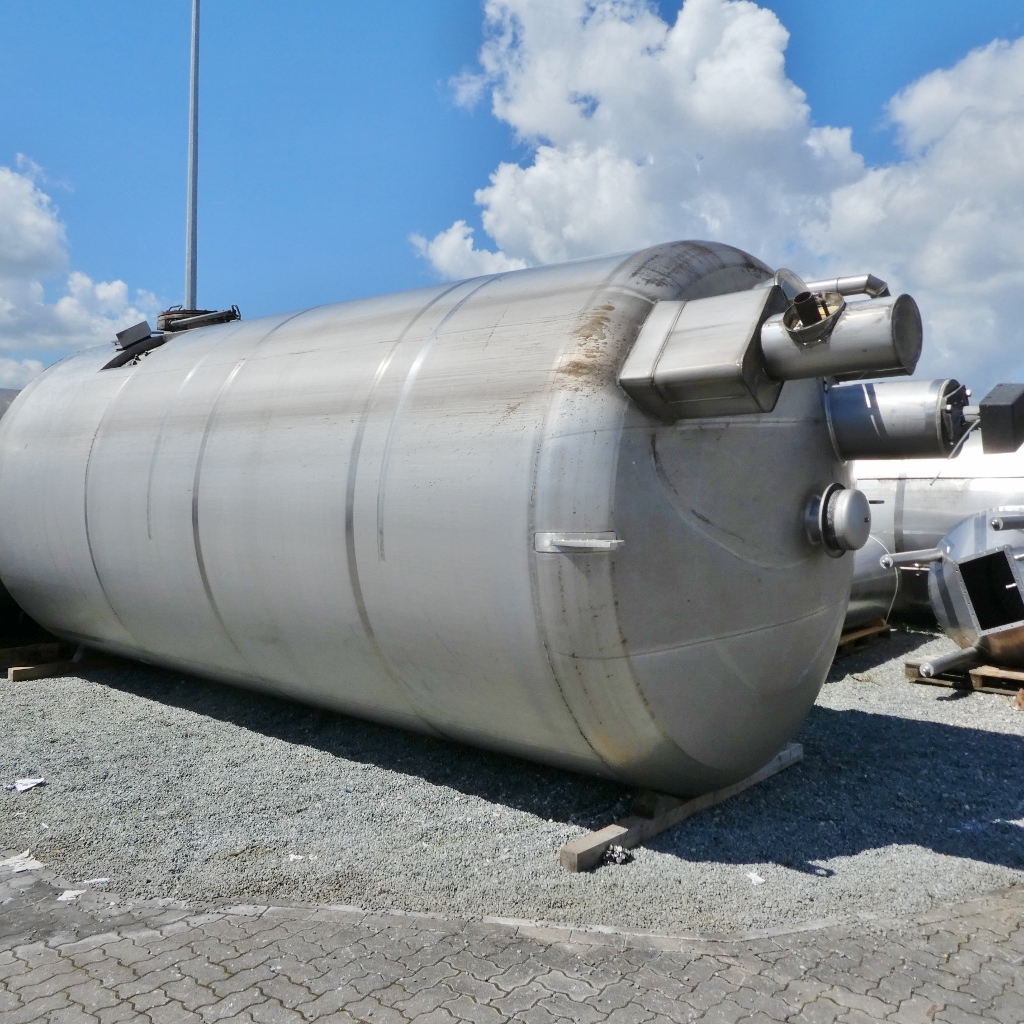

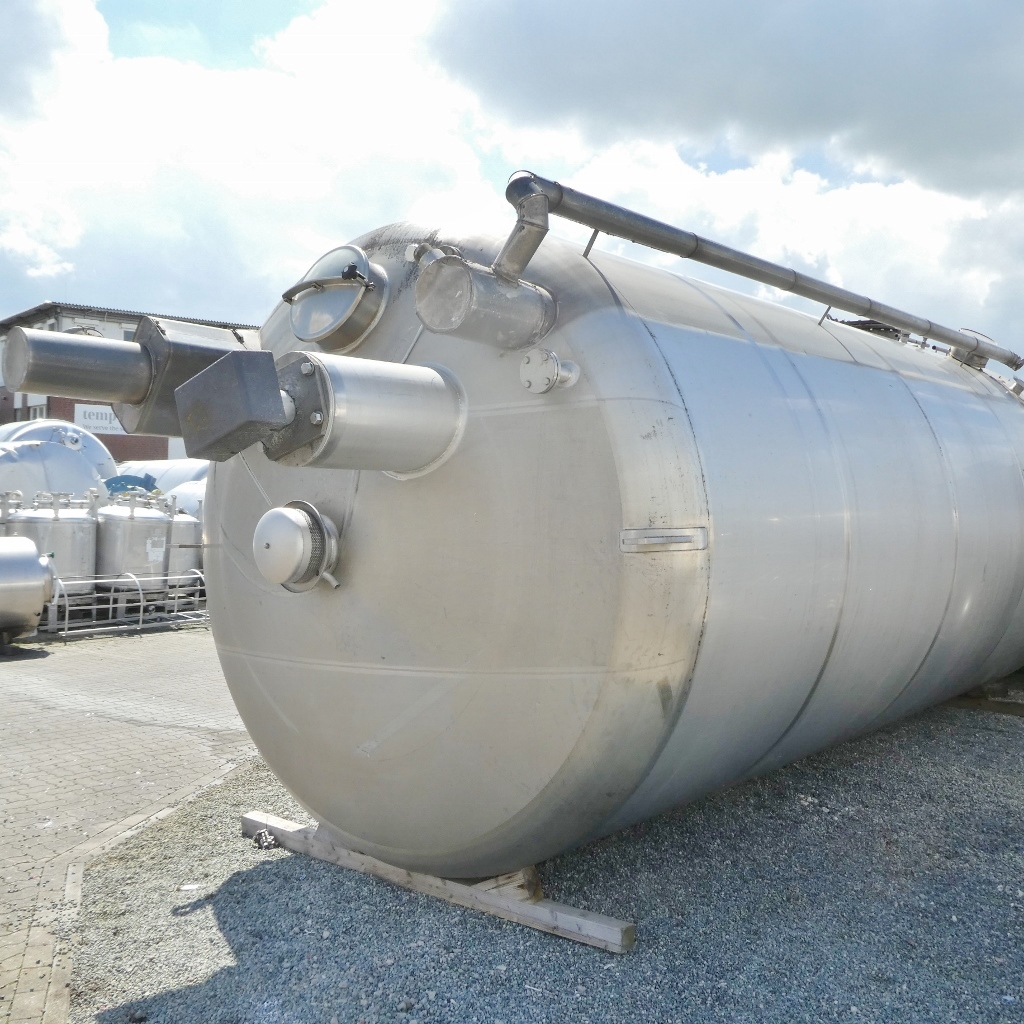

35000 liter tank i Rostfritt 304

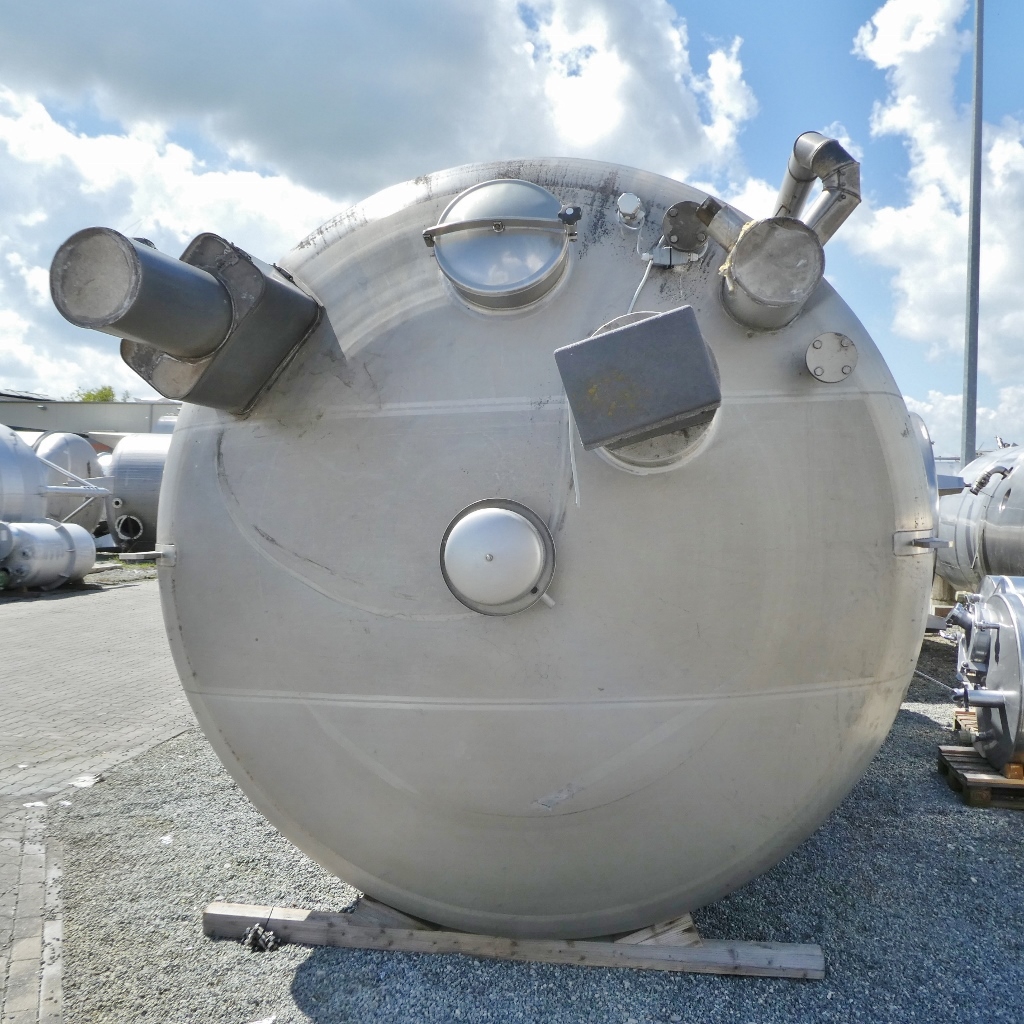

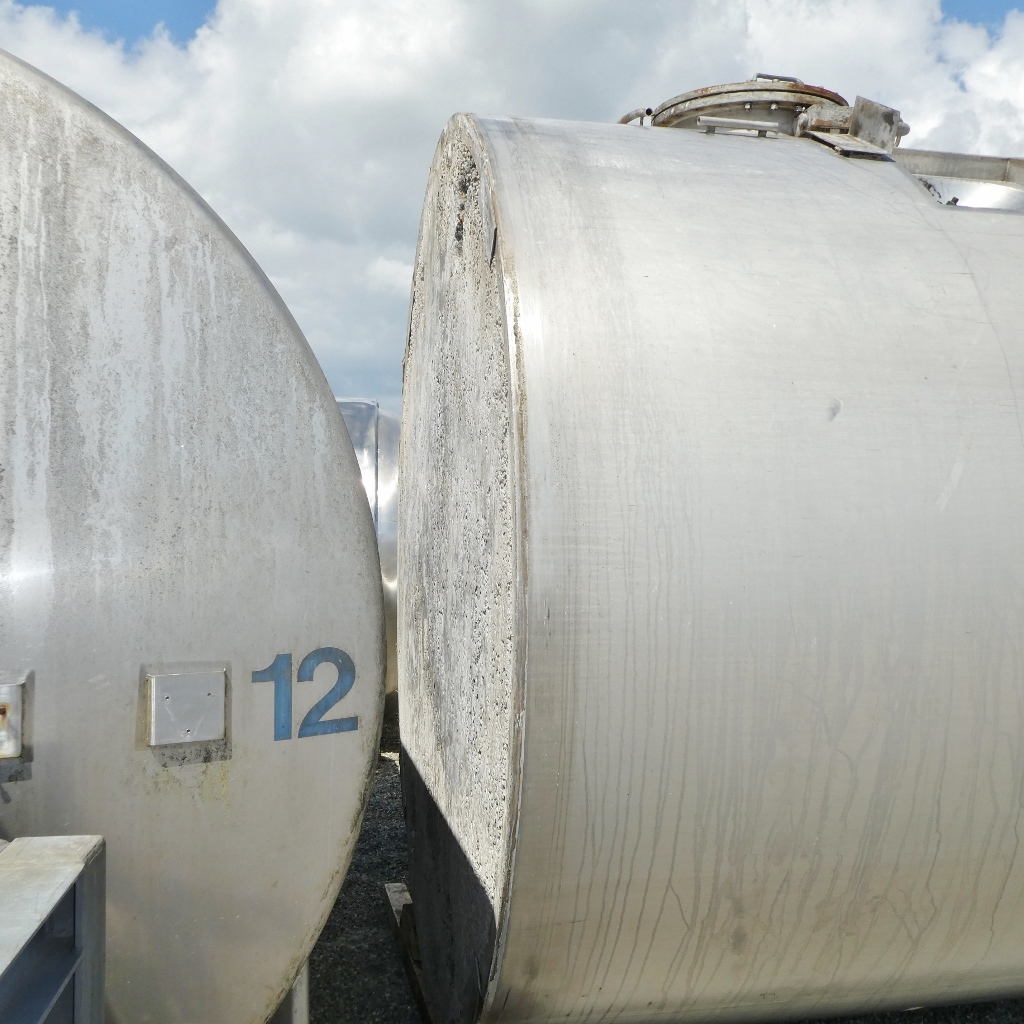

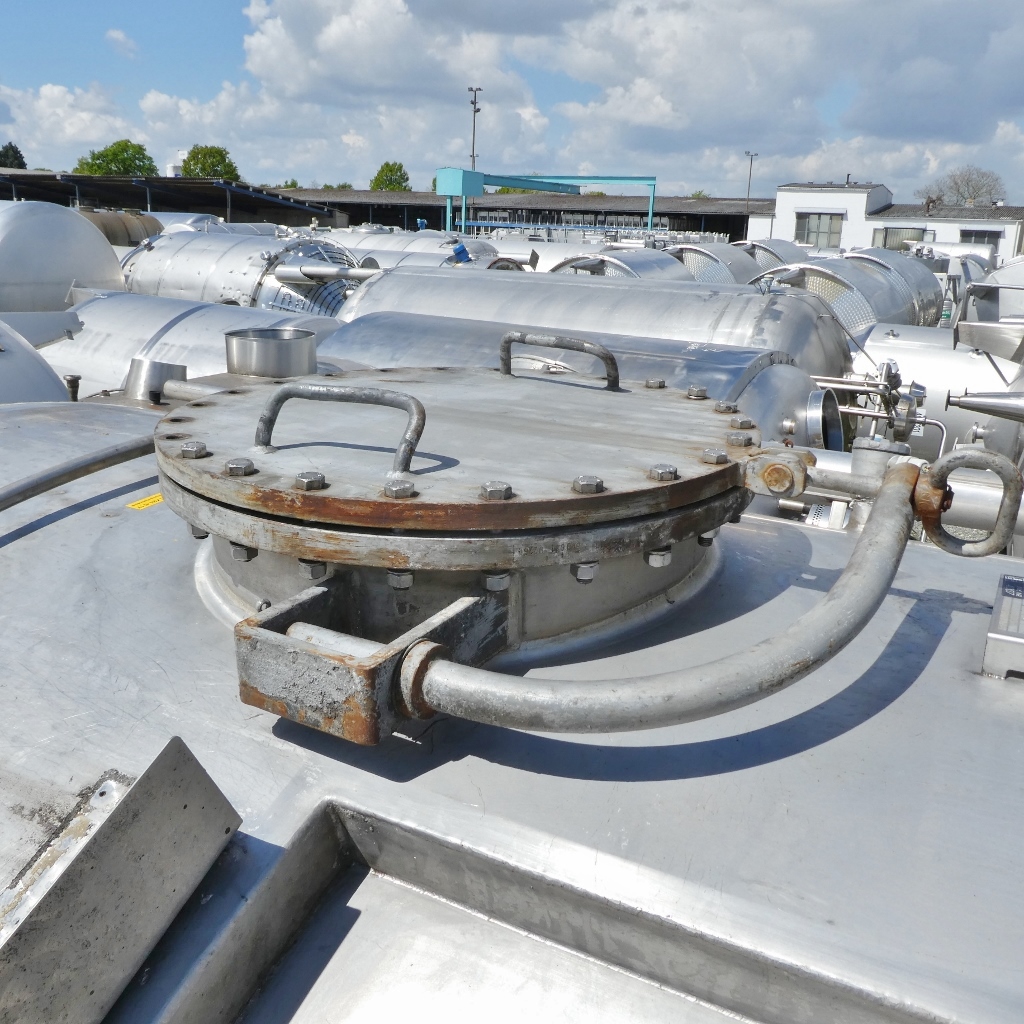

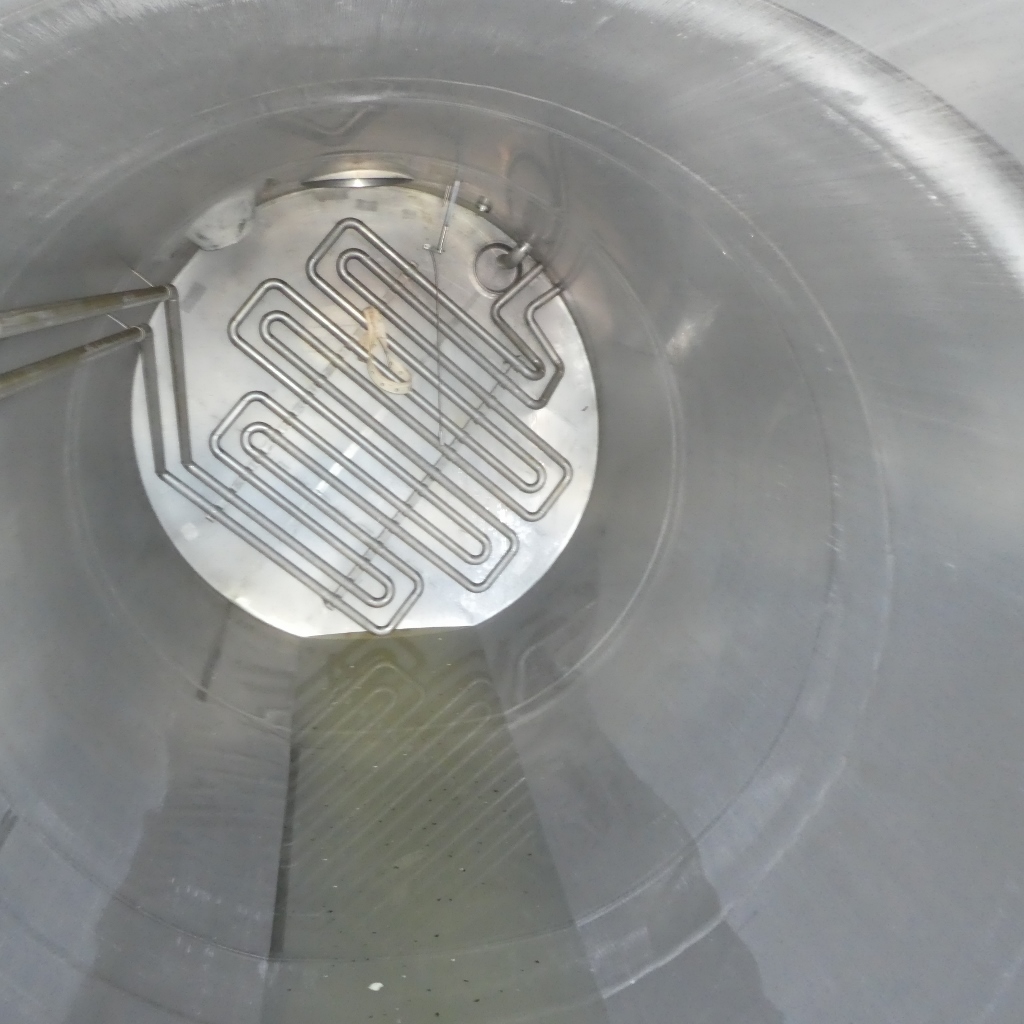

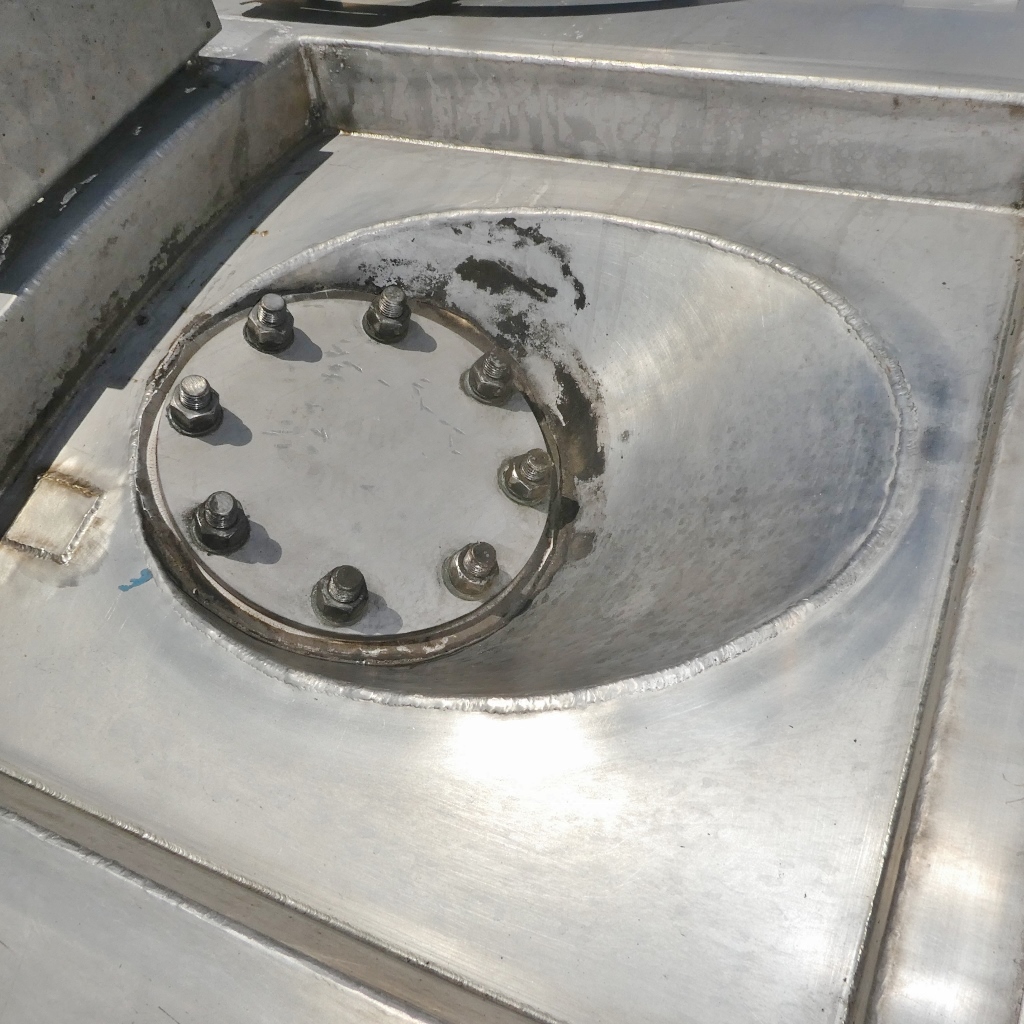

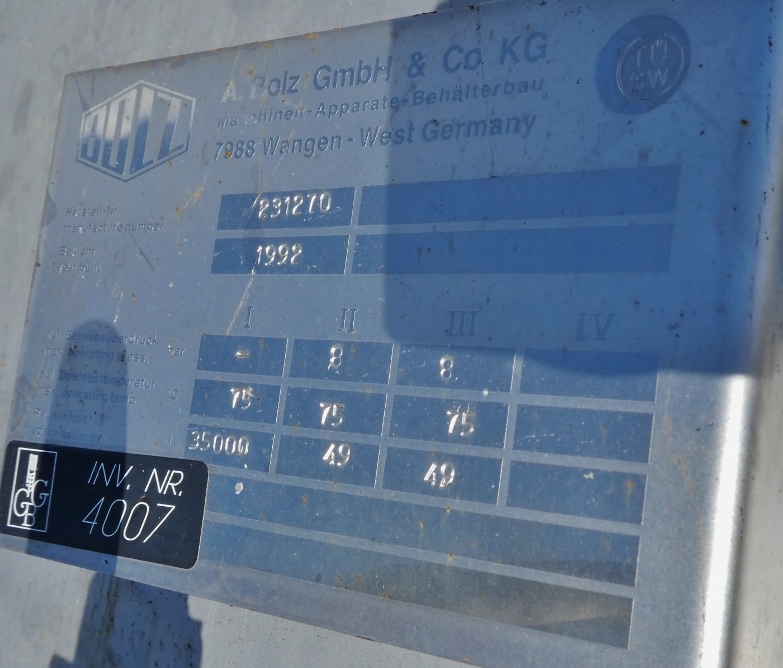

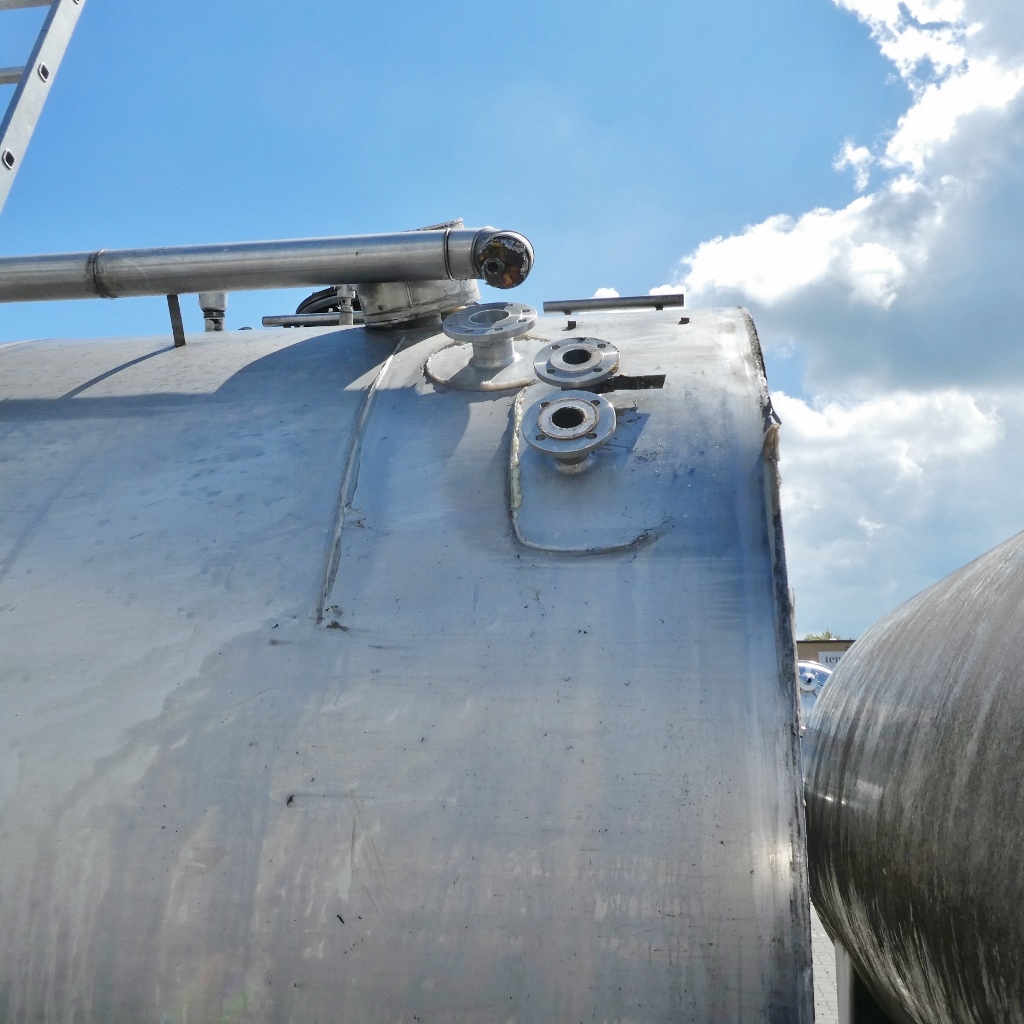

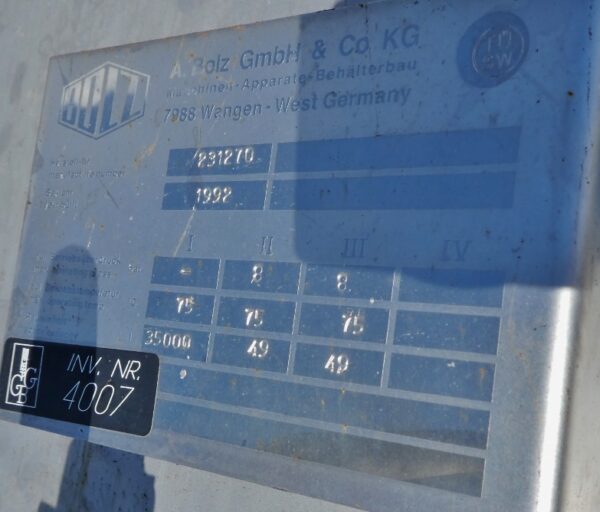

Additional information: Fat storage tank in the food industry; Base made of lightweight concrete around the lower bottom (see photos); Manhole in the upper bottom DN 415; Manhole in the cylinder DN 600 (cover of the cylinder manhole is plated); tank outlet not at the lowest point (see photos) Volumetric volume (L): 35.000 L Pressure in tank: ATM - atmosferic Max. temperature (°C): 75 °C Material wet parts: SS AISI 304 (V2A) Model: vertical Configuration: insulated with heat-exchanger Heat exchanger: yes Insulation: yes Mobile tank: no Total discharge: yes Volume: 98 L Max Overpressure: 8 Bar Max. working temperature: 174 °C Documents included: no Technical drawing included: no Registration plate on the tank: yes Flange for agitator: yes Position of manway: in the bottom Outlet of tank: flange DN80 Internal diameter tank: 2.796 mm Outer diameter tank: 2.972 mm Total height of tank: 7.600 mm
