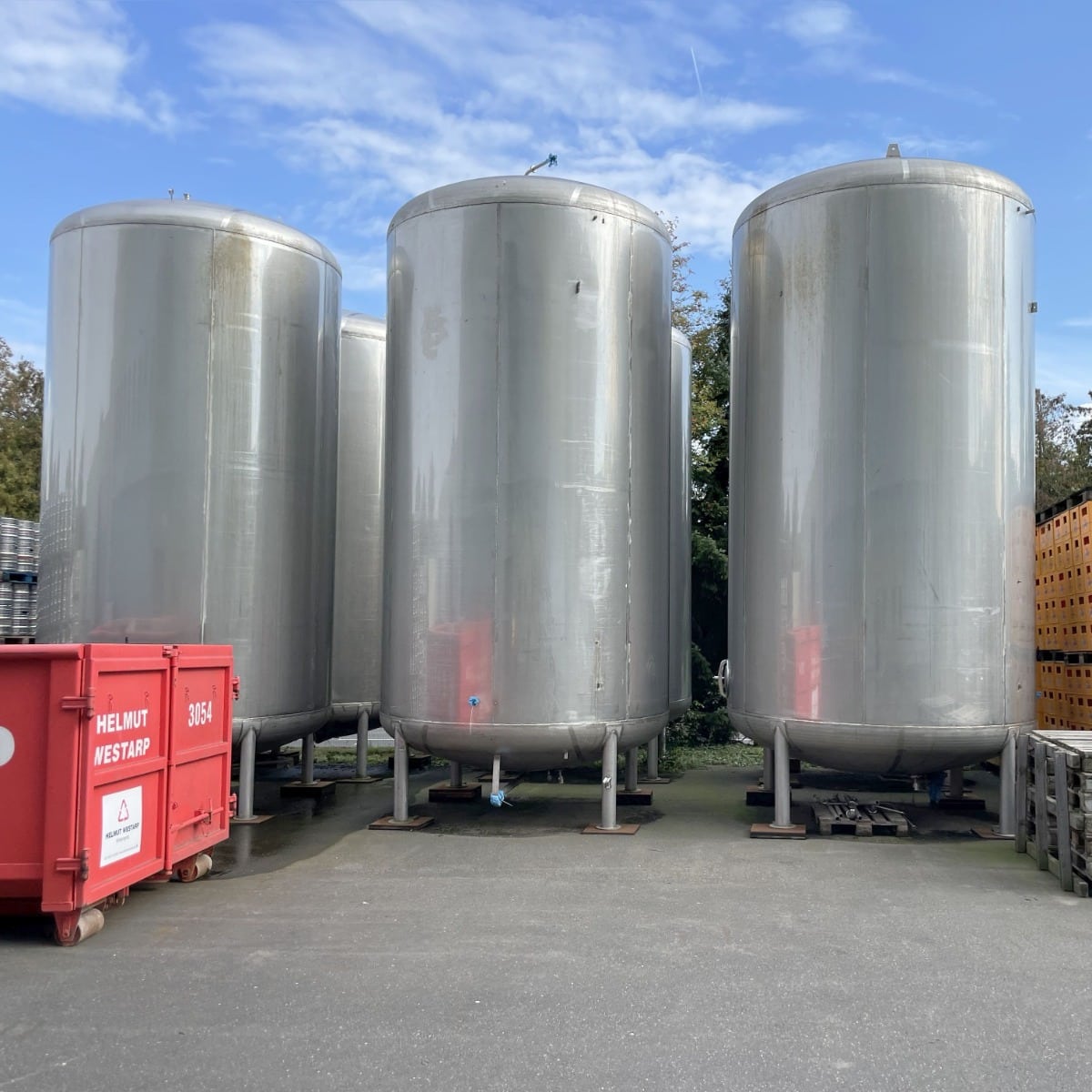

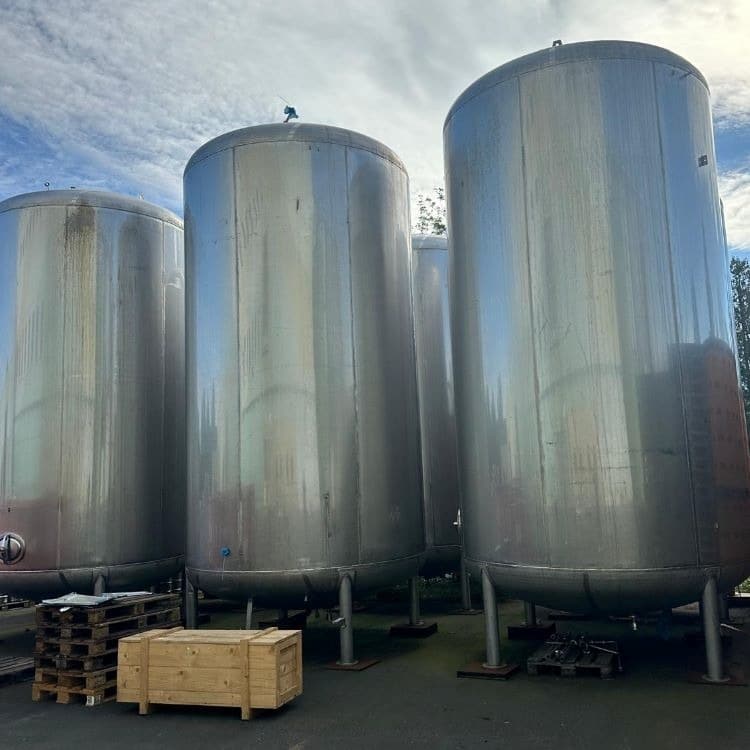

44070 liter tank i Rostfritt 304

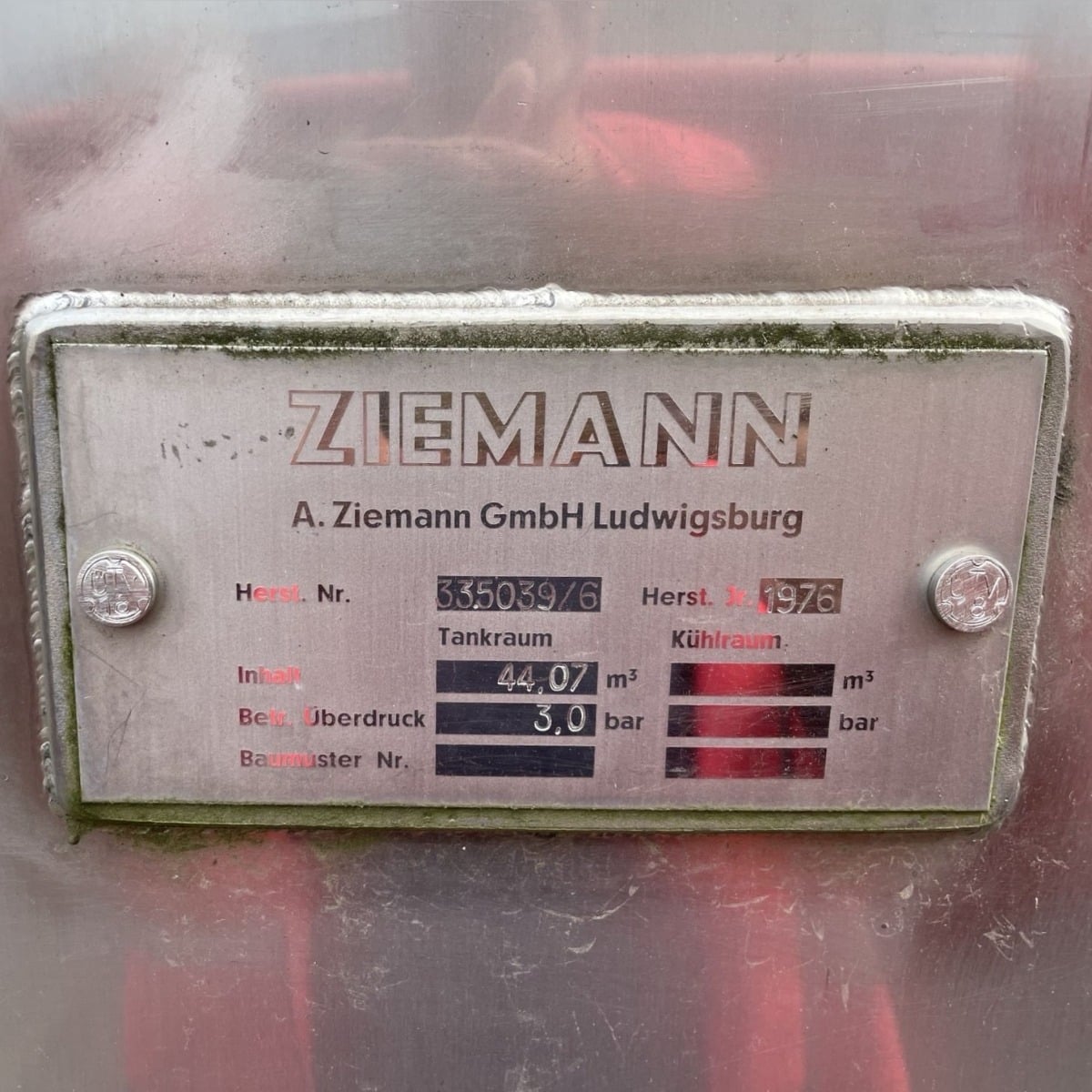

Additional information: Brewery Volumetric volume (L): 44.070 L Pressure in tank: pressure Max. pressure (Bar): 3 Bar Material wet parts: SS AISI 304 (V2A) Model: vertical Configuration: single-skin Heat exchanger: no Insulation: no Mobile tank: no Total discharge: yes Documents included: no Technical drawing included: no Registration plate on the tank: yes Flange for agitator: no Position of manway: cylinder Outlet of tank: DN65 DIN 11851 Cylinder: 4 mm Bottom: 8 mm Internal diameter tank: 3.092 mm Outer diameter tank: 3.100 mm Cylinder height: 5.000 mm Total height of tank: 6.660 mm
