12000 liter tank i Rostfritt 304

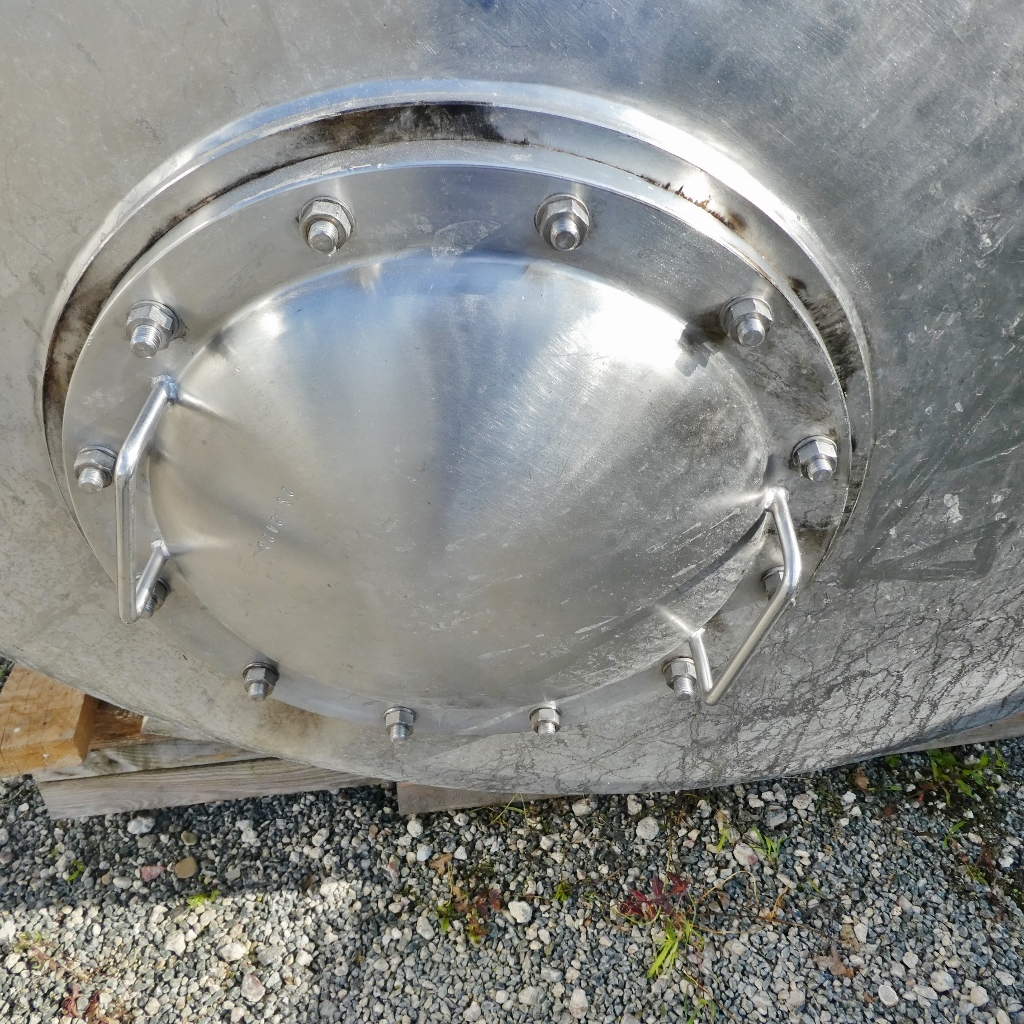

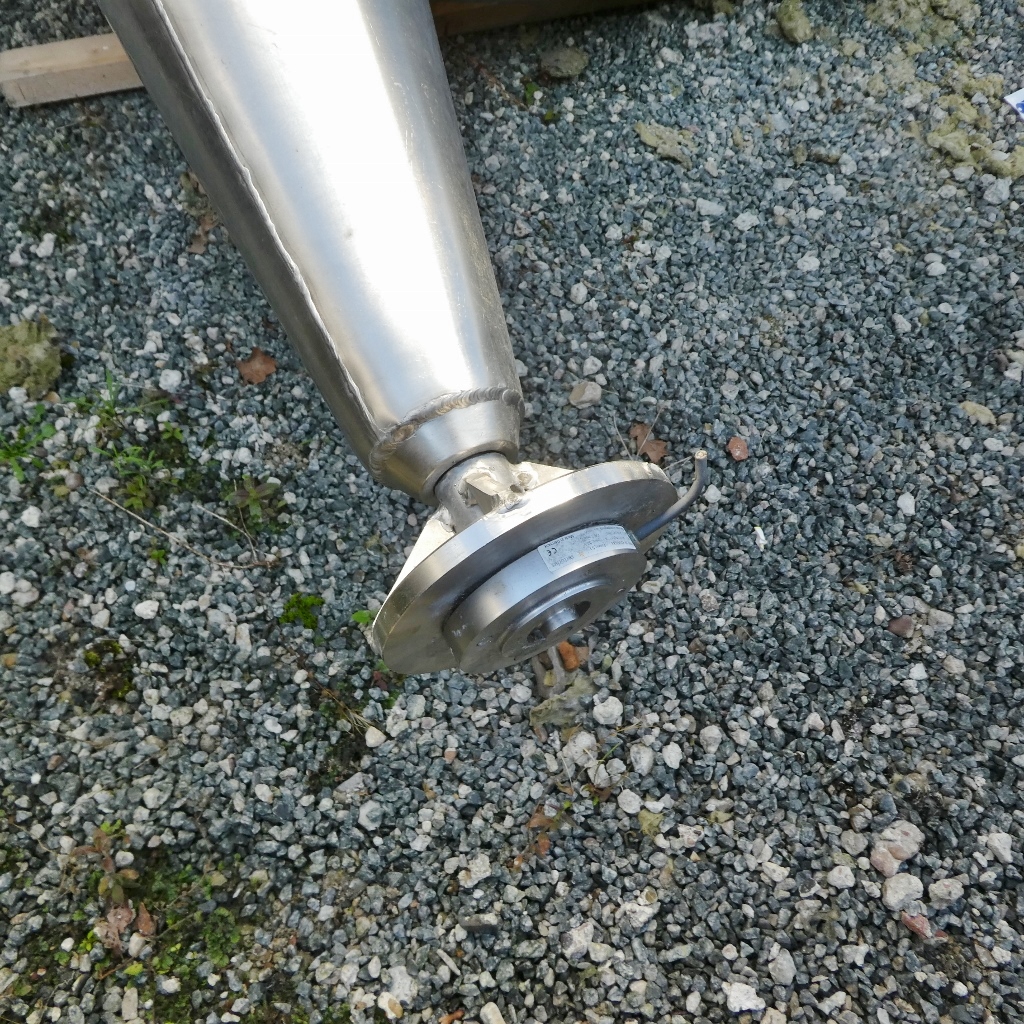

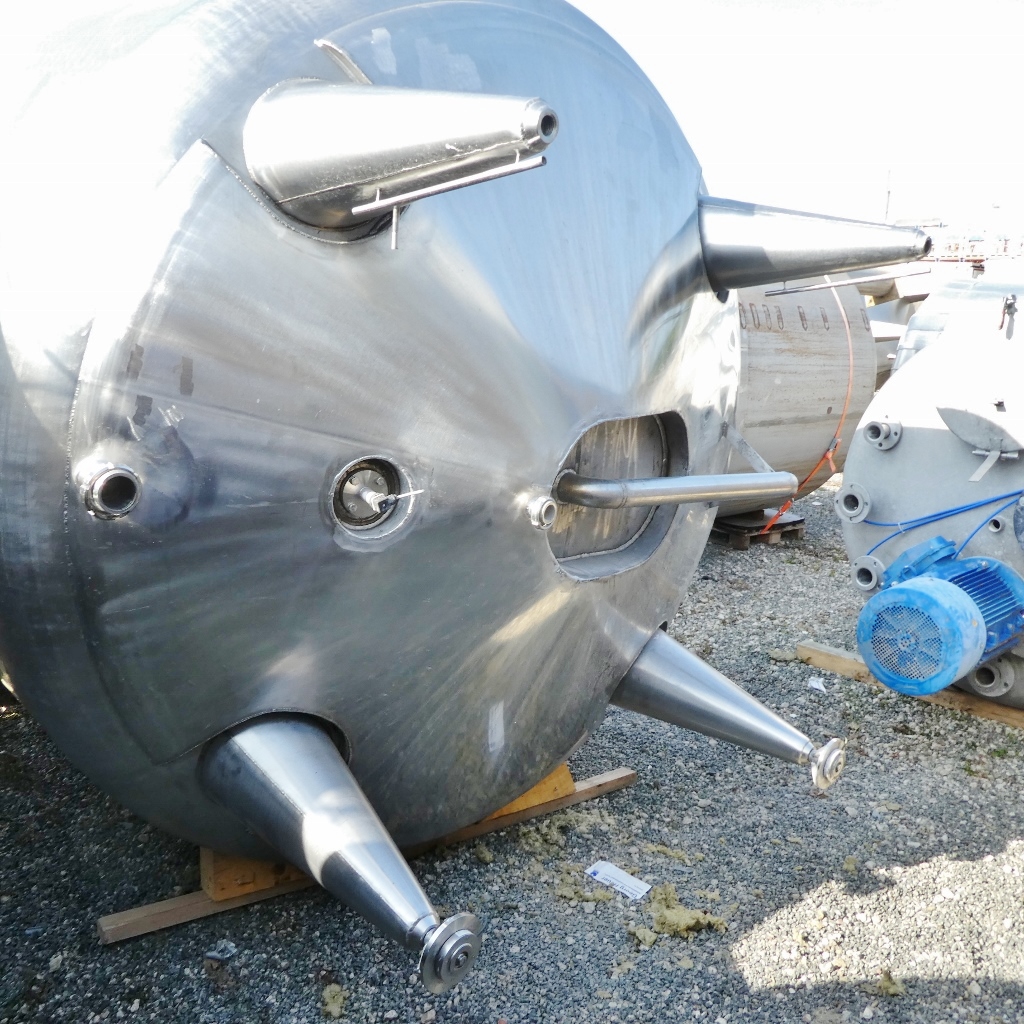

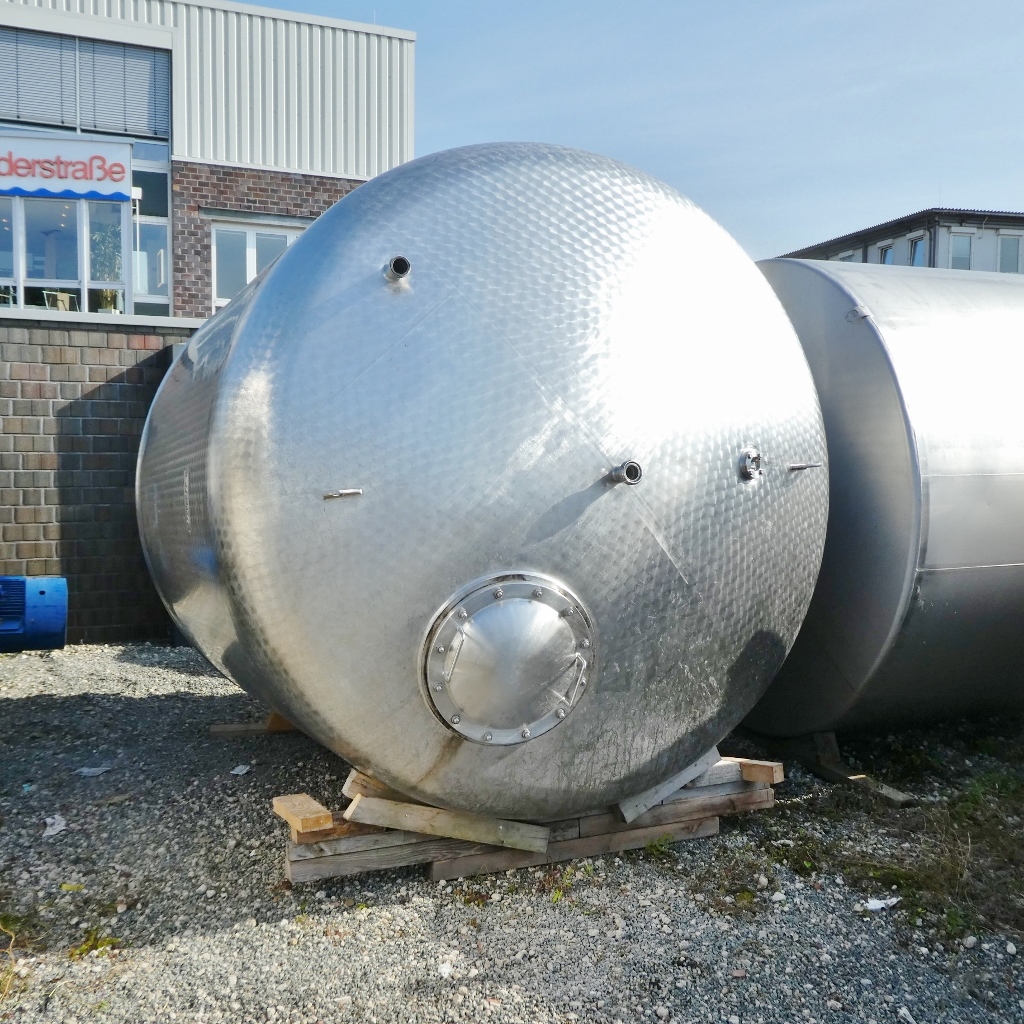

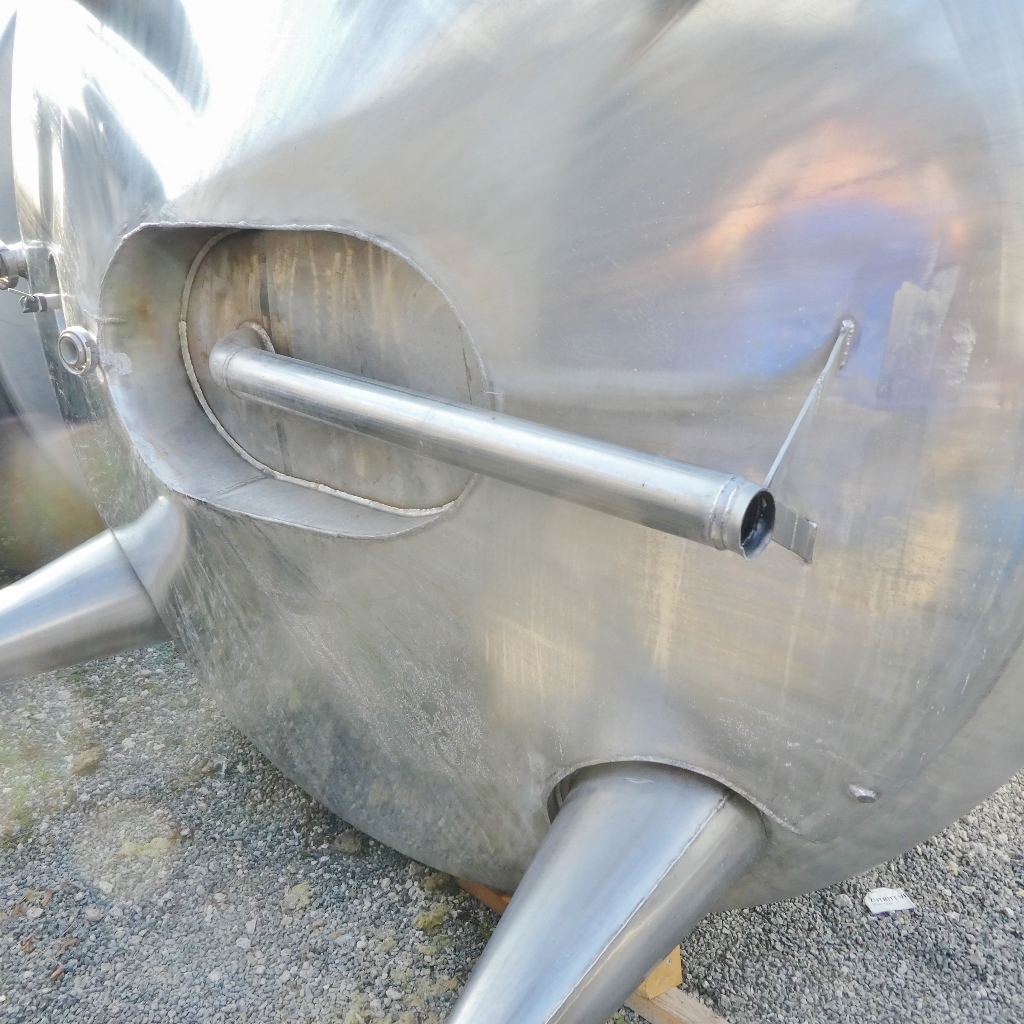

Additional information: Sterile pressure tank in a dairy; Nameplate not available; 2 feet with load cells under the foot plates, 2 feet without height-adjustable screws, foot plate and load cells (see photos); pipe end cut flush Volumetric volume (L): 12.000 L Pressure in tank: pressure Max. pressure (Bar): 3,50 Bar Max. temperature (°C): 143 °C Material wet parts: SS AISI 304 (V2A) Model: vertical Configuration: single jacketed with heat-exchanger Heat exchanger: yes Insulation: no Mobile tank: no Total discharge: yes Max Overpressure: 3,50 Bar Type HE on the bottom: heating/cooling jacket Heat exchanger: RVS 304 Documents included: no Technical drawing included: no Registration plate on the tank: no Flange for agitator: no Position of manway: in the bottom Outlet of tank: 65 Cylinder: 4 mm Bottom: 8 mm Internal diameter tank: 2.500 mm Cylinder height: 2.000 mm Total height of tank: 3.750 mm
