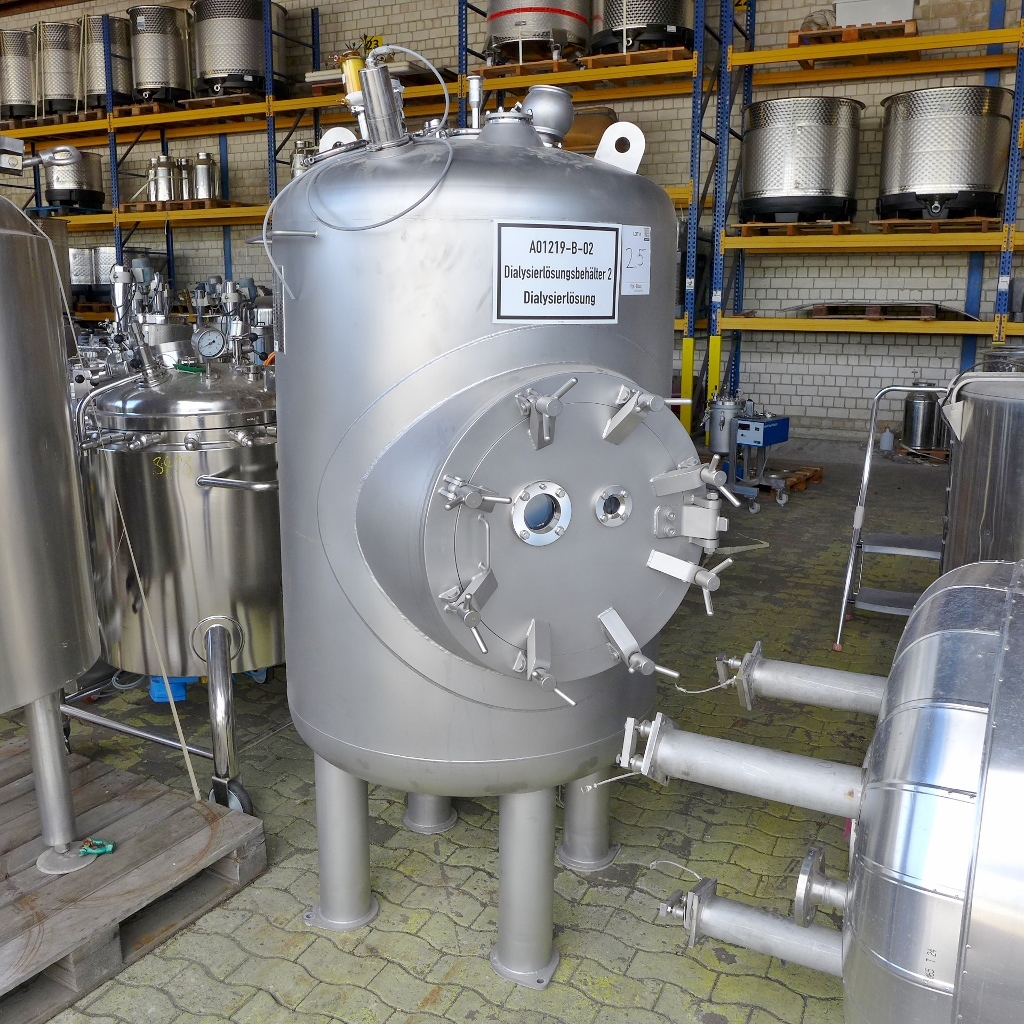

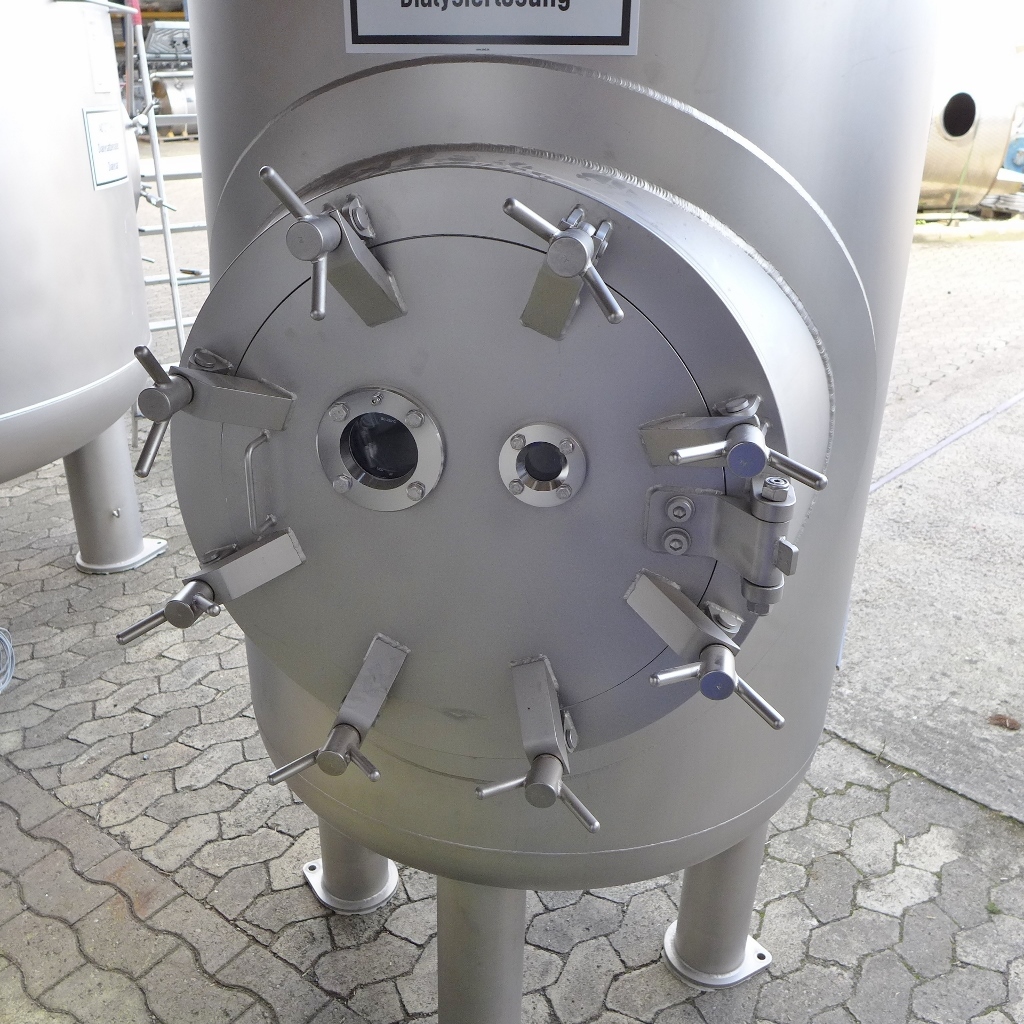

Additional information: Pharmacy; Manhole DN 500; Parts of the blanking plugs may be present
Volumetric volume (L): 1.200 L
Pressure in tank: pressure and vacuum
Max. pressure (Bar): 3 Bar
Min. pressure (Bar): 1 Bar
Max. temperature (°C): 135 °C
Material wet parts: SS AISI 316 (V4A)

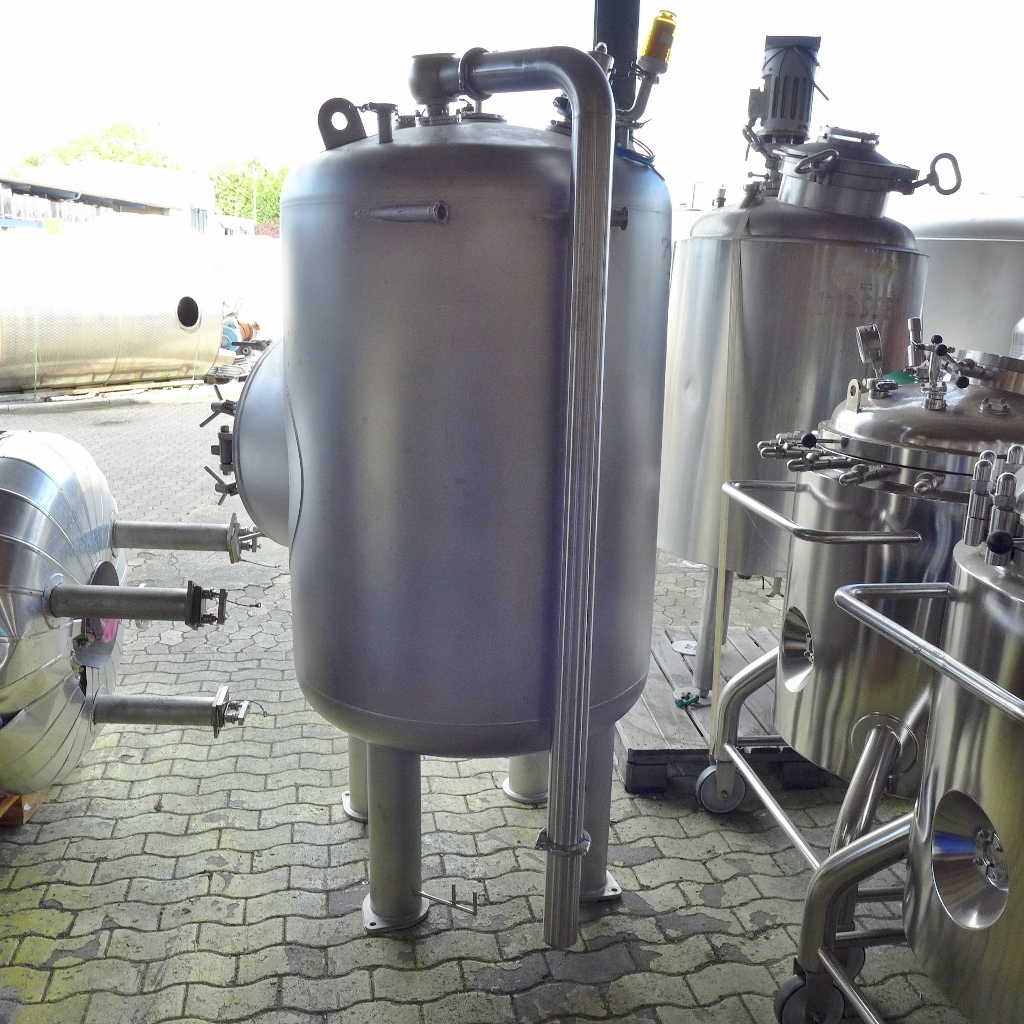

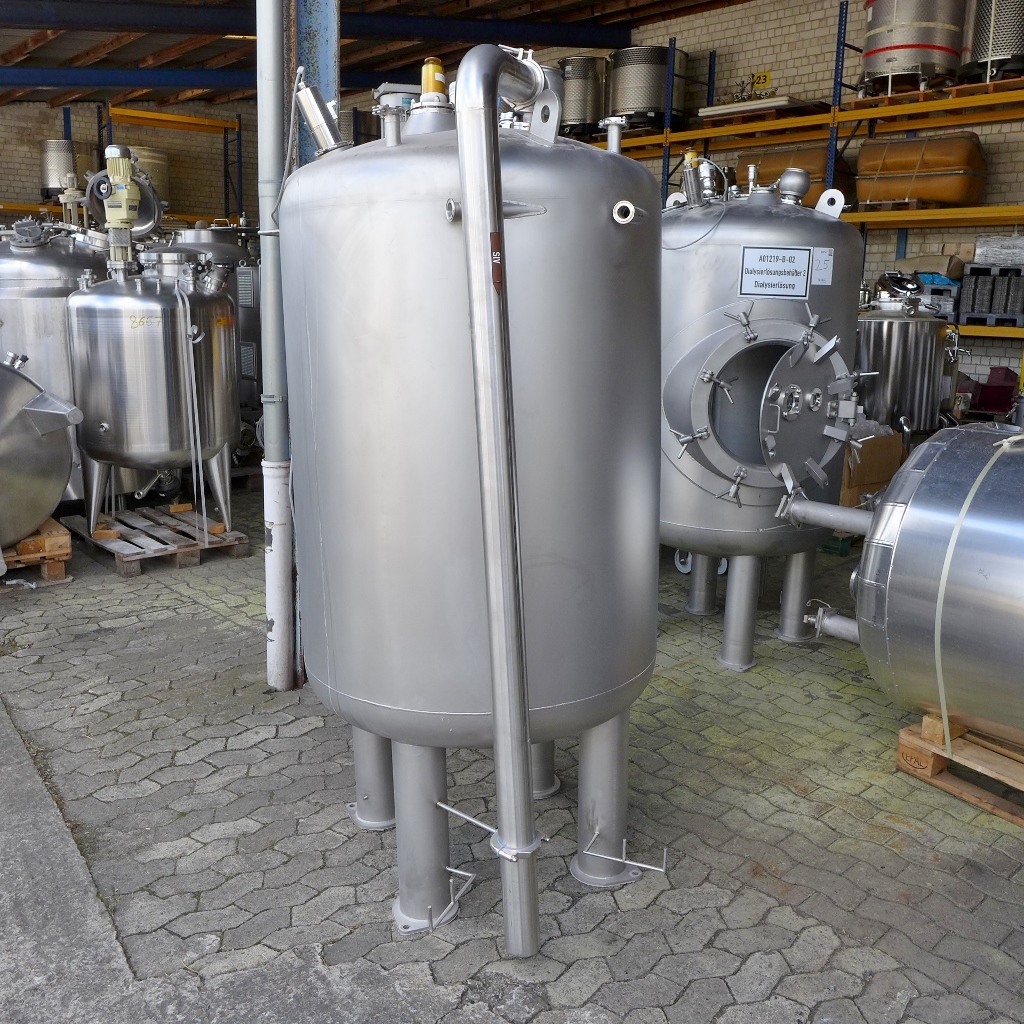

Model: vertical
Configuration: single-skin
Heat exchanger: no
Insulation: no
Mobile tank: no

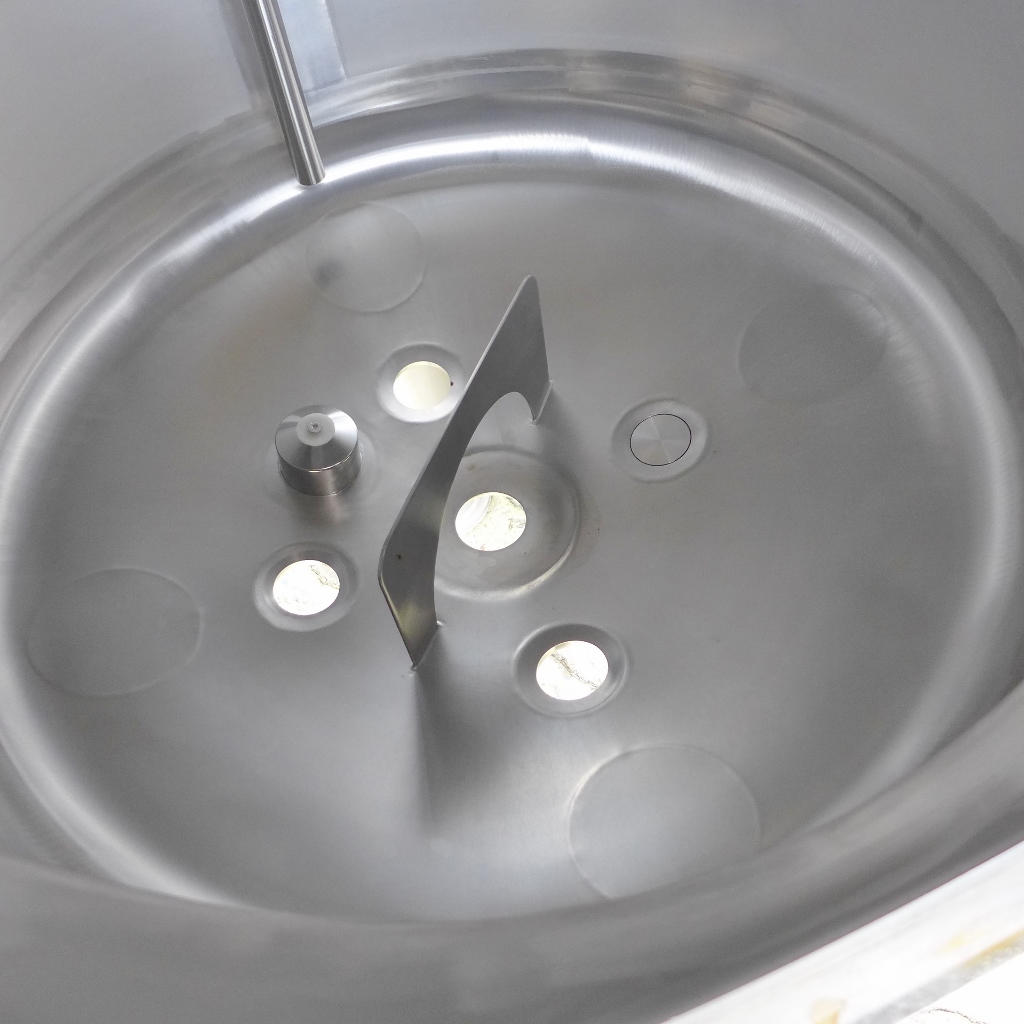

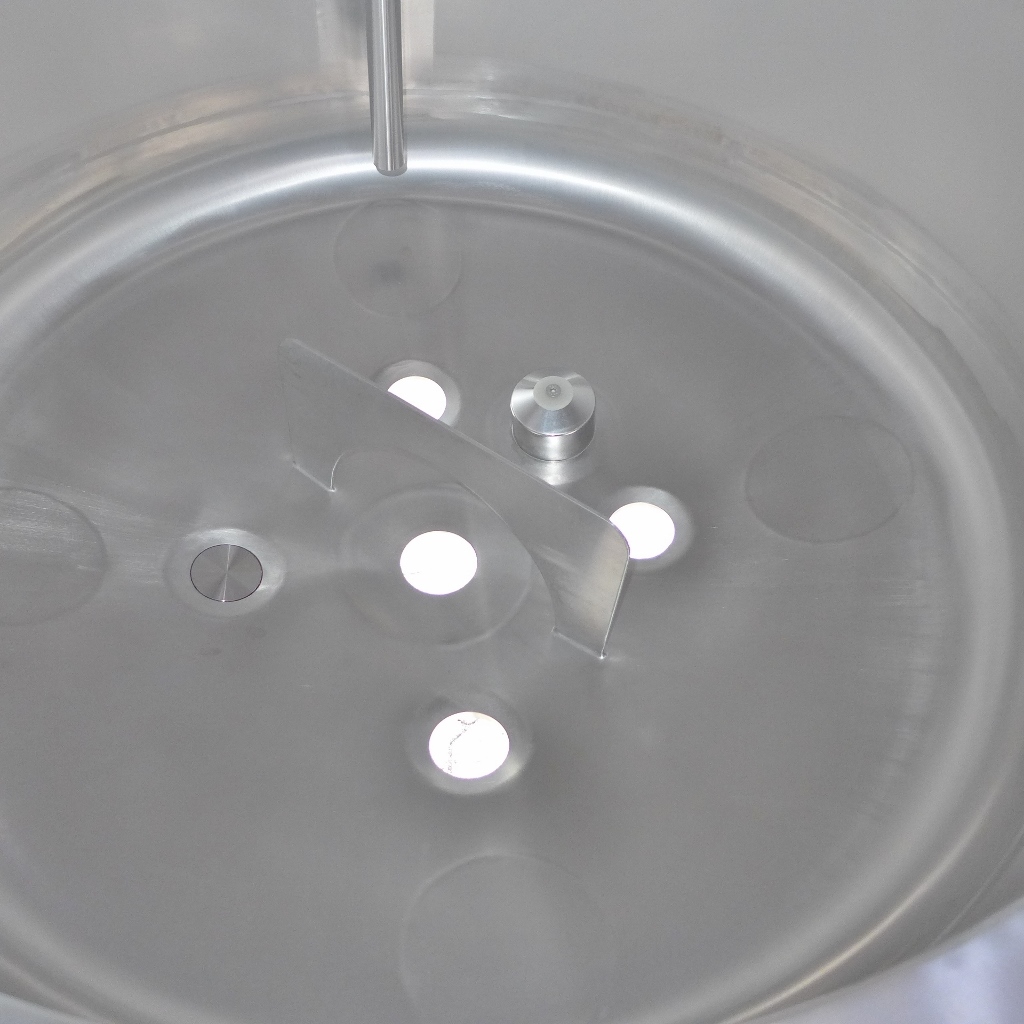

Total discharge: yes
Documents included: no
Technical drawing included: no

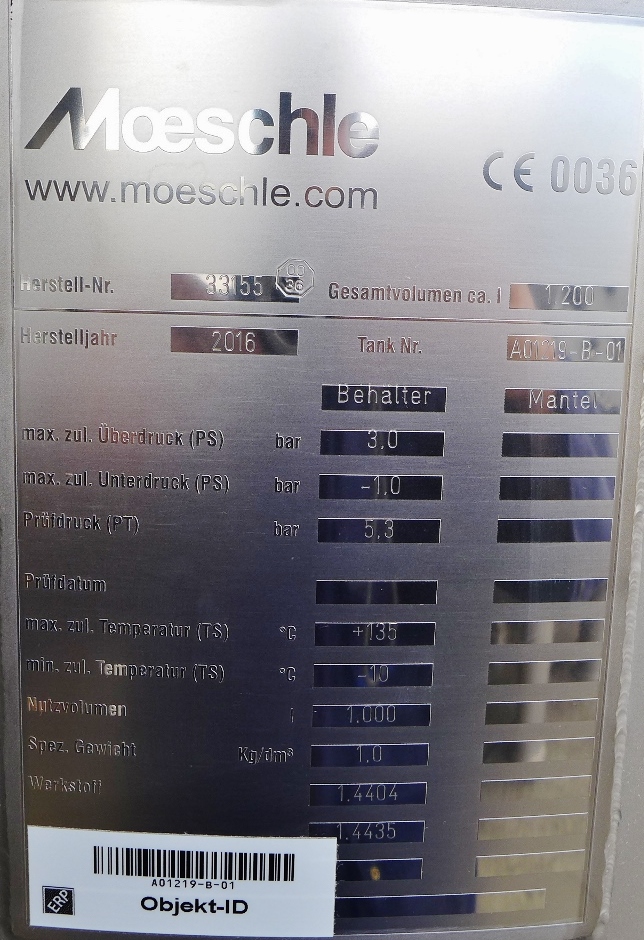

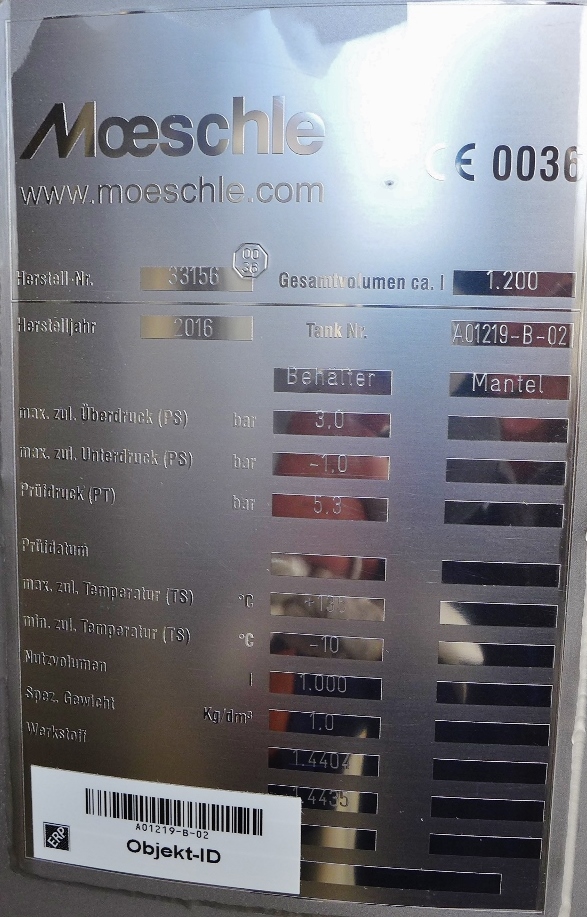

Registration plate on the tank: yes
Flange for agitator: no

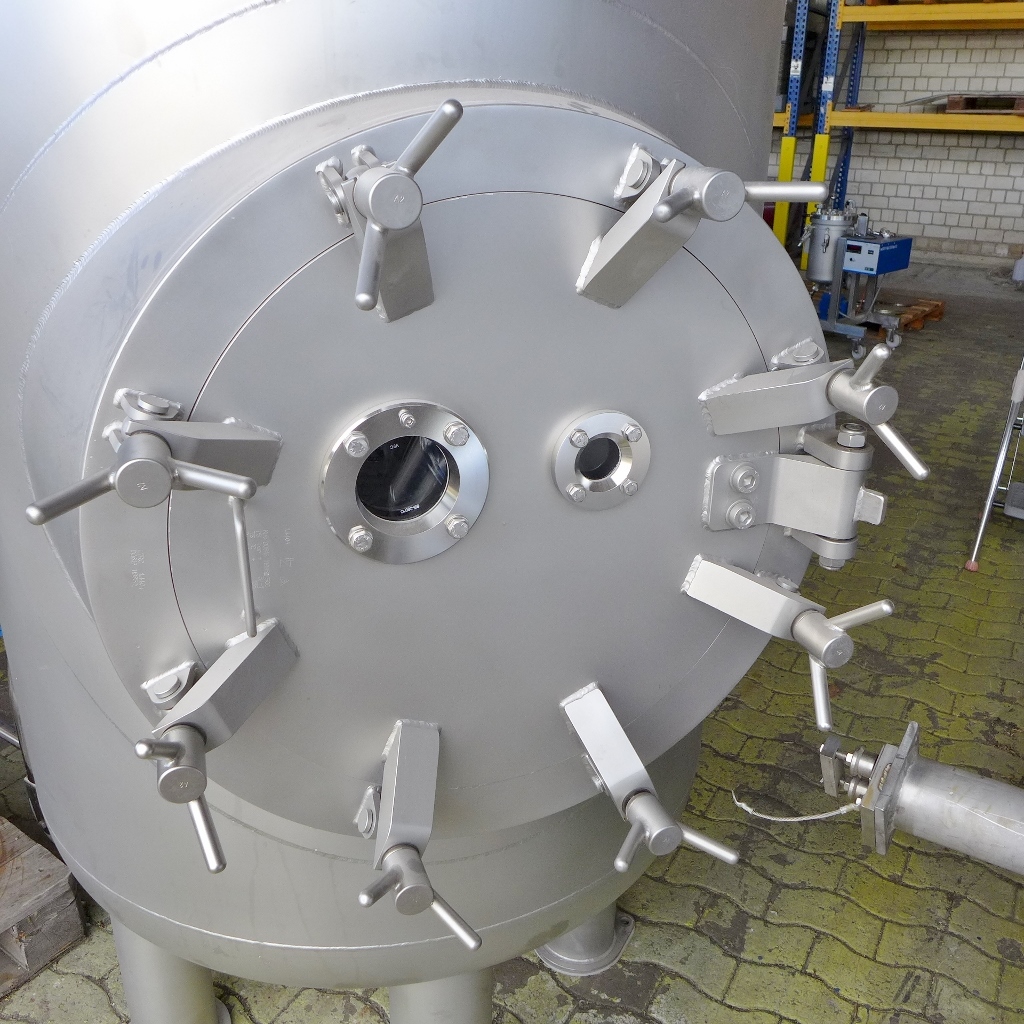

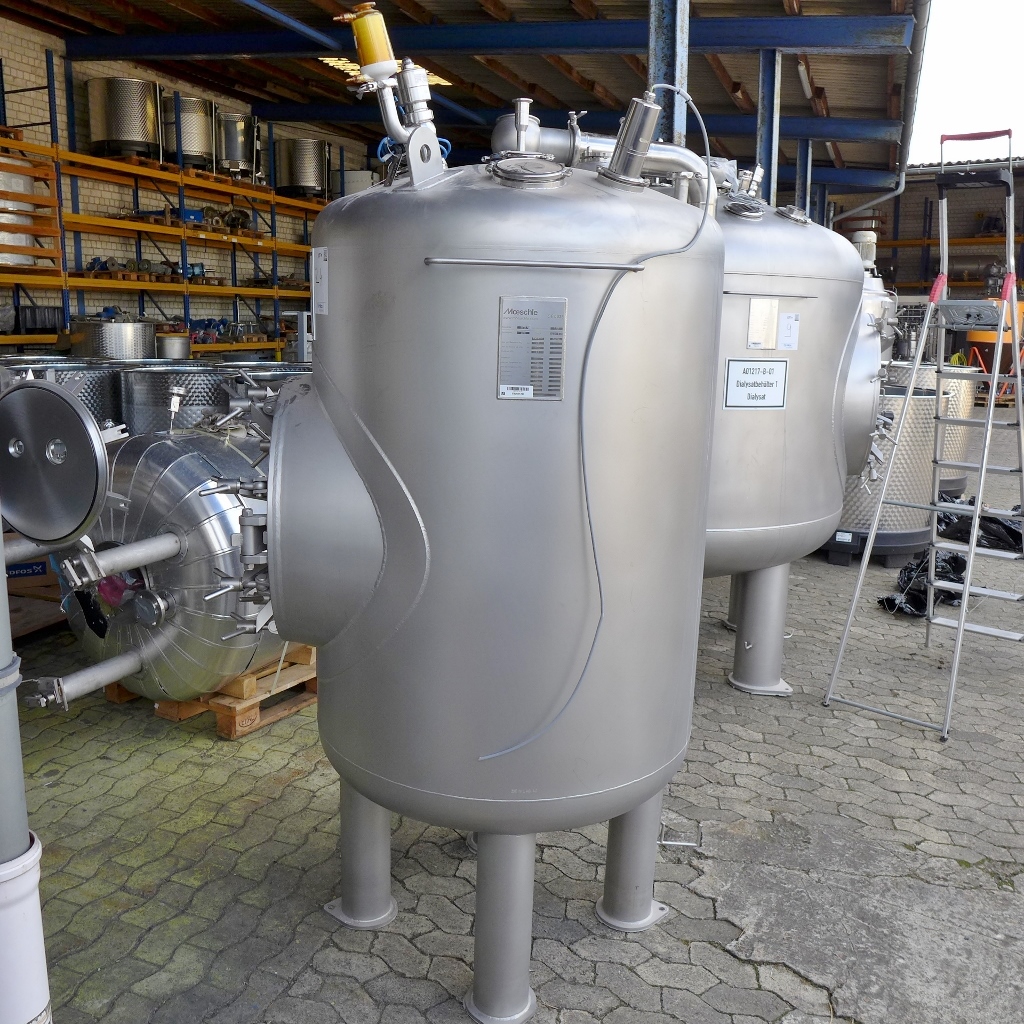

Position of manway: cylinder
Outlet of tank: 187

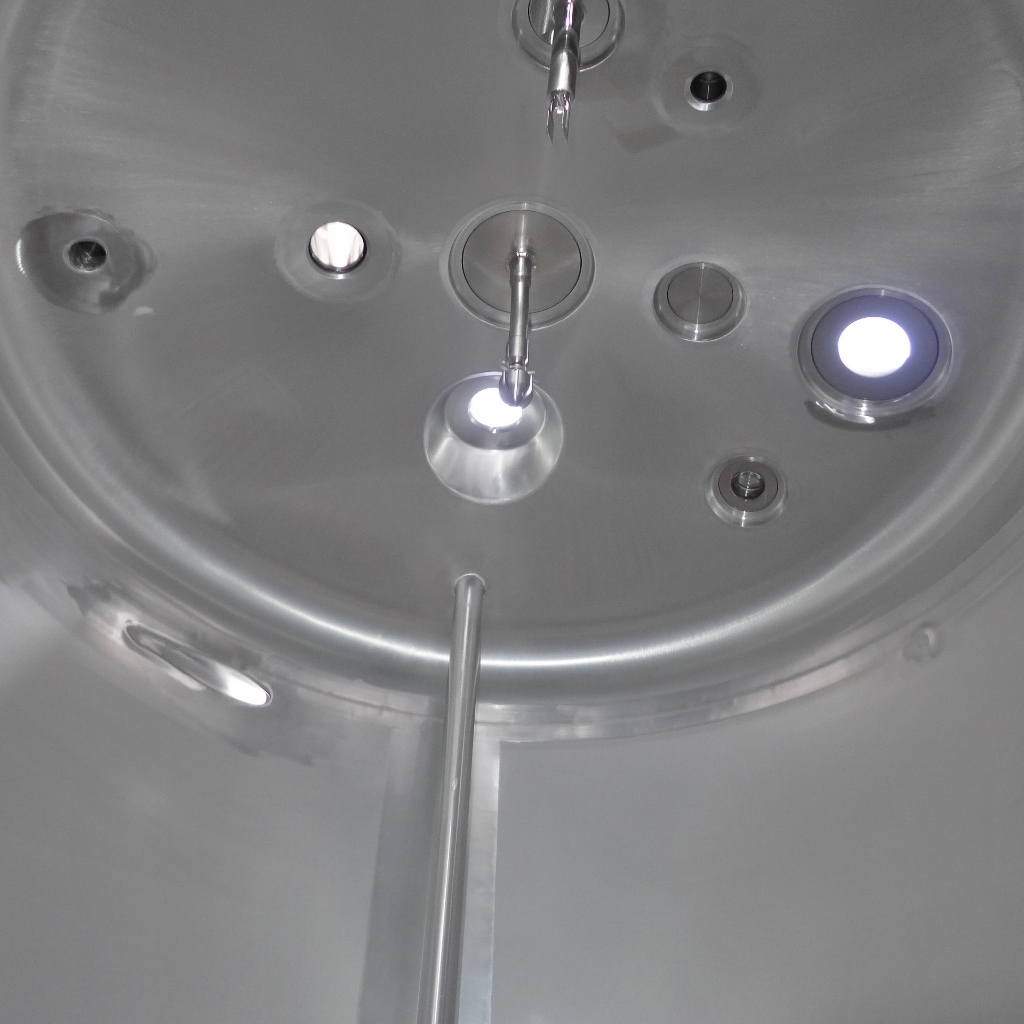

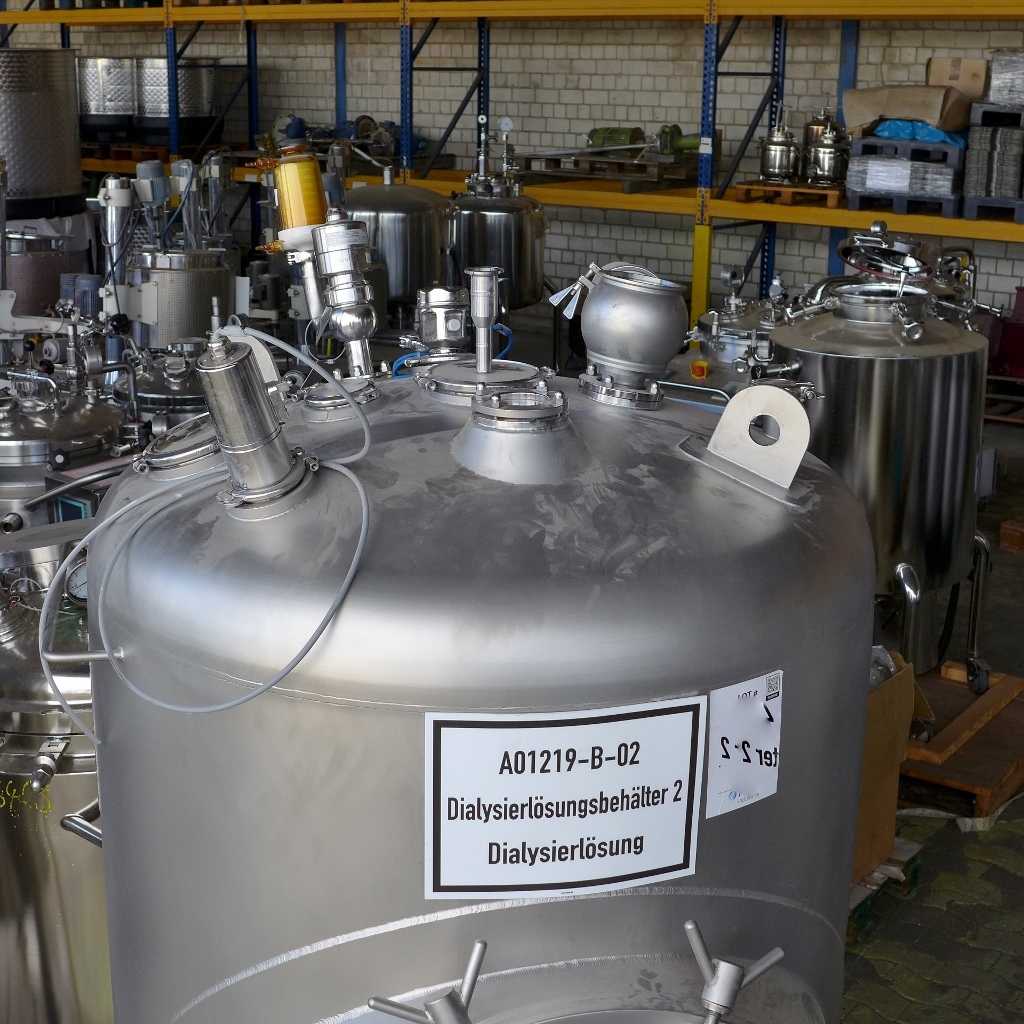

Top: 3,30 mm
Cylinder: 4 mm
Bottom: 3,50 mm
Internal diameter tank: 1.000 mm
Cylinder height: 1.200 mm
Total height of tank: 2.380 mm
