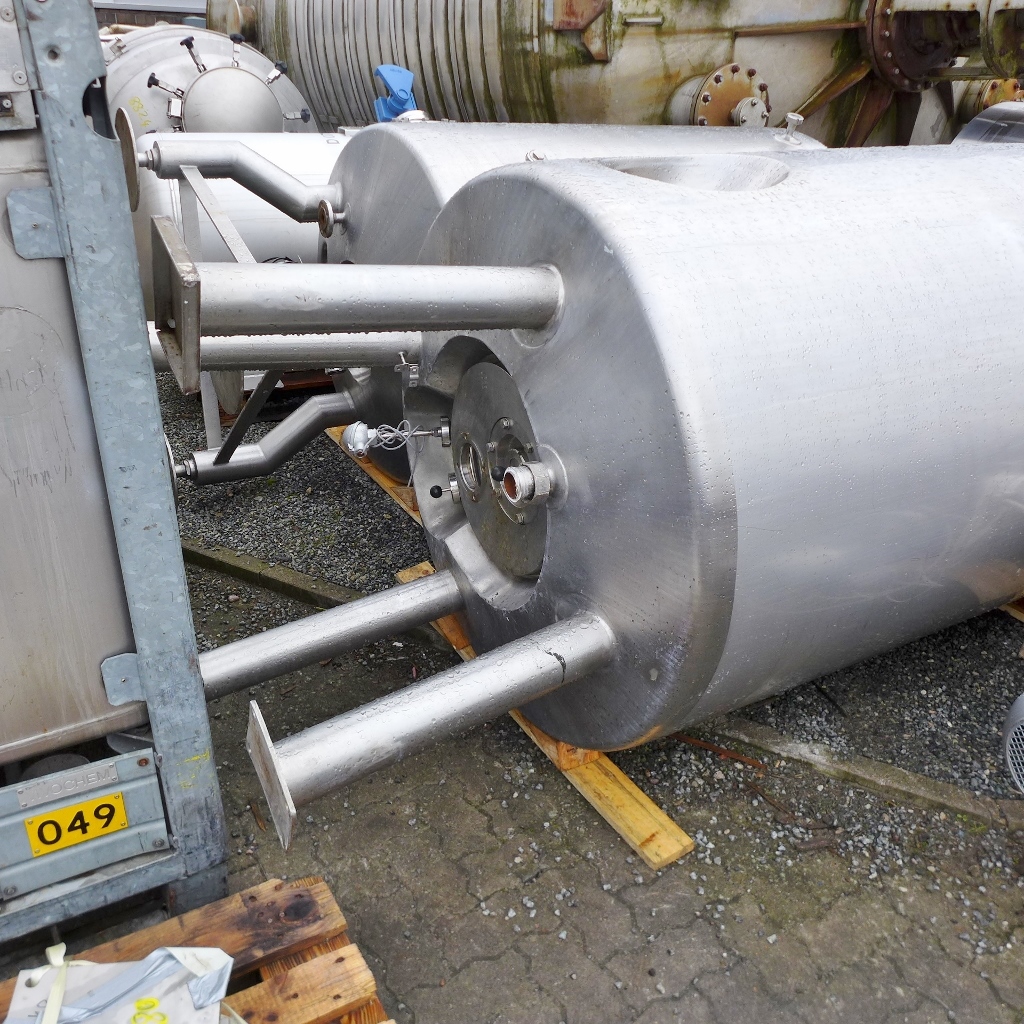

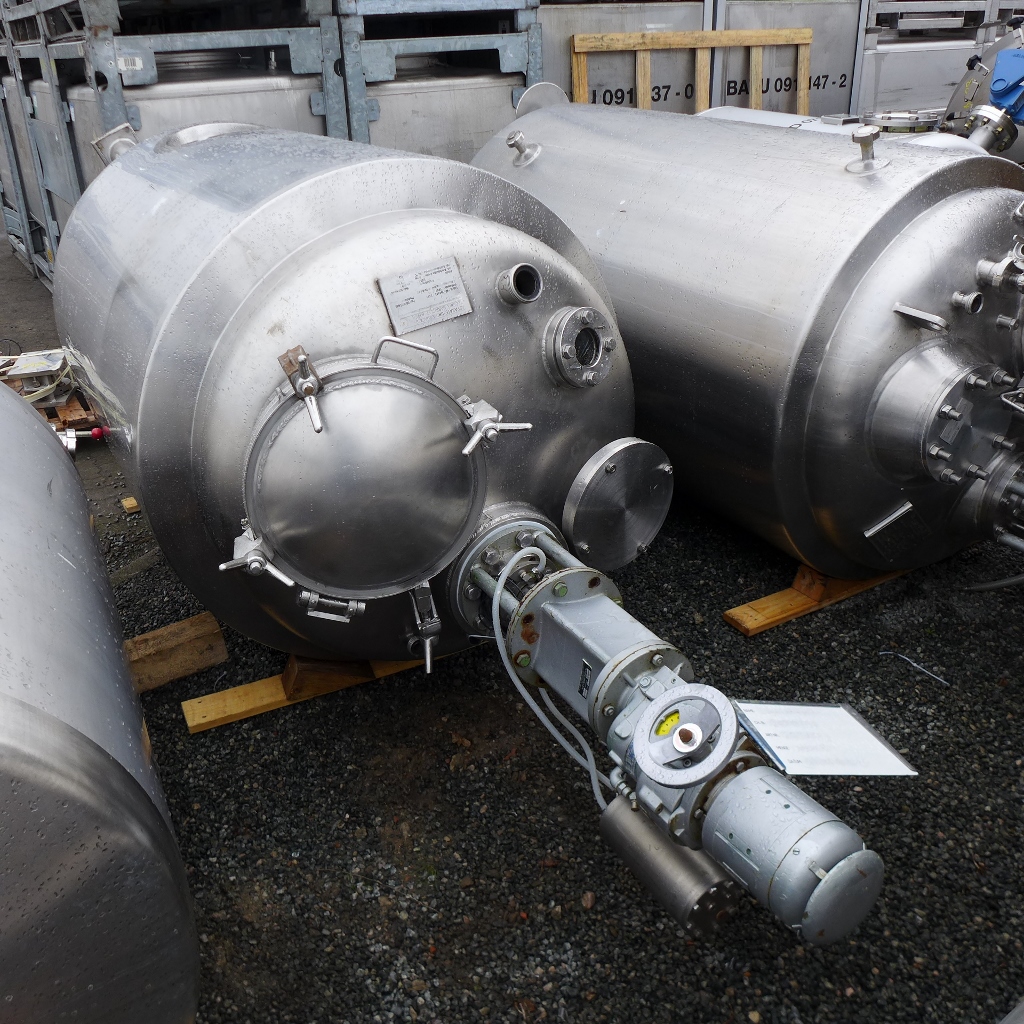

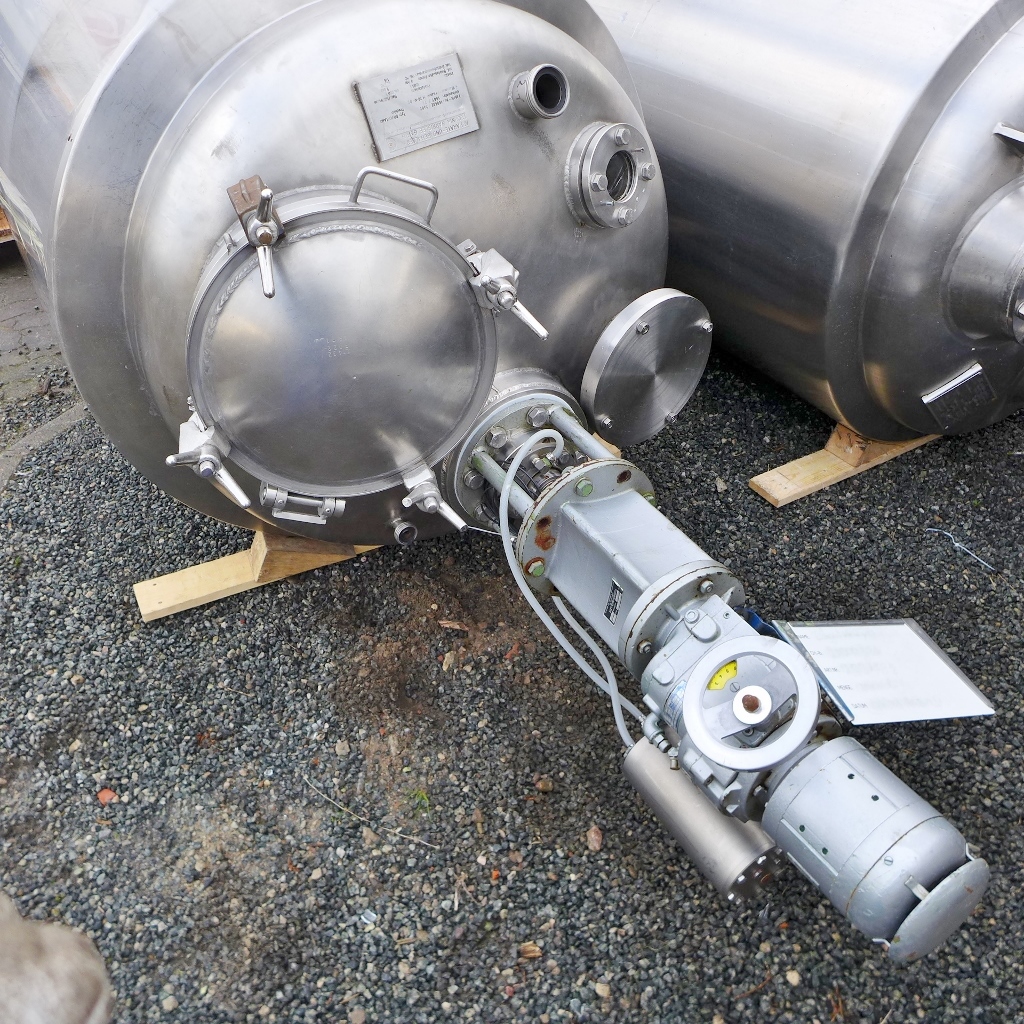

1200 liter tank i Syrafast 316

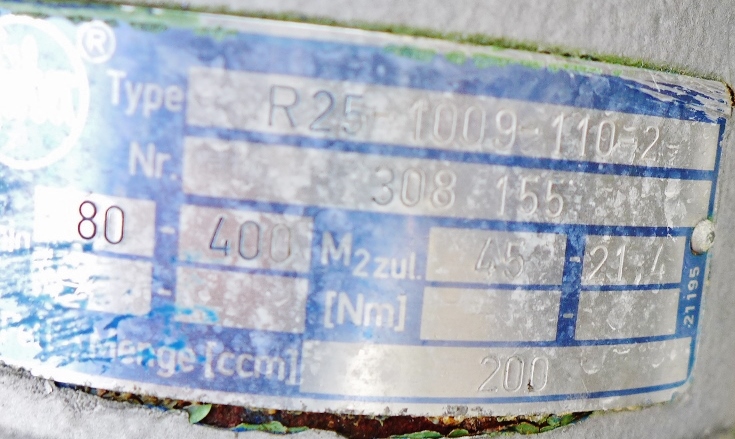

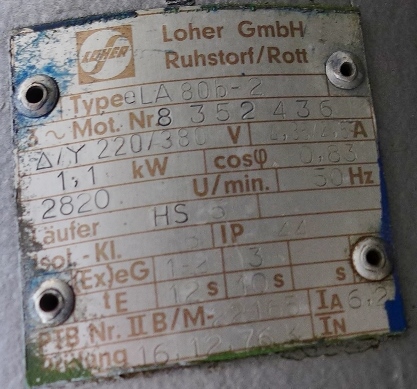

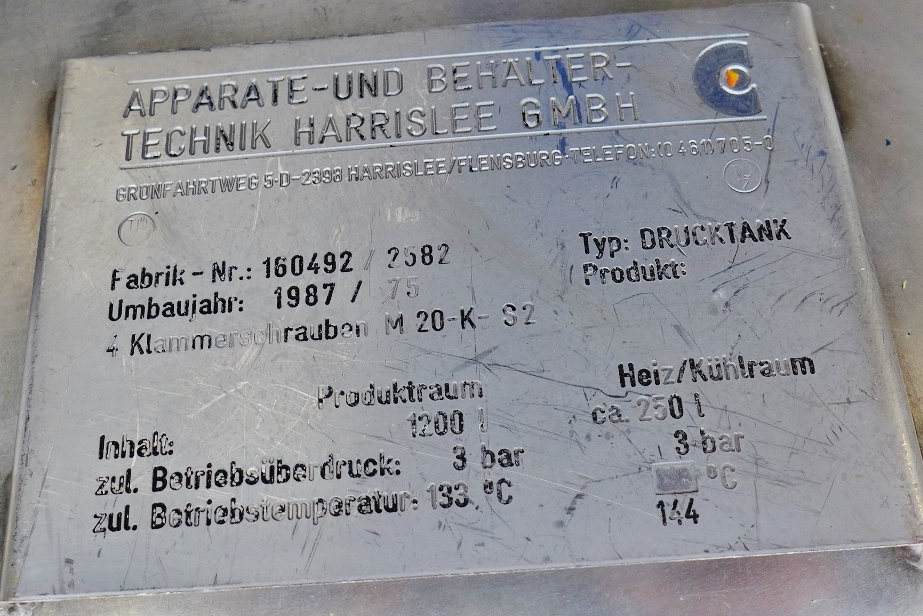

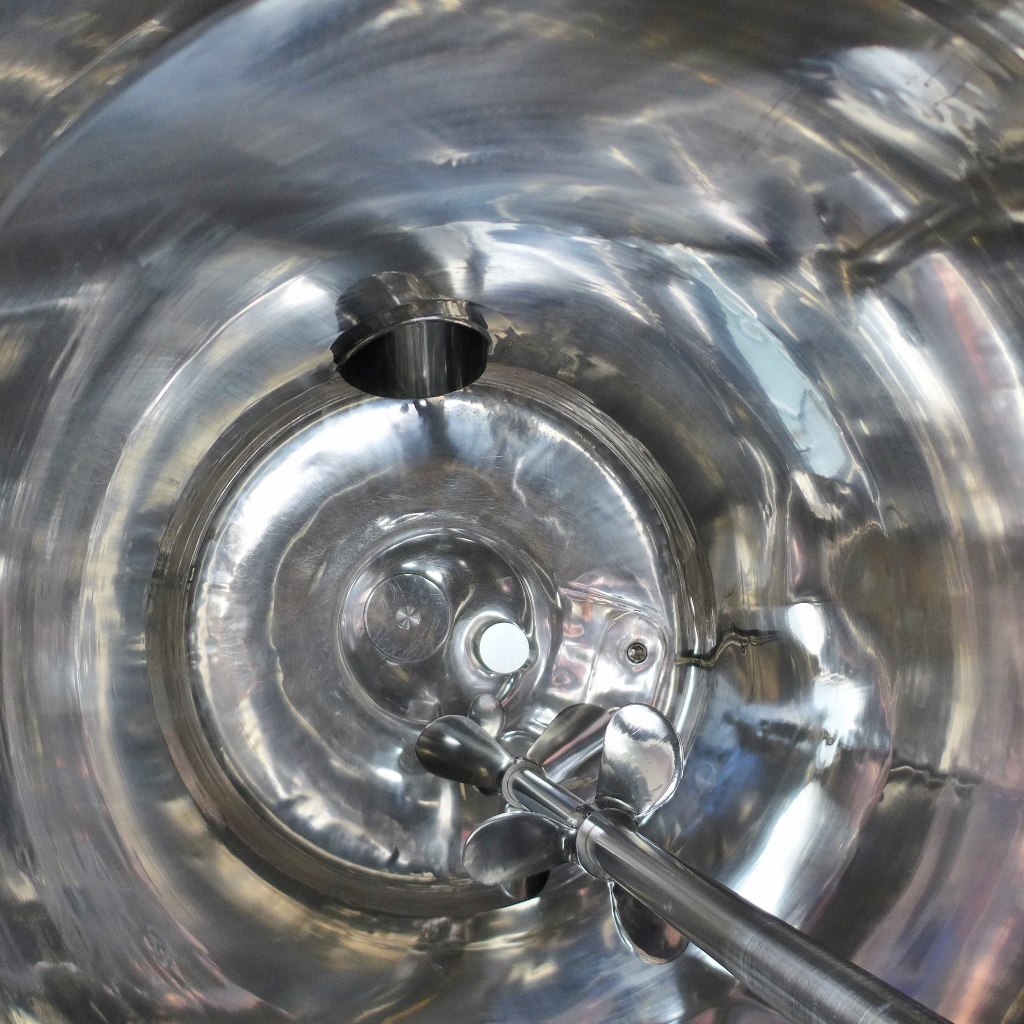

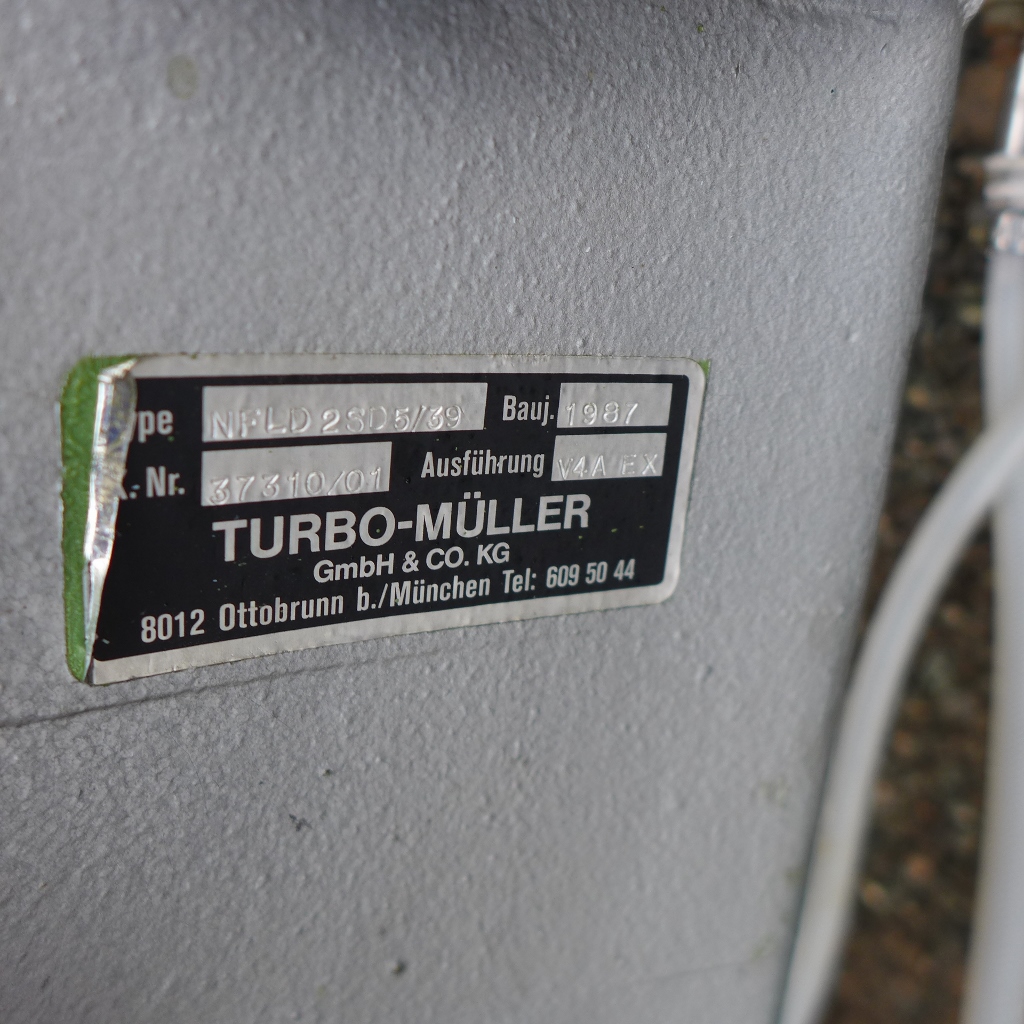

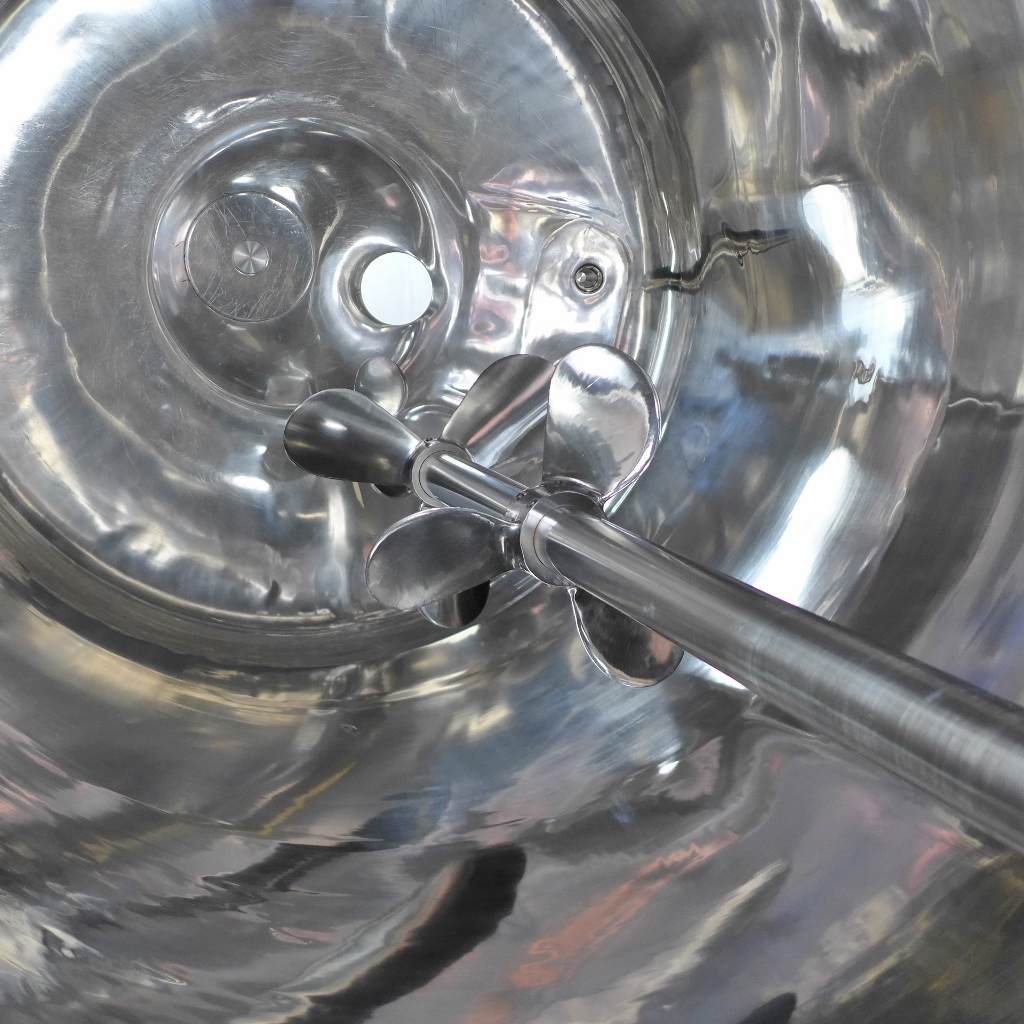

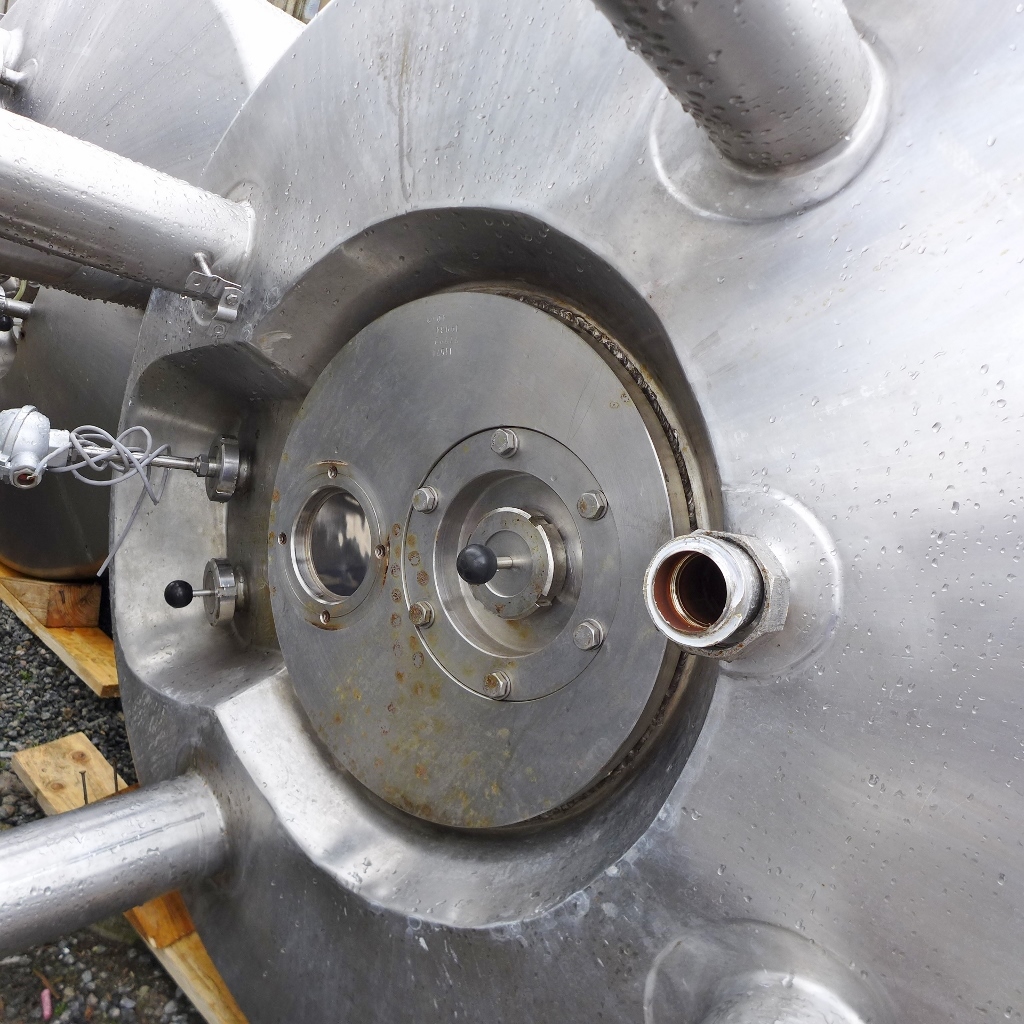

Additional information: Pharmacy; Tank was converted in 1987; manhole diameter 390 mm; further technical documents available Volumetric volume (L): 1.200 L Pressure in tank: pressure Max. pressure (Bar): 3 Bar Min. pressure (Bar): 3 Bar Max. temperature (°C): 133 °C Material wet parts: SS AISI 316 (V4A) Model: vertical Configuration: insulated with heat-exchanger Heat exchanger: yes Insulation: yes Mobile tank: no Total discharge: yes Volume: 250 L Max Overpressure: 3 Bar Max. working temperature: 144 °C Type HE on the bottom: heating/cooling jacket Type HE on the cylinder: heating/cooling jacket Documents included: no Technical drawing included: no Registration plate on the tank: yes Flange for agitator: no Position of manway: in the bottom Outlet of tank: available Agitator: yes Number of revolutions: 80 - 400 Power: 1,10 Top: 5 mm Cylinder: 5 mm Bottom: 4 mm Internal diameter tank: 990 mm Outer diameter tank: 1.200 mm Cylinder height: 1.430 mm Total height of tank: 3.600 mm
