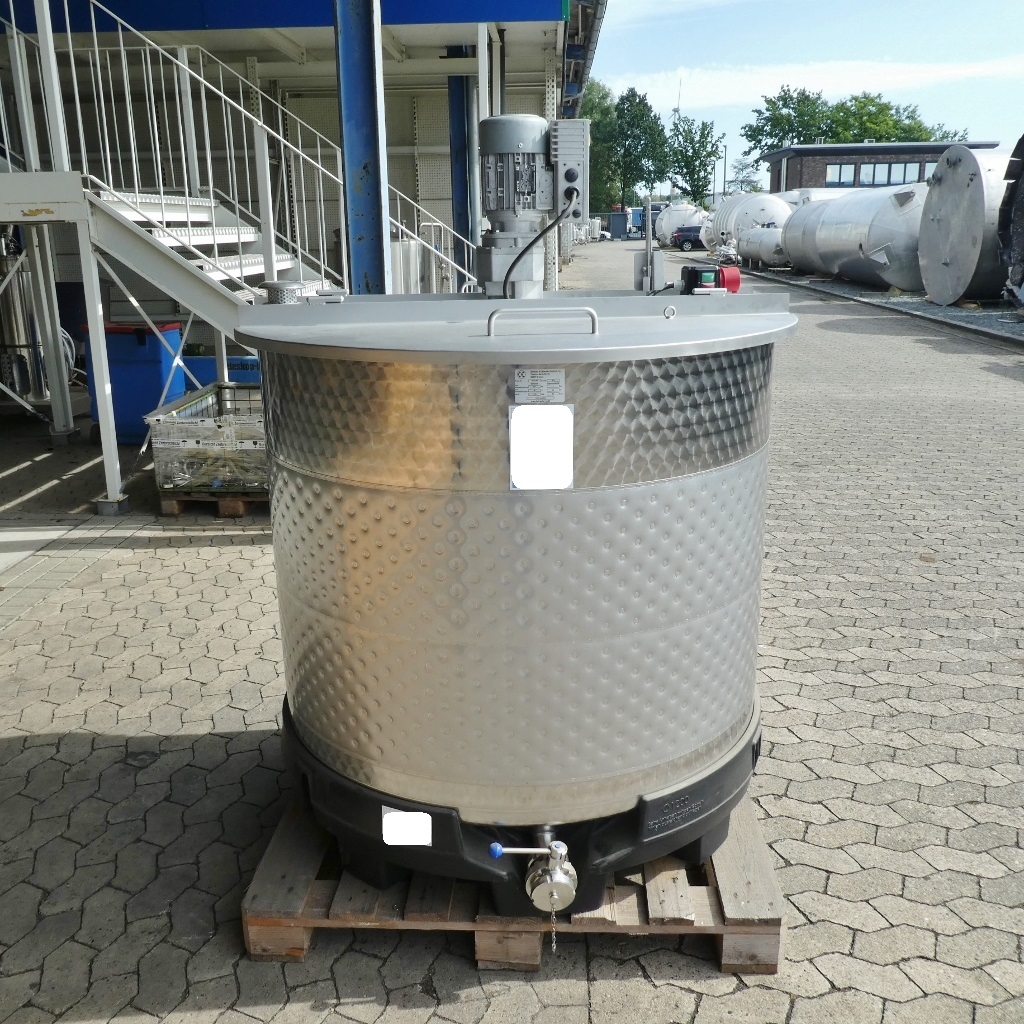

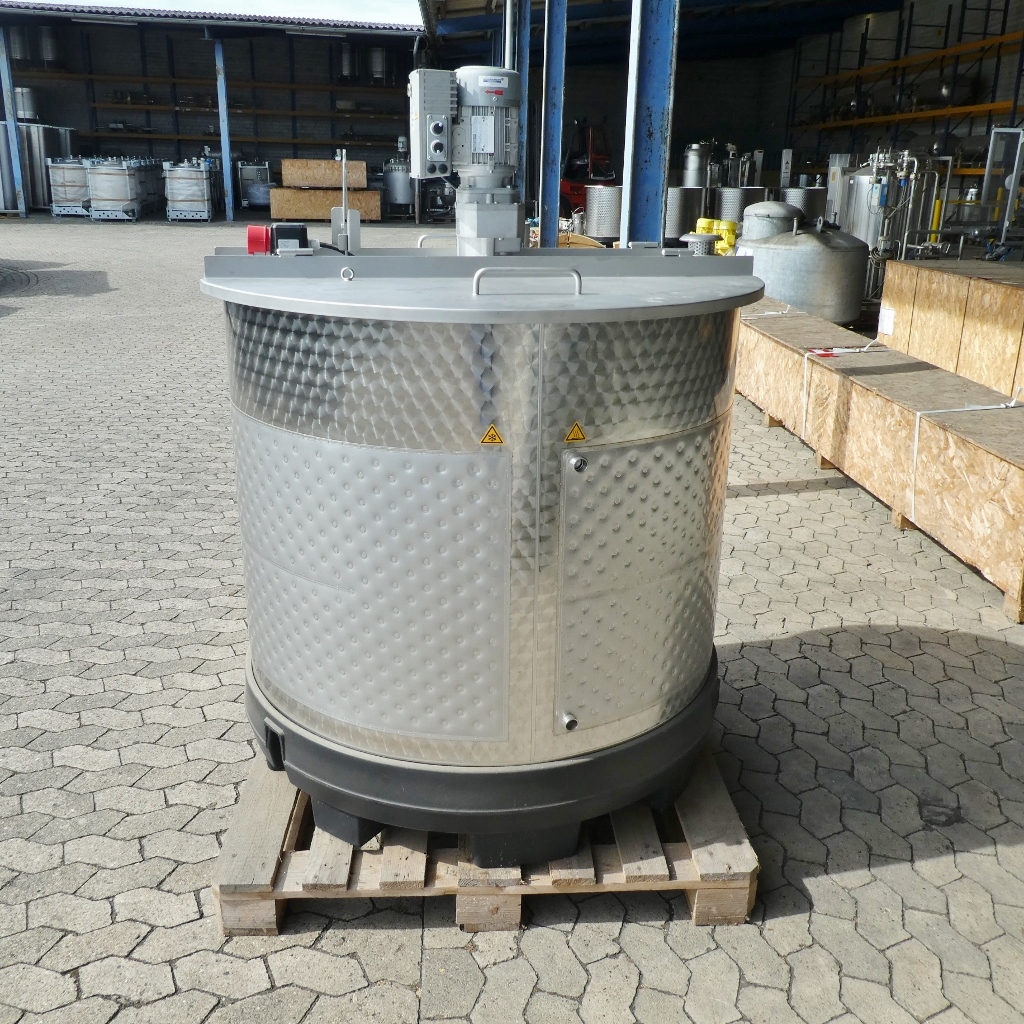

Volumetric volume (L): 1.150 L
Pressure in tank: ATM - atmosferic
Max. temperature (°C): 80 °C
Material wet parts: SS AISI 304 (V2A)
Model: vertical
Configuration: single jacketed with heat-exchanger
Heat exchanger: yes
Insulation: no
Mobile tank: no
Total discharge: yes
Volume: 4 L
Max Overpressure: 5 Bar
Max. working temperature: 80 °C
Heat exchanger: RVS 304
Fixation point(s): plastic
Documents included: no
Technical drawing included: yes
Registration plate on the tank: yes
Flange for agitator: no
Outlet of tank: DN50 DIN 11851

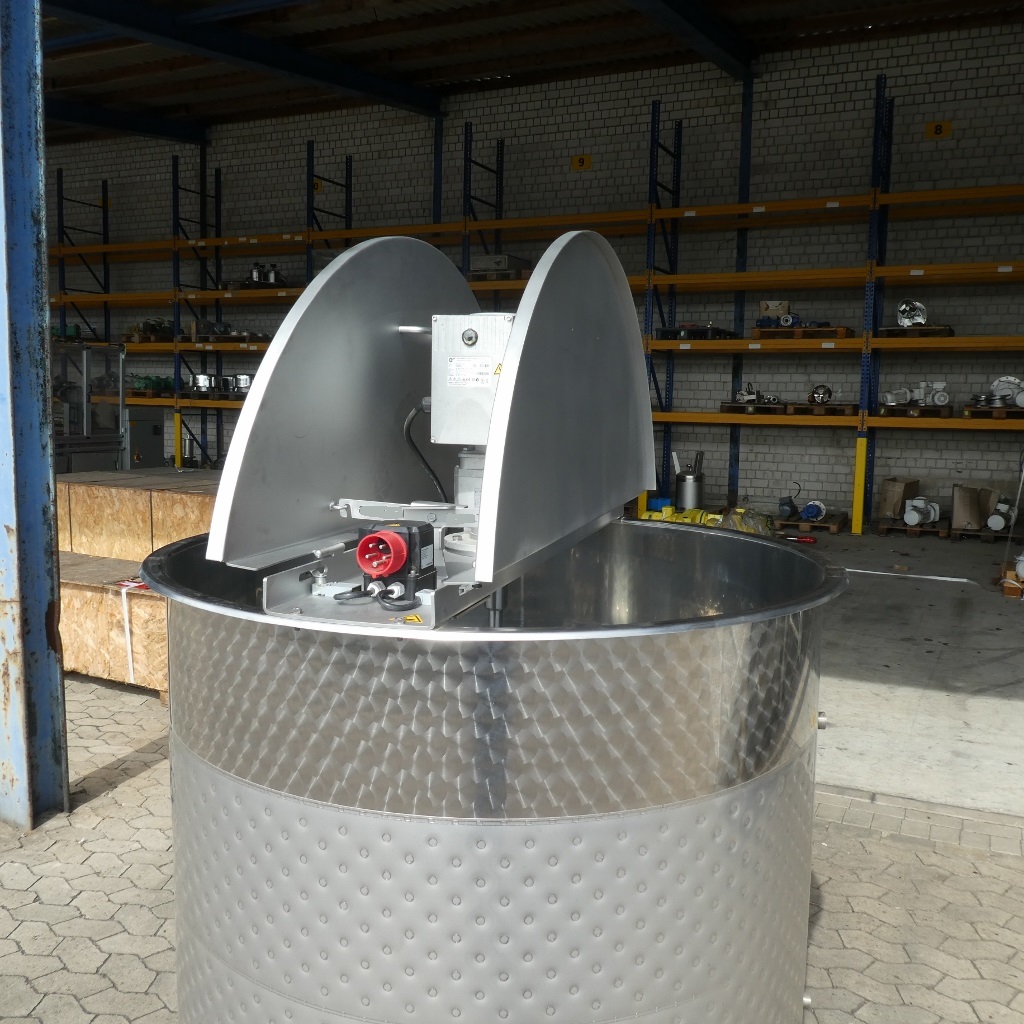

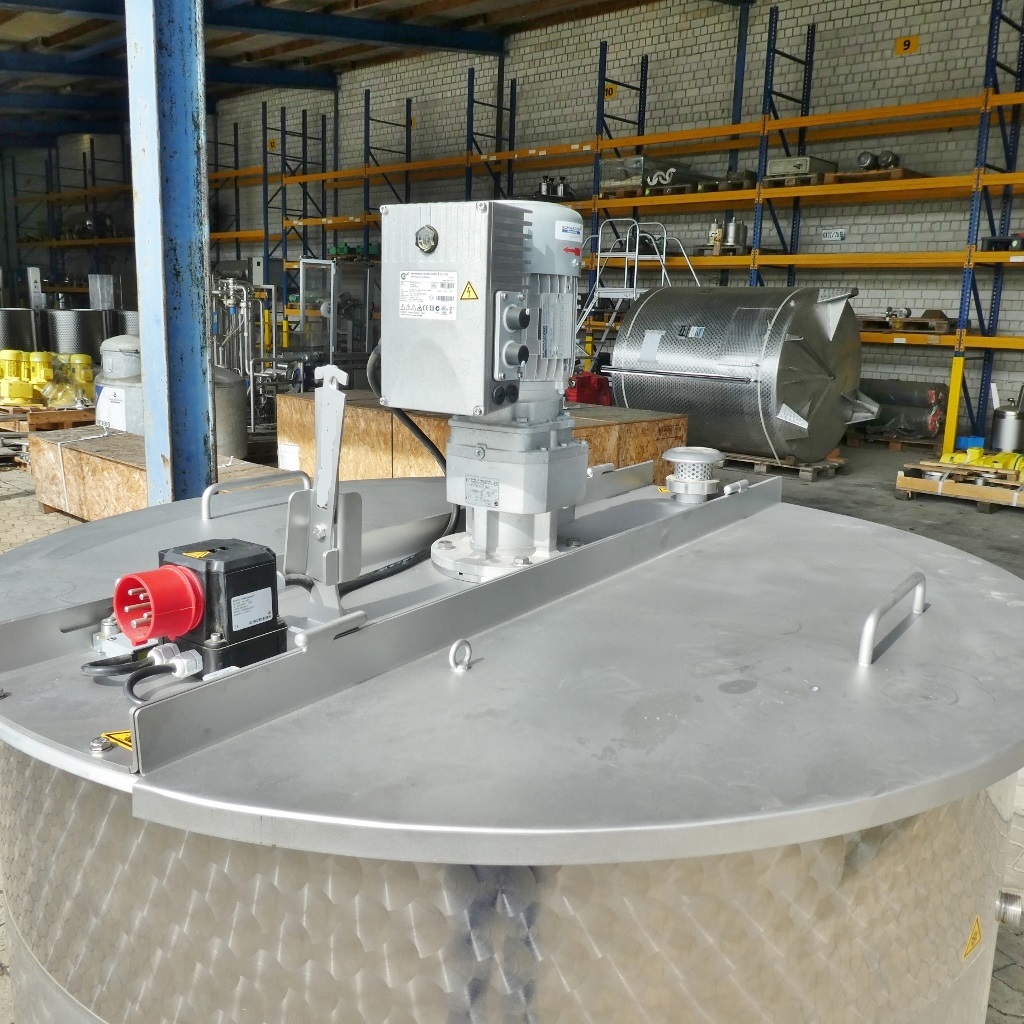

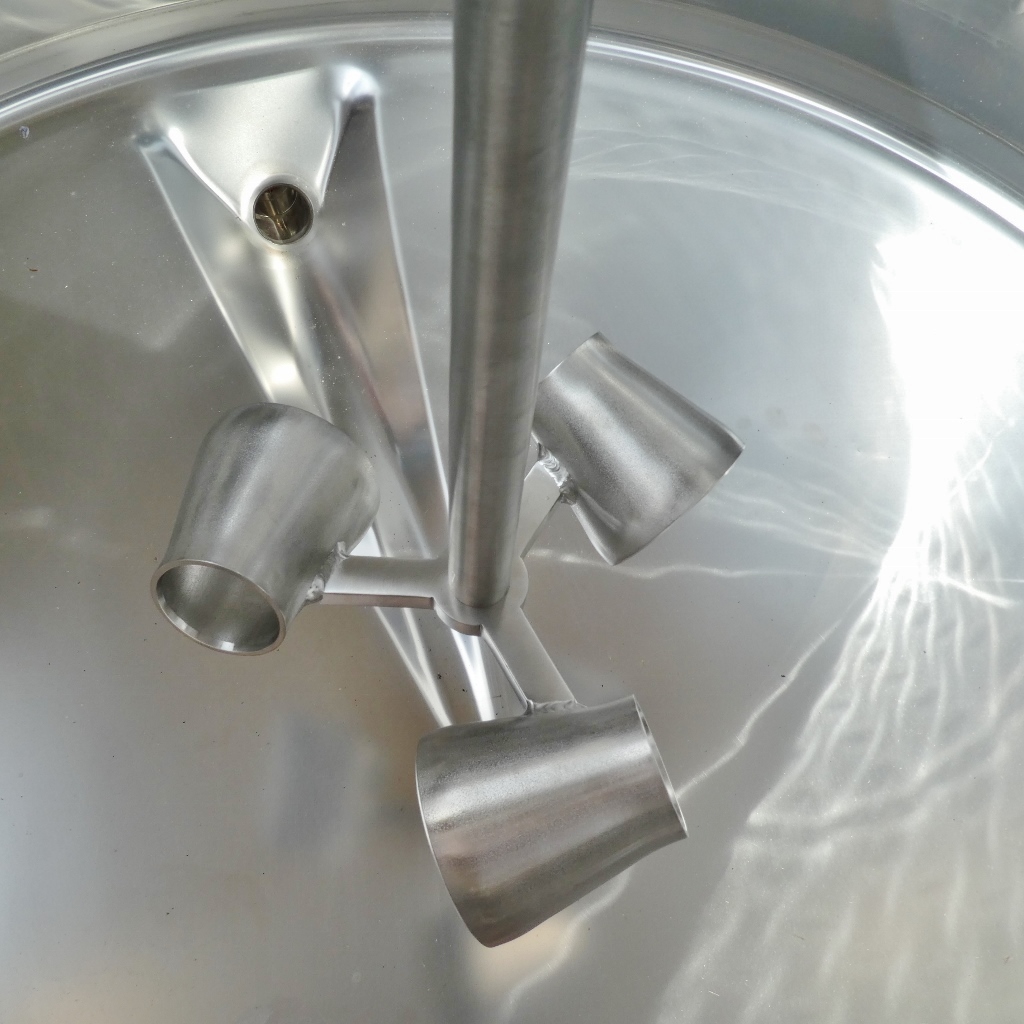

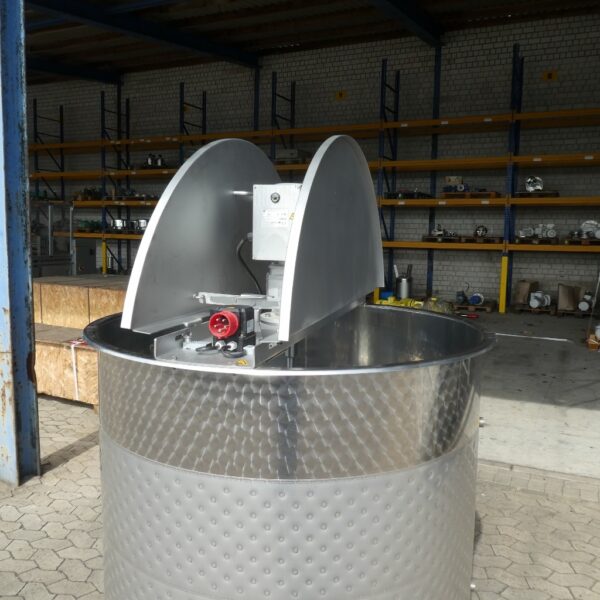

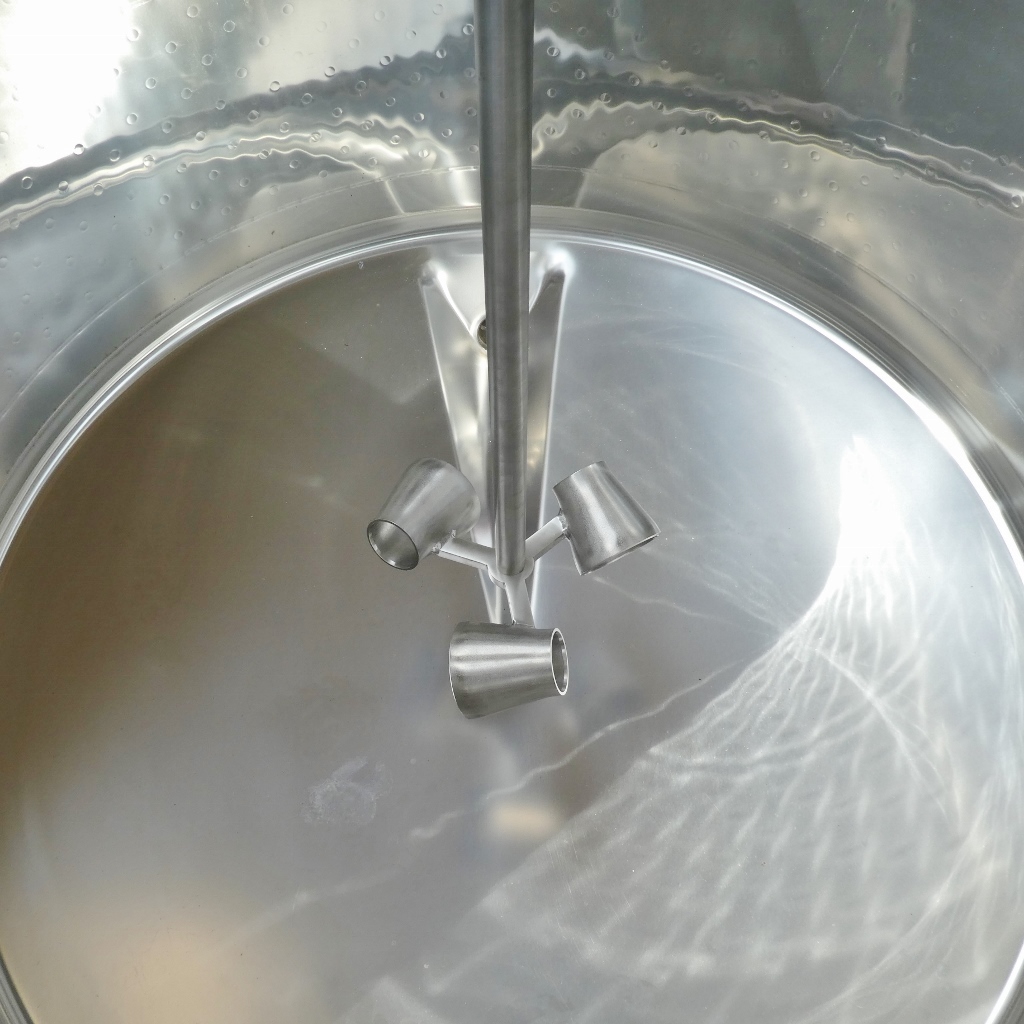

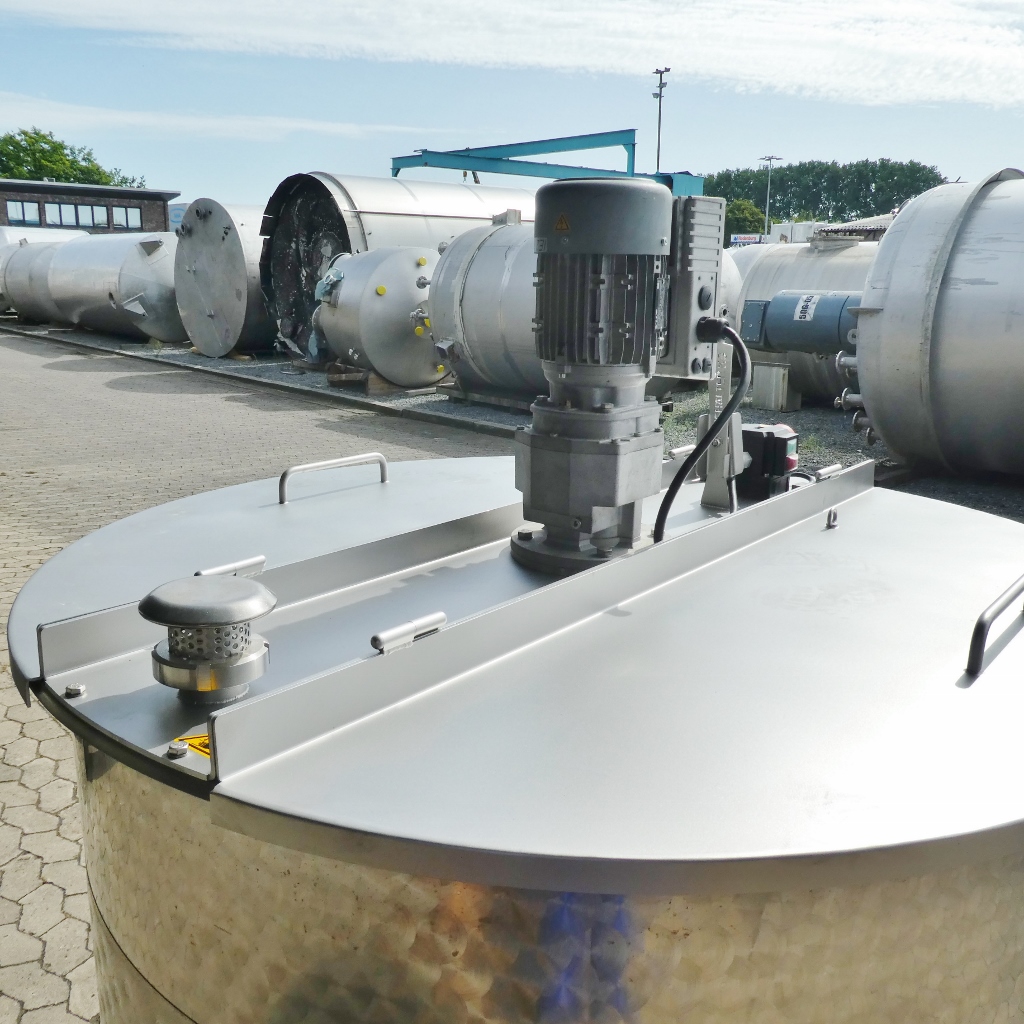

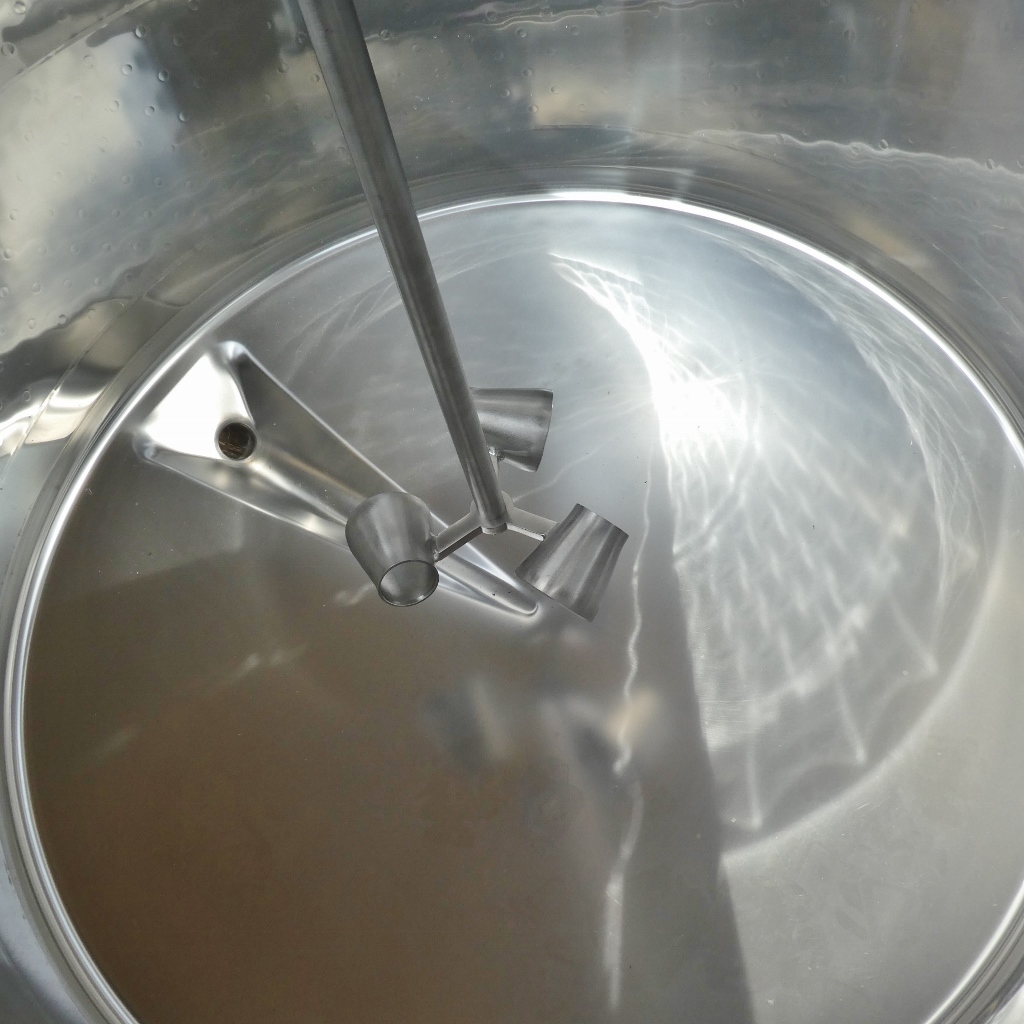

Agitator: yes
Number of revolutions: 0-190

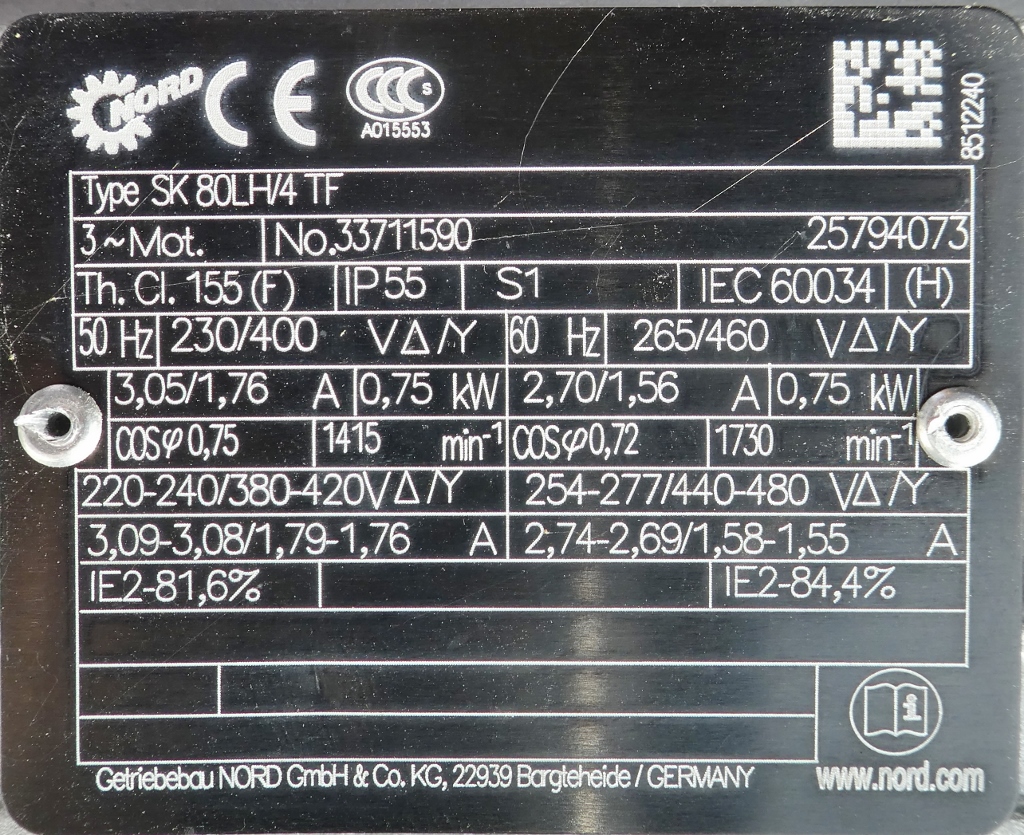

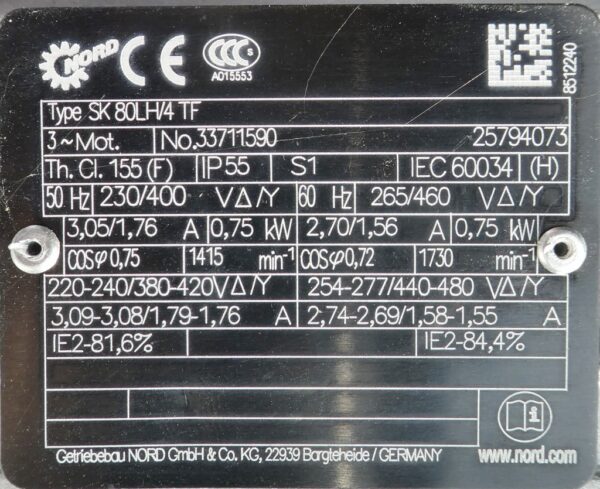

Power: 0,75
Internal diameter tank: 1.200 mm
Cylinder height: 938 mm
Total height of tank: 1.680 mm
