105000 liter i Rostfritt 304

item available on order

Article type: brand new storage tank – type TZN-SE

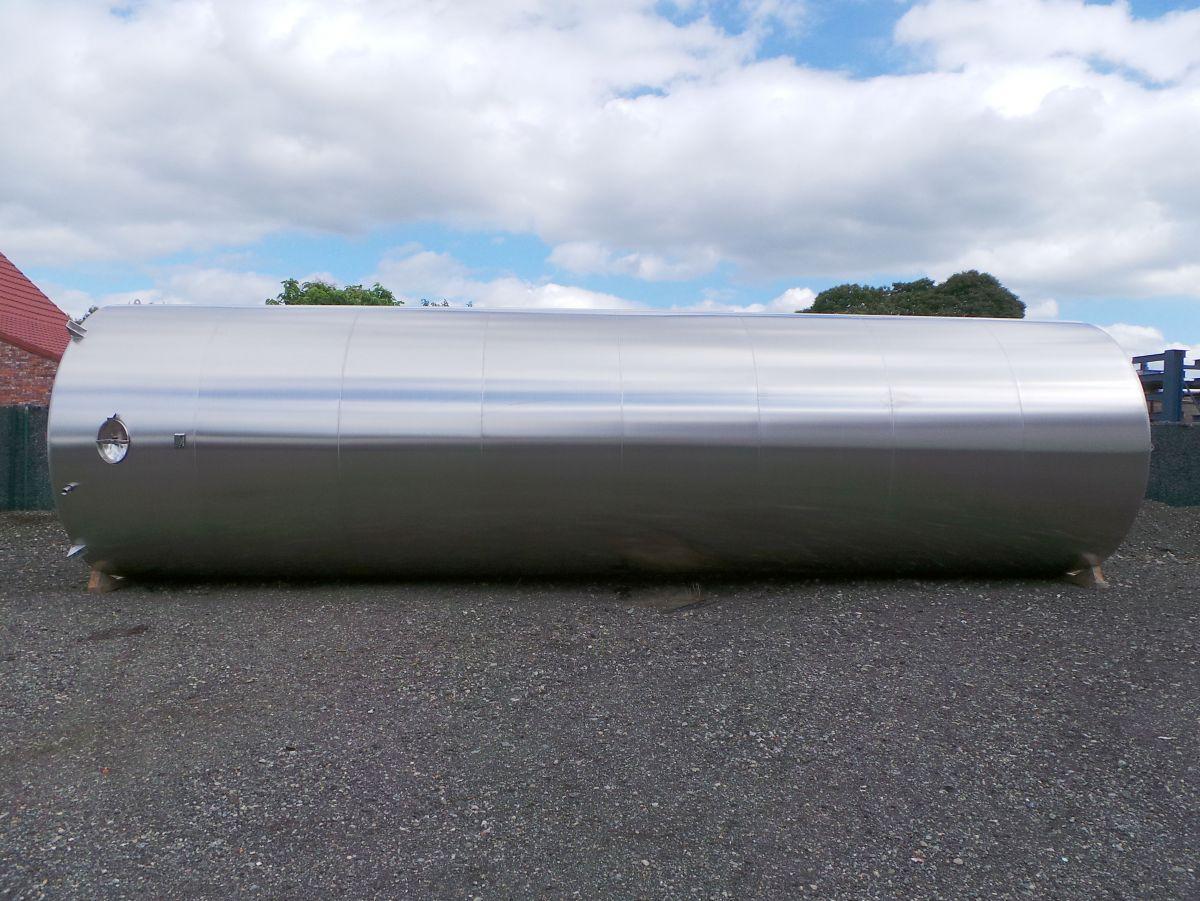

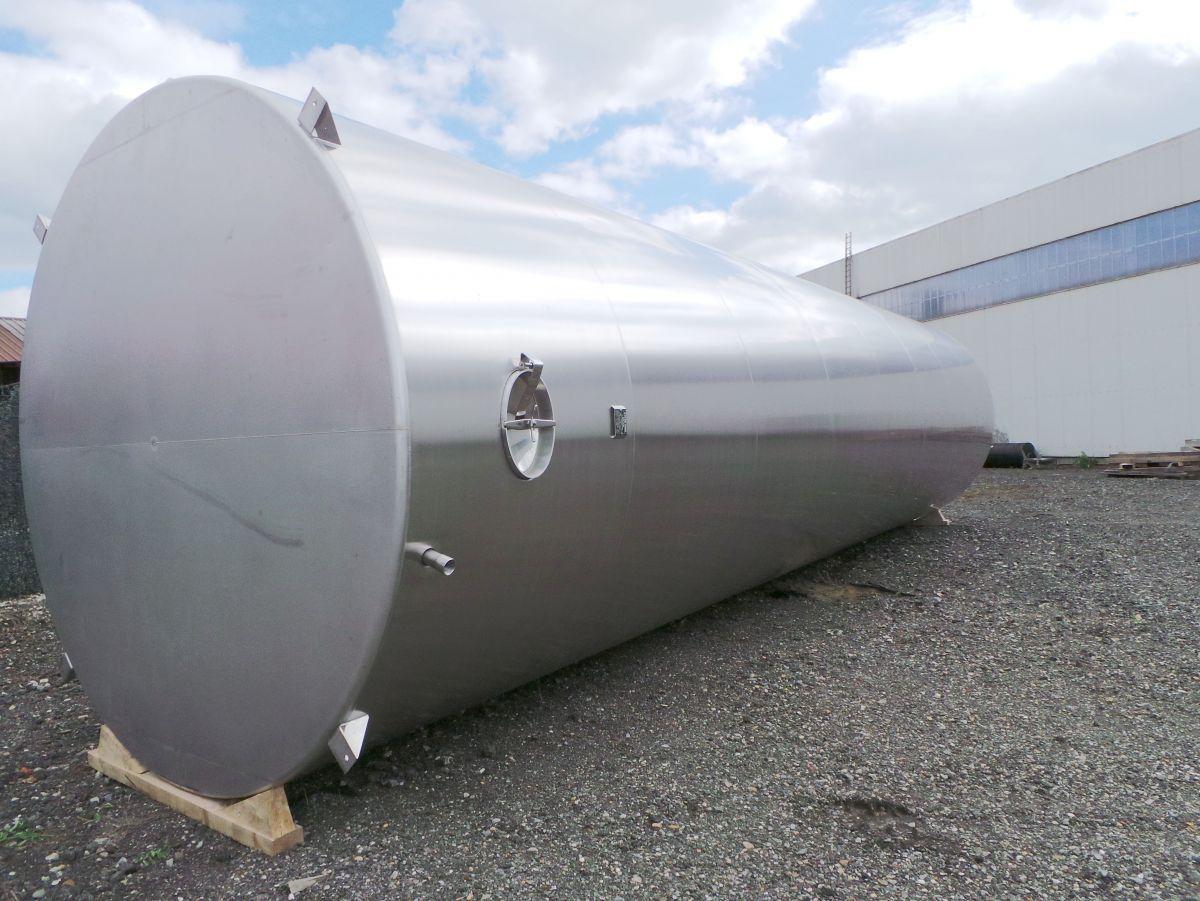

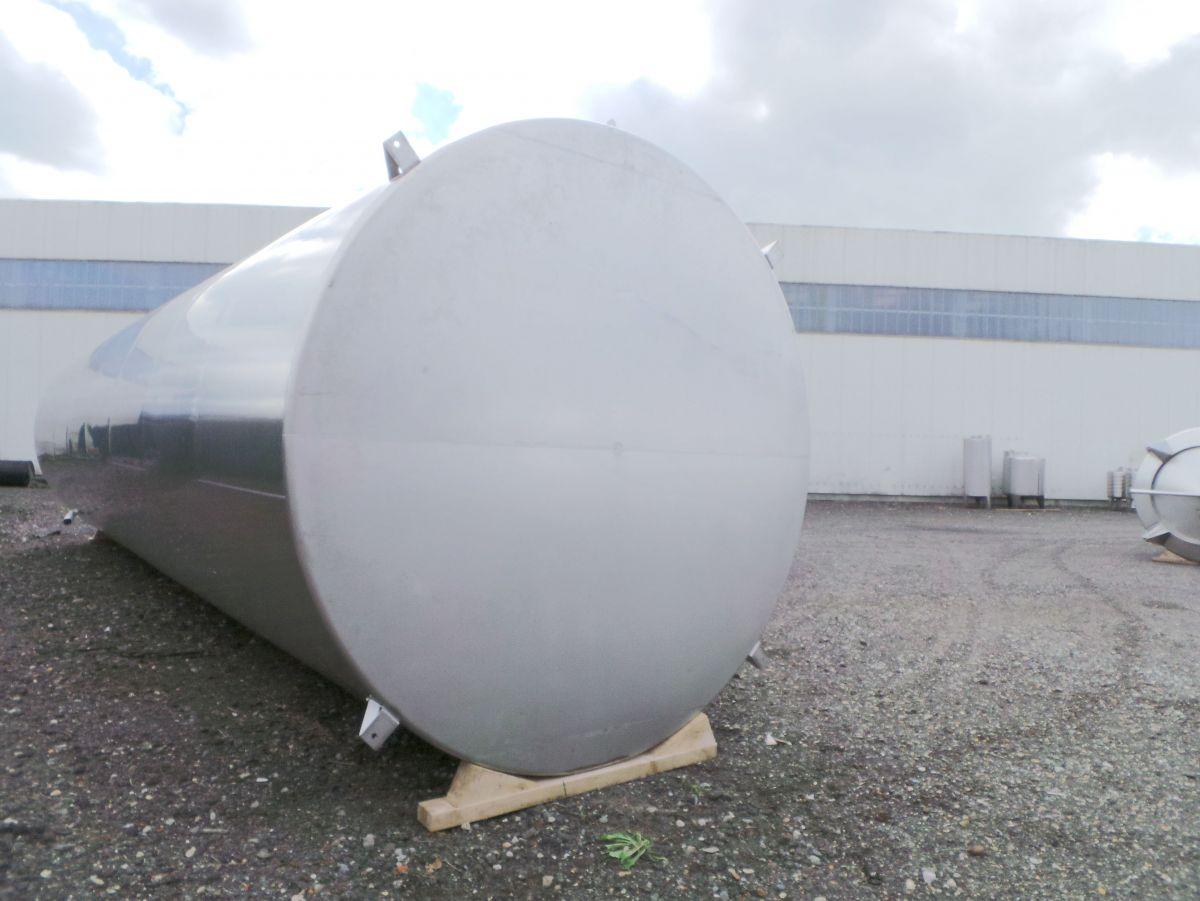

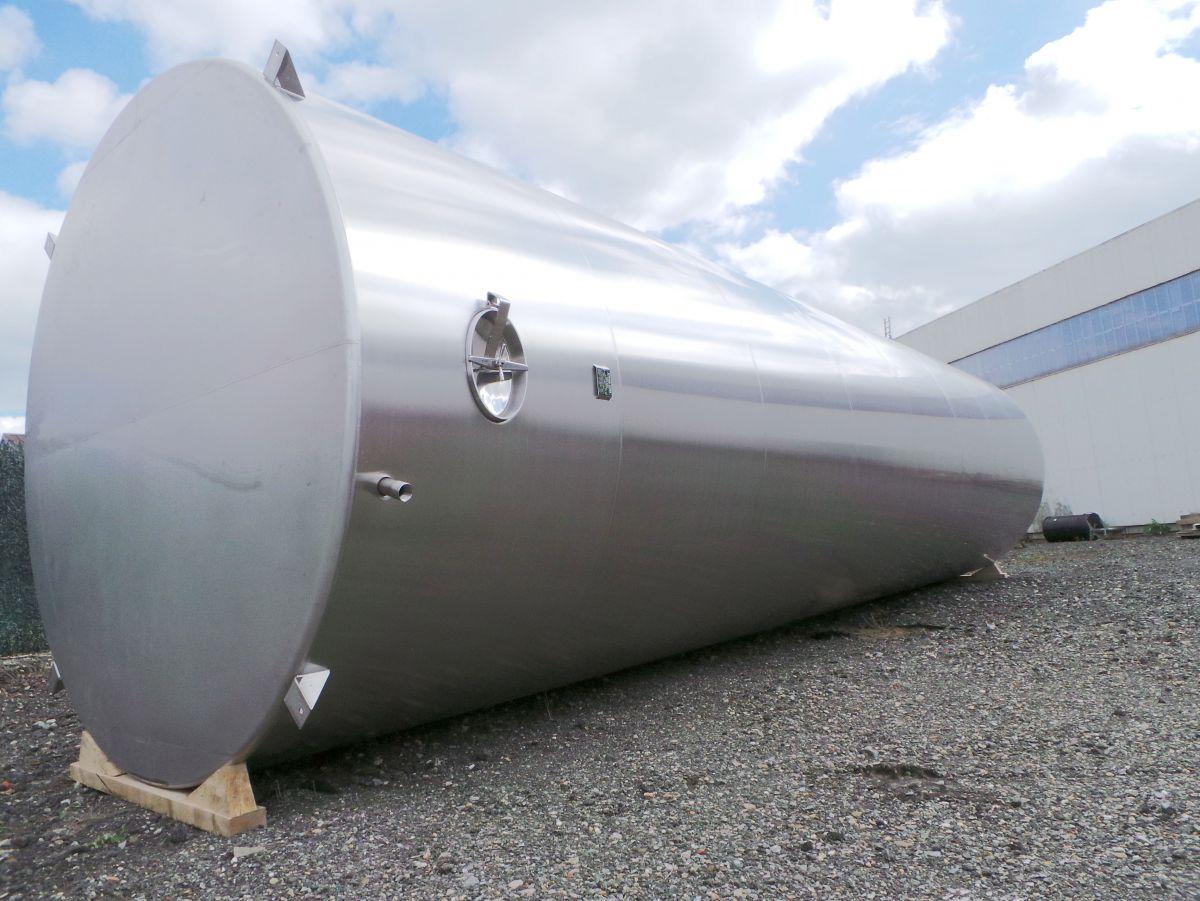

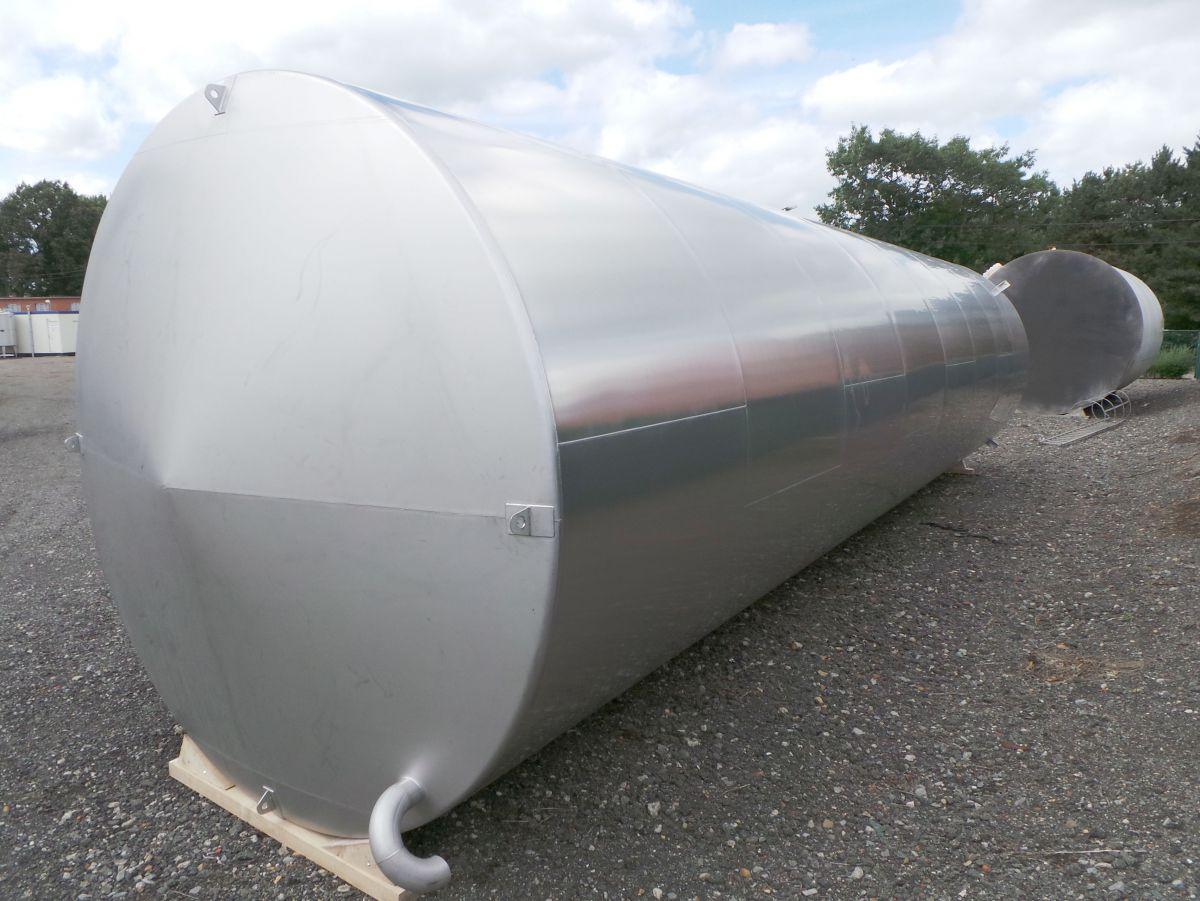

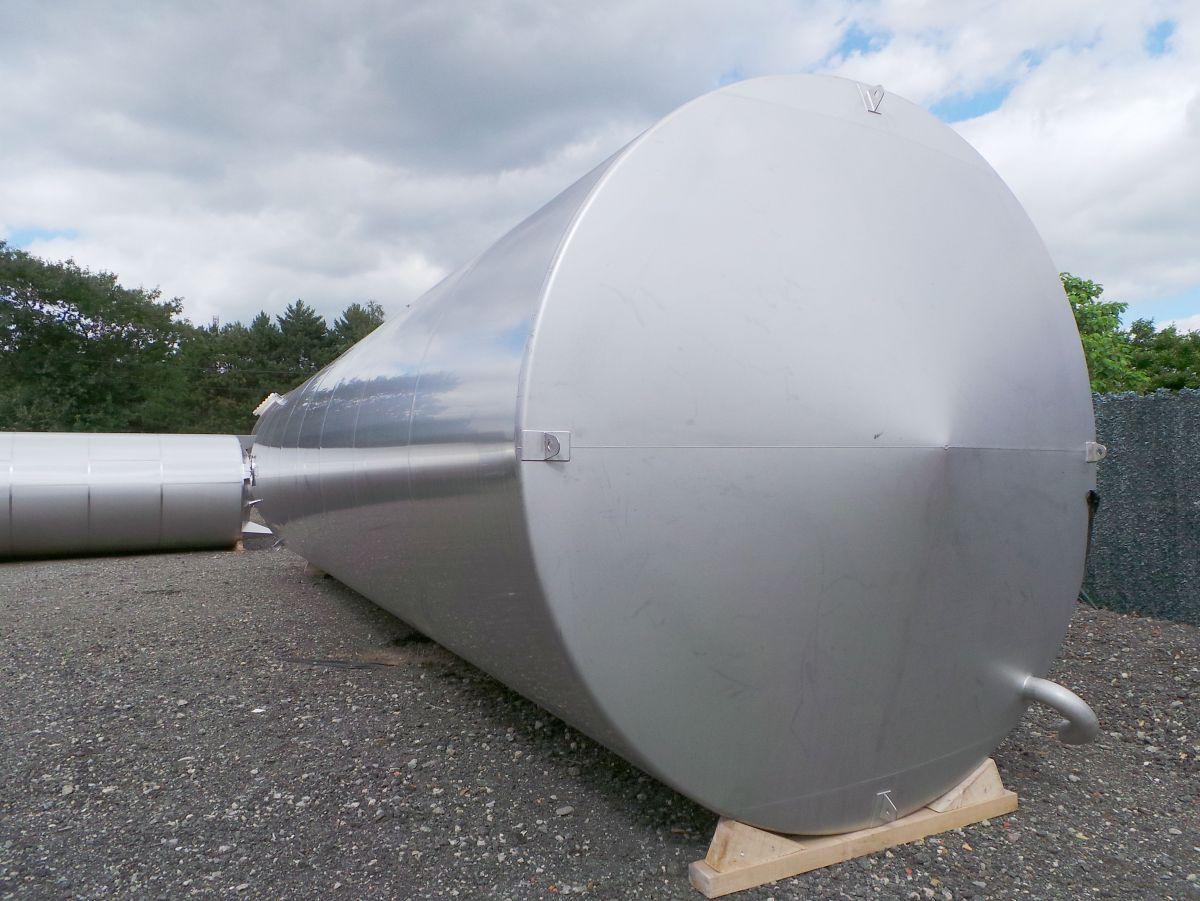

Additional information: Pictures of an identical tank with a smaller capacity, pls look at the technical drawing
Capacity: 105.000 L
Maximal density of the product: 1.250
Working pressure in tank: ATM – atmosferic

Material wet parts: SS AISI 304 (V2A)
Model: vertical
Configuration: single-skin
Heat exchanger: no
Insulation: no

Agitator: no
Mobile tank: no
Top type: conical 14 %
Shape of tank: cylindrical
Bottom type: flat %

Total discharge: yes

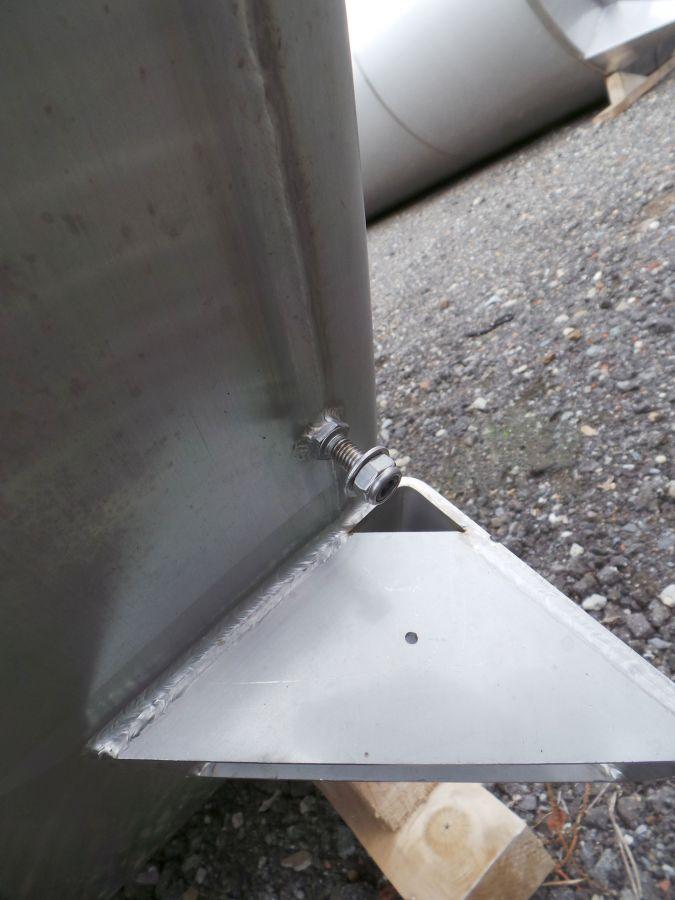

Fixation points: 4 attachment points
Manway(s): RVS 304
Gasket manway(s): EPDM
Valve: RVS 316L

Fixation point(s): RVS 304
Suitable for food industry: yes
Documents included: no
Technical drawing included: no
Registration plate on the tank: no

Flange for agitator: no
Number of manways: 1
Position manway: cylinder

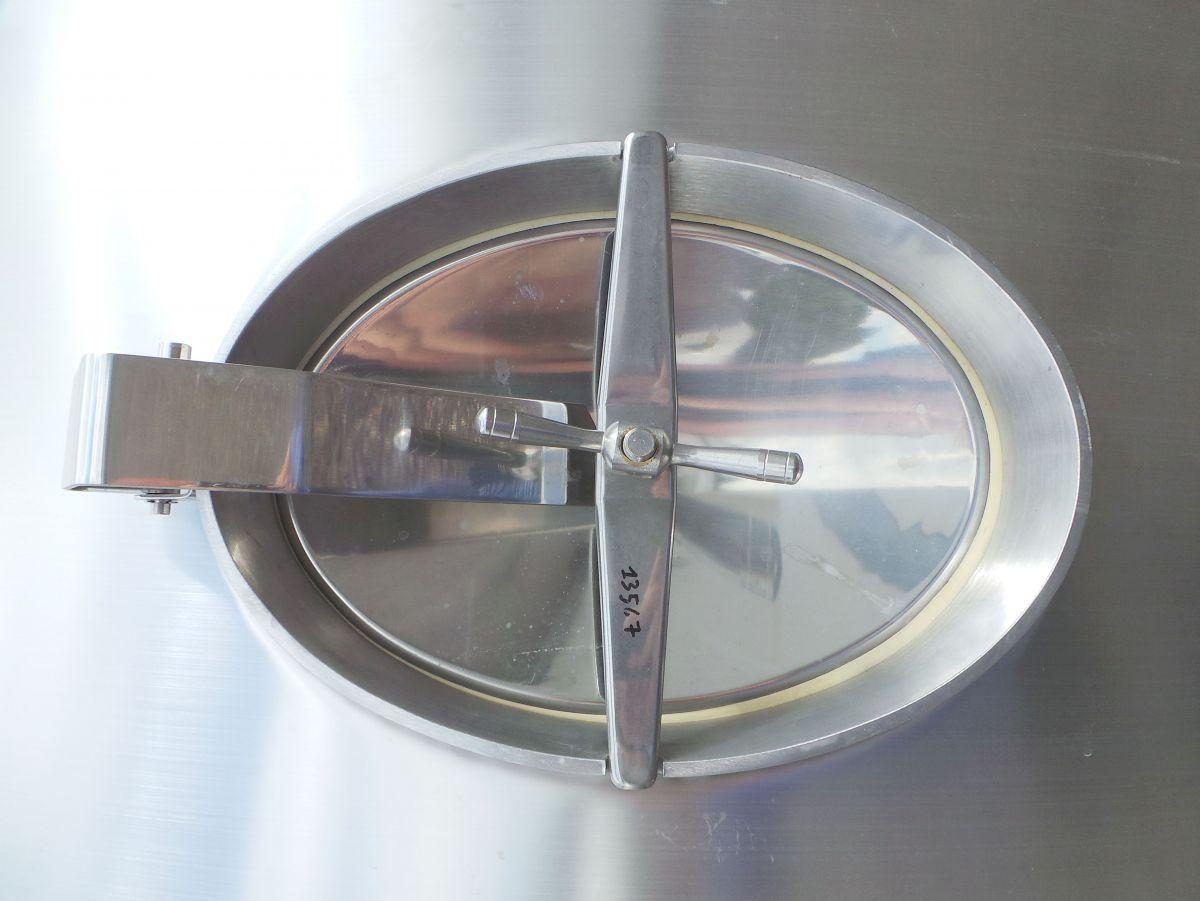

Manway 1: 308 mm x H 440 mm
Hinged lid: yes

Spray ball: no

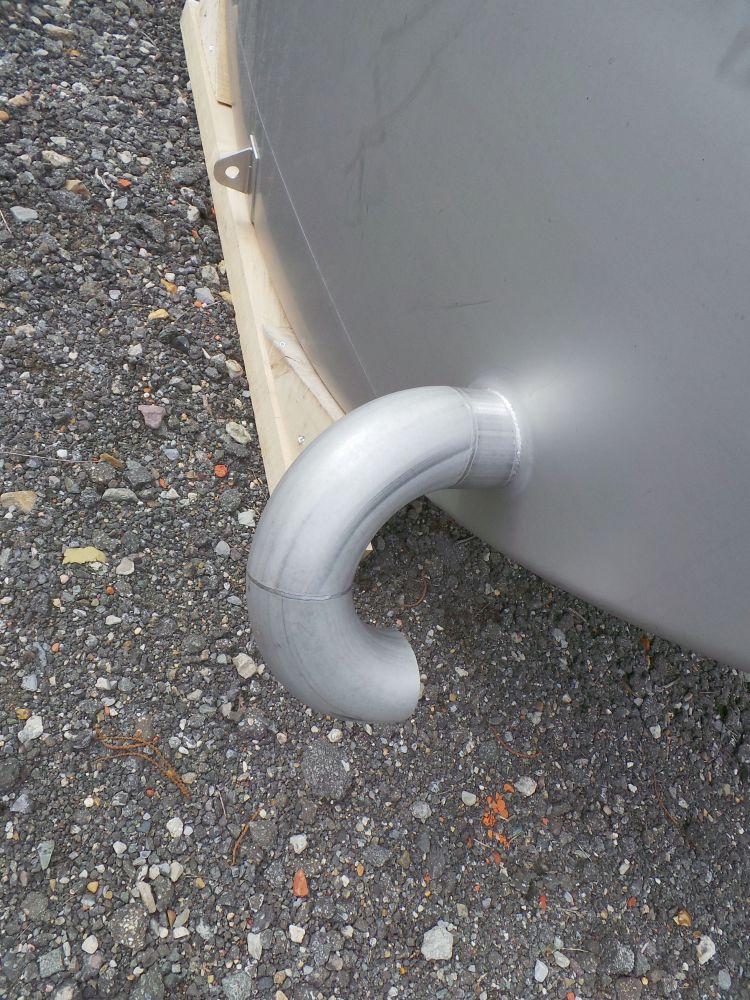

Tank outlet: inside Ø 80 mm
Outlet type: DIN11851
Total outlet valve: yes, optional
Type shut-off valve: butterfly valve

Installation: outside
Top: 2 mm
Cylinder: 3 mm
Bottom: 3 mm
Internal diameter tank: 3.342 mm

Distance from outlet to ground: 150 mm
Outer diameter tank: 3.342 mm
Cylinder height: 12.000 mm
Height of top: 455 mm
Total height of tank: 12.500 mm

Empty weight tank: 3.000
