105000 liter i Syrafast 316

item available on order

Article type: brand new storage tank – type TZN-SE

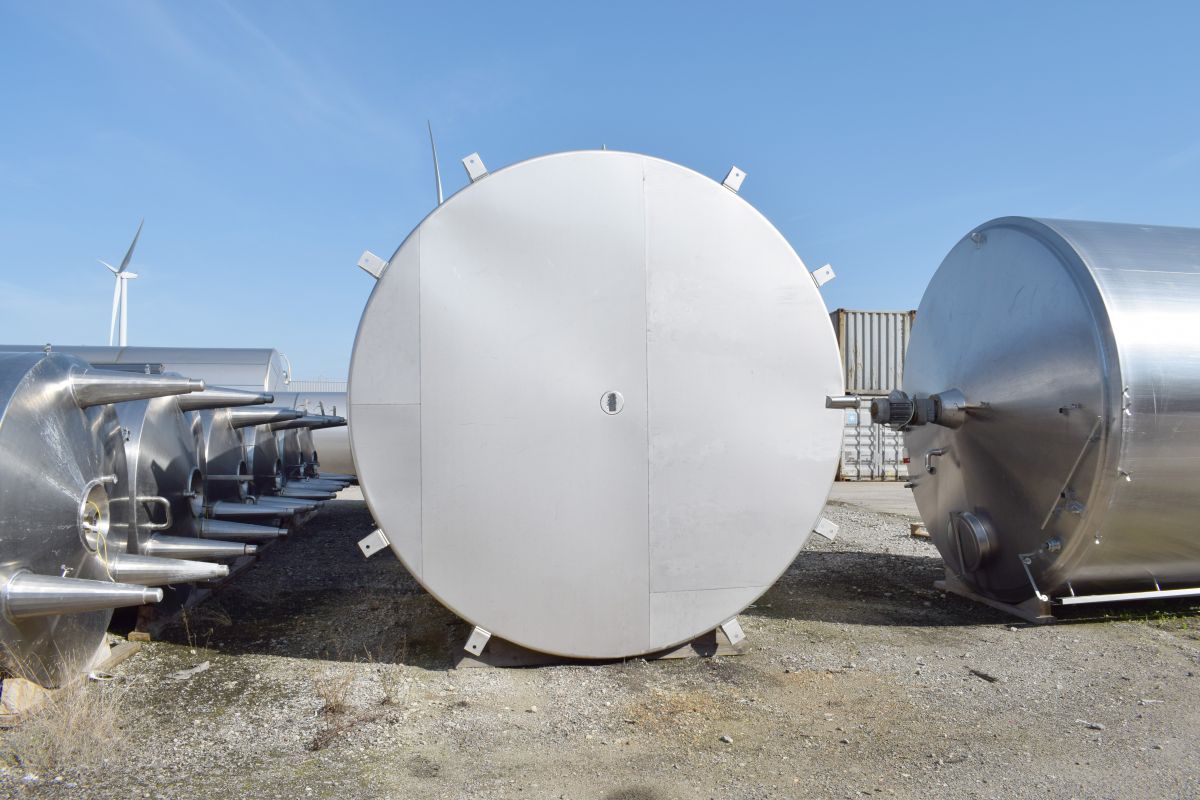

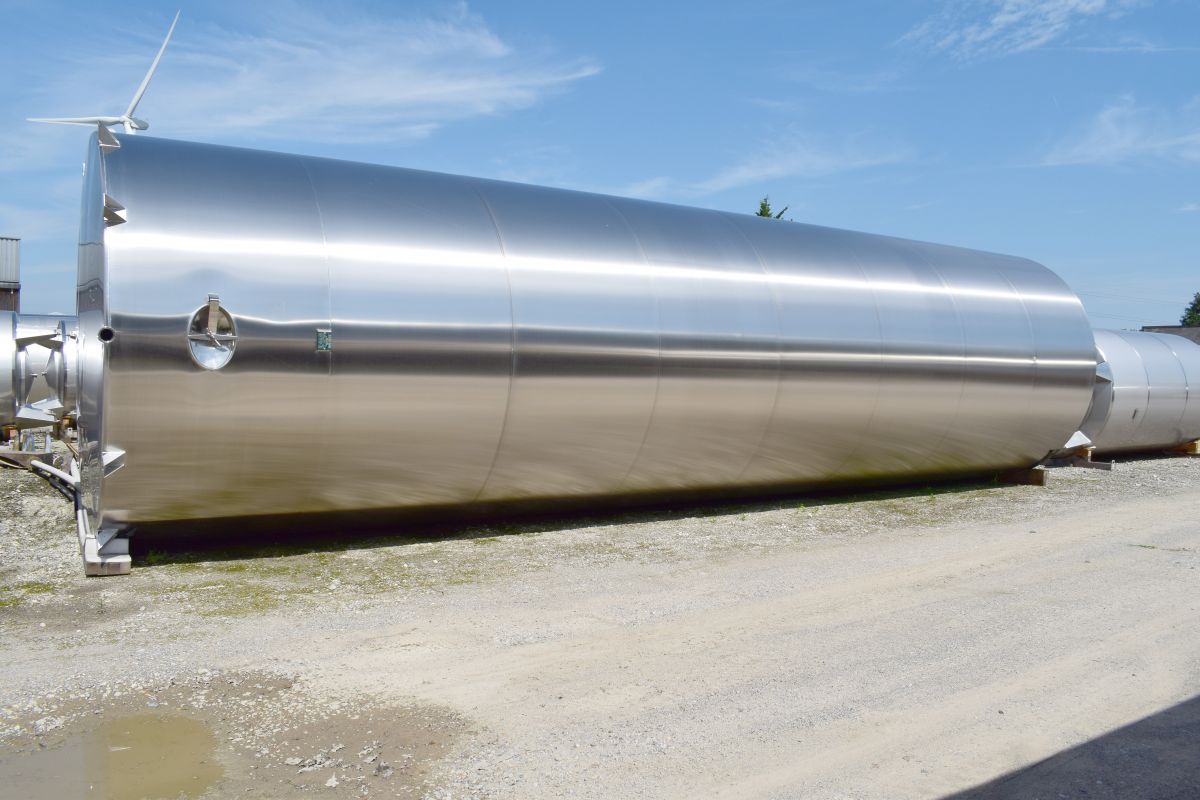

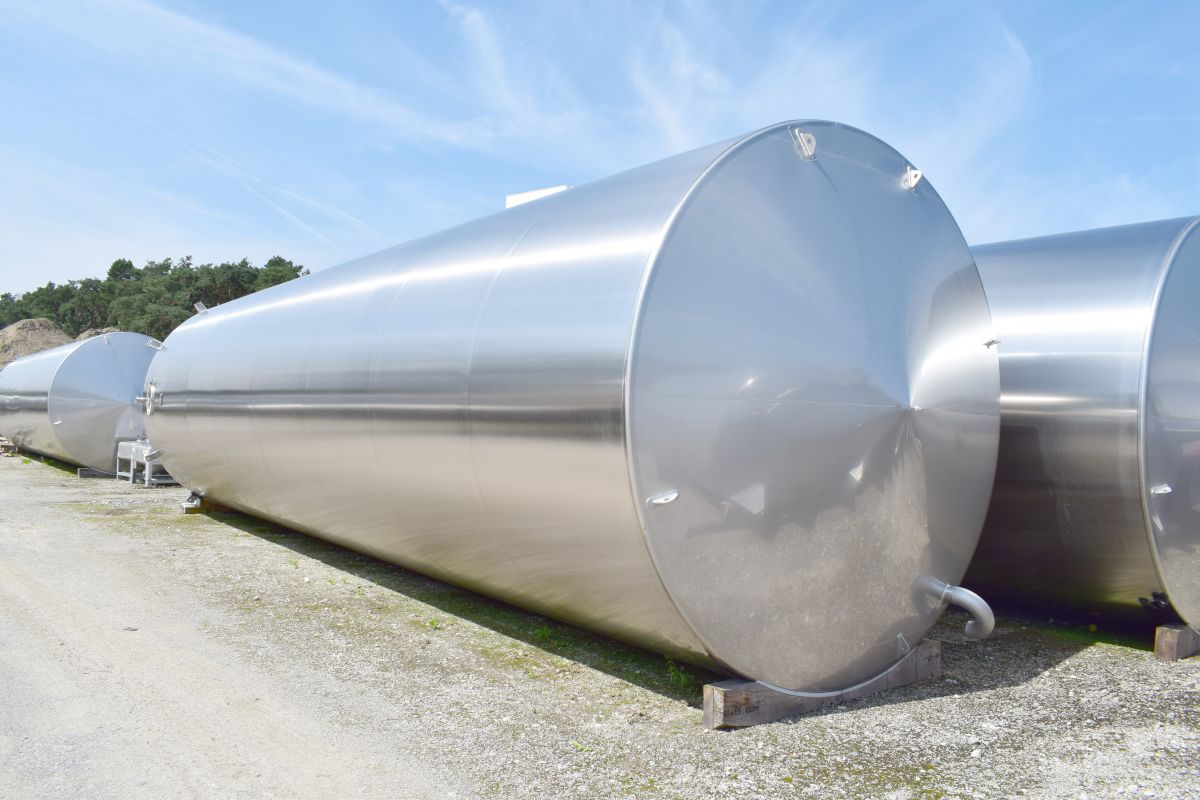

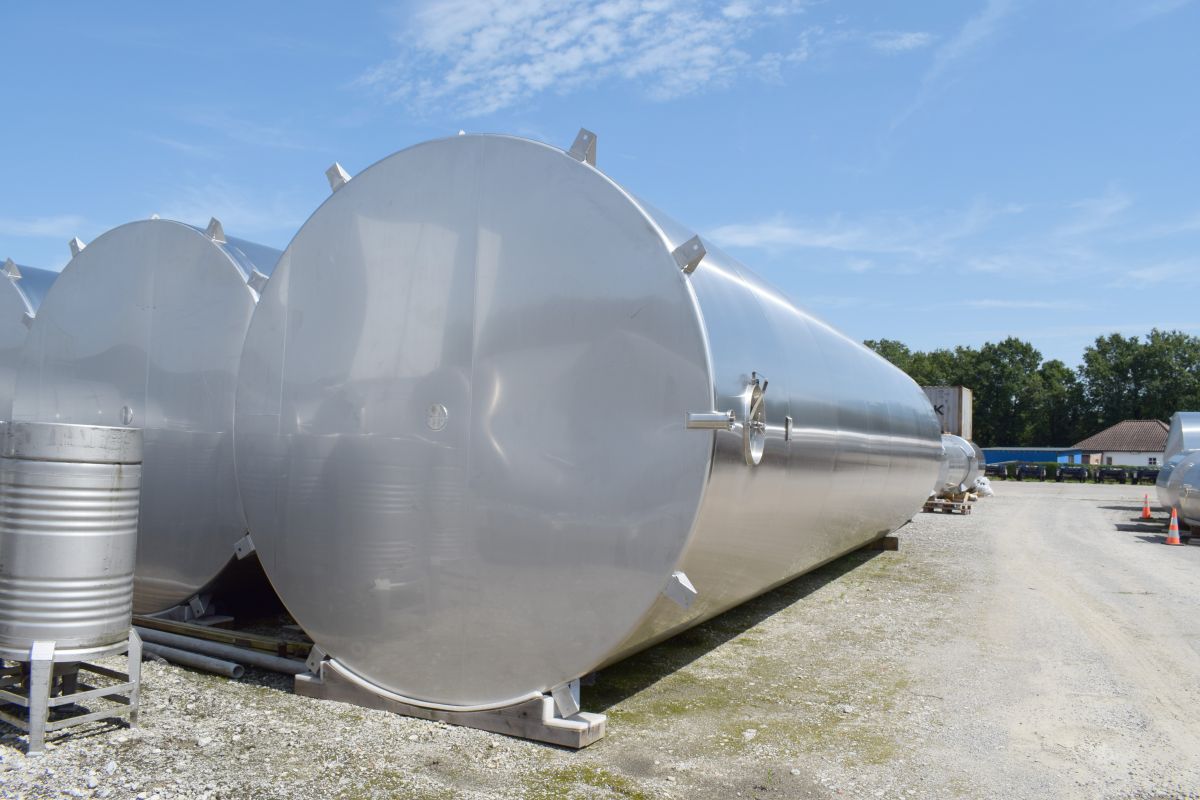

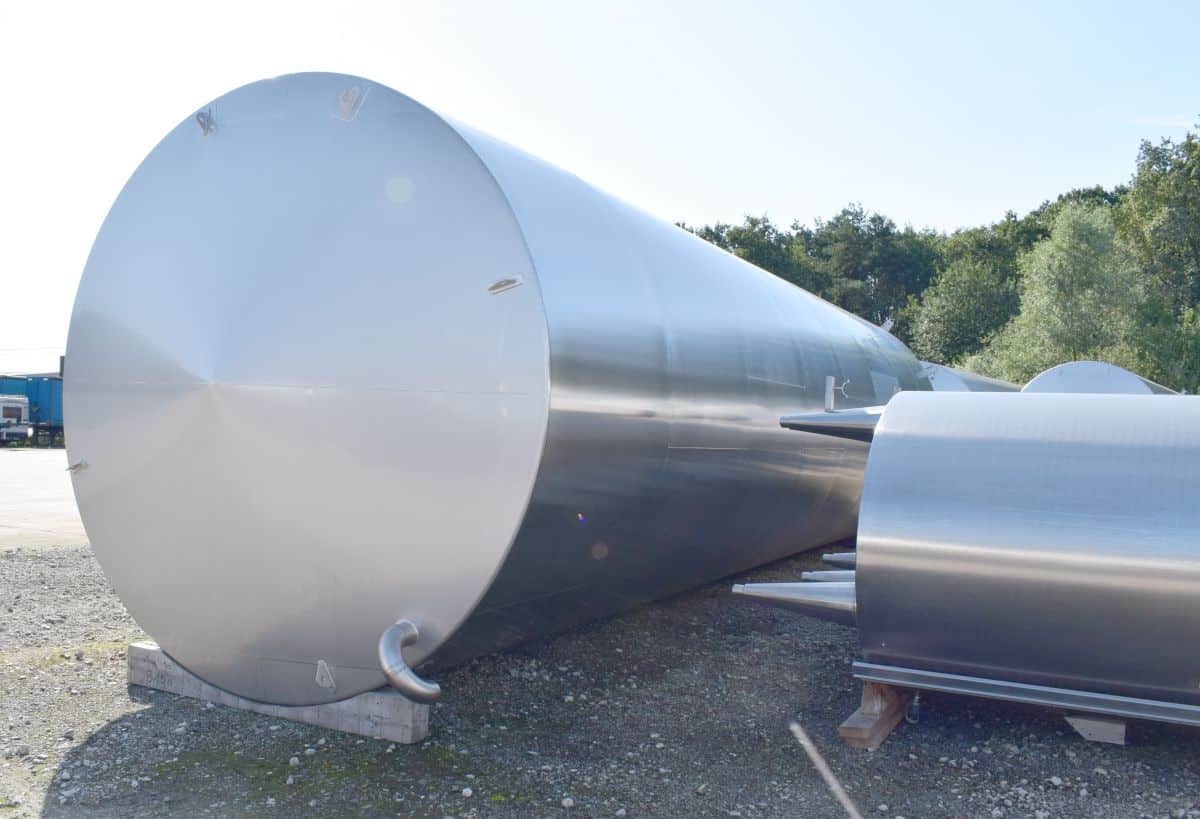

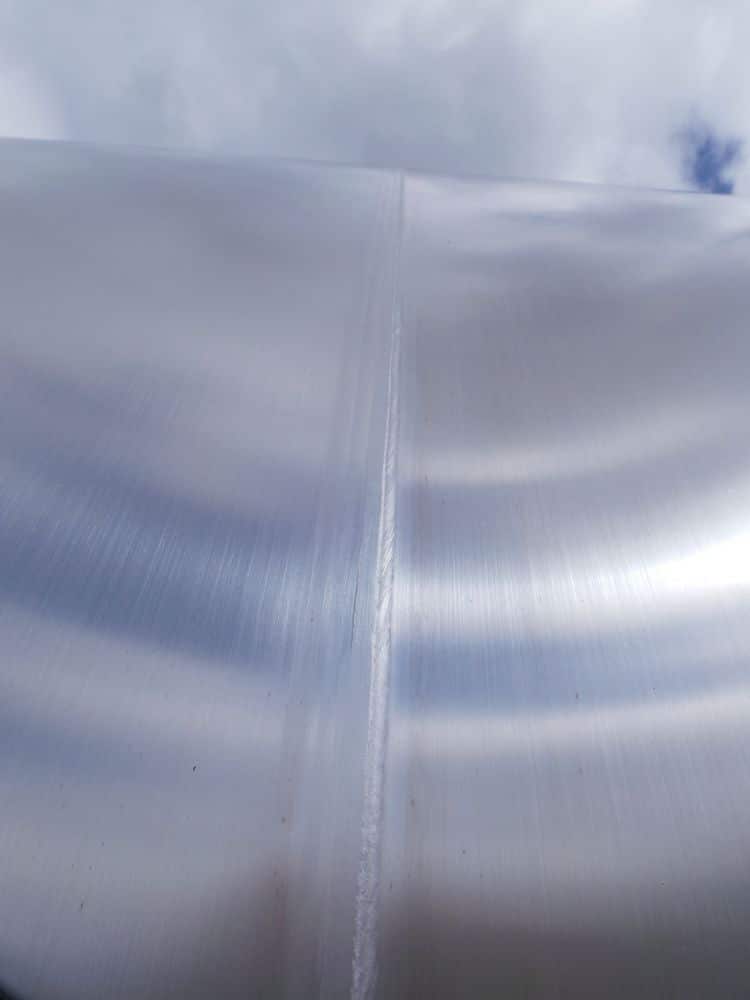

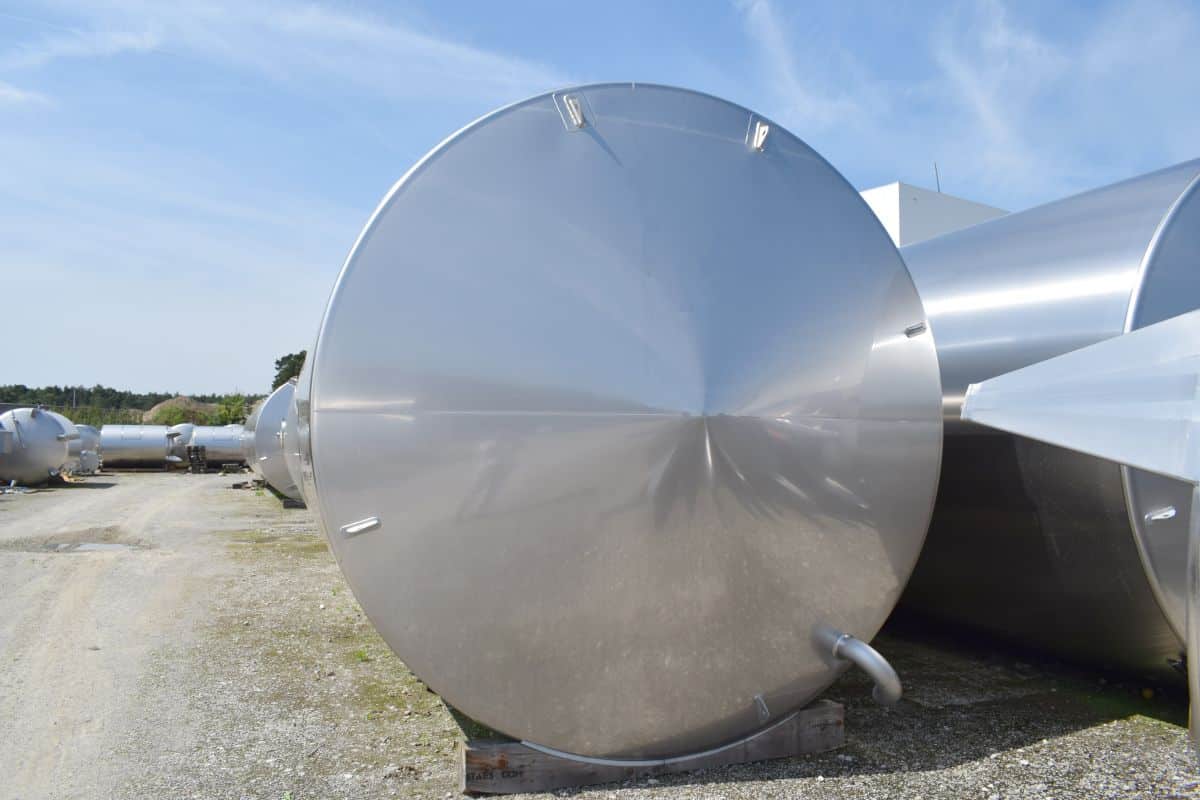

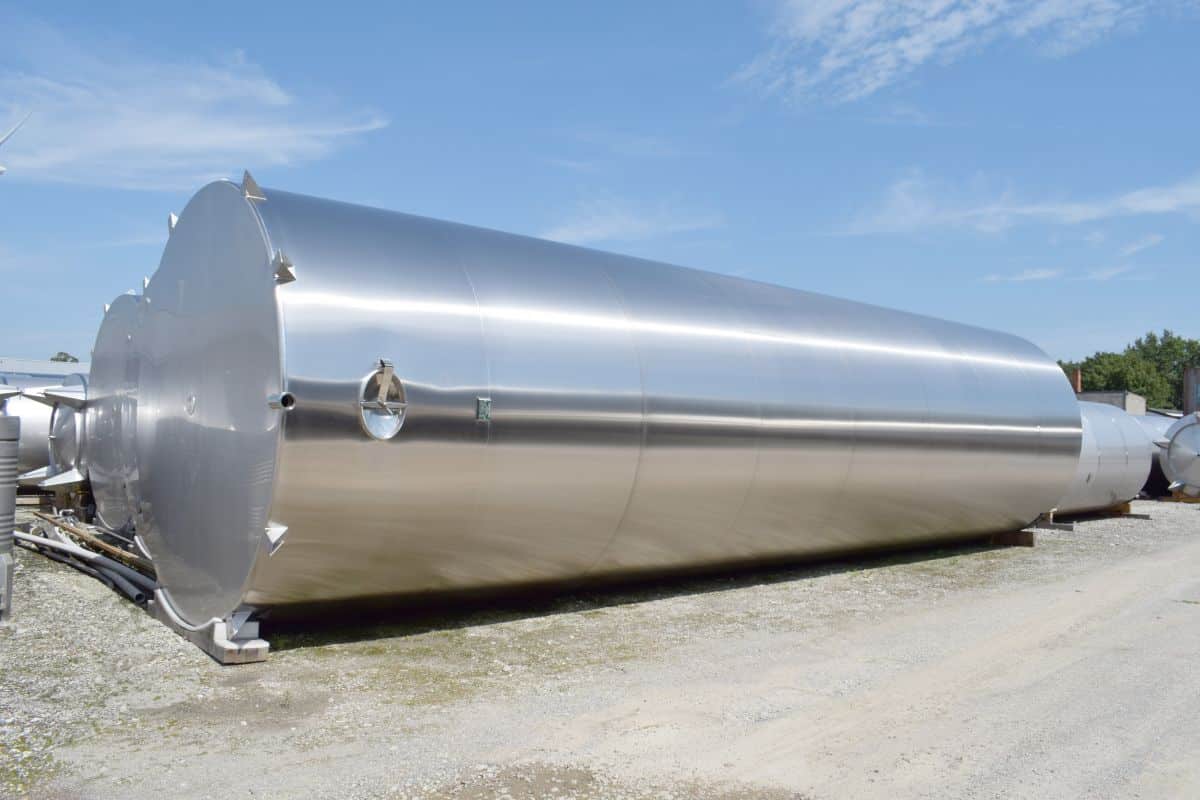

Additional information: Pictures of an identical tank with a smaller capacity, pls look at the technical drawing
Capacity: 105.000 L
Maximal density of the product: 1.250
Working pressure in tank: ATM – atmosferic

Material wet parts: SS AISI 316 (V4A)
Model: vertical
Configuration: single-skin
Heat exchanger: no
Insulation: no

Agitator: no
Mobile tank: no
Top type: conical 14 °
Shape of tank: cylindrical
Bottom type: flat °

Total discharge: yes
Outer jacket (ornamental wall): RVS 316
Gasket manway(s): EPDM
Valve: RVS 316L

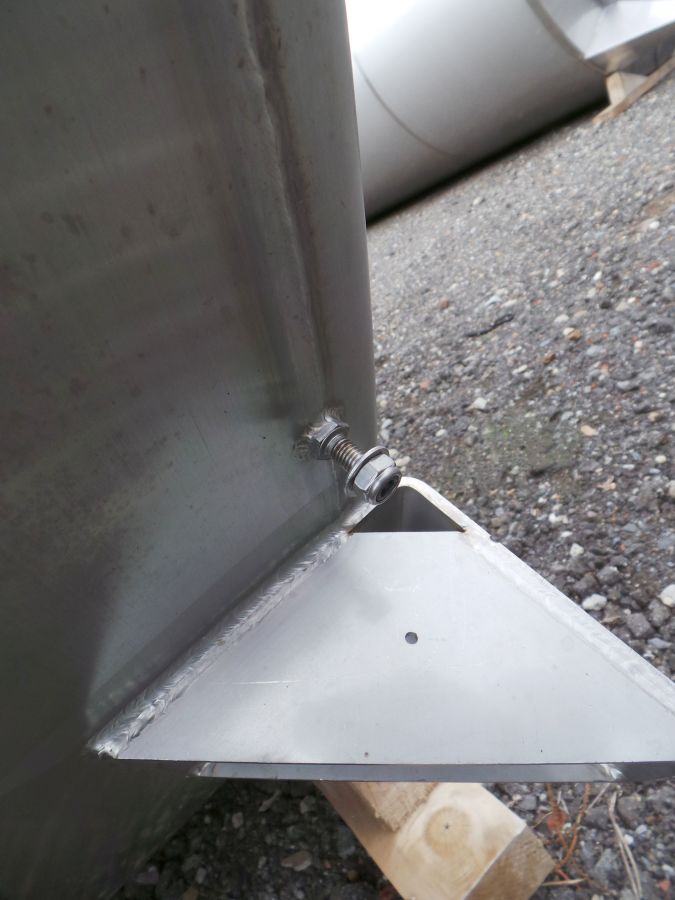

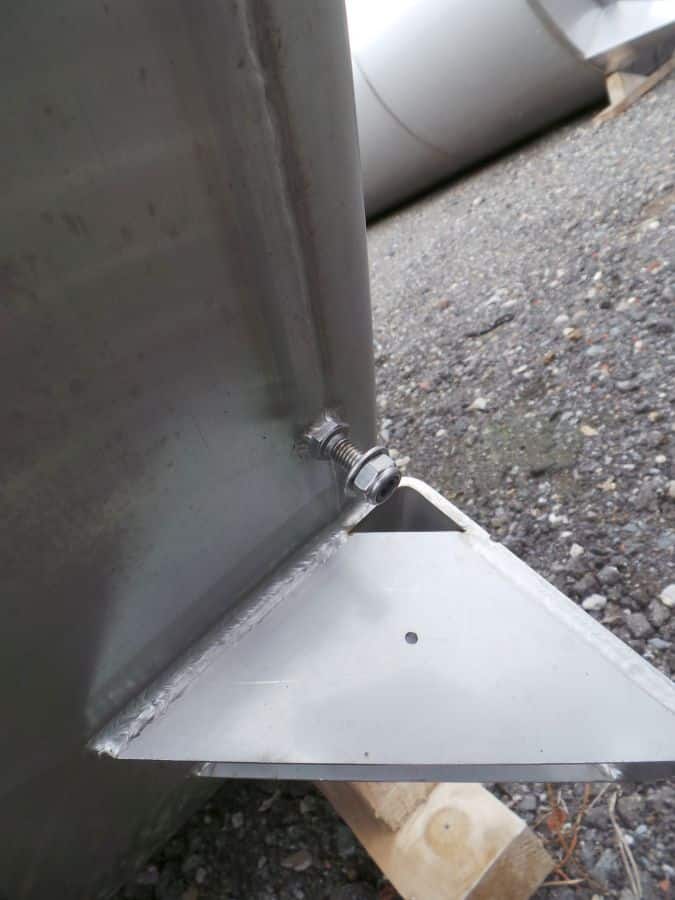

Fixation point(s): RVS 304

Suitable for food industry: yes
Documents included: no
Technical drawing included: yes
Registration plate on the tank: yes
with inspection of: No Documentation

Flange for agitator: no

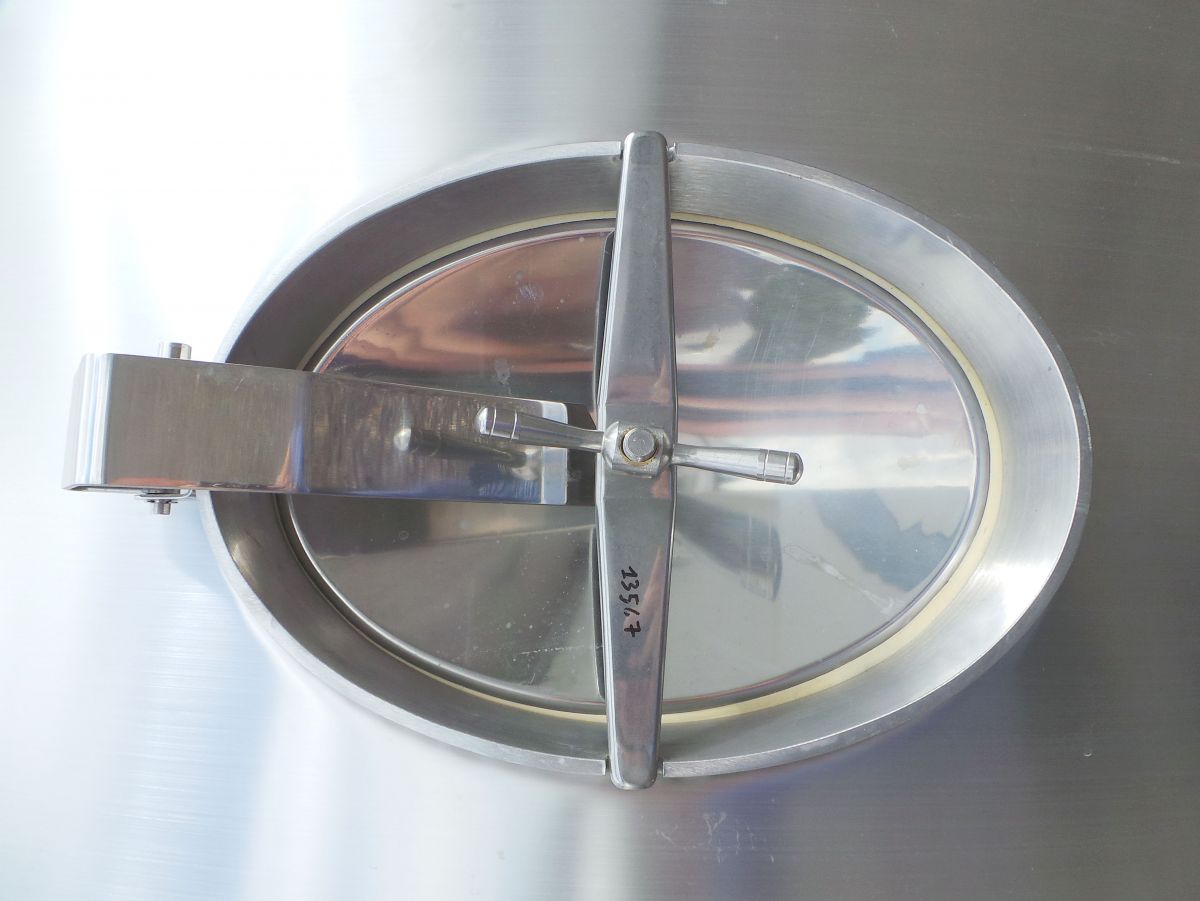

Number of manways: 1
Position manway: cylinder
Spray ball: no

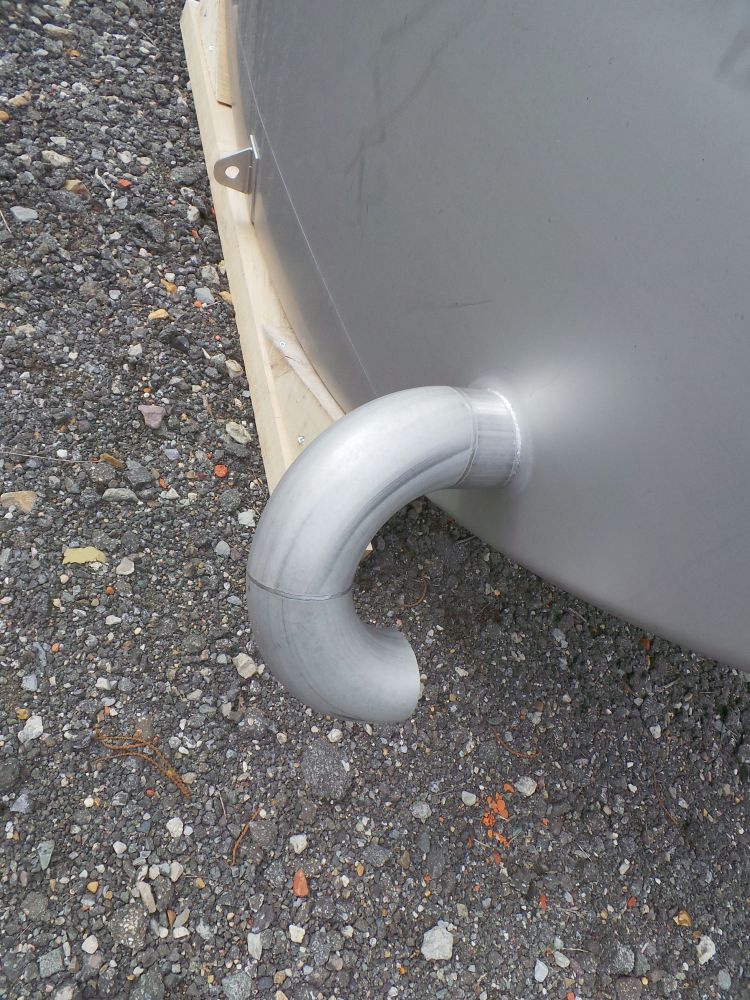

Tank outlet: inside Ø 80 mm

Outlet type: DIN11851
Total outlet valve: yes, optional
Type shut-off valve: butterfly valve
Top: 2 mm
Cylinder: 3 mm

Bottom: 3 mm
Distance from outlet to ground: 150 mm
Outer diameter tank: 3.342 mm
Cylinder height: 12.000 mm
Total height of tank: 12.500 mm

Empty weight tank: 3.000
