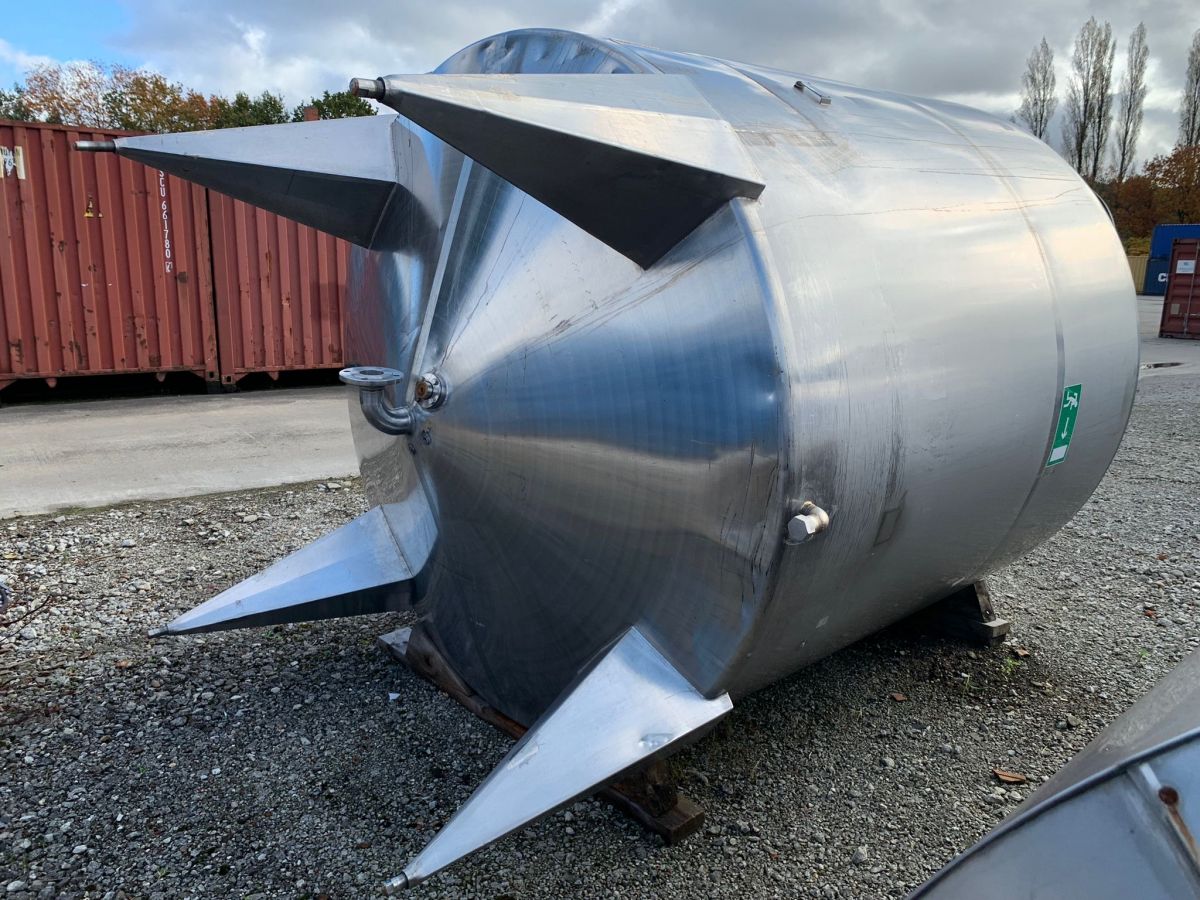

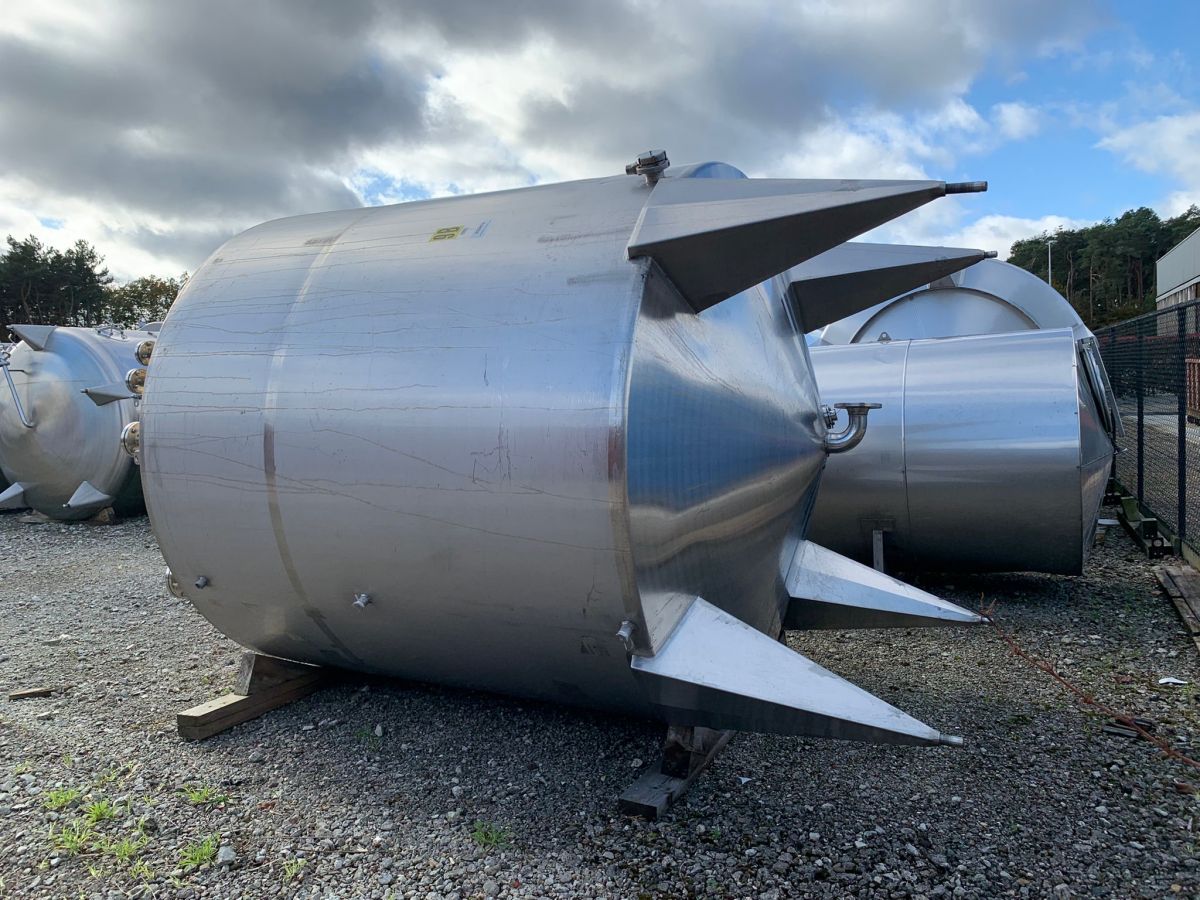

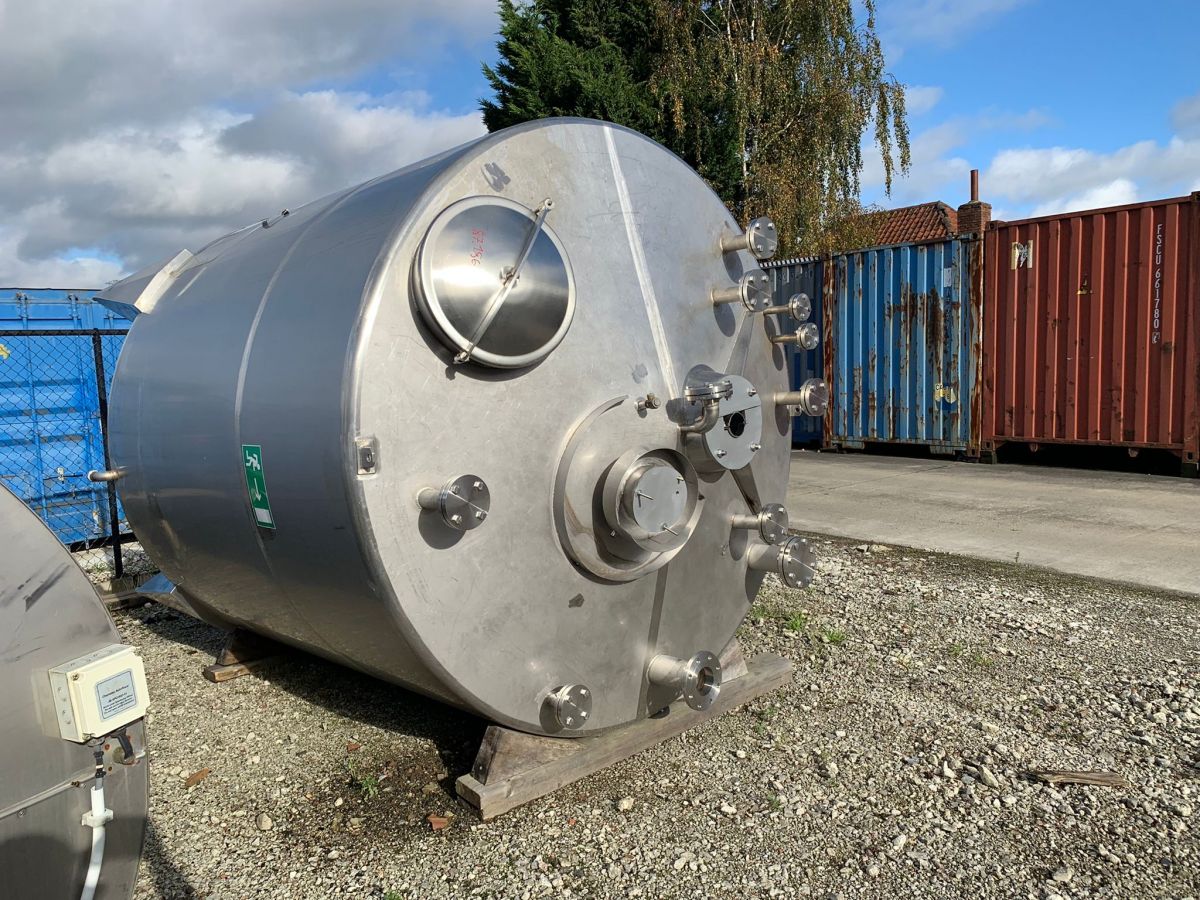

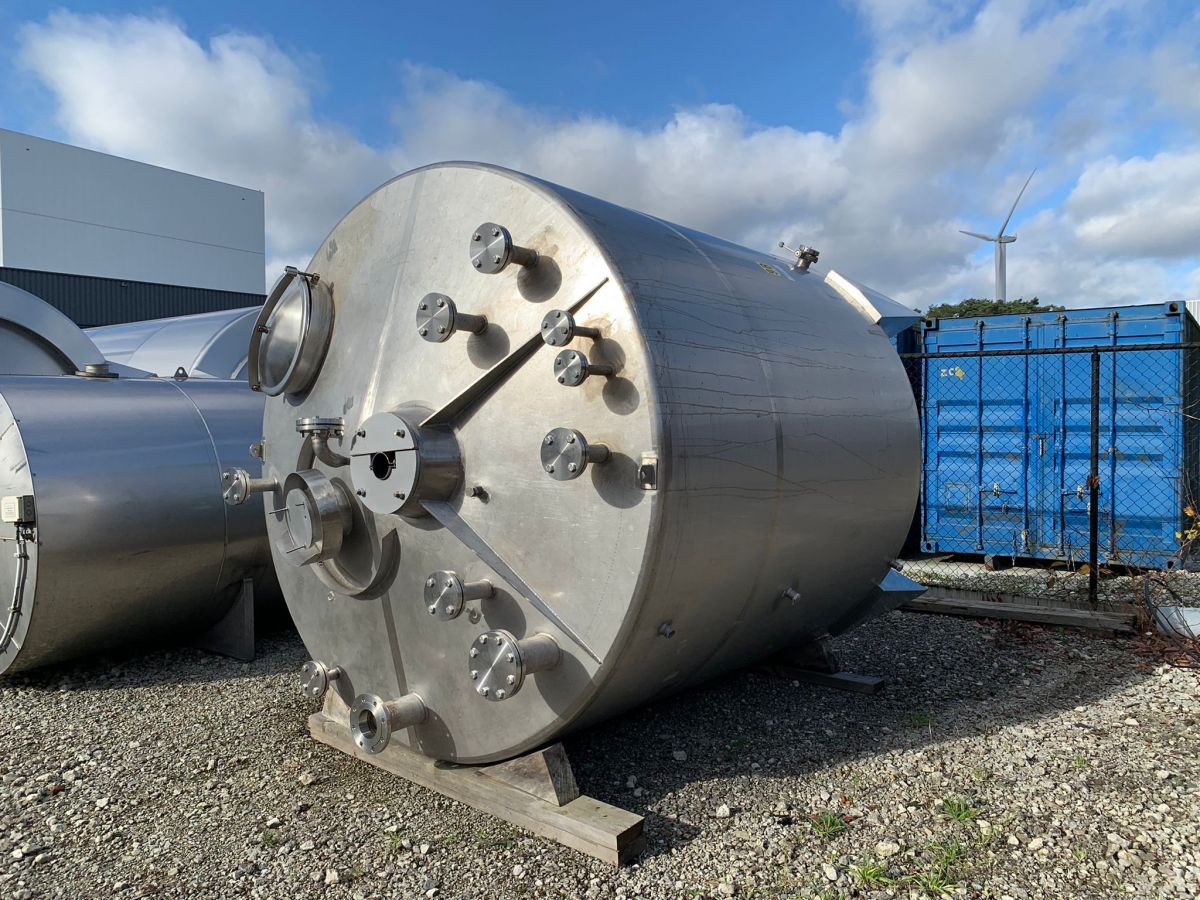

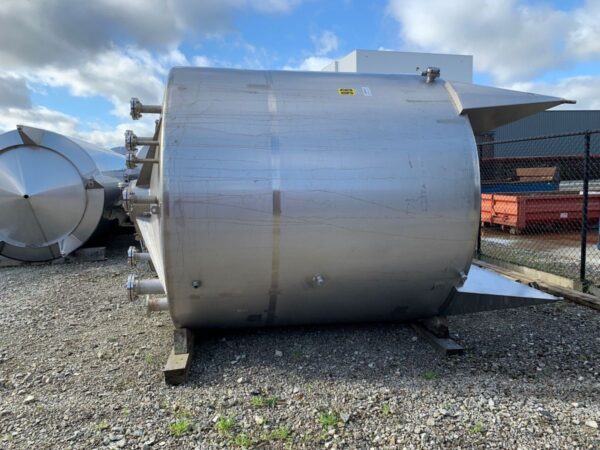

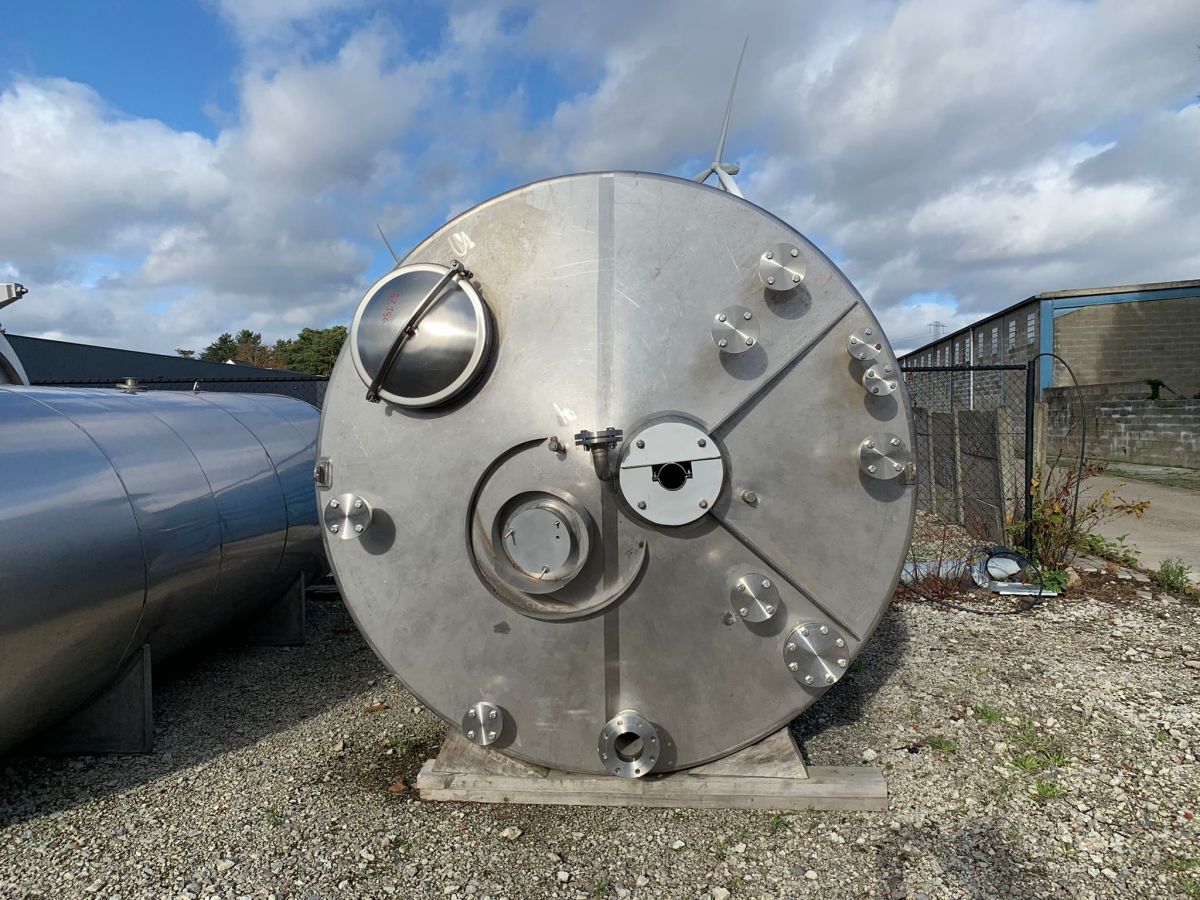

10250 liter tank i Rostfritt 304

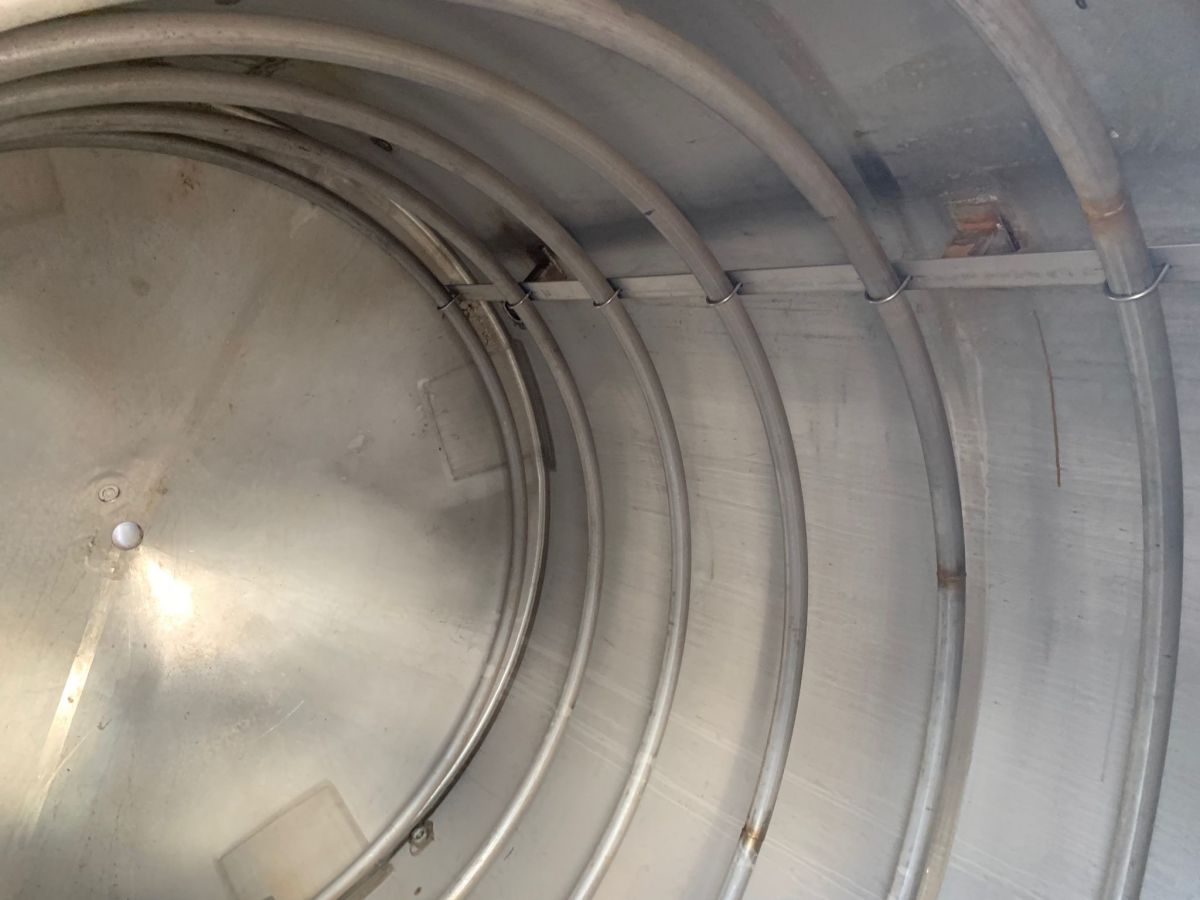

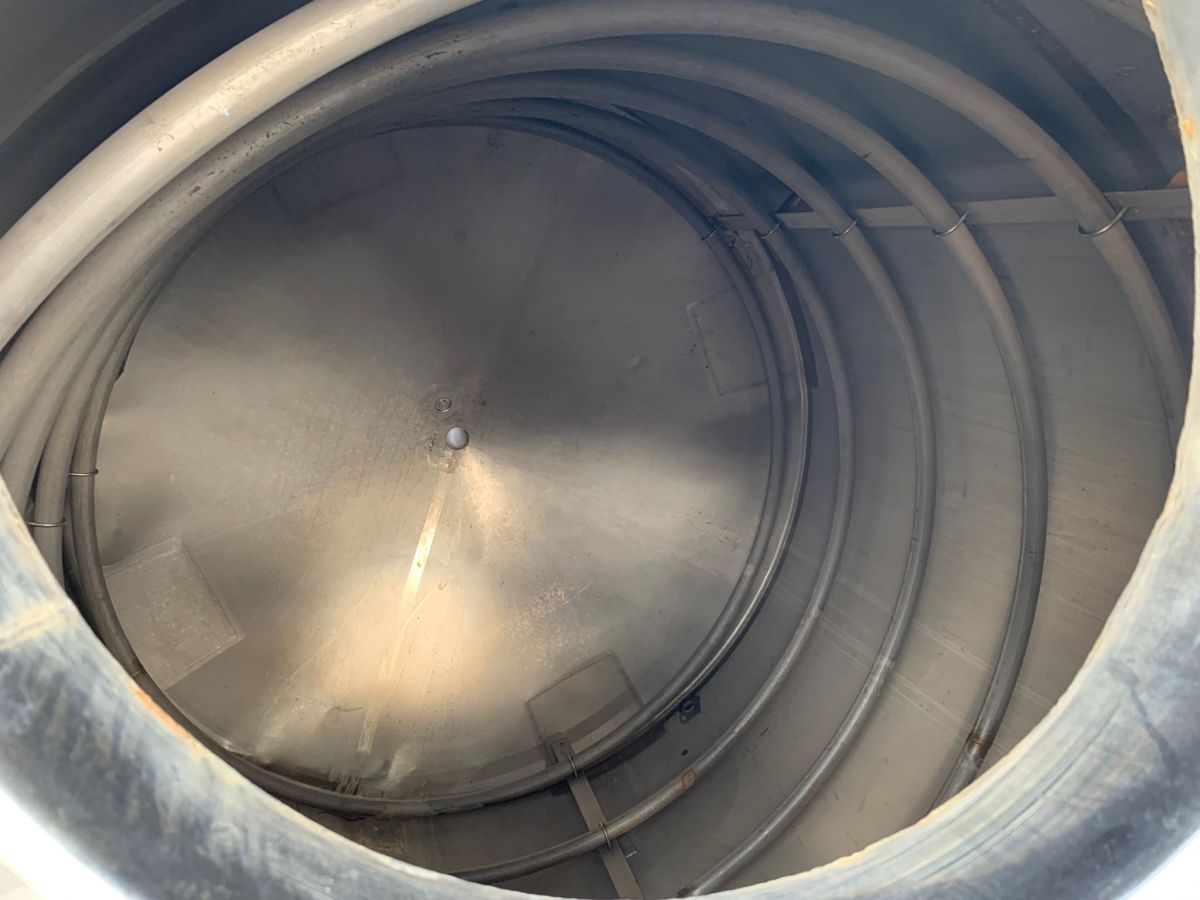

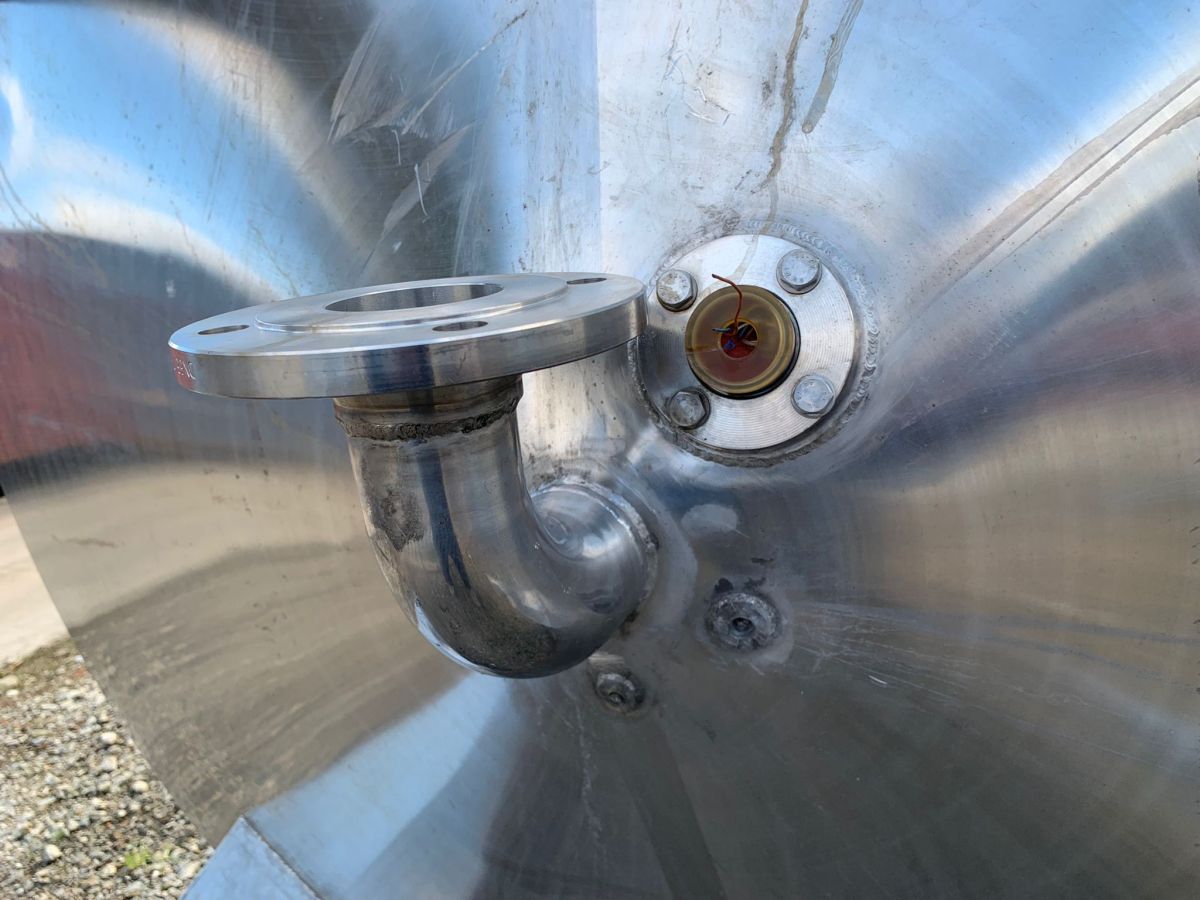

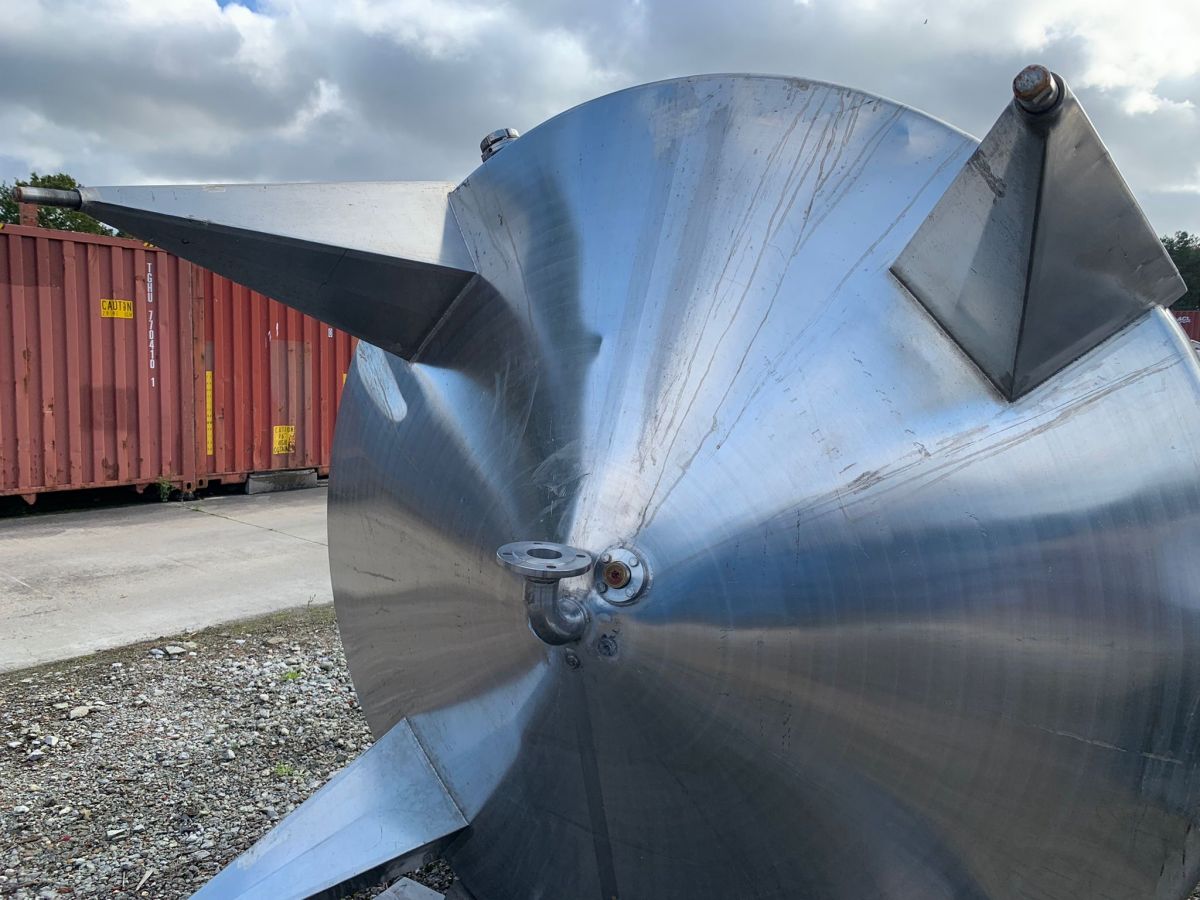

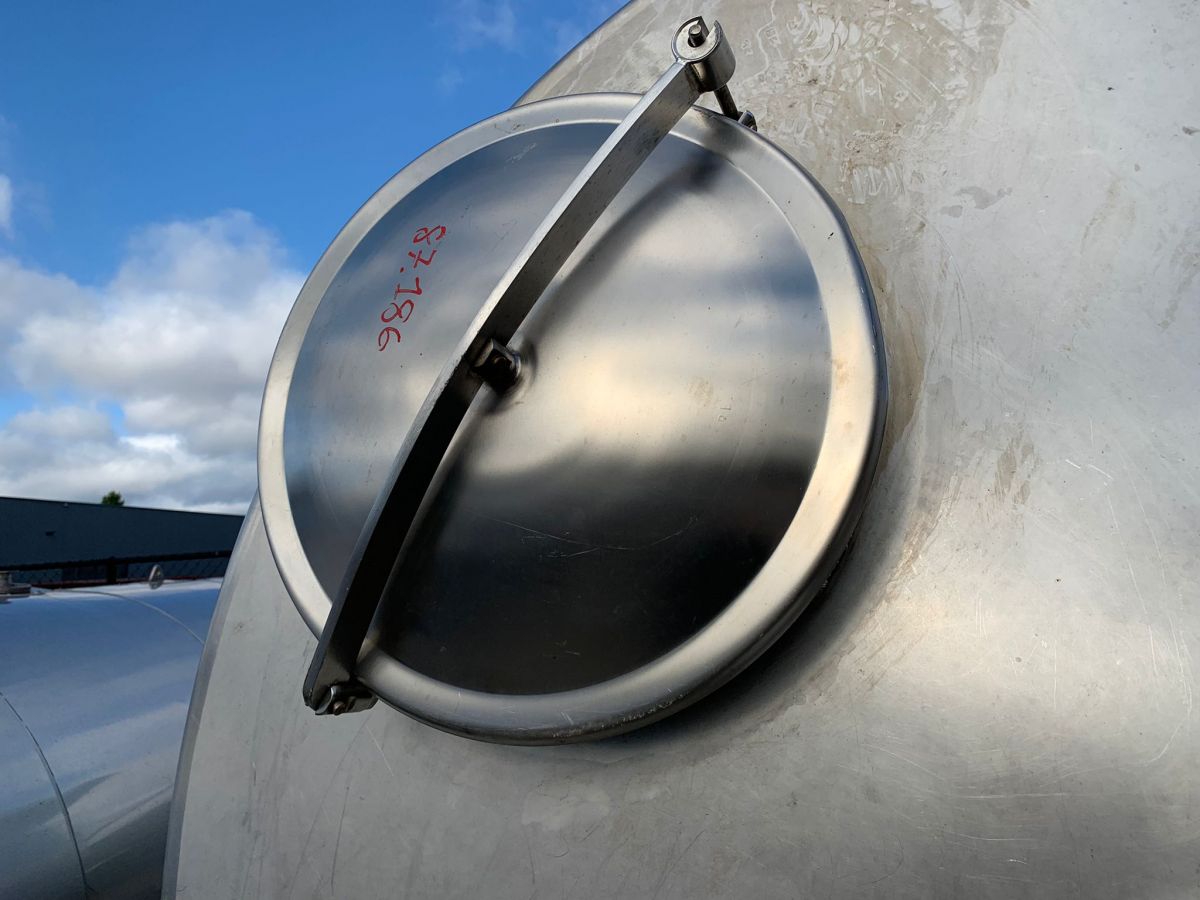

Article type: second-hand storage tank Additional information: Coil in the tank DN50 - 6 turns Volumetric volume (L): 10.250 L Pressure in tank: ATM - atmosferic Material wet parts: SS AISI 304 (V2A) Model: vertical Configuration: single jacketed with heat-exchanger Heat exchanger: yes Insulation: no Mobile tank: no Top type: conical Shape of tank: cylindrical Bottom type: conical Total discharge: yes Fixation points: 4 adjustable feet Type HE: spiral pipes inside the tank Heat exchanger in tank: yes Number of windings: 6 Pipe diameter: 50 mm Water pressure HE: 3 Bar Manway(s): RVS 304 Fixation point(s): RVS 304 Suitable for food industry: no Documents included: no Technical drawing included: no Registration plate on the tank: no Flange for agitator: no Number of manways: 1 Position of manway: at the top Height manhole 1 (mm): 500 mm Hinged lid: yes Tank outlet: inside Ø 65 mm Outlet type: DIN2576 Total outlet valve: no Top: 3 mm Cylinder: 2,50 mm Bottom: 2,50 mm Distance from outlet to ground: 400 mm Outer diameter tank: 2.400 mm Cylinder height: 2.250 mm Total height of tank: 3.750 mm Empty weight tank: 900
