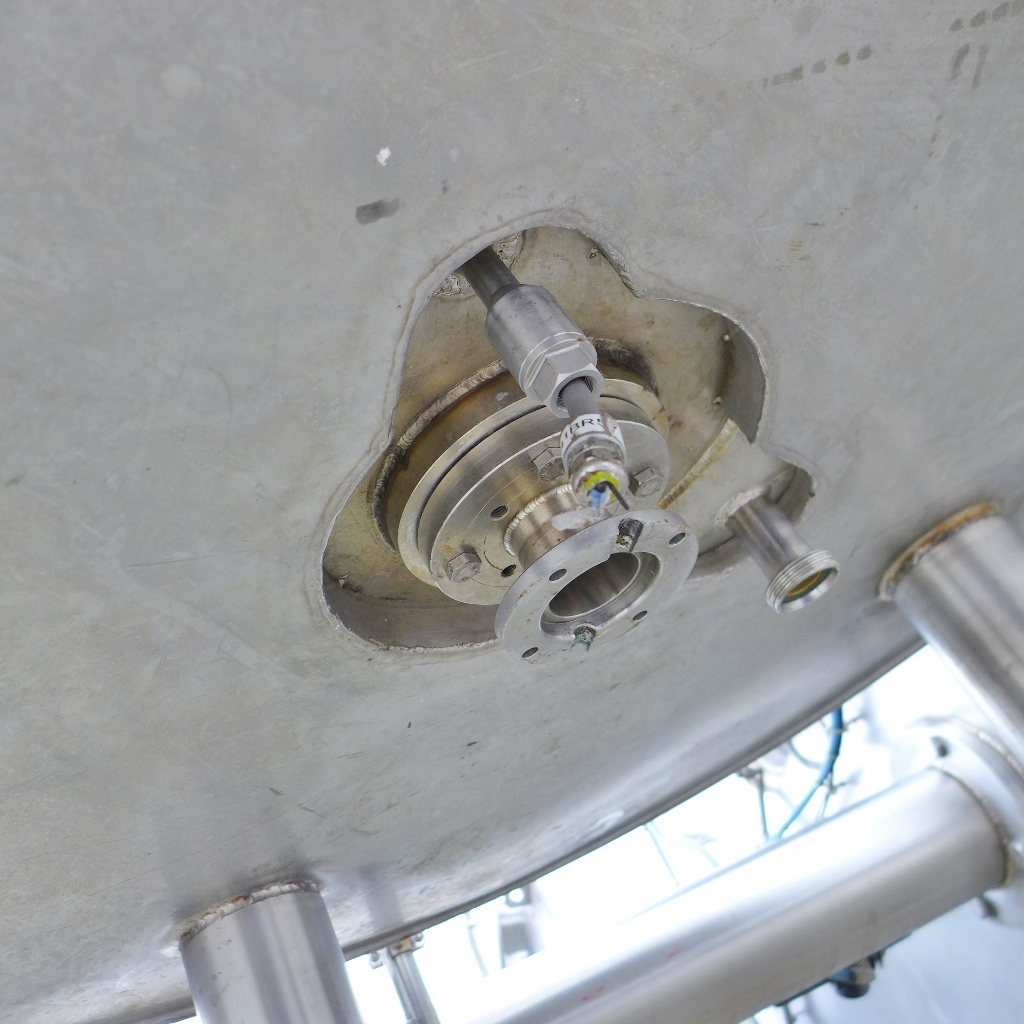

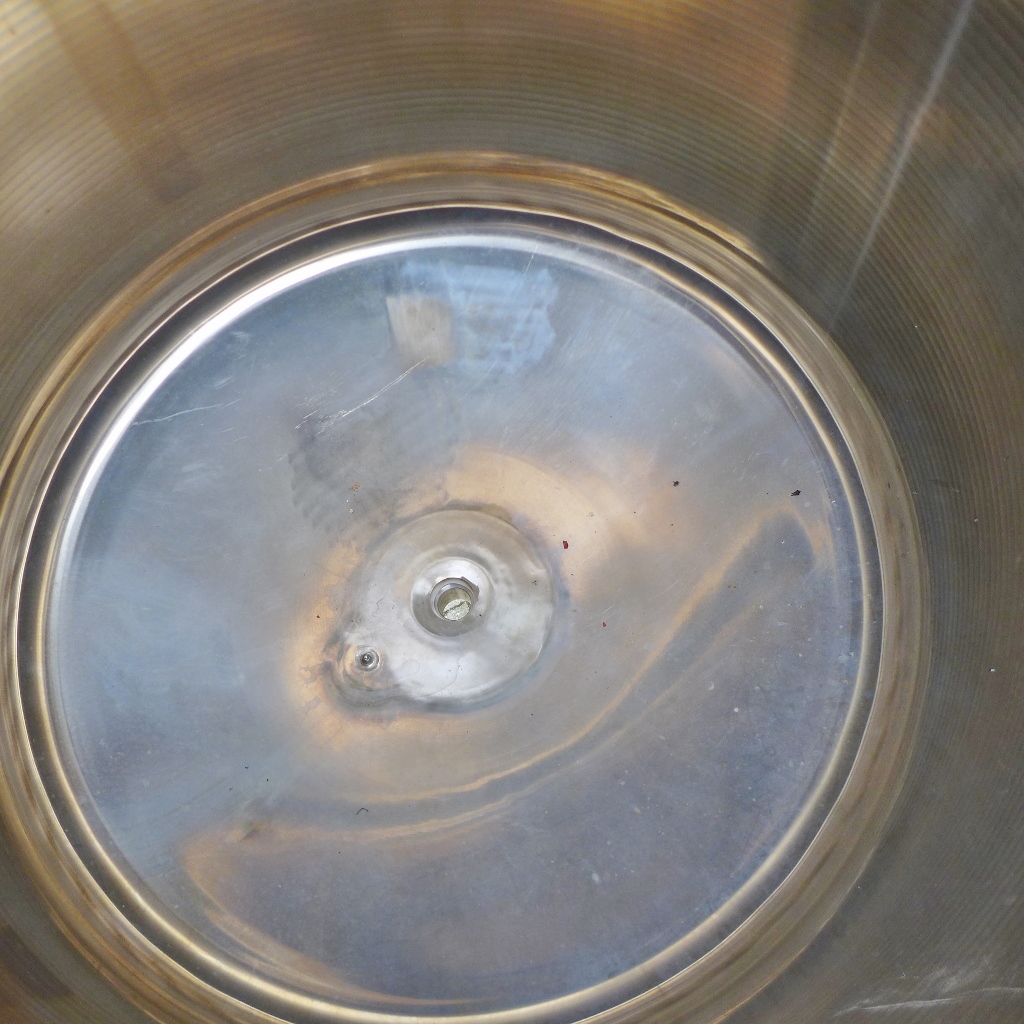

Additional information: Slight metallic discoloration inside the tank; Flange fitting of the outlet incomplete (see photos)
Volumetric volume (L): 1.000 L
Pressure in tank: pressure and vacuum
Max. pressure (Bar): 3 Bar
Min. pressure (Bar): 1 Bar
Max. temperature (°C): 150 °C
Material wet parts: SS AISI 316 (V4A)

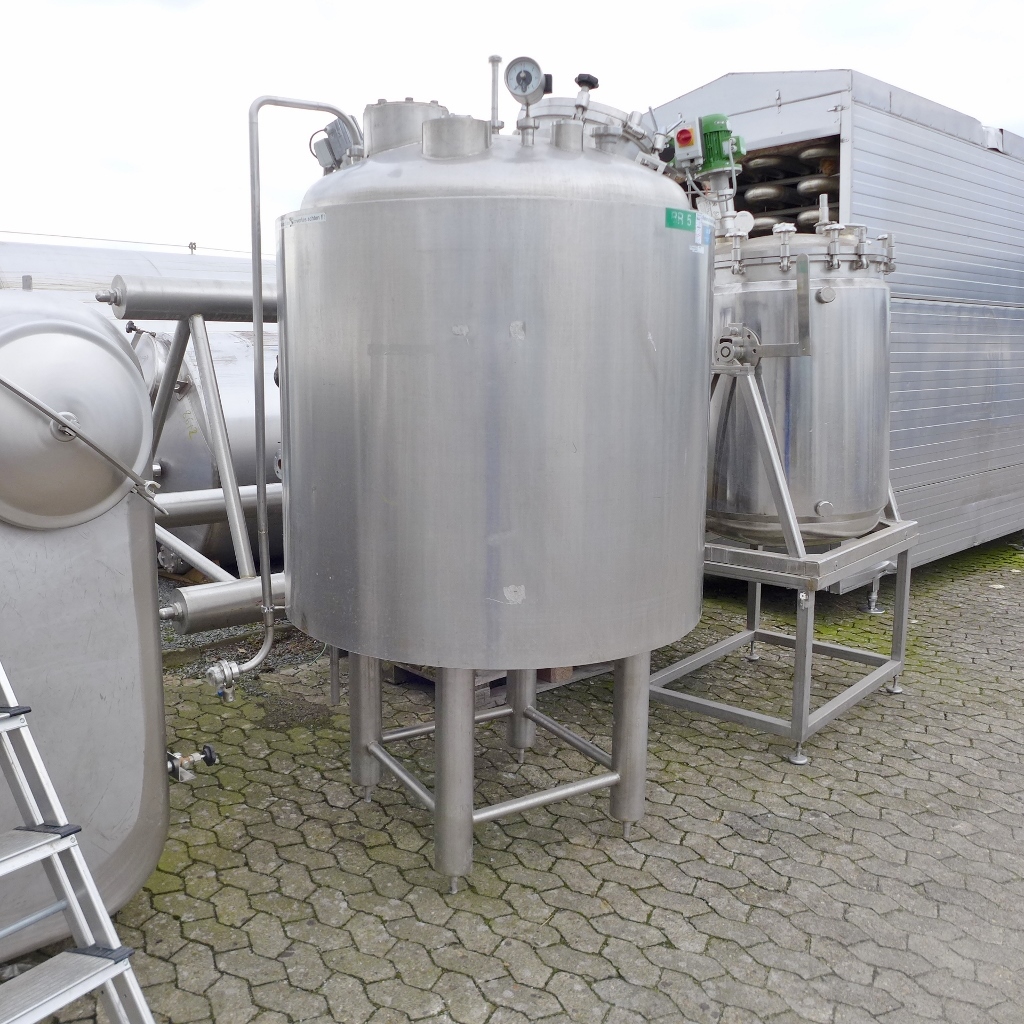

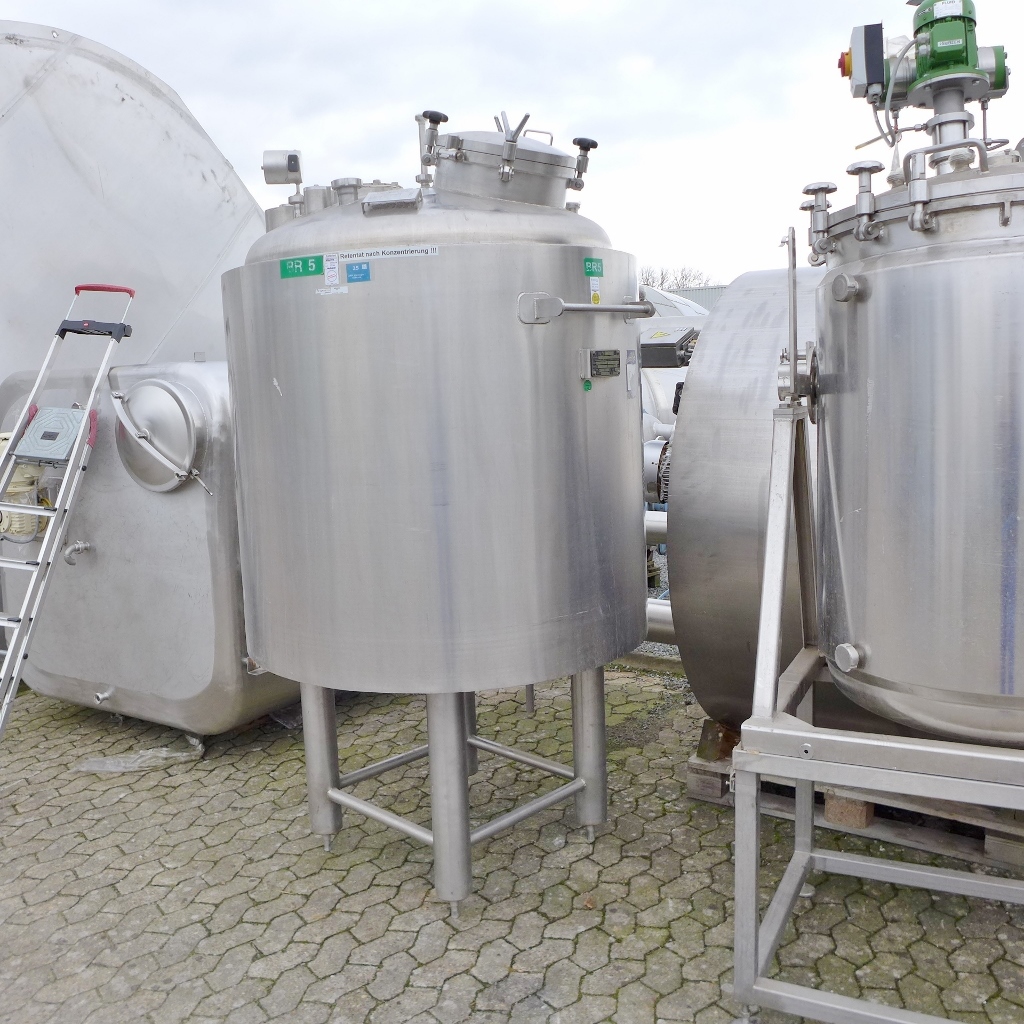

Model: vertical
Configuration: insulated with heat-exchanger
Heat exchanger: yes
Insulation: yes
Mobile tank: no
Total discharge: yes
Volume: 95 L
Max Overpressure: 2 Bar
Max onderdruk: 1 Bar
Max. working temperature: 150 °C
Type HE on the bottom: heating/cooling jacket
Type HE on the cylinder: heating/cooling jacket
Documents included: no
Technical drawing included: no

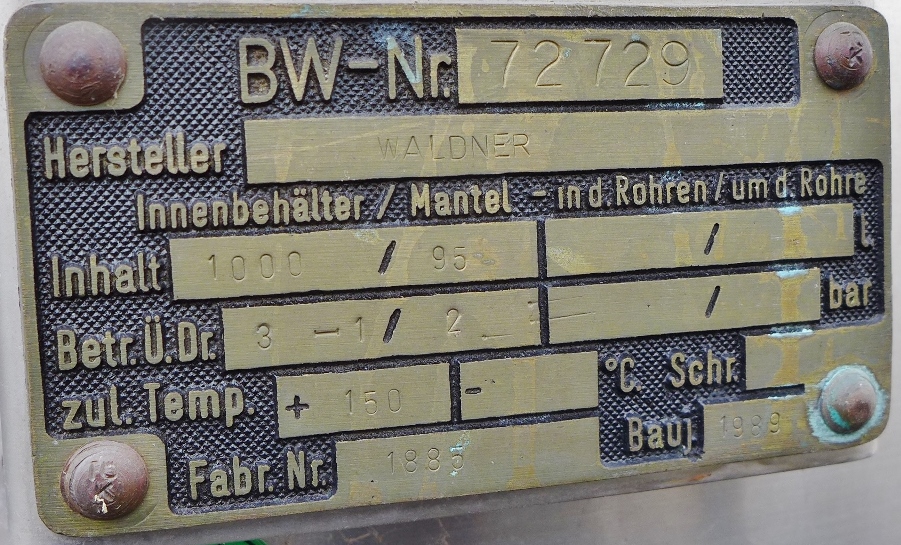

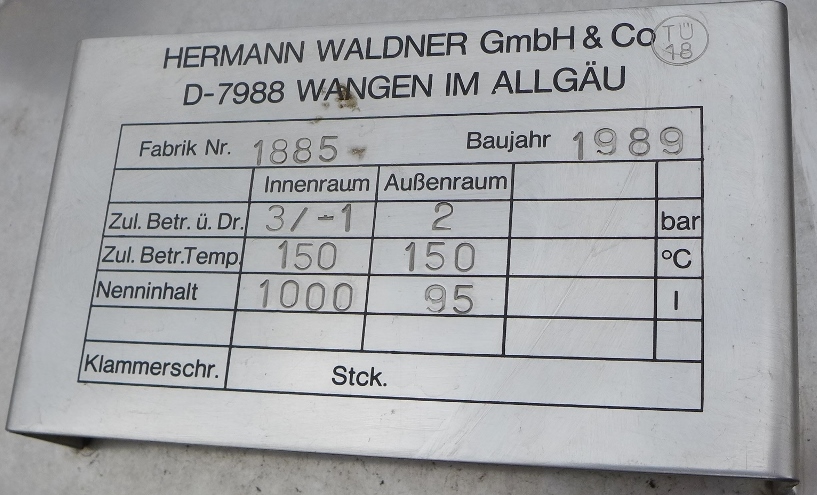

Registration plate on the tank: yes
Flange for agitator: no

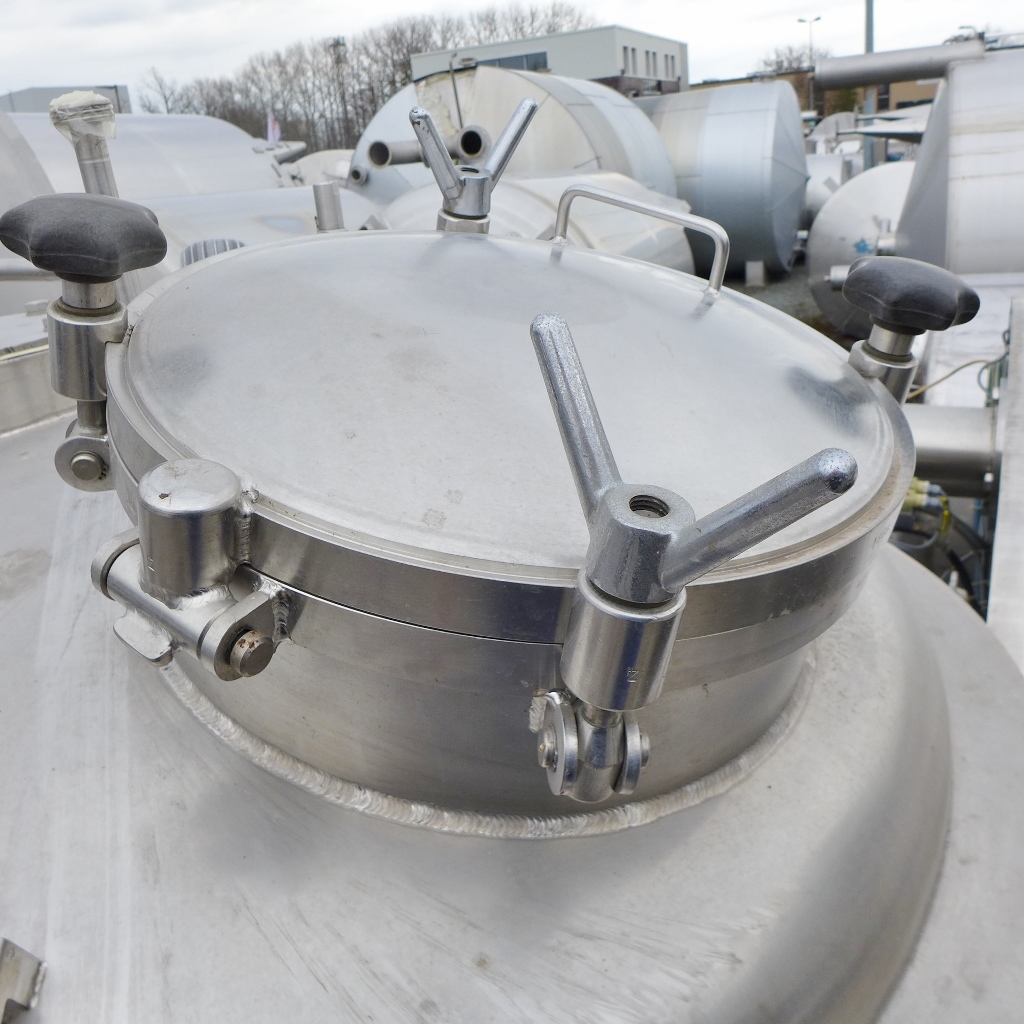

Position of manway: in the bottom
Outlet of tank: 50

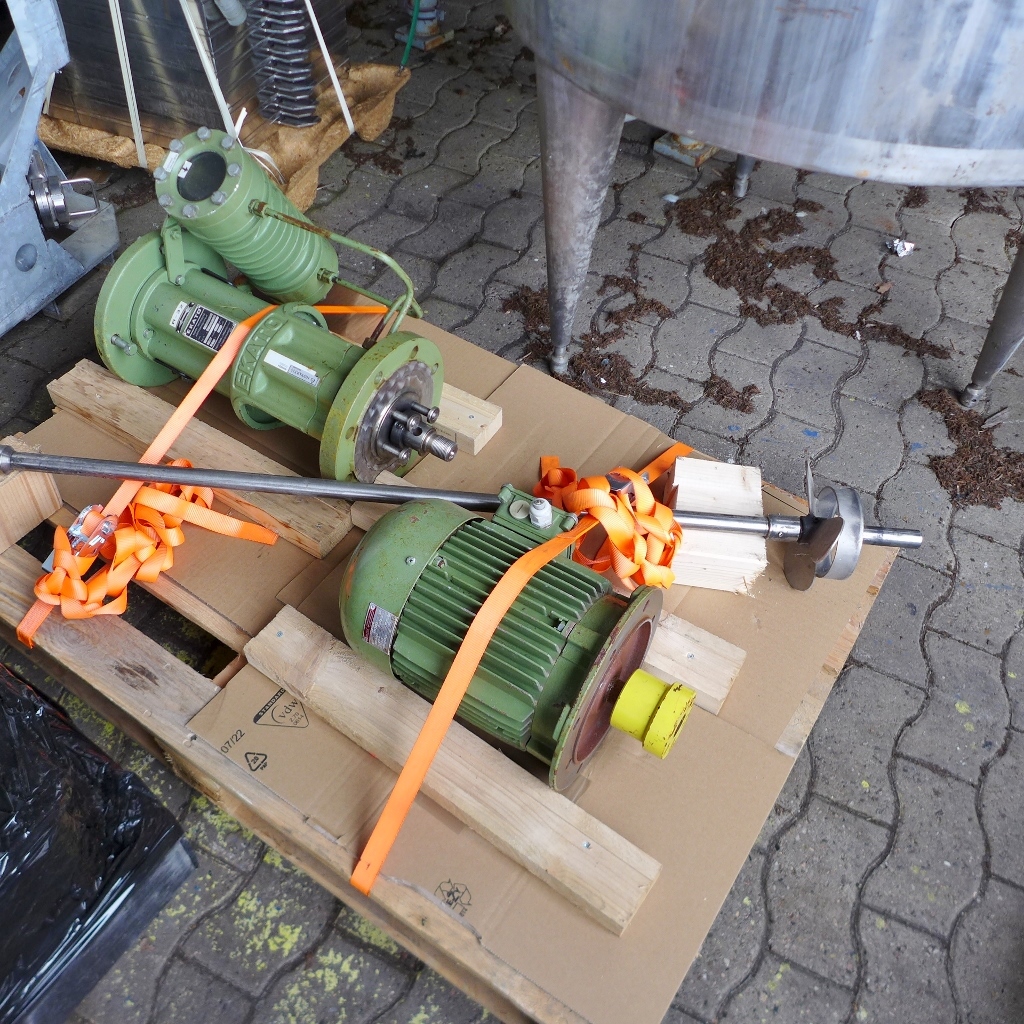

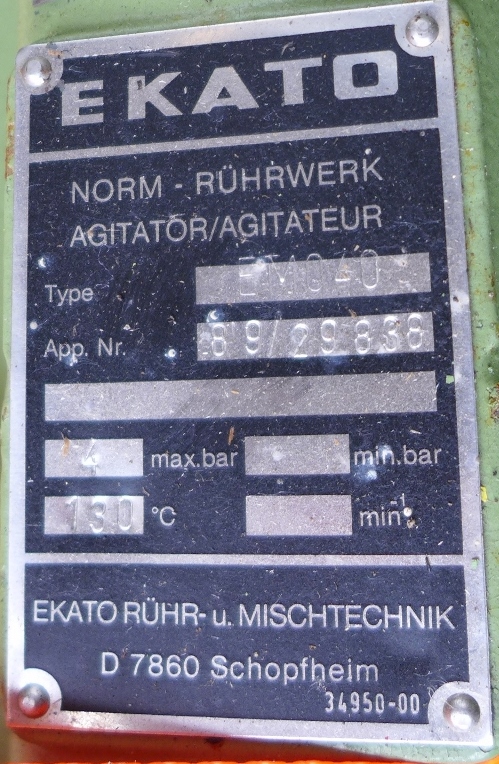

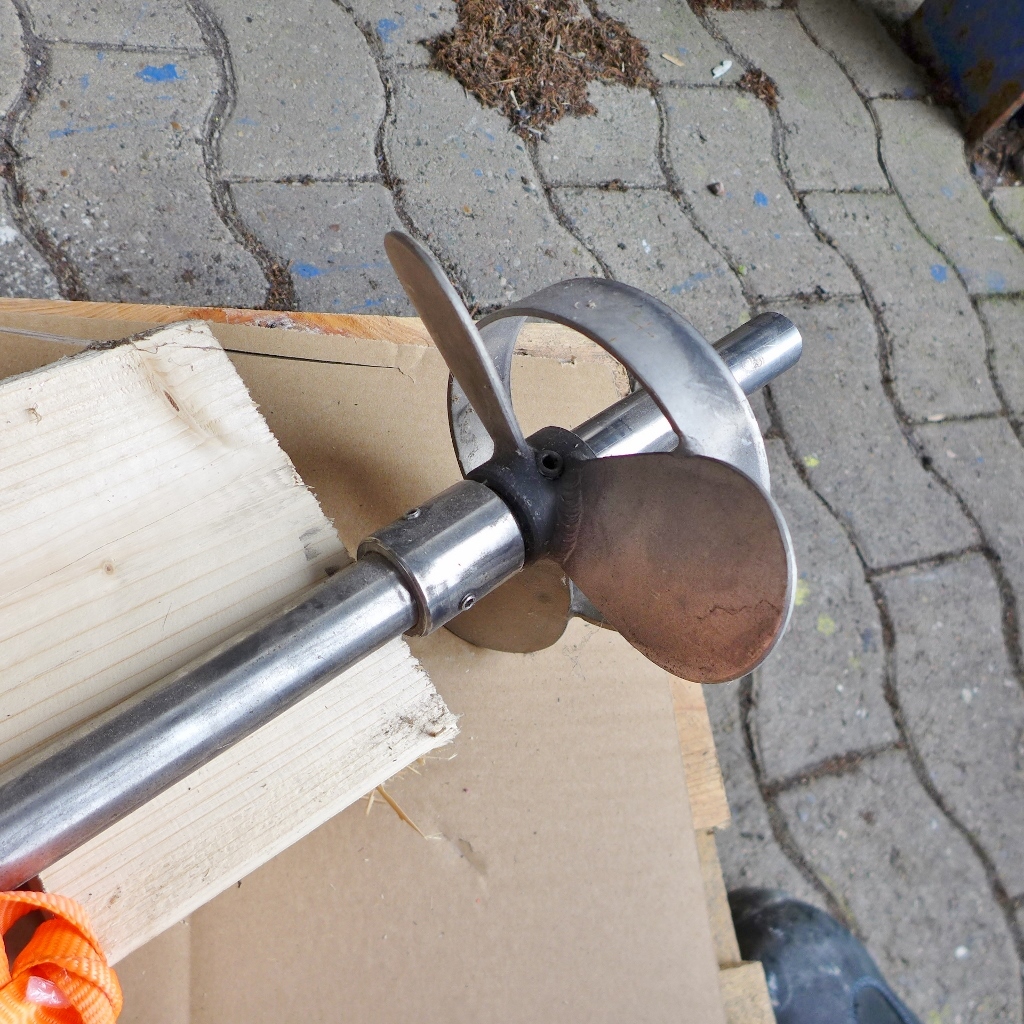

Agitator: yes

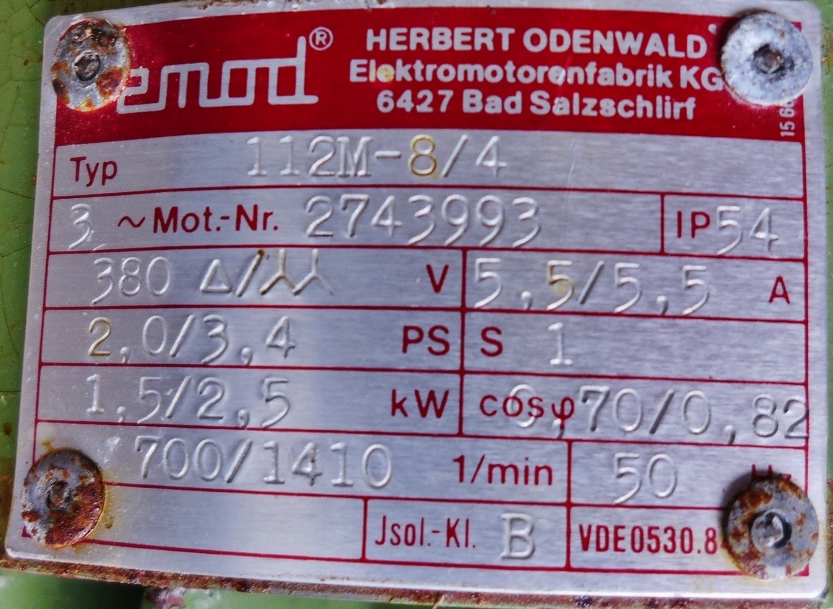

Number of revolutions: 700 / 1410
Power: 1.5 / 2.5
Internal diameter tank: 1.186 mm
Outer diameter tank: 1.340 mm
Total height of tank: 3.100 mm
