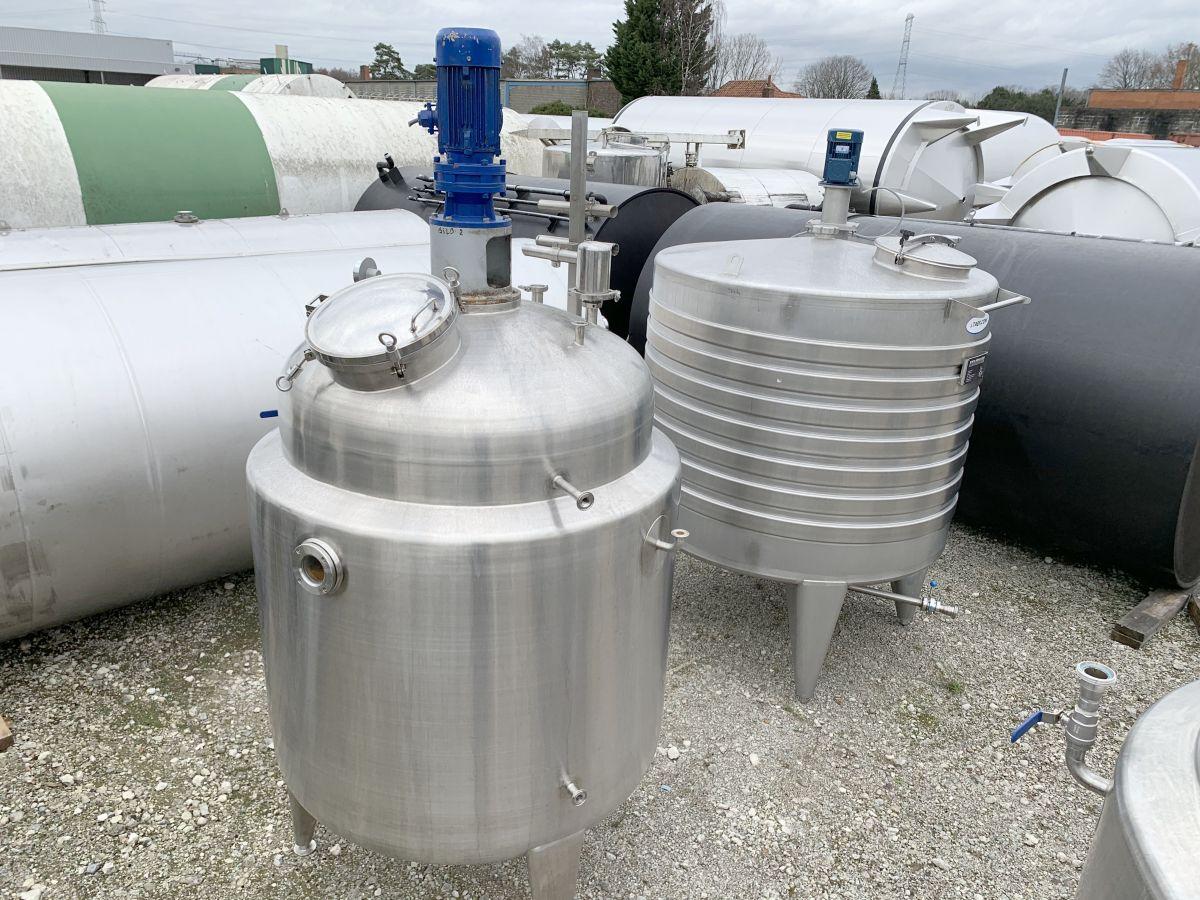

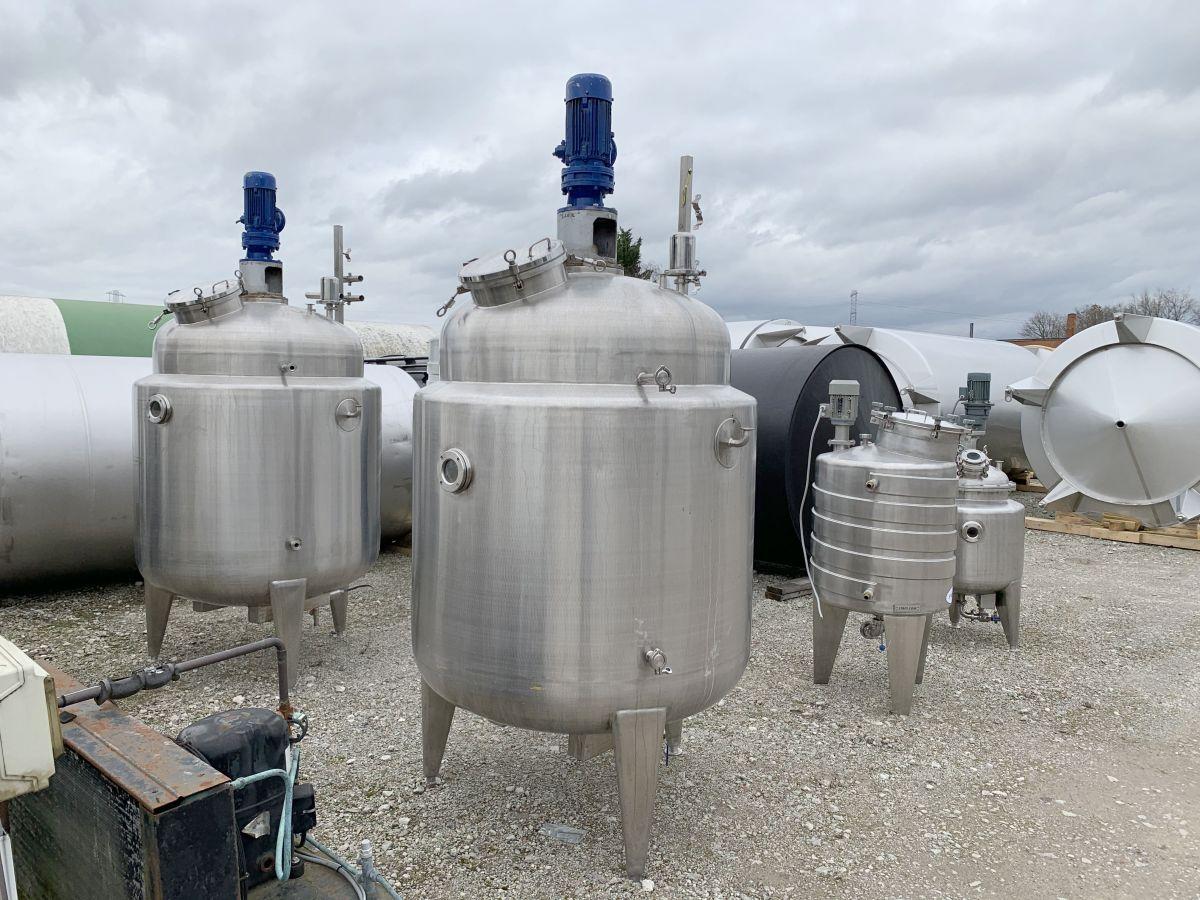

Article type: second-hand mixing tank

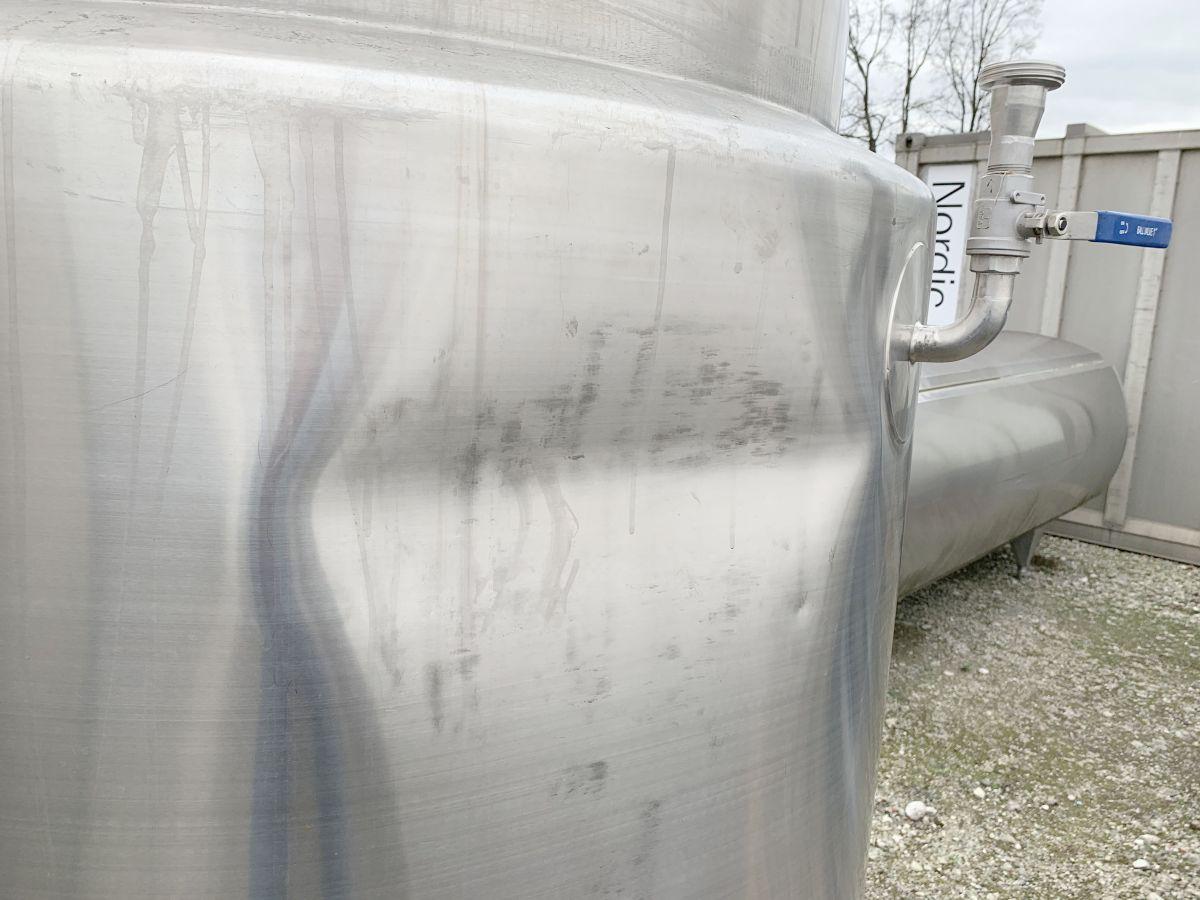

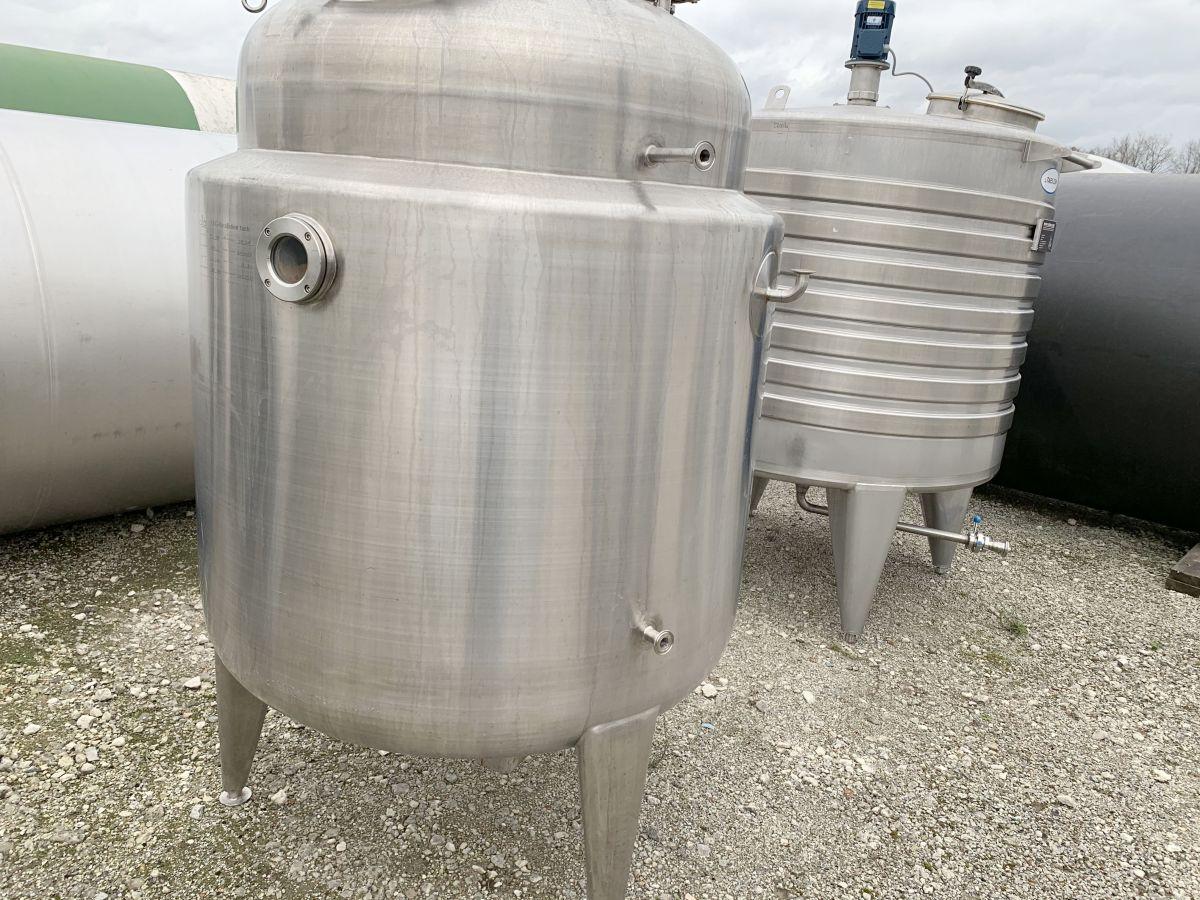

Additional information: Chinese tanks, the tank has a dent in the insulation, please look closely at the pictures. There is no information on the heating and the double jacket.; we can’t give any guarantees about the heating/cooling jacket; we can’t give any guarantees about the agitator
Volumetric volume (L): 1.000 L
Pressure in tank: ATM - atmosferic
Material wet parts: SS AISI 304 (V2A)
Model: vertical
Configuration: insulated with heat-exchanger
Heat exchanger: yes
Insulation: yes
Mobile tank: no
Top type: dished
Shape of tank: cylindrical
Bottom type: dished
Total discharge: yes

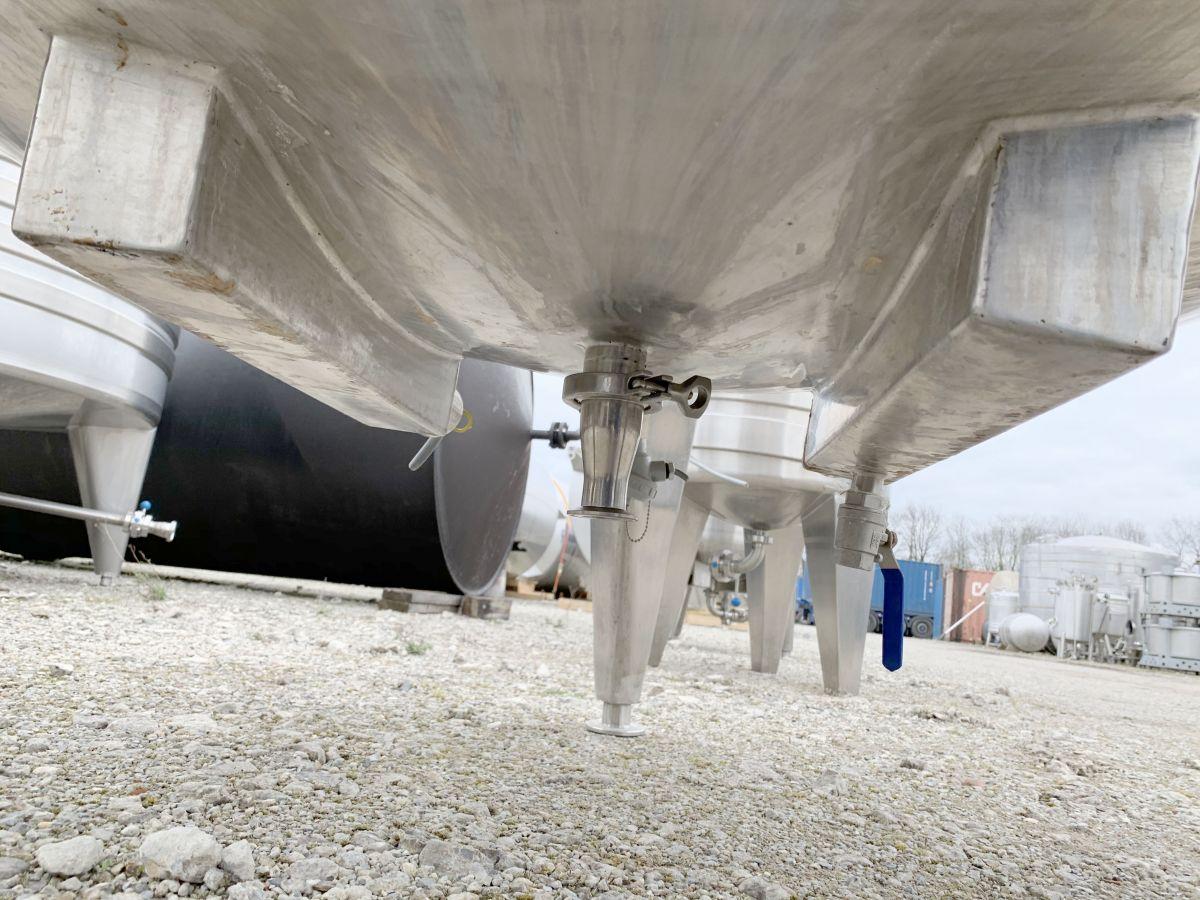

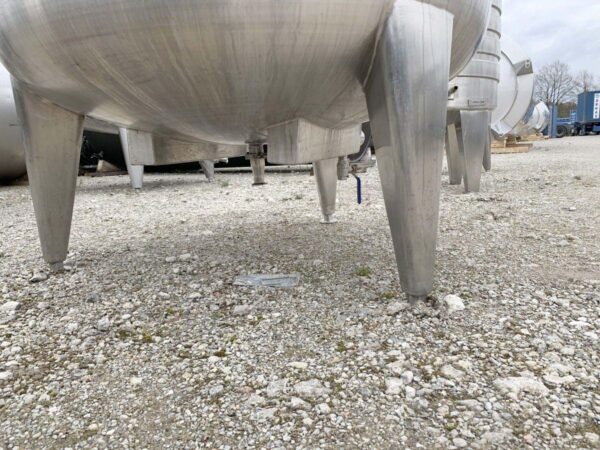

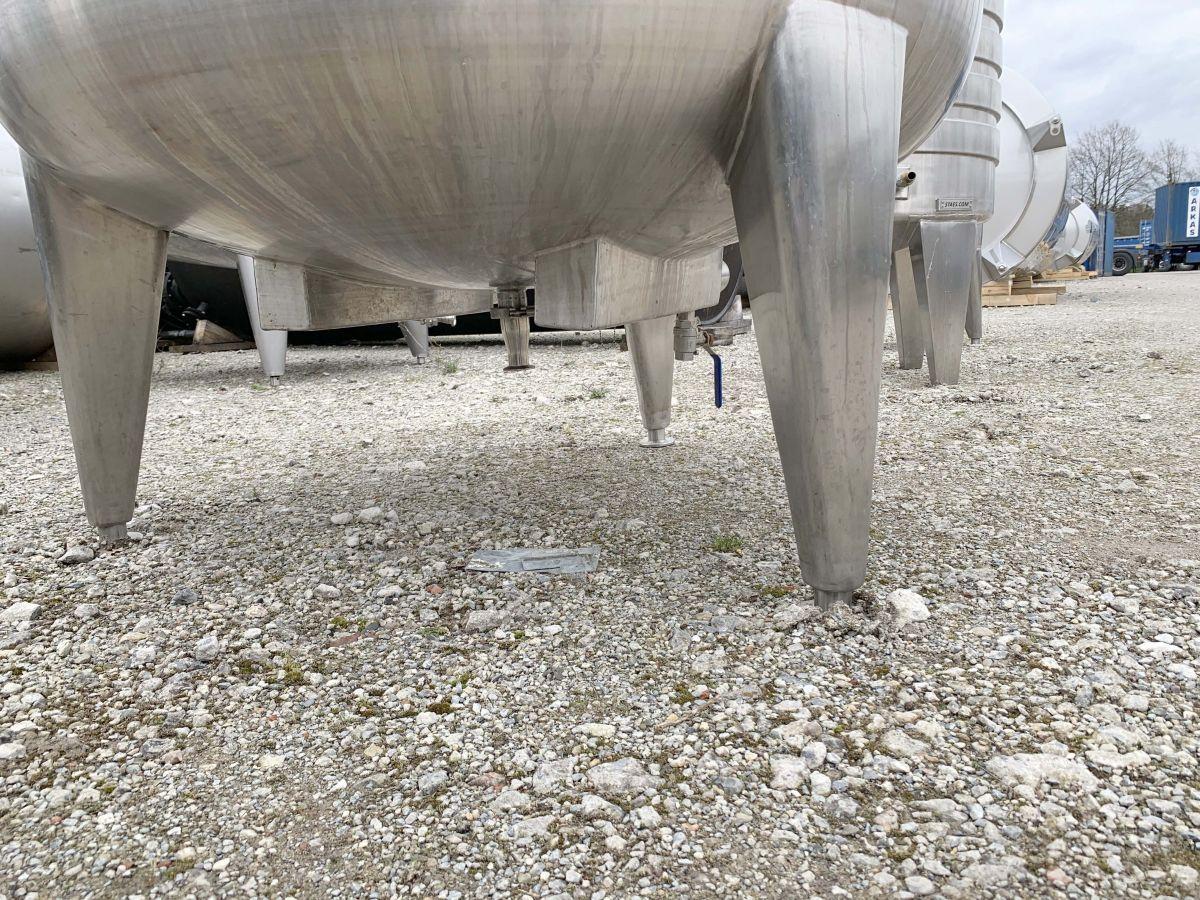

Fixation points: 3 adjustable feet
Outer jacket (ornamental wall): RVS 304
Manway(s): RVS 304
Gasket manway(s): unknown
Fixation point(s): RVS 304
Suitable for food industry: yes
Documents included: no
Technical drawing included: no

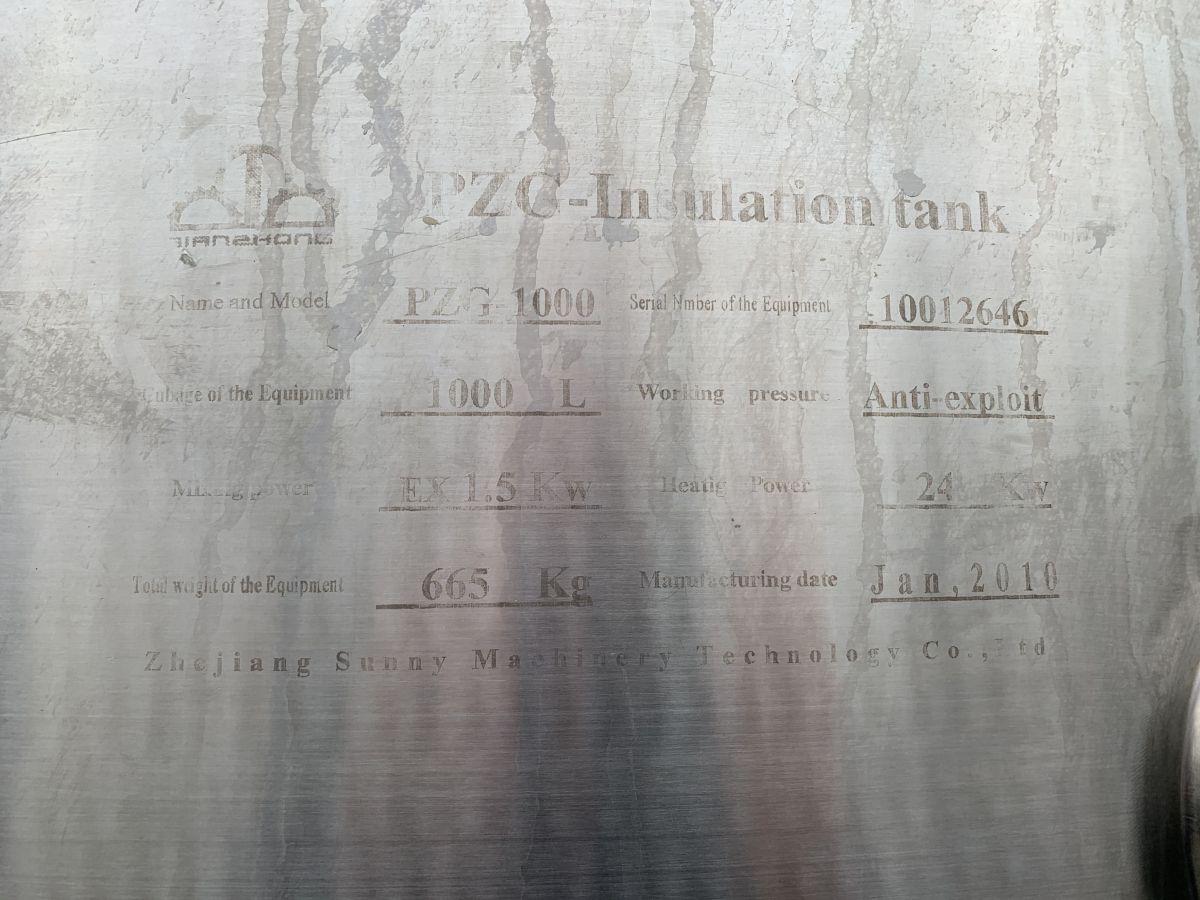

Registration plate on the tank: no
Flange for agitator: no

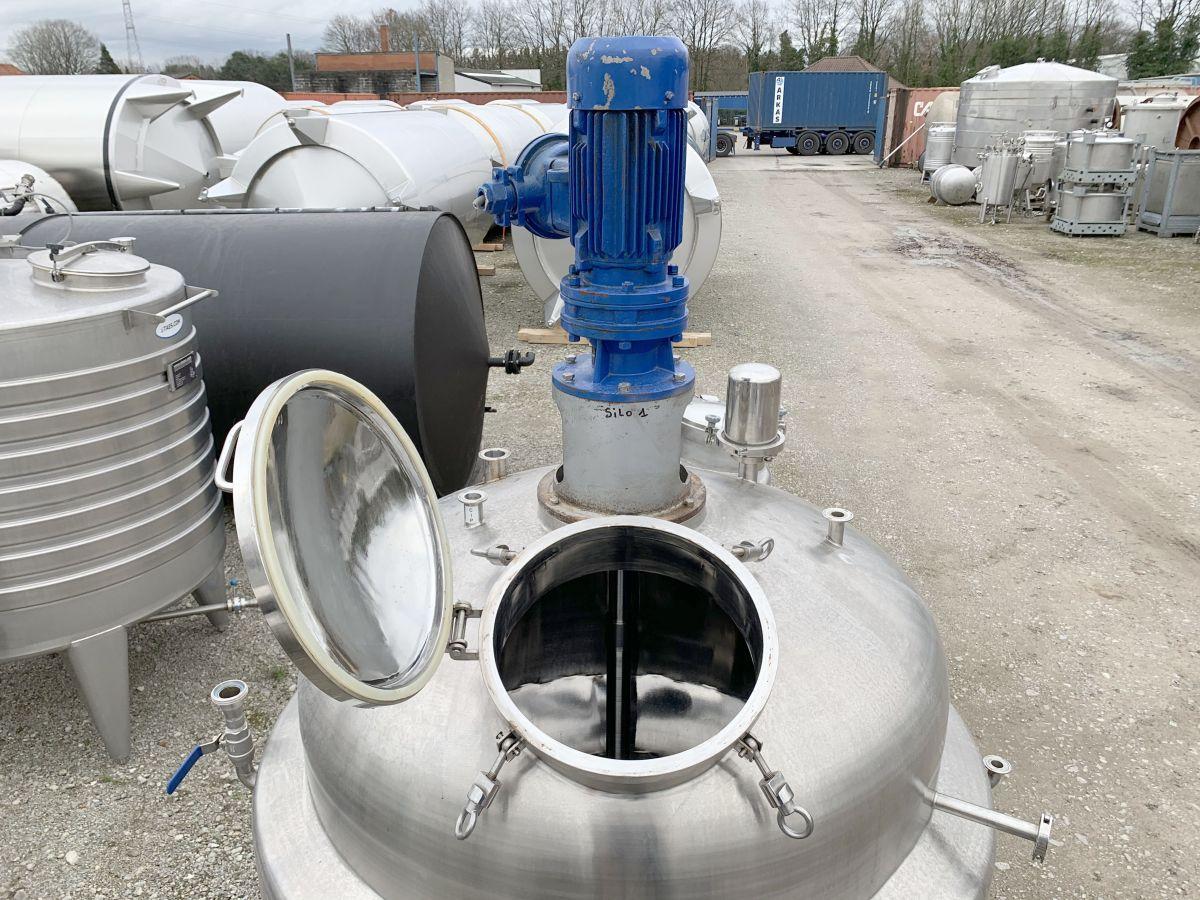

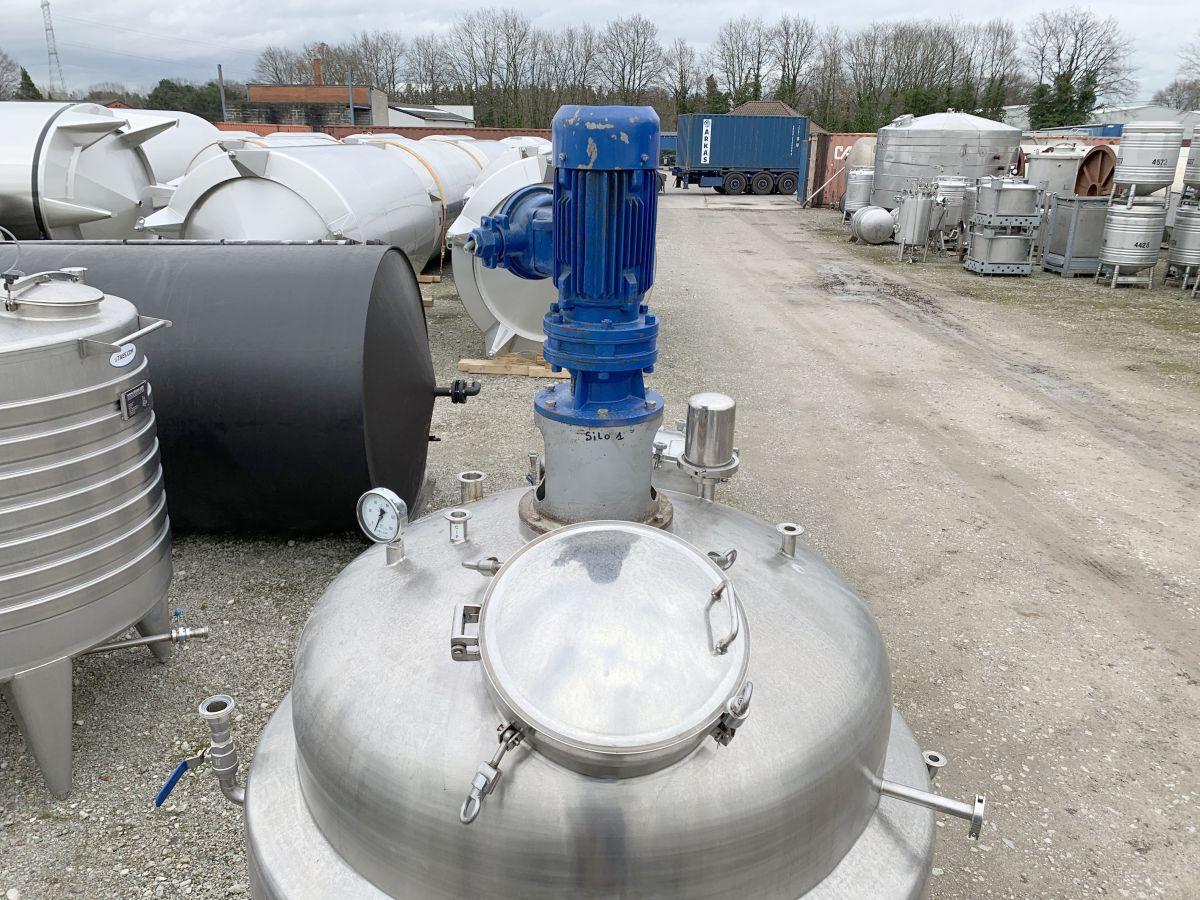

Number of manways: 1
Position of manway: headside
Height manhole 1 (mm): 350 mm

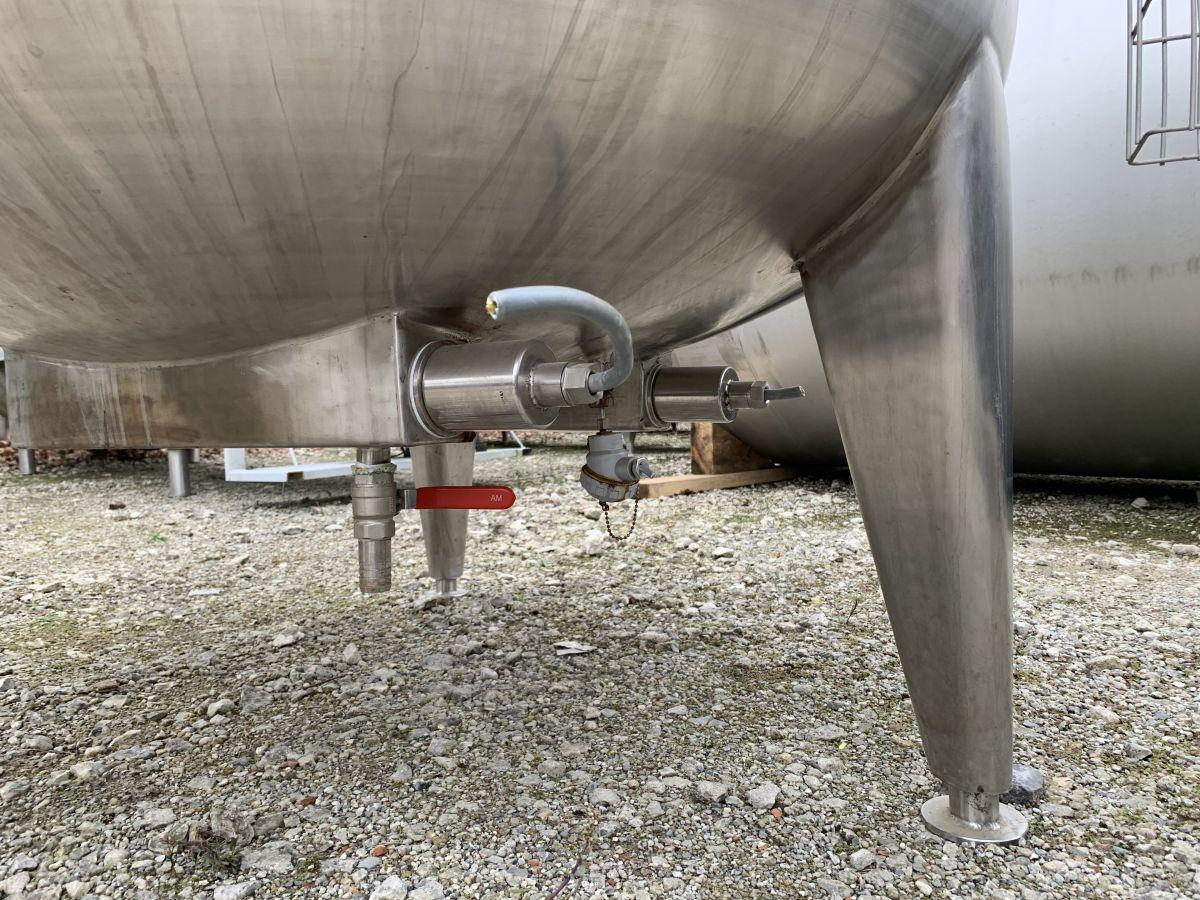

Tank outlet: inside Ø 40 mm
Total outlet valve: no

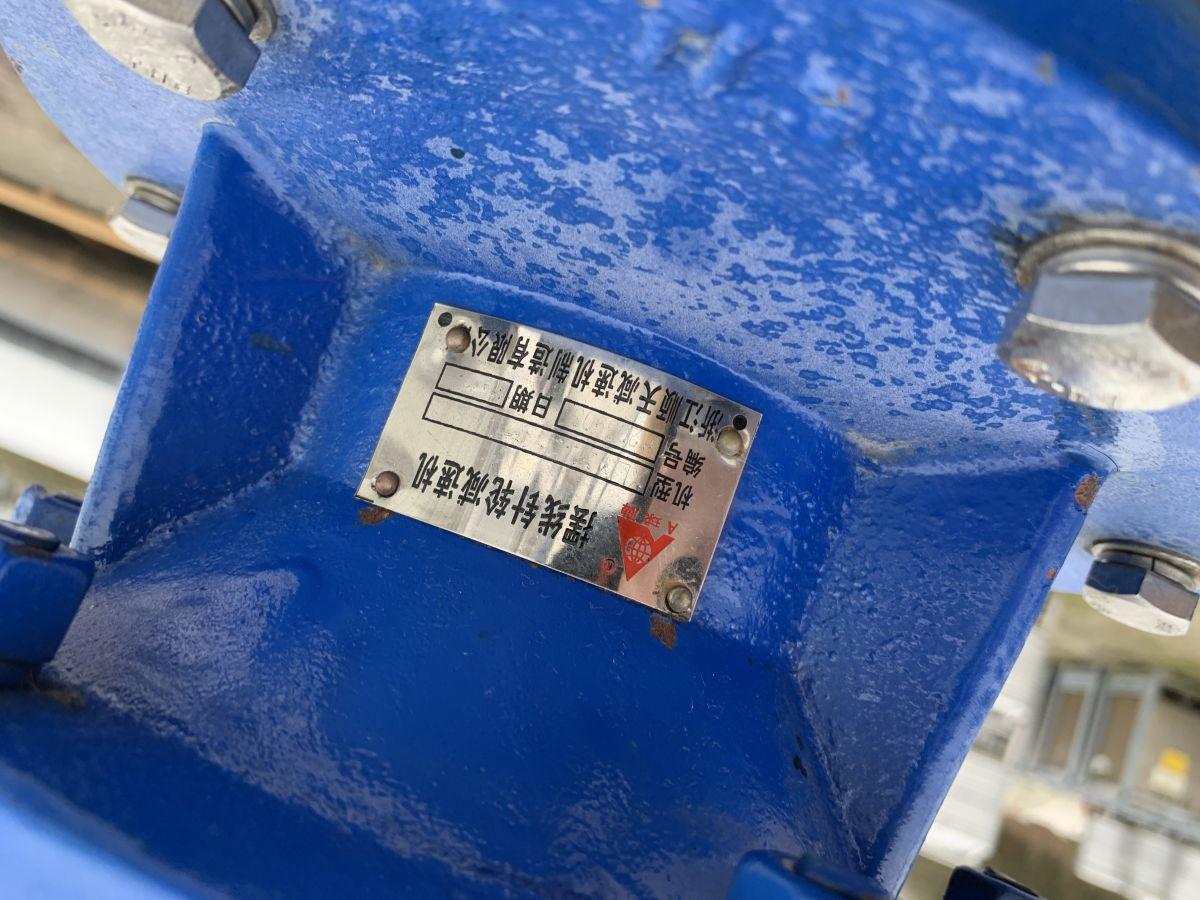

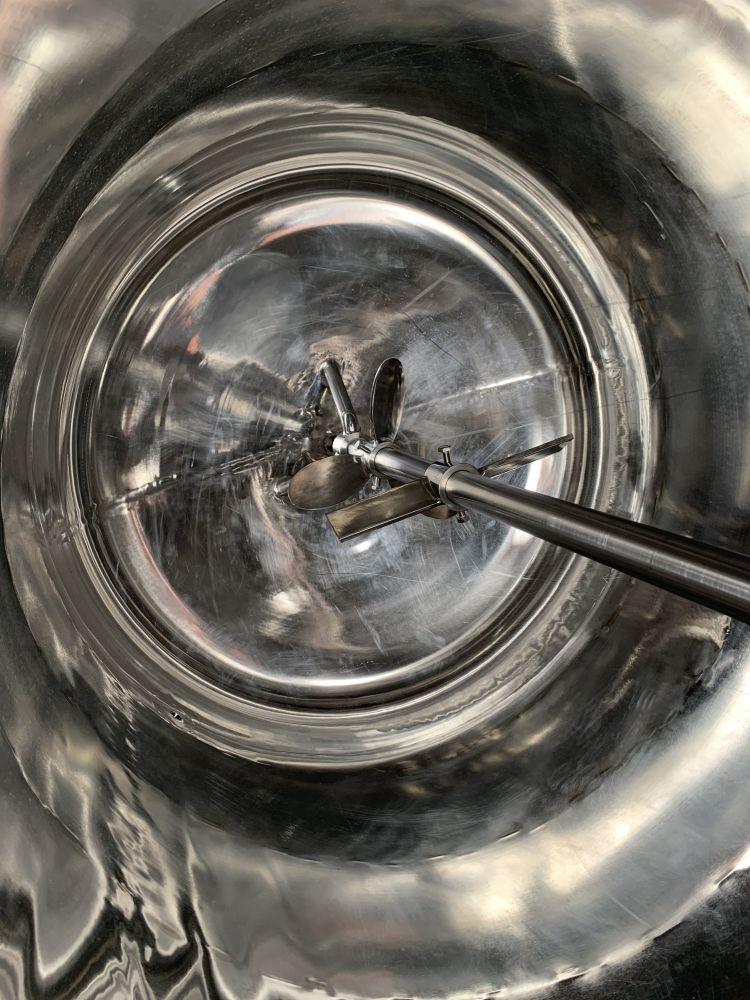

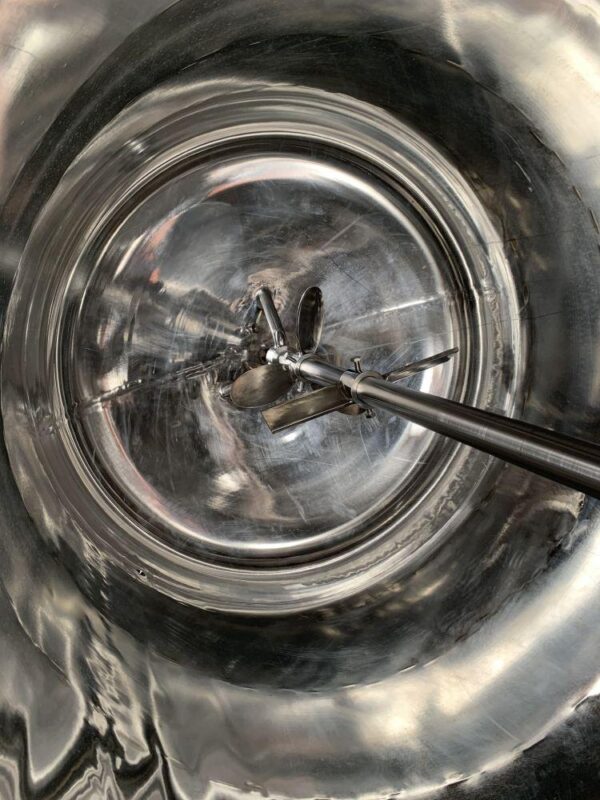

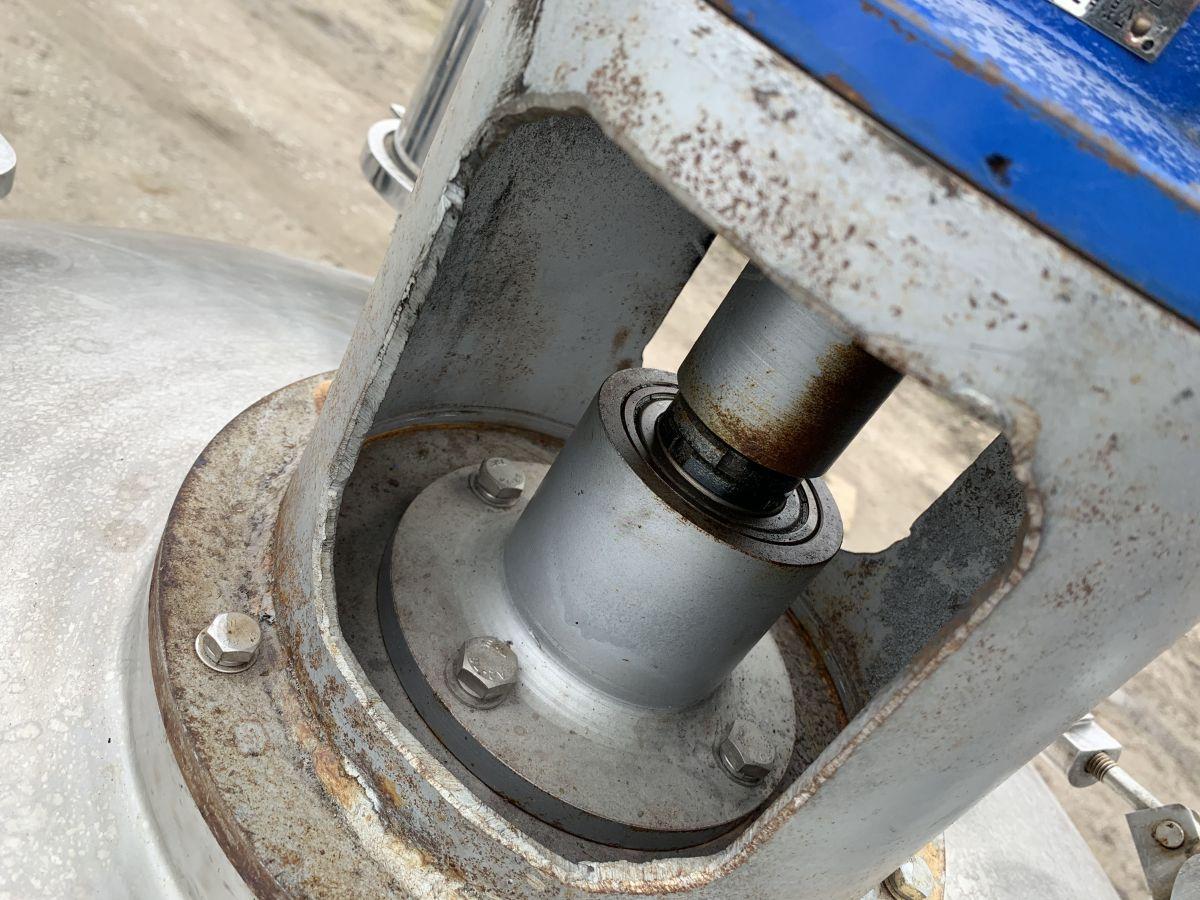

Agitator: yes
Power: 1,50
Internal diameter tank: 1.110 mm
Distance from outlet to ground: 280 mm
Outer diameter tank: 1.310 mm
Cylinder height: 1.160 mm
Total height of tank: 2.800 mm
Empty weight tank: 665
Dokument finns: Nej Fläns för omrörare: Nej Märkskylt: Nej Livsmedelsklassad: Ja Tankutlopp: inside Ø 40 mm Teknisk ritning finns: Nej Utloppsventil: Nej
