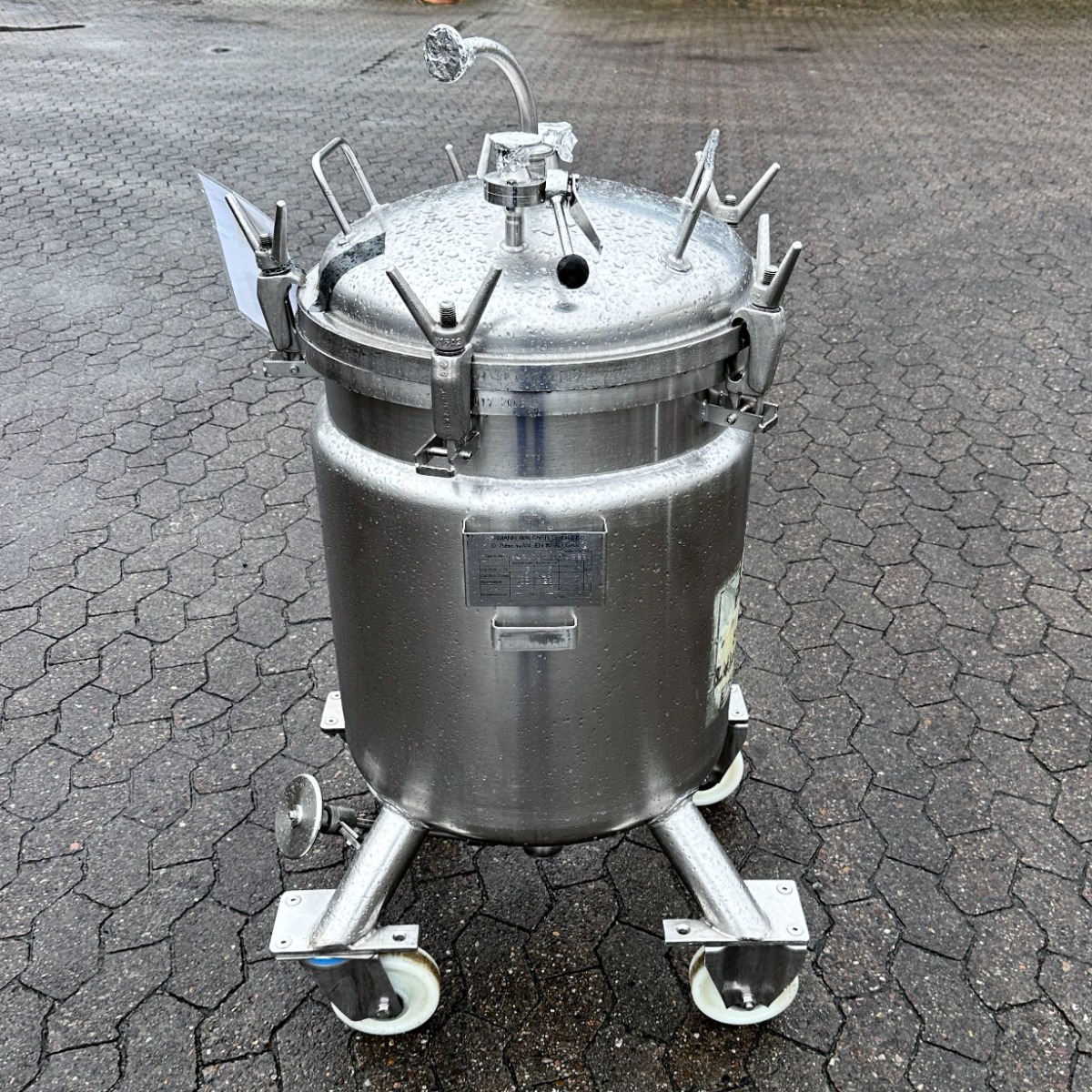

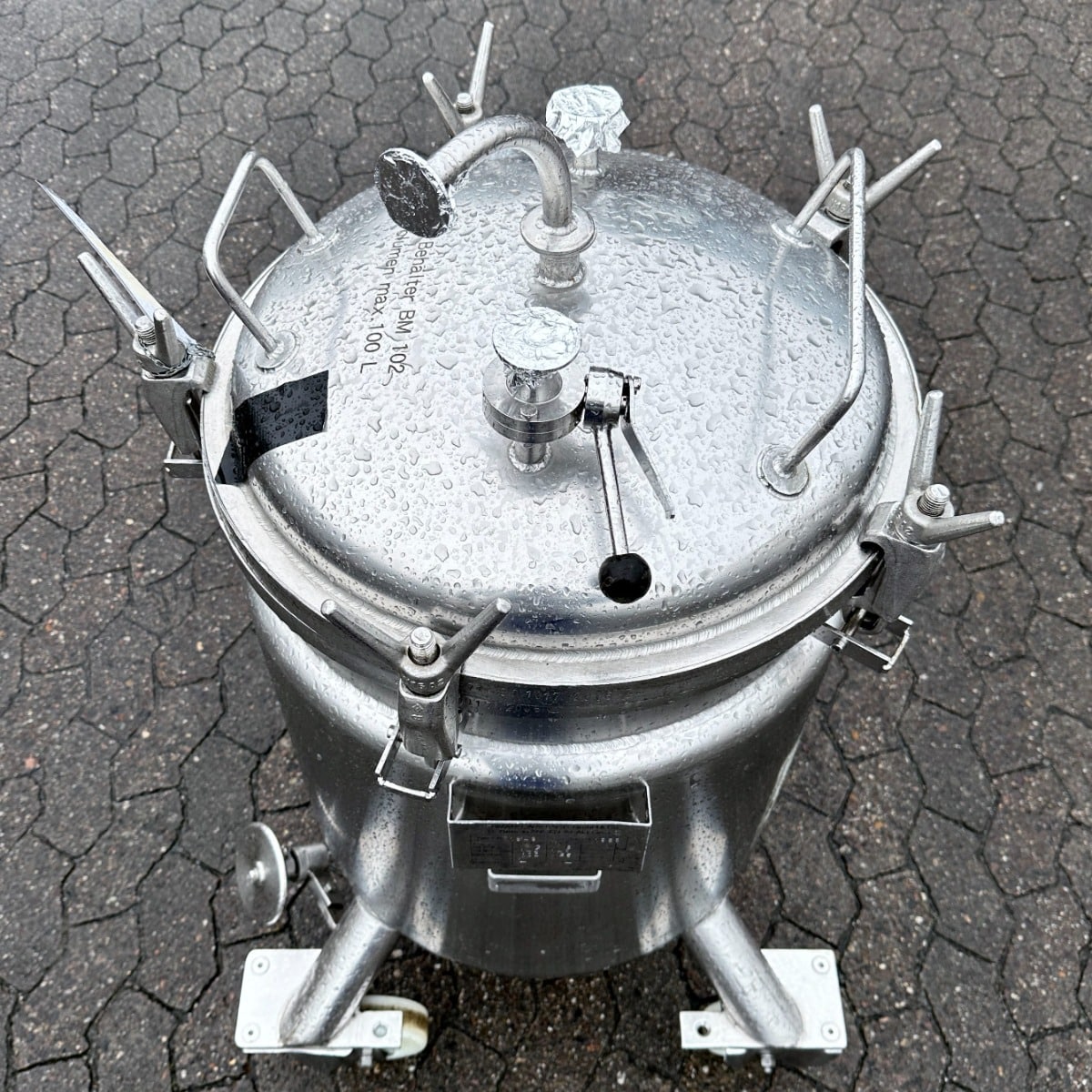

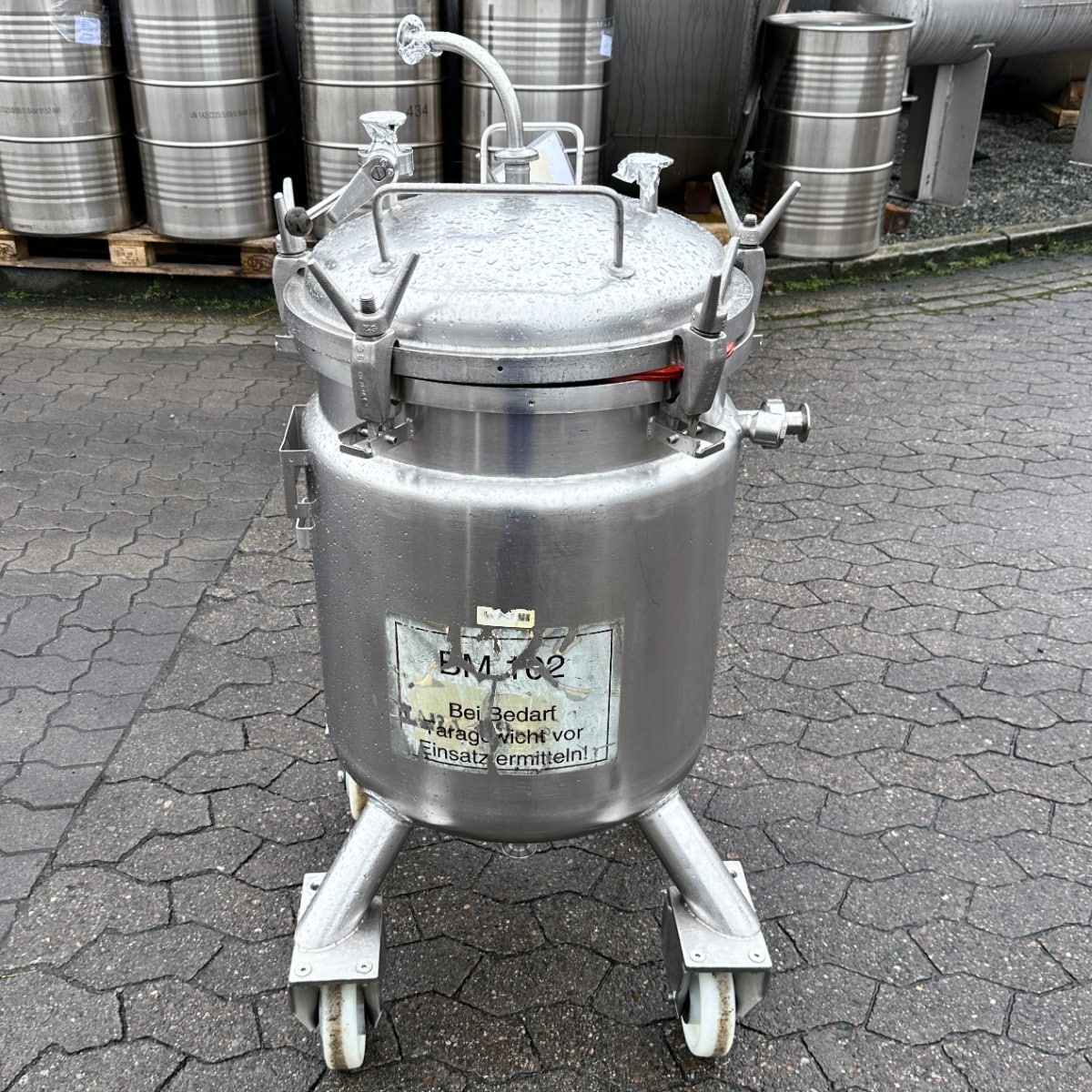

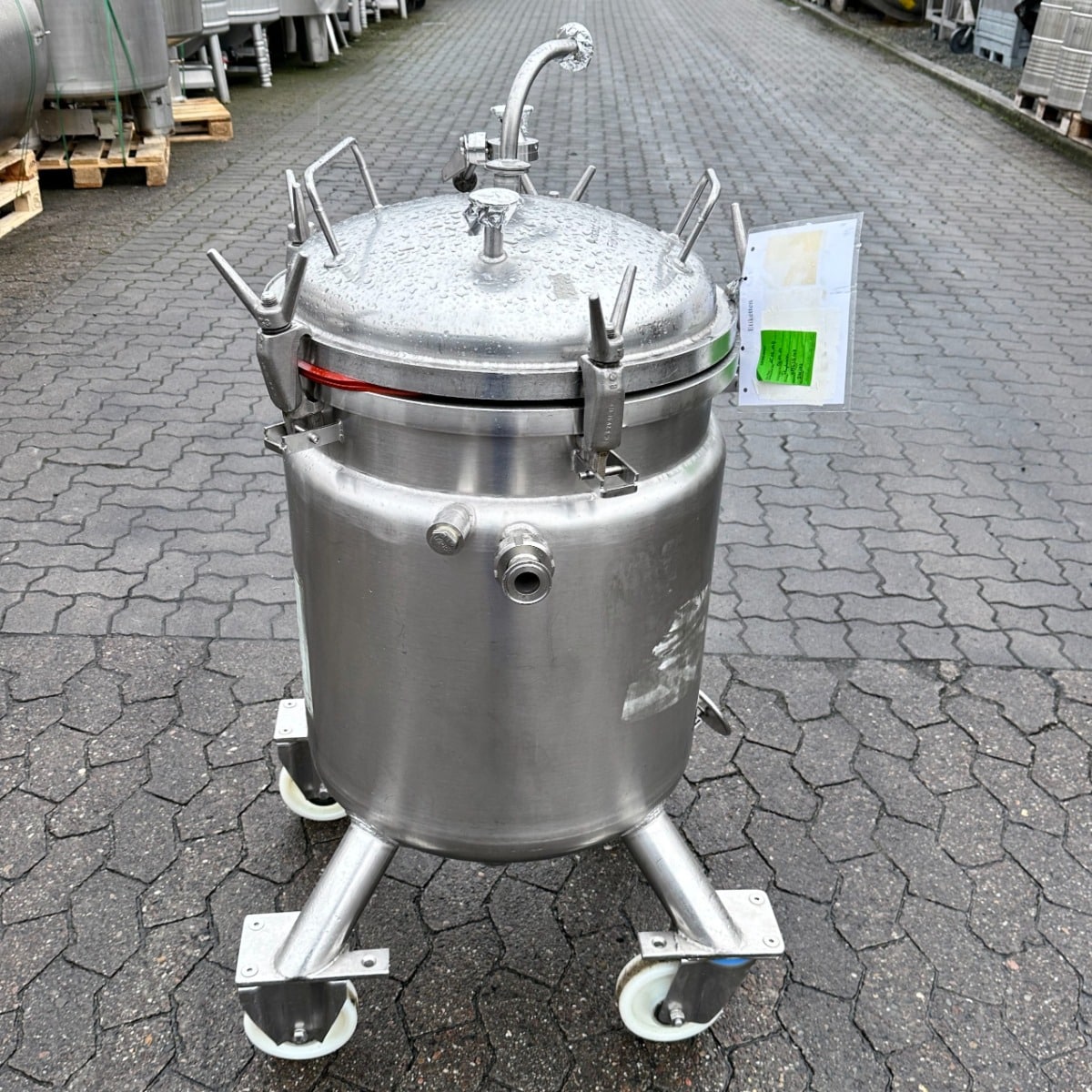

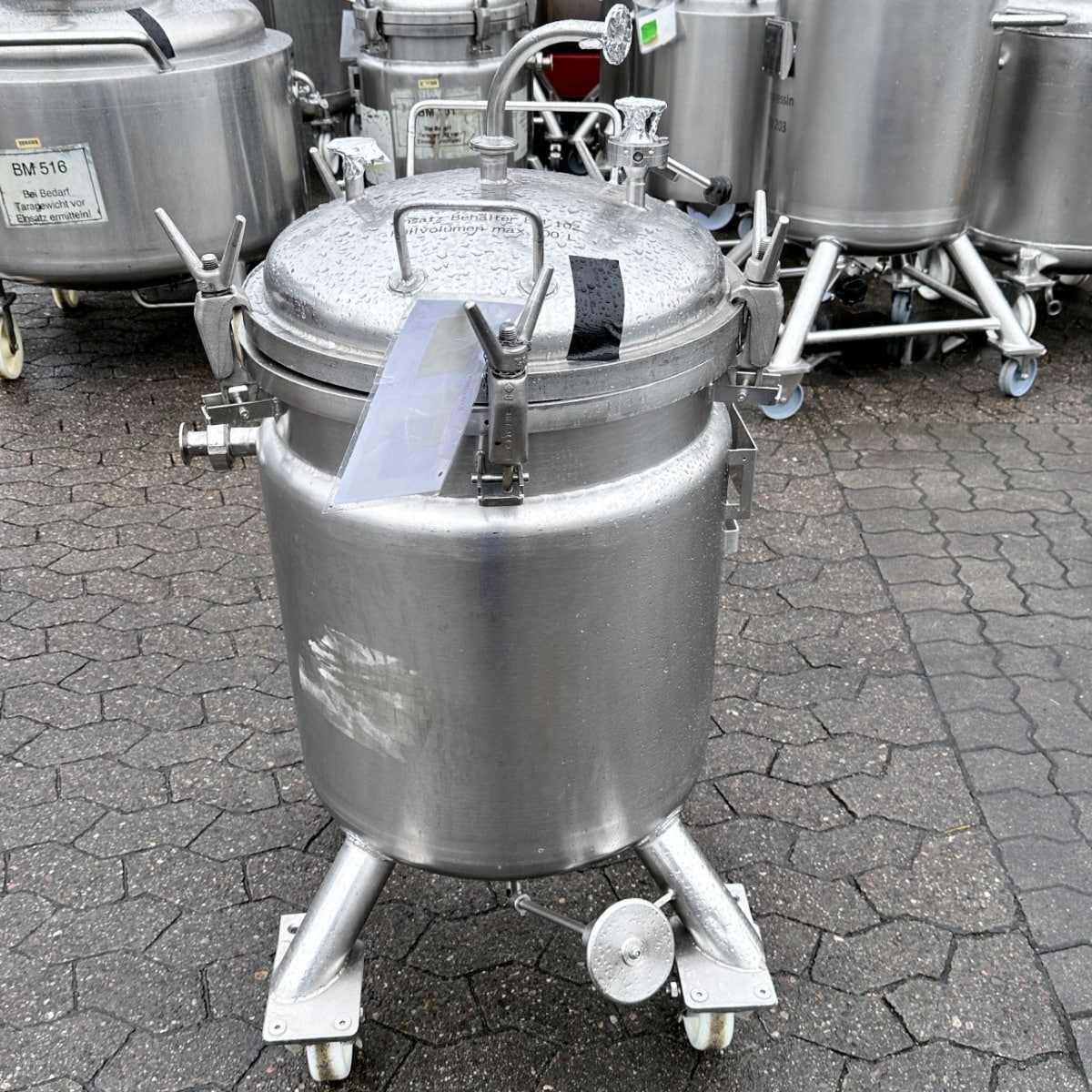

100 liter tank i Syrafast 316

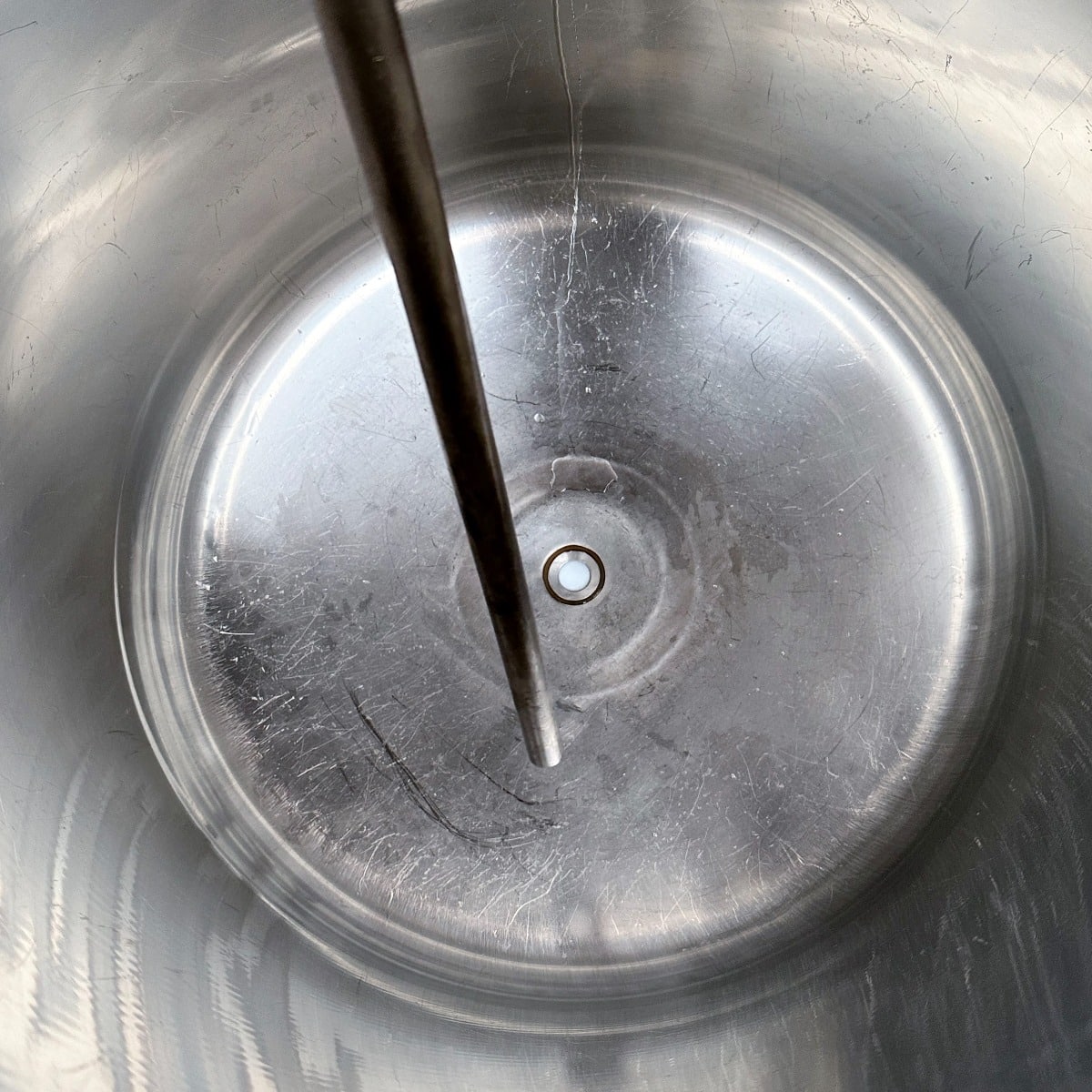

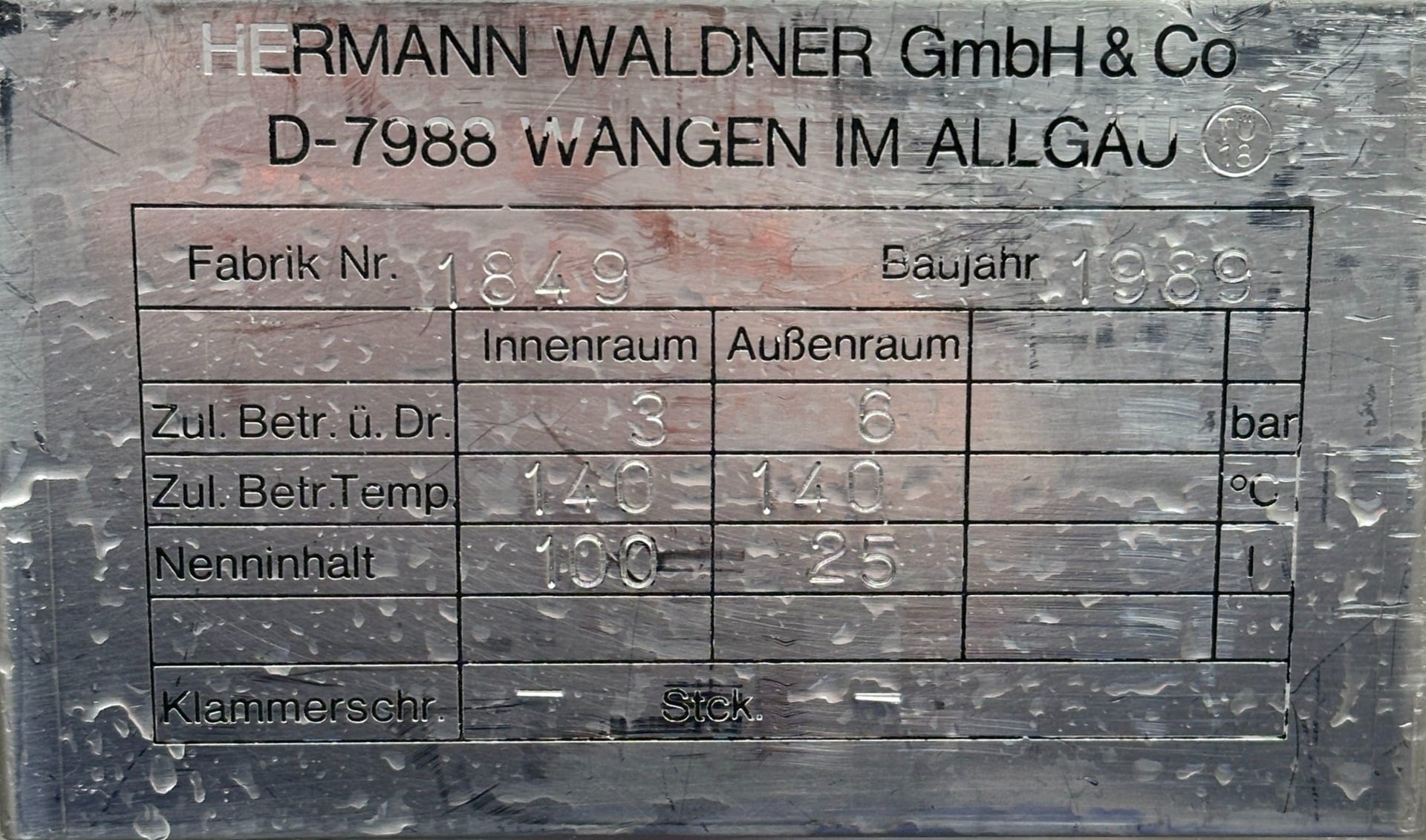

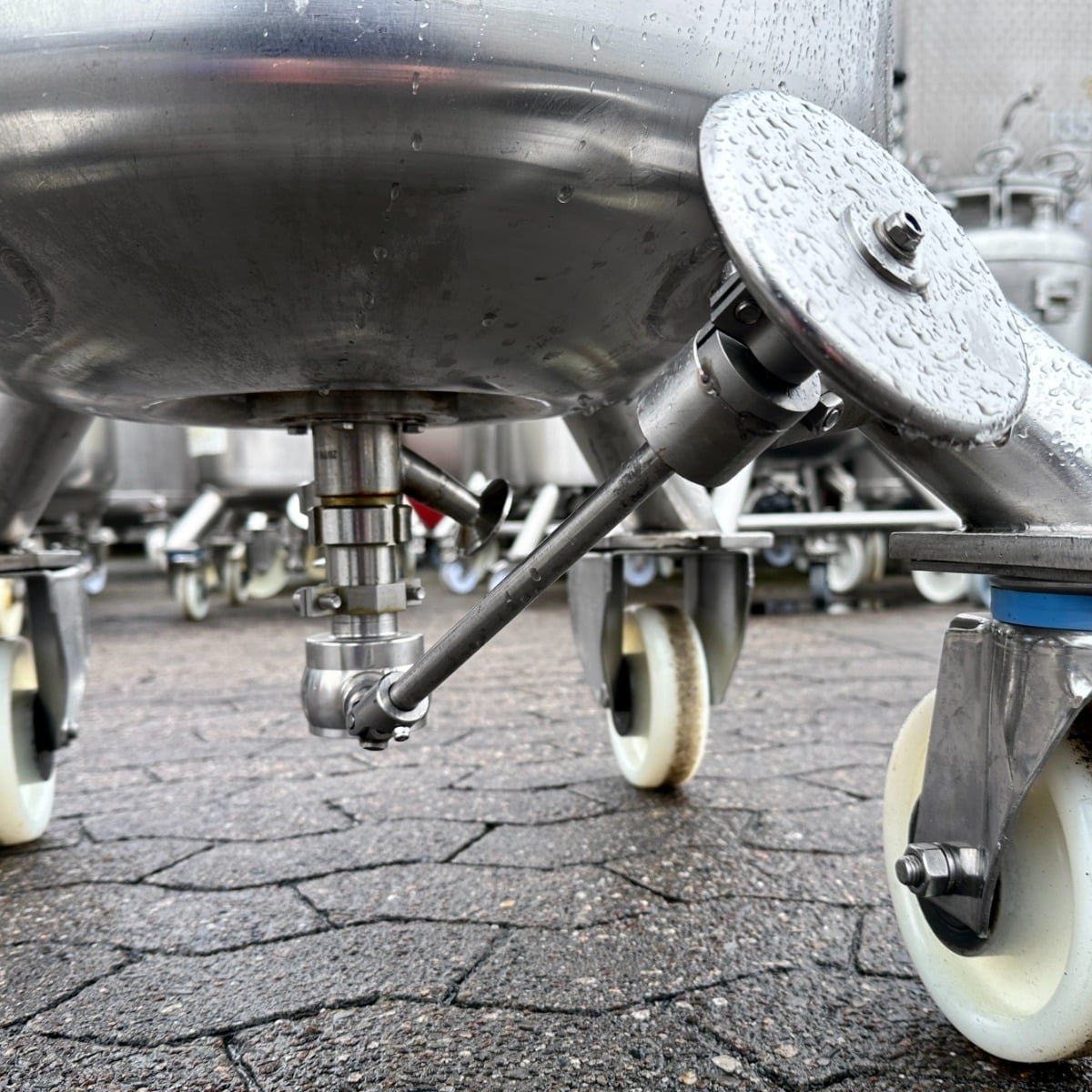

Additional information: pharmacy; Filling pipe inside the tank (see pictures); Volumetric volume (L): 100 L Pressure in tank: pressure Max. pressure (Bar): 3 Bar Max. temperature (°C): 140 °C Material wet parts: SS AISI 316 (V4A) Model: vertical Configuration: single jacketed with heat-exchanger Heat exchanger: yes Insulation: no Mobile tank: no Total discharge: yes Volume: 25 L Max Overpressure: 6 Bar Max. working temperature: 140 °C Type HE on the bottom: heating/cooling jacket Type HE on the cylinder: heating/cooling jacket Heat exchanger: RVS 304 Documents included: no Technical drawing included: no Registration plate on the tank: yes Flange for agitator: no Outlet of tank: clamp Internal diameter tank: 495 mm Cylinder height: 560 mm Total height of tank: 1.250 mm
