100 liter i Syrafast 316

Vi erbjuder finansiering via:

Art.nr: 6902

79,000.00 SEK/st exkl moms

Lagersaldo: 4st

Mer information

Volym i liter

100

Nytillverkad/Begagnad

Nytillverkad

Livsmedelsklassad

Ja

Modell

Vertikal

Material

Syrafast 316

Omrörare

Nej

Uppvärmning/kylning

Ja

Isolerad

Ja

Ritning

Öppna

item available on order

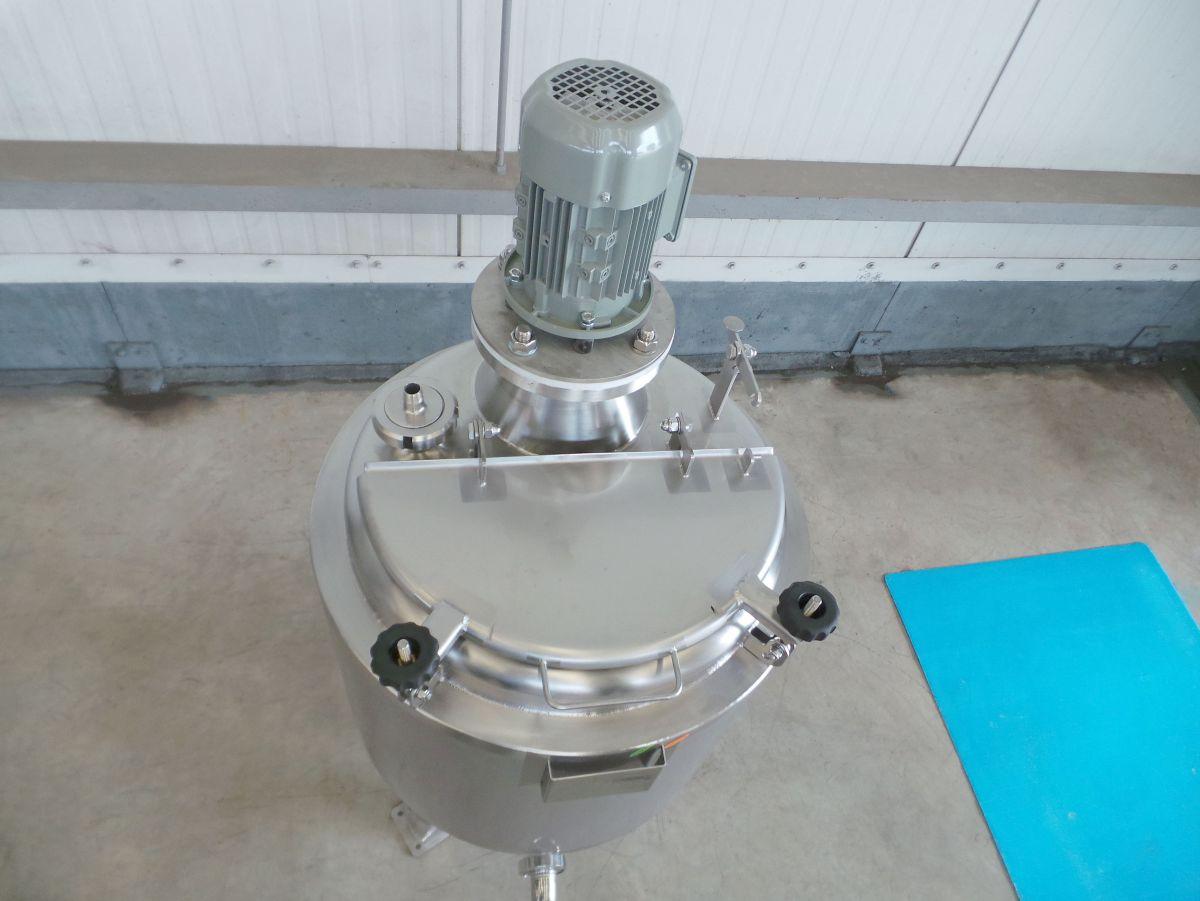

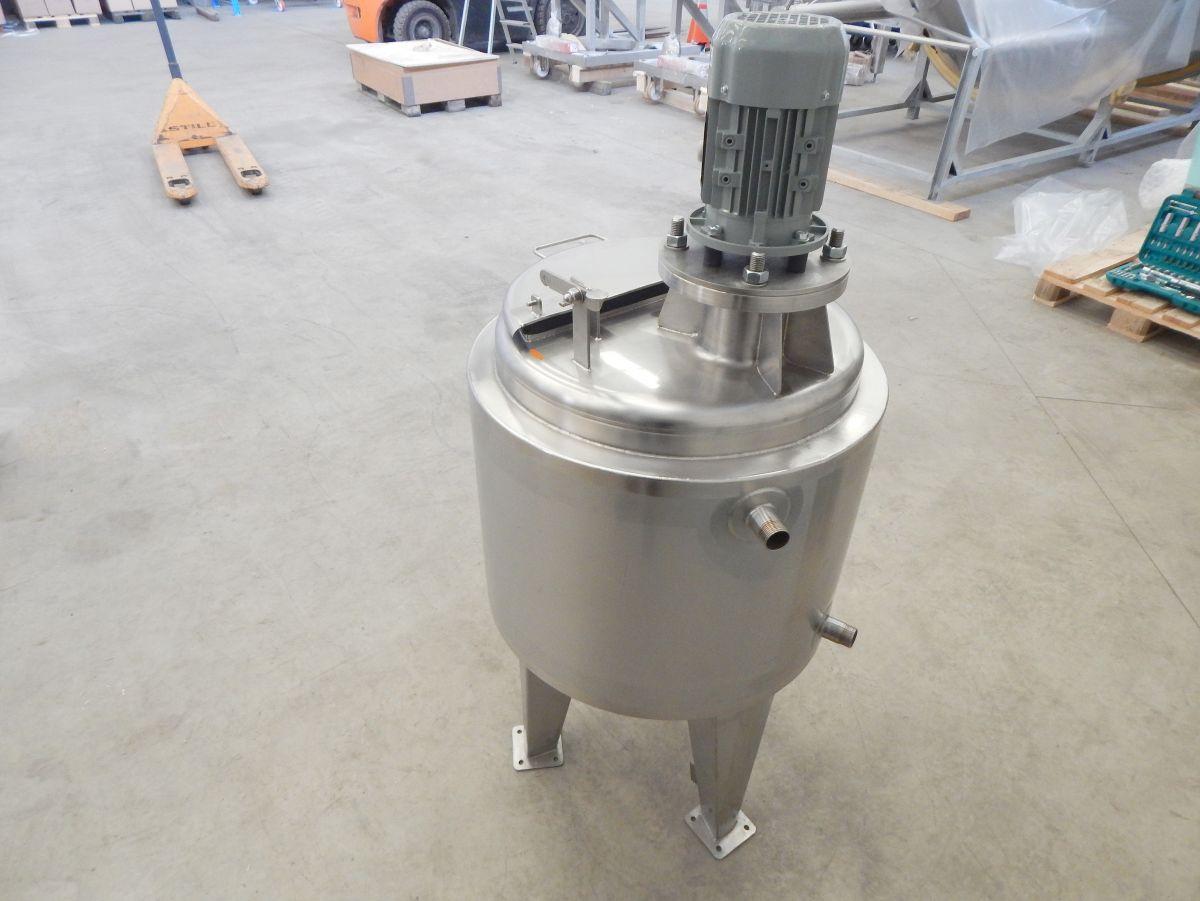

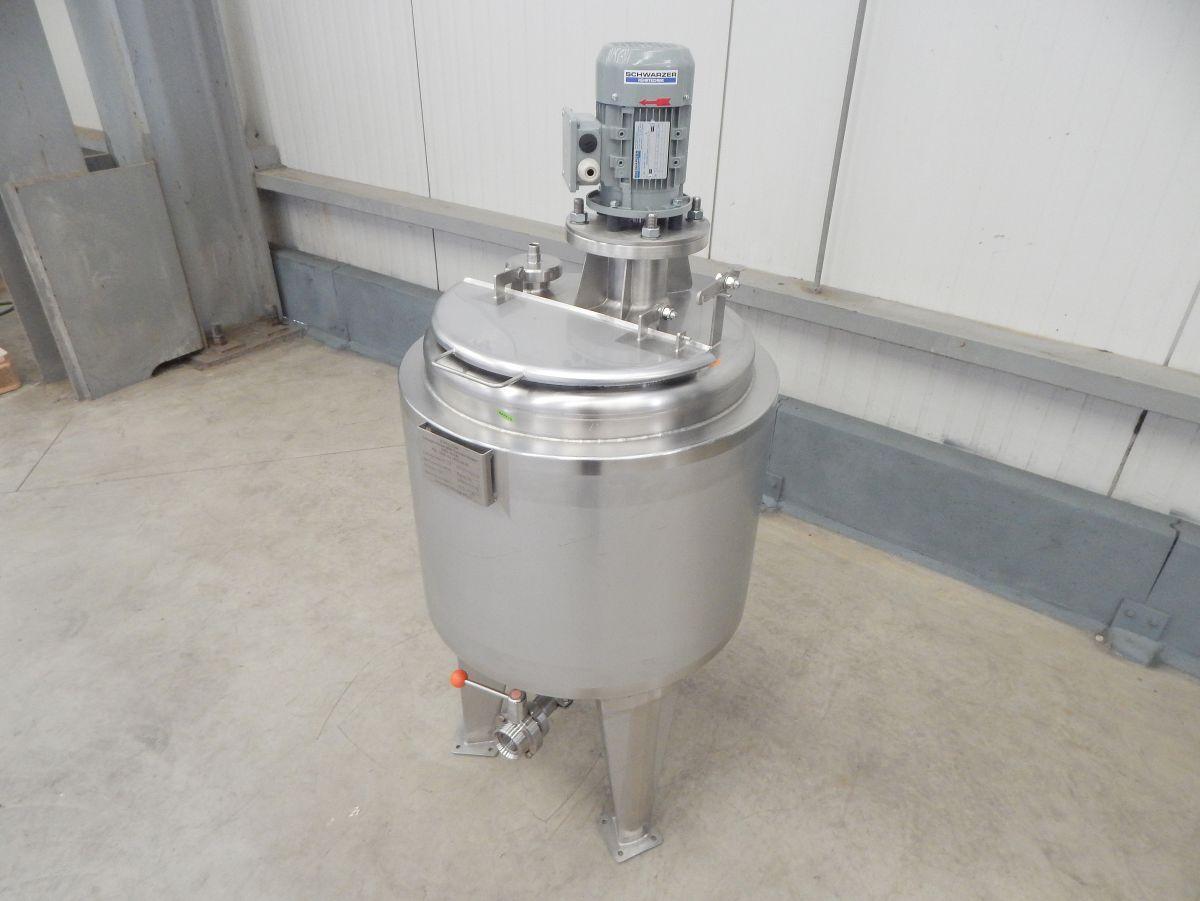

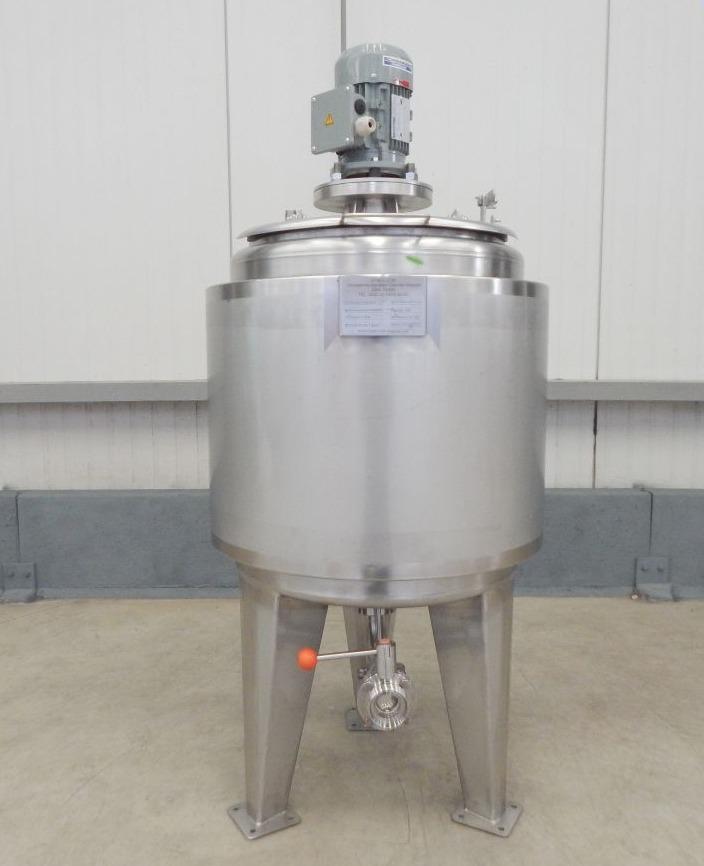

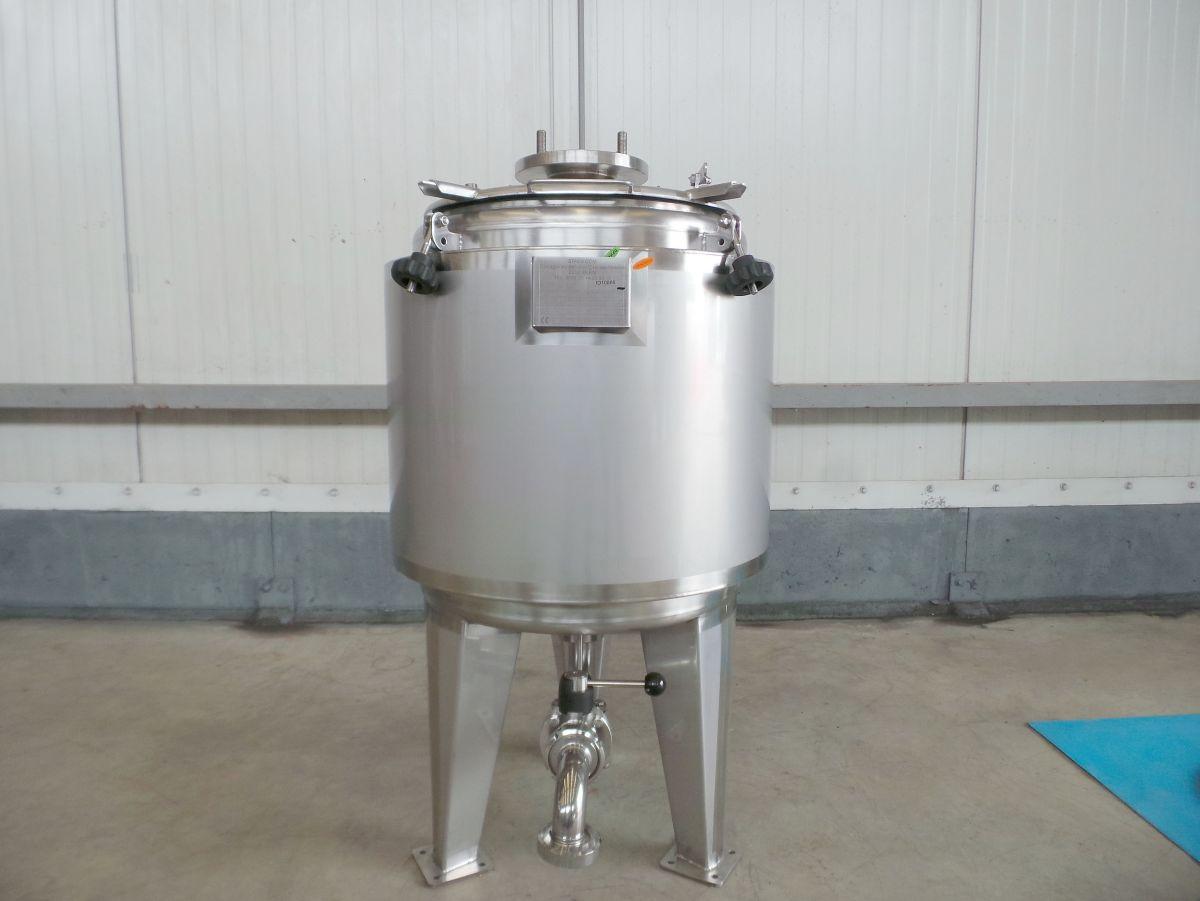

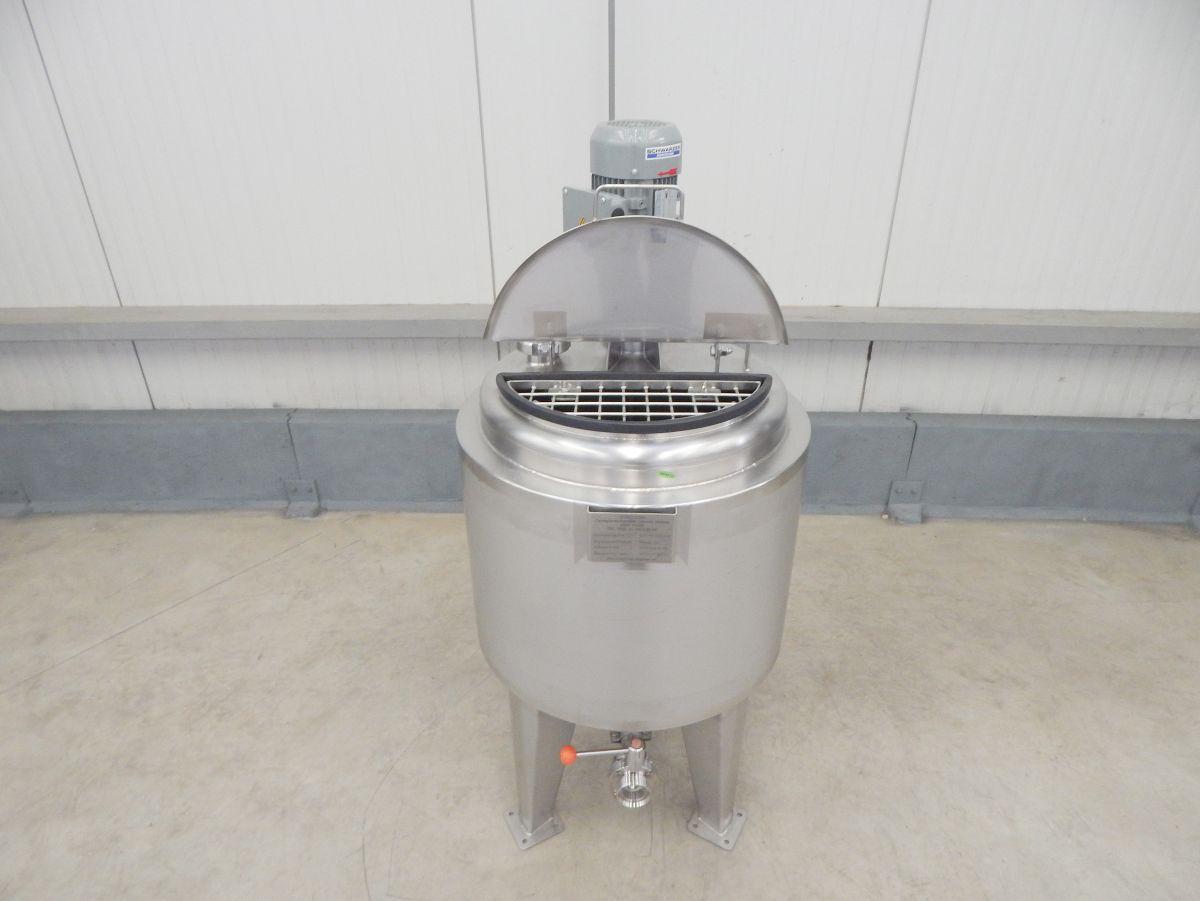

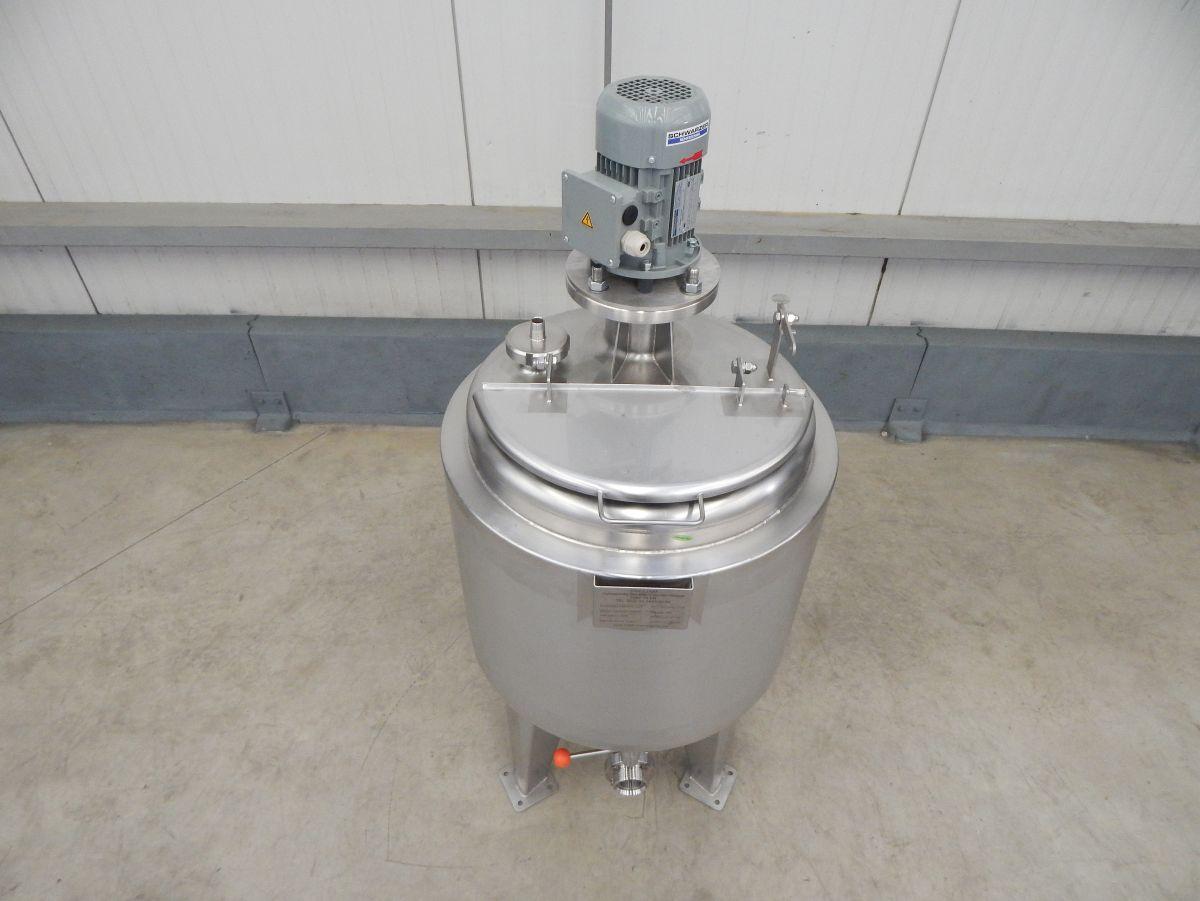

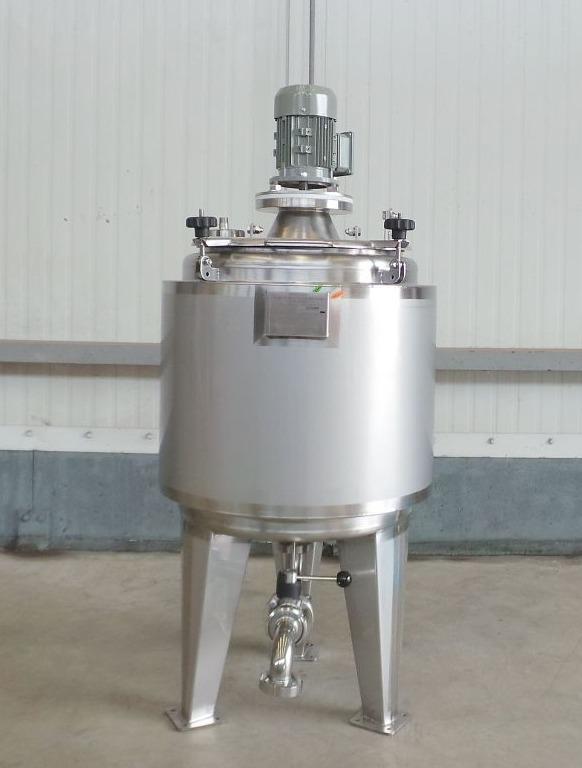

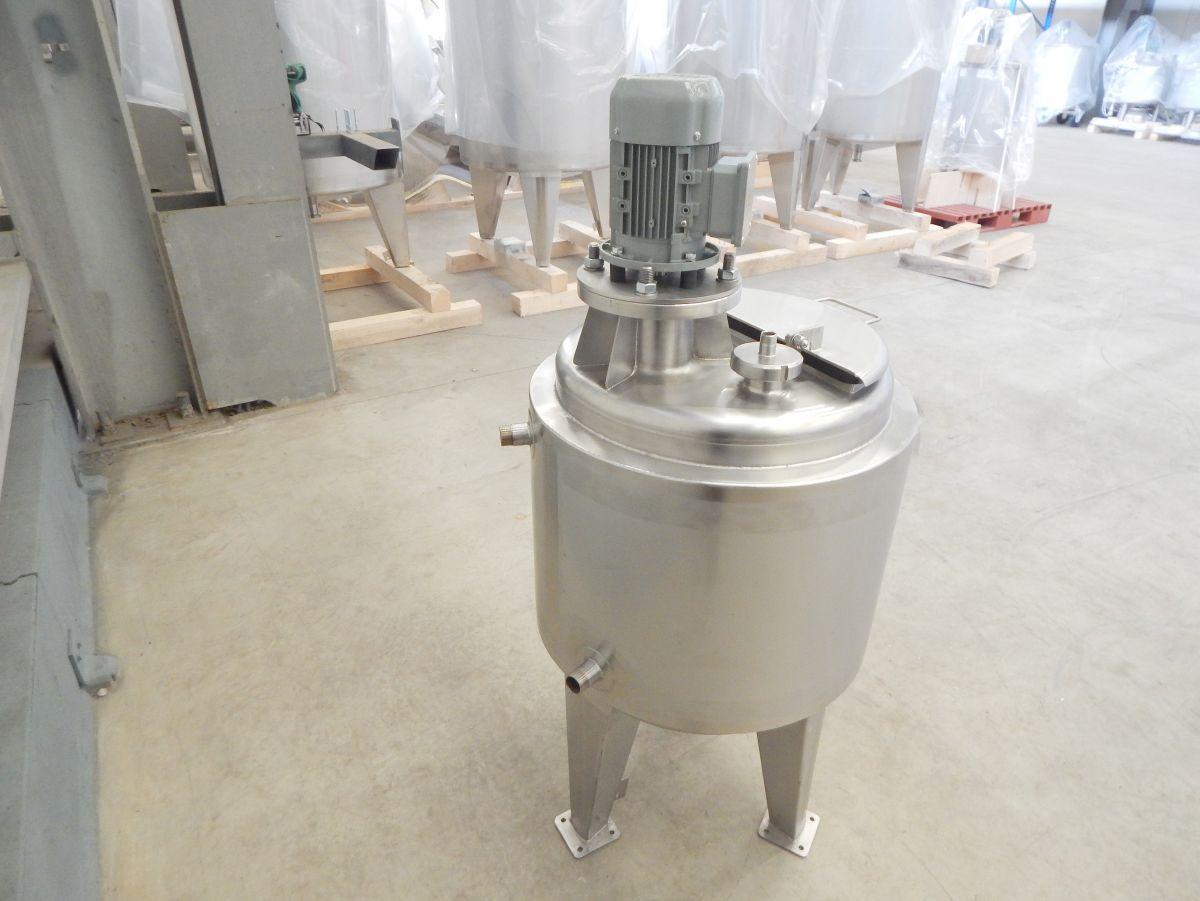

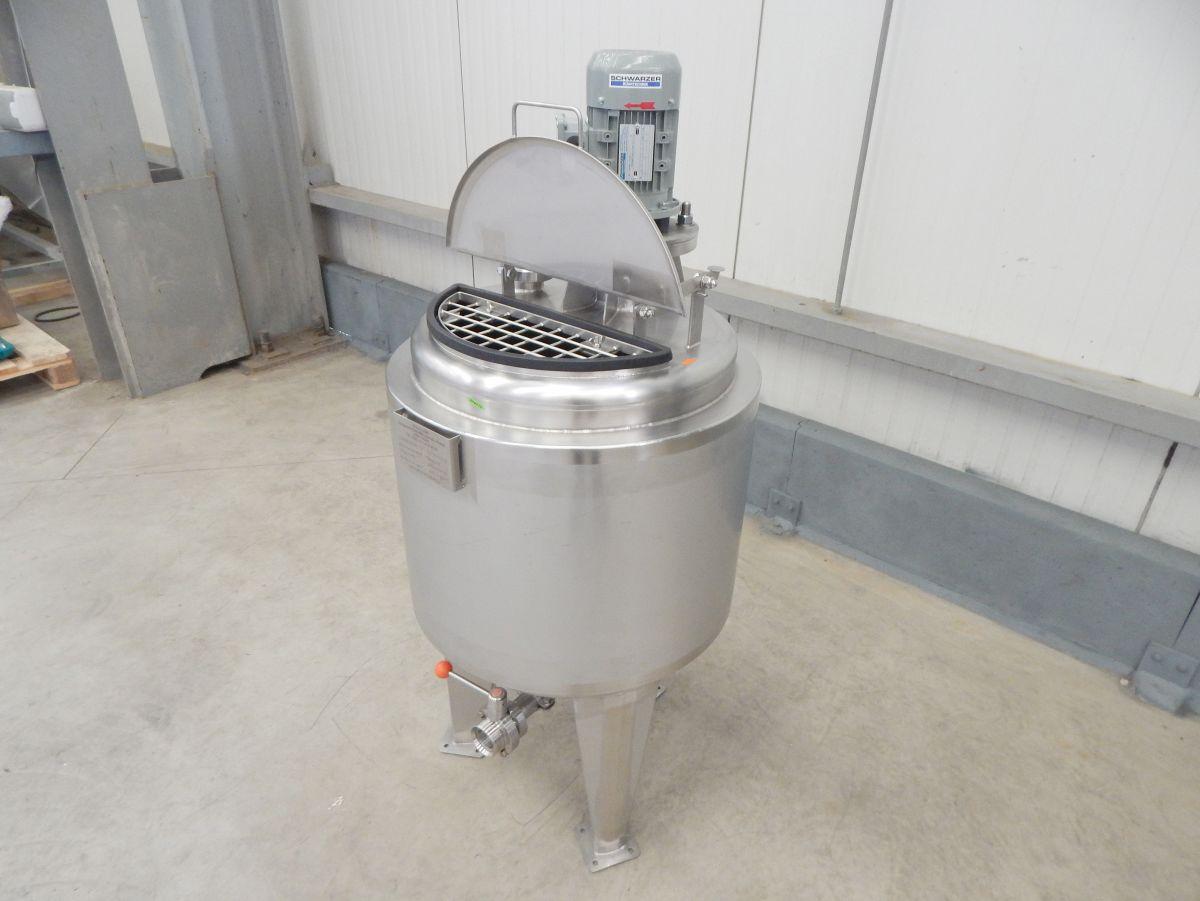

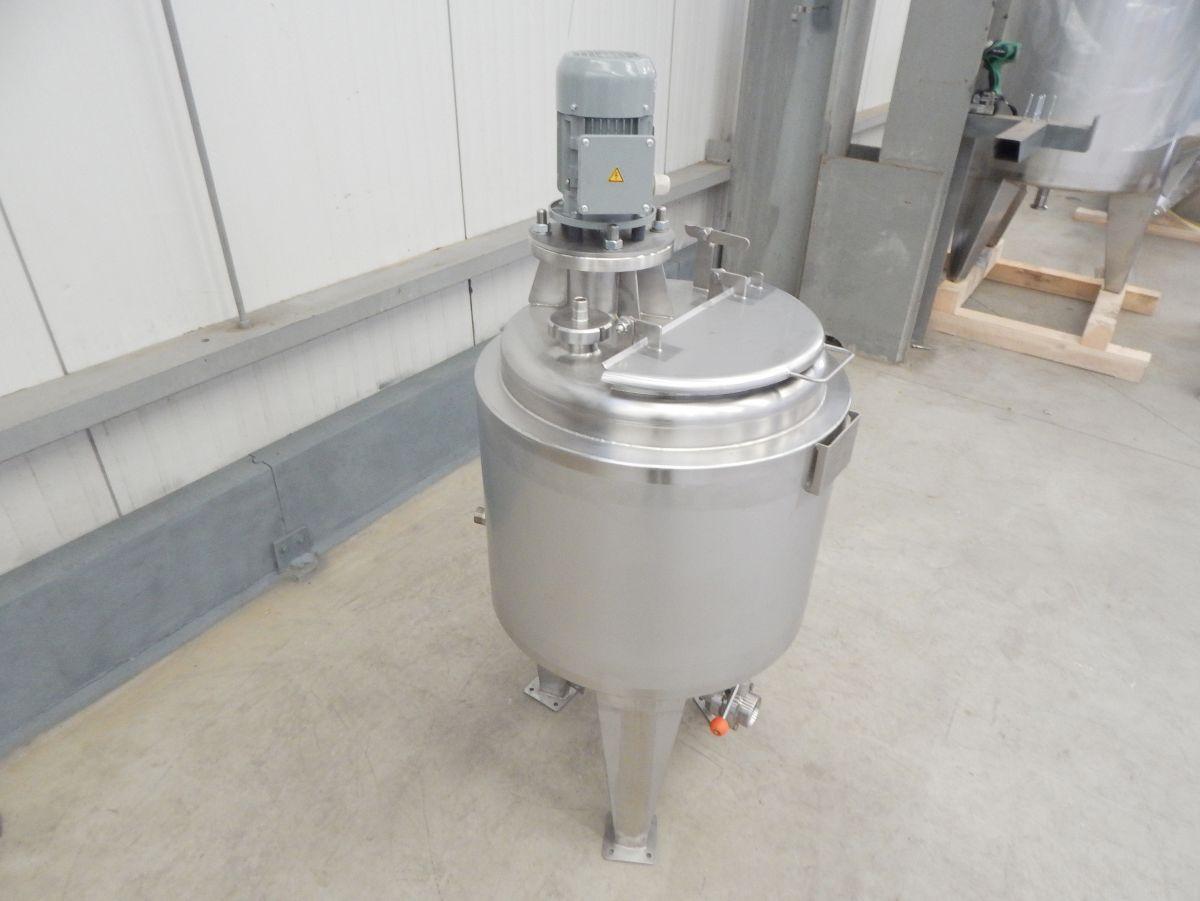

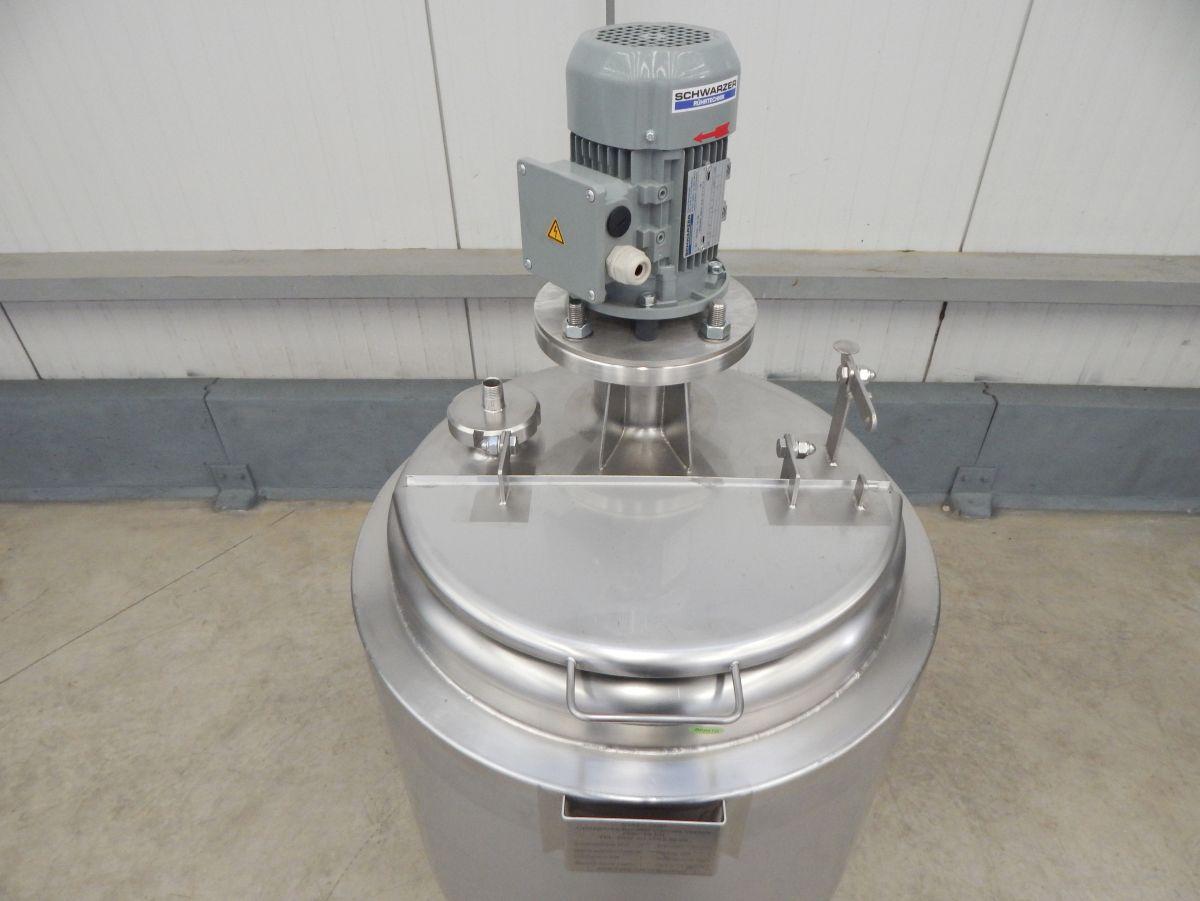

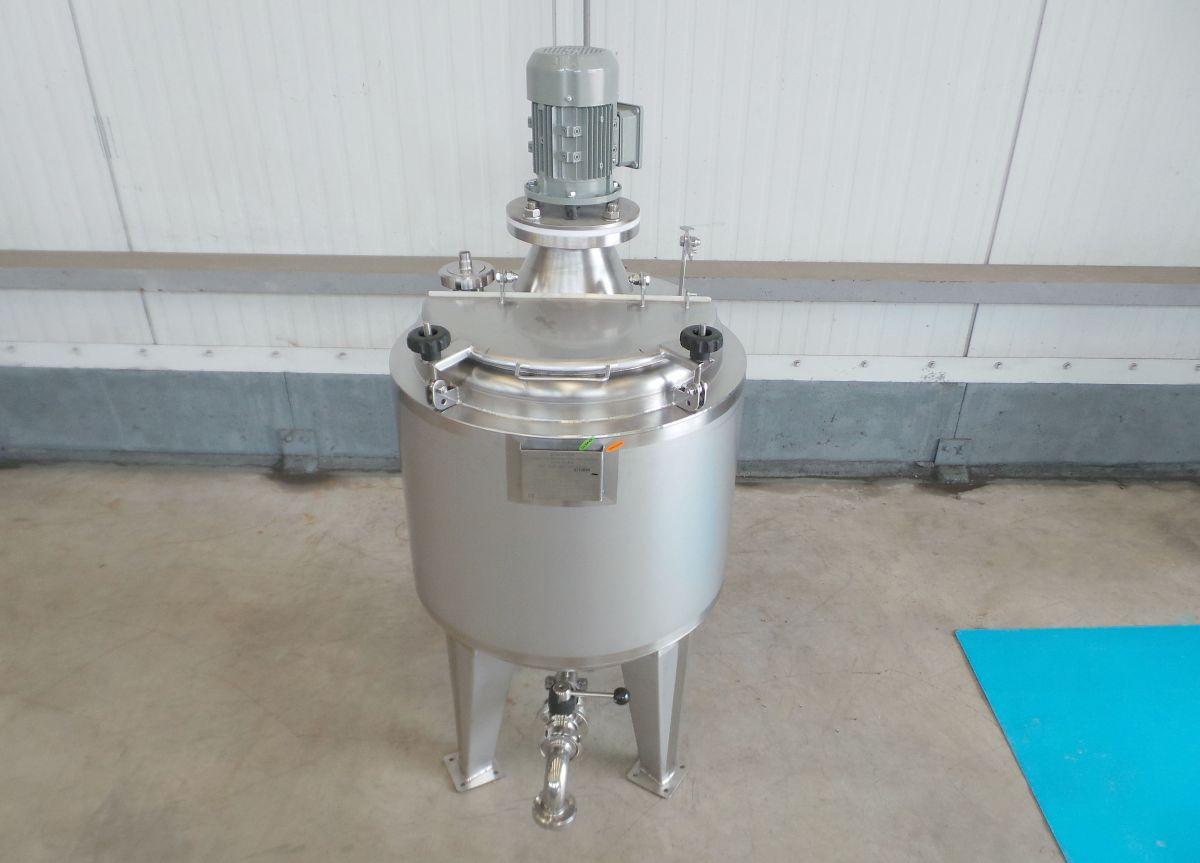

Article type: brand new mixing tank – type VC-HILA
Additional information: delivered with food certificate; article price without agitator; choice of 2 different types of agitators; see options; (The article can also be purchased without options); Ra=<0.8µm
Capacity: 100 L
Maximal density of the product: 1.200
Ra inner weld: 0,80

Finish stainless steel: 2b
Working pressure in tank: ATM – atmosferic
Max. working temperature: 100 °C
Min. working temperature: -10 °C
Material wet parts: SS AISI 316 (V4A)

Model: vertical
Configuration: insulated with heat-exchanger
Heat exchanger: yes
Insulation: yes
Agitator: yes, optional

Mobile tank: no

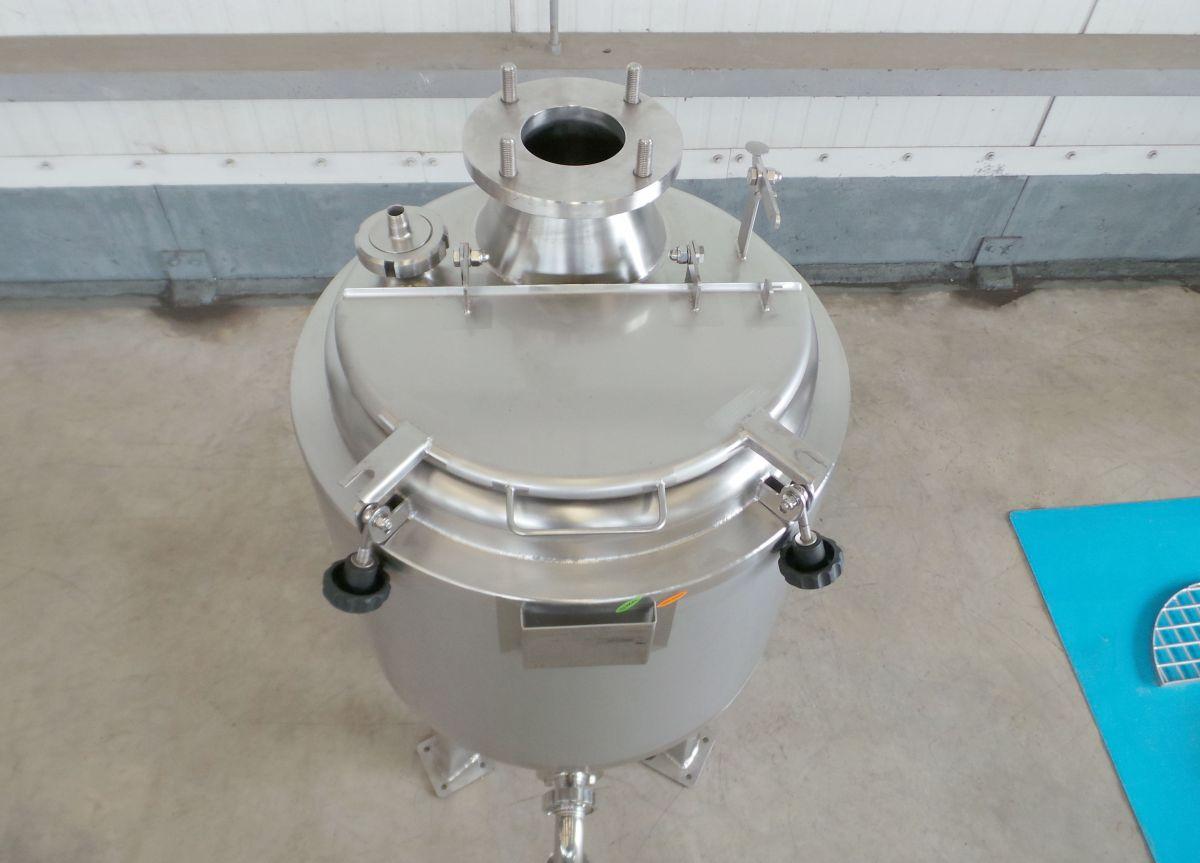

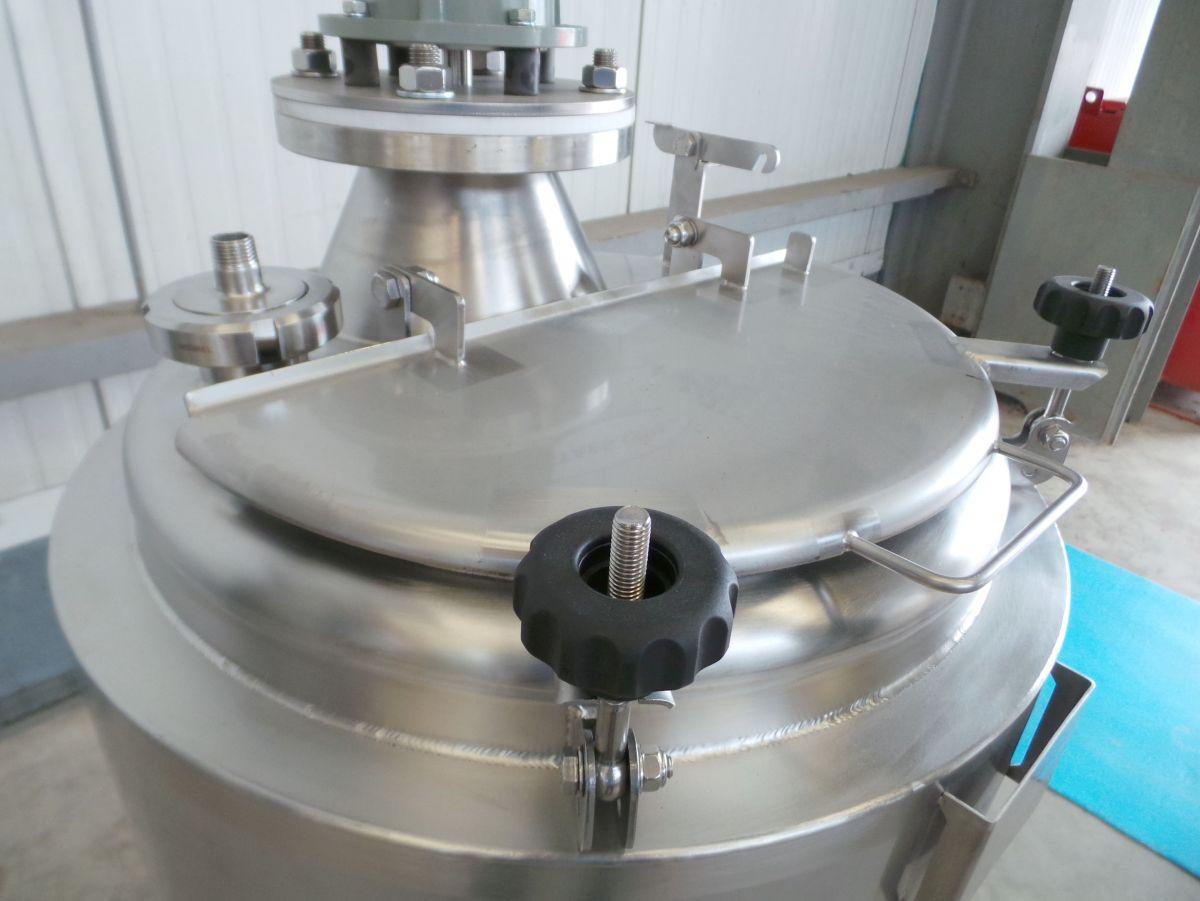

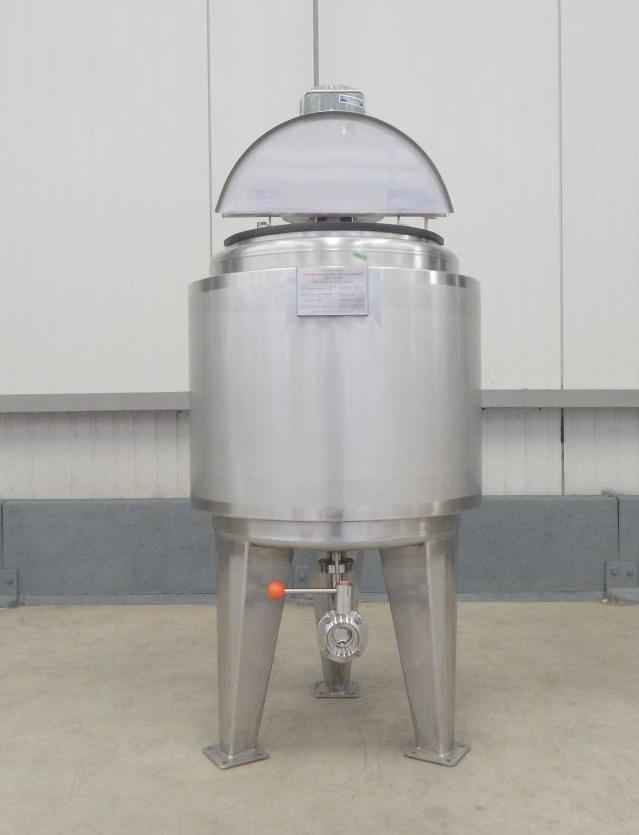

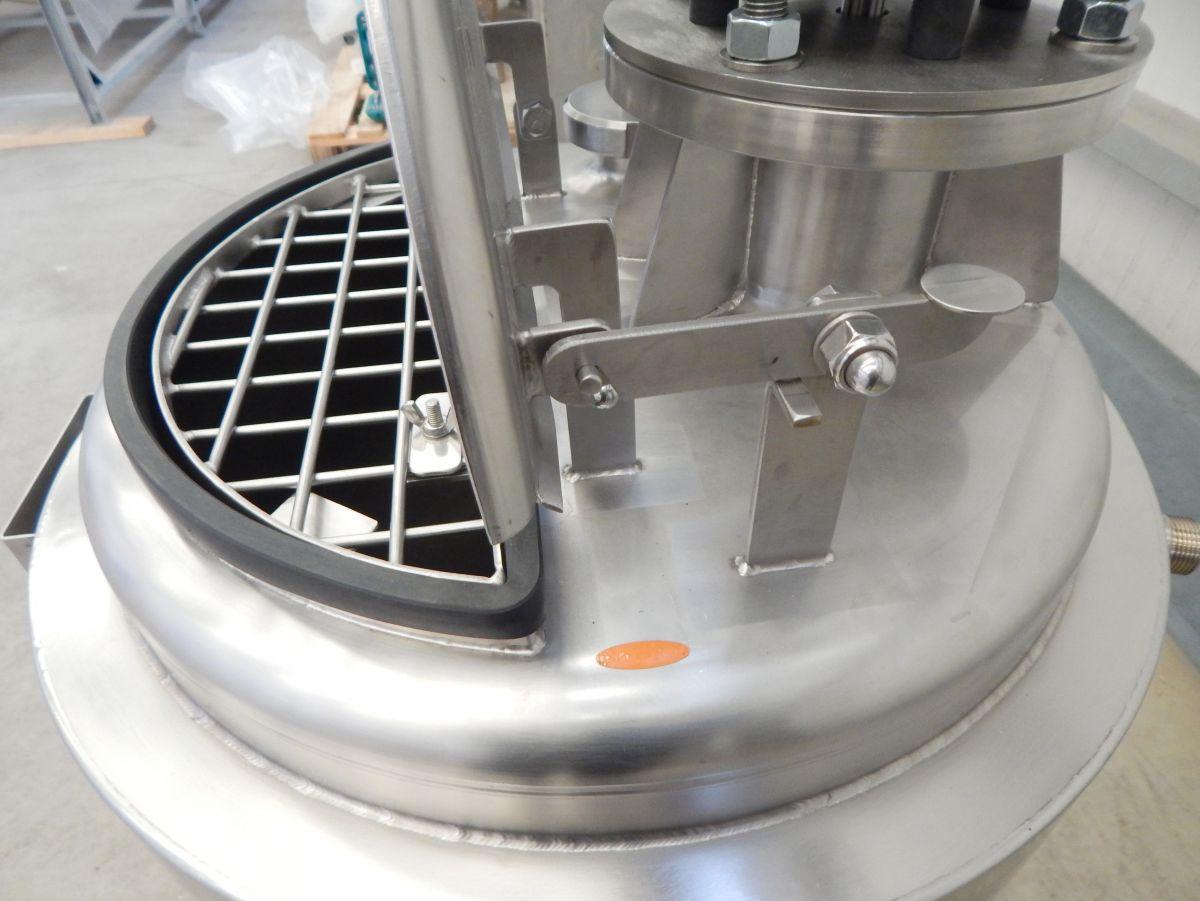

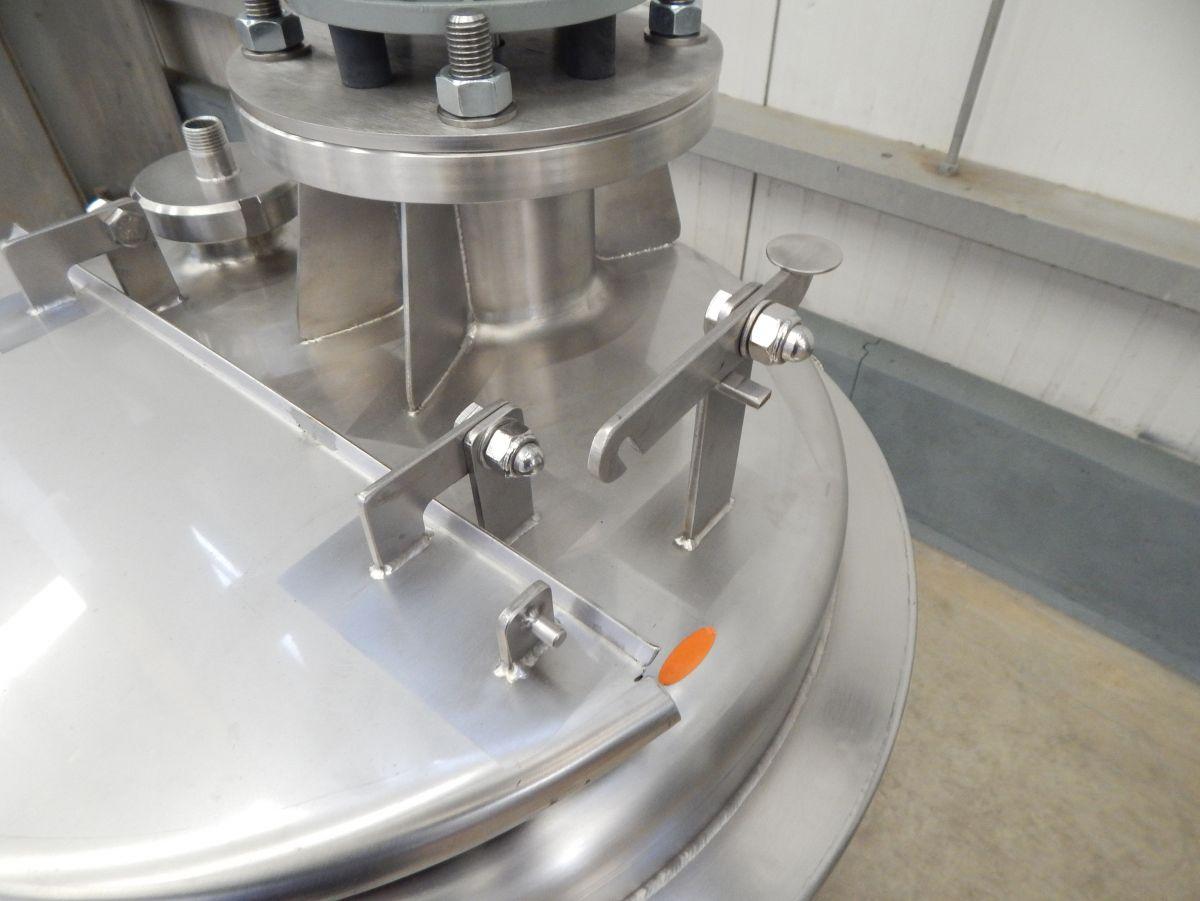

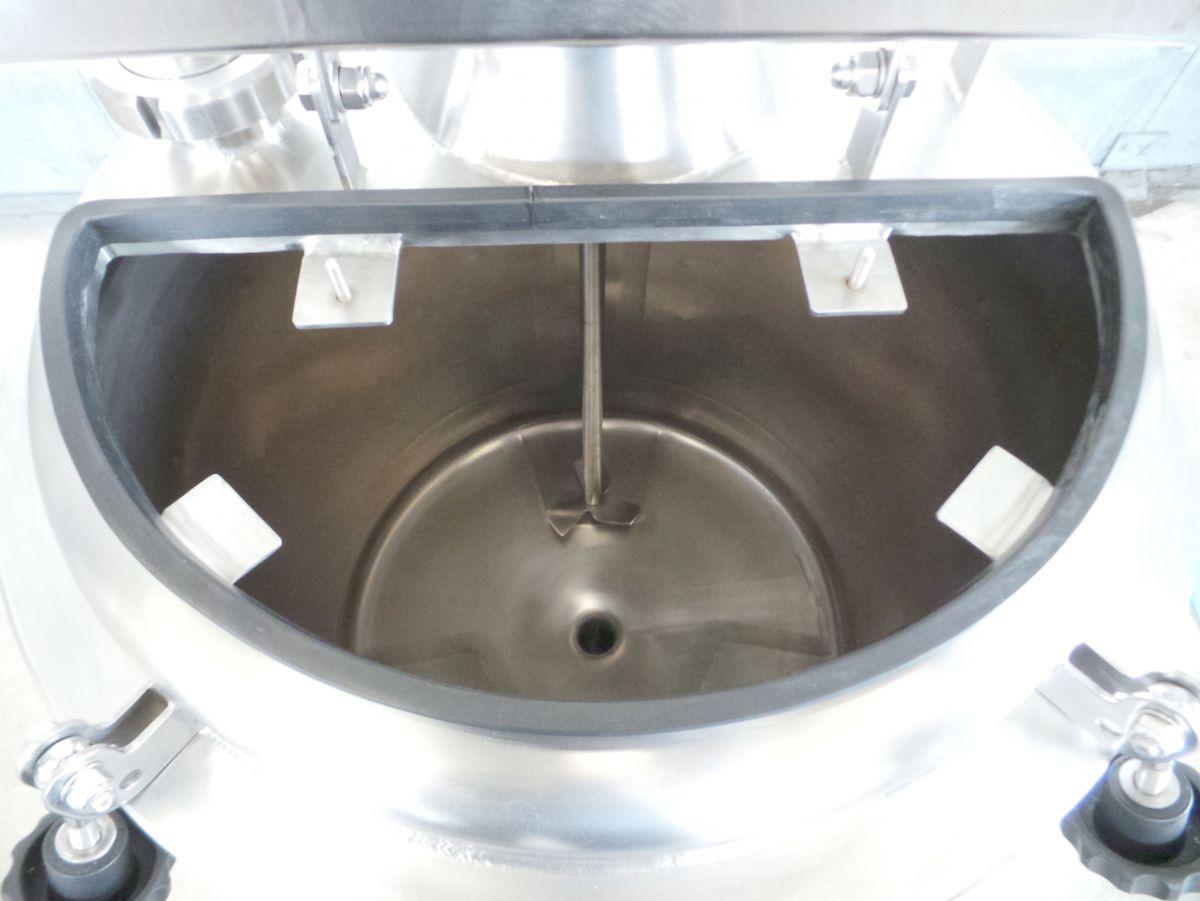

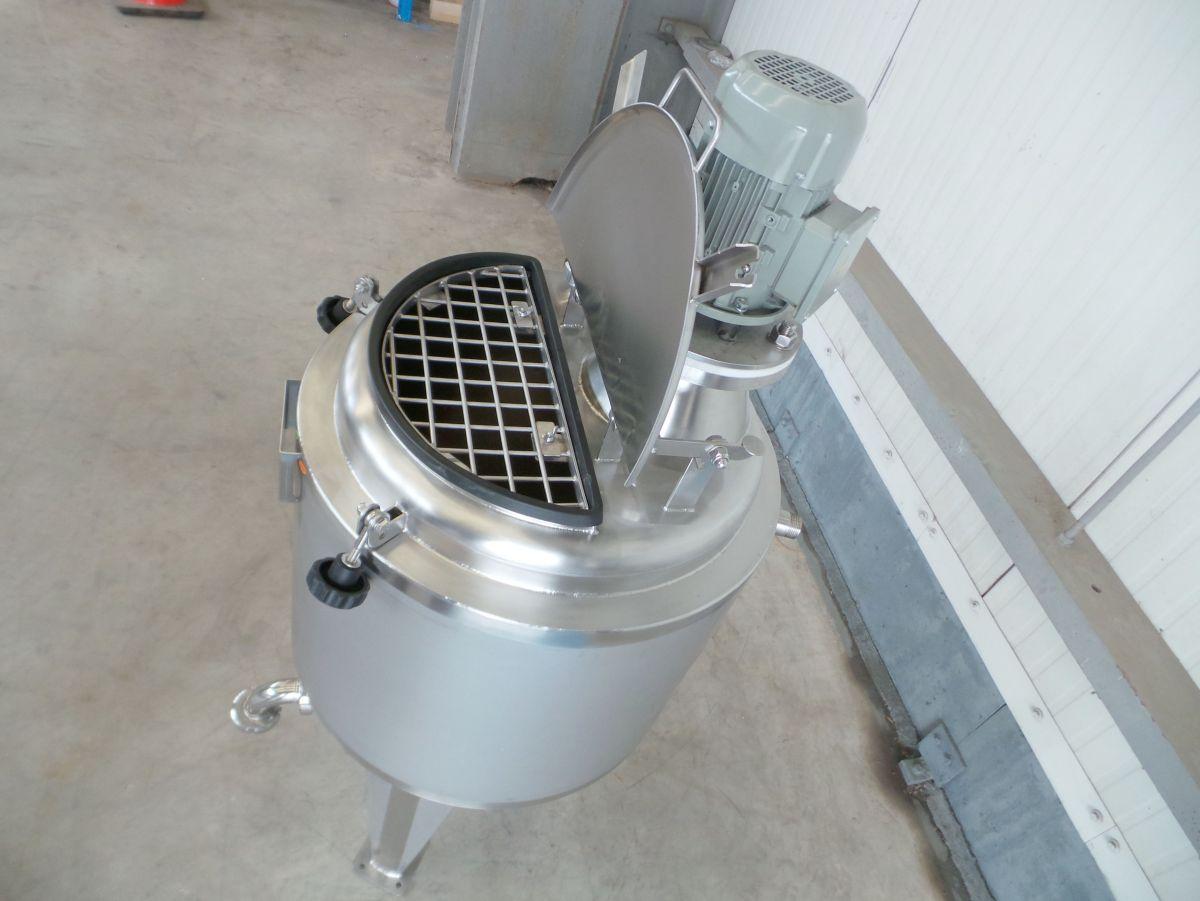

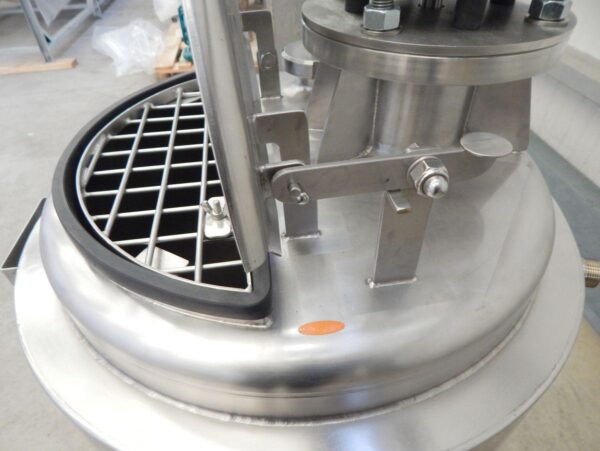

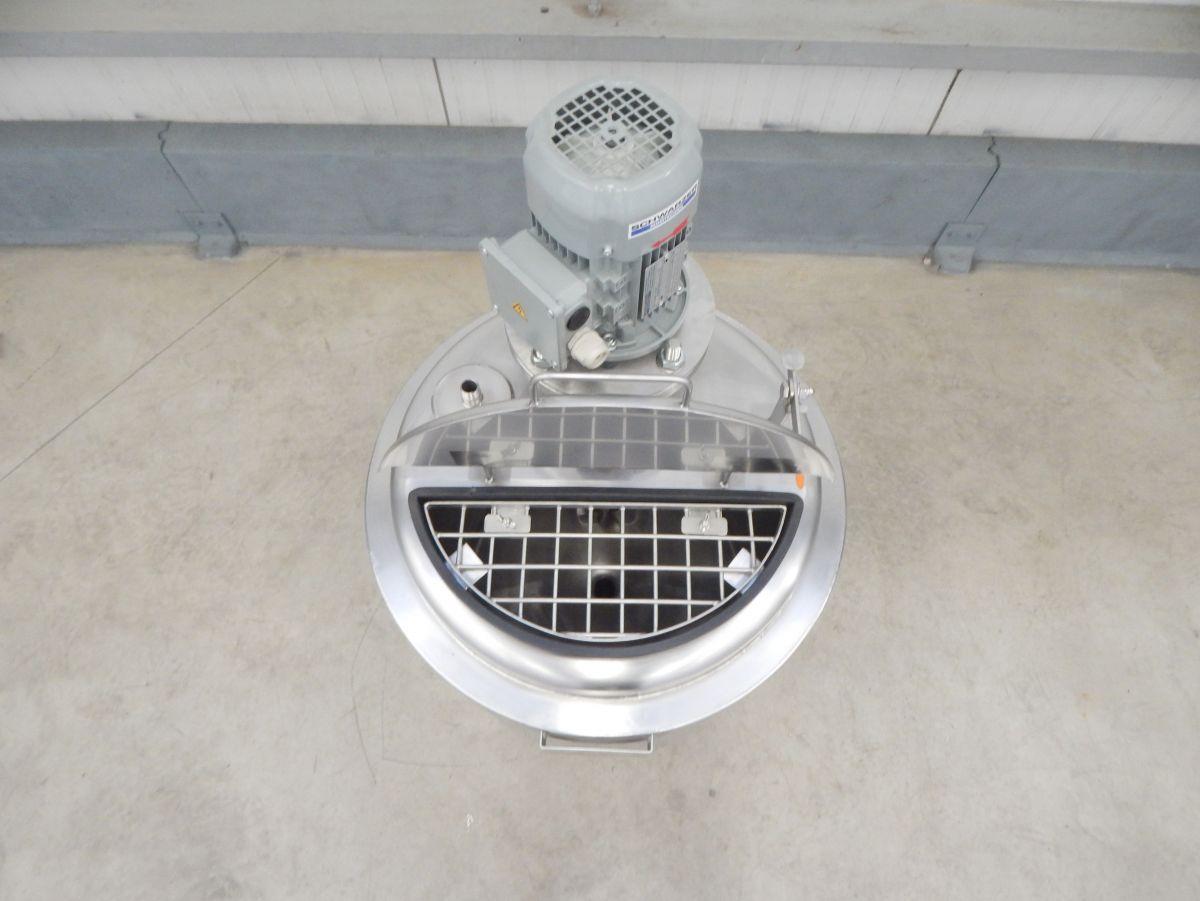

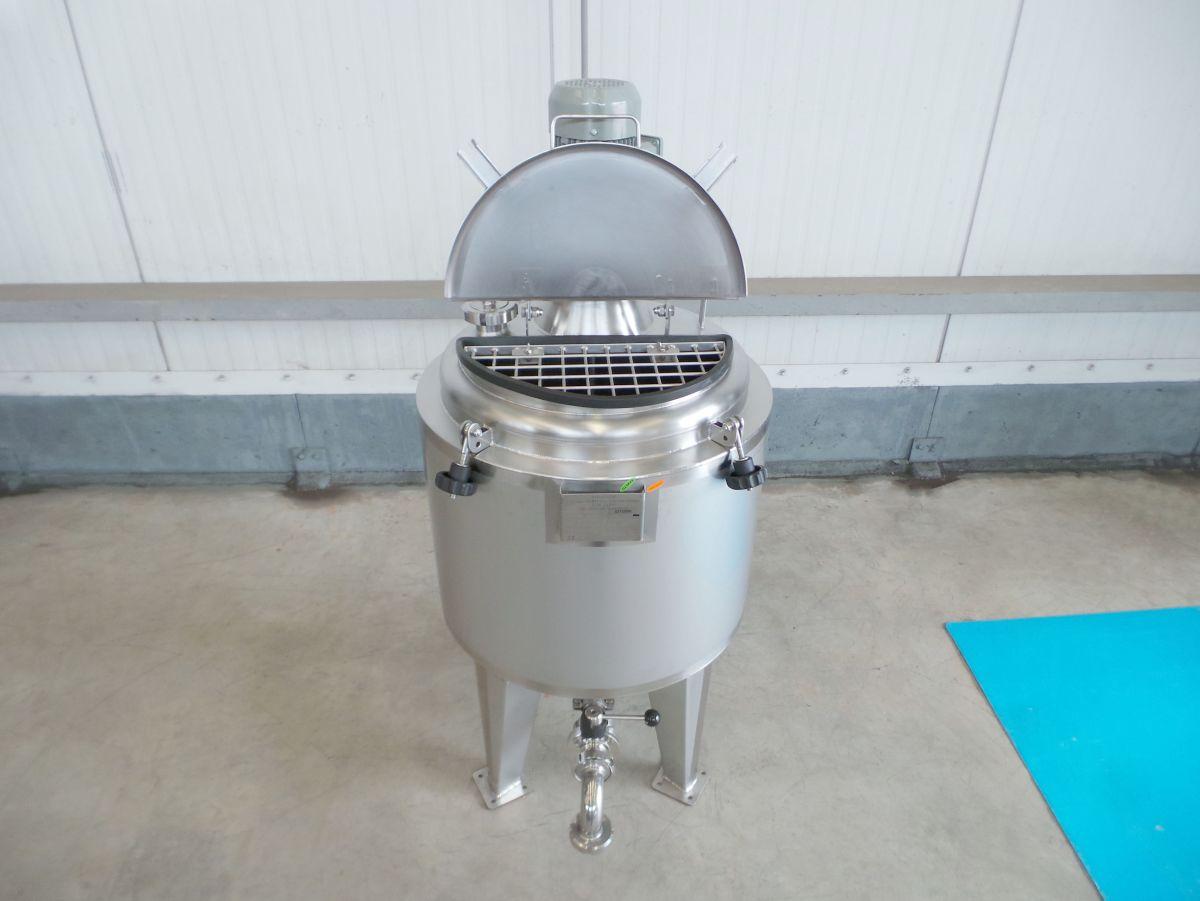

Top type: half hinging lid °
Shape of tank: cylindrical

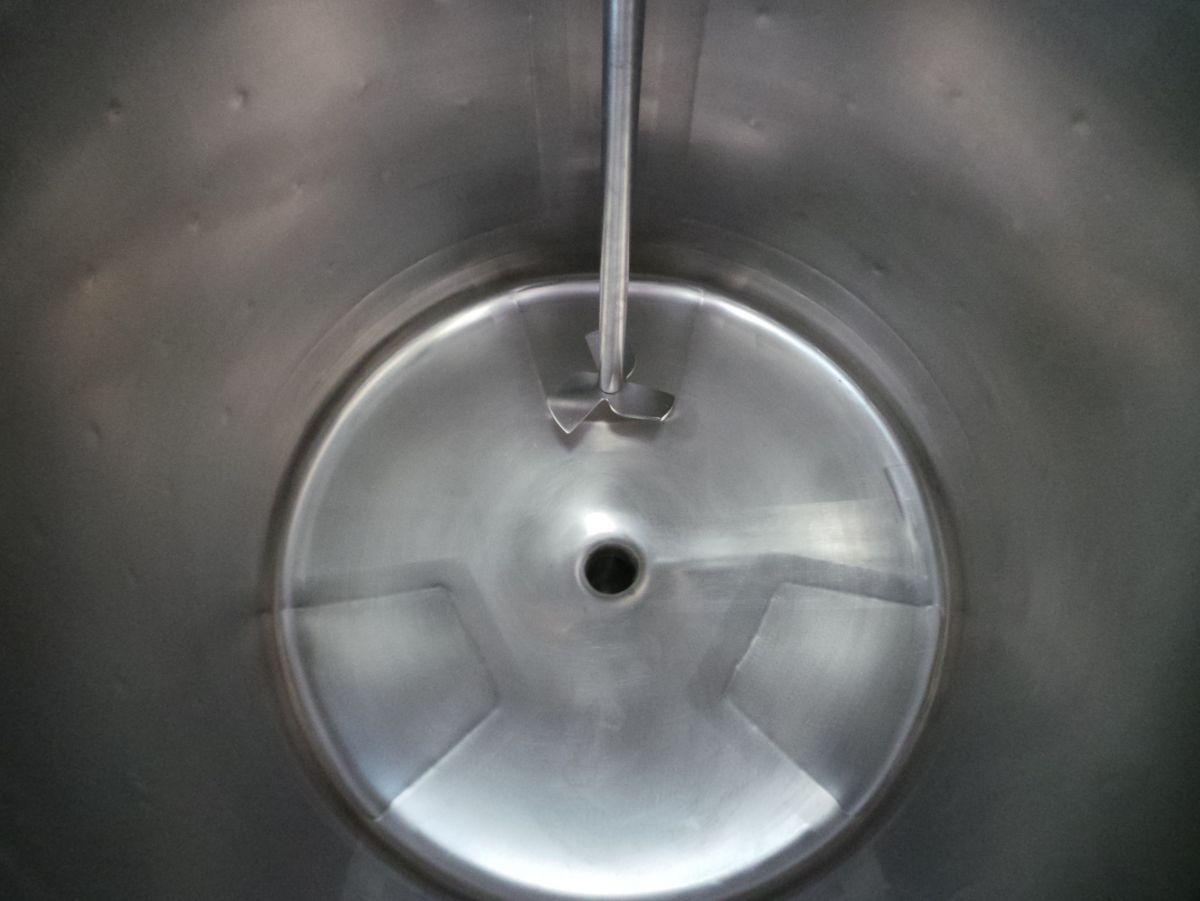

Bottom type: conical 10 °
Total discharge: yes

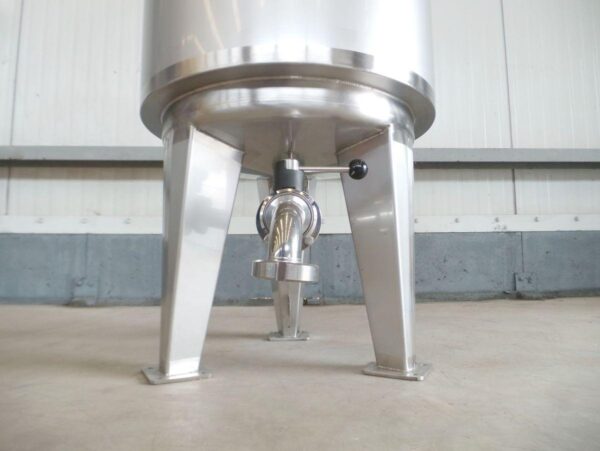

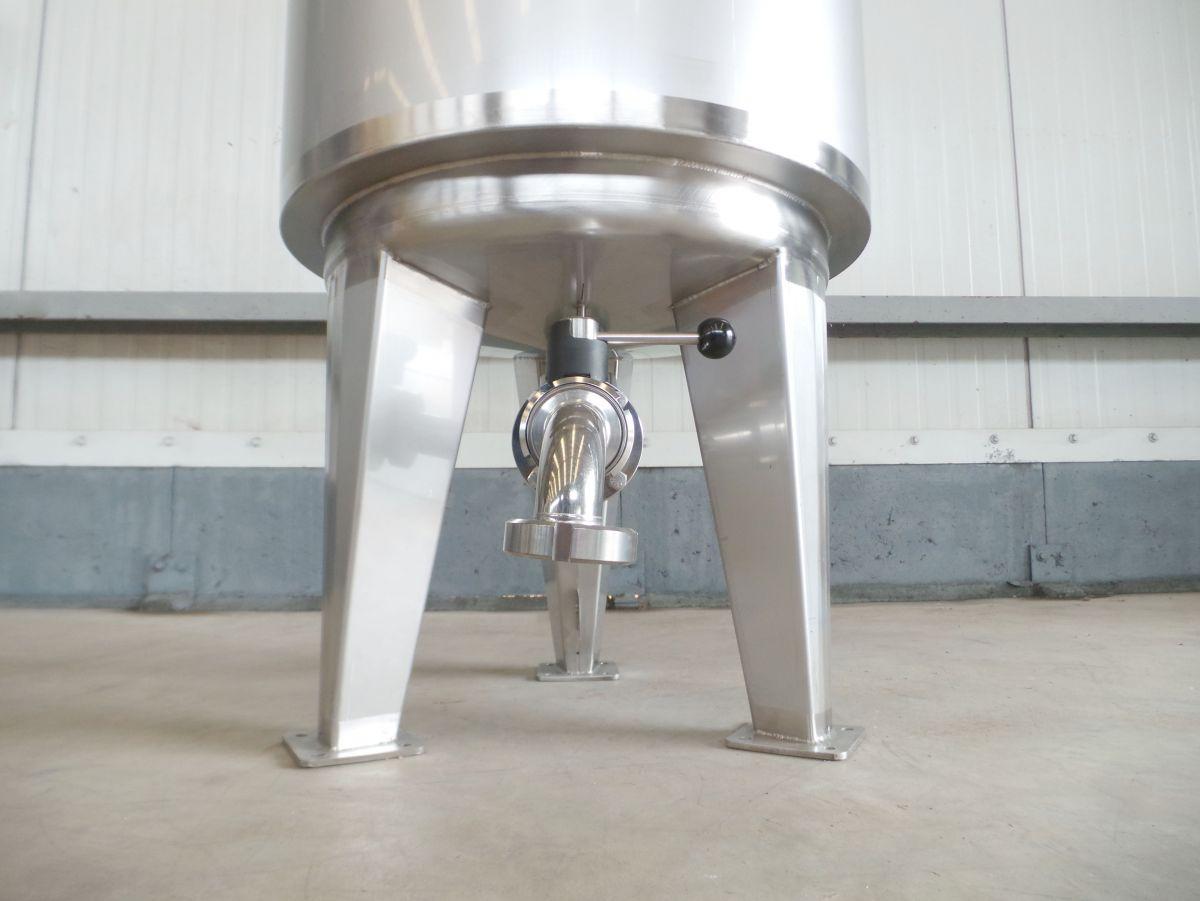

Fixation points: 3 non adjustable feet

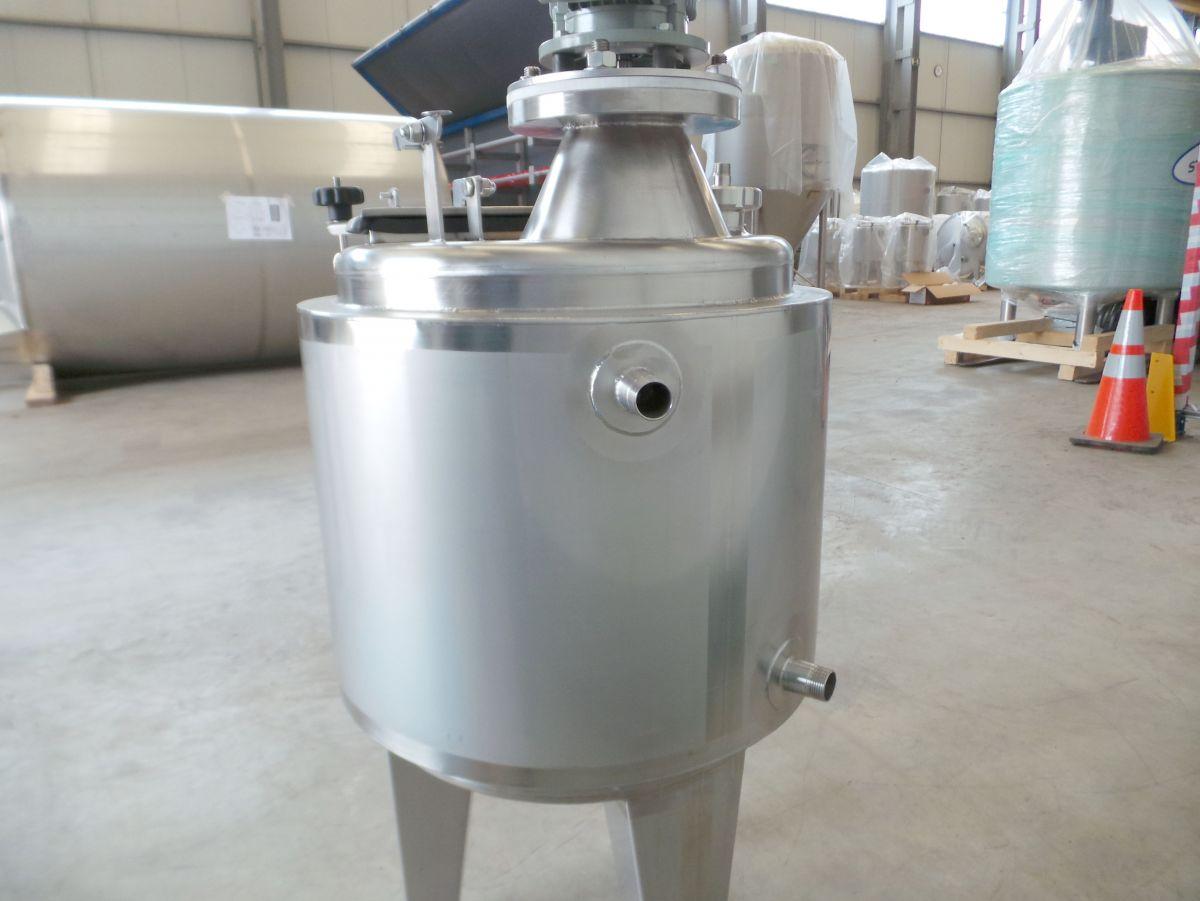

Type of HE on the cylinder: dimple-jacket
Position HE: the complet cilinder
Height HE: 375 mm
Number of sections: 1

Water pressure HE: 3 Bar
Hydraulic test pressure: 4,50 Bar
Contact surface cylinder: 0,55 m²
Working temperature HE cylinder: 100 °C
Type HE: dimple jacket on the bottom

Heat exchanger: RVS 304
Insulation material: Rockwool
Outer jacket (ornamental wall): RVS 304

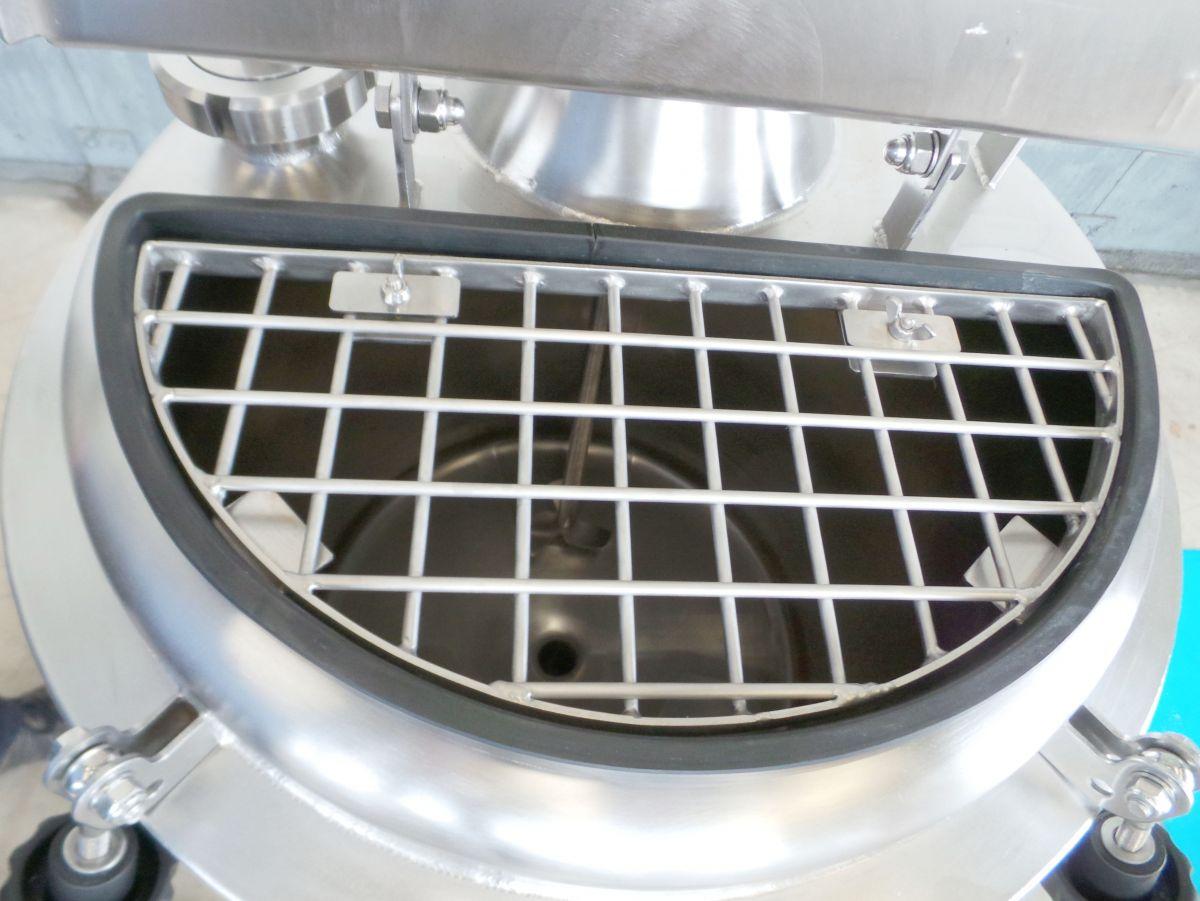

Manway(s): RVS 304L
Gasket manway(s): unknown

Fixation point(s): RVS 304
Suitable for food industry: yes
Documents included: yes, optional

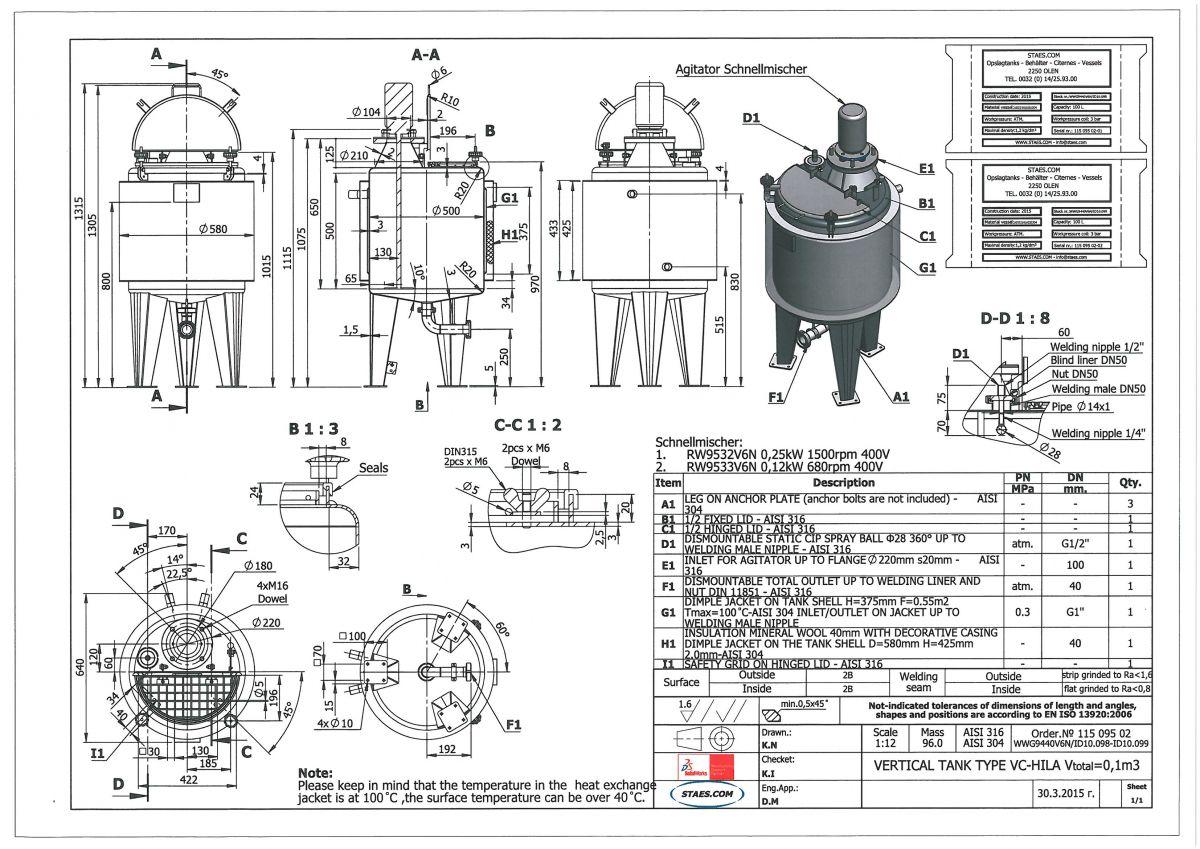

Technical drawing included: yes
Registration plate on the tank: yes

Flange for agitator: yes

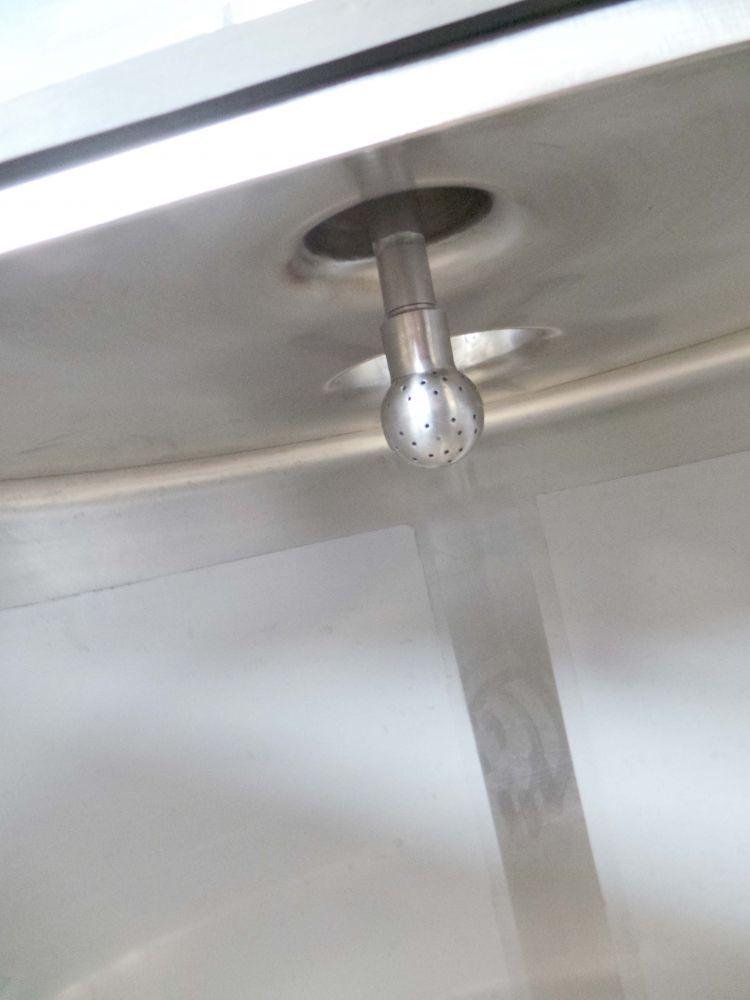

Spray ball: yes, optional
Number: 1
Tank outlet: inside Ø 40 mm
Outlet type: DIN11851

Total outlet valve: yes, optional

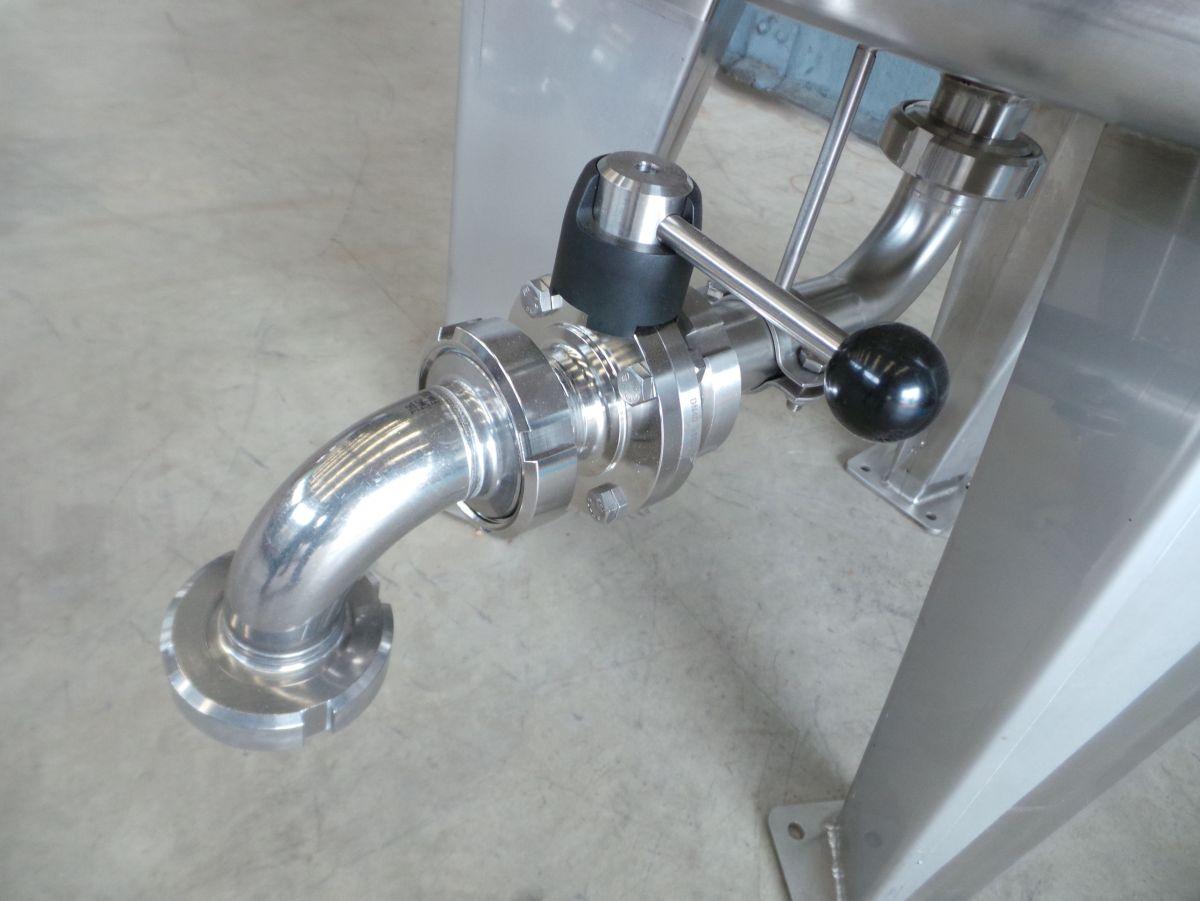

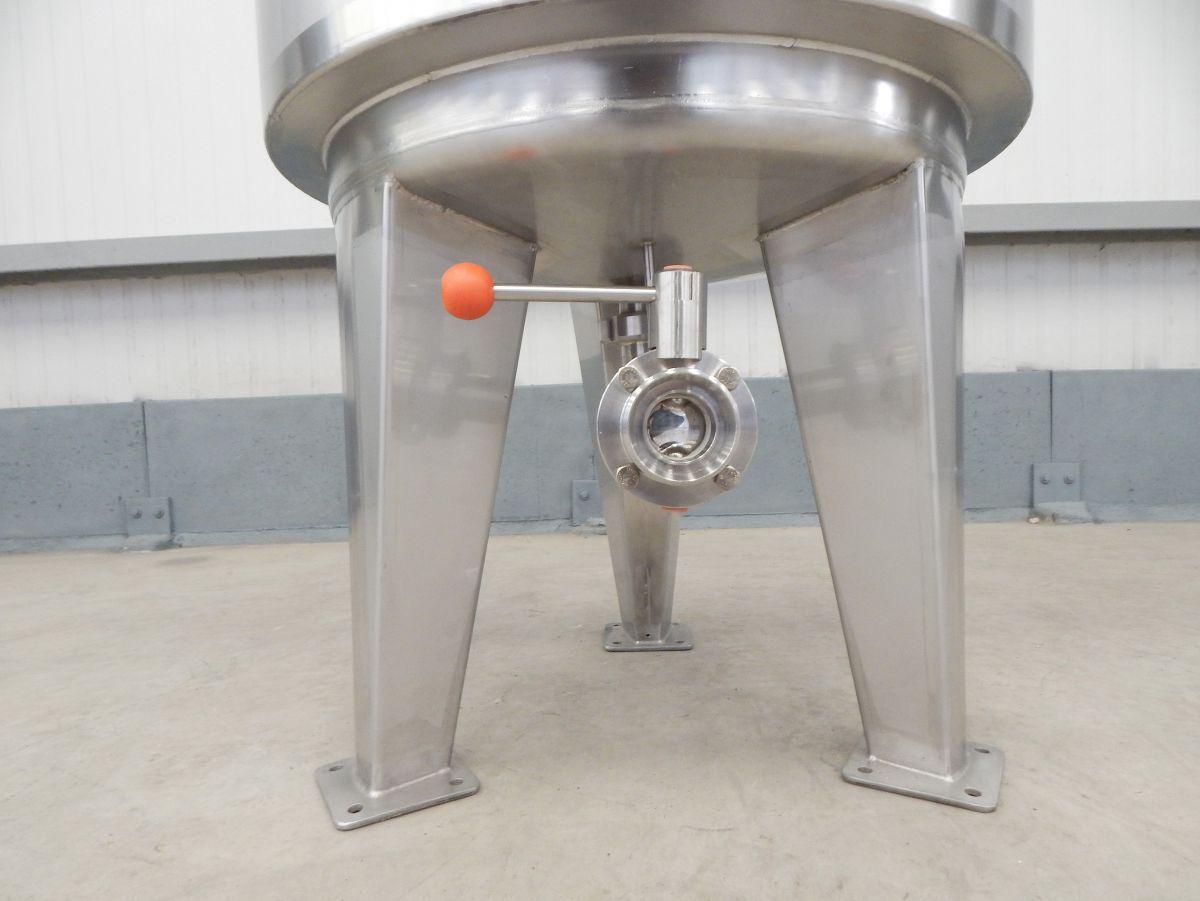

Type shut-off valve: butterfly valve

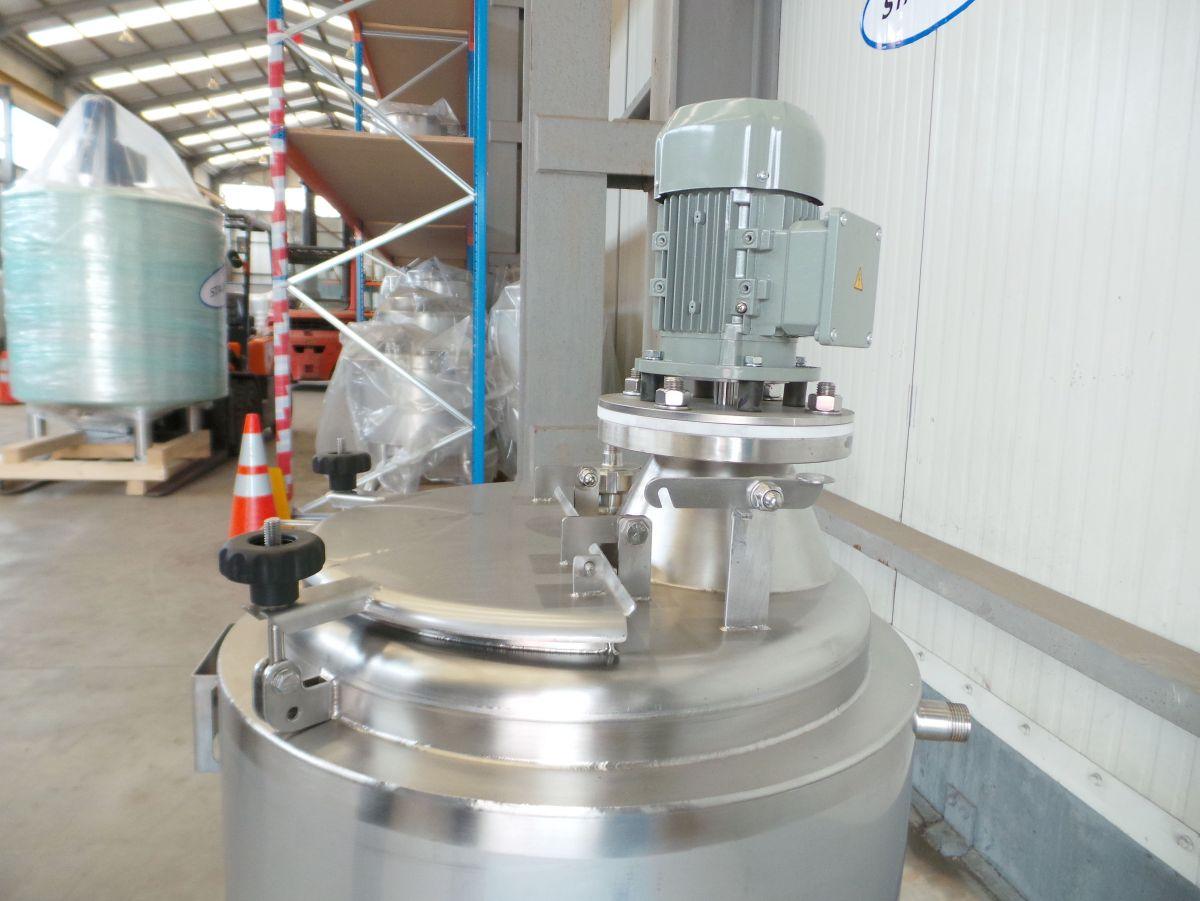

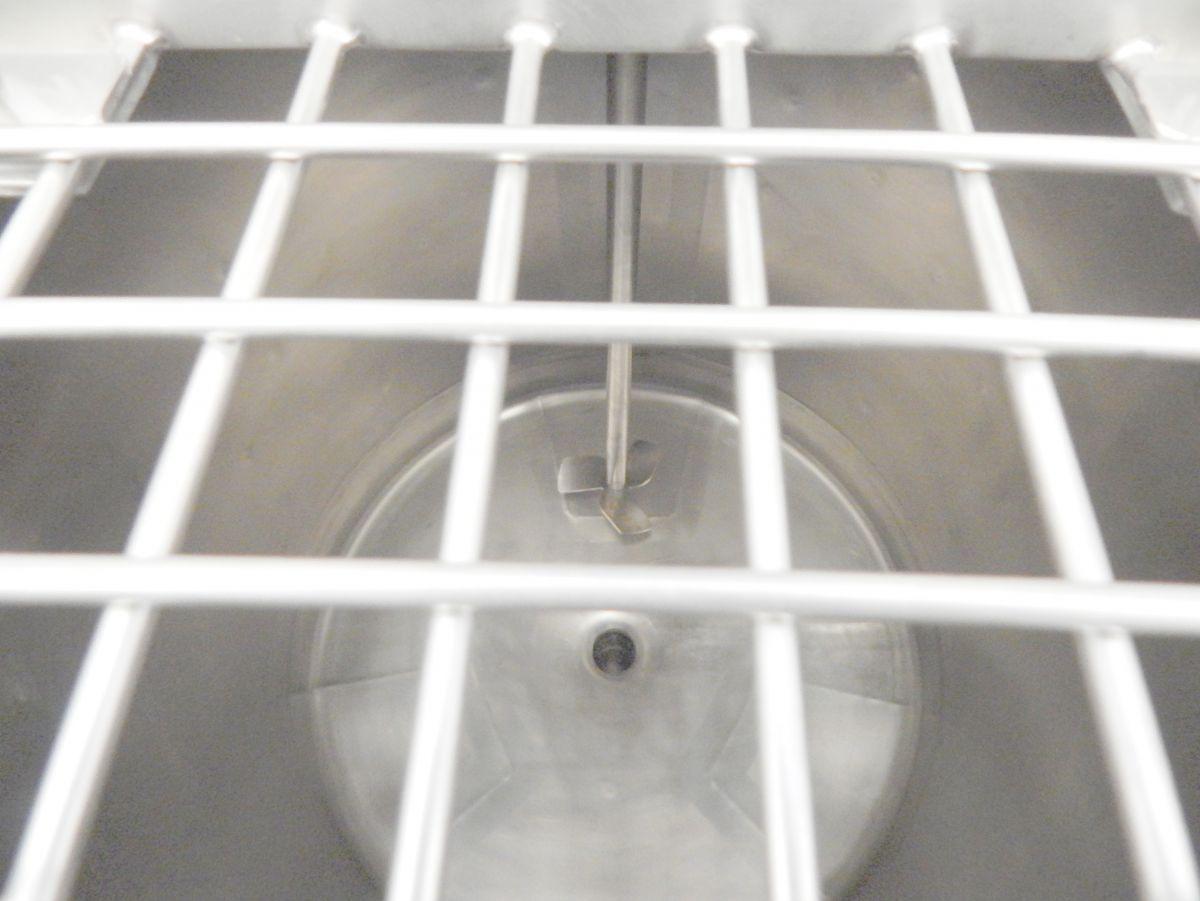

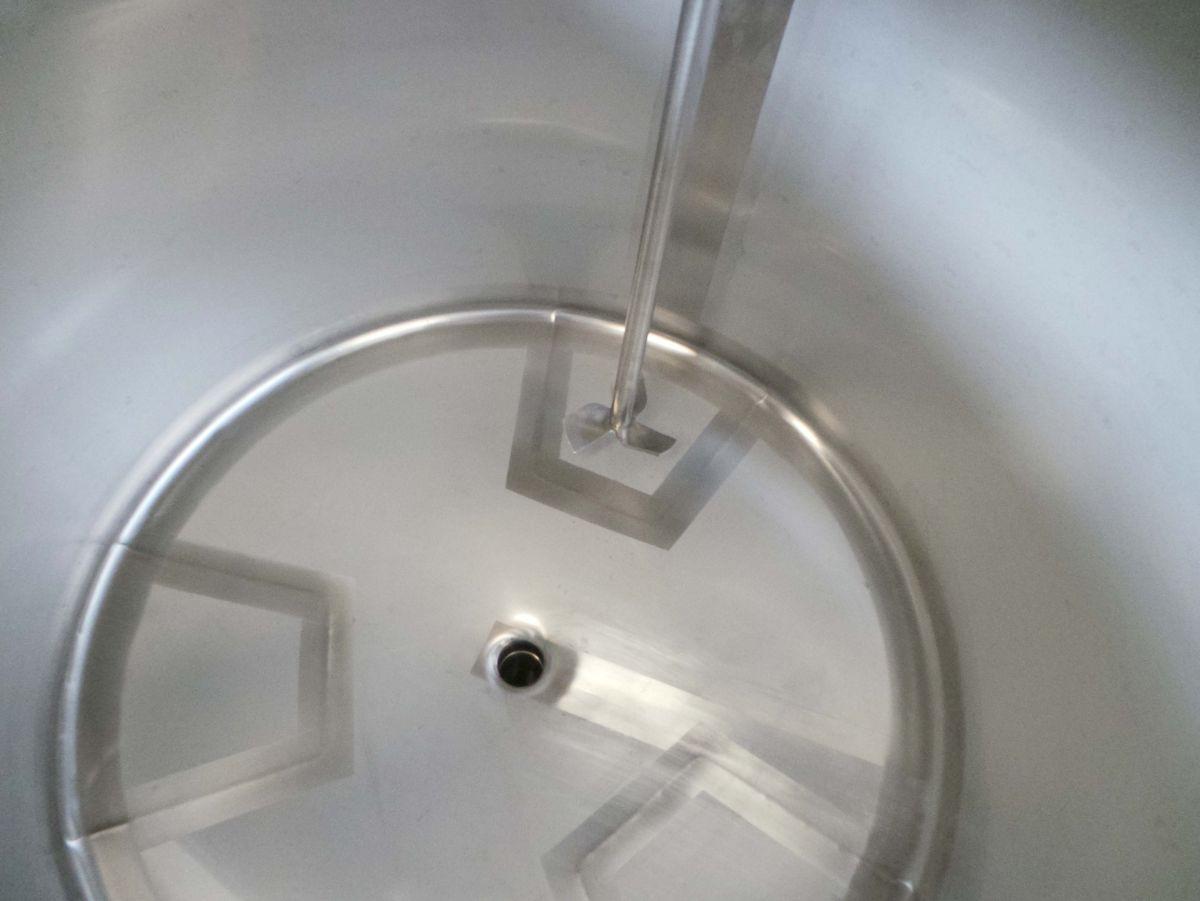

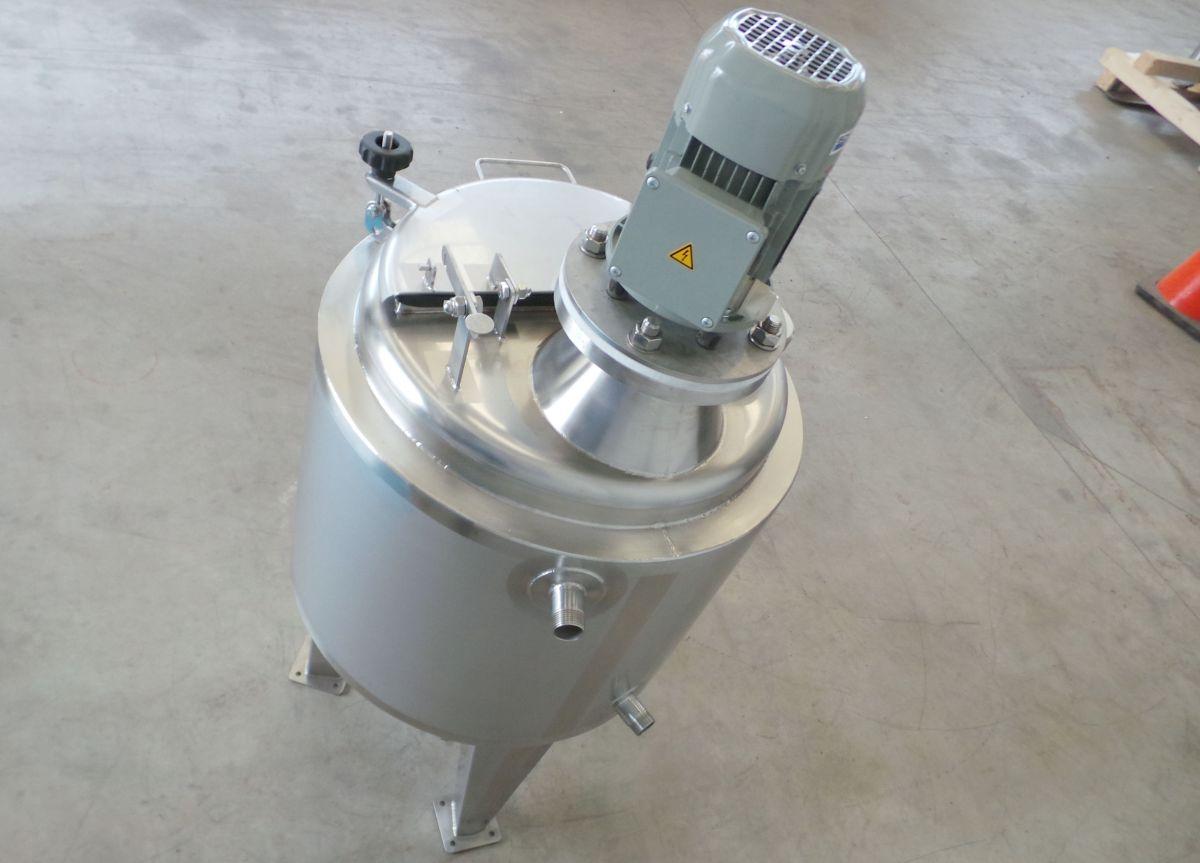

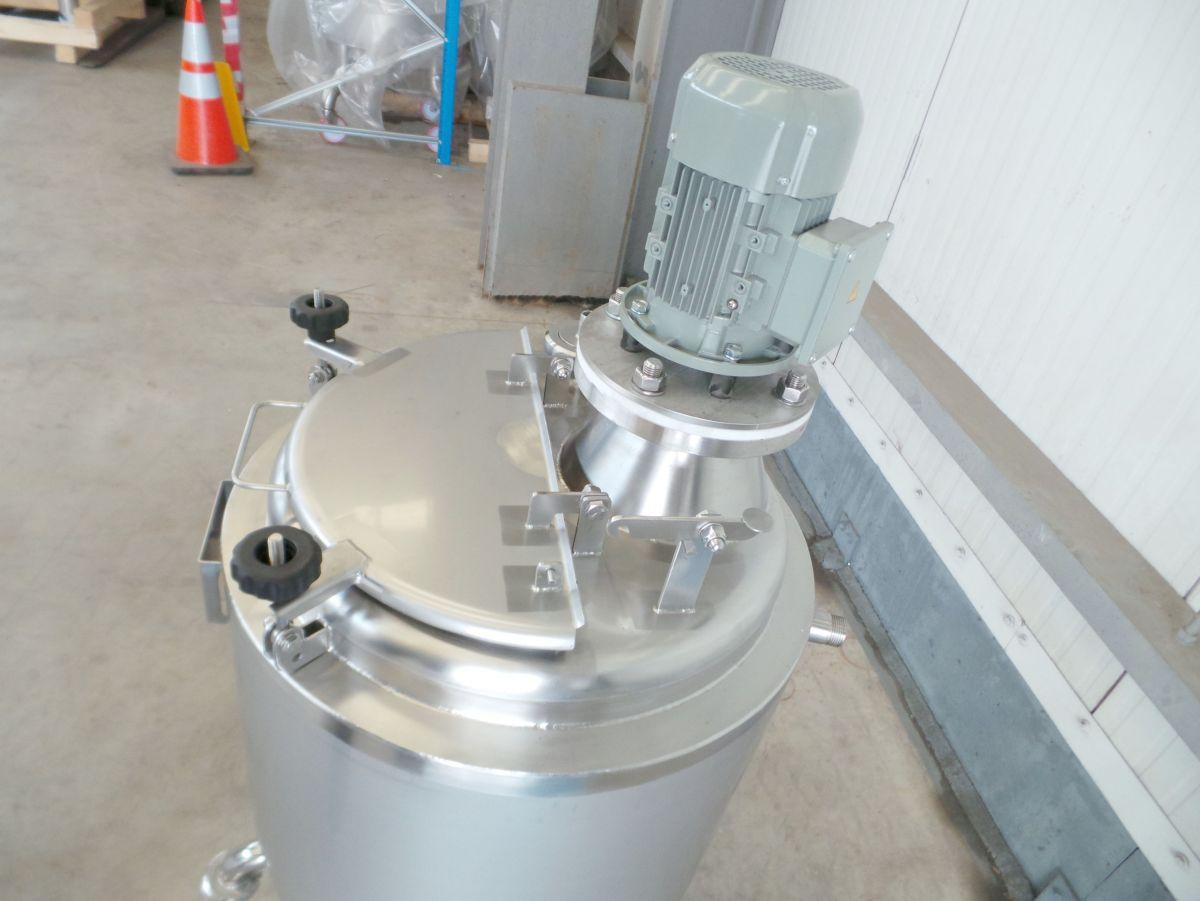

Agitator type: propeller agitator
Position engine: at the top
Number of revolutions: 1.410

Voltage: 400 V – three-phase
Agitator type 2: propeller agitator
Position engine: at the top
Number of revolutions: 750
Voltage: 400 V – three-phase

Top: 3 mm
Cylinder: 3 mm
Bottom: 3 mm
Cylinder: 2
Insulation body: yes

finish of the outer jacket: welded
Insulation thickness: 40
Internal diameter tank: 500 mm
Distance from outlet to ground: 250 mm
Outer diameter tank: 580 mm

Cylinder height: 500 mm
Total height of tank: 1.500 mm
Empty weight tank: 95
