100 liter i Syrafast 316
86,000.00 SEK/st exkl moms
Mer information
Volym i liter | 100 |
---|---|
Nytillverkad/Begagnad | Nytillverkad |
Livsmedelsklassad | Ja |
Modell | Vertikal |
Material | Syrafast 316 |
Omrörare | Nej |
Uppvärmning/kylning | Ja |
Isolerad | Ja |

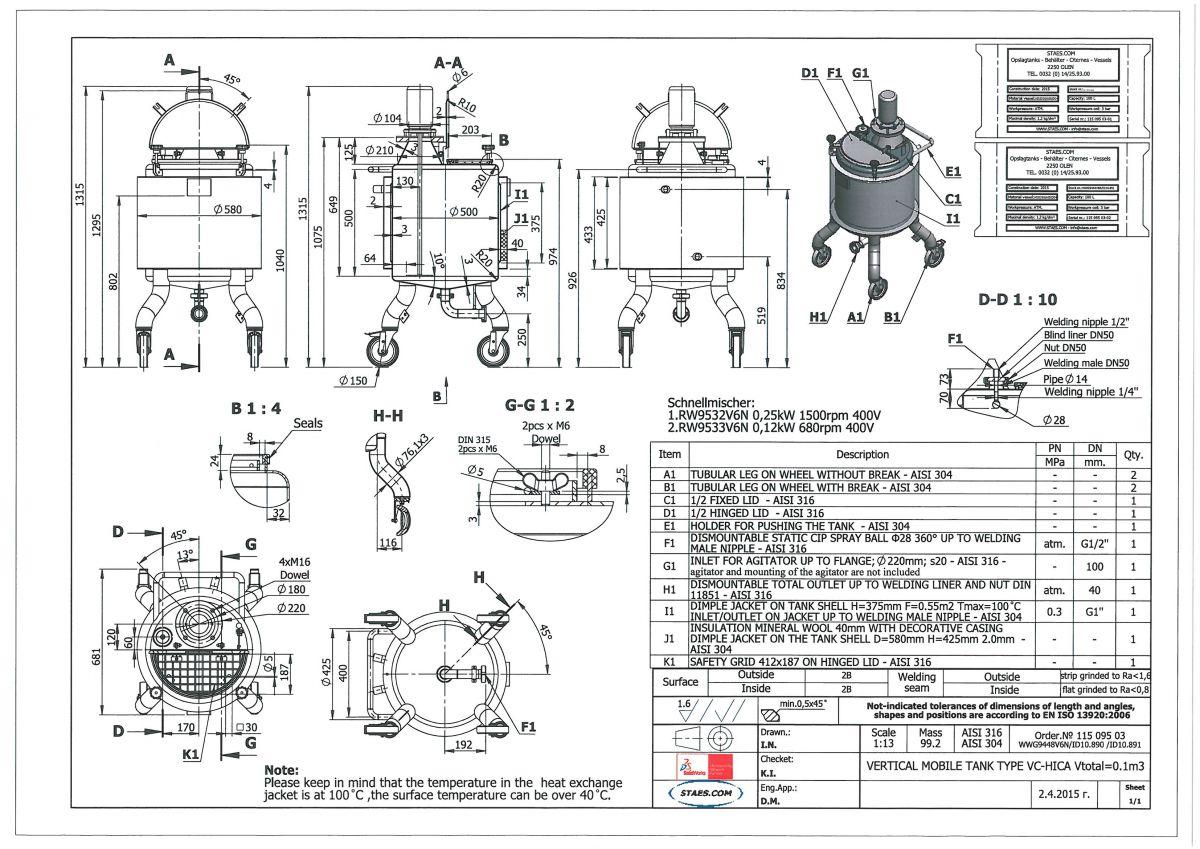

Ritning
Öppnaitem available on order

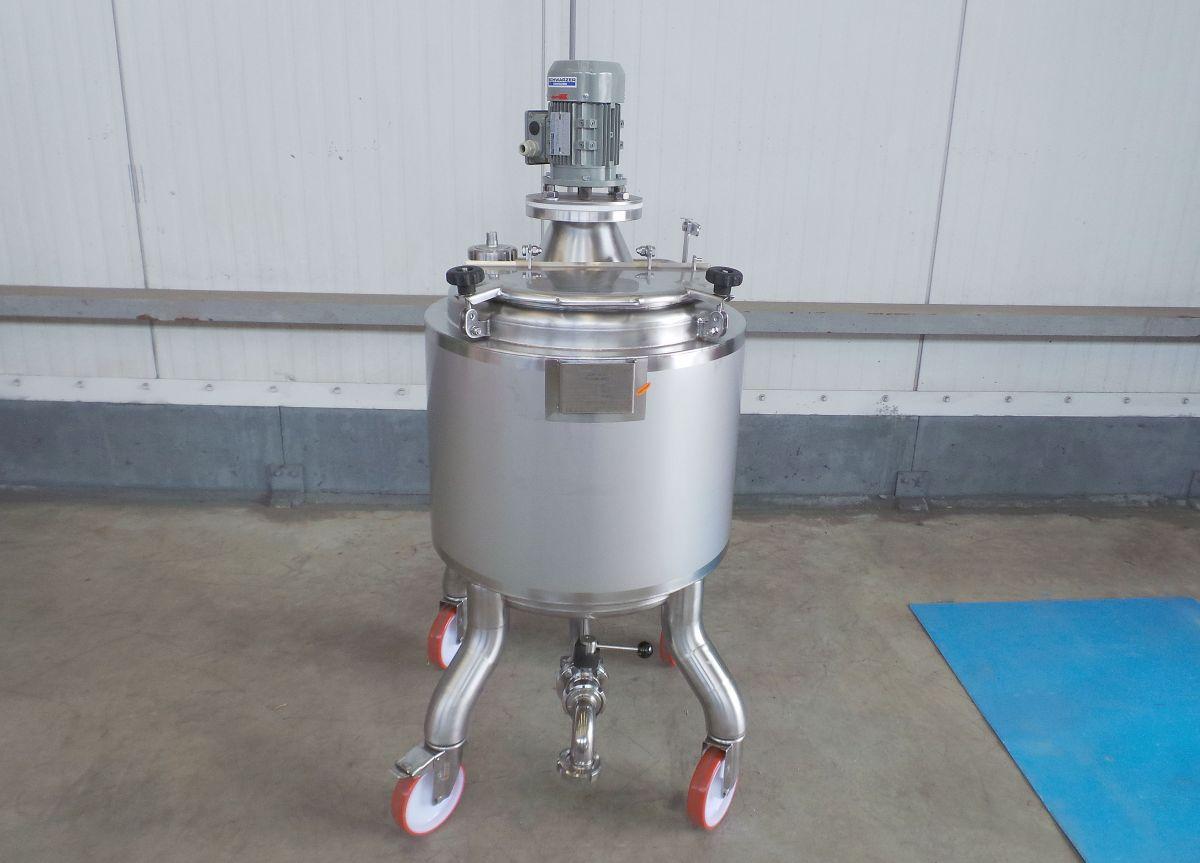

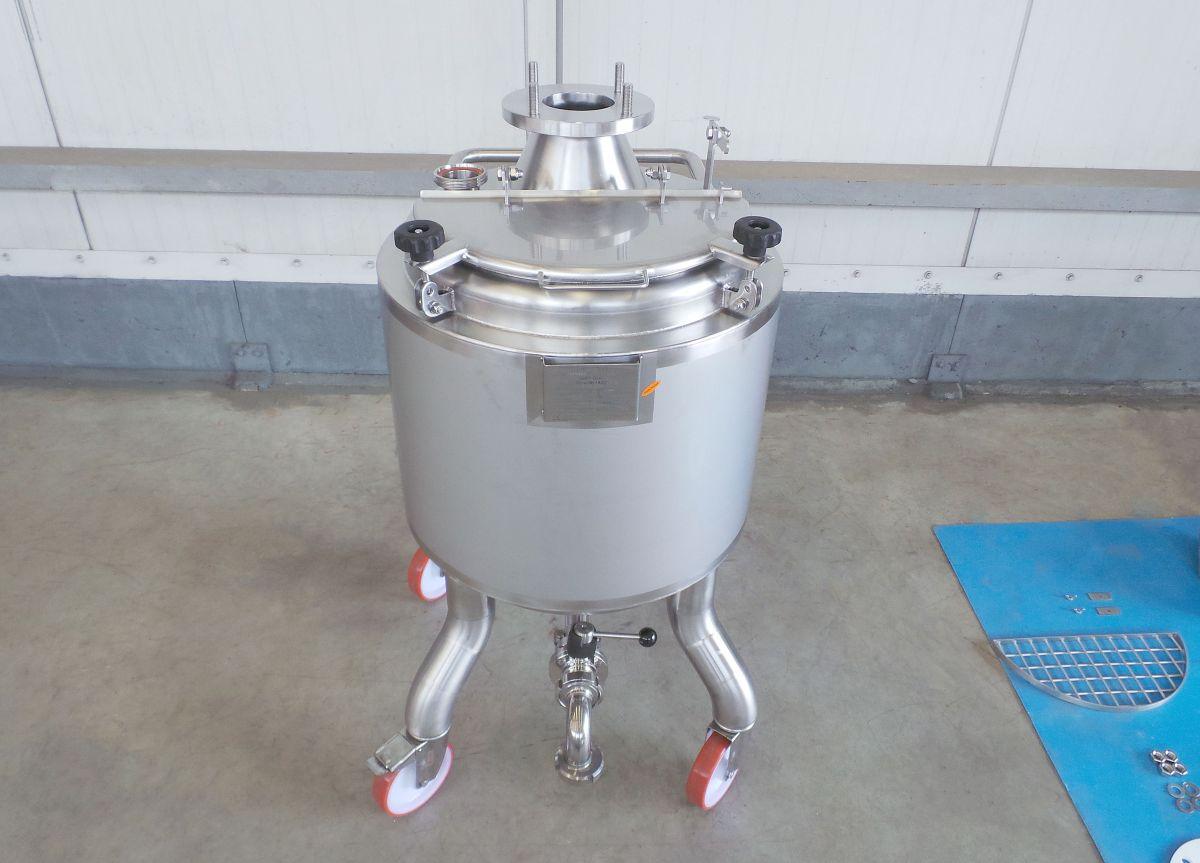

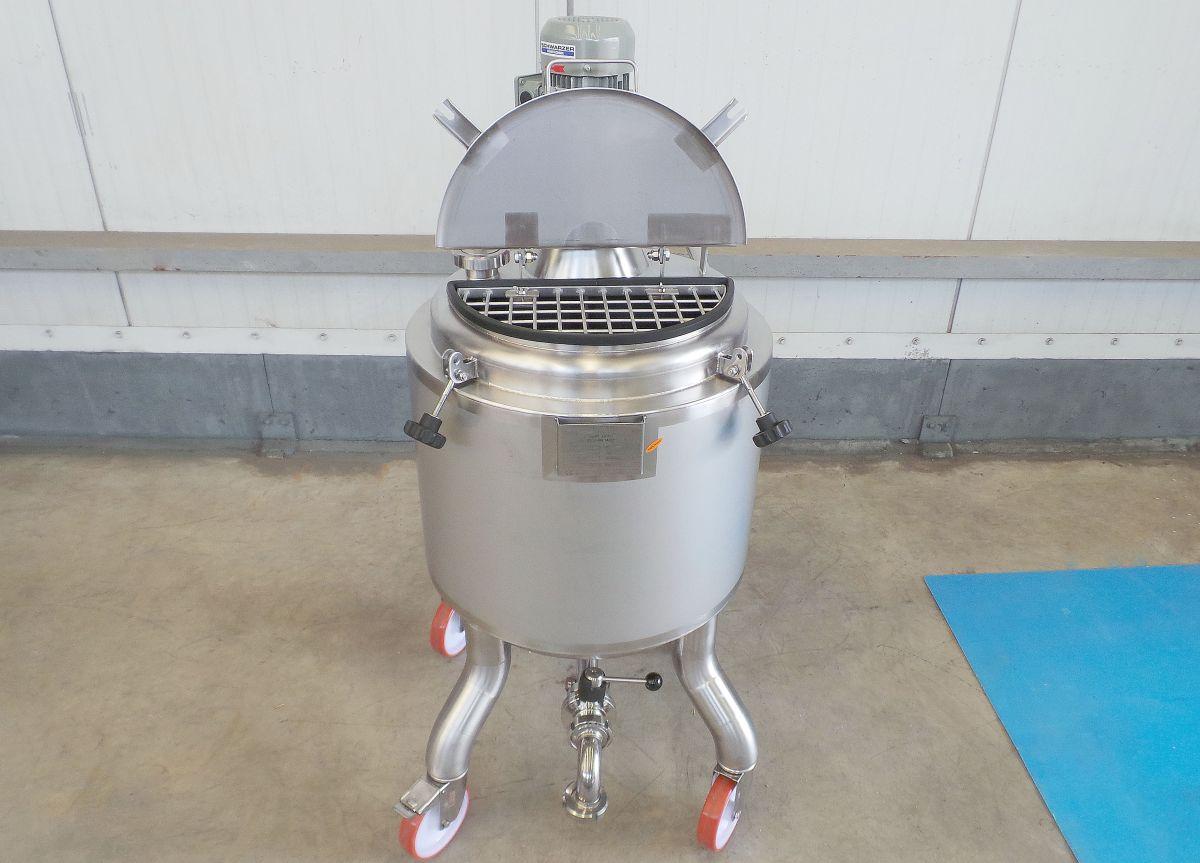

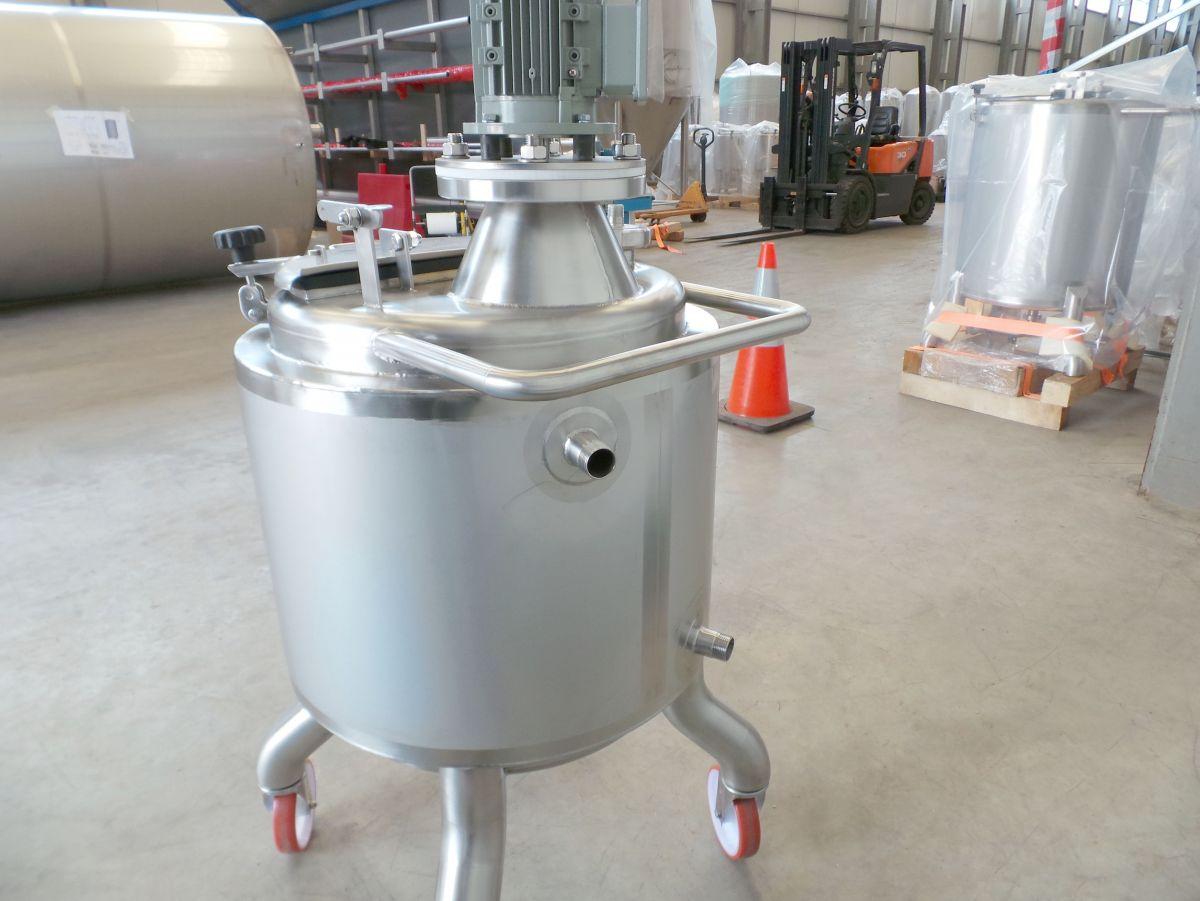

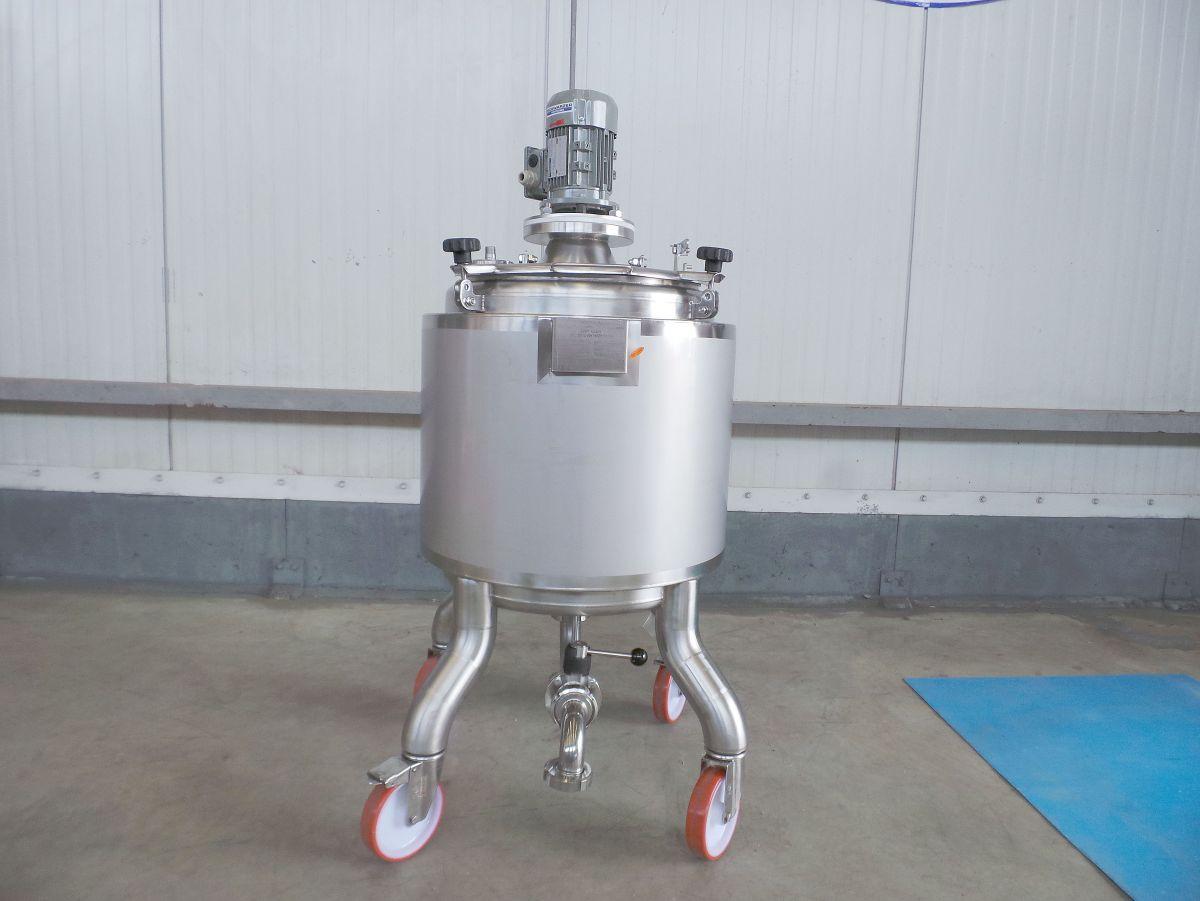

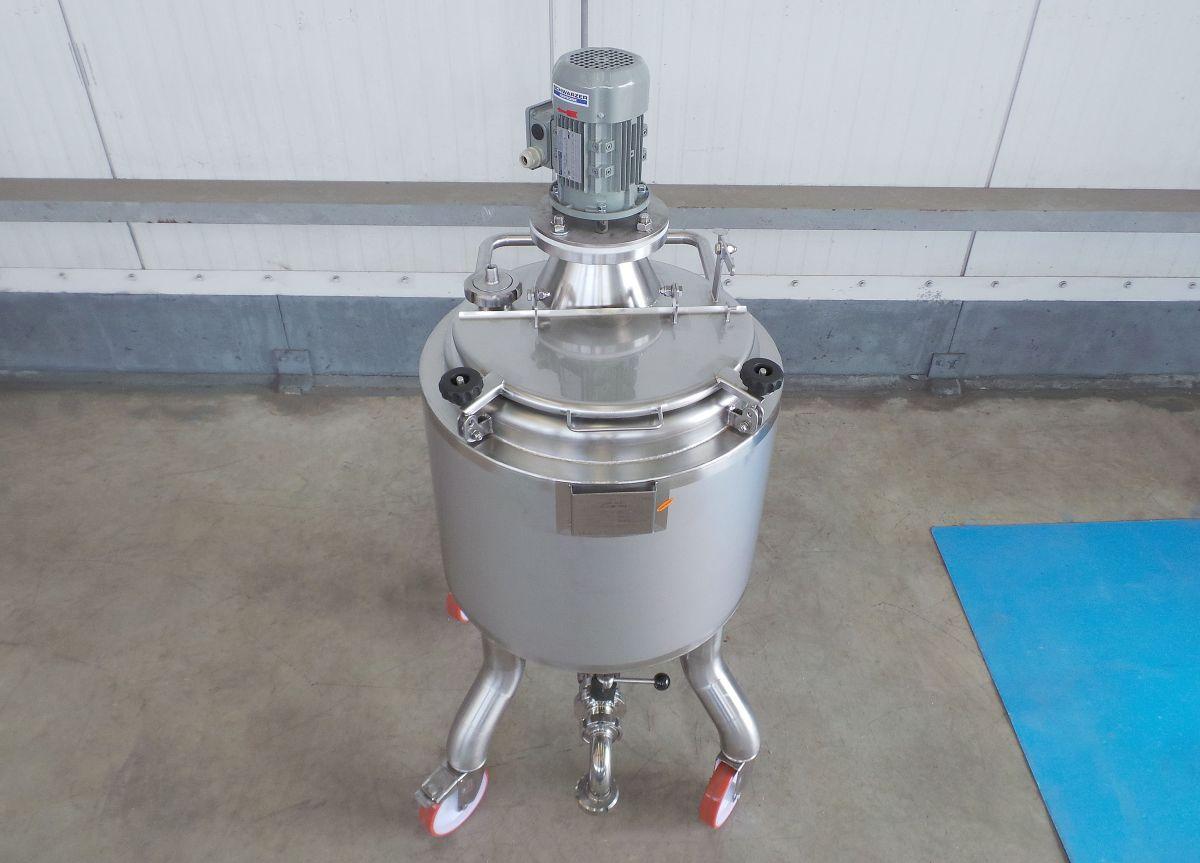

Article type: brand new mixing tank – type VC-HICA
Additional information: delivered with food certificate; article price without agitator; choice of 2 different types of agitators; see options; (The article can also be purchased without options); Ra=<0.8µm
Capacity: 100 L
Maximal density of the product: 1.200
Ra inner weld: 0,80
Finish stainless steel: 2b
Working pressure in tank: ATM – atmosferic
Max. working temperature: 100 °C
Min. working temperature: -10 °C
Material wet parts: SS AISI 316 (V4A)
Model: vertical
Configuration: insulated with heat-exchanger
Heat exchanger: yes
Insulation: yes
Agitator: yes, optional
Mobile tank: yes

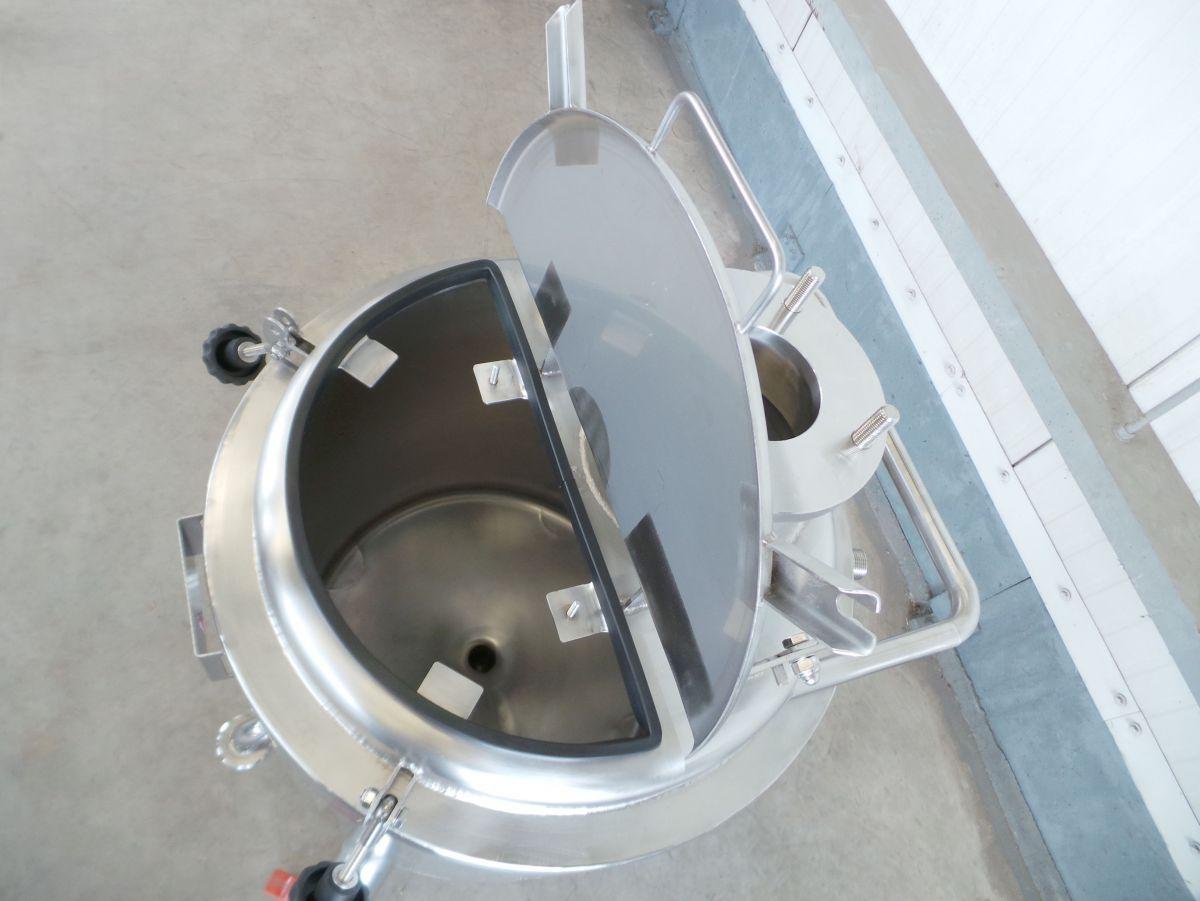

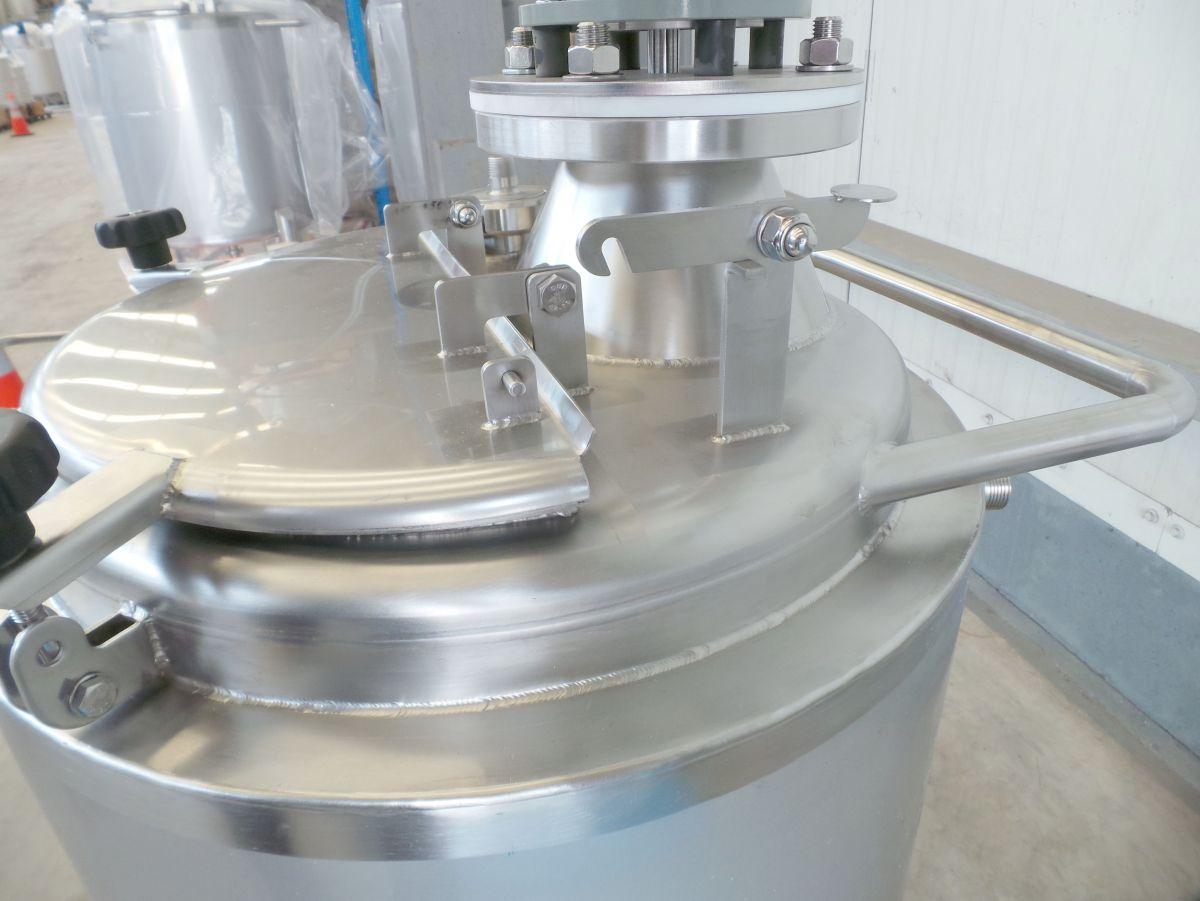

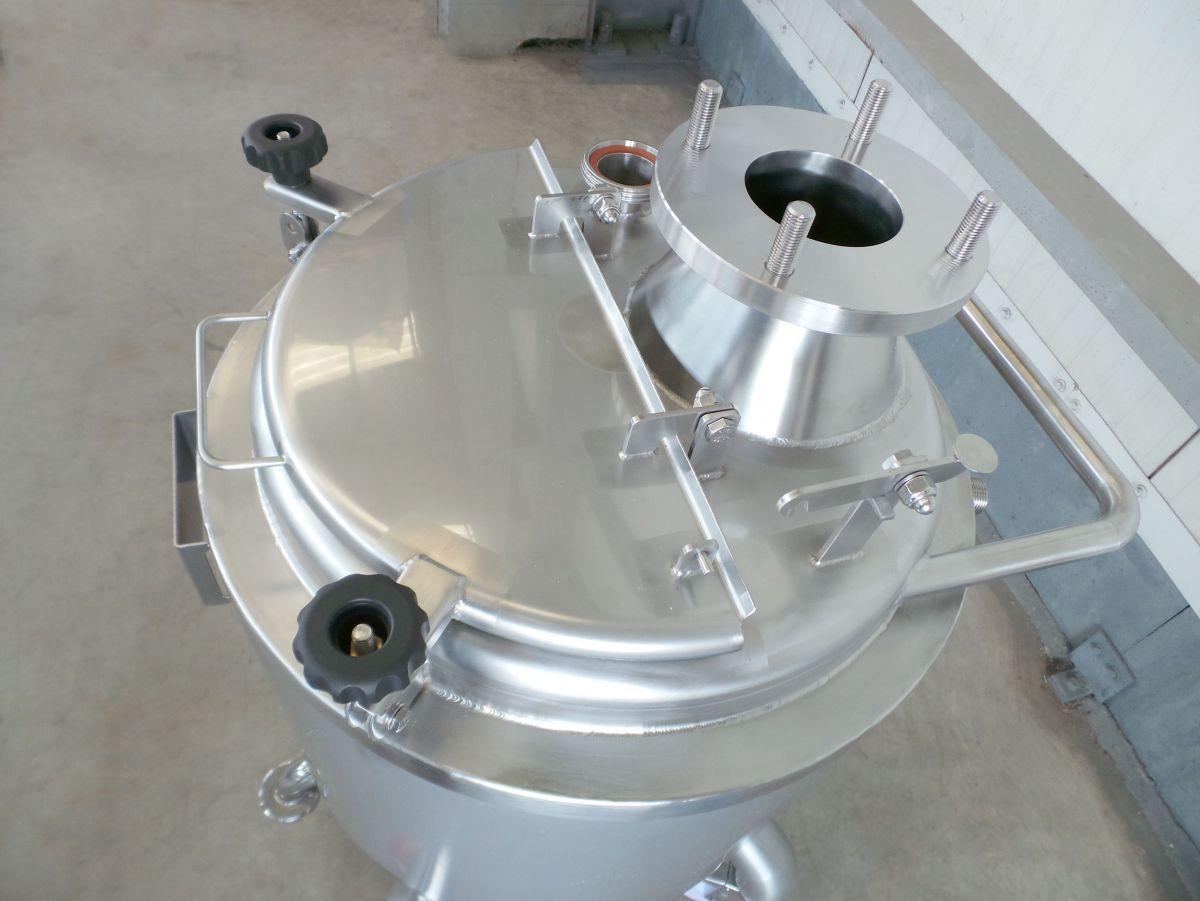

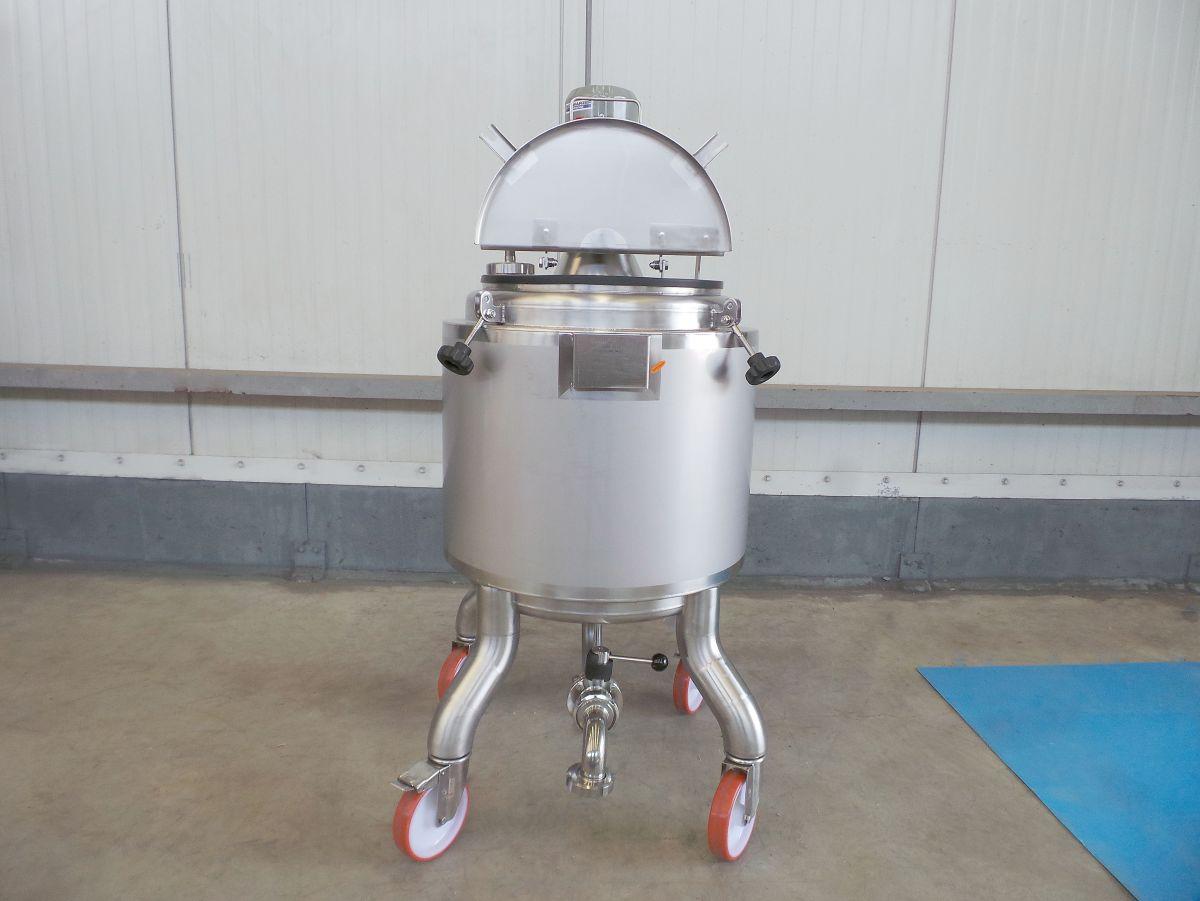

Top type: half hinging lid °
Shape of tank: cylindrical

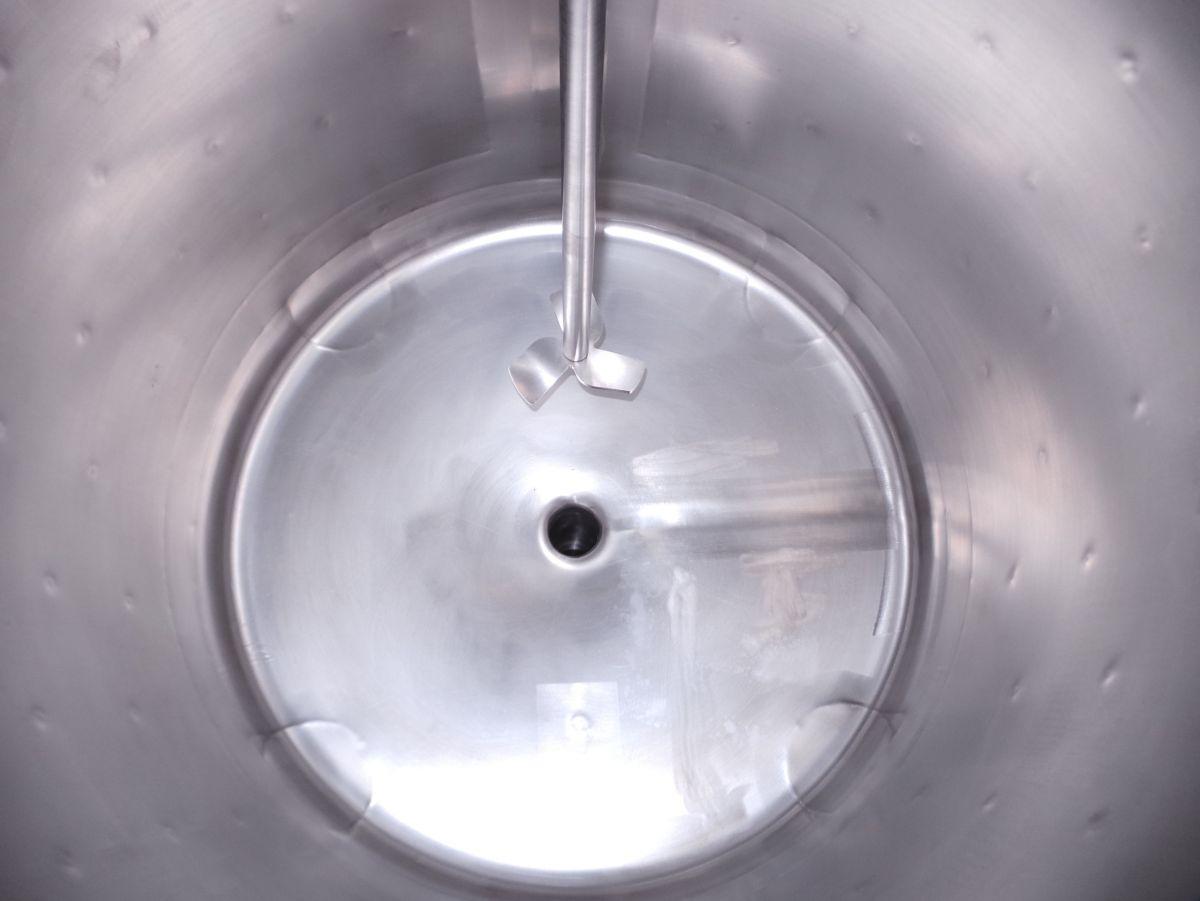

Bottom type: conical 10 °
Total discharge: yes

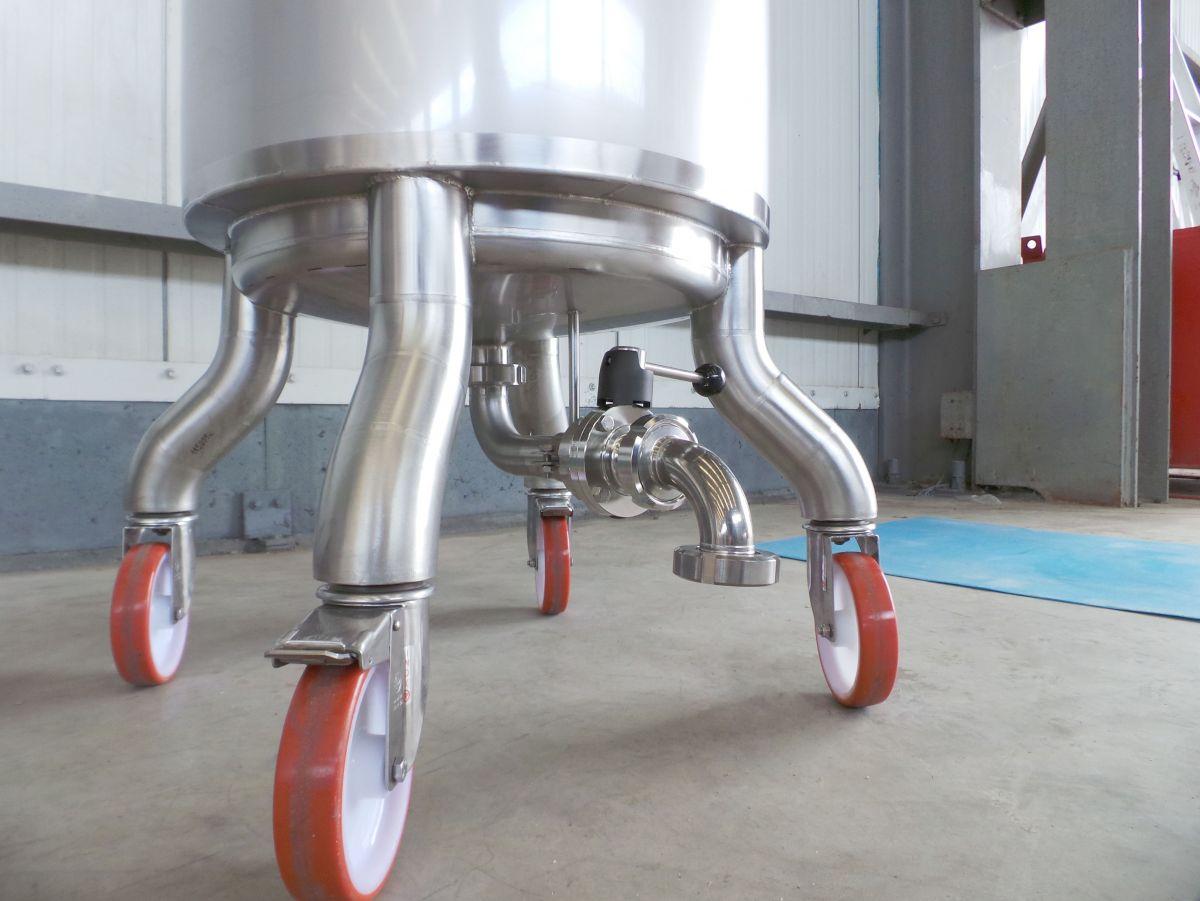

Fixation points: 4 casters
Type of HE on the cylinder: dimple-jacket
Position HE: the complet cilinder
Height HE: 375 mm
Number of sections: 1
Water pressure HE: 3 Bar
Hydraulic test pressure: 4 Bar
Connection HE: 1″ BSP
Working temperature HE cylinder: 130 °C
Heat exchanger: RVS 304
Insulation material: Rockwool
Outer jacket (ornamental wall): RVS 304
Fixation point(s): RVS 304
Suitable for food industry: yes
Documents included: yes, optional
Technical drawing included: yes
Registration plate on the tank: yes
Flange for agitator: yes

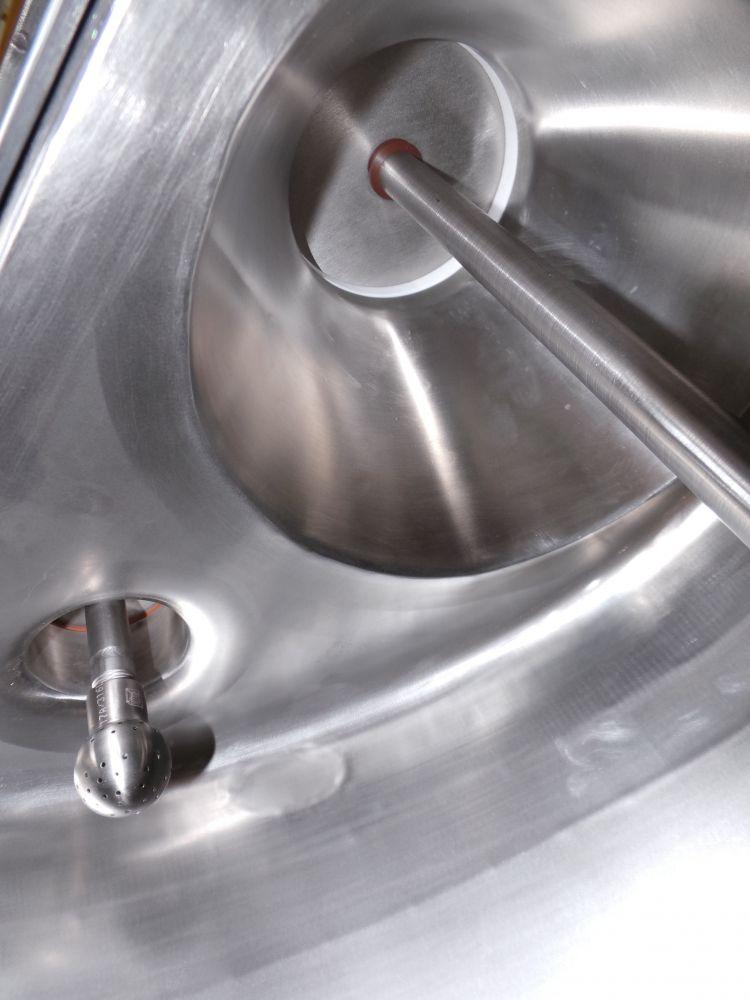

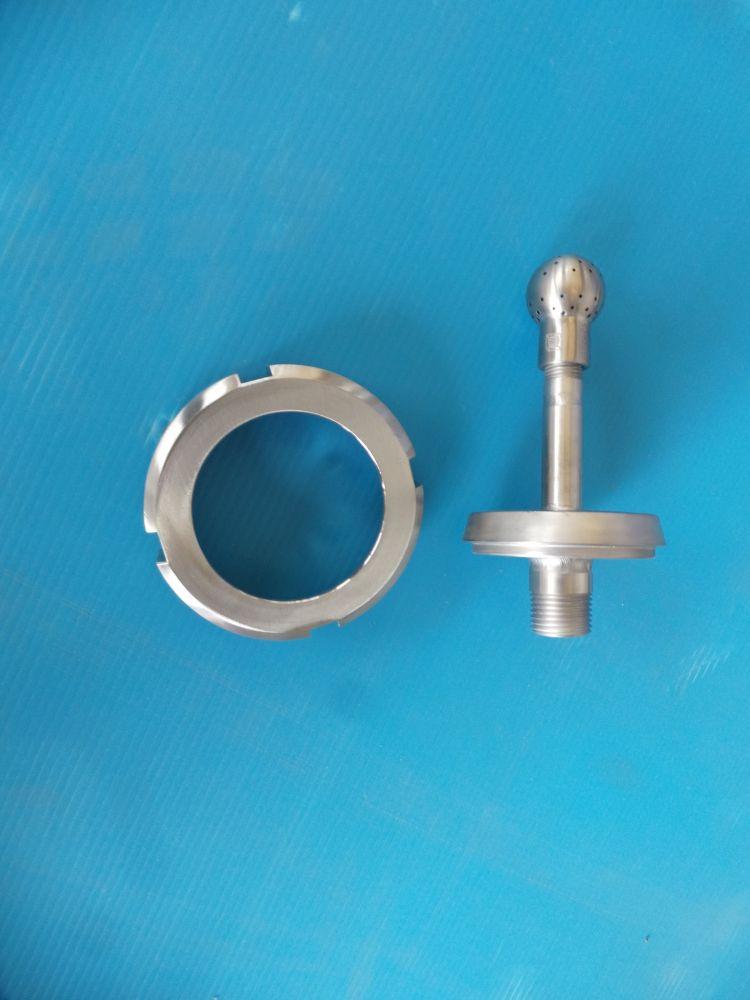

Spray ball: yes, optional
Number: 1
Tank outlet: inside Ø 40 mm
Outlet type: DIN11851
Total outlet valve: yes, optional
Type shut-off valve: butterfly valve

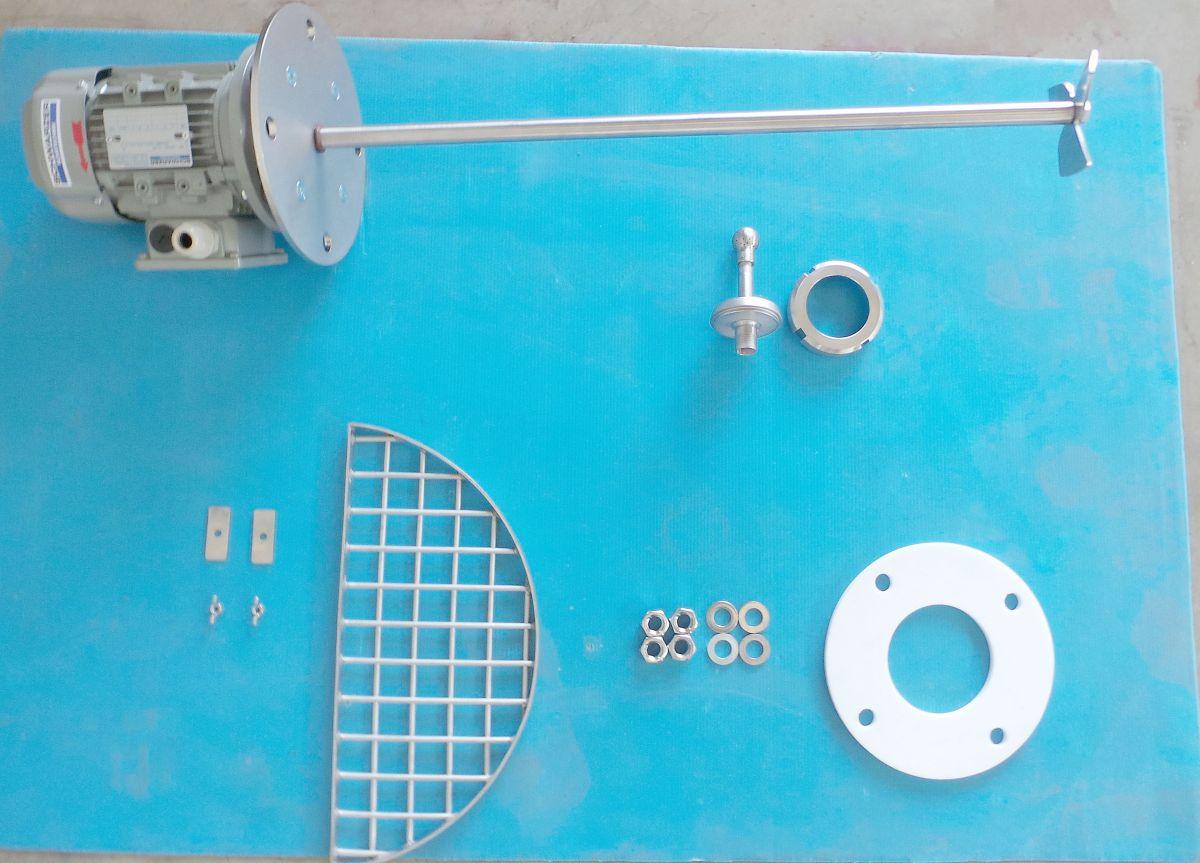

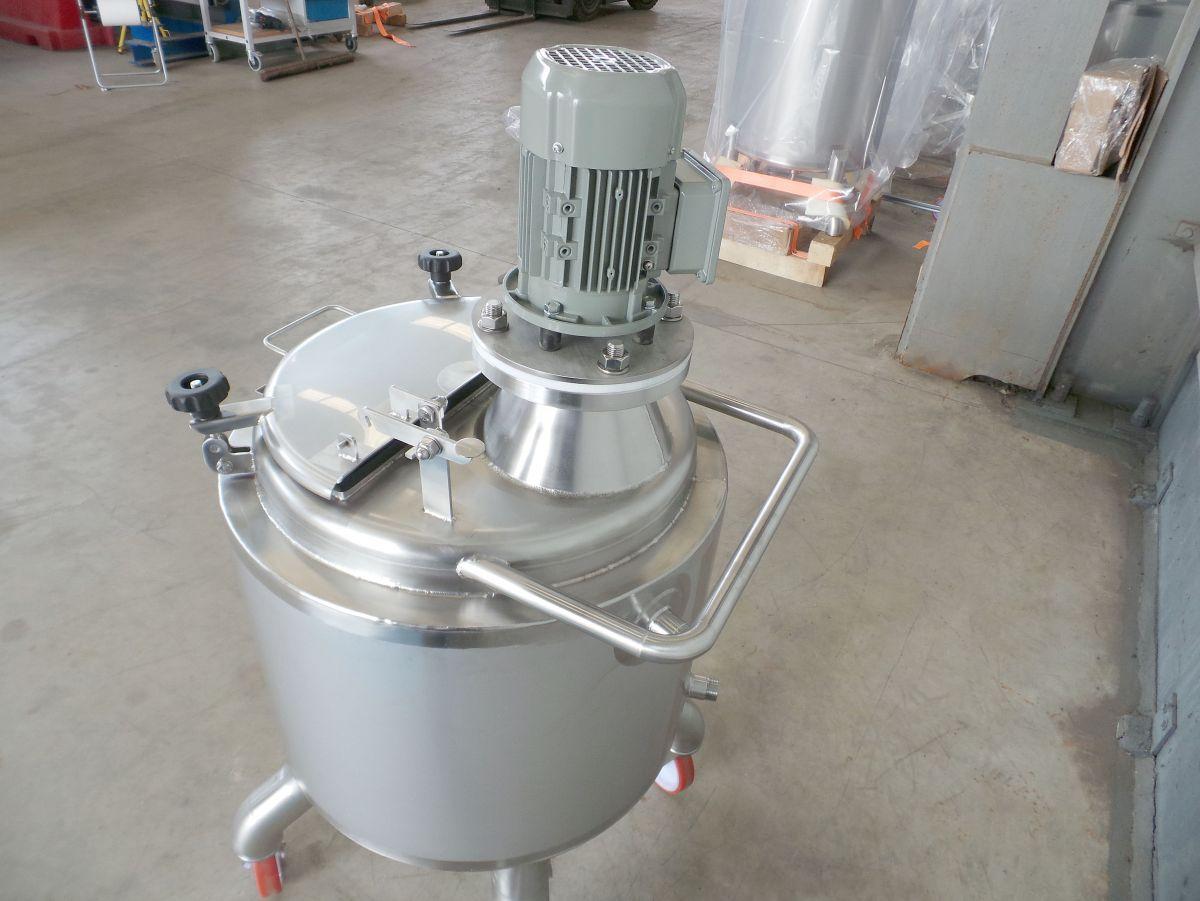

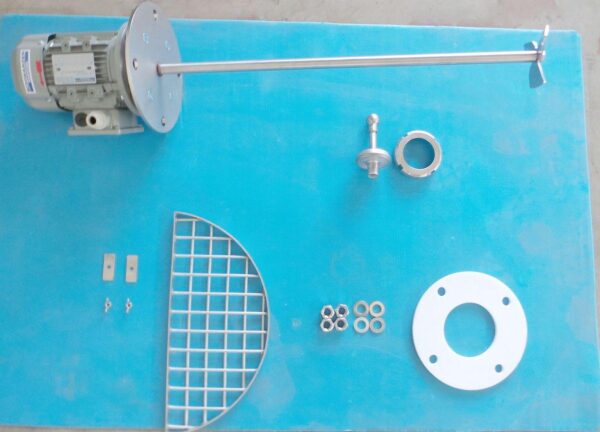

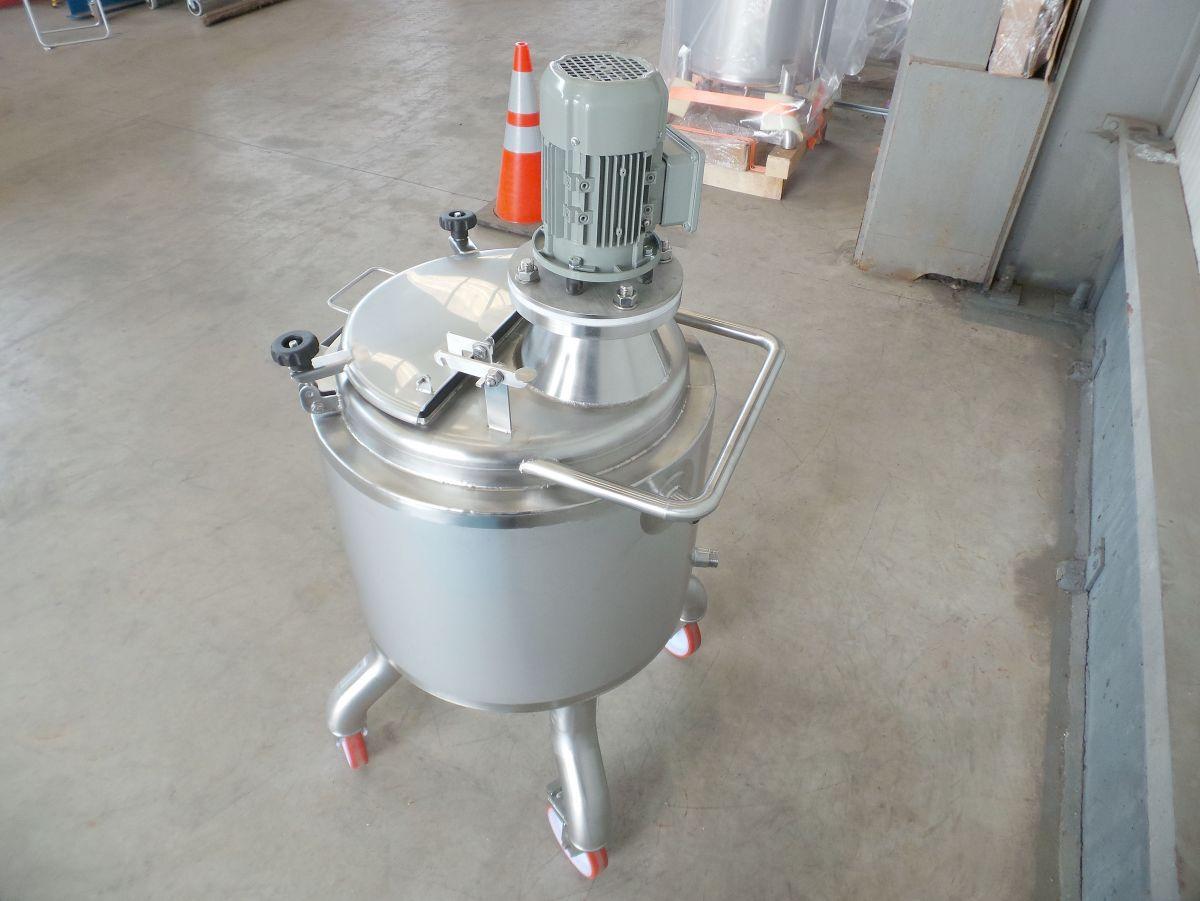

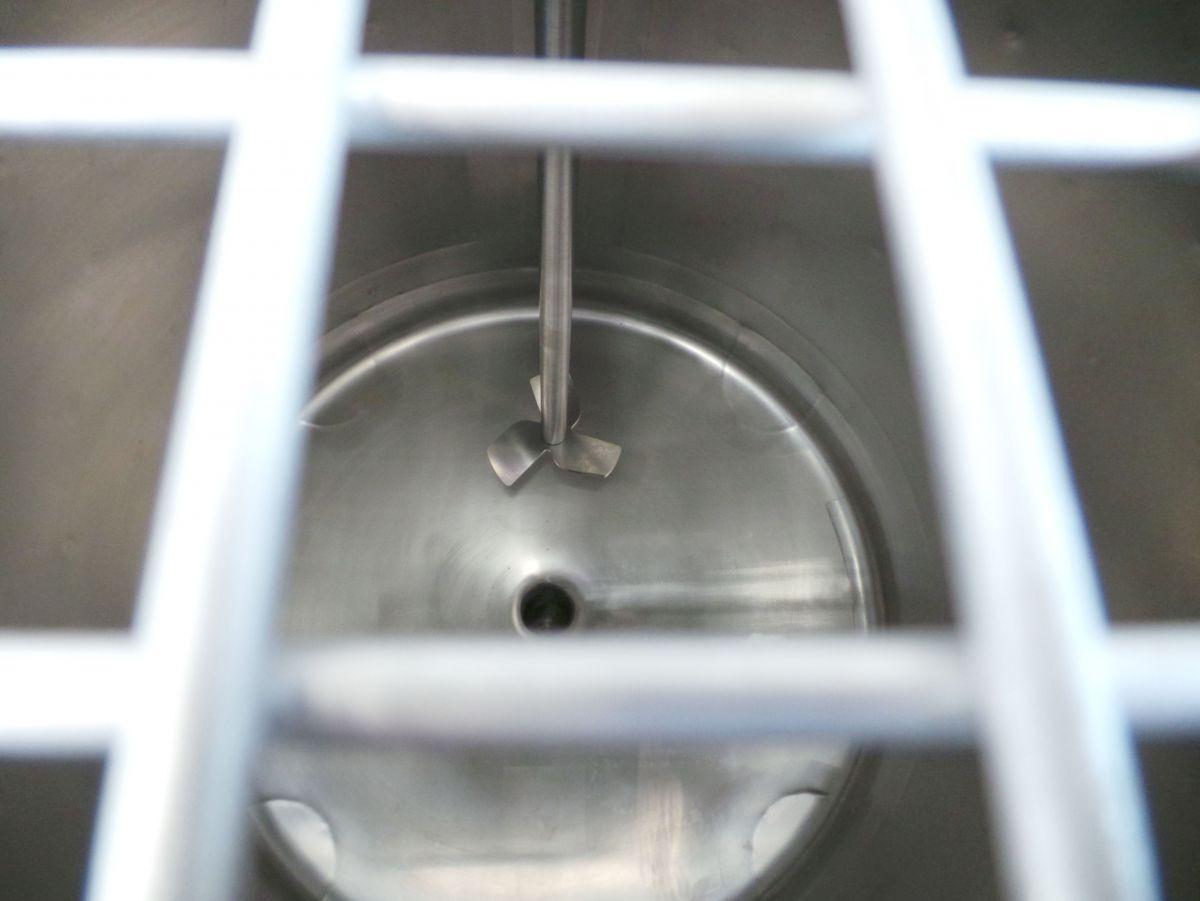

Agitator type: propeller agitator
Position engine: at the top
Number of revolutions: 1.500
Power: 0,25
Voltage: three-phase
Agitator type 2: propeller agitator
Position engine: at the top
Number of revolutions: 700
Power: 0,12
Voltage: three-phase
Top: 3 mm
Cylinder: 3 mm
Bottom: 3 mm
Cylinder: 2
Insulation body: yes
finish of the outer jacket: welded
Insulation thickness: 40
Distance from outlet to ground: 250 mm
Outer diameter tank: 580 mm
Cylinder height: 500 mm
Total height of tank: 1.350 mm
Empty weight tank: 90
