Volym i liter Volym i literAnvänd draglisten för det volymspann ni önskar se. Klicka sen i t.ex. (material, omrörare, isolering etc.) för att slutligen klicka på FILTRERA, då visas endast de tankar som finns inom de krav ni angett.

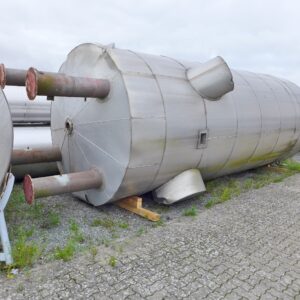

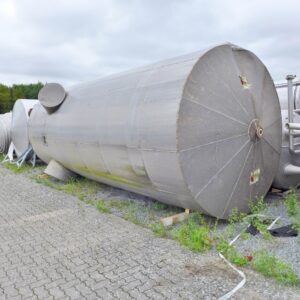

Additional information: 2 loose bearing shells, Fe (galvanized); 1 manhole each approx. 350 x 445 mm in the front bottom; each stronger dents in the cylinder Volumetric volume (L): 30.000 L Pressure in tank: ATM - atmosferic Material wet parts: SS AISI 304 (V2A) Model: horizontal Configuration: single-skin Heat exchanger: no Insulation: no Mobile tank: no Total discharge: yes Documents…

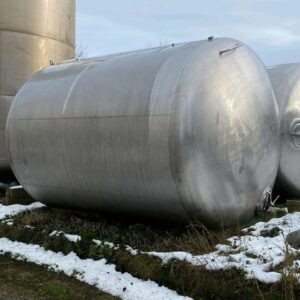

Additional information: Wool fat; Manhole diameter approx. 580 mm; metallic discoloration inside in the area of the upper bottom; Insulation jacket with dents and smaller sheet metal cutouts; some residues of previous content; manhole cover plated Volumetric volume (L): 30.000 L Pressure in tank: ATM - atmosferic Max. temperature (°C): 70 °C Material wet parts: SS AISI 304 (V2A) Model:…
Additional information: Dairy; Double jacket with trickle ring - only suitable for pressureless cooling; dents in the double jacket; small cracks in the double jacket lining; connections partially cut off; 2 height-adjustable screws of the feet are missing; pipe end cut flush Volumetric volume (L): 30.395 L Pressure in tank: pressure and vacuum Max. pressure (Bar): 3,50 Bar Min. pressure…
item available on order Article type: brand new storage tank - type K5-SL Volumetric volume (L): 30.400 L Max. density P (kg/m³): 1.350 Ra inner weld: 0,80 Finish stainless steel: 2B Pressure in tank: ATM - atmosferic Max. temperature (°C): 100 °C Min. temperature (°C): -10 °C Material wet parts: SS AISI 304L (V2A) Model: vertical Configuration: single-skin Heat exchanger:…
item available on order Article type: brand new storage tank - type K5-SL Additional information: inner surface 0.8µ Volumetric volume (L): 30.400 L Max. density P (kg/m³): 1.350 Ra inner weld: 0,80 Finish stainless steel: 2B Pressure in tank: ATM - atmosferic Max. temperature (°C): 100 °C Min. temperature (°C): -10 °C Material wet parts: SS AISI 316L (V4A) Model:…
Swap-tankar För livsmedel och kemikalier. Volym: 31m³ – 35m³. Material: Syrafast SS2343/316. Mått ISO: L : 6058 mm (totallängd:7150mm) B: 2438 mm H: 2591 mm Isolerade: Ja Trycktank: 4 bar Termometer: Ja. CIP rengörning: 2 st kan anslutas. Uppvärmda/kylda med (rörslinga 4 bar 8m² för ånga) ADR/RID/IMDG godkända för transport Sjö/väg/Järnväg Besiktade av SGS/TUV innan leverans. Testintyg, rengörningscert. Foton fås…
Additional information: Fruit juice Volumetric volume (L): 31.000 L Pressure in tank: ATM - atmosferic Material wet parts: SS AISI 304 (V2A) Model: vertical Configuration: single-skin Heat exchanger: no Insulation: no Mobile tank: no Total discharge: yes Documents included: no Technical drawing included: no Registration plate on the tank: yes Flange for agitator: no Outlet of tank: available Internal diameter…
Additional information: Heating jacket around approx. 2.380 mm of the lower cylinder height; Manhole approx. 430 x 540 mm; Tanks are currently hanging in a transport frame made of Fe; 1 loose ladder bracket is included in the scope of delivery (would have to be welded on site if desired) Volumetric volume (L): 31.000 L Pressure in tank: ATM -…
Additional information: Chemistry; Electric heating cables around parts of the tank; Diameter manhole cylinder 600 mm; Insulation with larger cutouts in insulation and insulation jacket; tank is currently provided with a transport lock; 1 pipe inside the tank (see photos); manhole cover plated Volumetric volume (L): 32.000 L Pressure in tank: ATM - atmosferic Material wet parts: SS AISI 316…
Article type: second-hand storage tank Additional information: The tank has never been used. Volumetric volume (L): 32.000 L Max. density P (kg/m³): 1.200 Ra inner weld: 0,80 Finish stainless steel: 2B Pressure in tank: ATM - atmosferic Max. temperature (°C): 60 °C Min. temperature (°C): -10 °C Material wet parts: SS AISI 304L (V2A) Model: vertical Configuration: single-skin Heat exchanger:…
item available on order Article type: brand new storage tank - type MP-SEF Additional information: lid for manway in stainless-steel (SS); set of anchorage points in stainless-steel (SS) included; tank will be delivered with Food grade certificate. Volumetric volume (L): 32.000 L Max. density P (kg/m³): 1.300 Pressure in tank: ATM - atmosferic Max. temperature (°C): 60 °C Min.…
Additional information: Chemistry; Manhole cylinder diameter 500 mm (most of the manhole cover screws are missing); 1 tank has 1 foot pressed into the lower bottom and the other tank has 2 feet pressed into the lower bottom; (this tank also has 1 connection pressed into the upper bottom and the heating coil is pressed in at one point; the…
Volym i liter
Använd draglisten för det volymspann ni önskar se. Klicka sen i t.ex. (material, omrörare, isolering etc.) för att slutligen klicka på FILTRERA, då visas endast de tankar som finns inom de krav ni angett.
