10300 liter i Syrafast 316

item available on order

Article type: brand new storage tank – type K5-SL
Additional information: inner surface 0.8µ
Capacity: 10.300 L
Maximal density of the product: 1.200
Ra inner weld: 0,80

Finish stainless steel: 2B
Working pressure in tank: ATM – atmosferic
Max. working temperature: 100 °C
Min. working temperature: -10 °C
Material wet parts: SS AISI 316L (V4A)

Model: vertical
Configuration: single-skin
Heat exchanger: no
Insulation: no
Agitator: yes, optional

Mobile tank: no
Top type: conical 15 °
Shape of tank: cylindrical
Bottom type: conical 15 °
Total discharge: yes

Fixation points: 4 adjustable feet
Manway(s): RVS 316
Gasket manway(s): EPDM
Fixation point(s): RVS 304L
Suitable for food industry: yes

Documents included: yes, optional

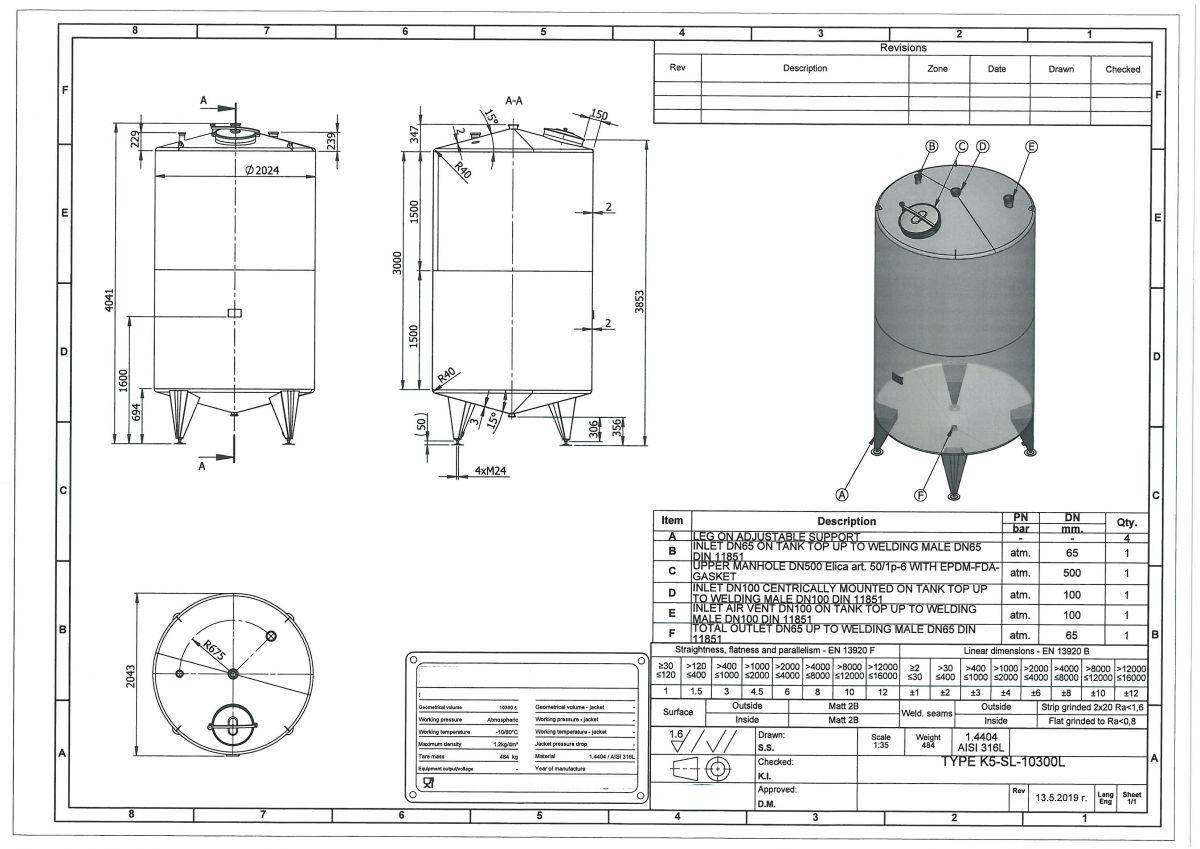

Technical drawing included: yes
Registration plate on the tank: yes
with inspection of: TUV
Flange for agitator: no

Number of manways: 1
Position manway: at the top
Manway 1: 500 mm
Tank outlet: inside Ø 65 mm
Outlet type: DIN11851 male

Total outlet valve: yes, optional
Top: 2 mm
Cylinder: 2 mm
Bottom: 3 mm
Distance from outlet to ground: 306 mm

Outer diameter tank: 2.024 mm
Cylinder height: 3.000 mm
Feet height: 694 mm
Total height of tank: 4.040 mm
Empty weight tank: 484
