Volym i liter Volym i literAnvänd draglisten för det volymspann ni önskar se. Klicka sen i t.ex. (material, omrörare, isolering etc.) för att slutligen klicka på FILTRERA, då visas endast de tankar som finns inom de krav ni angett.
Additional information: Liquid soap; tank is the smaller, right tank in the photo of the previous operator; tank was part of a process plant (the larger tank in the photo is also available under order number 9786 (subject to sale elsewhere) Volumetric volume (L): 90 L Pressure in tank: ATM - atmosferic Max. temperature (°C): 150 °C Configuration: insulated with…
Additional information: Vessel was only used for validation and never went into service; technical documentation was ordered from the manufacturer but has not yet arrived; plastic casters on the feet were unscrewed for shipping but are included loose (see photos) Volumetric volume (L): 150 L Pressure in tank: pressure and vacuum Max. pressure (Bar): 3 Bar Min. pressure (Bar): 1…
Additional information: Pharmacy; Original drawing available; tank was rebuilt in 1997 (e.g. changing the feet or connections); Evidence of the subsequent pressure test available; Conversion drawing only available as a fax; 1 dip tube inside the tank; some residues of previous content Volumetric volume (L): 530 L Pressure in tank: pressure and vacuum Max. pressure (Bar): 3 Bar Min. pressure…
Additional information: Full set of pharma-compliant technical documentation included in delivery; tank was manufactured for a global pharmaceutical company but was never put into operation; hand hole with sight glass diameter: 100mm; incl. Südmo single-seat valve SVP (outlet) Volumetric volume (L): 532 L Pressure in tank: pressure and vacuum Max. pressure (Bar): 6 Bar Min. pressure (Bar): 1 Bar Max.…
Additional information: Pharmacy; Technical documentation (also for the agitator) available for one of the two vessels Volumetric volume (L): 956 L Pressure in tank: vacuum Min. pressure (Bar): 0,50 Bar Material wet parts: SS AISI 316 (V4A) Model: vertical Configuration: single jacketed with heat-exchanger Heat exchanger: yes Insulation: no Mobile tank: no Total discharge: yes Volume: 83 L Max Overpressure:…
Additional information: Pharmacy Volumetric volume (L): 1.000 L Pressure in tank: pressure and vacuum Max. pressure (Bar): 3 Bar Min. pressure (Bar): 1 Bar Max. temperature (°C): 135 °C Material wet parts: SS AISI 316 (V4A) Model: vertical Configuration: insulated with heat-exchanger Heat exchanger: yes Insulation: yes Mobile tank: no Total discharge: yes Volume: 5 L Max Overpressure: 6 Bar…
Additional information: Full set of pharma-compliant technical documentation included in delivery; tank was manufactured for a global pharmaceutical company but was never put into operation; hand hole with sight glass diameter: 150mm; incl. Südmo single-seat valve SVP (outlet) Volumetric volume (L): 1.040 L Pressure in tank: pressure and vacuum Max. pressure (Bar): 6 Bar Min. pressure (Bar): 1 Bar Max.…
Additional information: Pharmaceutical Chemistry; With 1 vessel the agitator is missing; 1 tank with insulation; 2 claws made of V2A (contact surface the other way around; flanges partly made of Fe (see photos); some residues of previous content Volumetric volume (L): 1.300 L Pressure in tank: pressure and vacuum Max. pressure (Bar): 3,20 Bar Min. pressure (Bar): 1 Bar Max.…
Additional information: Pharmaceutical chemistry; 2 support brackets made of Aisi 304 (contact surface the other way around; see photos); flanges partly made of Fe; further techn. documents available; In some cases, connections are flanged in the top bottom or at the outlet; using these connections would increase the overall height accordingly; some residues of previous content Volumetric volume (L): 1.300…
Additional information: Pharmaceutical chemistry; 2 support brackets made of Aisi 304 (contact surface the other way around; see photos); flanges partly made of Fe; further techn. documents available; bump at the insulation jacket Volumetric volume (L): 1.345 L Pressure in tank: pressure and vacuum Max. pressure (Bar): 3,20 Bar Min. pressure (Bar): 1 Bar Max. temperature (°C): 200 °C Material…
Additional information: Pharmaceutical chemistry; 2 support brackets made of Aisi 304 (contact surface the other way around; see photos); flanges partly made of Fe Volumetric volume (L): 1.345 L Pressure in tank: pressure and vacuum Max. pressure (Bar): 3,20 Bar Min. pressure (Bar): 1 Bar Material wet parts: SS AISI 316 (V4A) Model: vertical Configuration: single jacketed with heat-exchanger Heat…
Additional information: Pharmaceutical Chemistry; 2 support brackets made of Aisi 304 (contact surface the other way around; see photos); 1 vessel is equipped with insulation (see photos); flanges partly Fe; some residues of previous content Volumetric volume (L): 1.345 L Pressure in tank: pressure and vacuum Max. pressure (Bar): 3,20 Bar Min. pressure (Bar): 1 Bar Max. temperature (°C): 200…
Additional information: Pharmaceutical chemistry; 3 feet, Aisi 304 screwed to support brackets, Aisi 304; 1 longitudinal sight glass each in the cylinder and in the lower bottom; on the outlet there is a fitting with a pipe diameter of approx. 38 mm inside; manhole cover is missing Volumetric volume (L): 1.356 L Pressure in tank: pressure and vacuum Max. pressure…
Additional information: 2 loose bearing shells, Aisi 304; manhole DN 500 Volumetric volume (L): 1.600 L Pressure in tank: ATM - atmosferic Material wet parts: SS AISI 316 (V4A) Model: horizontal Configuration: single-skin Heat exchanger: no Insulation: no Mobile tank: no Total discharge: yes Documents included: no Technical drawing included: no Registration plate on the tank: no Flange for agitator:…
Additional information: Full set of pharma-compliant technical documentation included in delivery; tank was manufactured for a global pharmaceutical company but was never put into operation; Hand hole with sight glass diameter: 150mm; incl. Südmo single-seat valve SVP (outlet) Volumetric volume (L): 1.700 L Pressure in tank: pressure and vacuum Max. pressure (Bar): 6 Bar Min. pressure (Bar): 1 Bar Max.…
Additional information: pharmacy; One of the tanks is missing 1 leg; some residues of previous content Volumetric volume (L): 1.809 L Pressure in tank: pressure and vacuum Max. pressure (Bar): 3 Bar Min. pressure (Bar): 1 Bar Max. temperature (°C): 150 °C Material wet parts: SS AISI 316 (V4A) Model: vertical Configuration: insulated with heat-exchanger Heat exchanger: yes Insulation: yes…
Additional information: Pharmacy; 1 pump (brand GRUNDFOS) is included in delivery; 1 control cabinet (used by the previous operator for 3 of these tanks) can be purchased additionally for an additional charge (see photos) Volumetric volume (L): 1.880 L Pressure in tank: pressure and vacuum Max. pressure (Bar): 4 Bar Min. pressure (Bar): 1 Bar Max. temperature (°C): 150 °C…
Additional information: Food utilization; stronger buildups; sight glass in the cylinder; various connections in the upper bottom and cylinder Volumetric volume (L): 2.480 L Pressure in tank: vacuum Min. pressure (Bar): 1 Bar Max. temperature (°C): 50 °C Configuration: single-skin Heat exchanger: no Insulation: no Mobile tank: no Total discharge: yes Documents included: no Technical drawing included: no Registration plate…
Additional information: Chemistry; 4 support brackets, Aisi 304; Manhole cover mounting screws incomplete; 1 former connection in the upper bottom was welded shut by the previous operator; some residues of previous content; motor-/gear is missing Volumetric volume (L): 2.500 L Pressure in tank: pressure and vacuum Max. pressure (Bar): 1 Bar Min. pressure (Bar): 1 Bar Max. temperature (°C): 190…
Additional information: Pharmaceutical Chemistry; 2 support brackets made of Fe (contact surface the other way around with cut off steel parts; see photos); further techn. Documents available; manhole cover plated; Metallic discolouration inside Volumetric volume (L): 2.750 L Pressure in tank: pressure and vacuum Max. pressure (Bar): 3,20 Bar Min. pressure (Bar): 1 Bar Max. temperature (°C): 200 °C Material…
Additional information: Chemistry; 4 support brackets made of Fe; 1 vessel with insulation (insulation jacket Fe, lacquered; diameter outside approx. 1780 mm); some residues of previous content; Metallic discolouration inside Volumetric volume (L): 3.685 L Pressure in tank: pressure and vacuum Max. pressure (Bar): 3,20 Bar Min. pressure (Bar): 1 Bar Max. temperature (°C): 200 °C Material wet parts: SS…
Additional information: Pharmaceutical chemistry; +4 bar test pressure Volumetric volume (L): 4.000 L Pressure in tank: ATM - atmosferic Max. temperature (°C): 50 °C Material wet parts: SS AISI 304 (V2A) Model: vertical Configuration: single-skin Heat exchanger: no Insulation: no Mobile tank: no Total discharge: yes Documents included: no Technical drawing included: no Registration plate on the tank: yes Flange…
Additional information: Sparkling wine; 1 oval manhole (approx. 420 x 320mm) in the front floor; information in the drawing on cylinder length not correct; various loose fittings in the tanks (were not taken into account when specifying the tank dimensions); some residues of previous content Volumetric volume (L): 6.000 L Pressure in tank: pressure Max. pressure (Bar): 8 Bar Material…
Additional information: chemistry; tank mounting: traverse Fe; outlet fitting incomplete; manhole cover is missing Volumetric volume (L): 7.250 L Pressure in tank: ATM - atmosferic Max. temperature (°C): 100 °C Material wet parts: SS AISI 316 (V4A) Model: vertical Configuration: single jacketed with heat-exchanger Heat exchanger: yes Insulation: no Mobile tank: no Total discharge: yes Max Overpressure: 5 Bar Max.…

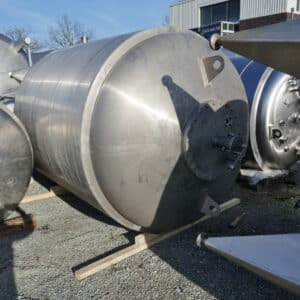

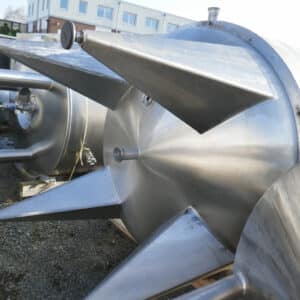

Additional information: Brewery; Manhole diameter approx. 630 mm Volumetric volume (L): 7.500 L Pressure in tank: pressure Max. pressure (Bar): 5 Bar Material wet parts: SS AISI 304 (V2A) Model: vertical Configuration: insulated Heat exchanger: no Insulation: yes Mobile tank: no Total discharge: yes Documents included: no Technical drawing included: no Registration plate on the tank: yes Flange for agitator:…
Additional information: chemistry; 1 tank with a dent in the cylindrical part as well as in the fan guard of the agitator motor; some residues of previous content Volumetric volume (L): 8.000 L Pressure in tank: ATM - atmosferic Max. temperature (°C): 100 °C Material wet parts: SS AISI 304 (V2A) Model: vertical Configuration: single-skin Heat exchanger: no Insulation: no…
Additional information: ice water tank in a dairy; some residues of previous content; pipe end cut flush Volumetric volume (L): 10.000 L Pressure in tank: pressure Max. pressure (Bar): 5 Bar Max. temperature (°C): 20 °C Material wet parts: SS AISI 304 (V2A) Model: vertical Configuration: insulated Heat exchanger: no Insulation: yes Mobile tank: no Total discharge: yes Documents included:…

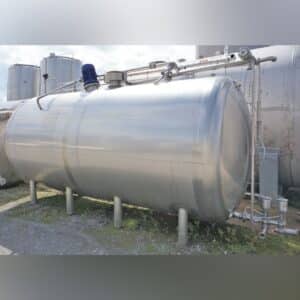

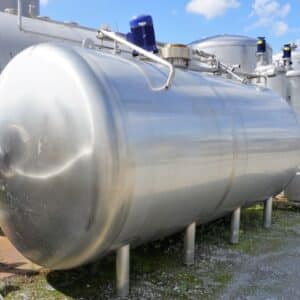

Additional information: Food; Manhole (340x440 mm) in the front shelf Volumetric volume (L): 10.700 L Pressure in tank: ATM - atmosferic Max. temperature (°C): 90 °C Material wet parts: SS AISI 304 (V2A) Model: horizontal Configuration: insulated Heat exchanger: no Insulation: yes Mobile tank: no Total discharge: yes Documents included: no Technical drawing included: no Registration plate on the tank:…
Additional information: Pharmaceutical Chemistry; Stand frame, Aisi 304; some residues of previous content; manhole cover plated Volumetric volume (L): 19.000 L Pressure in tank: pressure and vacuum Max. pressure (Bar): 0,20 Bar Min. pressure (Bar): 0,20 Bar Max. temperature (°C): 50 °C Material wet parts: SS AISI 316 (V4A) Model: vertical Configuration: single-skin Heat exchanger: no Insulation: no Mobile tank:…
Additional information: Brewery; some residues of previous content; Metallic discolouration inside Volumetric volume (L): 24.400 L Pressure in tank: pressure Max. pressure (Bar): 4 Bar Max. temperature (°C): 20 °C Material wet parts: SS AISI 304 (V2A) Model: vertical Configuration: single jacketed with heat-exchanger Heat exchanger: yes Insulation: no Mobile tank: no Total discharge: yes Volume: 114 L Max Overpressure:…
Article type: second-hand storage tank Additional information: API650, VLAREM II, previous product Nitric acid 68% Volumetric volume (L): 24.450 L Max. density P (kg/m³): 1.405 Pressure in tank: ATM - atmosferic Design pressure (Bar): 0,13 Bar Max. temperature (°C): 50 °C Material wet parts: SS AISI 304L (V2A) Model: vertical Configuration: double jacket for leak detection (system for detection not…
Additional information: Pharmaceutical Chemistry; Stand frame, Aisi 304; wall thickness of lower cylinder half approx. 6 mm; Extensive documentation available; tank by now already dismantled and warehoused horizontally; one tank is insulated but the insulation was damaged in some areas and likely needs replacement; manhole cover plated Volumetric volume (L): 25.000 L Pressure in tank: ATM - atmosferic Max. temperature…
Additional information: Pharmaceutical Chemistry; Stand frame, Aisi 304; wall thickness of the lowest cylinder segment approx. 6 mm; 2 of these tanks are from the manufacturer Metkon, but almost identical; Extensive documentation available; tank by now already dismantled and warehoused horizontally; two tanks with insulation, which is quite dented and should be replaced if required; special price applies only to…
Additional information: Chemistry; Tank with dents in the cylinder (vacuum damage; see photos); cylinder manhole diameter approx. 600 mm; feet ends cut off; 3 immersion pipes inside the tank; specified total height including ring line connection in the upper bottom; outlet with flanged, reducing fitting; some residues of previous content Volumetric volume (L): 28.100 L Pressure in tank: pressure Max.…
Article type: second-hand storage tank Additional information: Suction tube instead of a total drain, the previous product was ammonia Volumetric volume (L): 42.610 L Pressure in tank: pressure Max. pressure (Bar): 2,60 Bar Material wet parts: SS AISI 304 (V2A) Model: horizontal Configuration: single-skin Heat exchanger: no Insulation: no Mobile tank: no Top type: dished Shape of tank: cylindrical Wall…
Additional information: cylinder manhole diameter: 600 mm; some residues of previous content Volumetric volume (L): 43.350 L Pressure in tank: pressure and vacuum Max. pressure (Bar): 1 Bar Min. pressure (Bar): 0,25 Bar Max. temperature (°C): 100 °C Material wet parts: SS AISI 316 (V4A) Model: vertical Configuration: single-skin Heat exchanger: no Insulation: no Mobile tank: no Total discharge: yes…
Additional information: Rapeseed oil; Manhole cylinder NW 600; smaller sheet metal cutouts in the insulation jacket; bump at the insulation jacket; manhole cover plated Volumetric volume (L): 60.000 L Pressure in tank: pressure and vacuum Max. pressure (Bar): 1,50 Bar Min. pressure (Bar): 0,20 Bar Max. temperature (°C): 200 °C Material wet parts: SS AISI 304 (V2A) Model: vertical Configuration:…
Additional information: Solvents; Total height as per drawing (small deviation possible); manhole cylinder NW 600 Volumetric volume (L): 67.000 L Pressure in tank: pressure Max. pressure (Bar): 1 Bar Max. temperature (°C): 100 °C Material wet parts: SS AISI 316 (V4A) Model: vertical Configuration: single-skin Heat exchanger: no Insulation: no Mobile tank: no Total discharge: yes Documents included: no Technical…
Additional information: Solvents; Manhole cylinder NW 600; total height might deviate slightly (measures taken from drawing); some residues of previous content Volumetric volume (L): 67.000 L Pressure in tank: pressure Max. pressure (Bar): 1 Bar Max. temperature (°C): 100 °C Material wet parts: SS AISI 316 (V4A) Model: vertical Configuration: single-skin Heat exchanger: no Insulation: no Mobile tank: no Total…
Additional information: Chemistry; Total height estimated according to drawing (deviations possible); manhole cylinder NW 600; test pressure according to drawing: 1 bar Volumetric volume (L): 67.000 L Pressure in tank: ATM - atmosferic Material wet parts: SS AISI 316 (V4A) Model: vertical Configuration: single-skin Heat exchanger: no Insulation: no Mobile tank: no Total discharge: yes Documents included: no Technical drawing…
Additional information: manhole in the cylinder diameter 600 mm; Complete manufacturer documentation available; A ladder also available upon request; tank has fixtures for field installation of insulation (this fixture is slightly dented); some residues of previous content Volumetric volume (L): 70.000 L Pressure in tank: ATM - atmosferic Material wet parts: SS AISI 304 (V2A) Model: vertical Configuration: single jacketed…
Additional information: Pharmaceutical waste water; Manhole cylinder NW 600; some residues of previous content Volumetric volume (L): 118.000 L Pressure in tank: pressure Max. pressure (Bar): 1 Bar Max. temperature (°C): 100 °C Material wet parts: SS AISI 316 (V4A) Model: vertical Configuration: insulated Heat exchanger: no Insulation: yes Mobile tank: no Total discharge: yes Documents included: no Technical drawing…
Volym i liter
Använd draglisten för det volymspann ni önskar se. Klicka sen i t.ex. (material, omrörare, isolering etc.) för att slutligen klicka på FILTRERA, då visas endast de tankar som finns inom de krav ni angett.
