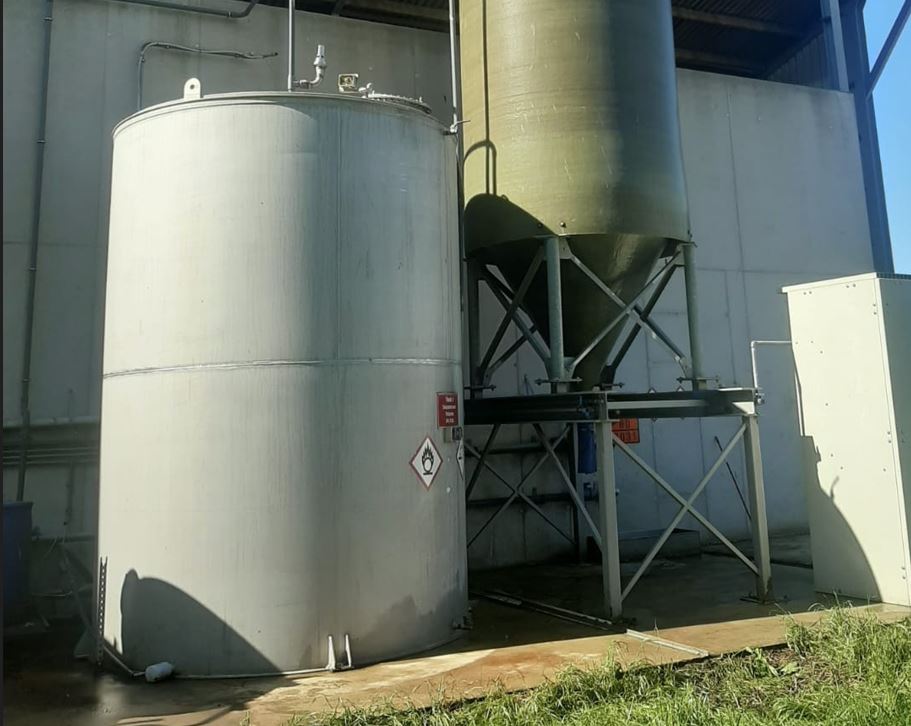

24450 liter tank i Rostfritt 304 (dubbelmantlad)

Article type: second-hand storage tank Additional information: API650, VLAREM II, previous product Nitric acid 68% Volumetric volume (L): 24.450 L Max. density P (kg/m³): 1.405 Pressure in tank: ATM - atmosferic Design pressure (Bar): 0,13 Bar Max. temperature (°C): 50 °C Material wet parts: SS AISI 304L (V2A) Model: vertical Configuration: double jacket for leak detection (system for detection not included) Heat exchanger: no Insulation: no double jacket for leak detection (system for detection not included): yes Mobile tank: no Top type: dished Shape of tank: cylindrical Bottom type: flat Total discharge: no Outer jacket (ornamental wall): RVS 304L Manway(s): RVS 304L Suitable for food industry: no Documents included: yes, optional Technical drawing included: no Registration plate on the tank: yes Inspection of: VLAREM II Flange for agitator: no Number of manways: 1 Position of manway: at the top Height manhole 1 (mm): 500 mm Agitator: no, optional Top: 5 mm Cylinder: 5 mm Bottom: 5 mm Internal diameter tank: 2.800 mm Outer diameter tank: 2.880 mm Cylinder height: 4.000 mm Total height of tank: 4.500 mm Empty weight tank: 3.800
