Volym i liter Volym i literAnvänd draglisten för det volymspann ni önskar se. Klicka sen i t.ex. (material, omrörare, isolering etc.) för att slutligen klicka på FILTRERA, då visas endast de tankar som finns inom de krav ni angett.
item available on order Article type: brand new storage tank - type K3-IL Volumetric volume (L): 10.300 L Max. density P (kg/m³): 1.200 Ra inner weld: 0,80 Finish stainless steel: 2B Pressure in tank: ATM - atmosferic Max. temperature (°C): 100 °C Min. temperature (°C): -10 °C Material wet parts: SS AISI 316L (V4A) Model: vertical Configuration: insulated Heat exchanger:…
item available on order Article type: brand new storage tank - type K3-SL Volumetric volume (L): 10.300 L Max. density P (kg/m³): 1.200 Ra inner weld: 1,60 Finish stainless steel: 2b Pressure in tank: ATM - atmosferic Max. temperature (°C): 80 °C Min. temperature (°C): -10 °C Material wet parts: SS AISI 304L (V2A) Model: vertical Configuration: single-skin Heat exchanger:…
Volumetric volume (L): 10.450 L Pressure in tank: ATM - atmosferic Max. temperature (°C): 120 °C Configuration: single jacketed with heat-exchanger Heat exchanger: yes Insulation: no Mobile tank: no Total discharge: yes Volume: 34 L Max Overpressure: 3 Bar Max. working temperature: 120 °C Documents included: no Technical drawing included: no Registration plate on the tank: yes Flange for agitator:…
Article type: second-hand storage tank Volumetric volume (L): 10.500 L Pressure in tank: ATM - atmosferic Material wet parts: SS AISI 304 (V2A) Model: horizontal Configuration: single-skin Heat exchanger: no Insulation: no Mobile tank: no Shape of tank: cylindrical Bottom type: dished Total discharge: yes Fixation points: 2 non adjustable feet Manway(s): RVS 304 Gasket manway(s): unknown Fixation point(s): painted…
Additional information: Brewery; 1 stainless steel sheet inside in the lower bottom (see photos); Wall thickness of the lowest cylinder segment: 3 mm; dents at the cylinder Volumetric volume (L): 10.500 L Pressure in tank: pressure Max. pressure (Bar): 1,50 Bar Max. temperature (°C): 20 °C Configuration: single-skin Heat exchanger: no Insulation: no Mobile tank: no Total discharge: yes Documents…
Additional information: Dairy; Incomplete fastening of the manhole cover; small dents in the insulation jacket Volumetric volume (L): 10.589 L Pressure in tank: ATM - atmosferic Configuration: insulated with heat-exchanger Heat exchanger: yes Insulation: yes Mobile tank: no Total discharge: yes Volume: 160 L Max Overpressure: 3 Bar Type HE on the bottom: heating/cooling jacket Type HE on the cylinder:…
Additional information: Lacquers; Manhole diameter 500 mm; Small dents in the cylinder; Differences in the outlet sizes possible; some residues of previous content Volumetric volume (L): 10.600 L Pressure in tank: pressure Max. pressure (Bar): 0,50 Bar Max. temperature (°C): 100 °C Configuration: single-skin Heat exchanger: no Insulation: no Mobile tank: no Total discharge: yes Documents included: no Technical drawing…
Additional information: Brine tank (water / salt solution) in a chemical plant; Manhole cylinder DN 600; double outlet DN 50; some residues of previous content Volumetric volume (L): 10.800 L Pressure in tank: pressure Max. pressure (Bar): 3,20 Bar Max. temperature (°C): 100 °C Configuration: single-skin Heat exchanger: no Insulation: no Mobile tank: no Total discharge: yes Documents included: no…
Additional information: Adhesive industry; Support ring made of Fe; some of the flanges of the upper bottom were welded to the inside by the previous operator with a stainless steel sheet (and an opening was sometimes cut into these sheets; see photos); diameter manhole 480 mm; some residues of previous content; manhole cover is missing Volumetric volume (L): 10.875 L…

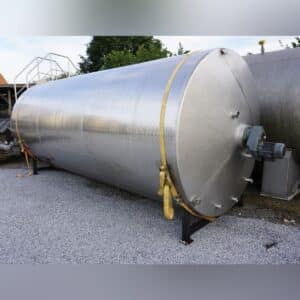

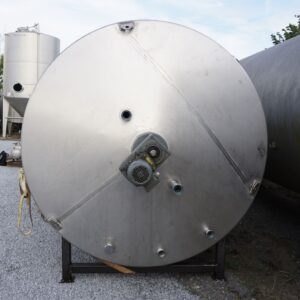

Additional information: bioethanol plant; support ring made of Fe; manhole covers are missing Volumetric volume (L): 11.000 L Pressure in tank: ATM - atmosferic Configuration: single-skin Heat exchanger: no Insulation: no Mobile tank: no Total discharge: yes Documents included: no Technical drawing included: no Registration plate on the tank: yes Flange for agitator: no Outlet of tank: flange DN80 Cylinder:…
Additional information: Food Volumetric volume (L): 11.000 L Pressure in tank: ATM - atmosferic Configuration: insulated with heat-exchanger Heat exchanger: yes Insulation: yes Mobile tank: no Total discharge: yes Type HE on the bottom: half pipe welded onto the outside of the innertank Type HE on the cylinder: half pipe welded onto the outside of the innertank Documents included: no…
Additional information: wine storage; Slight differences in design possible (e.g. partly 3 feet, partly 4 feet); manhole approx. 340 x 440 mm Volumetric volume (L): 11.000 L Pressure in tank: ATM - atmosferic Configuration: single-skin Heat exchanger: no Insulation: no Mobile tank: no Total discharge: yes Documents included: no Technical drawing included: no Registration plate on the tank: no Flange…
Additional information: 1 manhole diameter 500 mm in the lower cylinder area; 1 hand hole NW 200 in the upper cylinder area (attention: manhole cover and hand hole cover made of Aisi 304); Tank with adhesions inside; slight rust on the outside of the tank (see photos) Volumetric volume (L): 11.000 L Pressure in tank: ATM - atmosferic Configuration: single-skin…

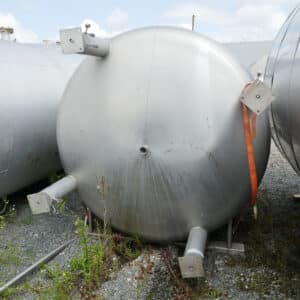

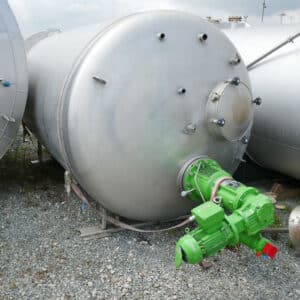

Additional information: Pharmacy; Manhole diameter approx. 510 mm; outlet slightly damaged Volumetric volume (L): 11.030 L Pressure in tank: pressure and vacuum Max. pressure (Bar): 0,49 Bar Min. pressure (Bar): 0,30 Bar Max. temperature (°C): 80 °C Configuration: single-skin Heat exchanger: no Insulation: no Mobile tank: no Total discharge: yes Documents included: no Technical drawing included: no Registration plate on…
Additional information: Ethanol; Manufactured according to DIN 6618; manhole diameter 600 mm; 2 pipes each inside the tanks; some residues of previous content Volumetric volume (L): 11.100 L Pressure in tank: pressure Max. pressure (Bar): 0,50 Bar Configuration: single-skin Heat exchanger: no Insulation: no Mobile tank: no Total discharge: yes Documents included: no Technical drawing included: no Registration plate on…
Additional information: Solvents; Built according to DIN6618; pipelines inside the tanks; stand frame, 1.4301 (Aisi 304); manhole cover, 1.4541 (Aisi 304); Outlet with screwed reduction Volumetric volume (L): 11.100 L Pressure in tank: pressure and vacuum Max. pressure (Bar): 0,30 Bar Min. pressure (Bar): 0,10 Bar Configuration: single-skin Heat exchanger: no Insulation: no Mobile tank: no Total discharge: yes Documents…
Additional information: Dairy; Double jacket with trickle ring - only suitable for pressureless cooling; bumps in the double jacket; Double jacket cladding in the area of the upper bottom partially detached (see photos); some residues of previous content; pipe end cut flush Volumetric volume (L): 11.424 L Pressure in tank: pressure and vacuum Max. pressure (Bar): 3,20 Bar Min. pressure…
Additional information: Ethanol; some residues of previous content Volumetric volume (L): 11.500 L Pressure in tank: ATM - atmosferic Configuration: single-skin Heat exchanger: no Insulation: no Mobile tank: no Total discharge: yes Documents included: no Technical drawing included: no Registration plate on the tank: yes Flange for agitator: no Outlet of tank: DN65 DIN 11851 Cylinder: 2,50 mm Bottom: 2,80…
Additional information: food industry Volumetric volume (L): 11.630 L Pressure in tank: ATM - atmosferic Max. temperature (°C): 100 °C Configuration: insulated Heat exchanger: no Insulation: yes Mobile tank: no Total discharge: yes Documents included: no Technical drawing included: no Registration plate on the tank: yes Flange for agitator: no Outlet of tank: flange DN65 Internal diameter tank: 2.000 mm…
Additional information: Pharmacy; Manhole diameter approx. 600 mm (1 opening diameter 165 mm in manhole cover); 2 bearing saddles made of Fe (painted); outlet with flanged fitting; some residues of previous content; manhole cover plated Volumetric volume (L): 11.650 L Pressure in tank: pressure and vacuum Max. pressure (Bar): 2 Bar Min. pressure (Bar): 1 Bar Max. temperature (°C): 200…
Additional information: Winery; With 1 tank, the cylinder is marbled on the outside Volumetric volume (L): 11.800 L Pressure in tank: ATM - atmosferic Configuration: single-skin Heat exchanger: no Insulation: no Mobile tank: no Total discharge: yes Documents included: no Technical drawing included: no Registration plate on the tank: no Flange for agitator: no Outlet of tank: flange DN100 Internal…
Article type: second-hand mixing tank Additional information: milk tanks; we can’t give any guarantees about the agitator Volumetric volume (L): 12.000 L Ra inner weld: 0,80 Pressure in tank: ATM - atmosferic Material wet parts: SS AISI 304 (V2A) Model: vertical Configuration: insulated Heat exchanger: no Insulation: yes Mobile tank: no Top type: conical Shape of tank: cylindrical Bottom type:…
Additional information: rennet-production; smaller dents in the cylinder; small rectangular sheets were welded in by the previous operator in several places of the cylinder; some residues of previous content Volumetric volume (L): 12.000 L Pressure in tank: ATM - atmosferic Configuration: single-skin Heat exchanger: no Insulation: no Mobile tank: no Total discharge: yes Documents included: no Technical drawing included: no…

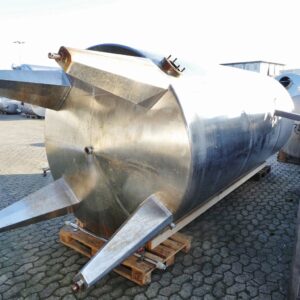

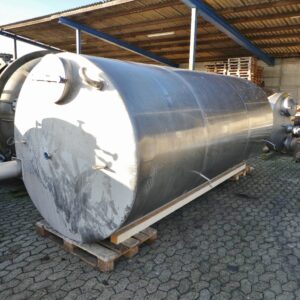

Additional information: Cosmetics; on request - up to 11 pieces available Volumetric volume (L): 12.000 L Pressure in tank: ATM - atmosferic Max. temperature (°C): 50 °C Configuration: single-skin Heat exchanger: no Insulation: no Mobile tank: no Total discharge: yes Documents included: no Technical drawing included: no Registration plate on the tank: yes Flange for agitator: no Outlet of tank:…
Volym i liter
Använd draglisten för det volymspann ni önskar se. Klicka sen i t.ex. (material, omrörare, isolering etc.) för att slutligen klicka på FILTRERA, då visas endast de tankar som finns inom de krav ni angett.
