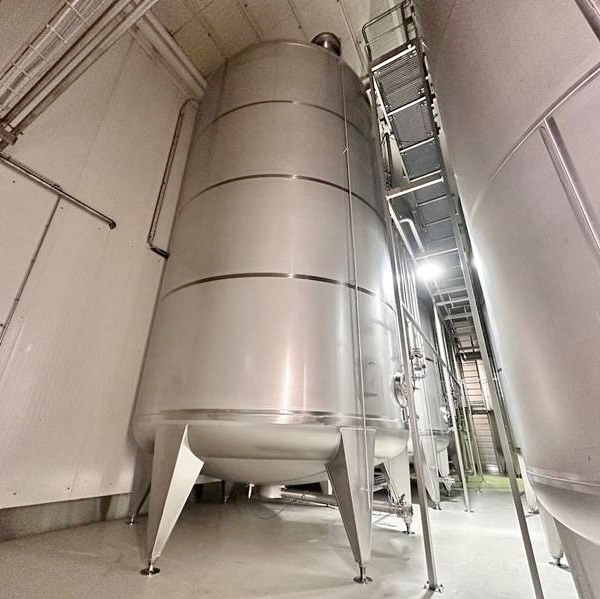

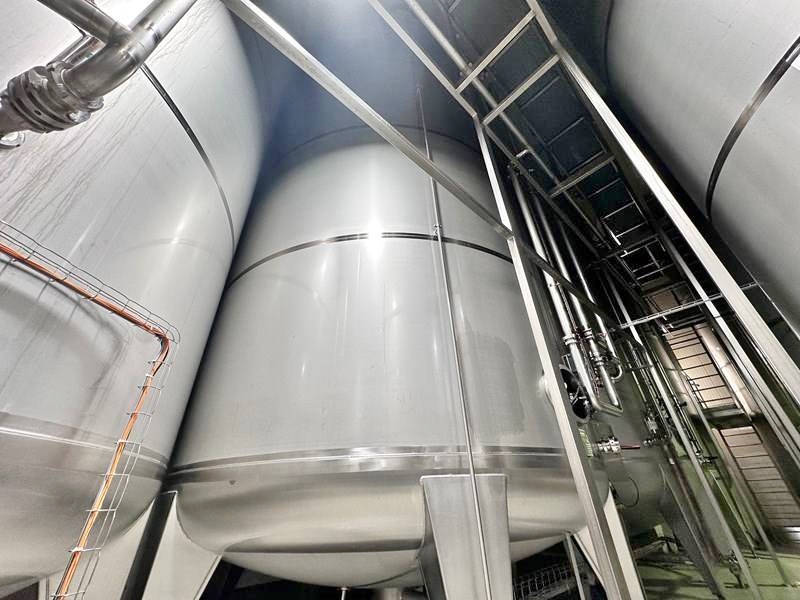

81200 liter tank i Rostfritt 304

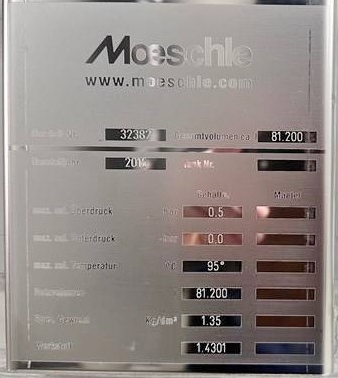

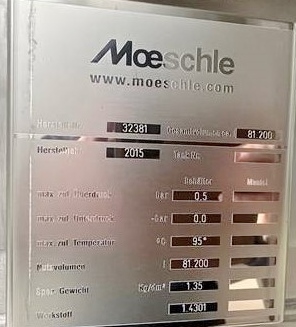

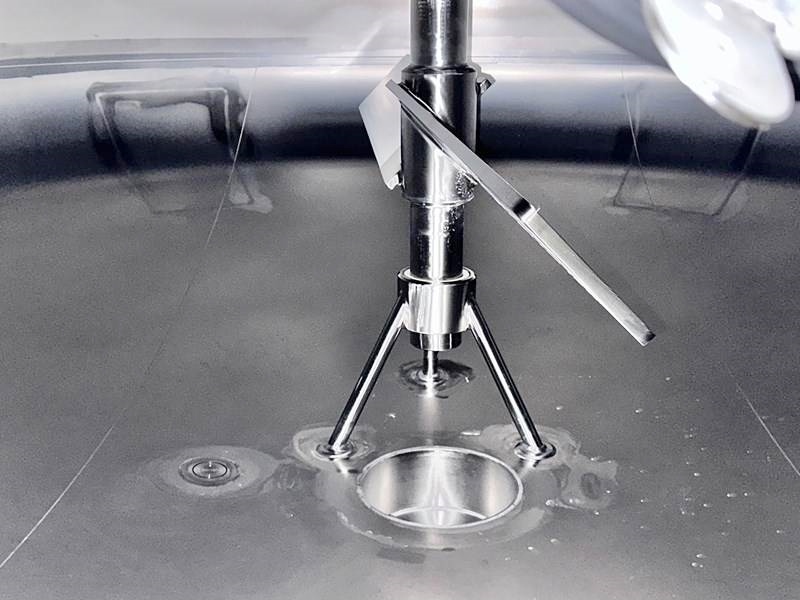

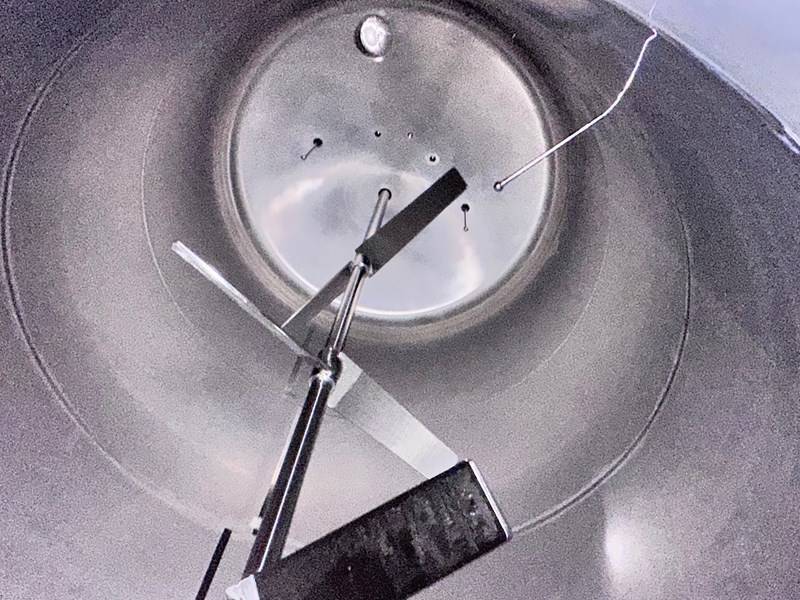

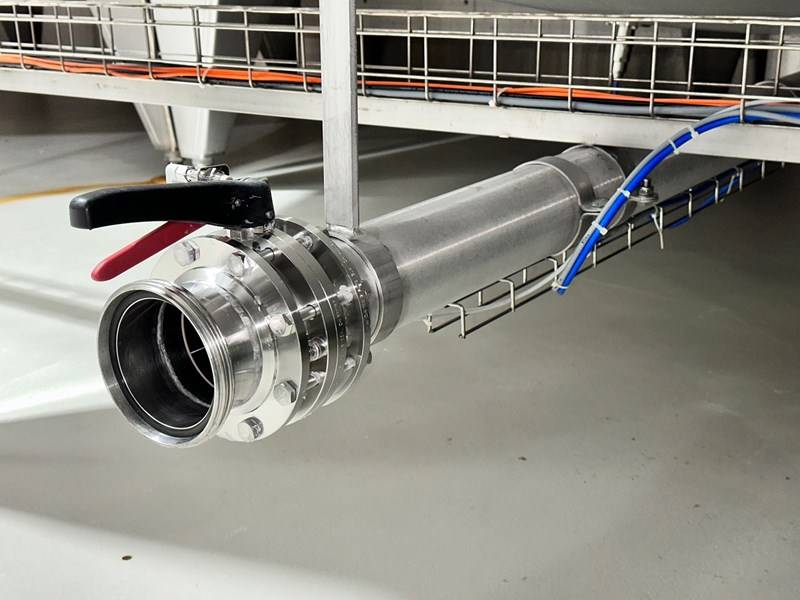

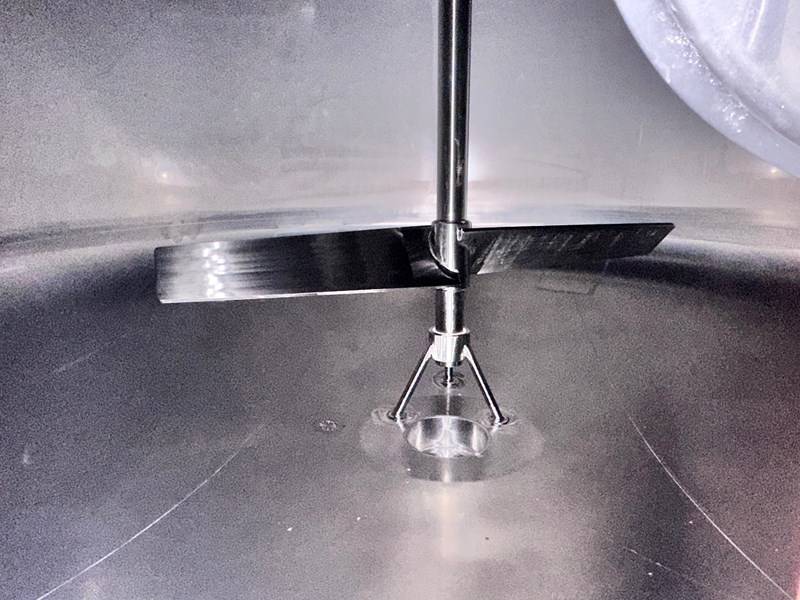

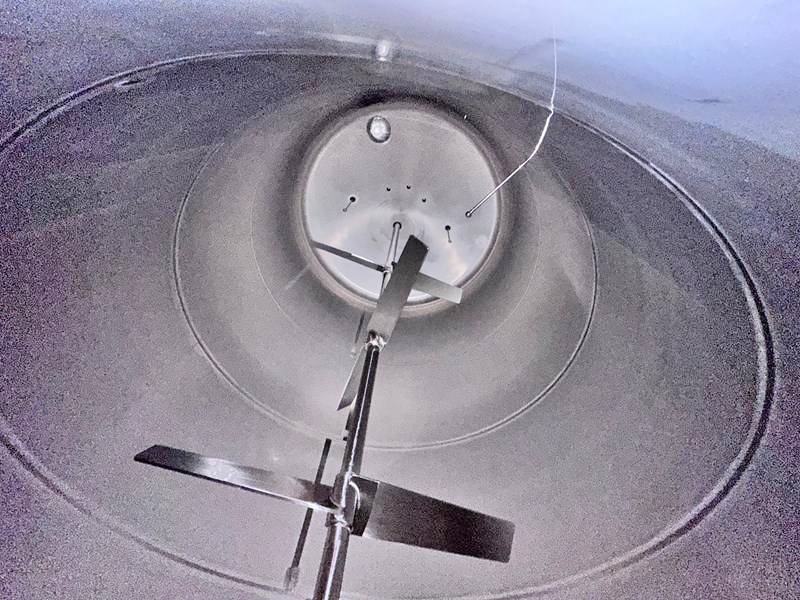

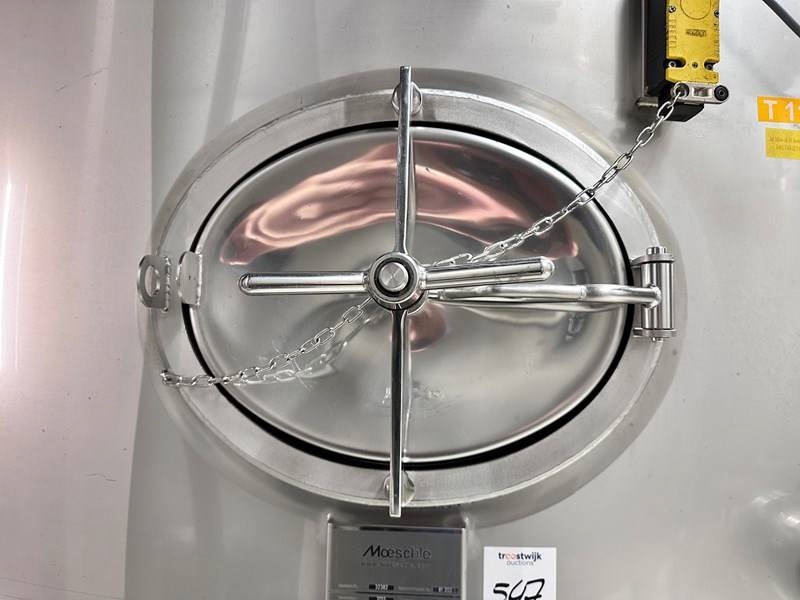

Additional information: Fruit juice; Wall thickness cylinder (1st segment): 4 mm; Total height corresponds to manufacturer drawing, the actual total height might deviate slightly Volumetric volume (L): 81.200 L Pressure in tank: pressure Max. pressure (Bar): 0,50 Bar Max. temperature (°C): 95 °C Material wet parts: SS AISI 304 (V2A) Model: vertical Configuration: single-skin Heat exchanger: no Insulation: no Mobile tank: no Total discharge: yes Documents included: no Technical drawing included: no Registration plate on the tank: yes Flange for agitator: no Position of manway: cylinder Outlet of tank: DN100 DIN 11851 Agitator: yes Top: 5,20 mm Cylinder: 3,50 mm Bottom: 6 mm Internal diameter tank: 3.850 mm Cylinder height: 6.000 mm Total height of tank: 8.800 mm Empty weight tank: 4.500
