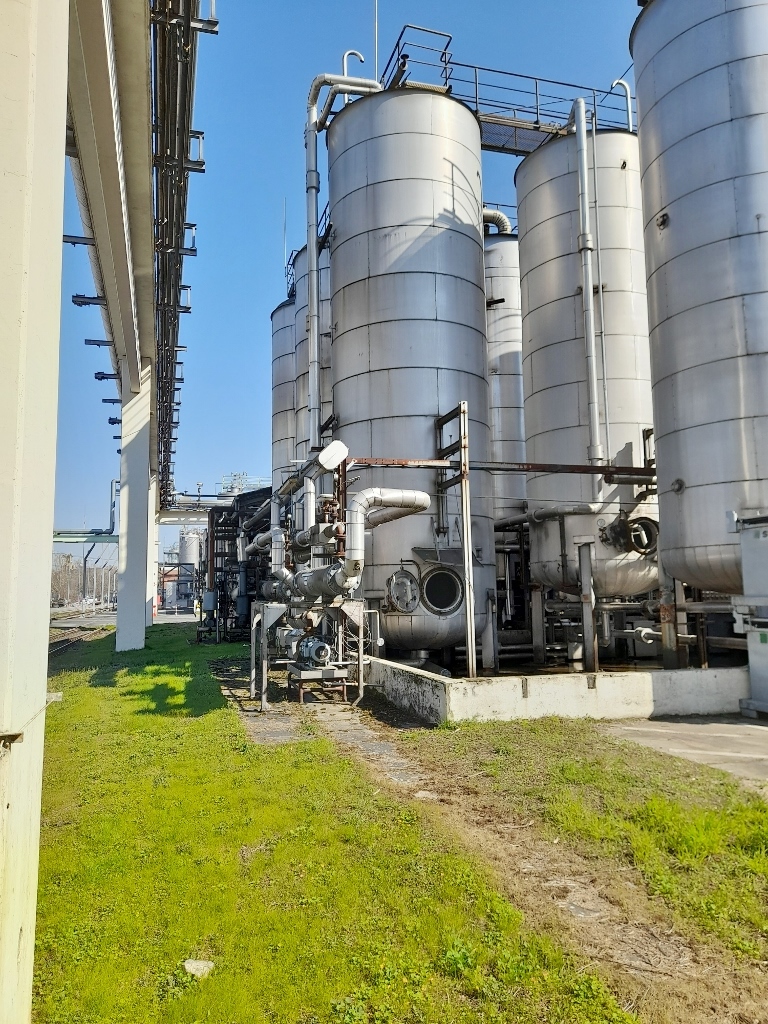

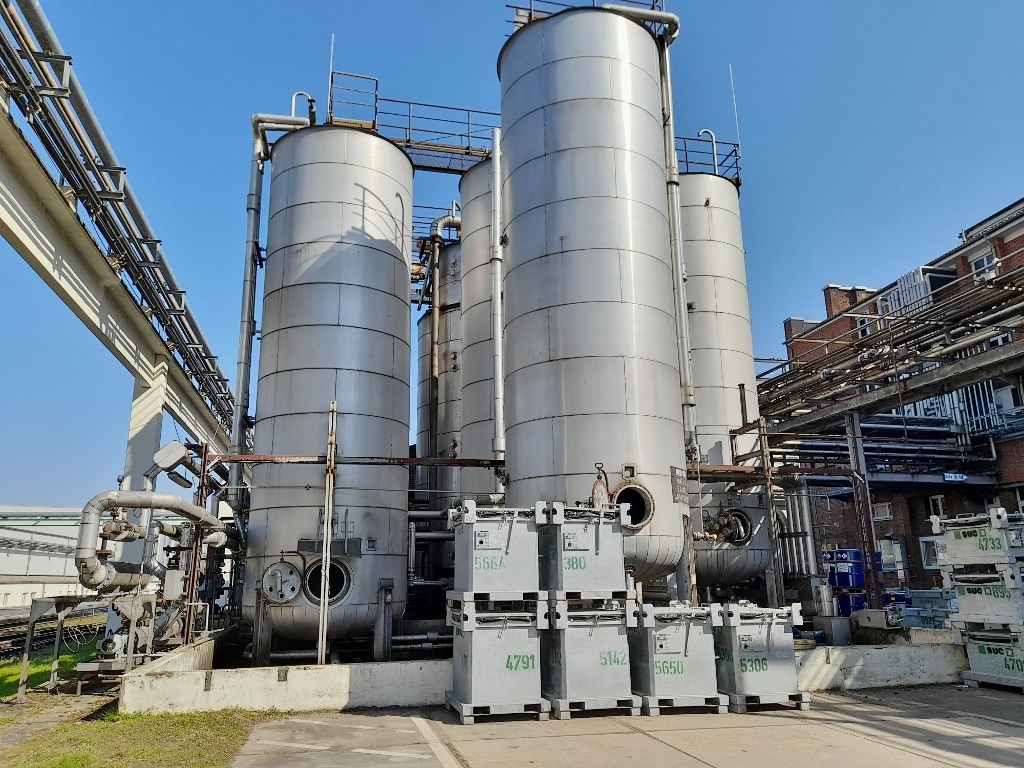

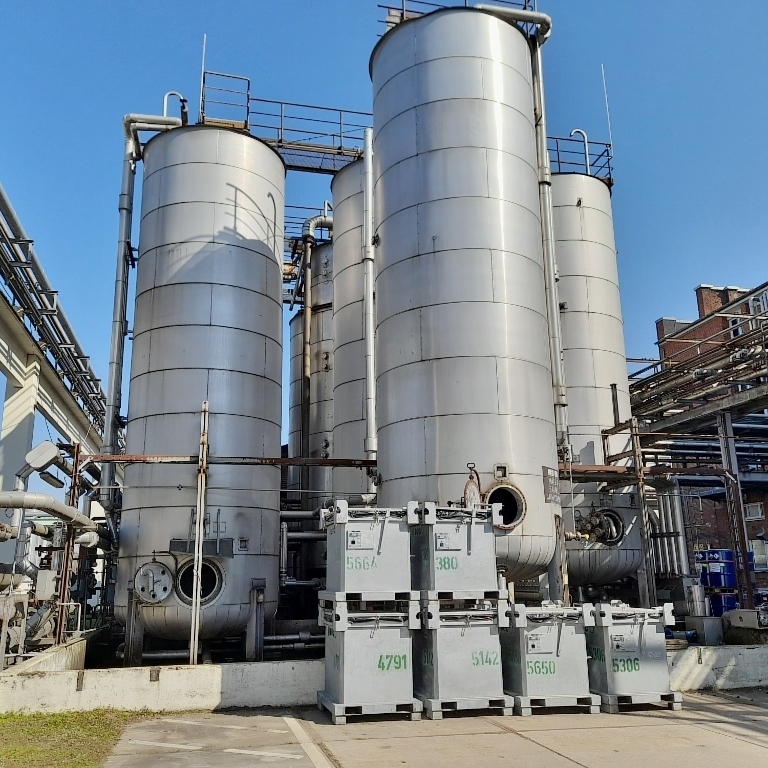

80000 liter tank i Rostfritt 304

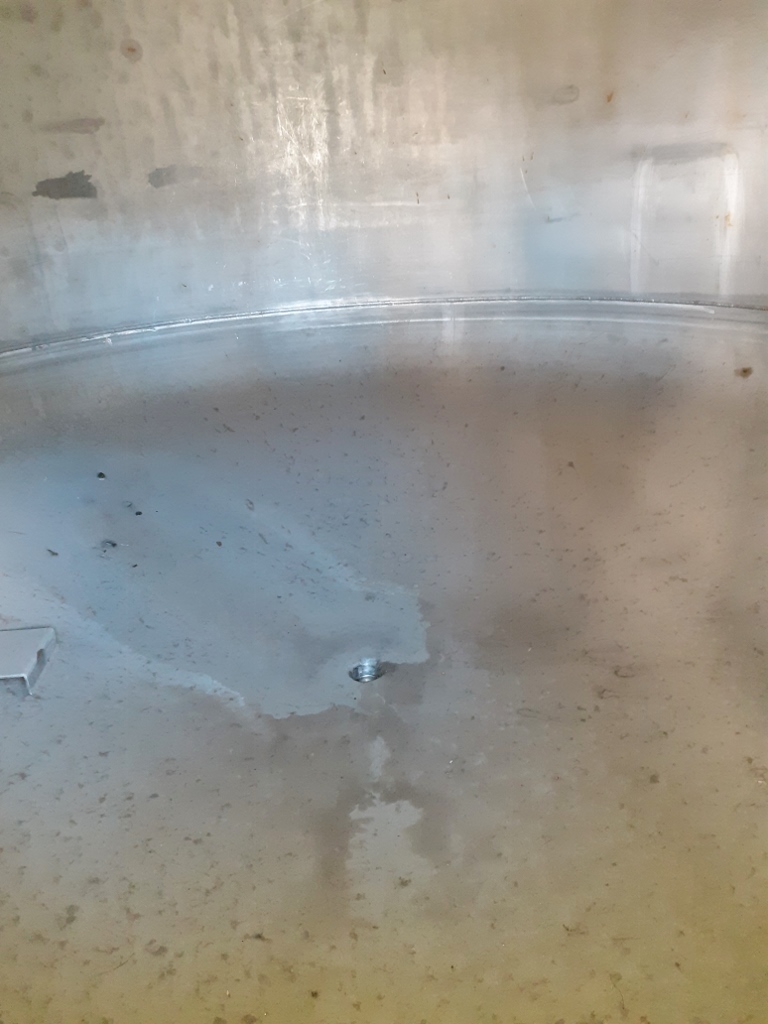

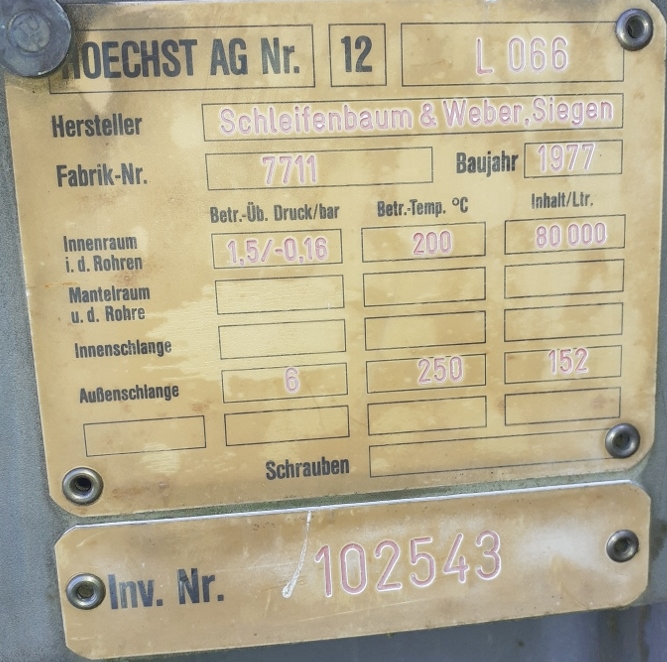

Additional information: Chemistry Volumetric volume (L): 80.000 L Pressure in tank: pressure Max. pressure (Bar): 1,50 Bar Max. temperature (°C): 200 °C Material wet parts: SS AISI 304 (V2A) Model: vertical Configuration: insulated with heat-exchanger Heat exchanger: yes Insulation: yes Mobile tank: no Total discharge: yes Volume: 152 L Max Overpressure: 6 Bar Max. working temperature: 250 °C Type HE on the bottom: half pipe welded onto the outside of the innertank Documents included: no Technical drawing included: no Registration plate on the tank: yes Flange for agitator: no Outlet of tank: 80 Top: 7 mm Cylinder: 5 mm Bottom: 10 mm Internal diameter tank: 3.200 mm Cylinder height: 10.000 mm
