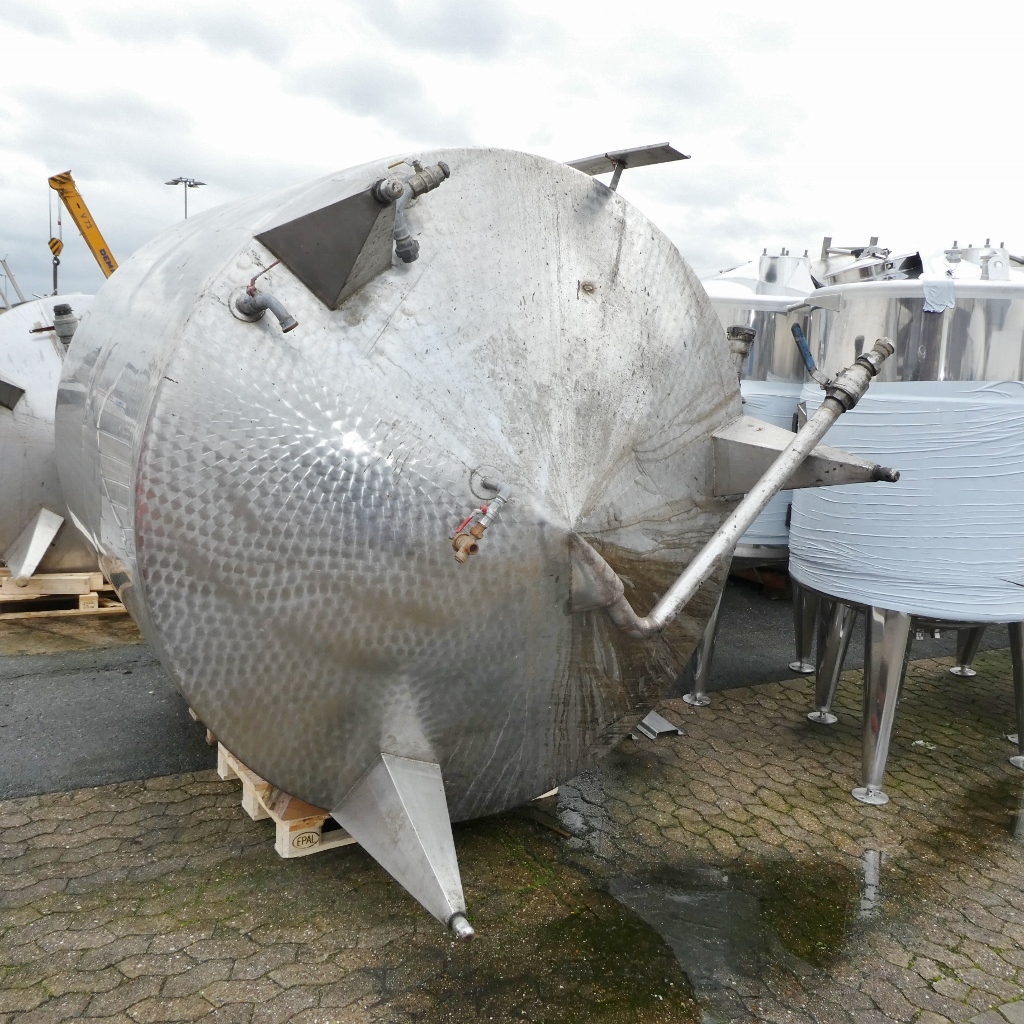

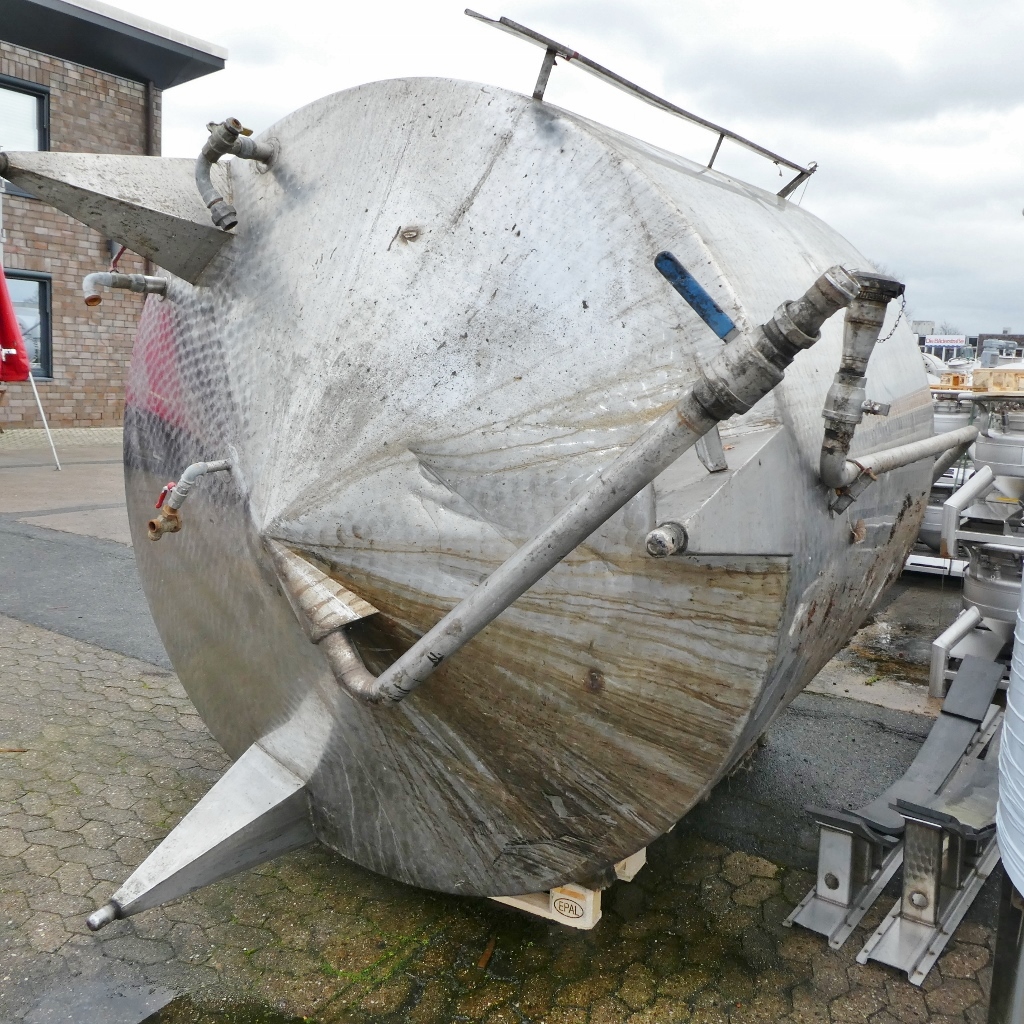

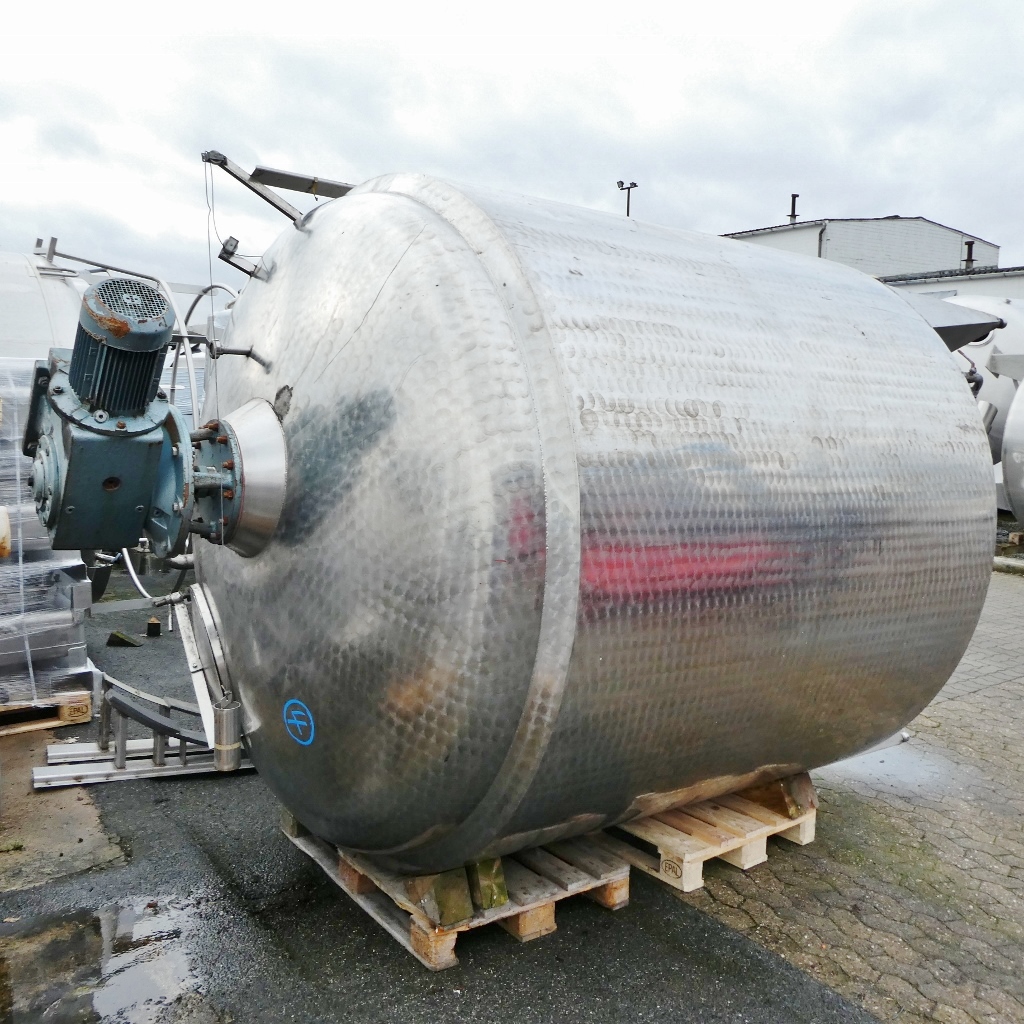

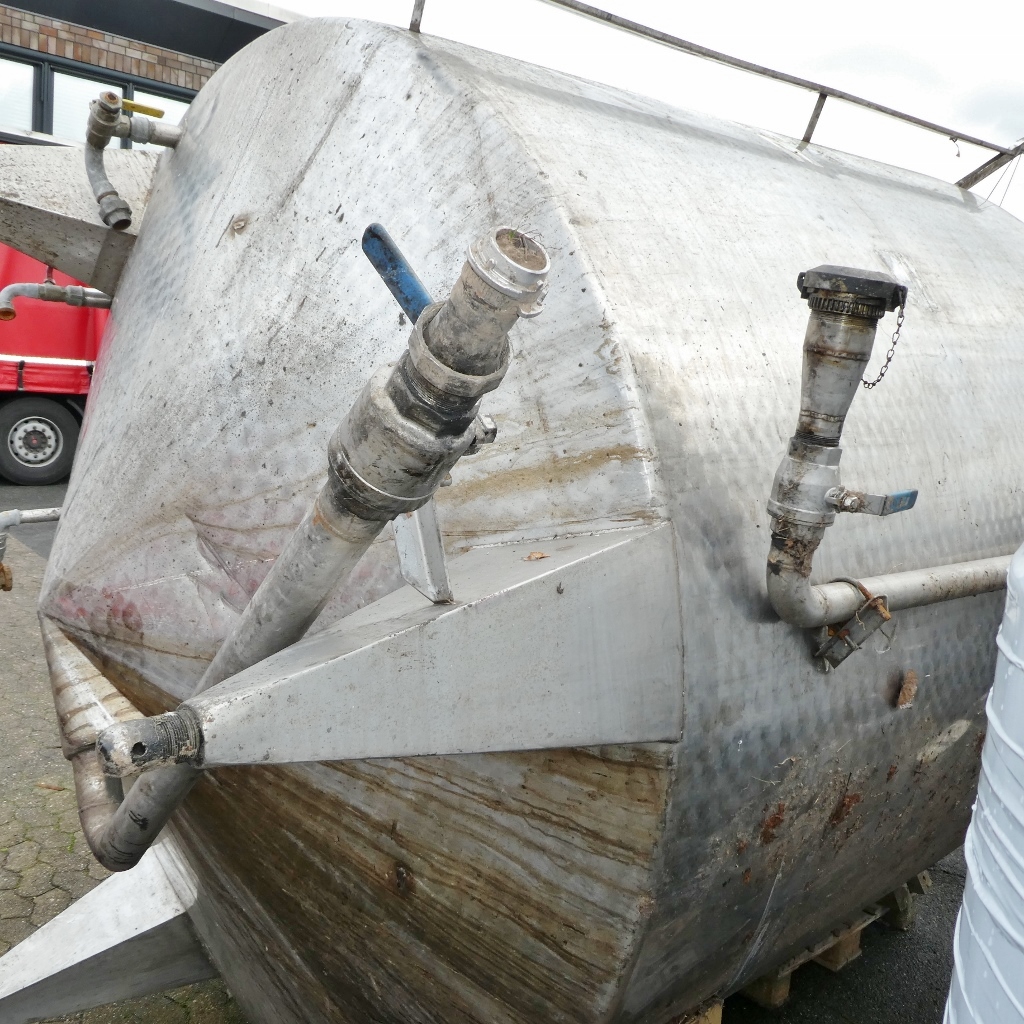

8000 liter tank i Rostfritt 304

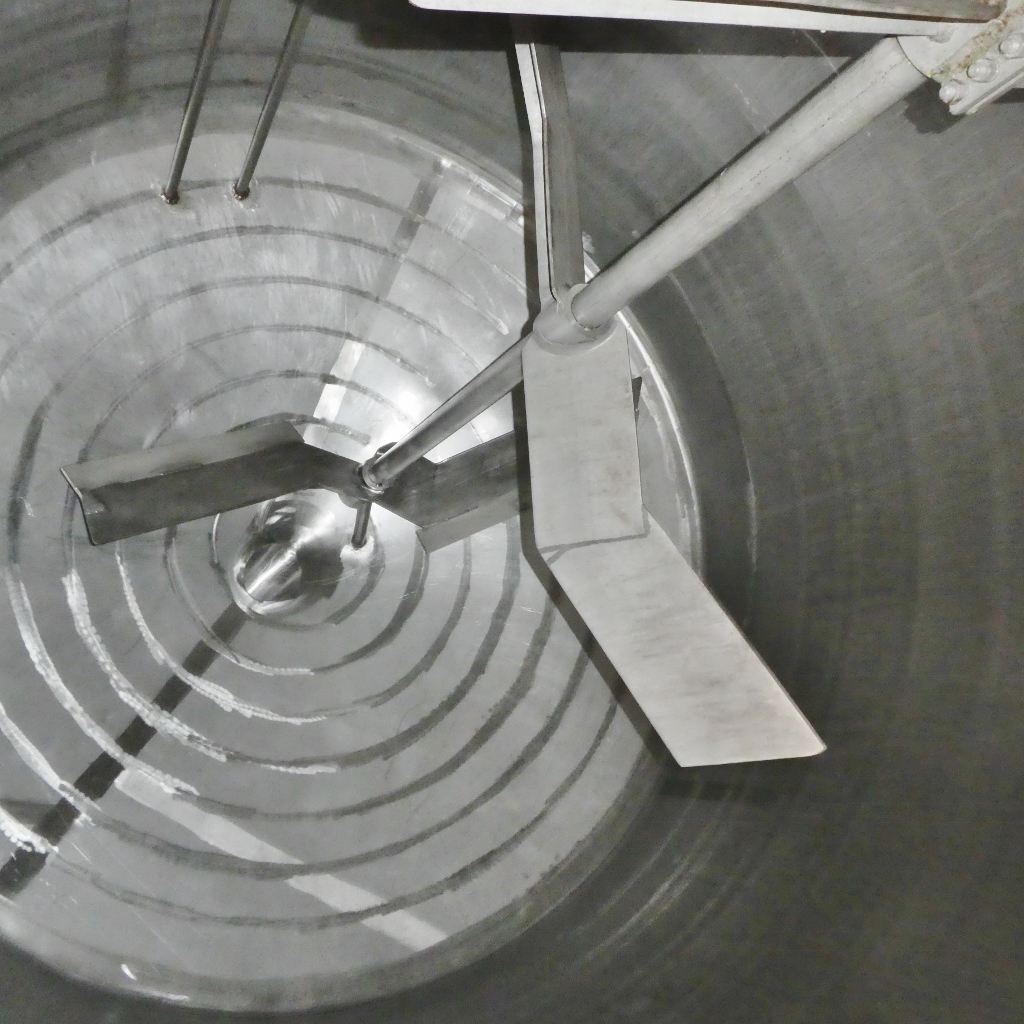

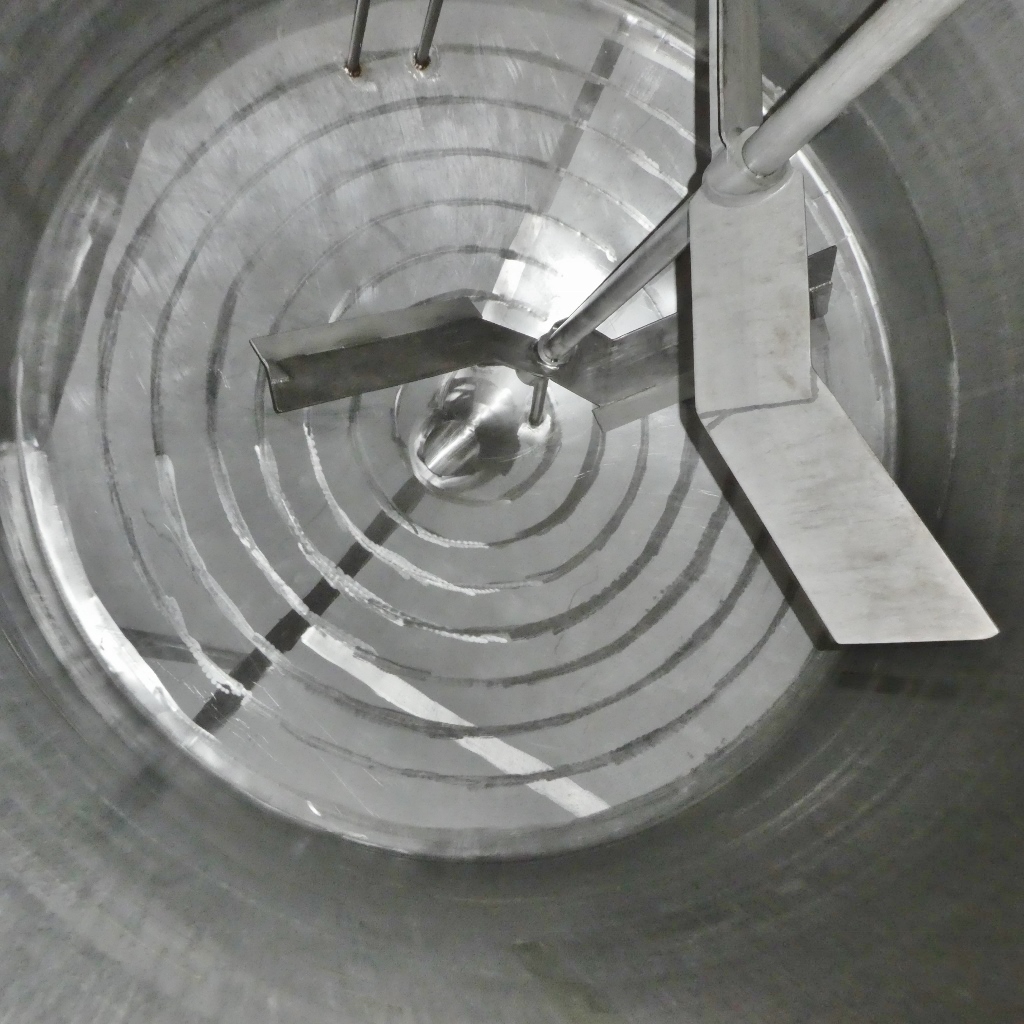

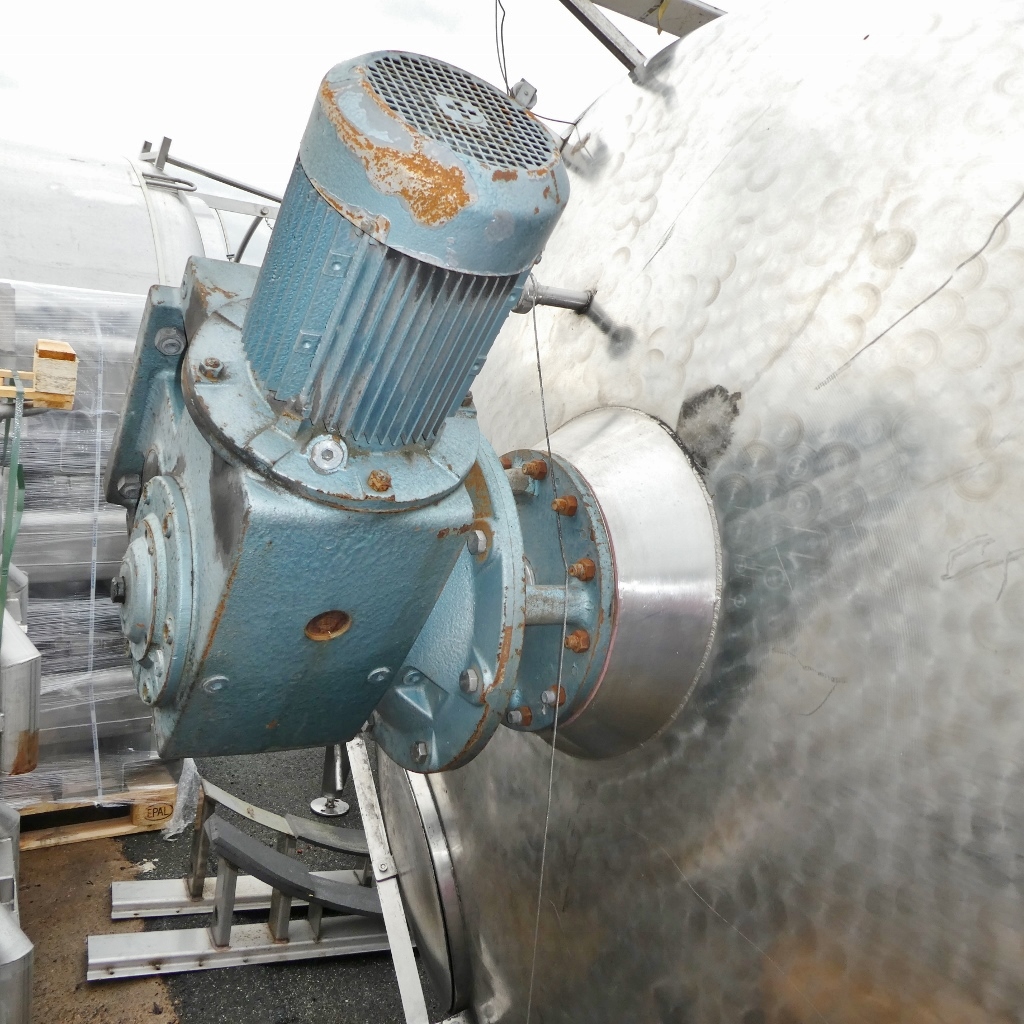

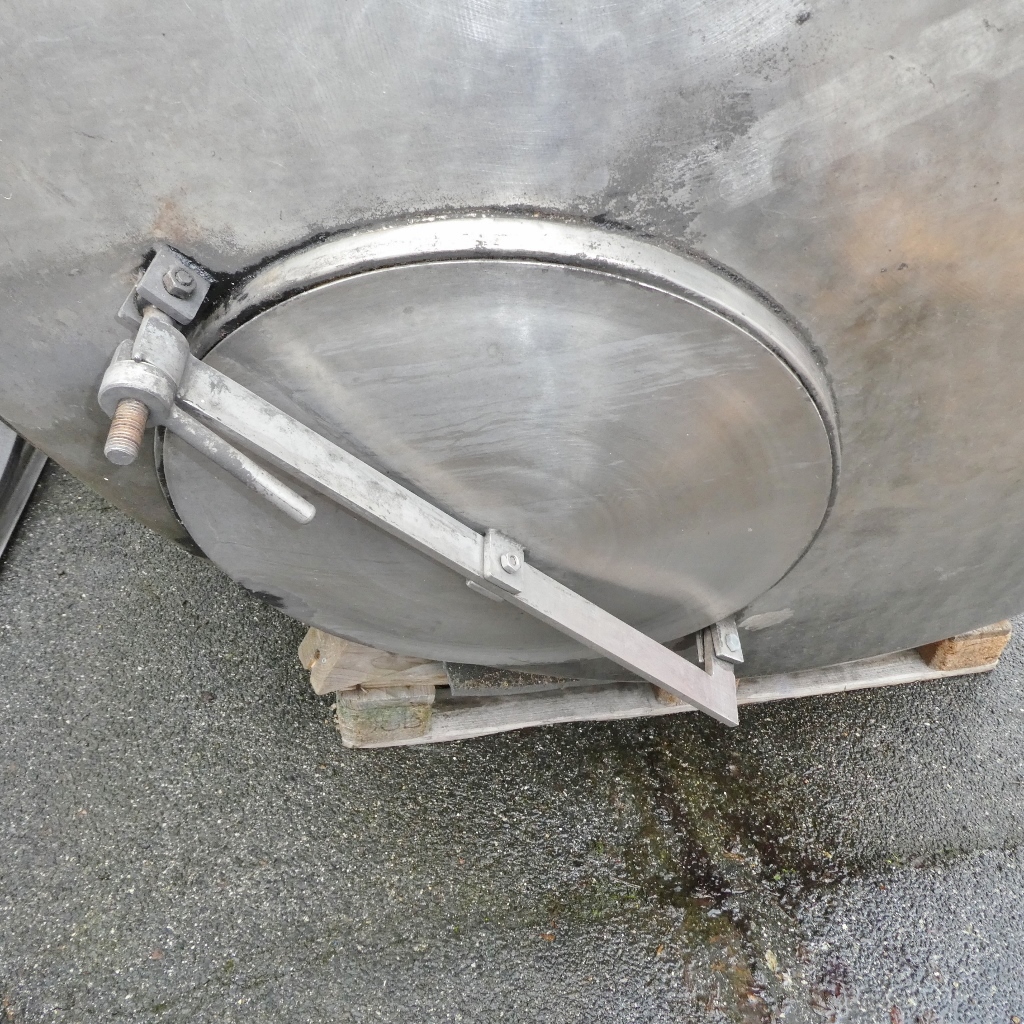

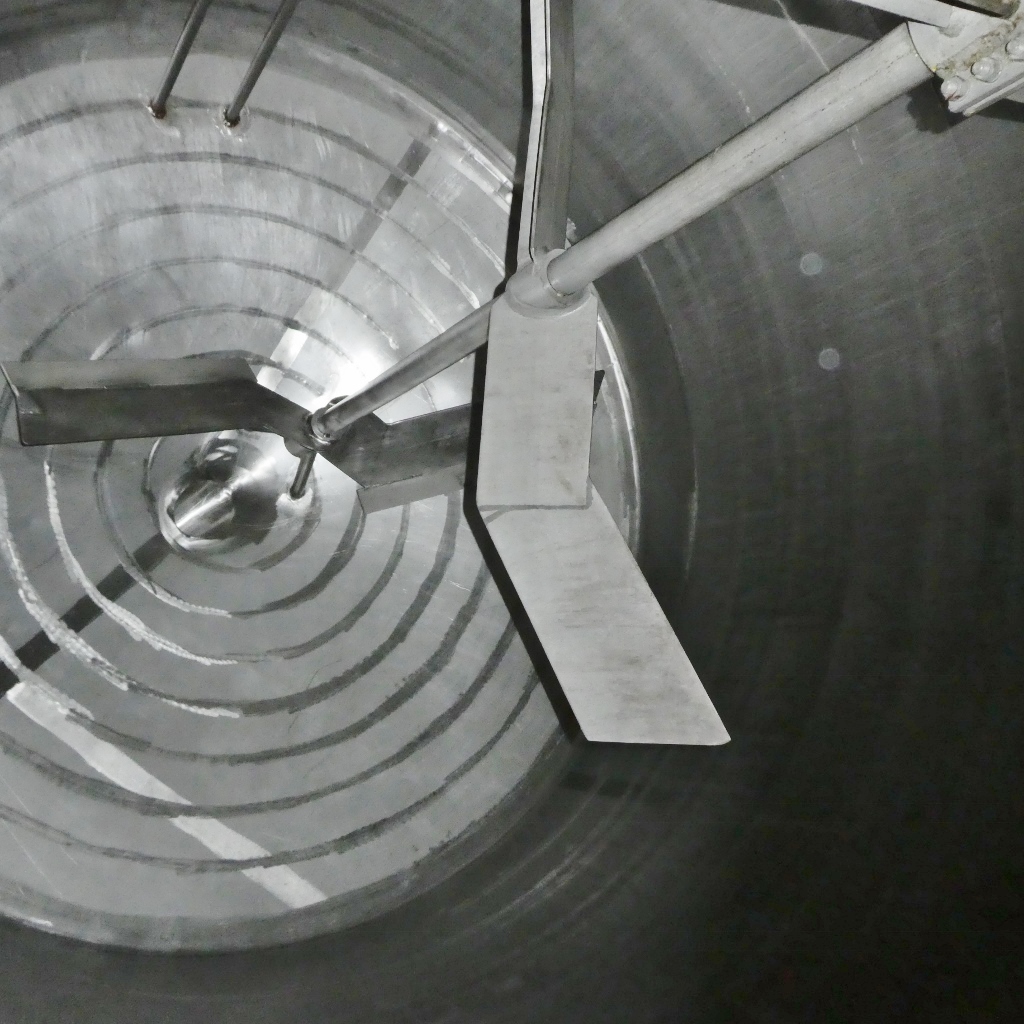

Additional information: chemistry; dents and 1 sheet cutout in the insulation jacket; some residues of previous content Volumetric volume (L): 8.000 L Pressure in tank: ATM - atmosferic Material wet parts: SS AISI 304 (V2A) Model: vertical Configuration: insulated with heat-exchanger Heat exchanger: yes Insulation: yes Mobile tank: no Total discharge: yes Type HE on the bottom: half pipe welded onto the outside of the innertank Documents included: no Technical drawing included: no Registration plate on the tank: no Flange for agitator: no Position of manway: in the bottom Outlet of tank: 50 Agitator: yes Number of revolutions: 14 Power: 4 Internal diameter tank: 2.180 mm Outer diameter tank: 2.340 mm Cylinder height: 1.980 mm Total height of tank: 3.900 mm
