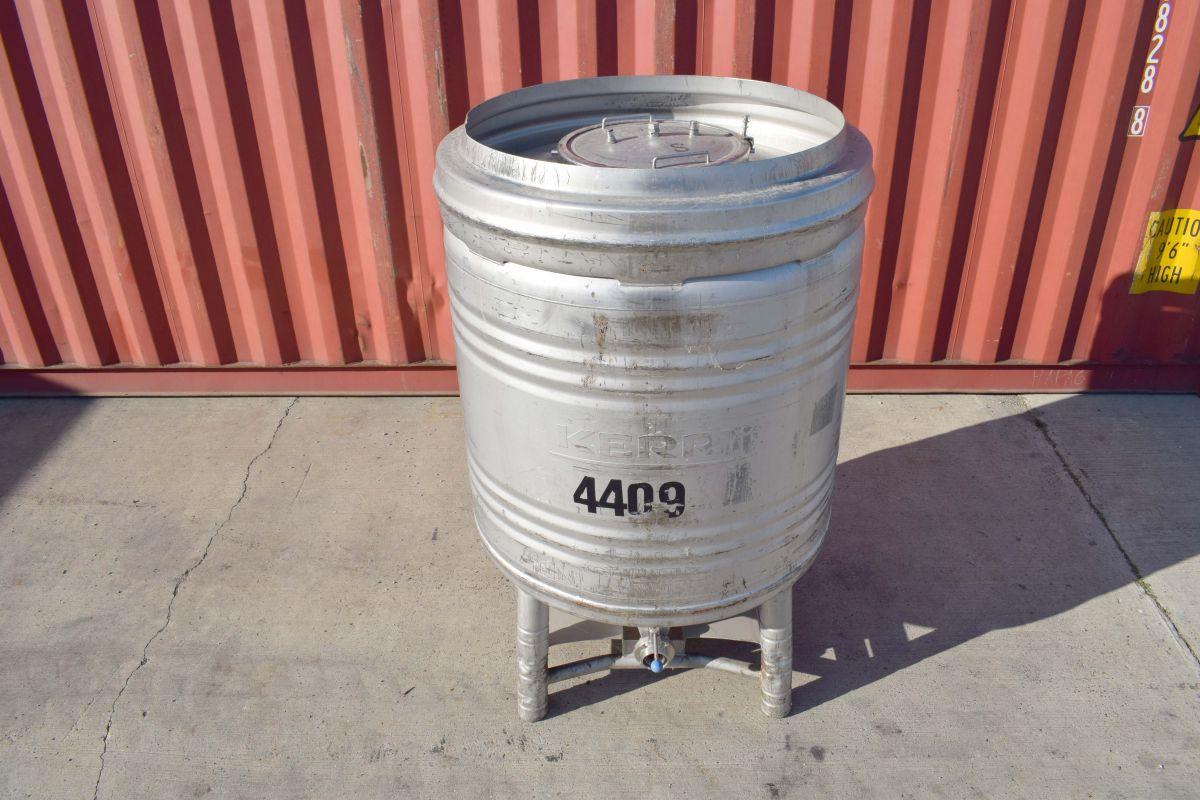

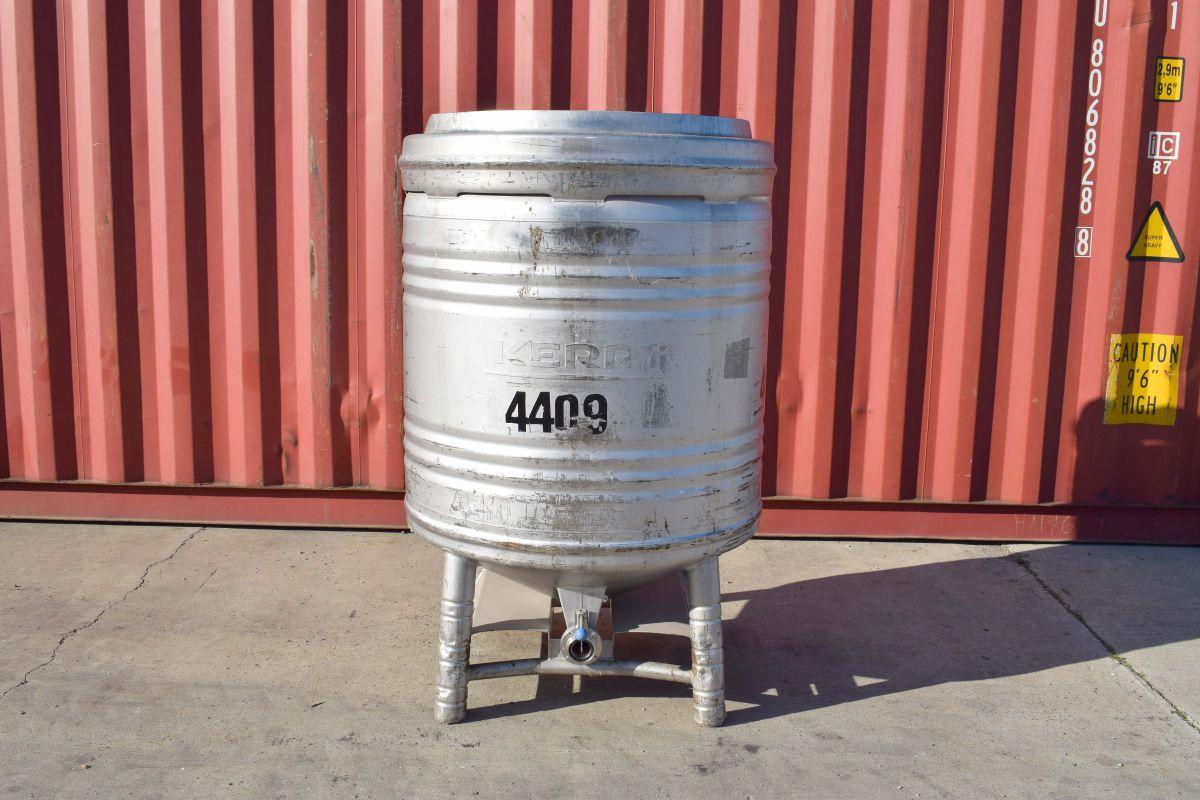

800 liter i Rostfritt 304

Article type: second-hand transport tank
Capacity: 800 L
Working pressure in tank: pressure
Design pressure of the tank: 2,70 Bar
Overpressure: 1,70 Bar

Underpressure: -0,15 Bar
Max. working temperature: 130 °C
Min. working temperature: -10 °C
Material wet parts: SS AISI 304L (V2A)
Model: vertical

Configuration: single-skin
Heat exchanger: no
Insulation: no
Agitator: yes, optional
Mobile tank: no

Top type: dished
Shape of tank: cylindrical

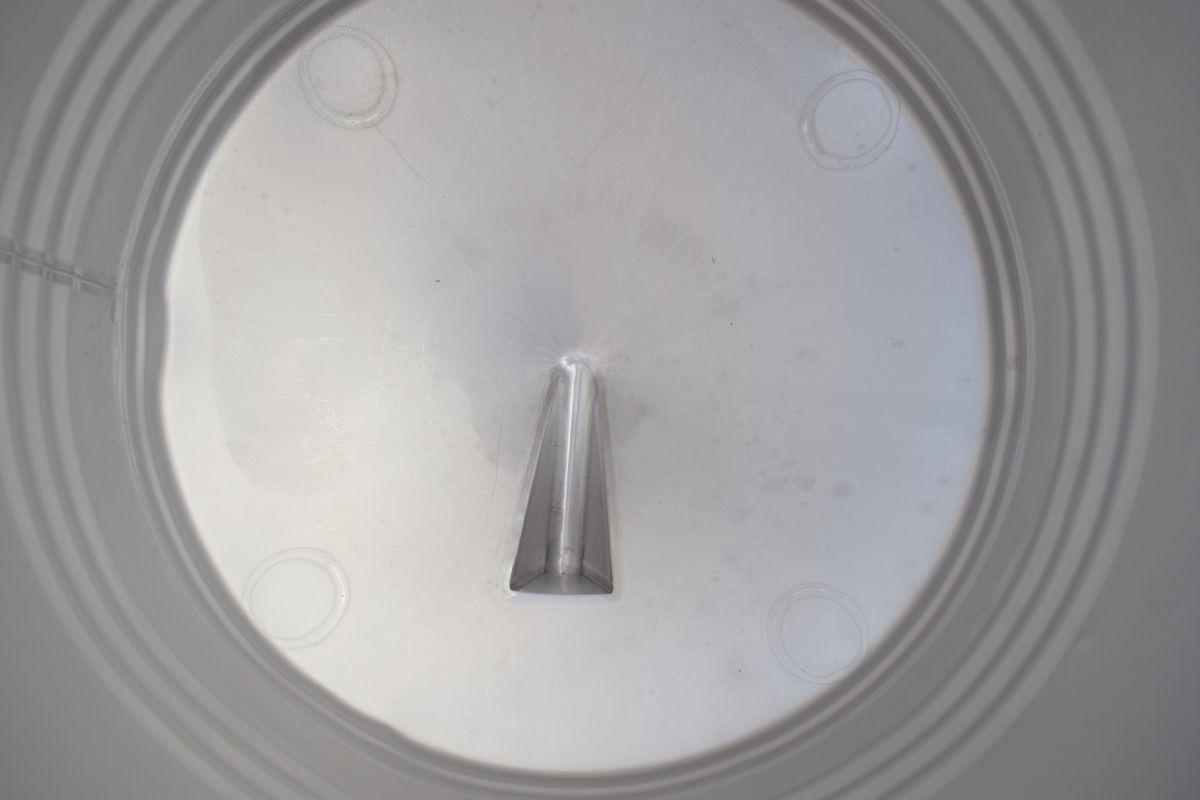

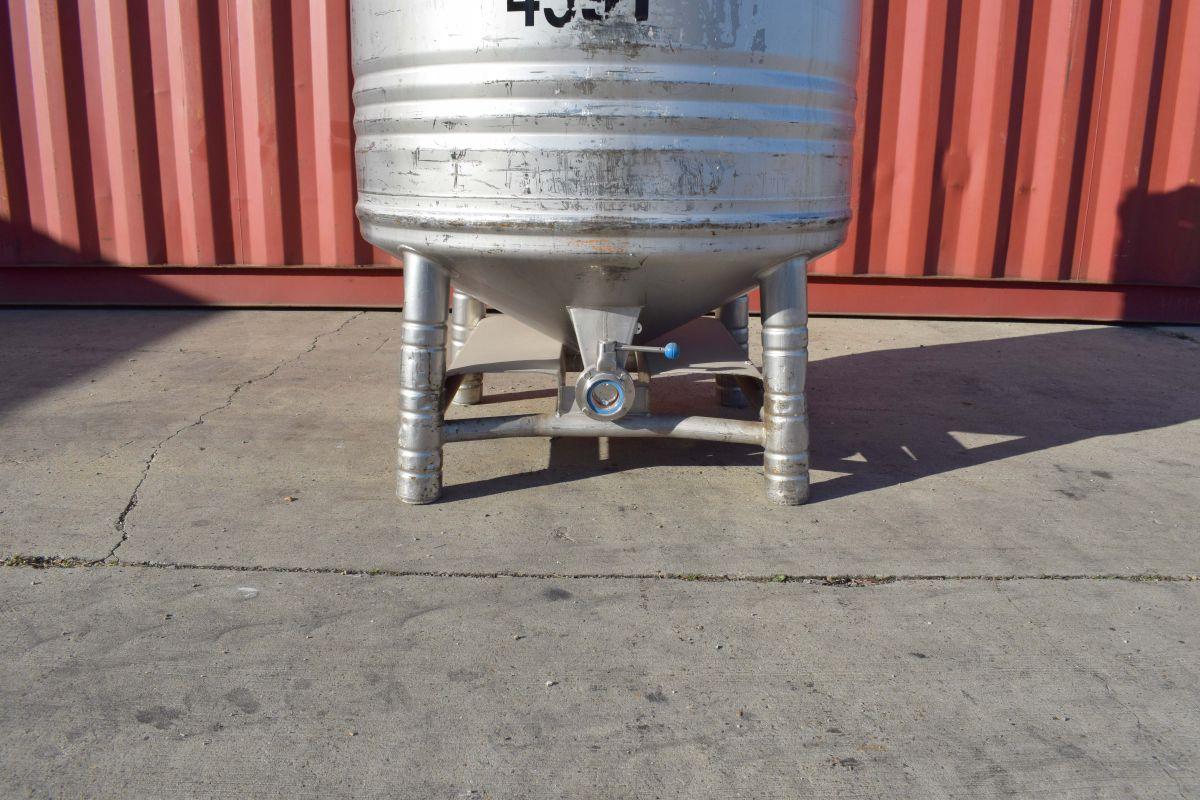

Bottom type: strong conical
Total discharge: yes

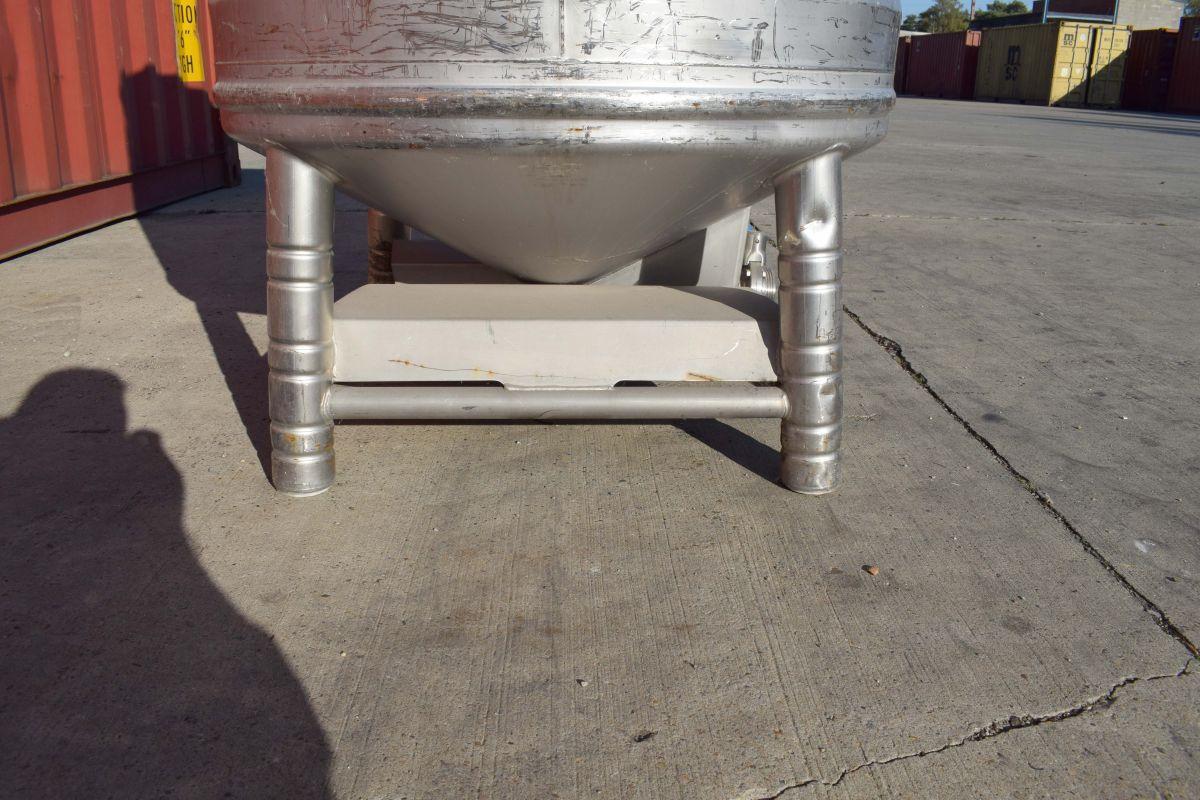

Fixation points: 4 stackable frame

Manway(s): RVS 304L
Gasket manway(s): unknown
Valve: RVS 304L
Gasket shut-off valve (mat): unknown
Fixation point(s): RVS 304L

Suitable for food industry: yes
Documents included: no
Technical drawing included: no

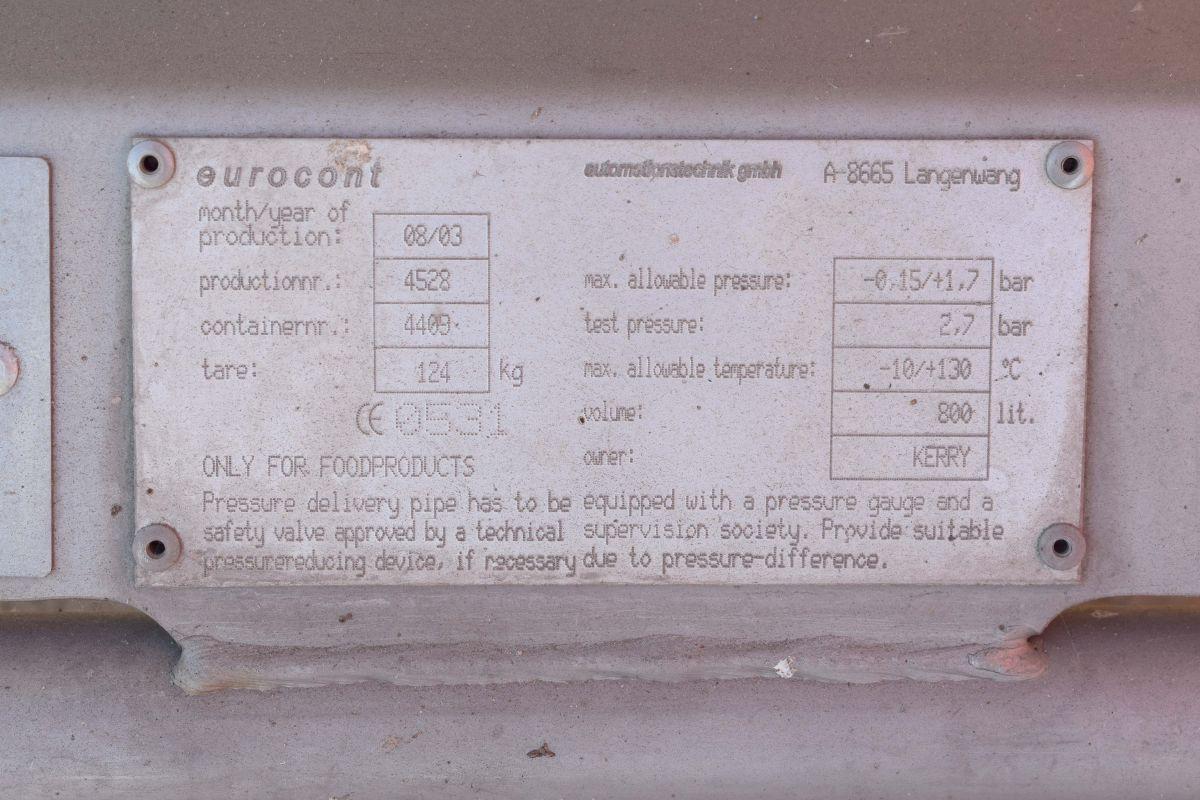

Registration plate on the tank: yes
Flange for agitator: no

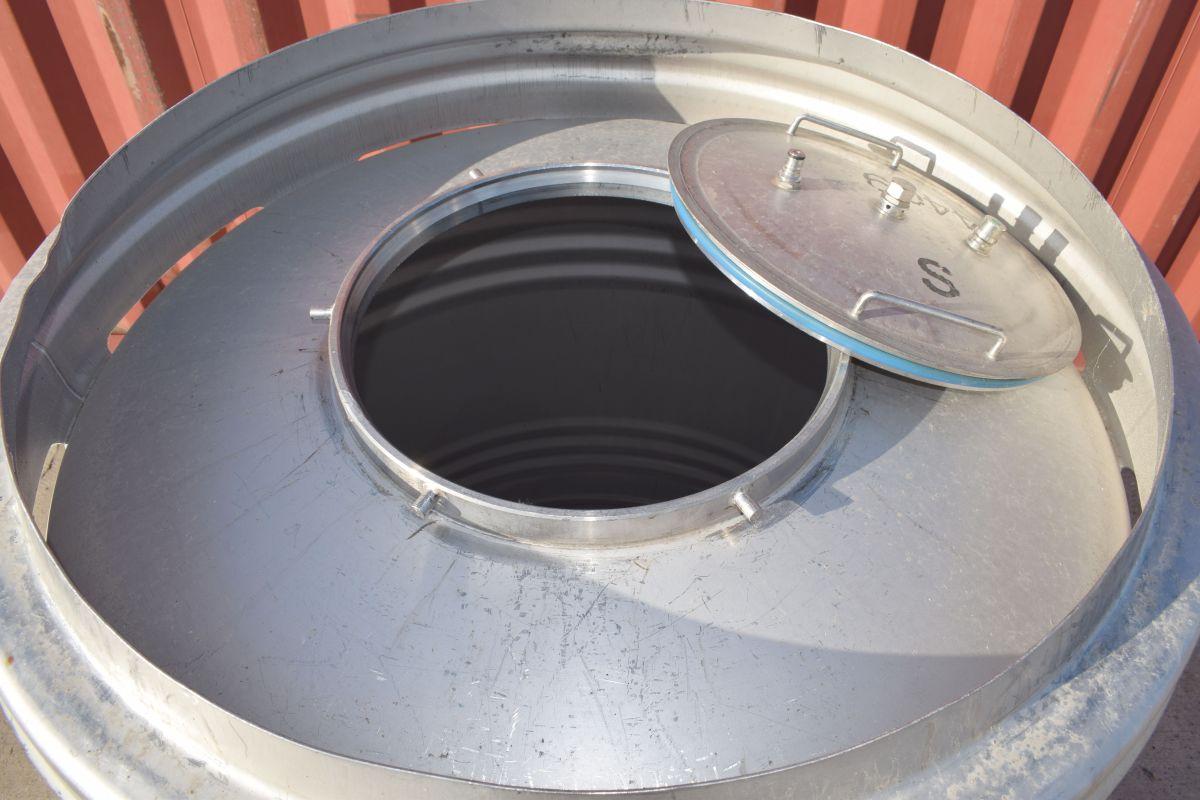

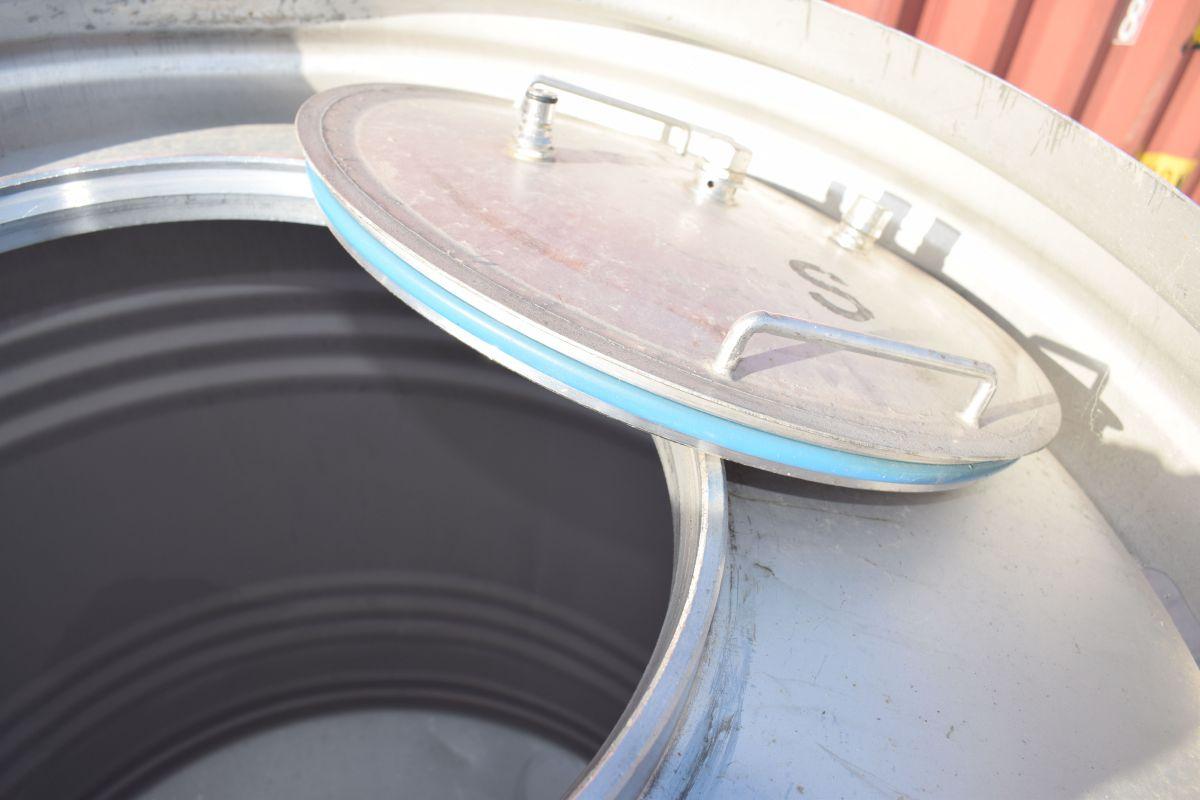

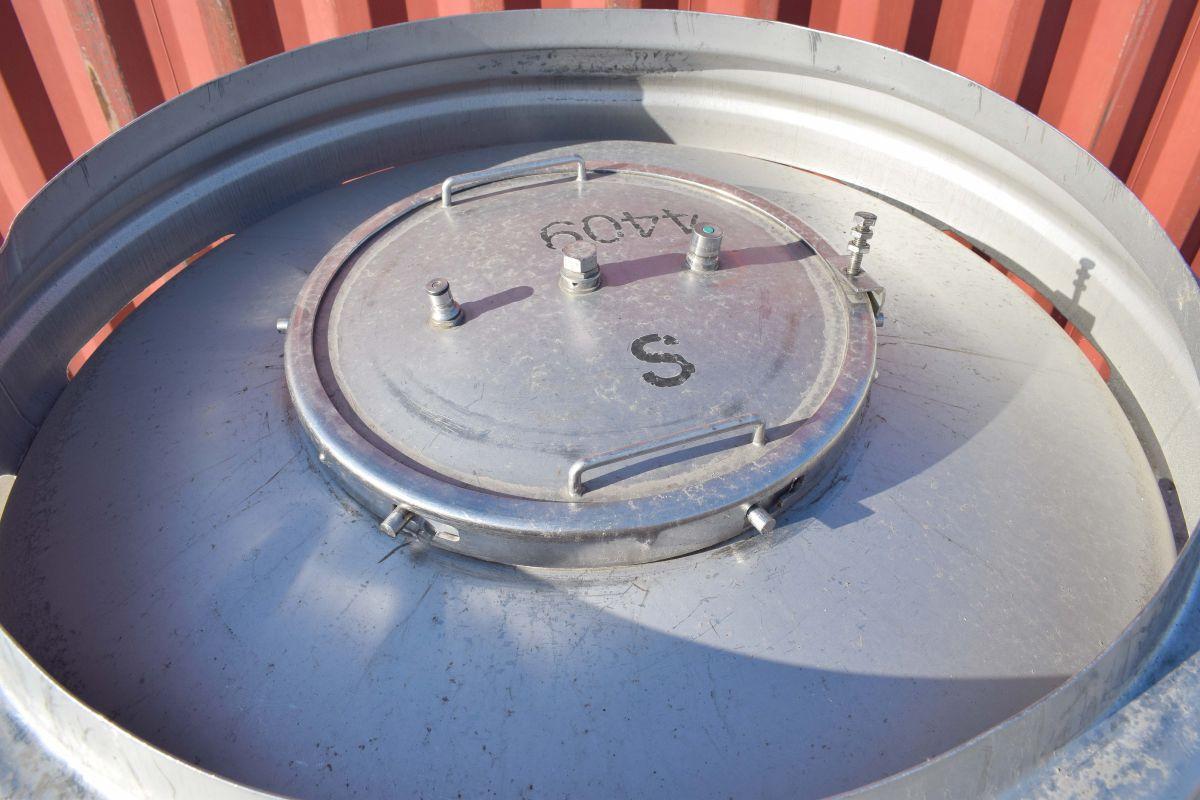

Number of manways: 1
Position manway: at the top

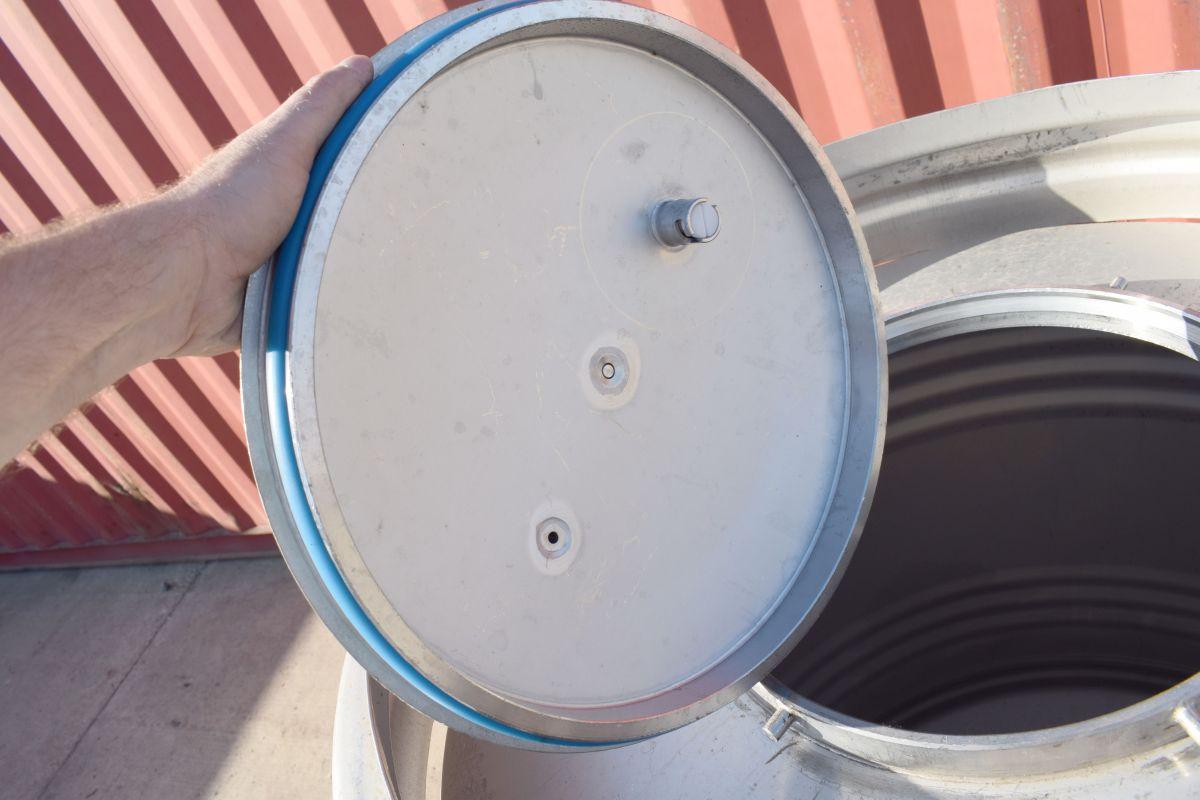

Manway 1: 400 mm
Tank outlet: inside Ø 50 mm
Outlet type: DIN11851 male

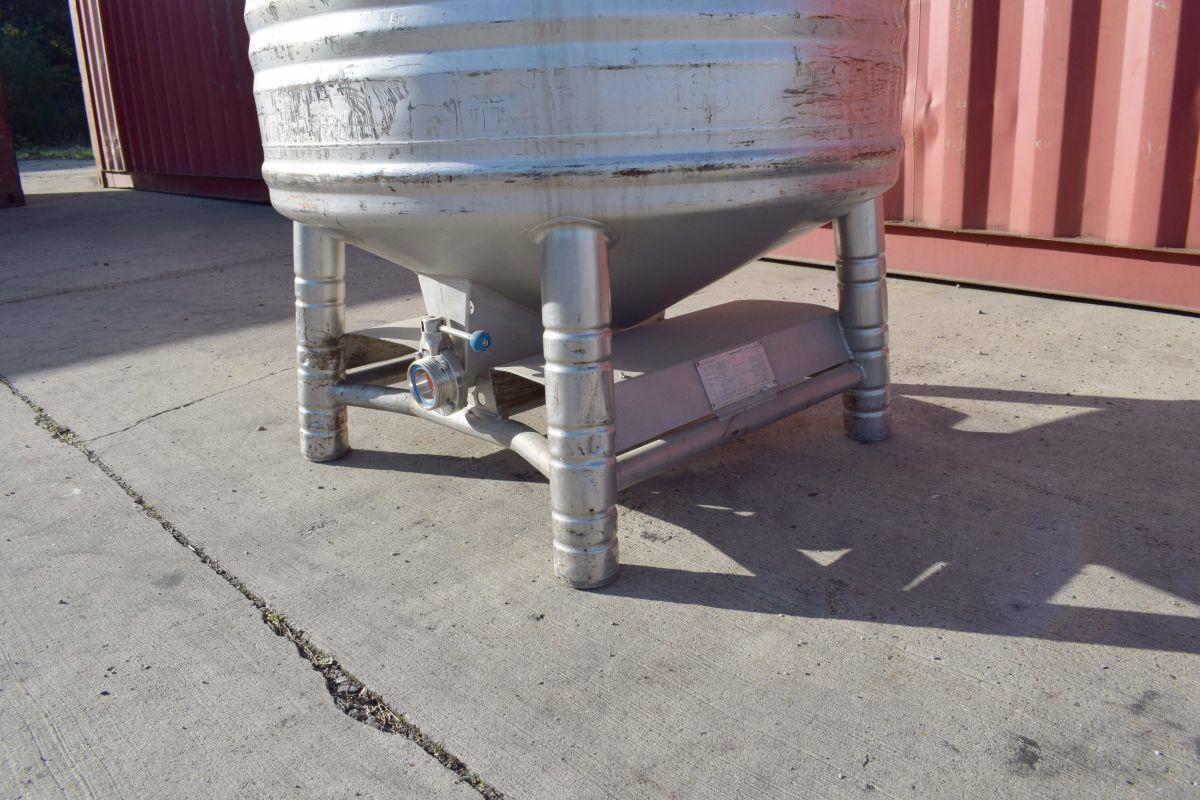

Total outlet valve: yes
Type shut-off valve: butterfly valve
Top: 2 mm
Cylinder: 2 mm
Bottom: 2 mm

Distance from outlet to ground: 200 mm
Outer diameter tank: 1.005 mm
Cylinder height: 860 mm
Total height of tank: 1.600 mm
Empty weight tank: 124
