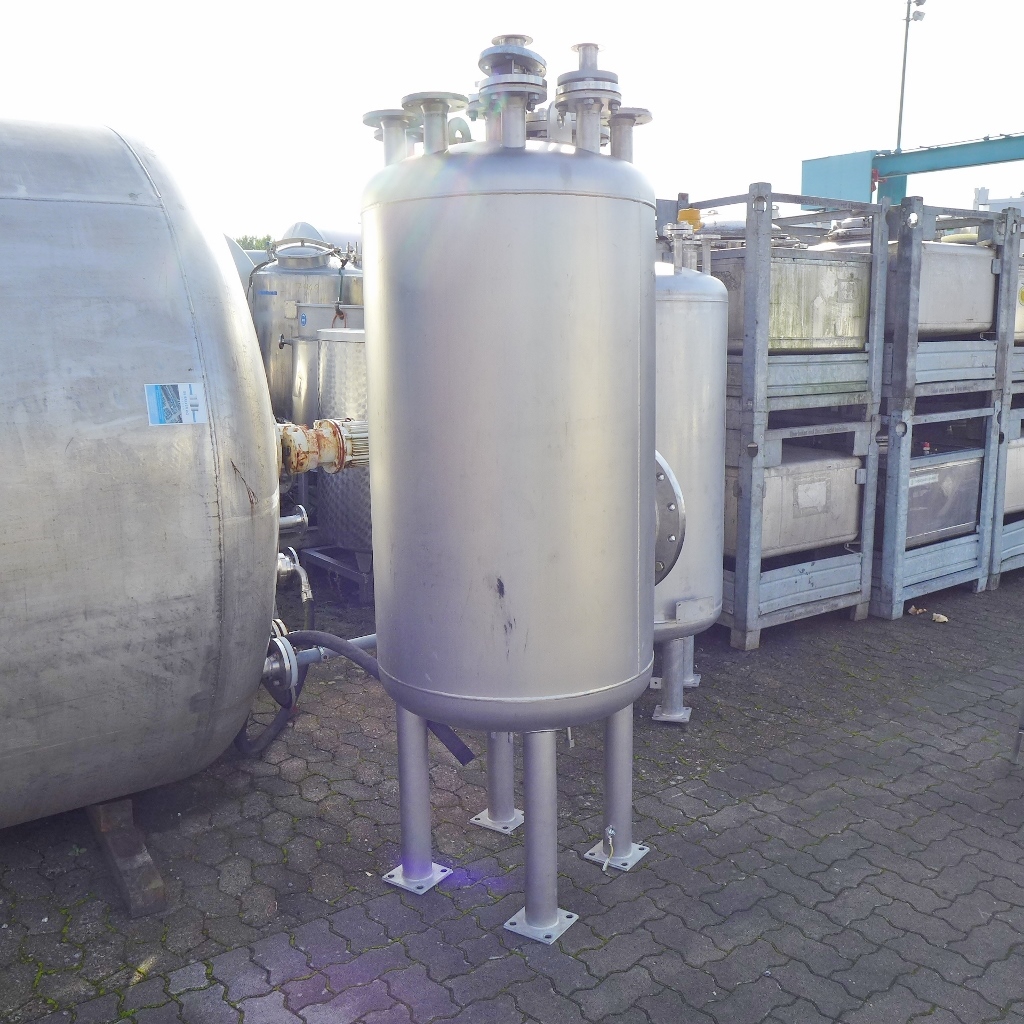

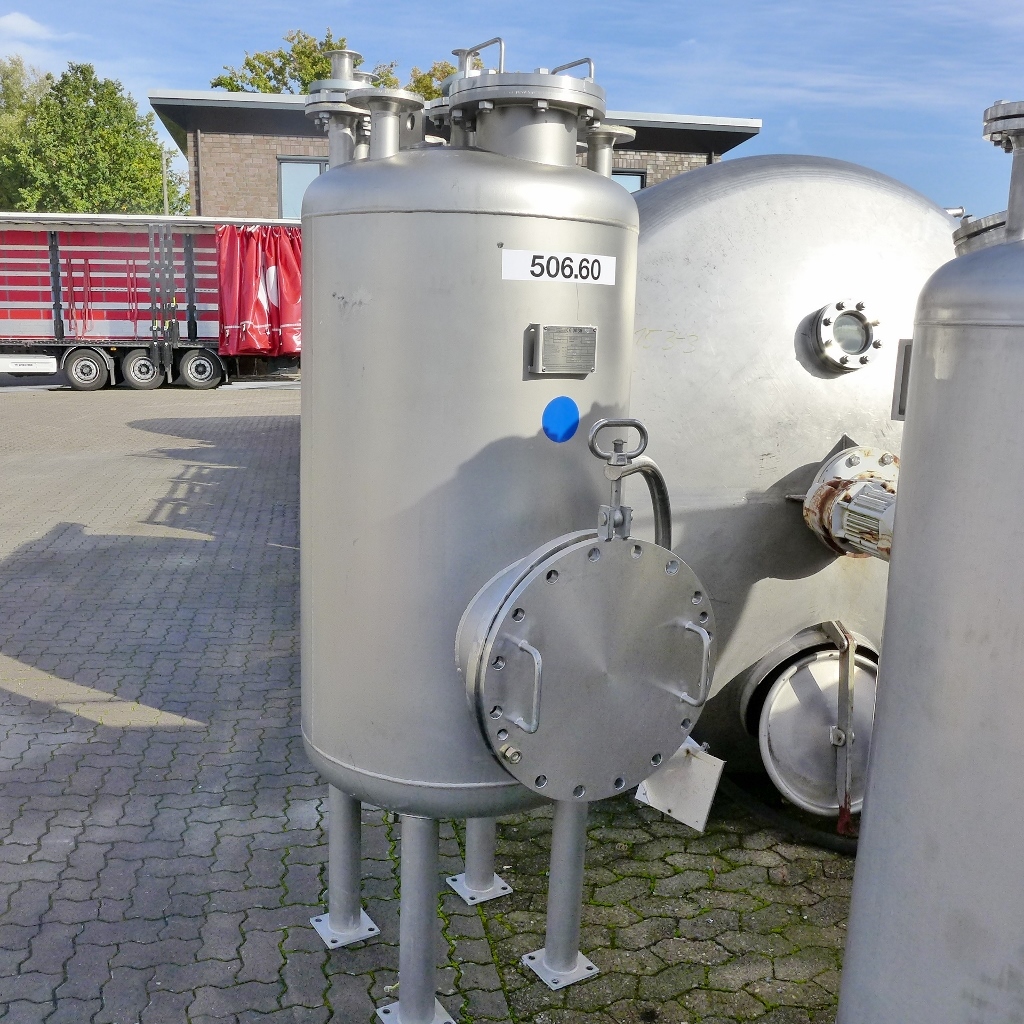

742 liter tank i Syrafast 316

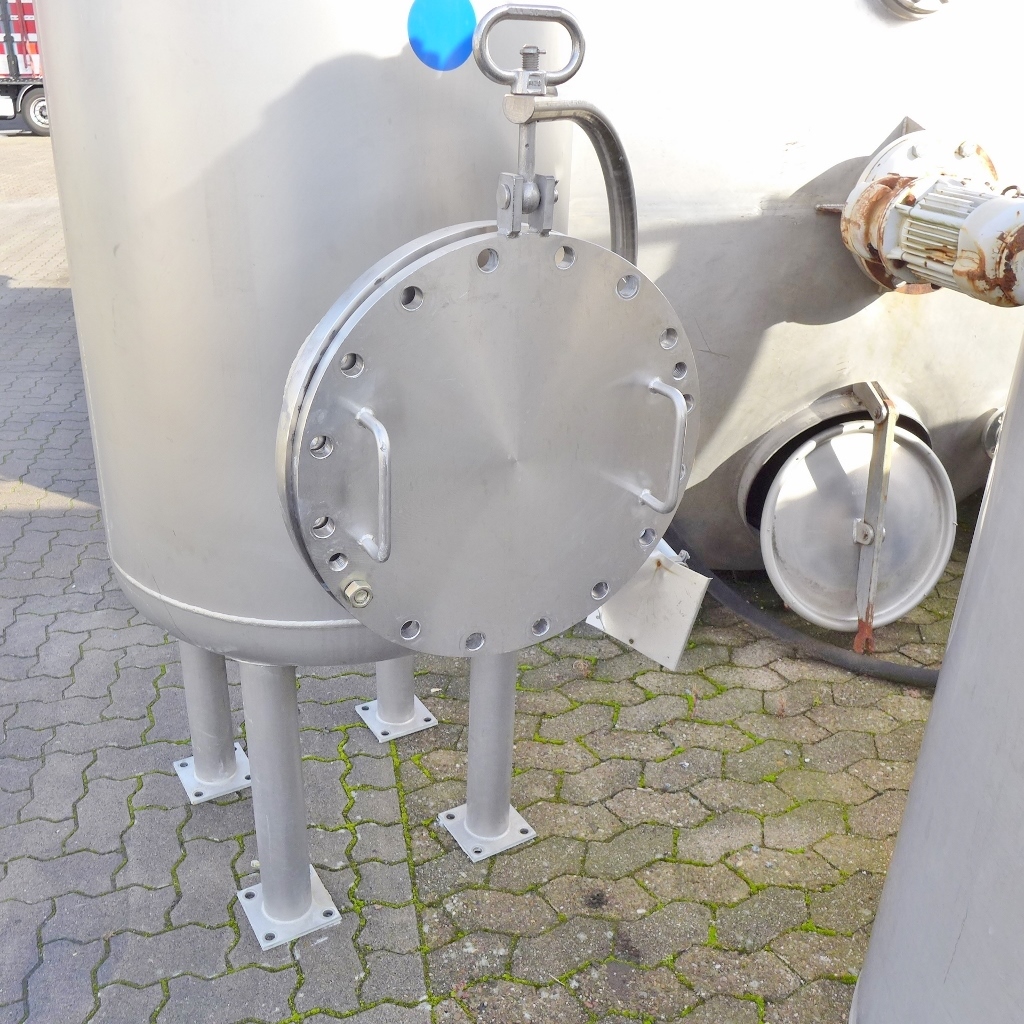

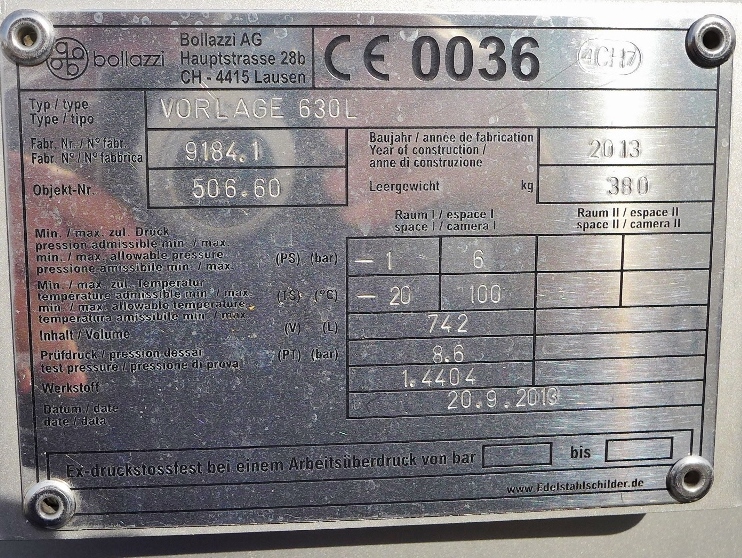

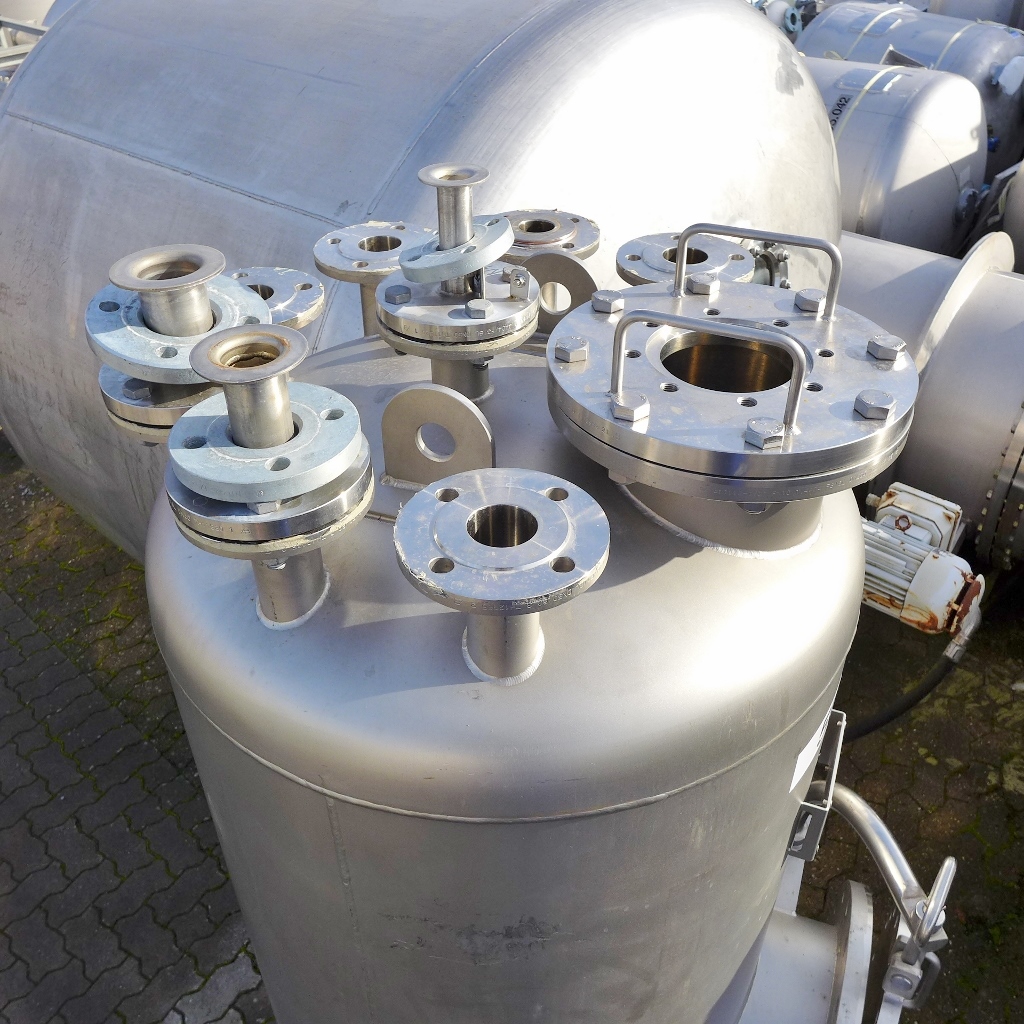

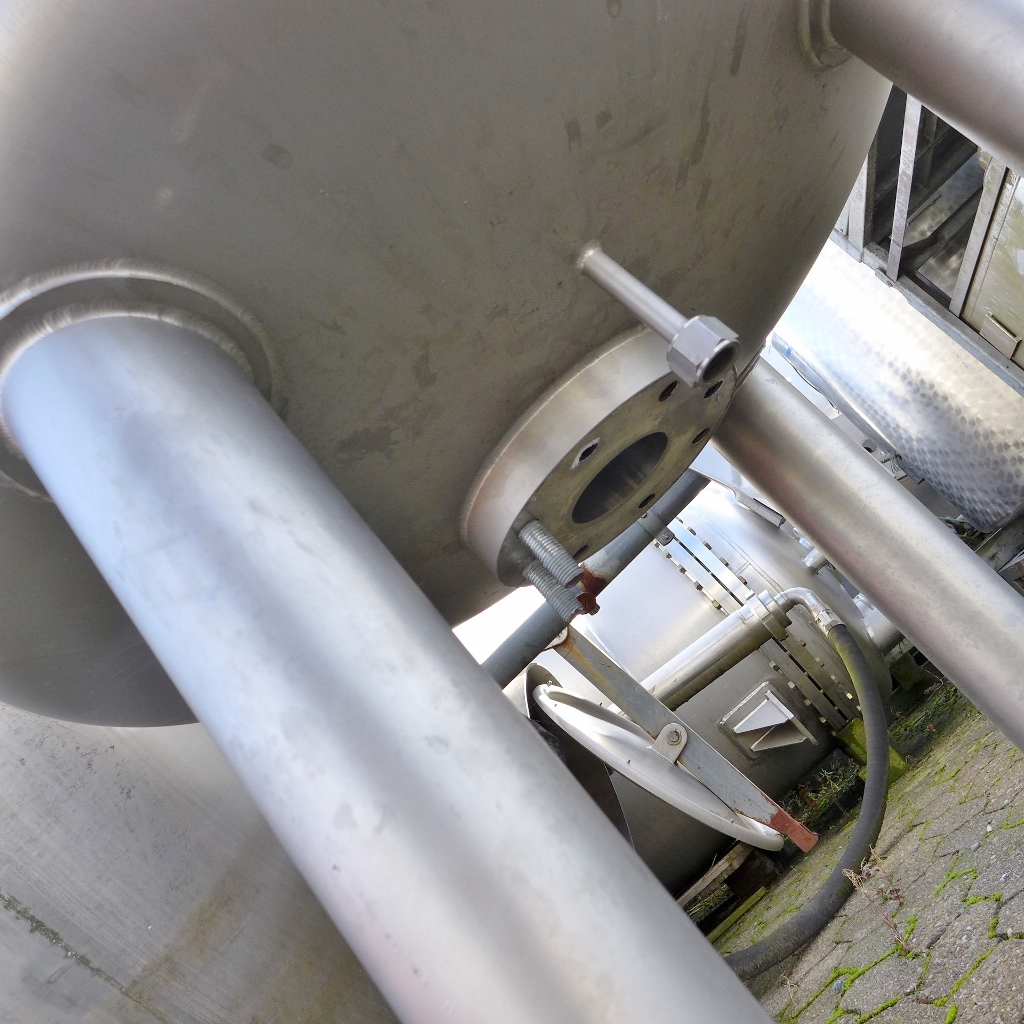

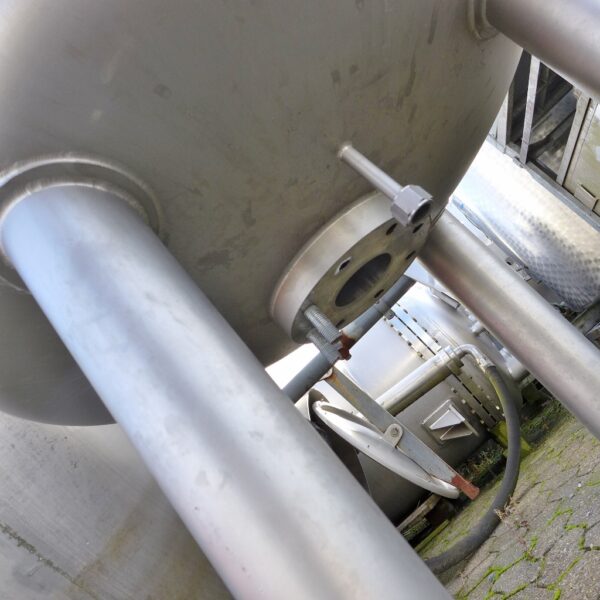

Additional information: Pharmaceutical Chemistry; 1 manhole DN 400 in the cylinder, 1 hand hole DN 200 in the upper bottom (sight glass in the hand hole cover is missing) Volumetric volume (L): 742 L Pressure in tank: pressure and vacuum Max. pressure (Bar): 6 Bar Min. pressure (Bar): 1 Bar Max. temperature (°C): 100 °C Material wet parts: SS AISI 316 (V4A) Model: vertical Configuration: single-skin Heat exchanger: no Insulation: no Mobile tank: no Total discharge: yes Max Overpressure: 6 Bar Max onderdruk: 1 Bar Documents included: no Technical drawing included: no Registration plate on the tank: yes Flange for agitator: no Position of manway: cylinder Outlet of tank: flange DN80 Cylinder: 5 mm Bottom: 6 mm Internal diameter tank: 800 mm Cylinder height: 1.240 mm Total height of tank: 2.350 mm
