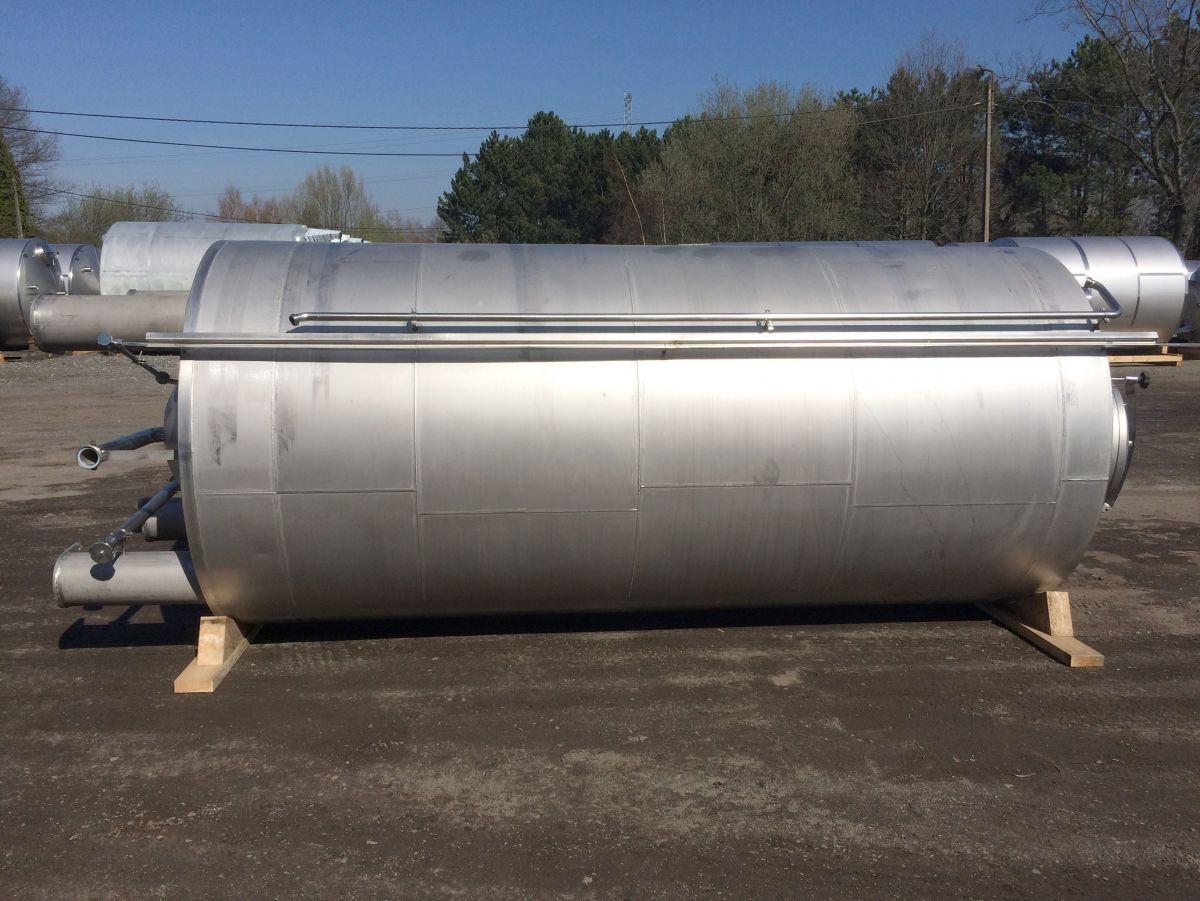

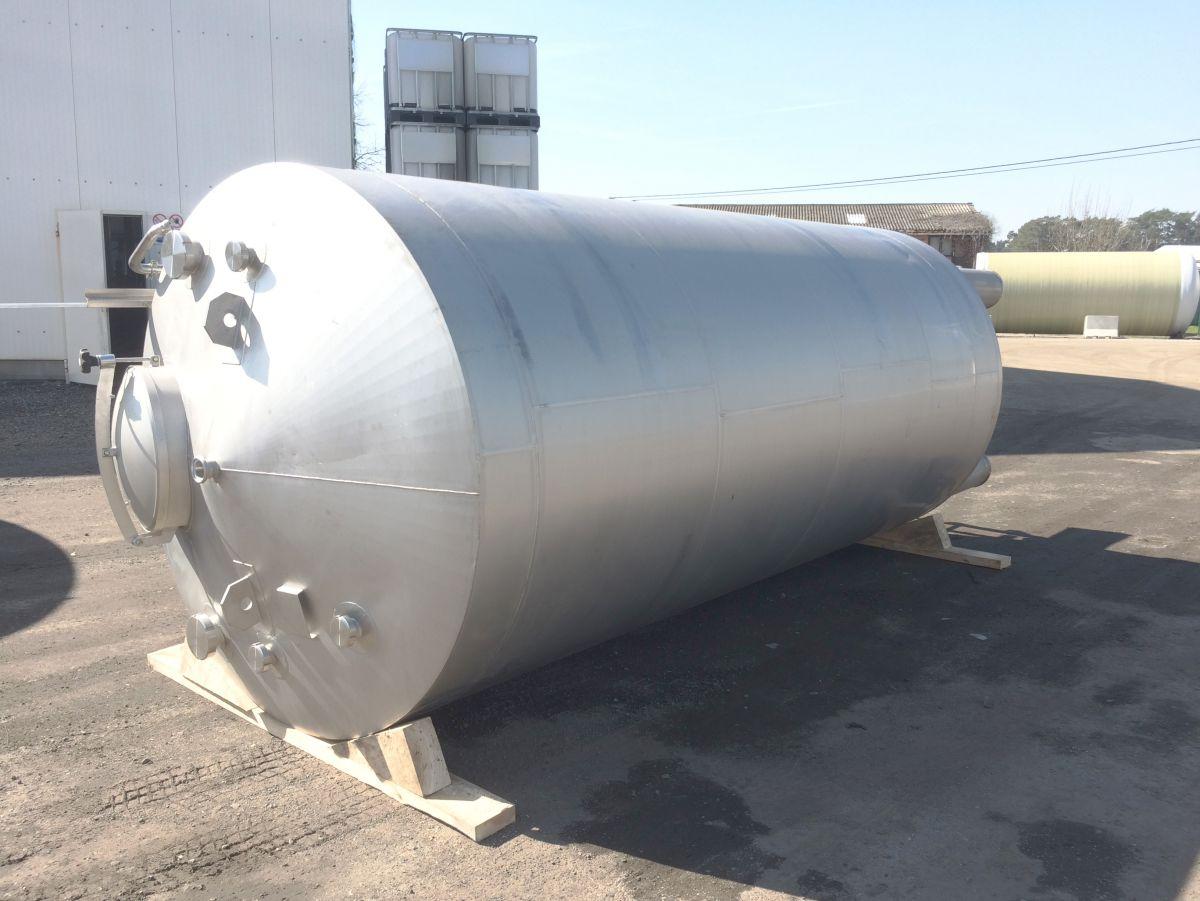

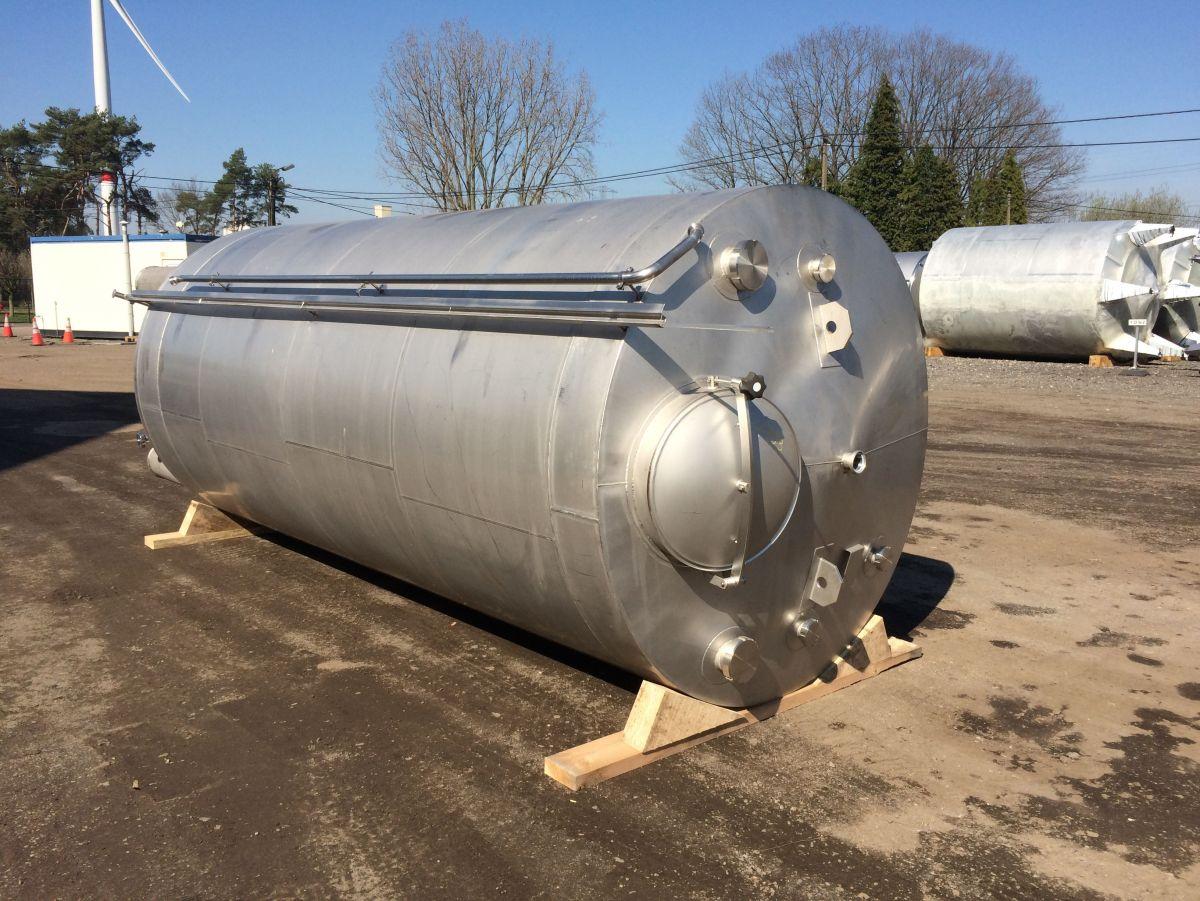

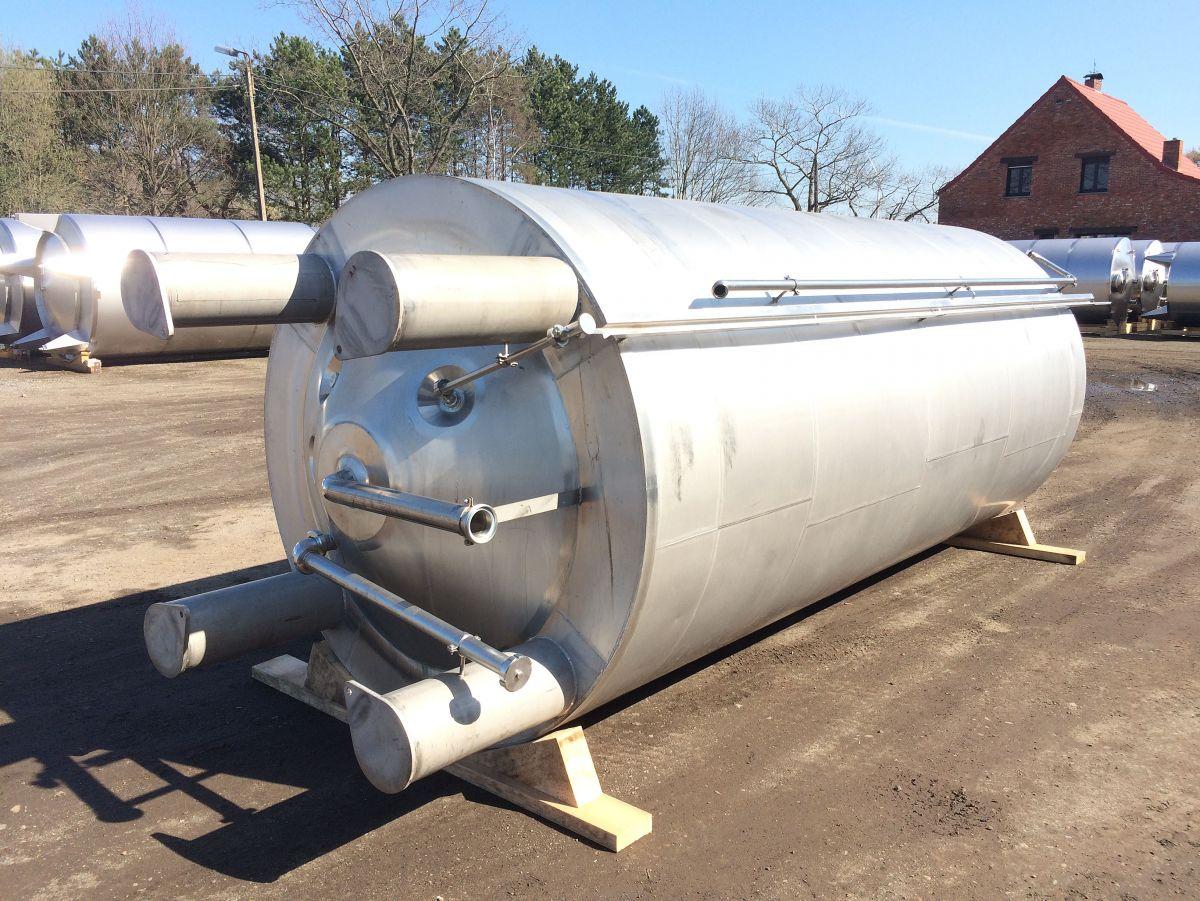

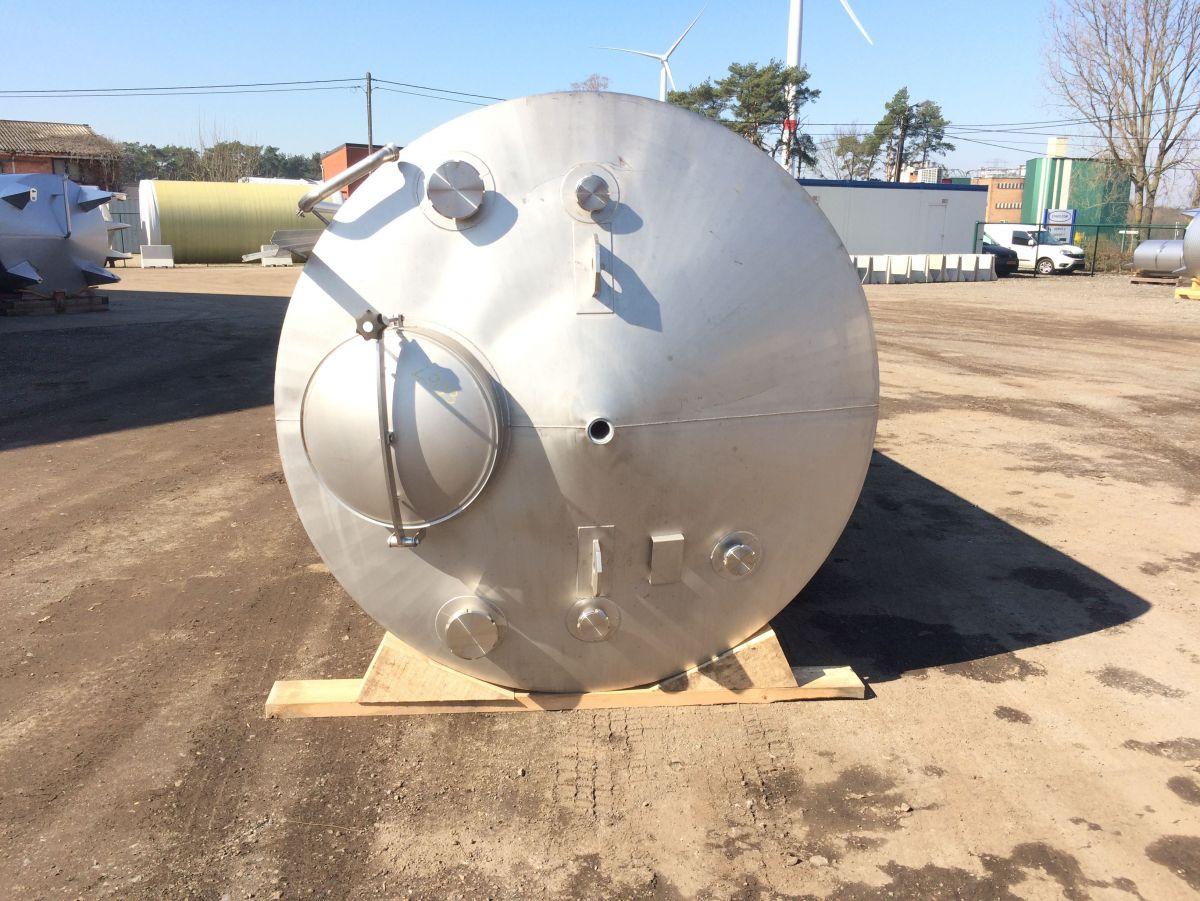

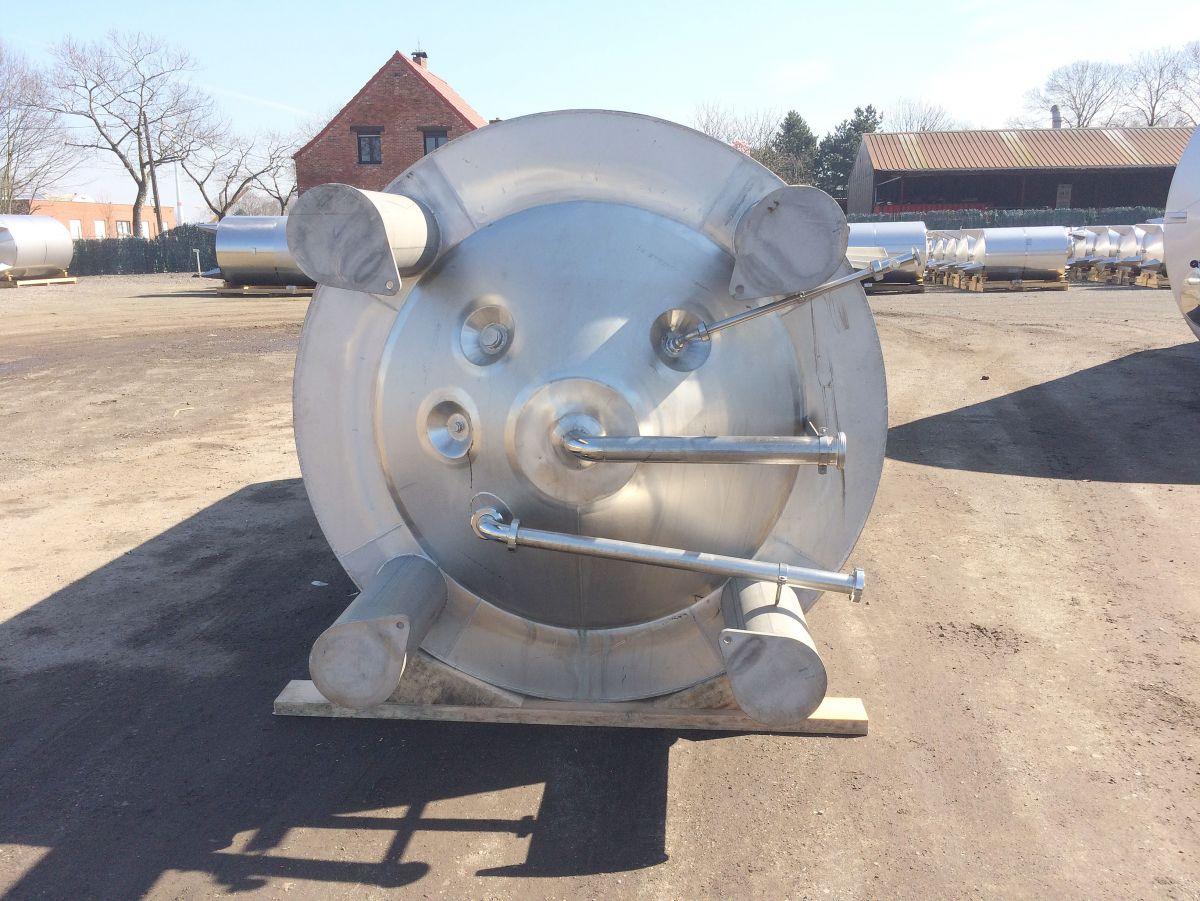

7000 liter i Syrafast 316

Article type: second-hand storage tank

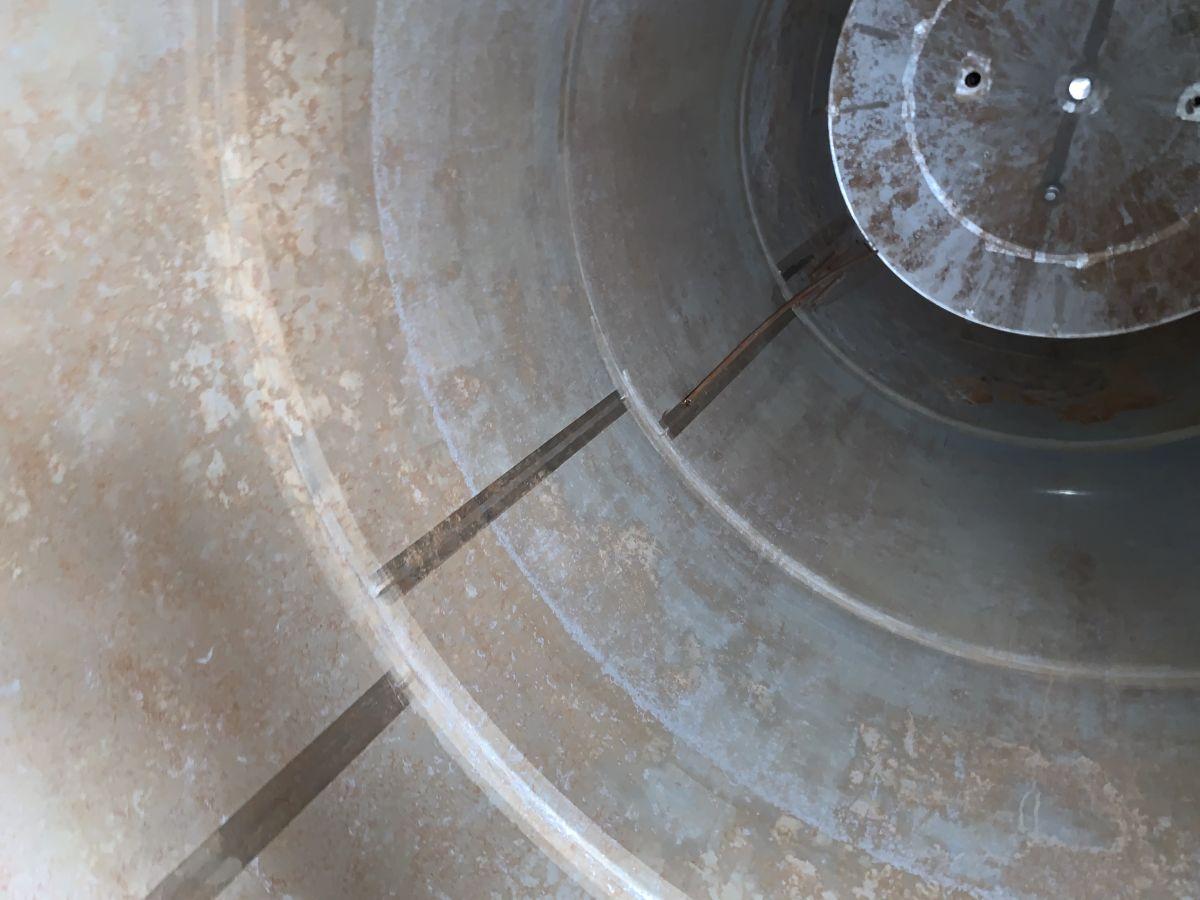

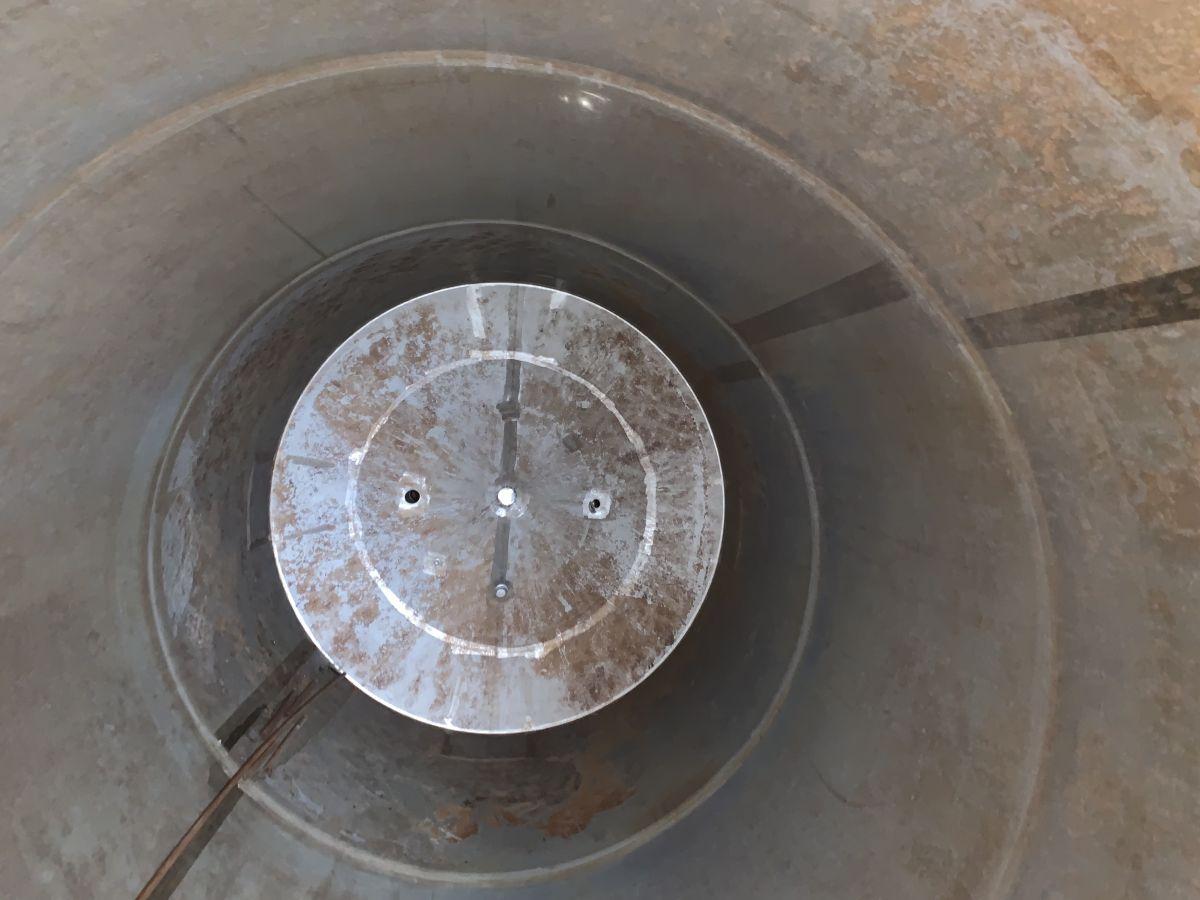

Additional information: The tank comes from the fruit juice industry, there is still a brown powder on the inner wall,
Capacity: 7.000 L
Working pressure in tank: ATM – atmosferic
Material wet parts: SS AISI 316L (V4A)

Model: vertical
Configuration: insulated
Heat exchanger: no
Insulation: yes
Mobile tank: no

Top type: conical
Shape of tank: cylindrical
Bottom type: strong conical
Total discharge: yes
Fixation points: 4 non adjustable feet

Insulation material: Rockwool
Outer jacket (ornamental wall): RVS 304
Manway(s): RVS 316
Gasket manway(s): unknown
Fixation point(s): RVS 304

Suitable for food industry: yes
Documents included: no
Technical drawing included: no
Registration plate on the tank: no
Flange for agitator: no

Number of manways: 1
Position manway: at the top

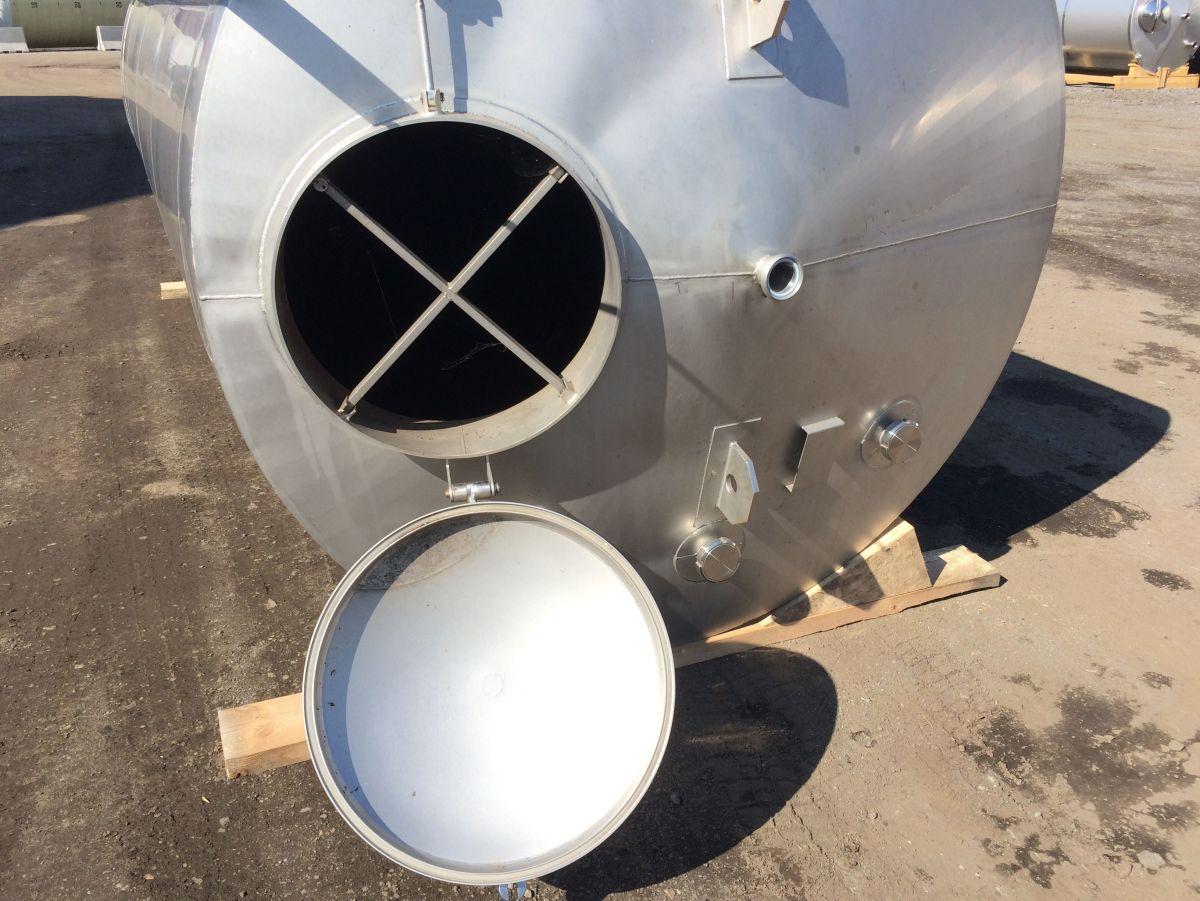

Manway 1: 500 mm
Tank outlet: inside Ø 65 mm
Outlet type: DIN11851 male

Insulation top: yes
Insulation body: yes
Insulation bottom/sides: yes
finish of the outer jacket: welded
Insulation thickness: 50

Internal diameter tank: 1.600 mm
Distance from outlet to ground: 160 mm
Outer diameter tank: 1.700 mm
Cylinder height: 3.500 mm
Total height of tank: 4.600 mm

Empty weight tank: 1.000
