6300 liter tank i Rostfritt 304

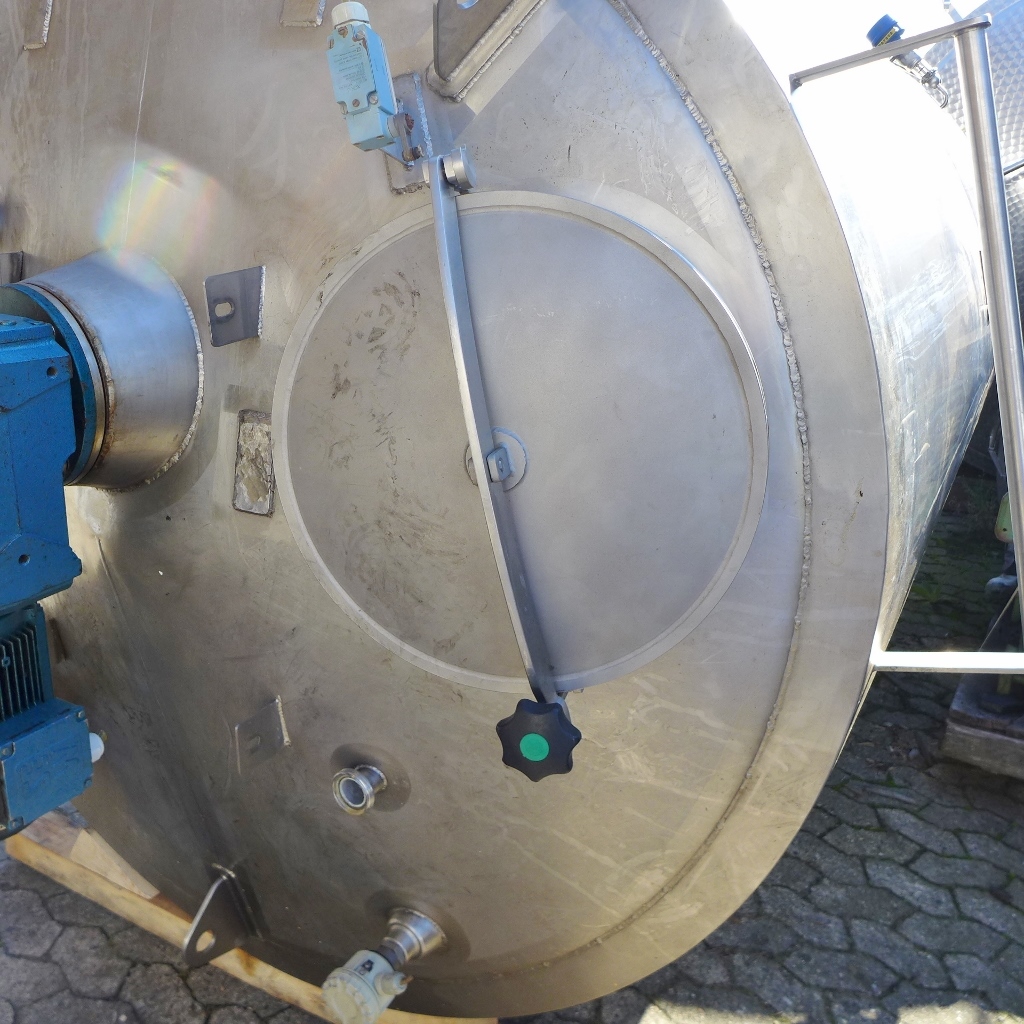

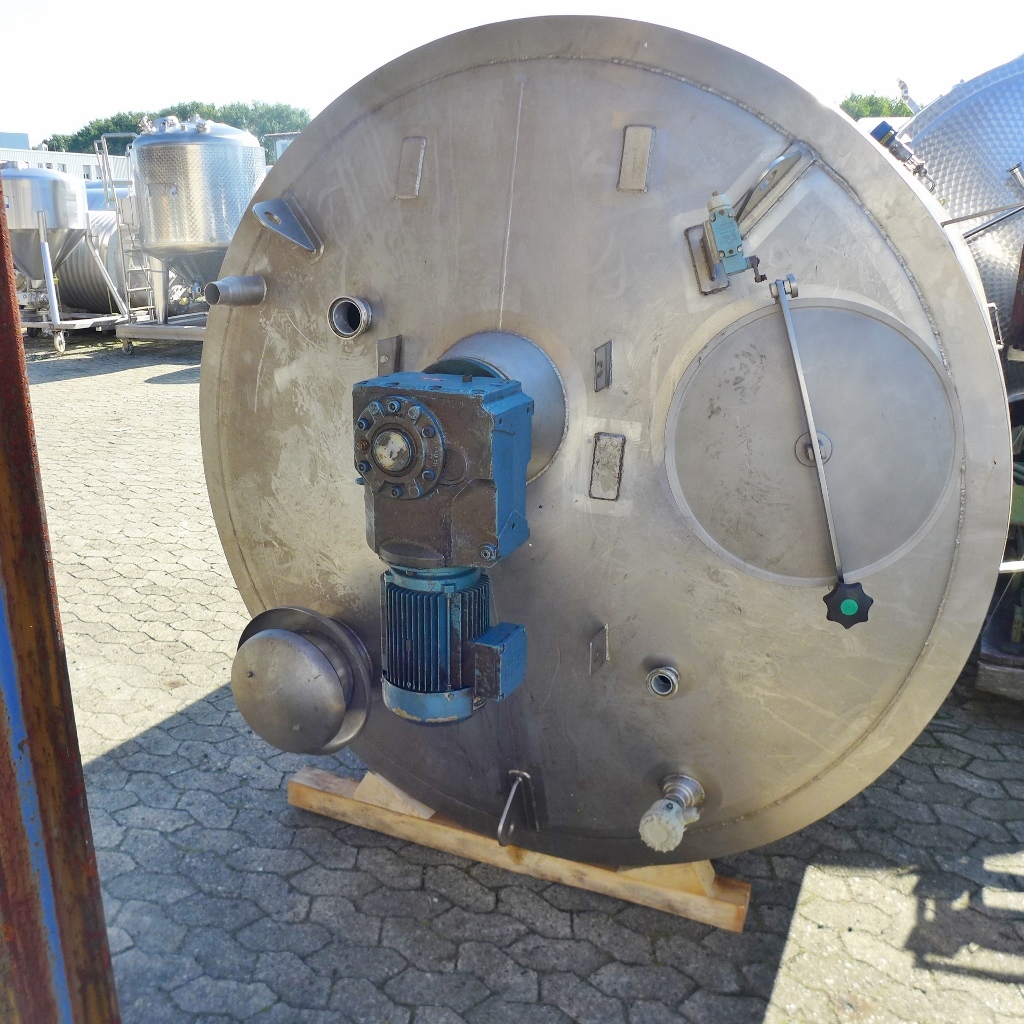

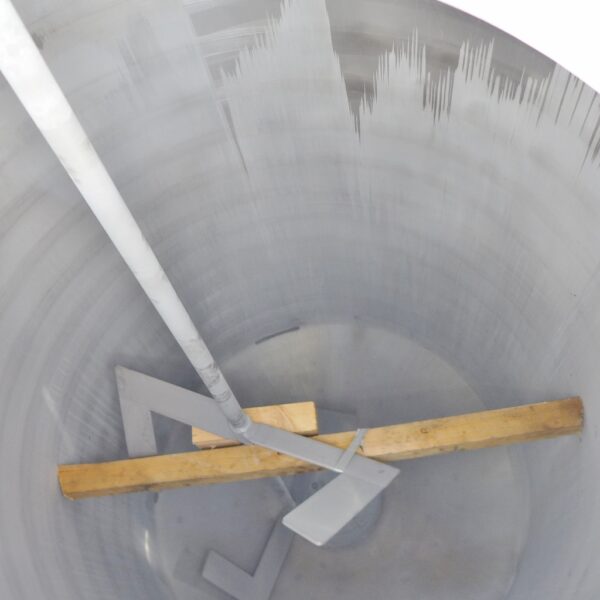

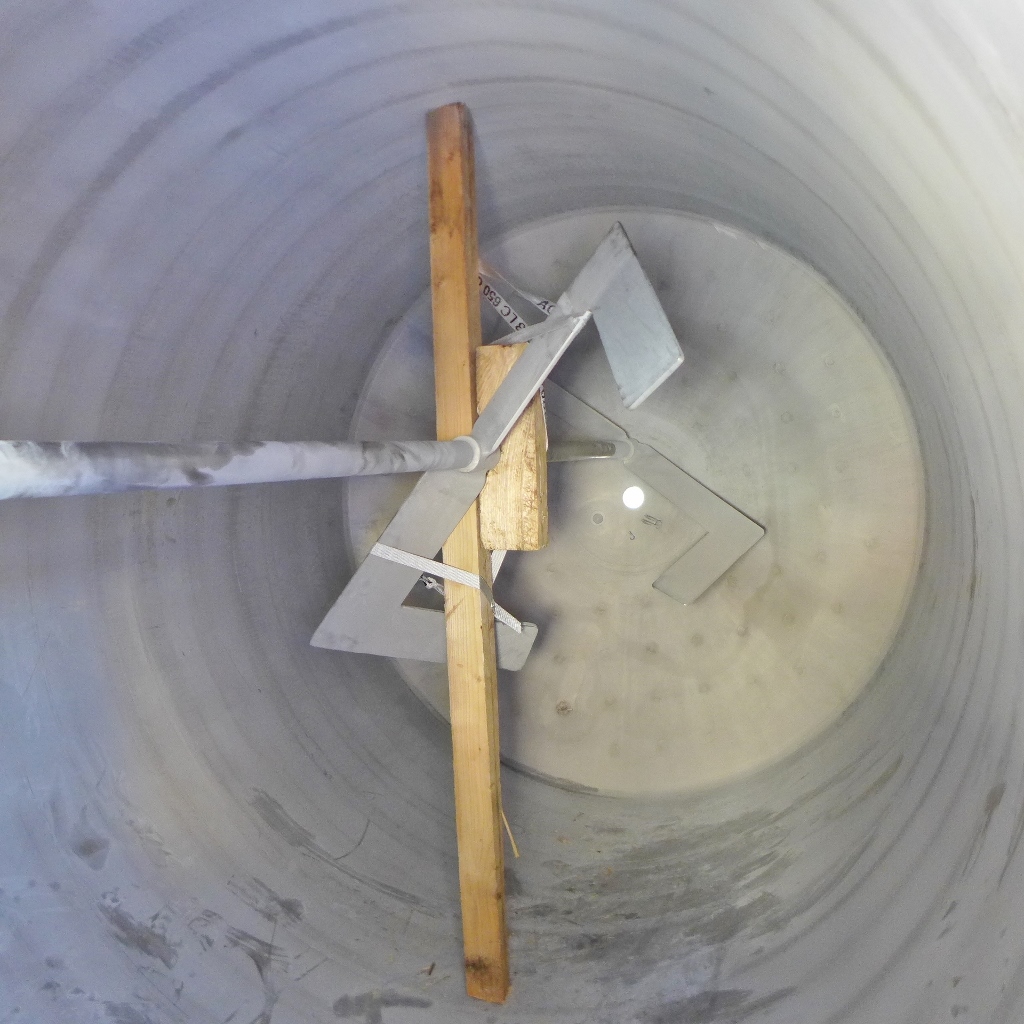

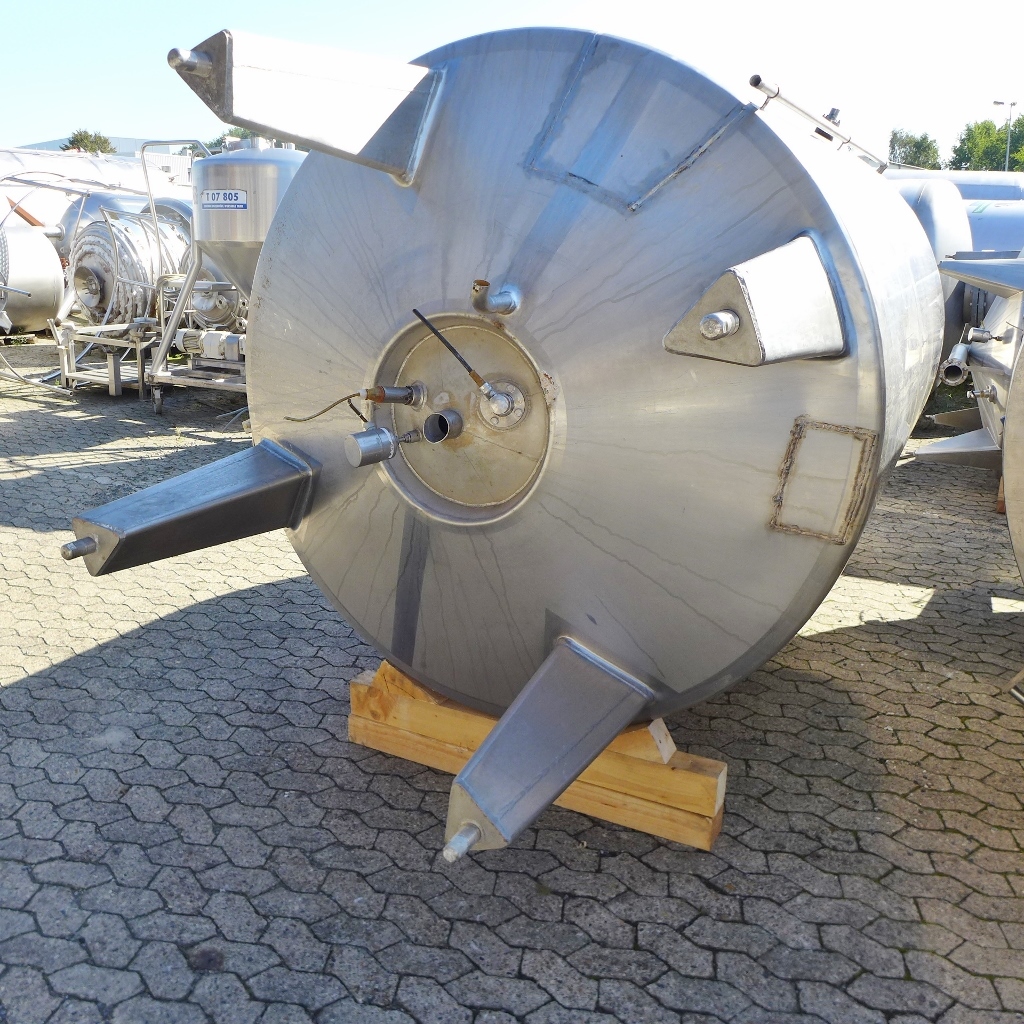

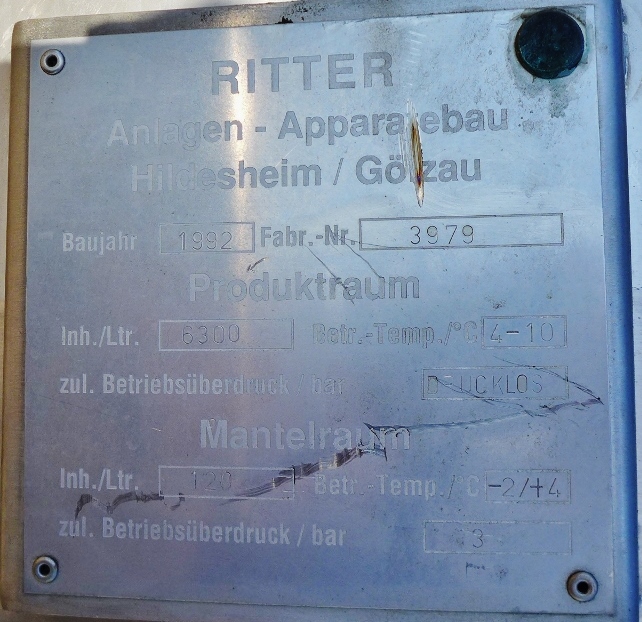

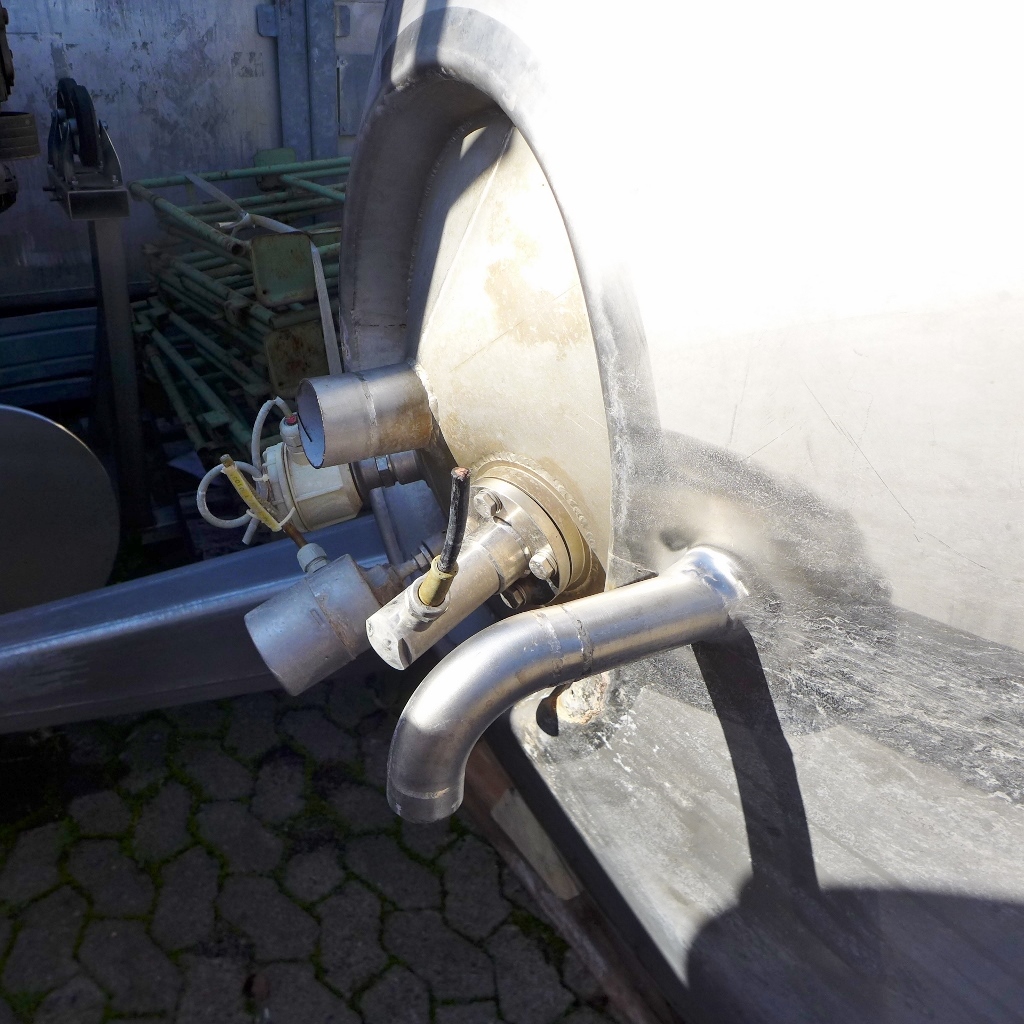

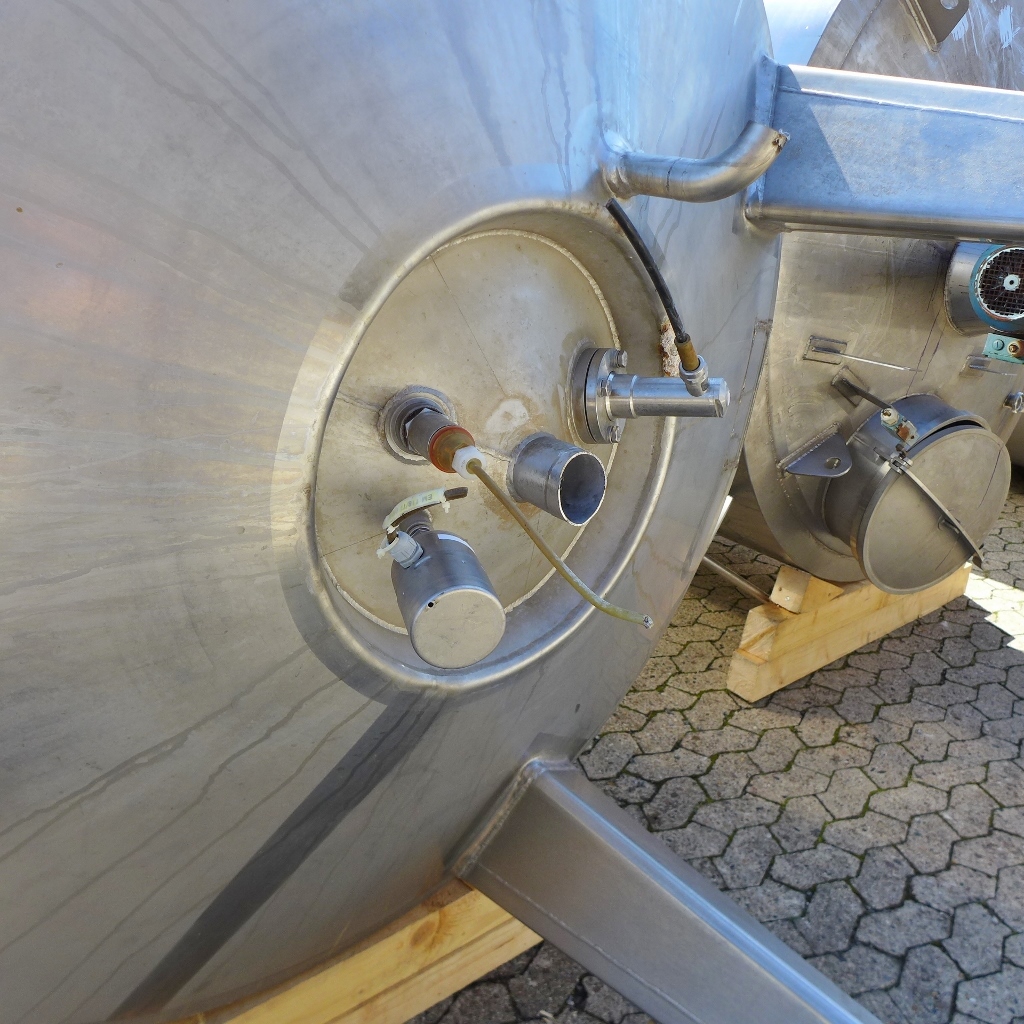

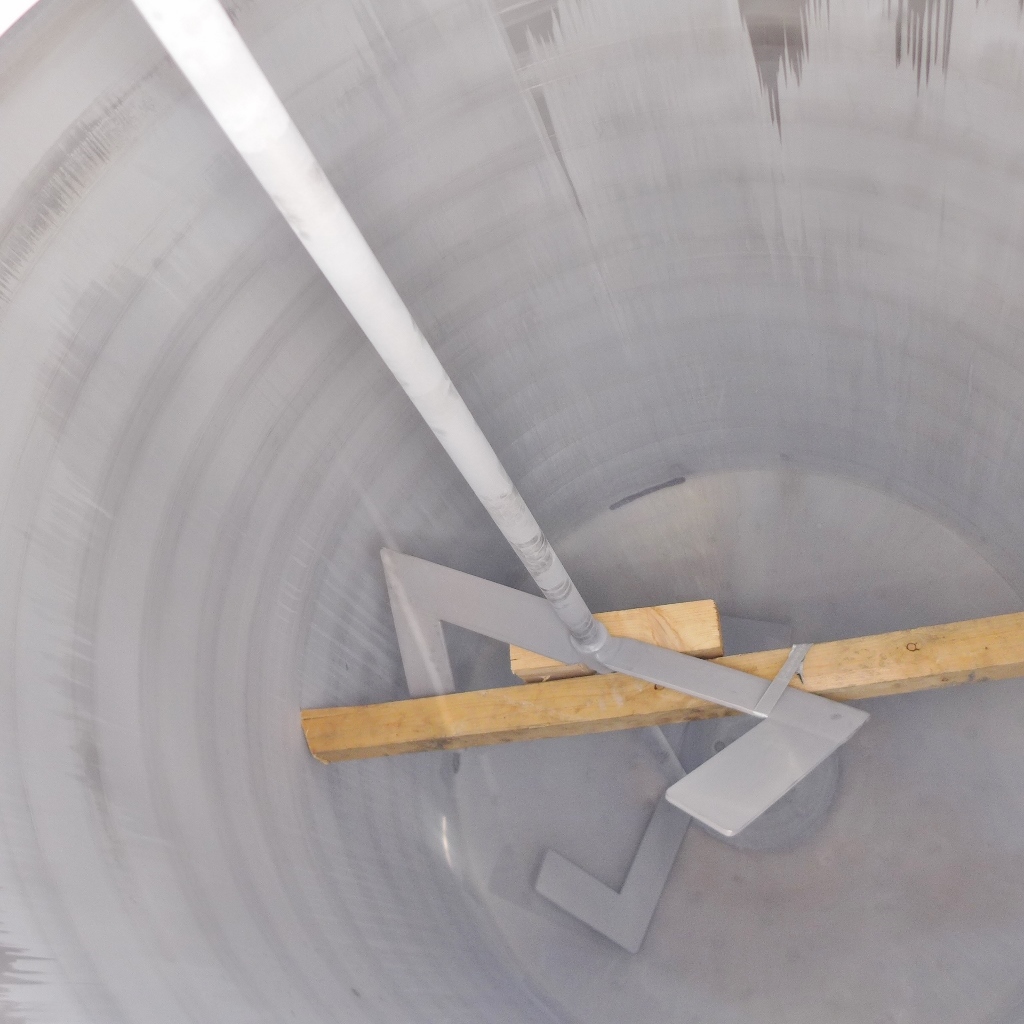

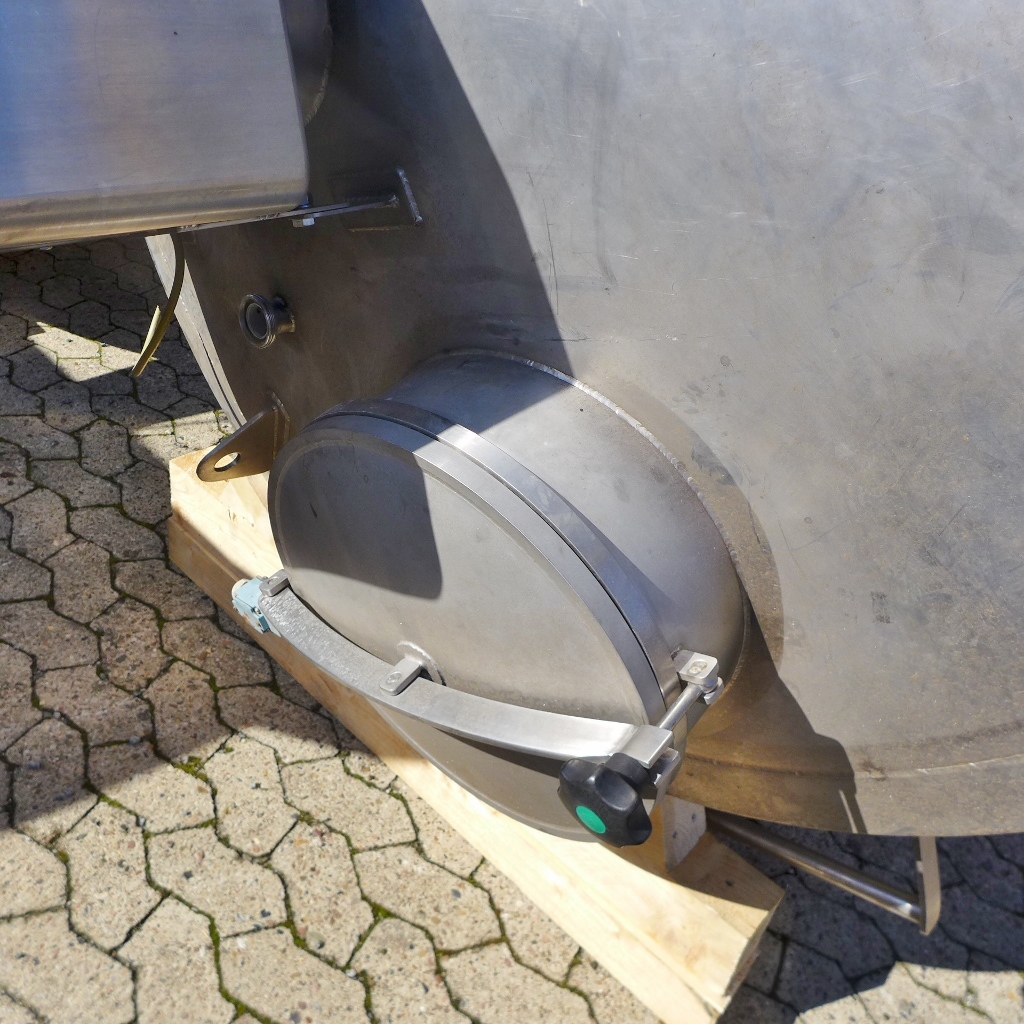

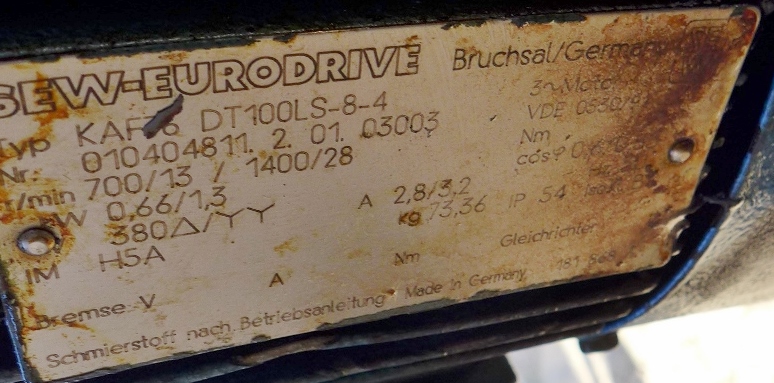

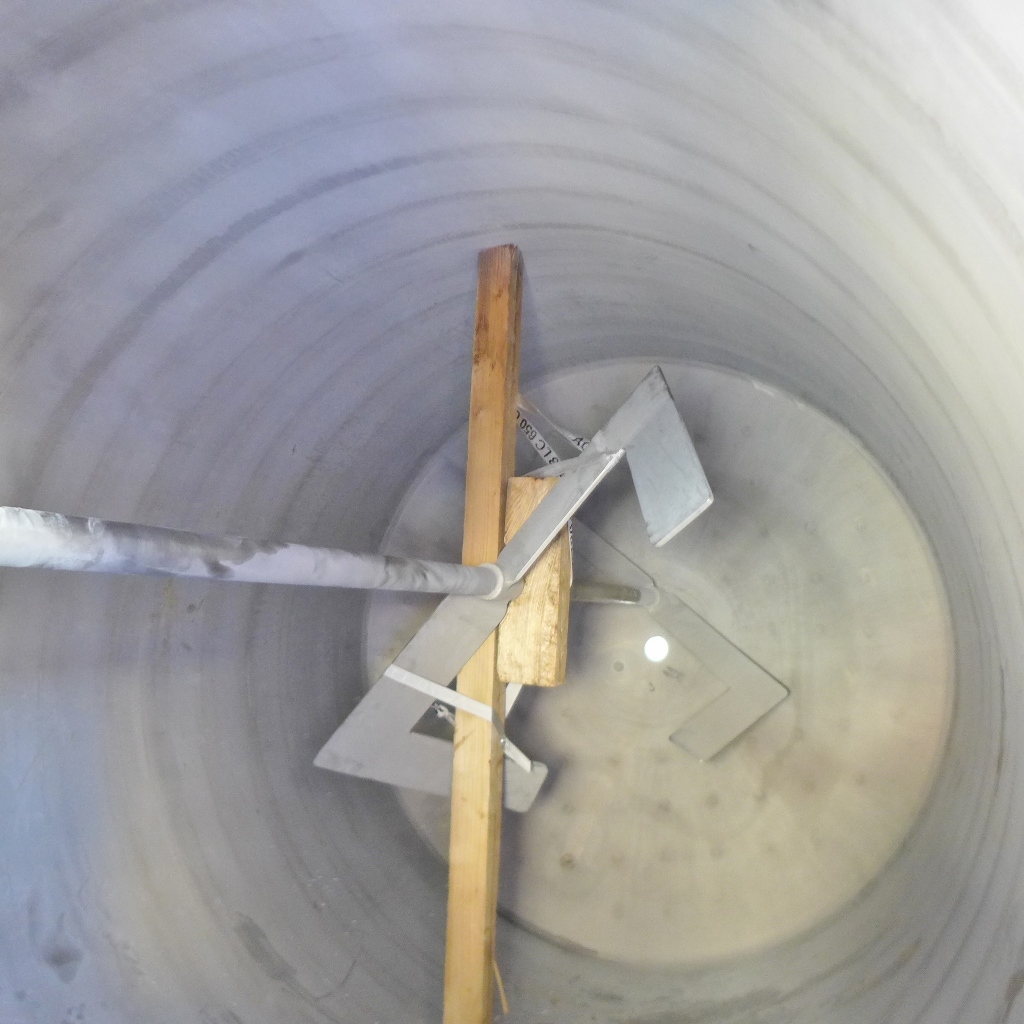

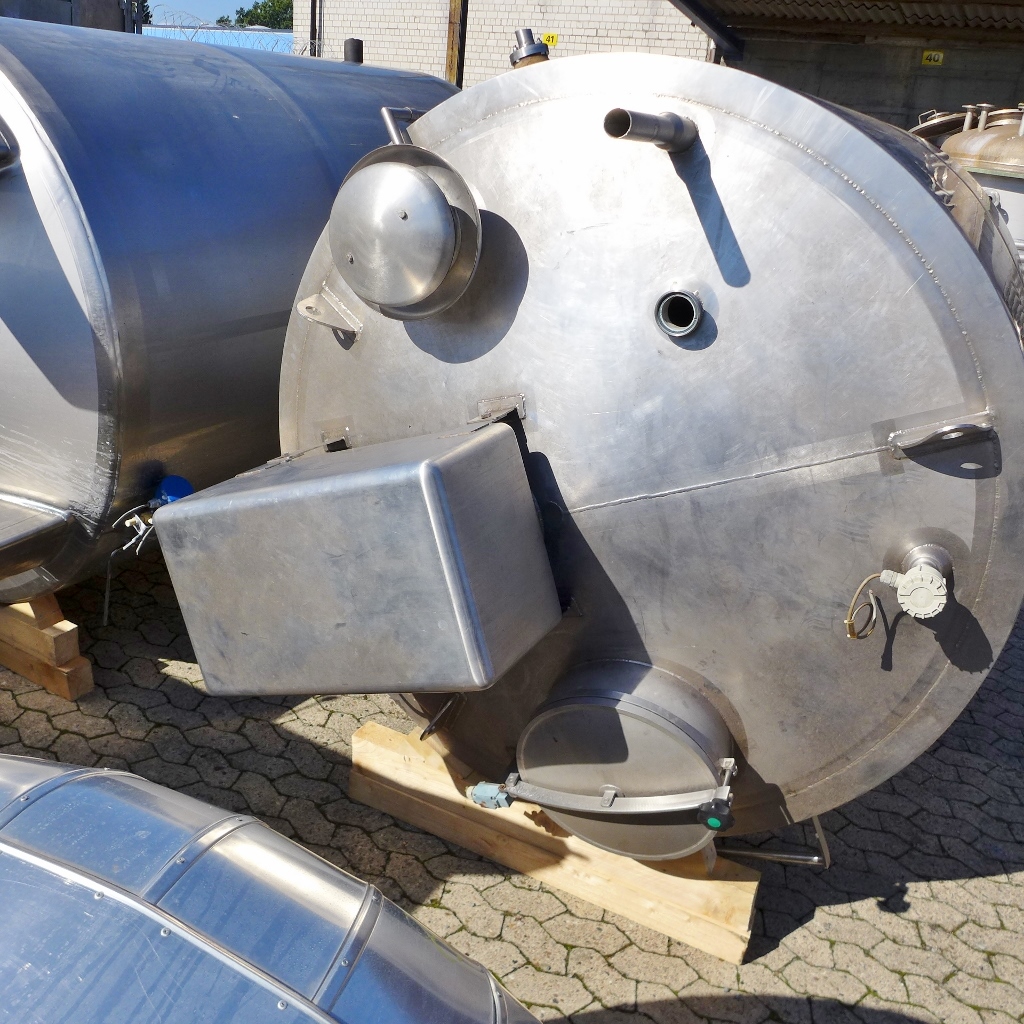

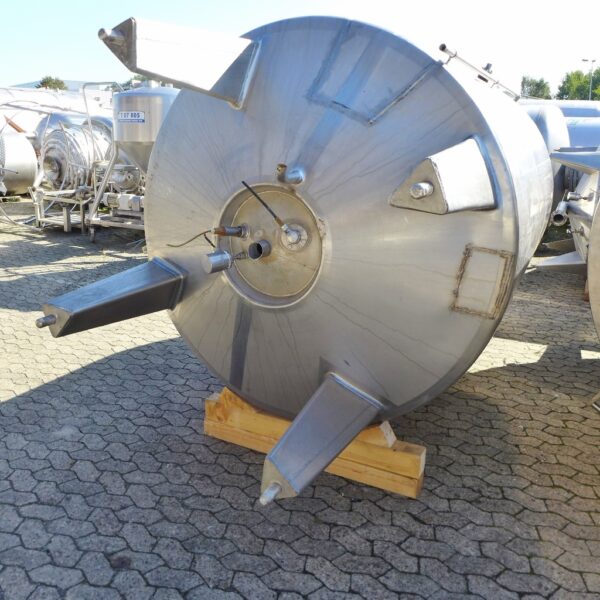

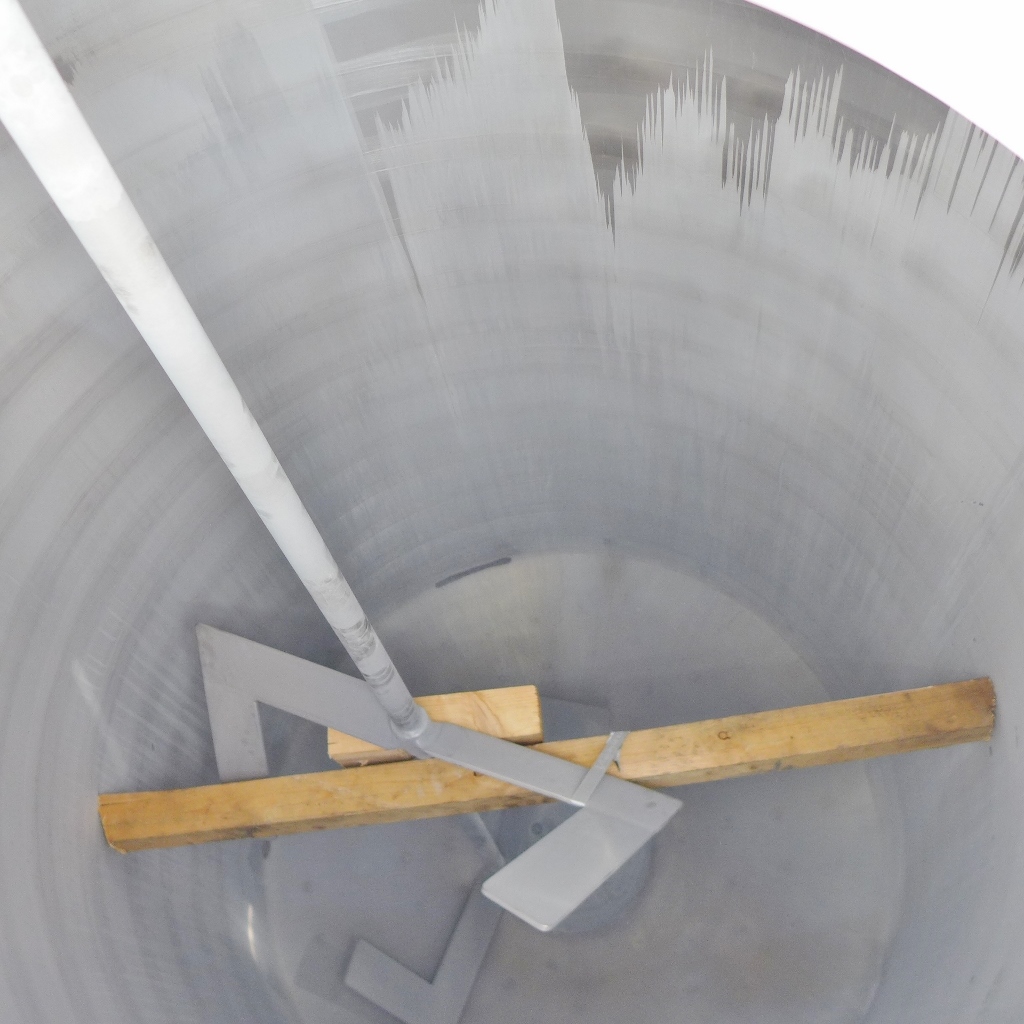

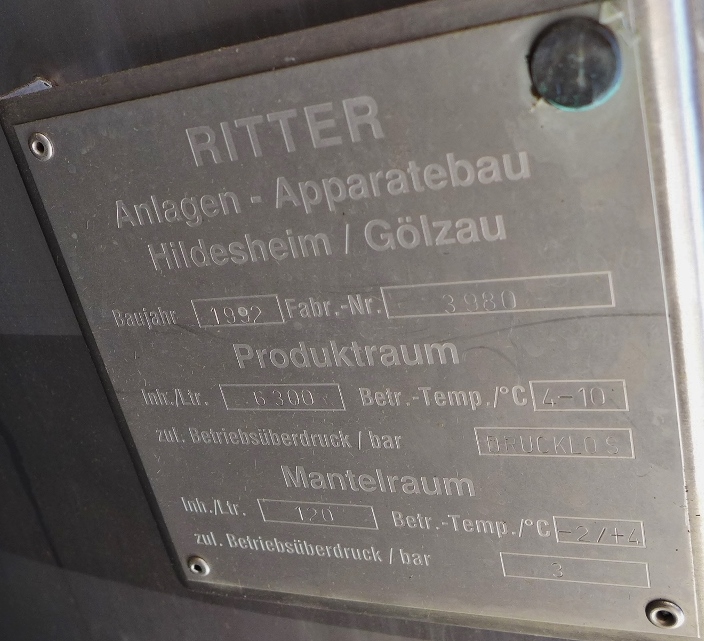

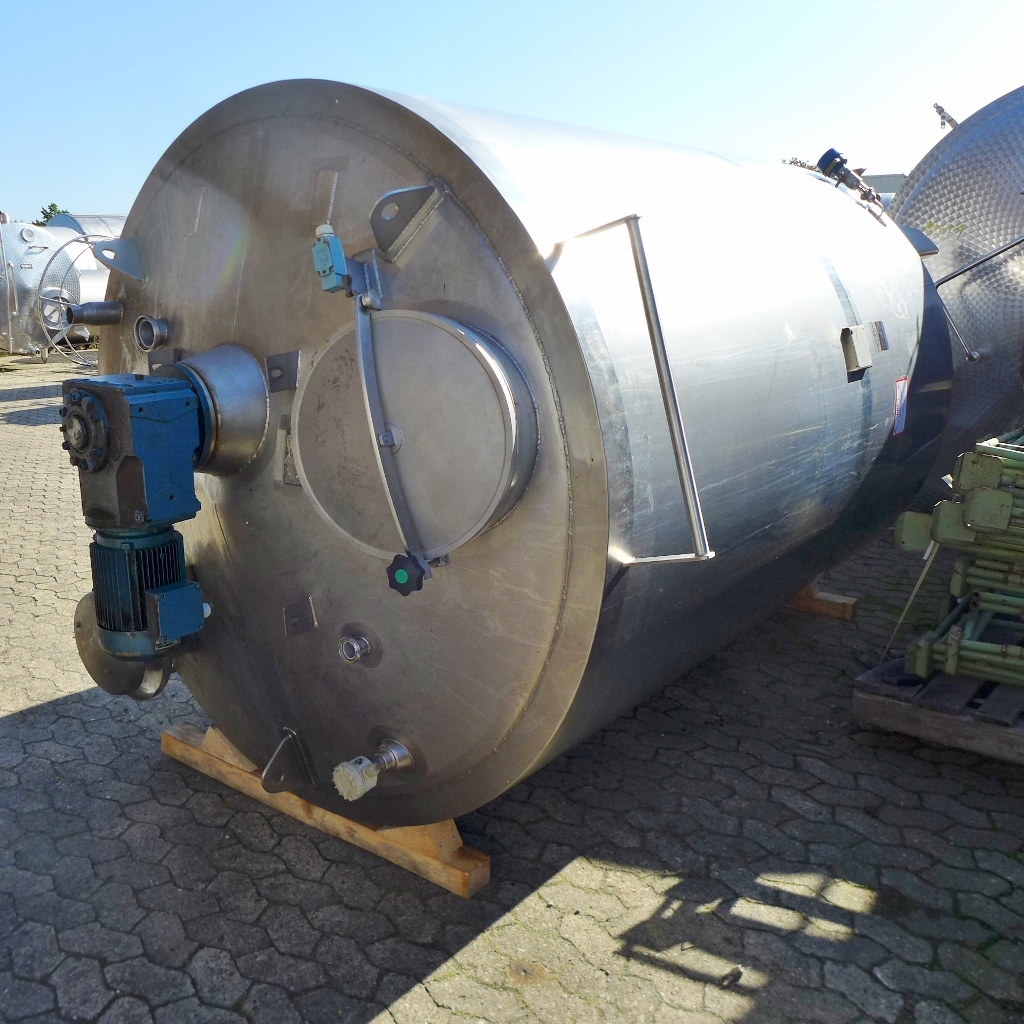

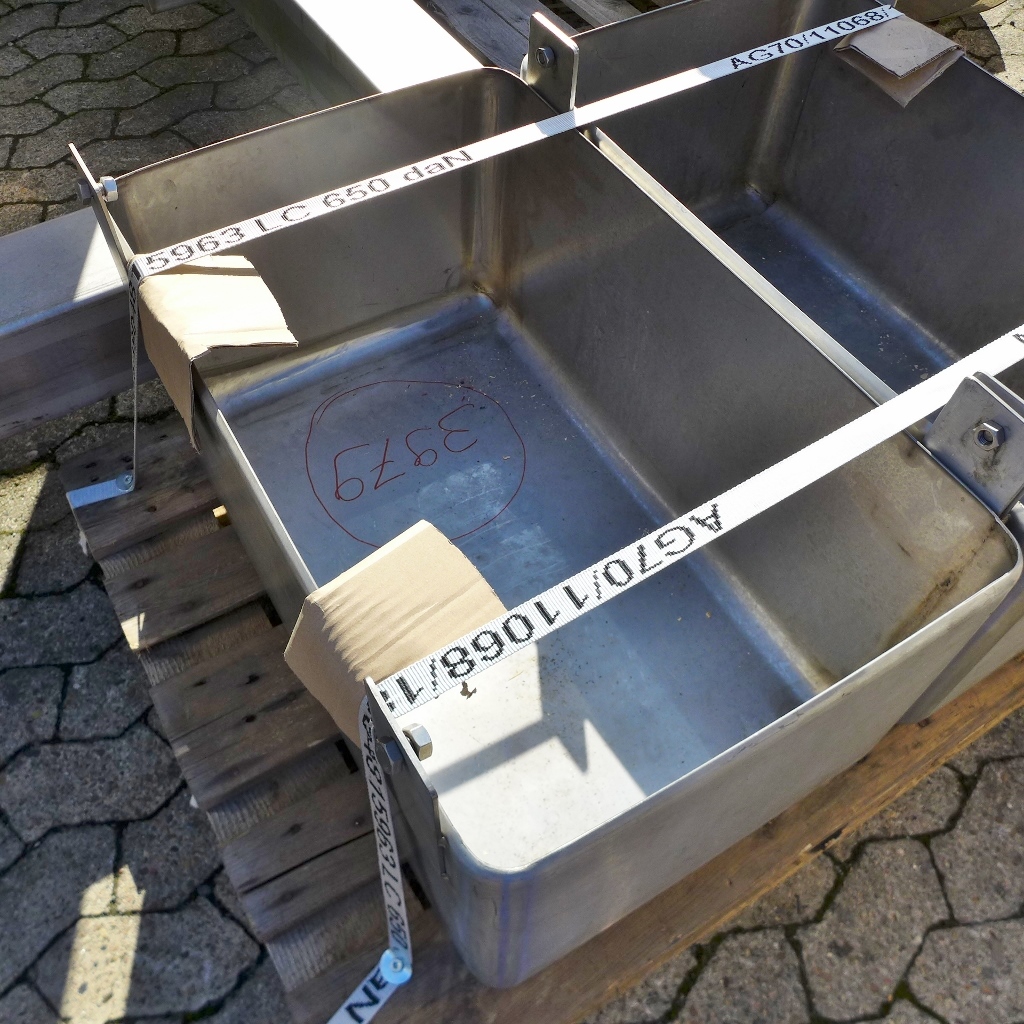

Additional information: Raw material tank in an ice cream factory; Heating connections cut off; whitish adhesions inside the tanks; In one tank, 2 sheets were welded into the insulation jacket (see photos); pipe end cut flush Volumetric volume (L): 6.300 L Pressure in tank: ATM - atmosferic Max. temperature (°C): 10 °C Material wet parts: SS AISI 304 (V2A) Model: vertical Configuration: insulated with heat-exchanger Heat exchanger: yes Insulation: yes Mobile tank: no Total discharge: yes Volume: 120 L Max Overpressure: 3 Bar Max. working temperature: 4 °C Type HE on the cylinder: half pipe welded onto the outside of the innertank Documents included: no Technical drawing included: no Registration plate on the tank: yes Flange for agitator: no Position of manway: in the bottom Outlet of tank: 65 Agitator: yes Number of revolutions: 13 / 28 Power: 0.66 / 1.3 Internal diameter tank: 1.750 mm Outer diameter tank: 1.880 mm Cylinder height: 2.500 mm Total height of tank: 4.150 mm
